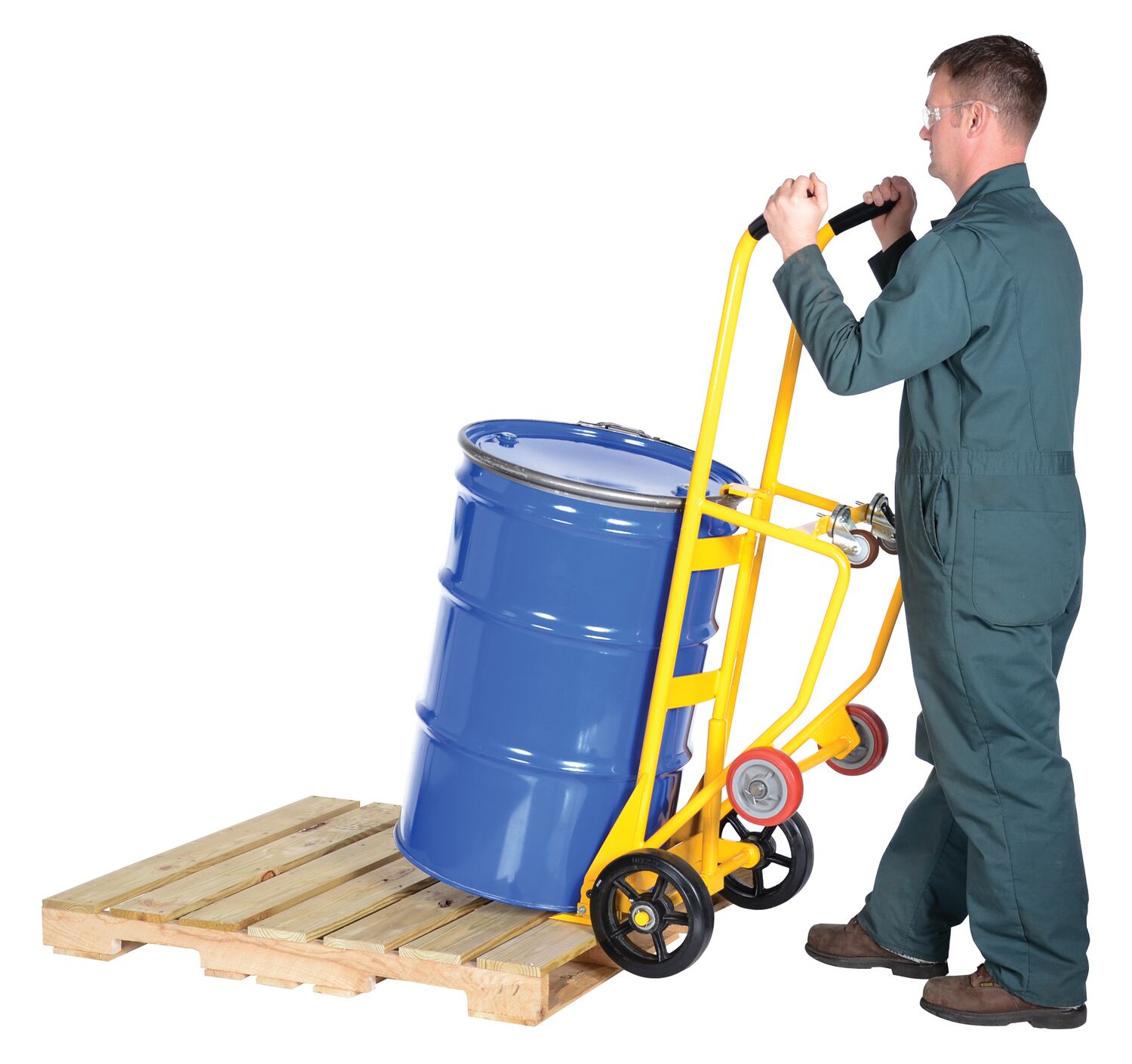

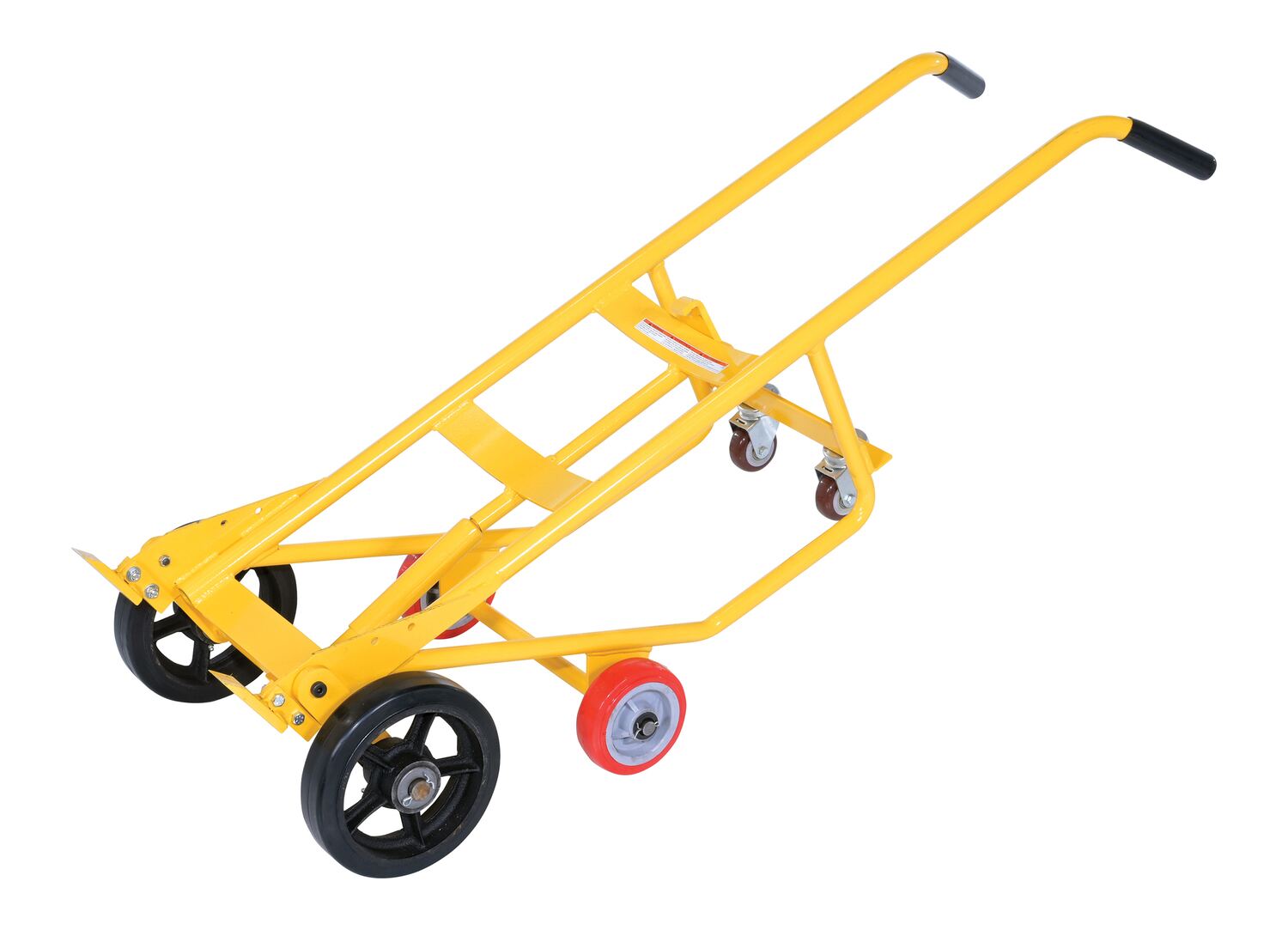

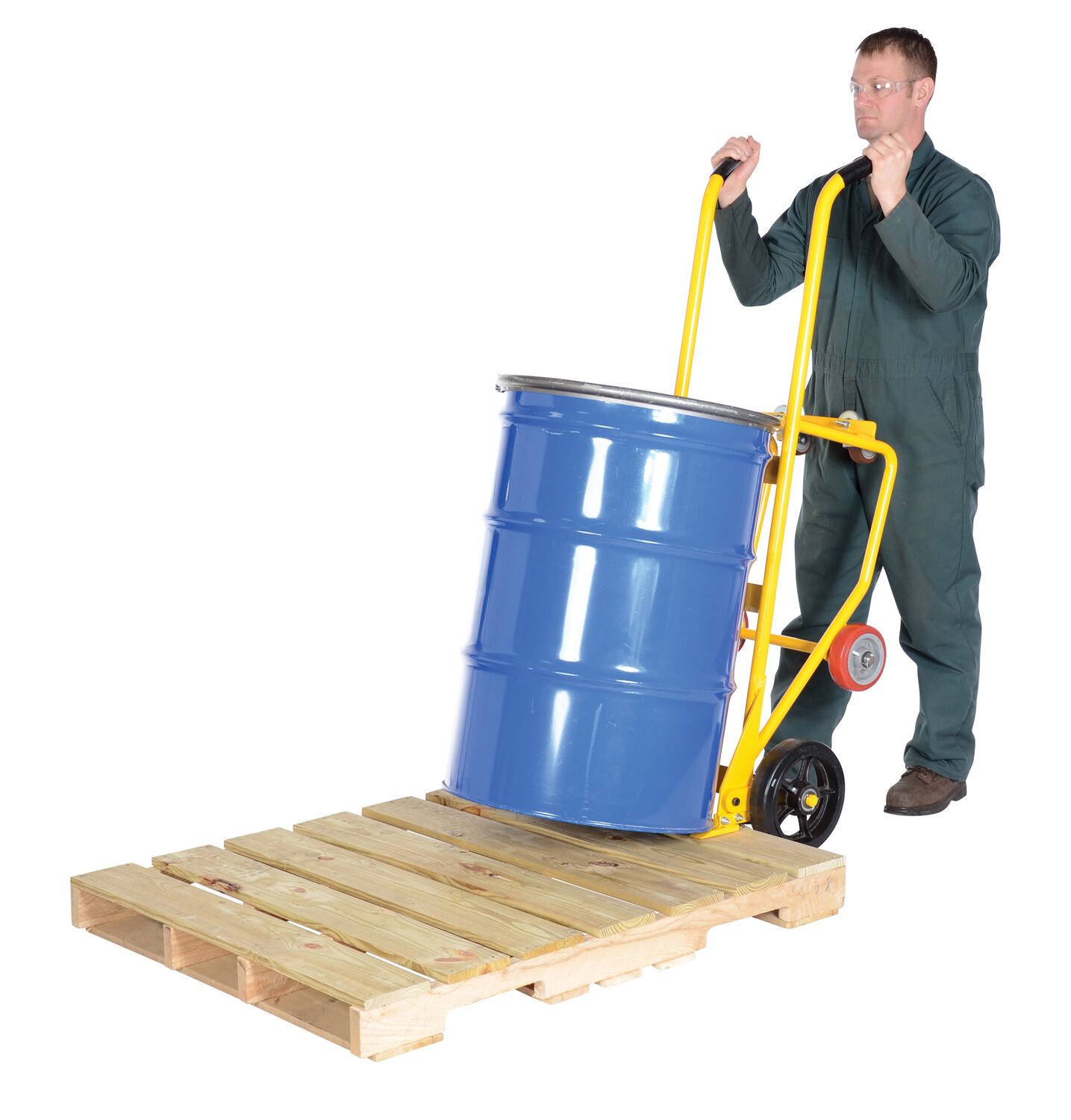

Multi-Purpose Drum Trucks/CradlesOne of the most versatile drum trucks in the industry. This innovative product allows the operator to easily tip back the truck in order to transport drums ergonomically on four wheels. Unit doubles as a drum cradle for storage and dispensing all in one. Top angle is 3 degrees when used as a Drum Cradle. This unique design also allows the operator to place drums and retrieve off of a pallet. Accommodates 55-gallon steel, plastic, or fiber drums. Rolls smoothly on a variety of (2) 10" x 2-1/2" wheel types (see table below), (2) 6" x 2" poly-on-poly wheels, and (2) 3" x 1-1/4" poly-on-poly swivel casters. Standard with a wheeled undercarriage that positions the drum horizontally for drainage or storage. The drain height is 12-13/16" high in the cradle position. An integral self-storing bung wrench is standard. This attractive feature not only opens numerous drums, but helps to keep the drum snug on the truck. A yellow baked in powder coat finish for added toughness. Optional drip pan available.

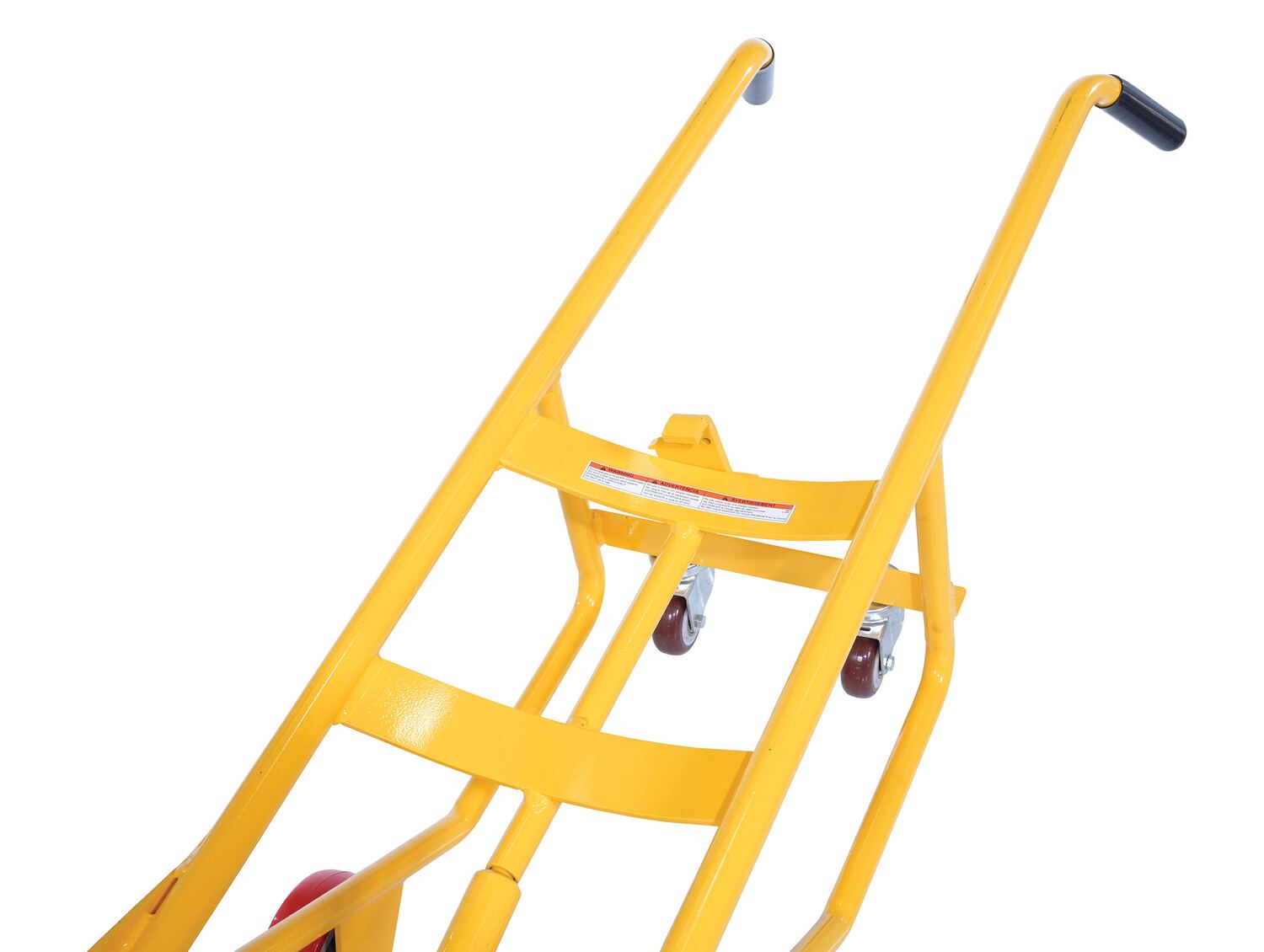

- Extended height handle for better posture

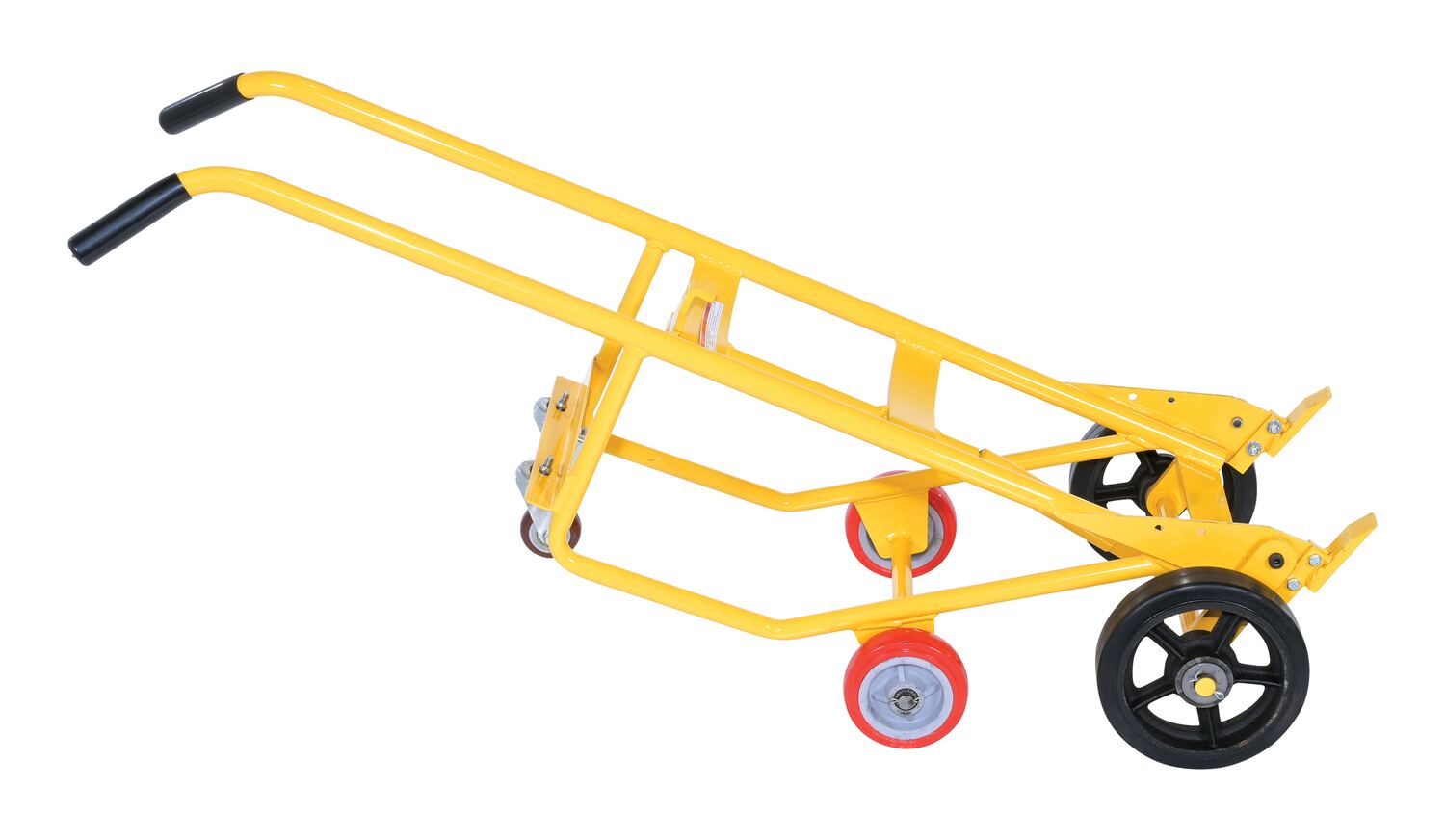

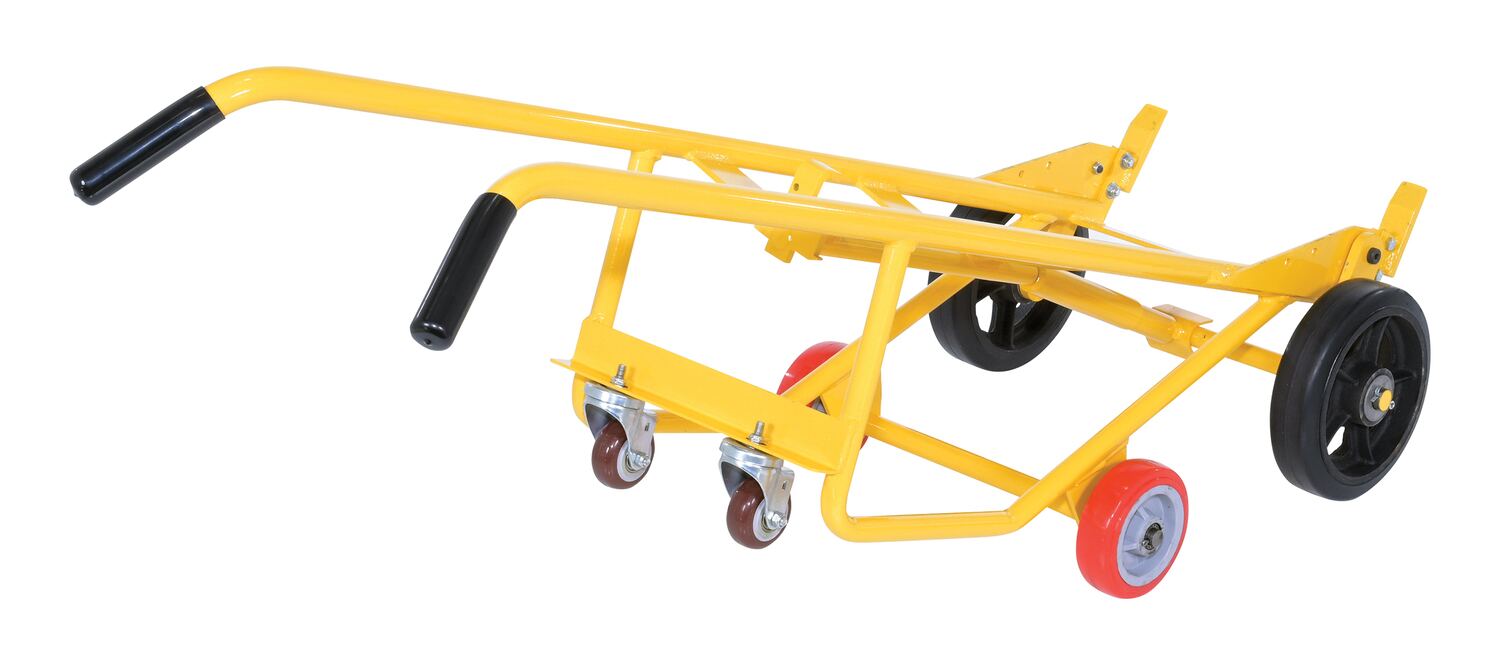

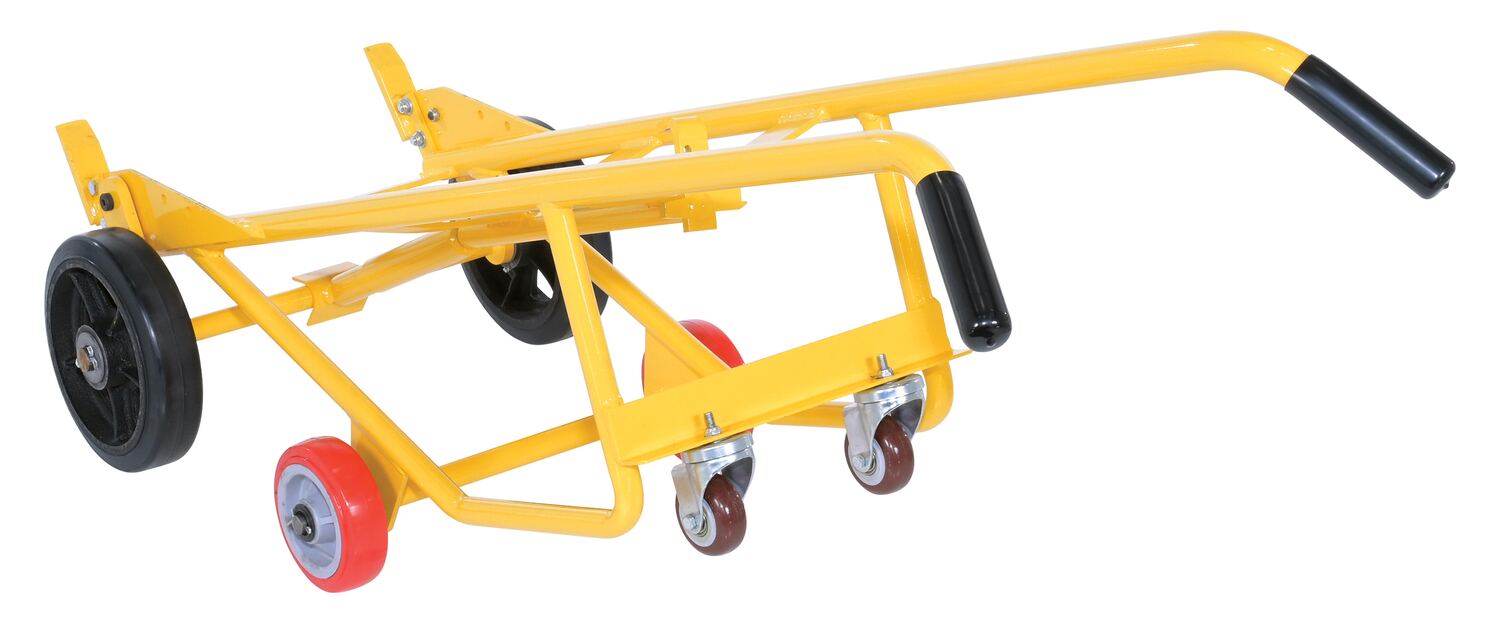

- Rolling casters when in horizontal position
- Extended foot and top security points
- Ability to transfer a variety of drum materials
Economical Drum Transporters
Manual Drum Carrier/Rotator
Stainless Steel Drum Lifter/Transporter
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

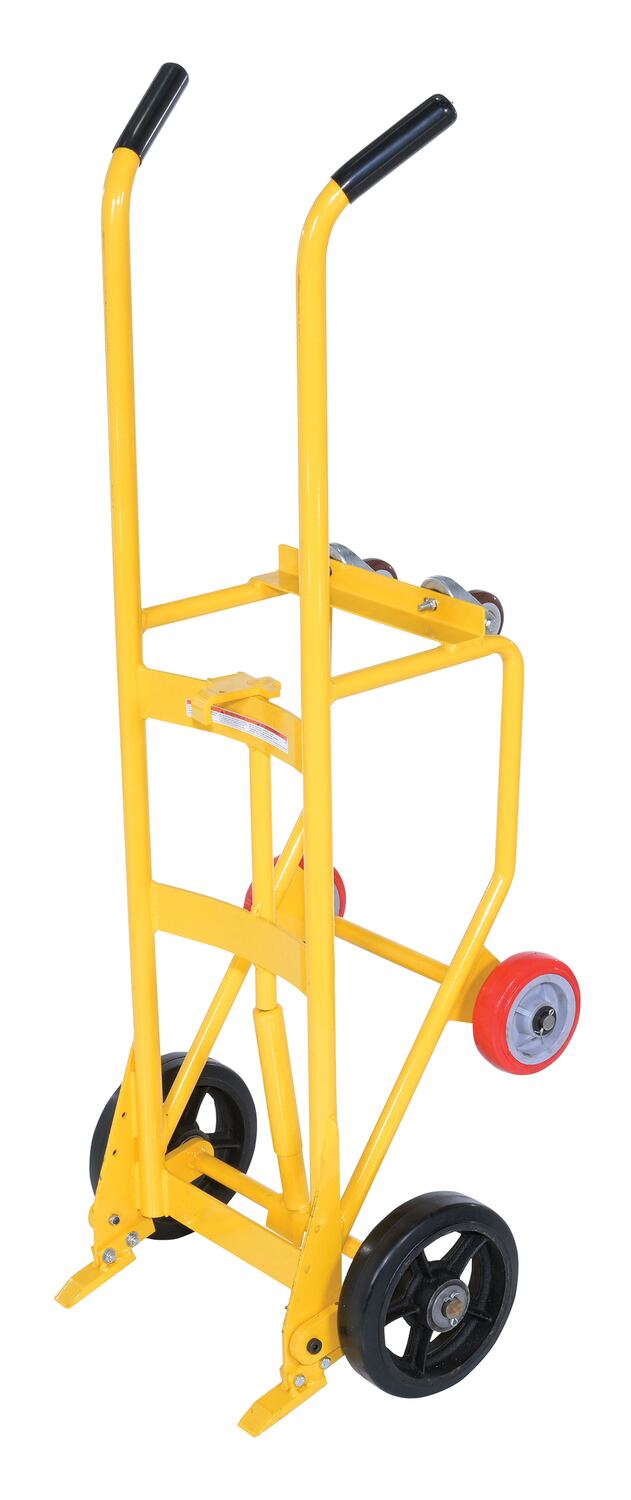

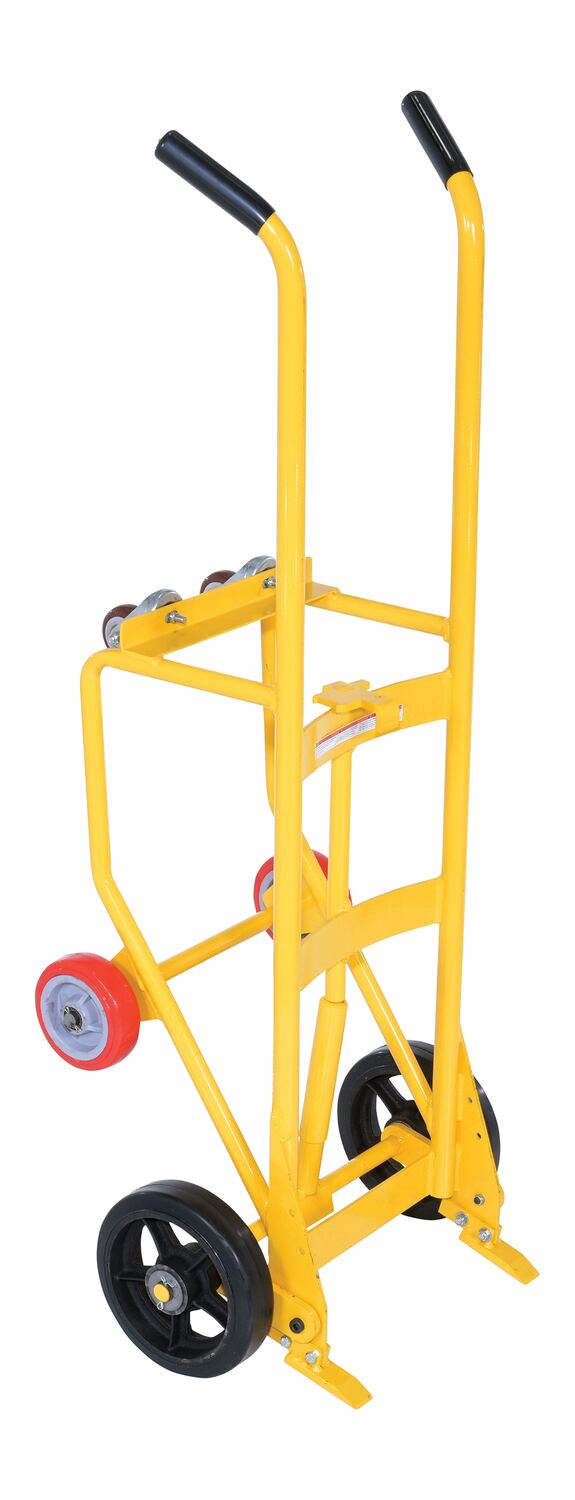

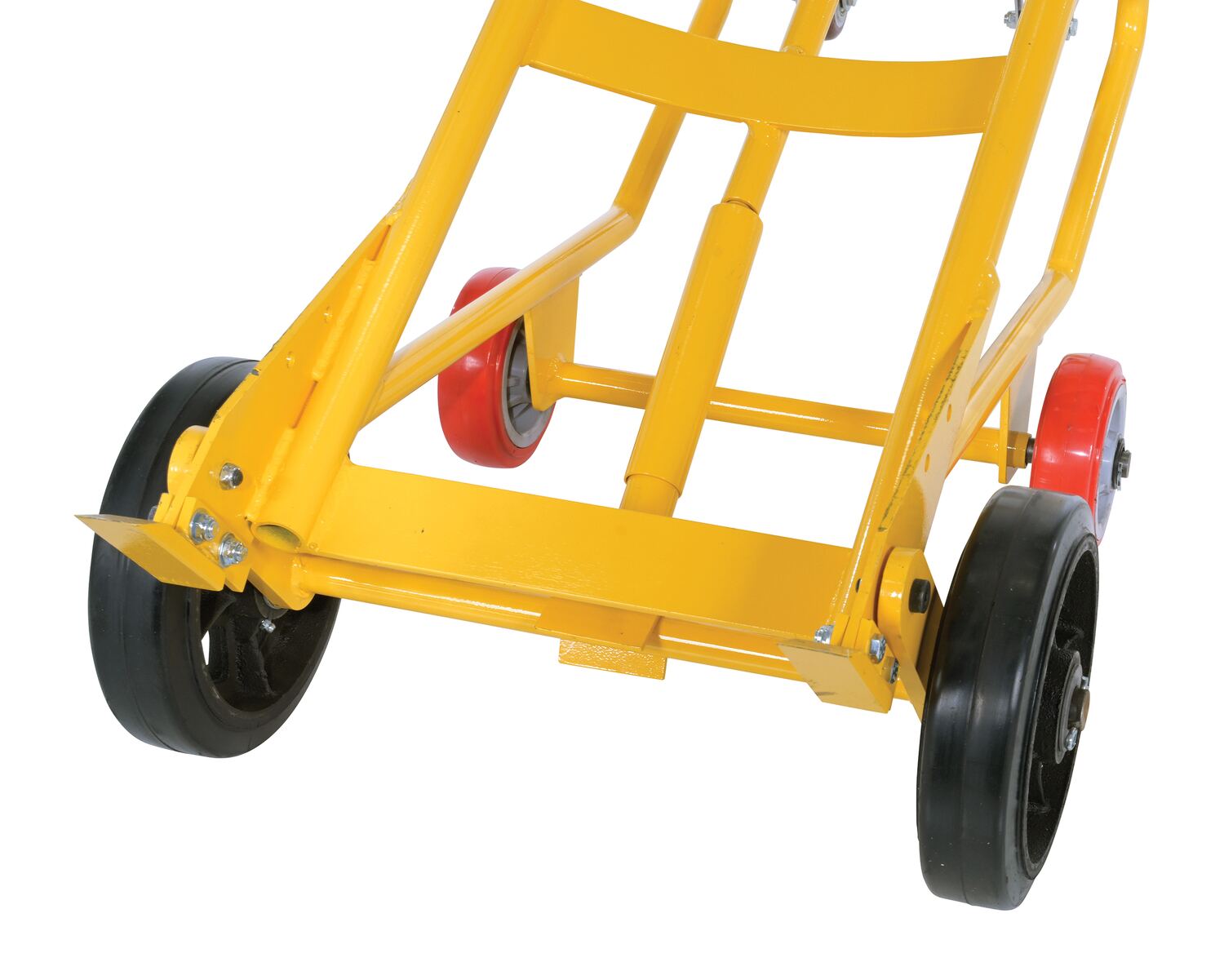

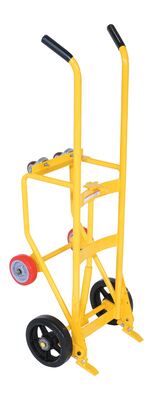

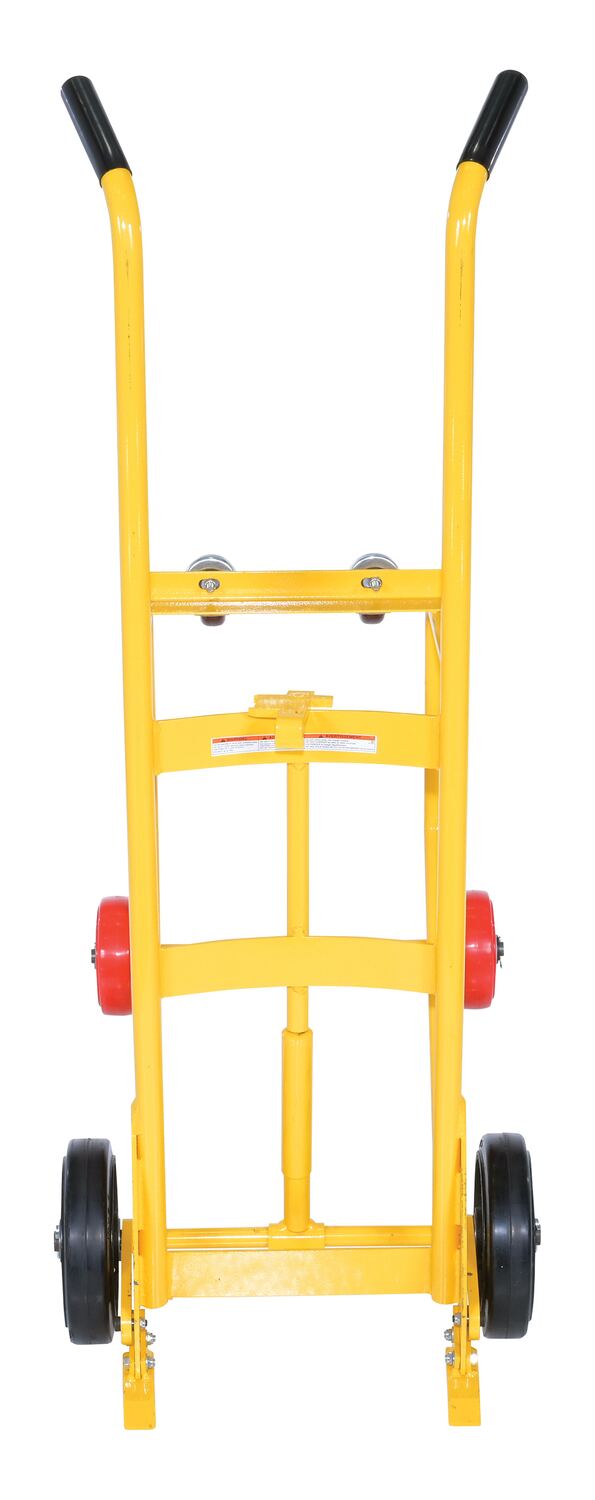

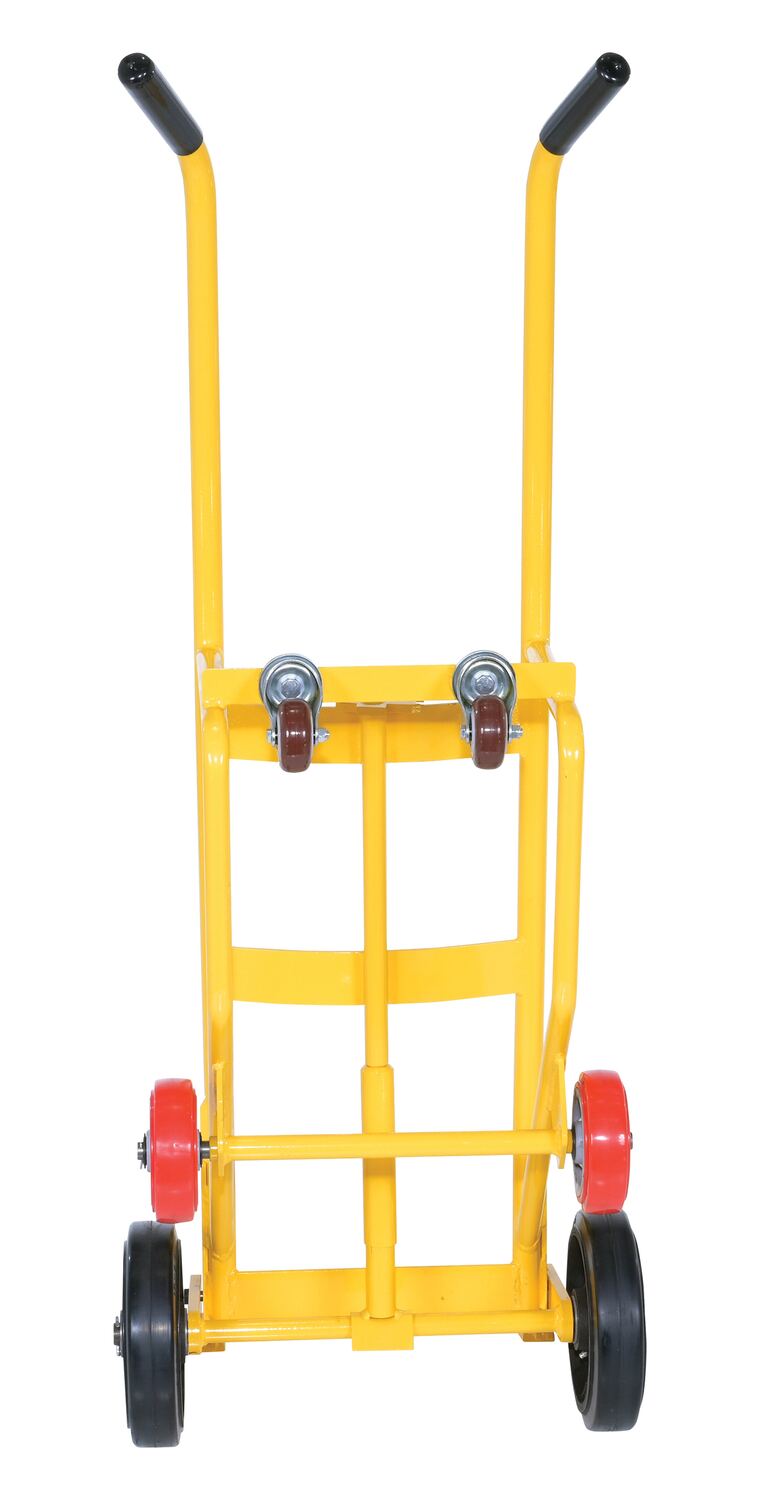

| RDBT-MR |  | 90 Days Limited Warranty | Steel Drum Truck Cradle With Mold On Rubber Wheel 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity Yellow | Uniform Capacity (lb.): 1,000 Mold-on-Rubber Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2 | 124 | ||

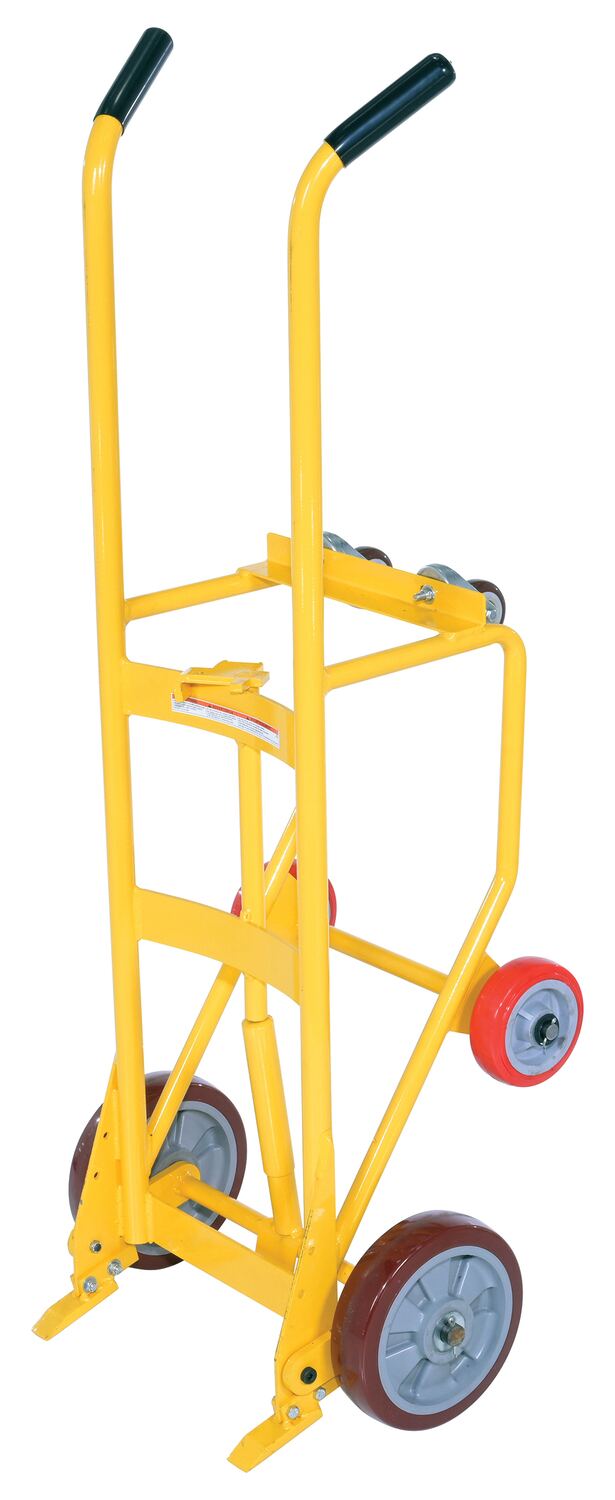

| RDBT-PO |  | 90 Days Limited Warranty | Steel Drum Truck Cradle With Poly On Poly 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity Yellow | Uniform Capacity (lb.): 1,000 Poly on Poly: (2) 10 x 2-1/2 | 124 | ||

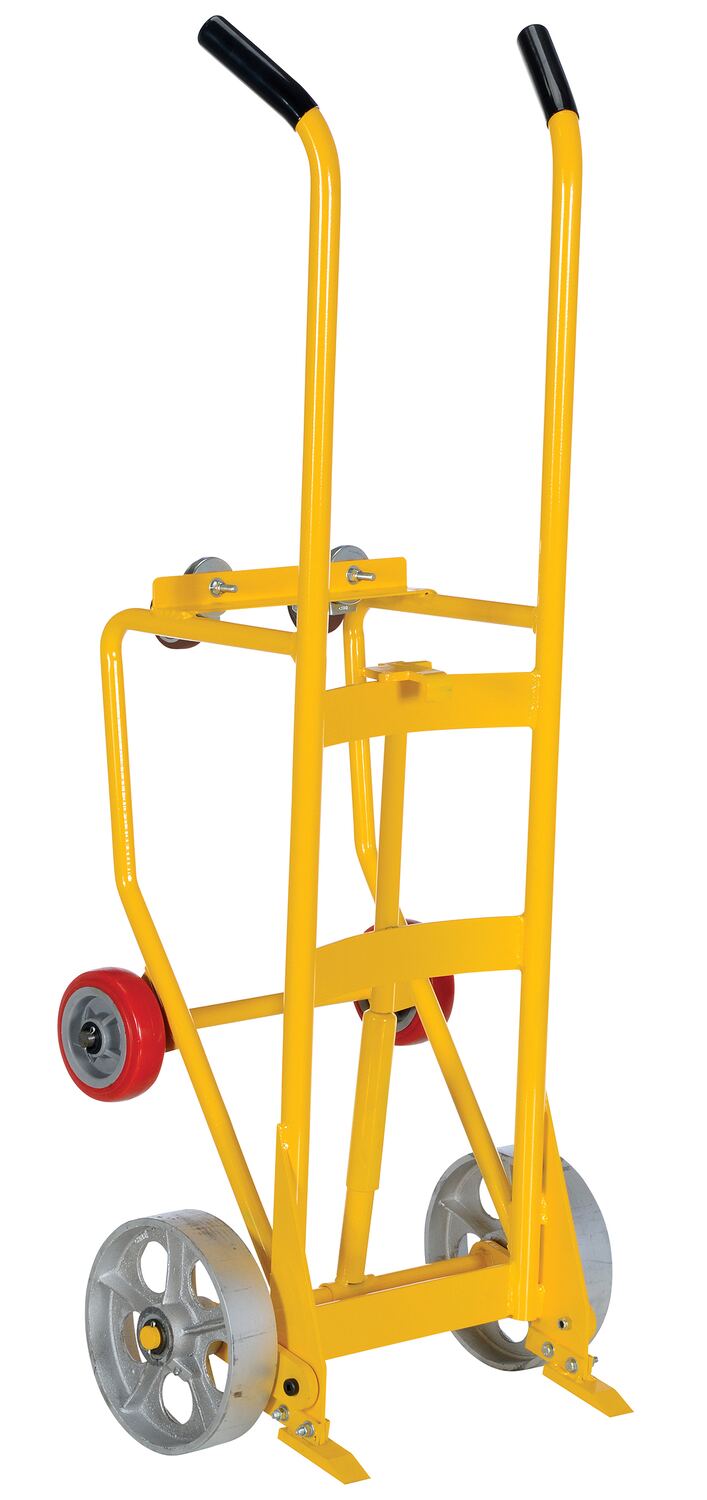

| RDBT-SS |  | 90 Days Limited Warranty | Steel Drum Truck Cradle With Semi-Steel Wheels 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity Yellow | Uniform Capacity (lb.): 1,000 Semi-Steel Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2 | 134 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000

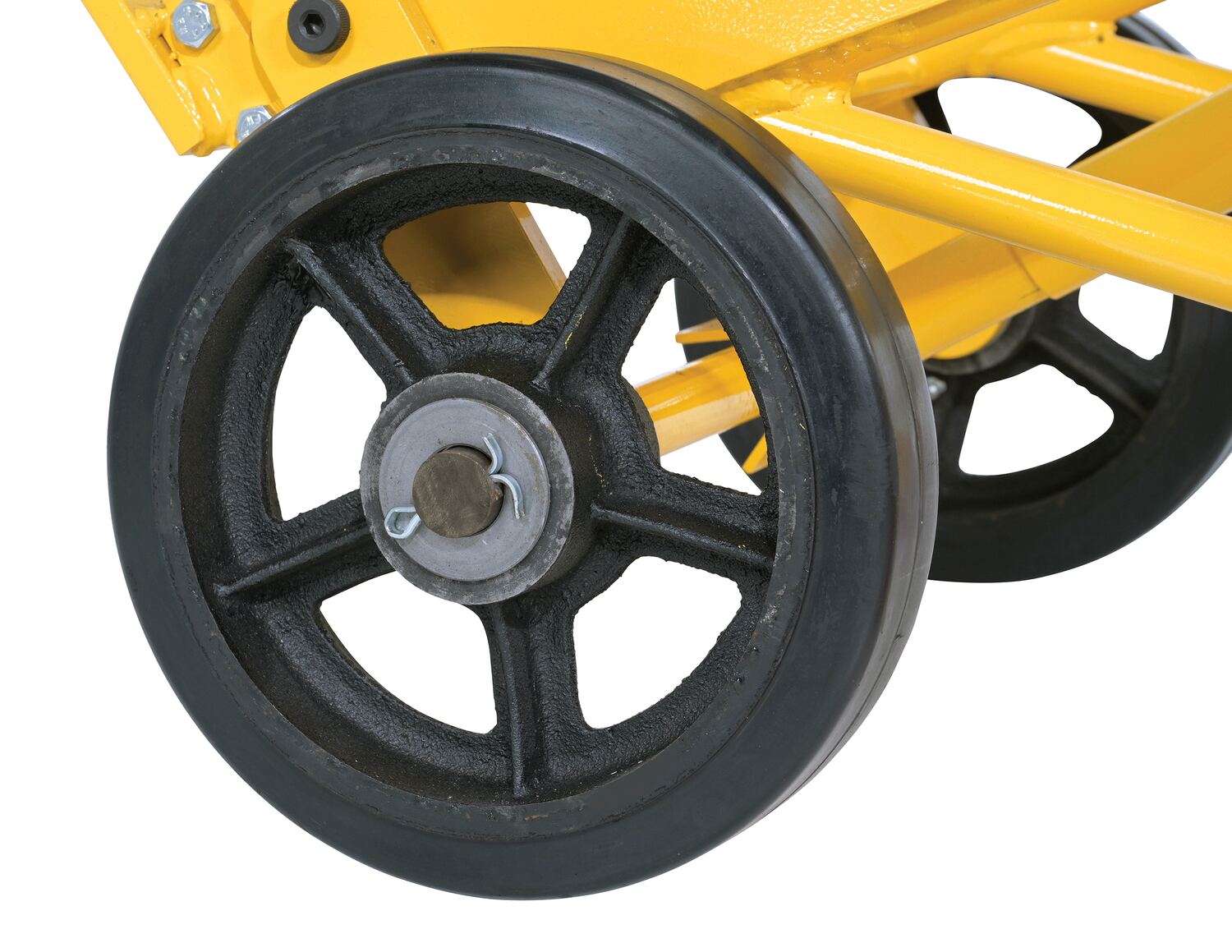

Mold-on-Rubber Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
Uniform Capacity (lb.): 1,000
Mold-on-Rubber Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Poly on Poly: (2) 10 x 2-1/2
Uniform Capacity (lb.): 1,000
Poly on Poly: (2) 10 x 2-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Semi-Steel Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
Uniform Capacity (lb.): 1,000
Semi-Steel Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
For More Details of the Option Click the Red Model Button

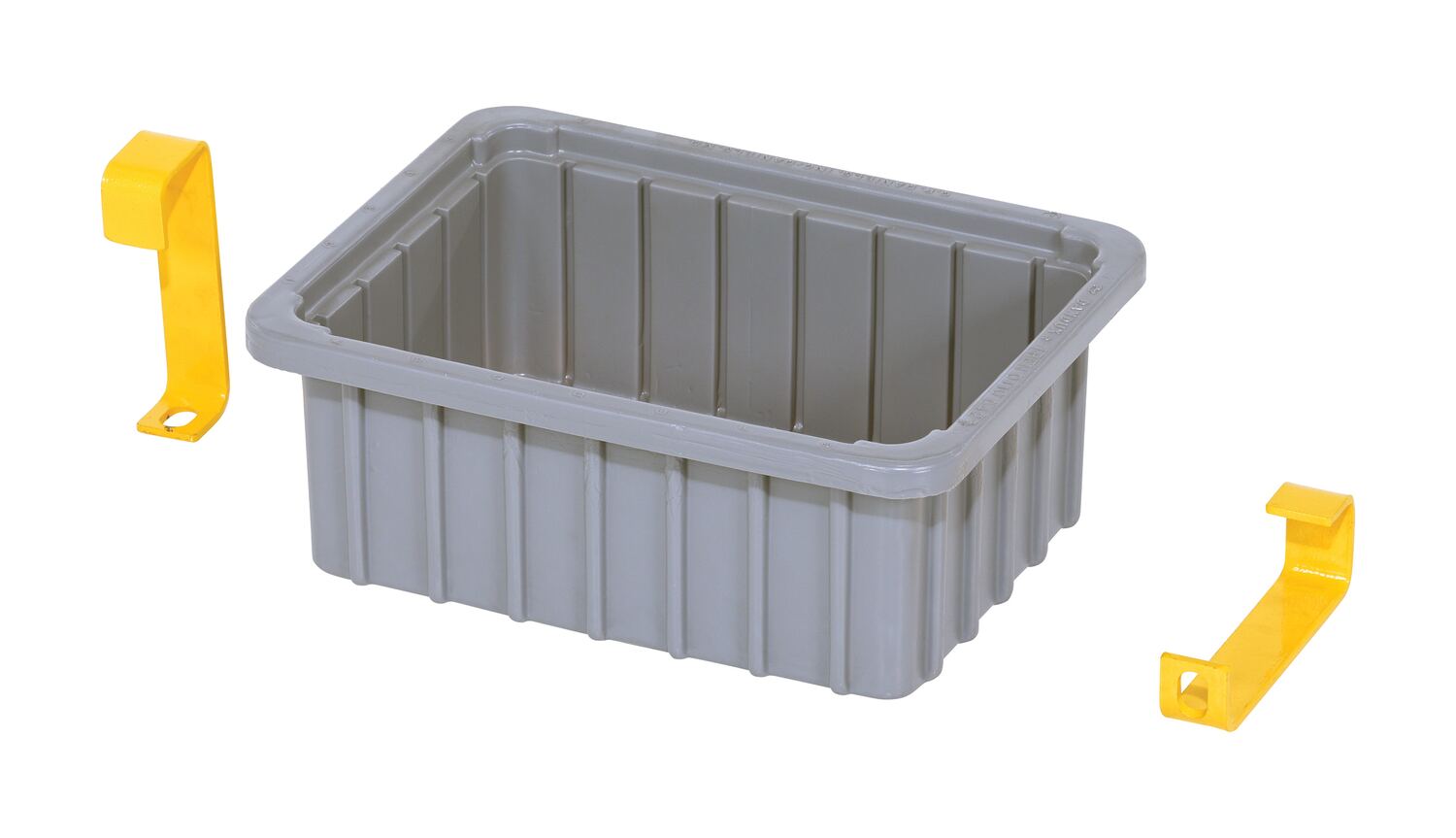

| RDBT-PAN |  | 30 Days Limited Warranty | Plastic Drip Pan With Brackets For Multi-Purpose Drum Truck/Cradle Gray | Uniform Capacity (gal.): 1 Inside Length (in.): 8-7/8 | 3 |
.
