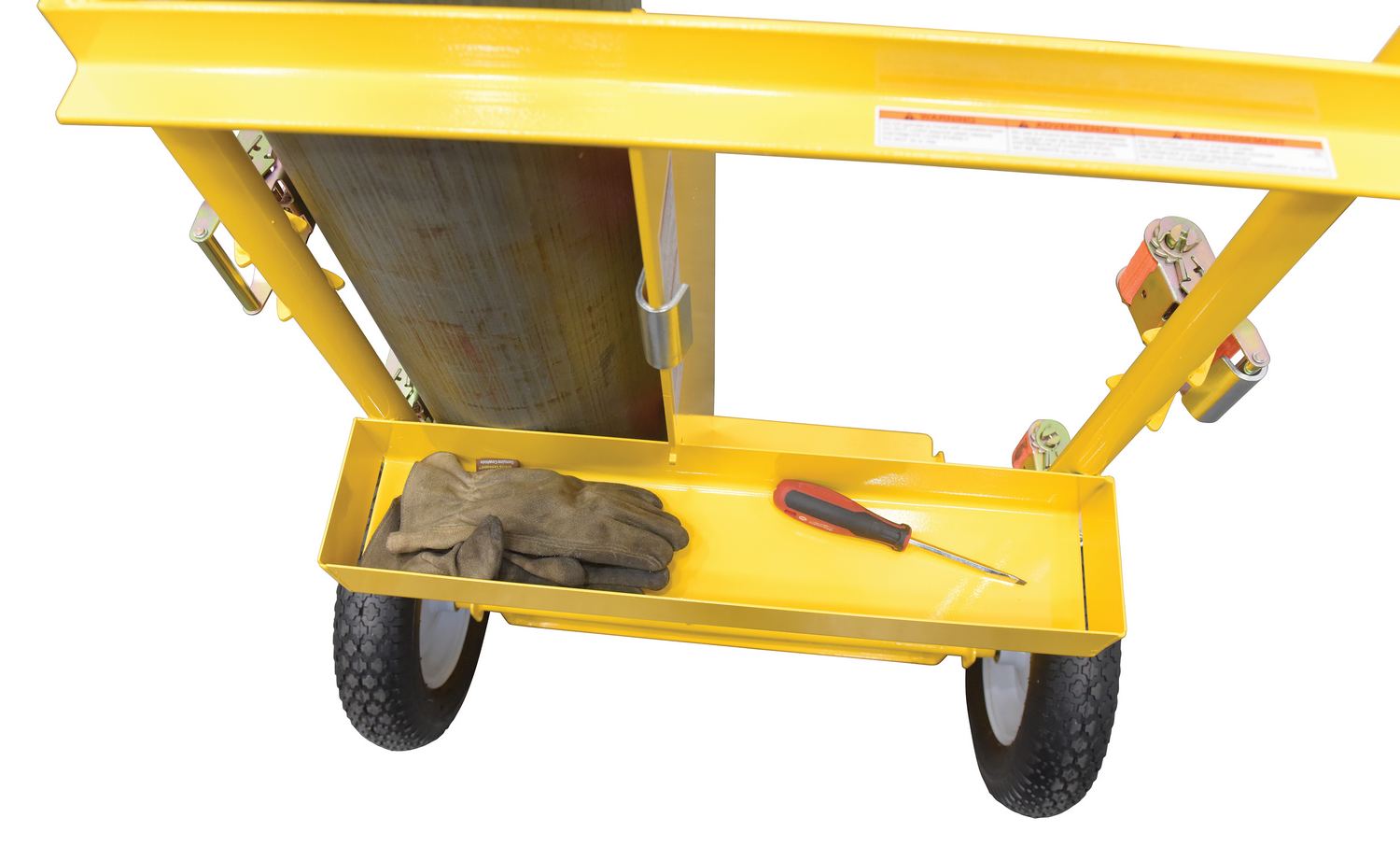

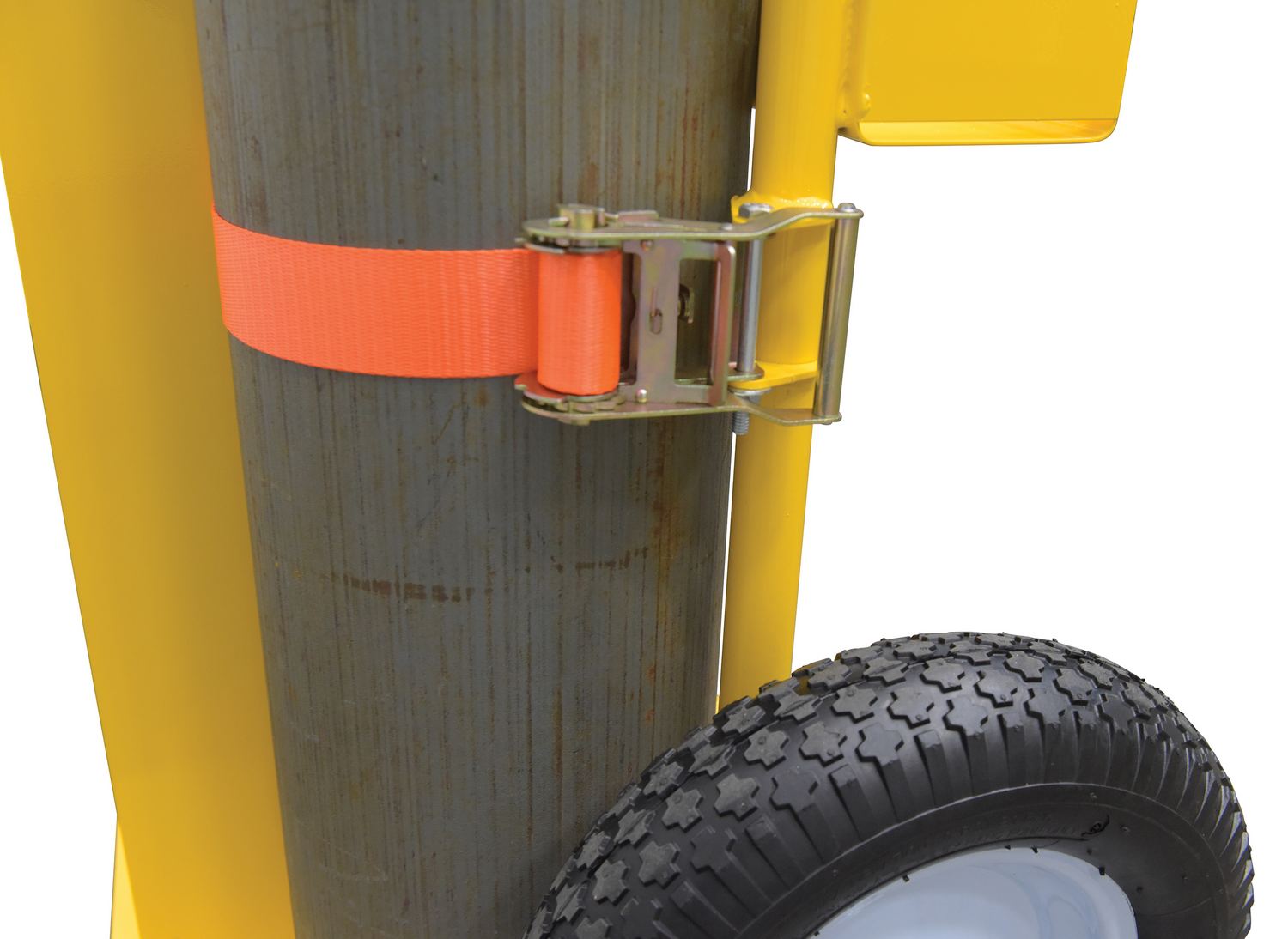

Welding Cylinder Torch CartsDesigned for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Brackets are included for holding cutting torch and hose. Sturdy handles and large 16" diameter wheels for tilt-n-go portability. Heavy-duty uniform capacity rating is 500 pounds. Convenient open-top storage tray included on CYL-E series carts only. CYL-2 models include lockable storage box for regulators. Box includes hose opening so regulator does not need to be disconnected for storage. Lifting eye is 2" maximum diameter, material thickness is 7/16". Fork pockets for transportation is included on CYL-2 models. Usable size of each fork pocket is 7-1/2"W x 2-9/16"H. Units with fire protection include 1/2" (approximately 13mm) marinite 1 material, which provides a 30 minute fire protection barrier as described by OSHA standards 1910.253 and 1926.350. Welded steel construction with a baked-in powder coated finish for toughness. Not designed for use as a storage means for gas cylinders.
Models CYL-2-G & CYL-2-FF-G feature a hot dipped galvanized finish.
Cylinder Bracket Stands
Magnetic Cylinder Hand Truck
Portable Cylinder Lifters
LP Tank Lifter
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

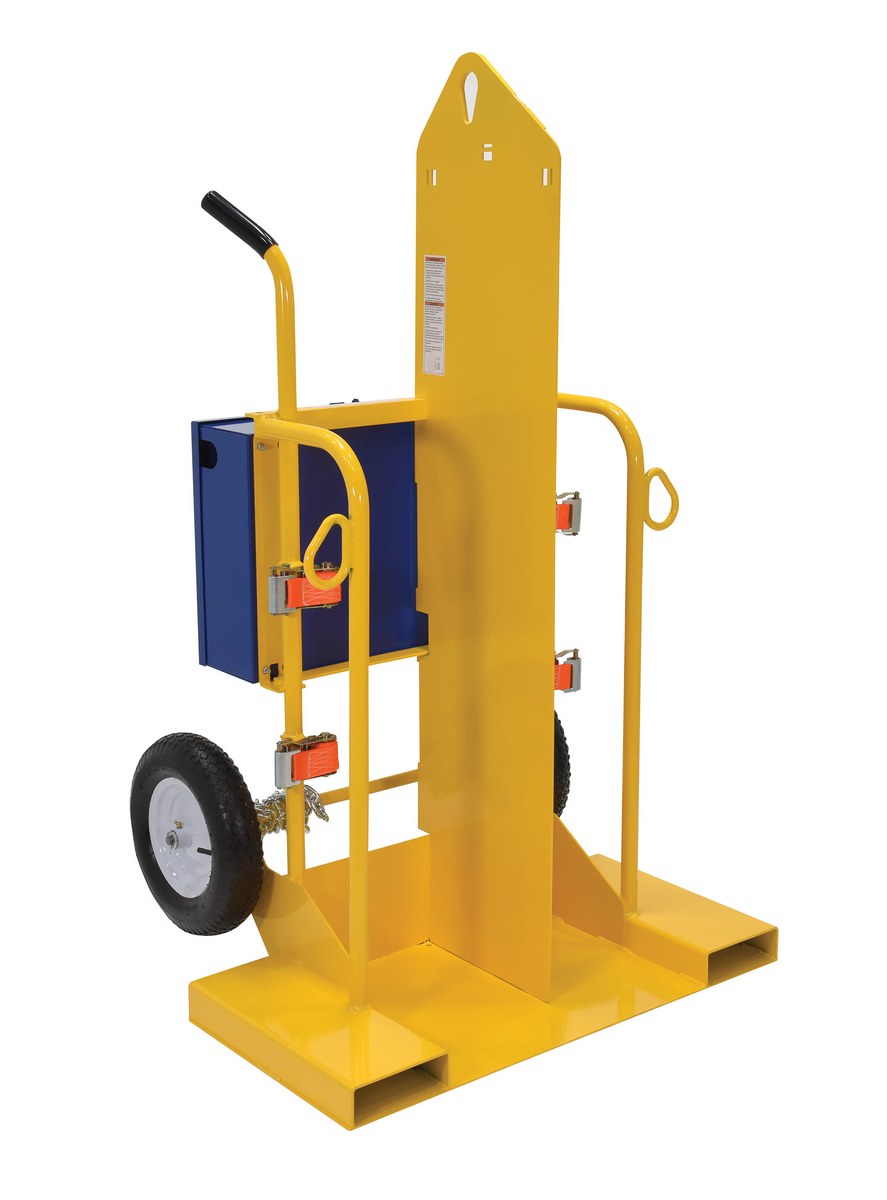

| CYL-2 |  | 90 Days Limited Warranty | Steel Welding Cylinder Torch Cart 34-9/16 In. x 40-1/4 In. x 66-3/8 In. 500 lb. Capacity Yellow | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 282 | ||

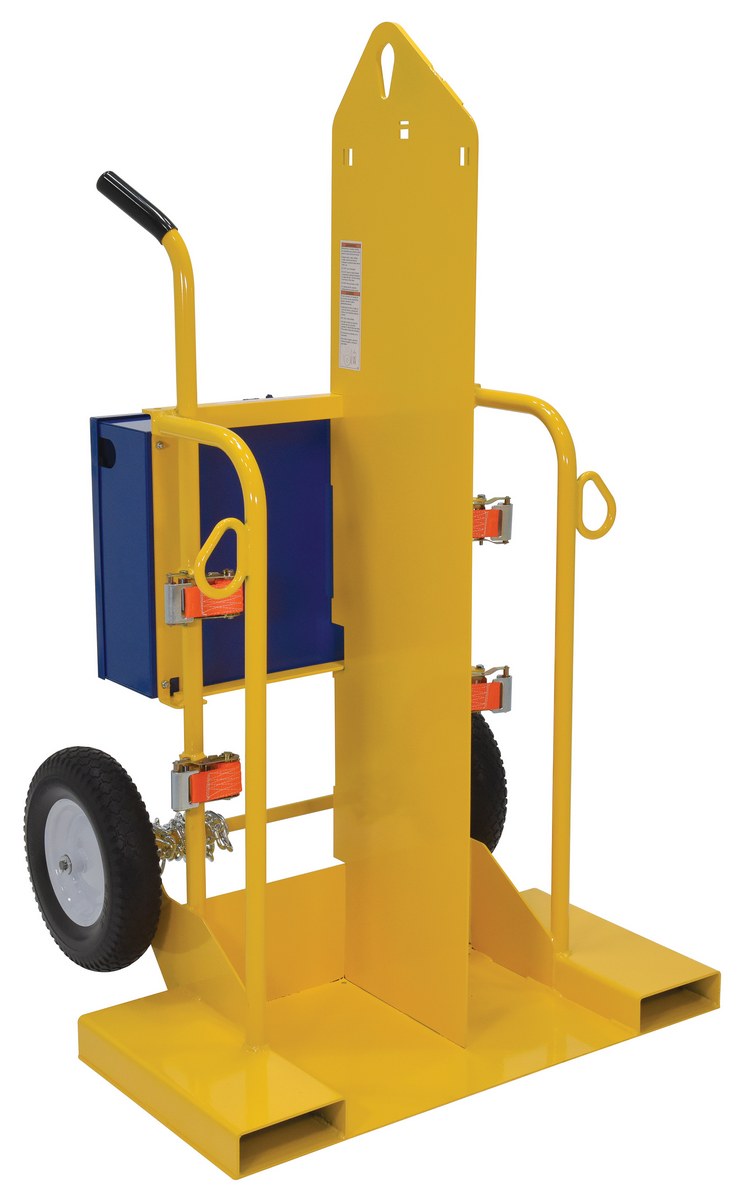

| CYL-2-FF | POPULAR |  | 90 Days Limited Warranty | Steel Welding Cylinder Torch Cart with Foam Filled Wheels 34-3/8 In. x 40-1/4 In. x 66-3/8 In. 500 lb. Capacity Yellow | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 306 | |

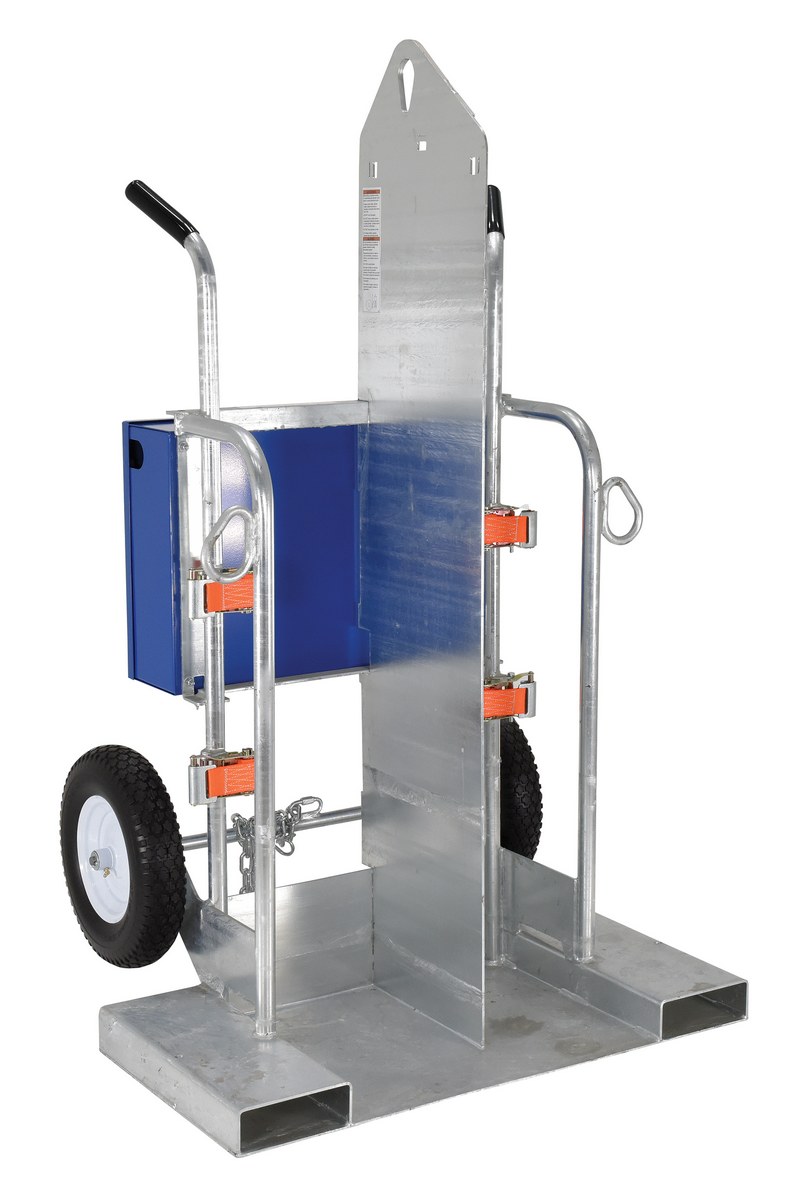

| CYL-2-FF-G |  | 90 Days Limited Warranty | Galvanized Welding Cylinder Torch Cart with Foam Filled Wheels 34-3/8 In. x 40-1/4 In. x 66-3/8 In. 500 lb. Capacity Silver | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 302 | ||

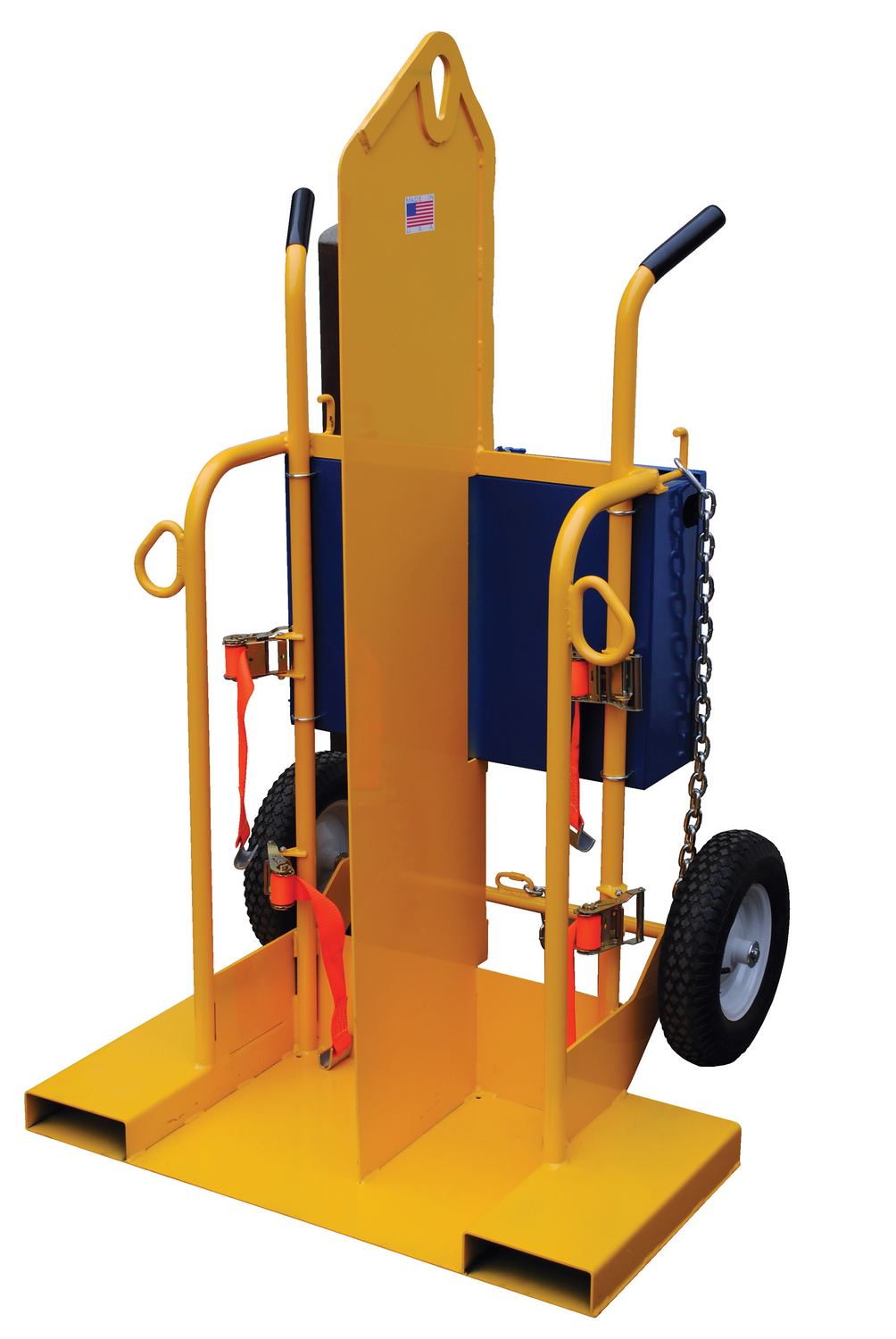

| CYL-2-FP |  | 90 Days Limited Warranty | Steel Fire Proof Welding Torch Cart 34-9/16 In. x 40-1/4 In. x 66-3/8 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 305 | ||
| CYL-2-FP-FF |  | 90 Days Limited Warranty | Steel Fire Proof Welding Torch Cart with Foam Filled Wheels 34-3/8 In. x 40-1/4 In. x 66-3/8 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 336 | ||

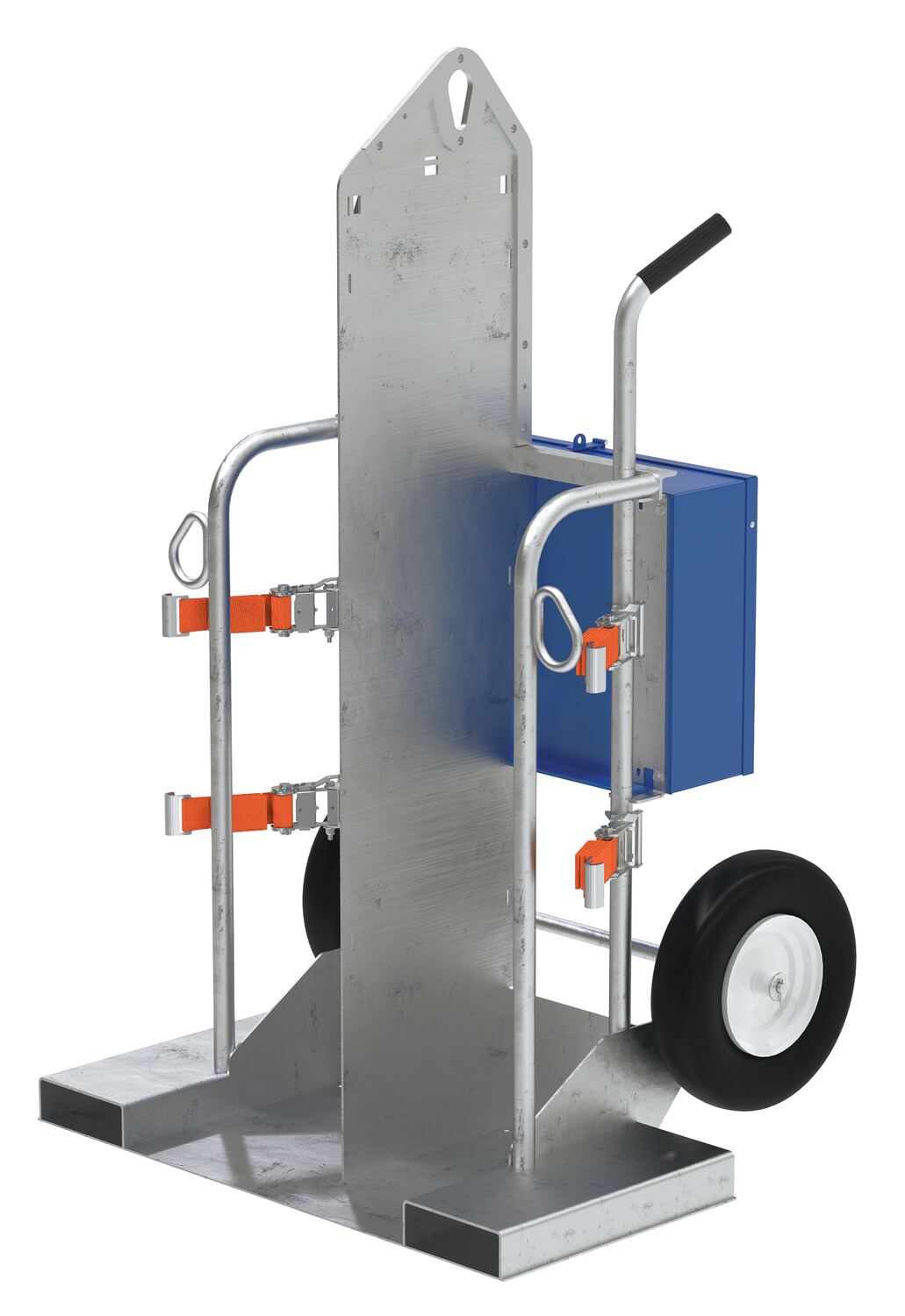

| CYL-2-G |  | 90 Days Limited Warranty | Galvanized Welding Cylinder Torch Cart 34-9/16 In. x 40-1/4 In. x 66-3/8 In. 500 Lb. Capacity Silver | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 275 | ||

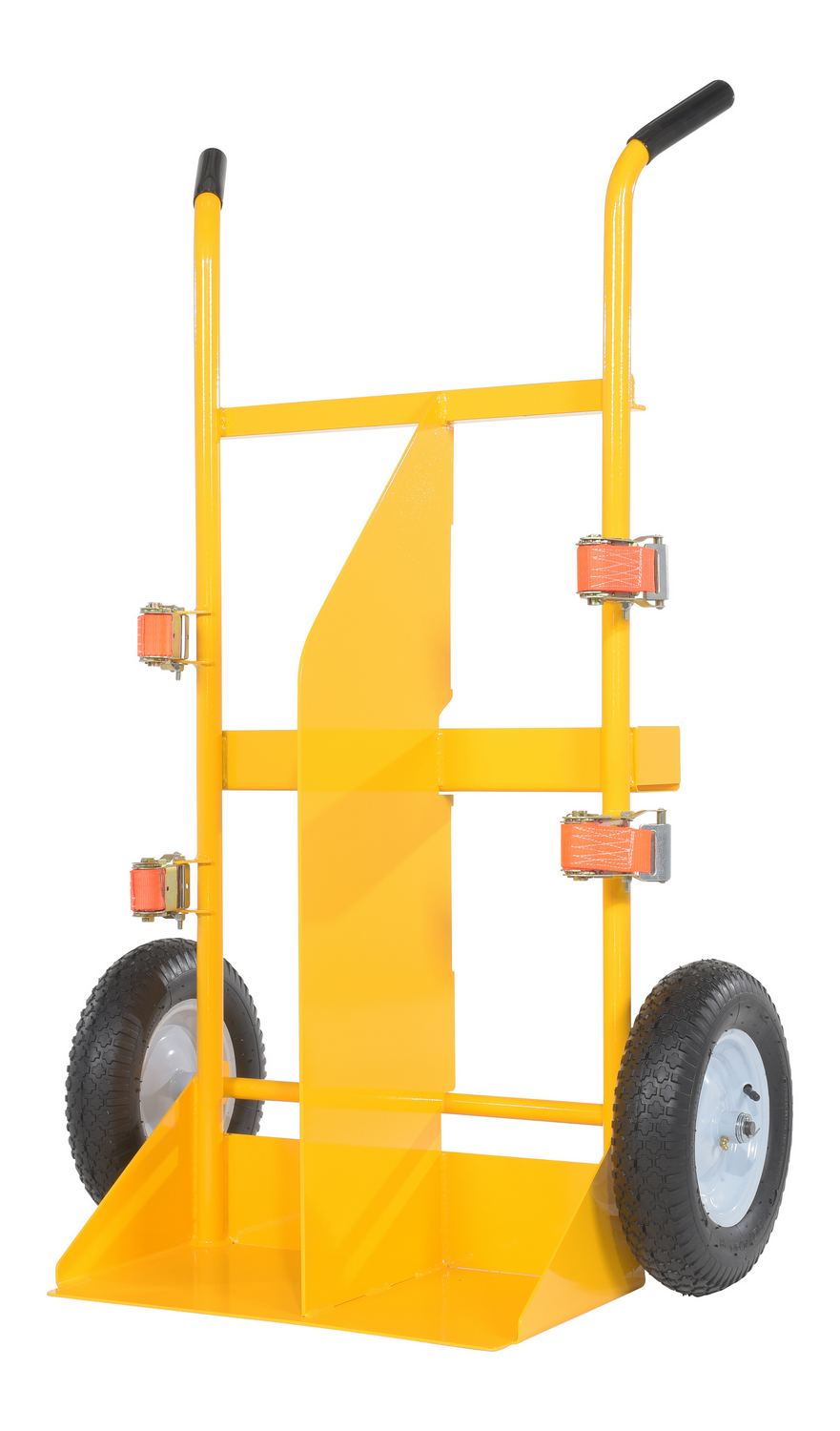

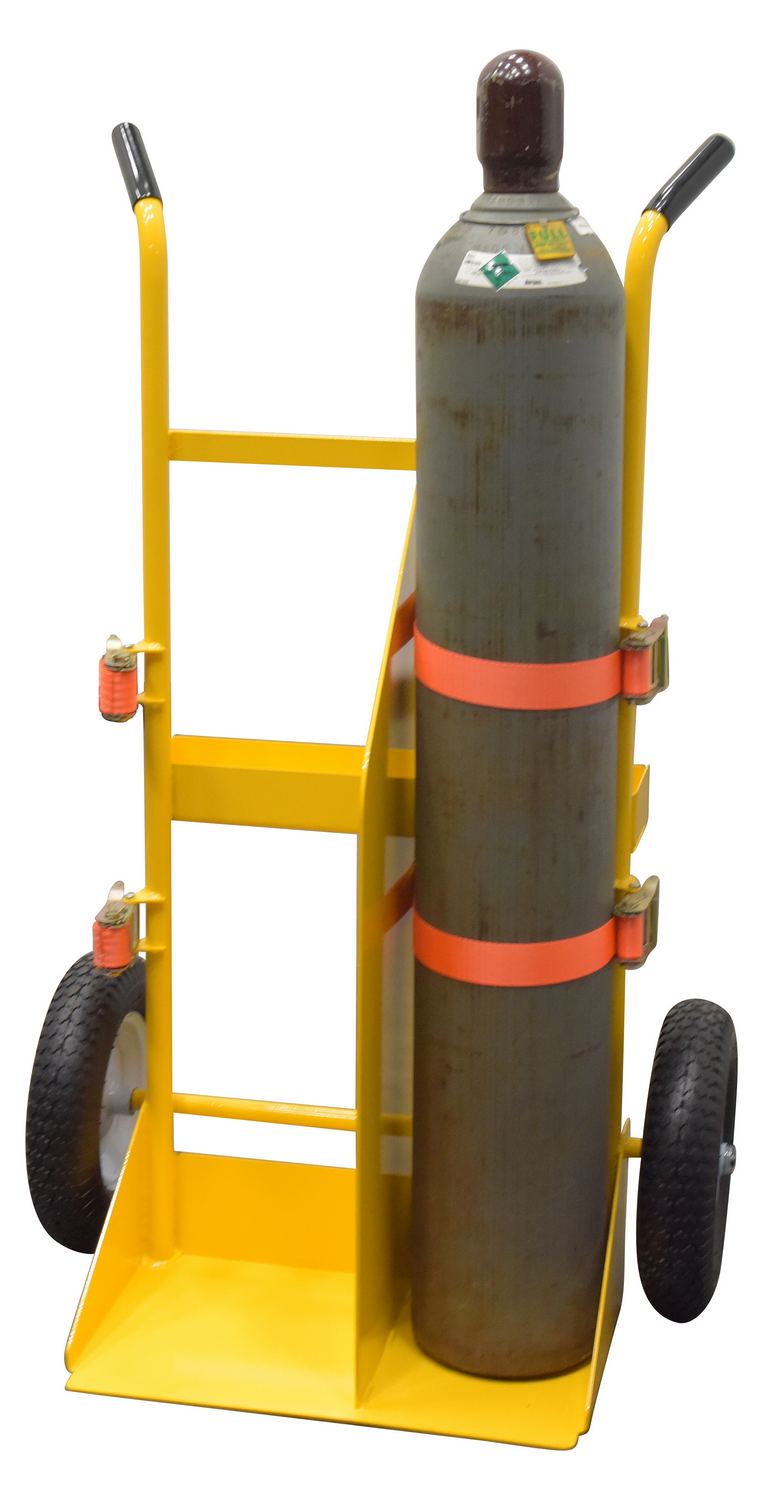

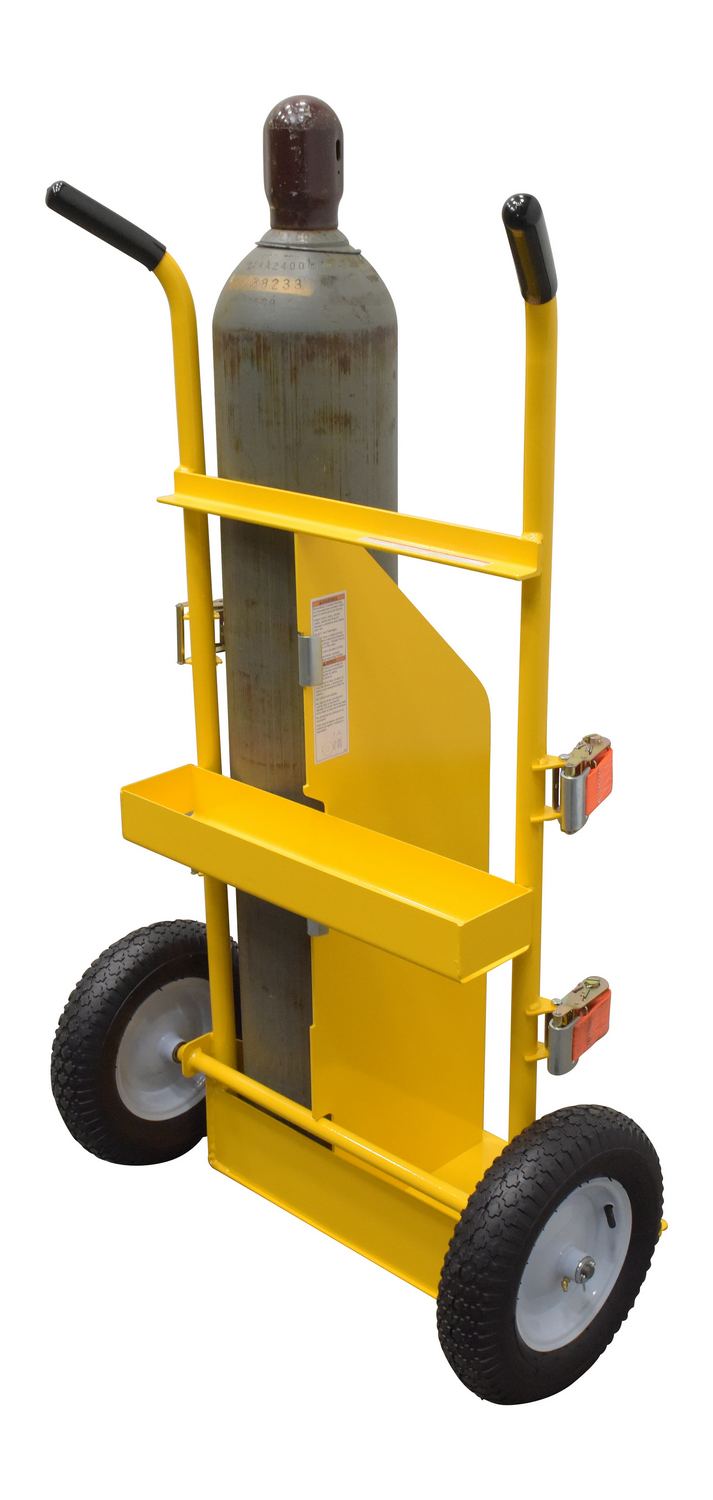

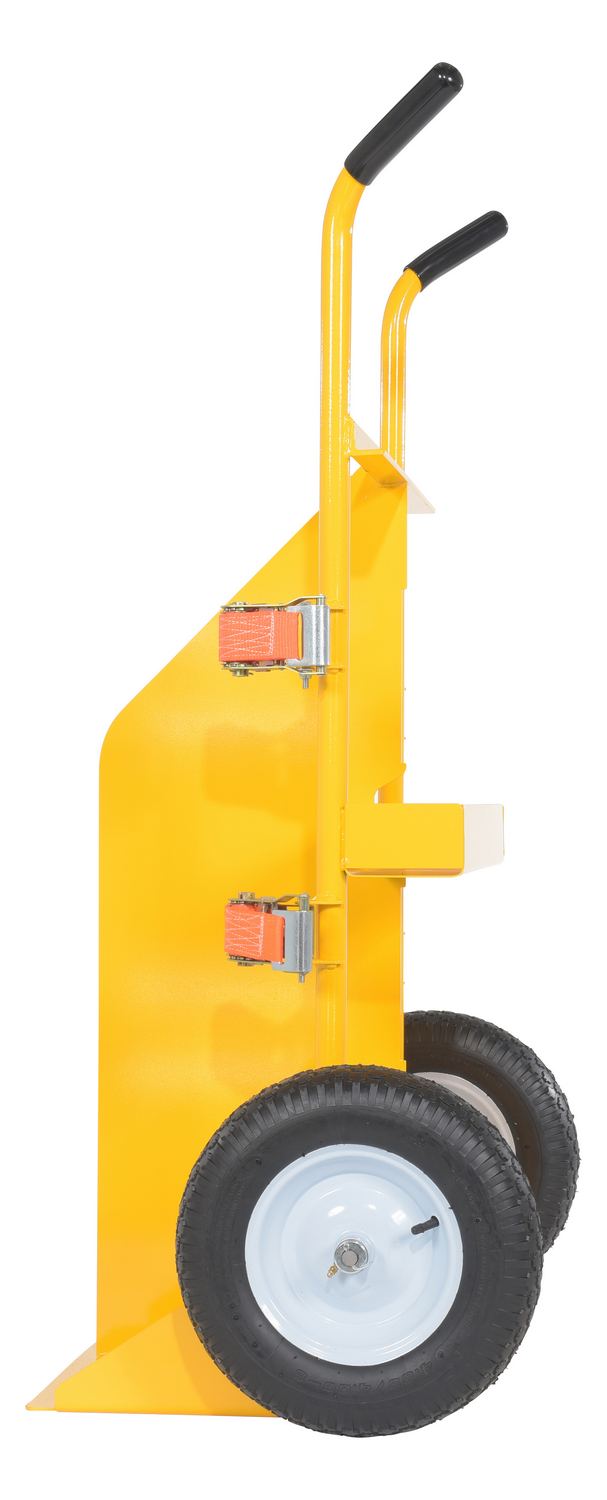

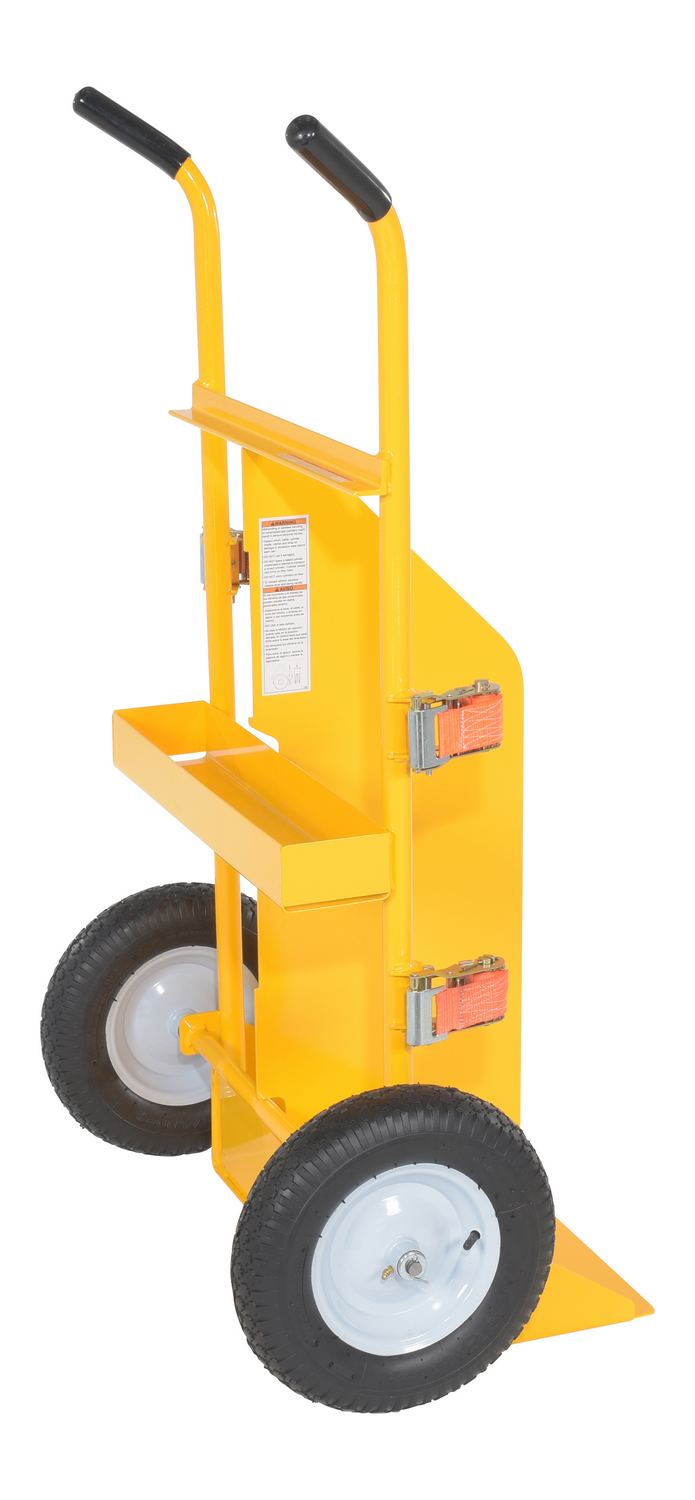

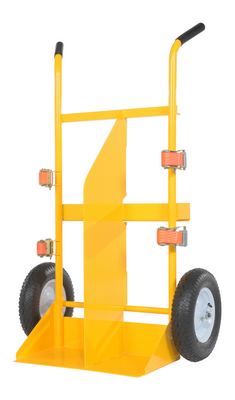

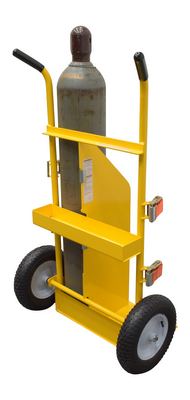

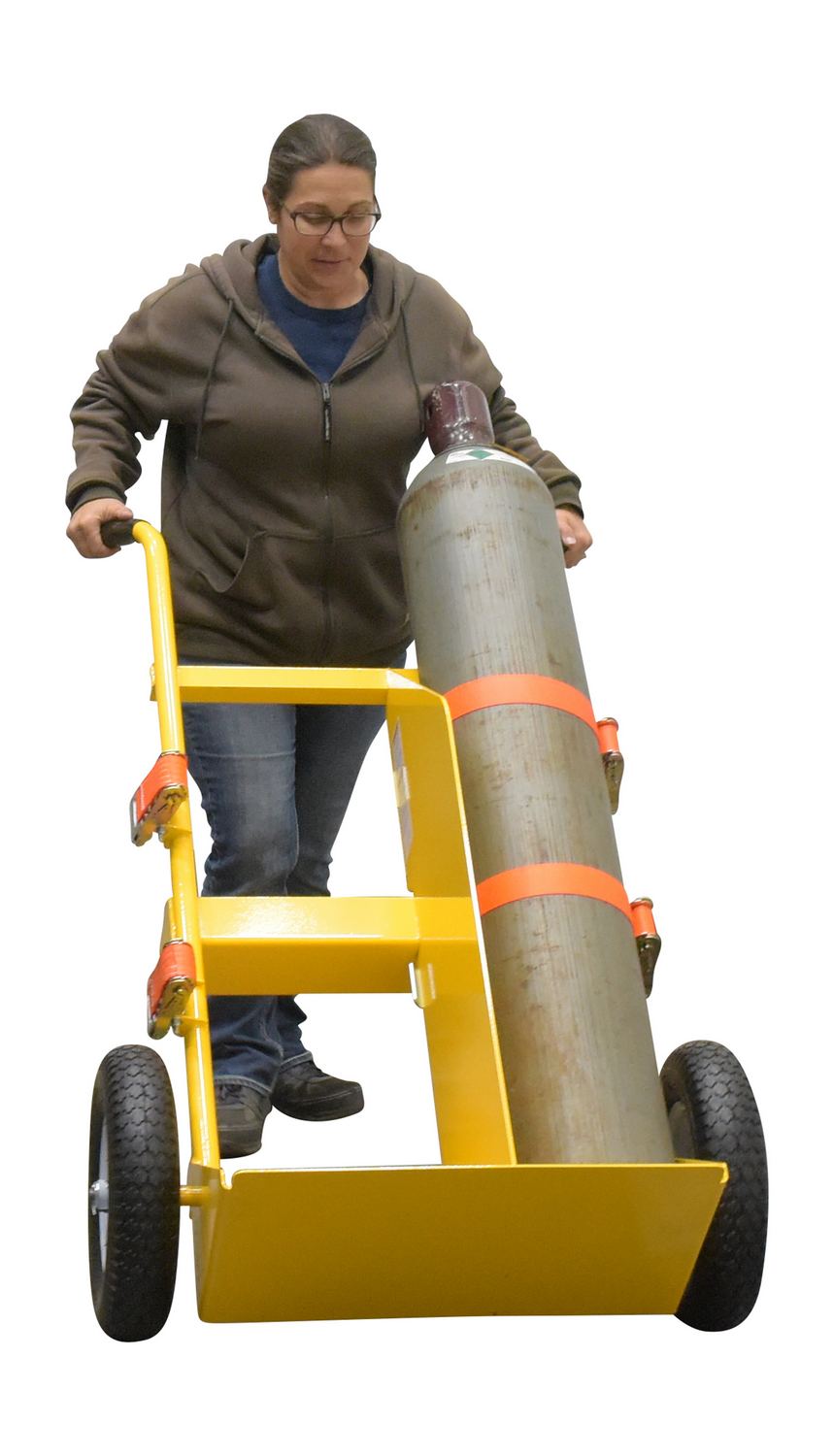

| CYL-E |  | 90 Days Limited Warranty | Steel Cylinder Torch Cart with Pneumatic Wheels 23 In. x 34-1/2 In. x 57 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 144 | ||

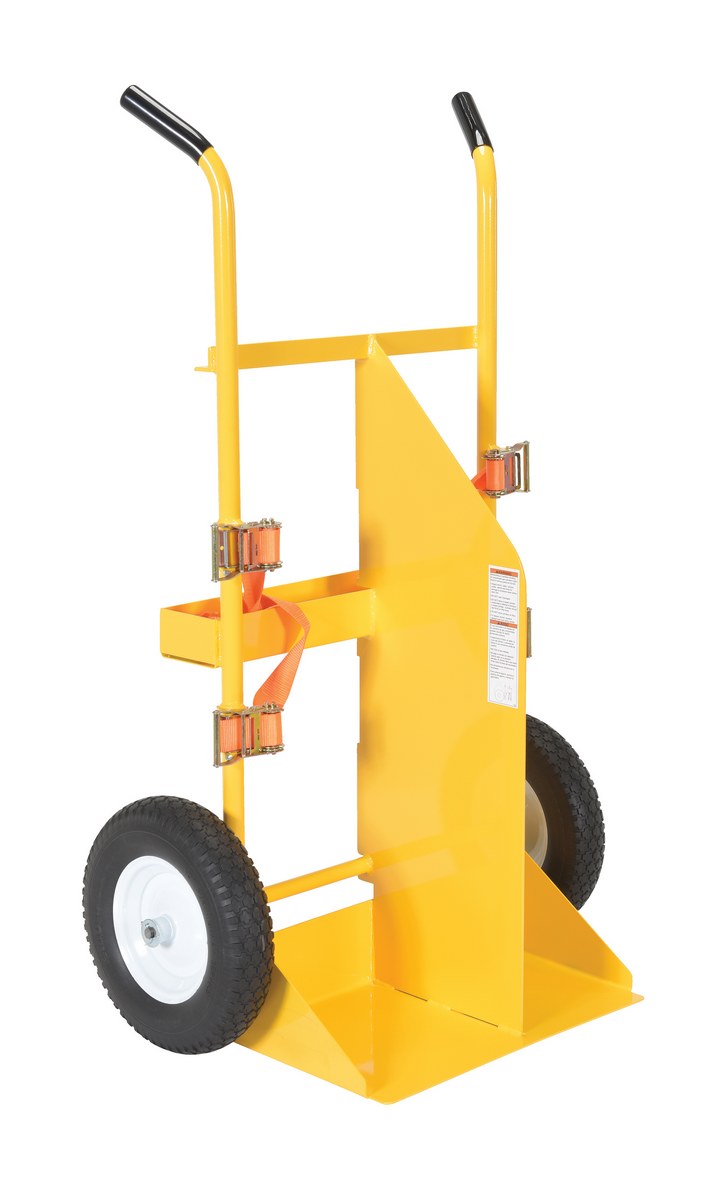

| CYL-E-FF |  | 90 Days Limited Warranty | Steel Cylinder Torch Cart with Foam Filled Wheels 22-13/16 In. x 34-1/2 In. x 57 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 150 | ||

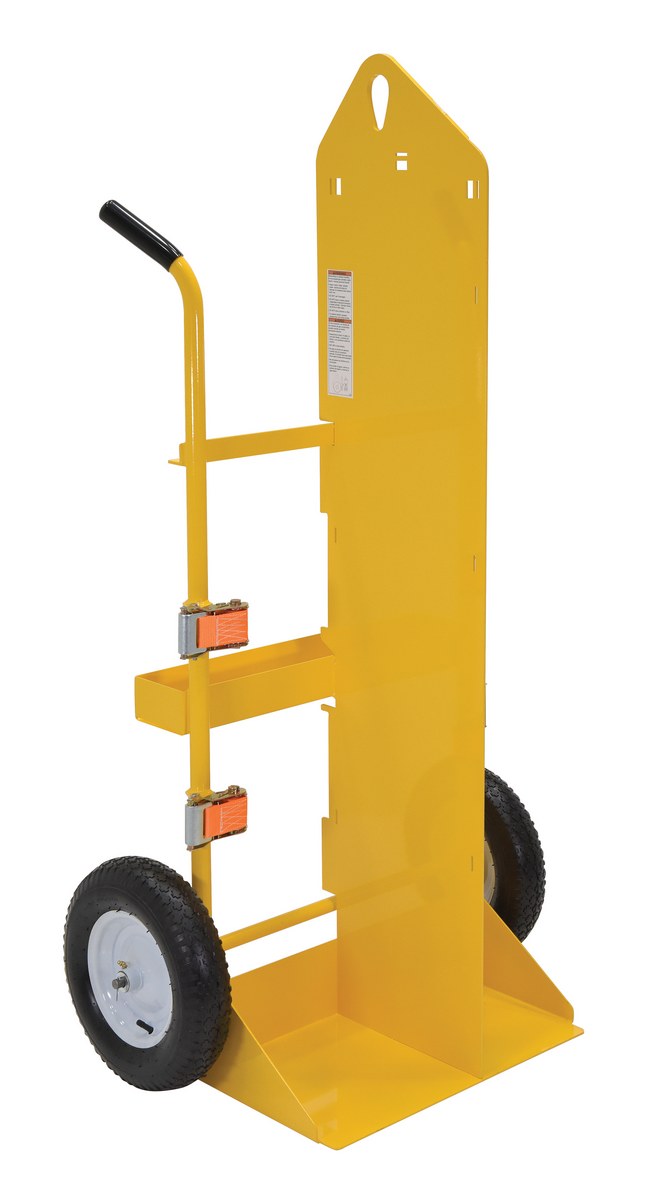

| CYL-EH |  | 90 Days Limited Warranty | Steel Torch Cart-Lift Eye with Pneumatic Wheels 23 In. x 34-1/2 In. x 66-3/8 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 172 | ||

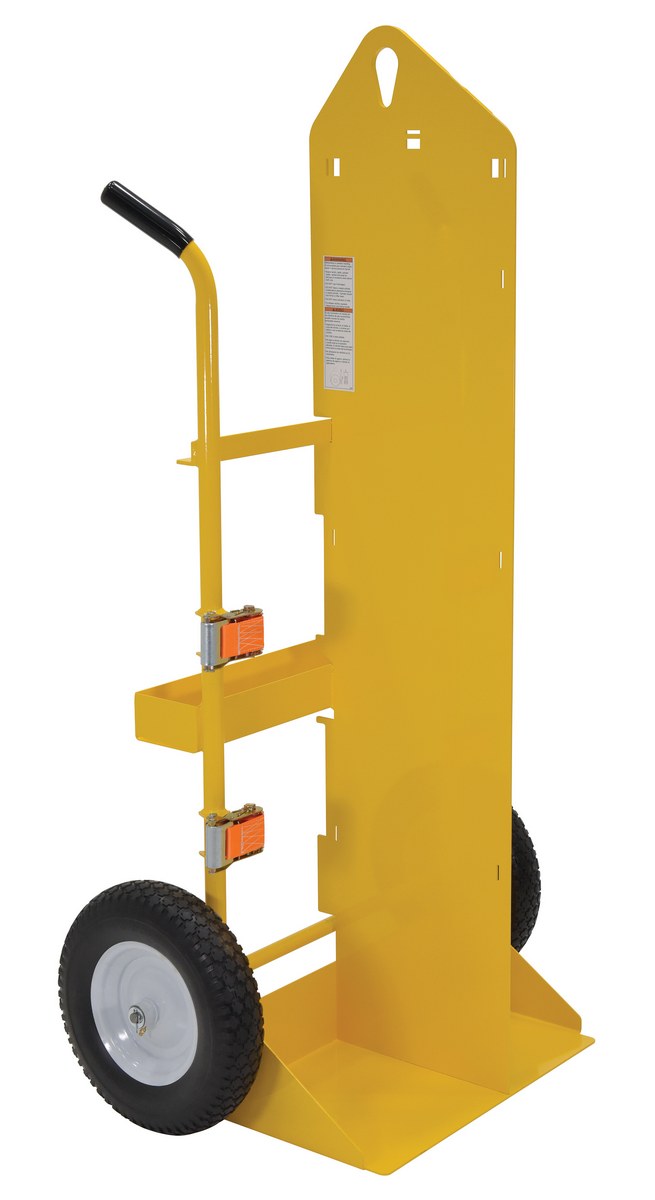

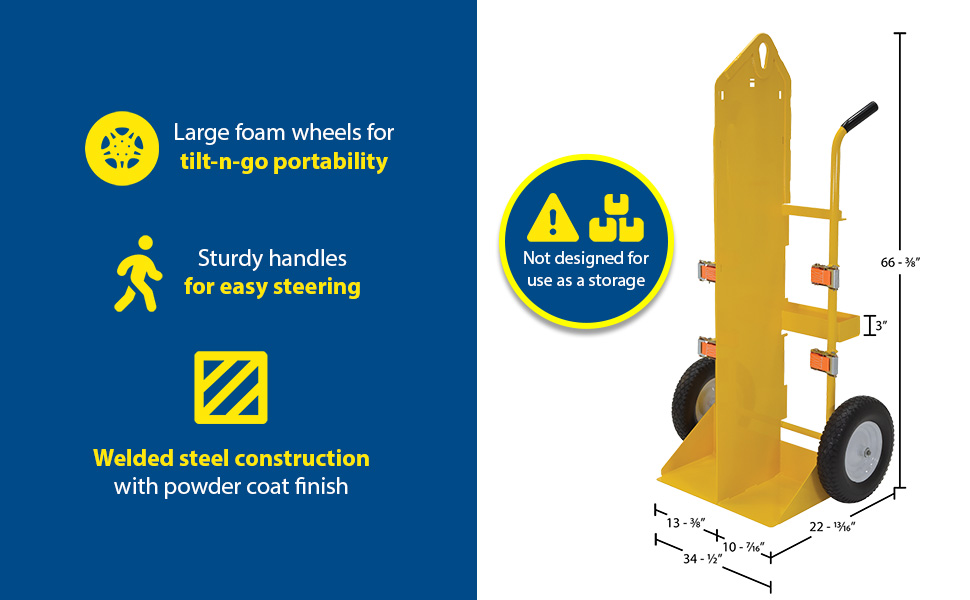

| CYL-EH-FF |  | 90 Days Limited Warranty | Steel Torch Cart-Lift Eye with Foam Filled Wheels 22-13/16 In. x 34-1/2 In. x 66-3/8 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 185 | ||

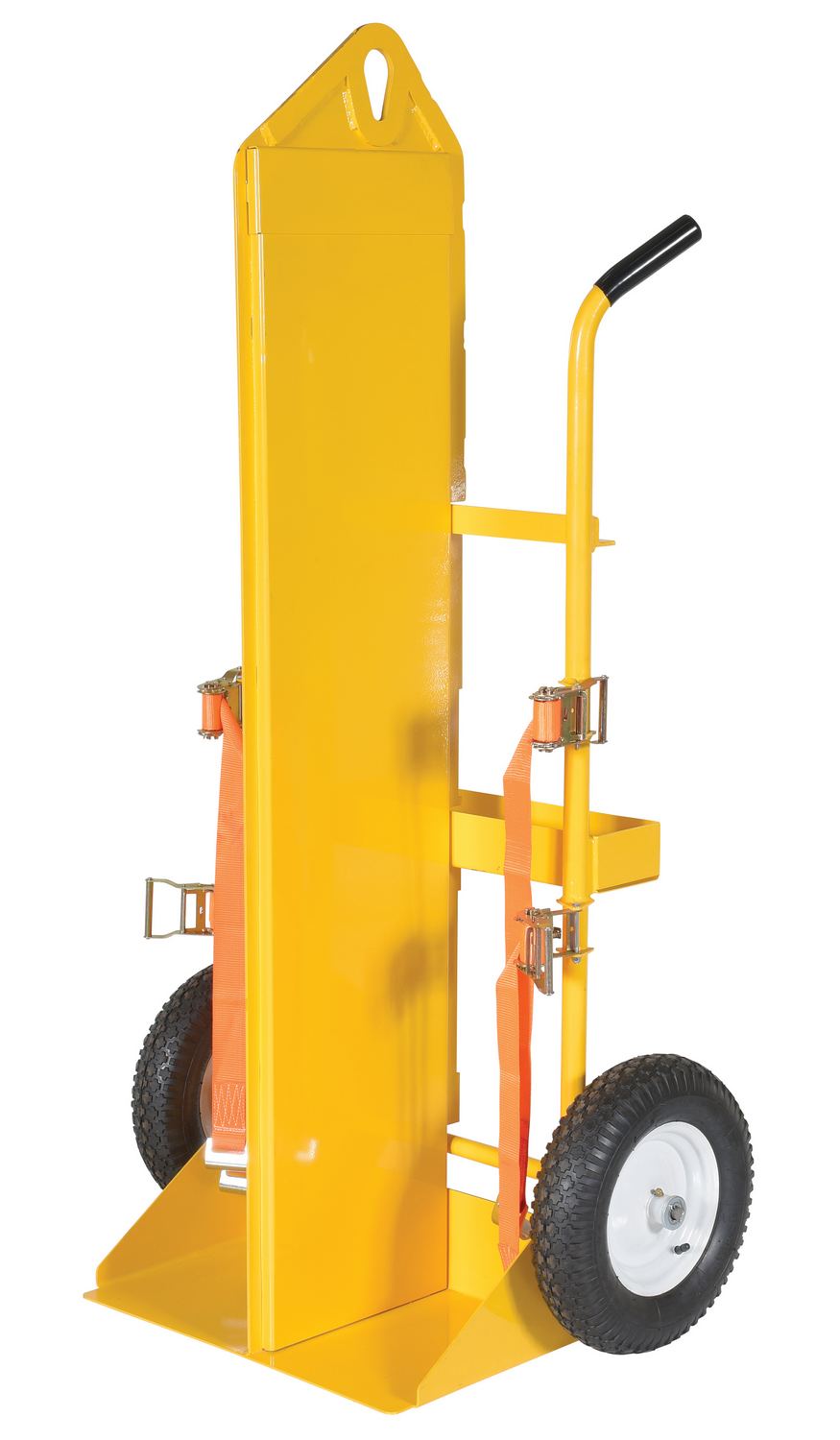

| CYL-EH-FP |  | 90 Days Limited Warranty | Steel Torch Cart-Lift Eye-Fire Proof 23 In. x 34-1/2 In. x 66-3/8 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 194 | ||

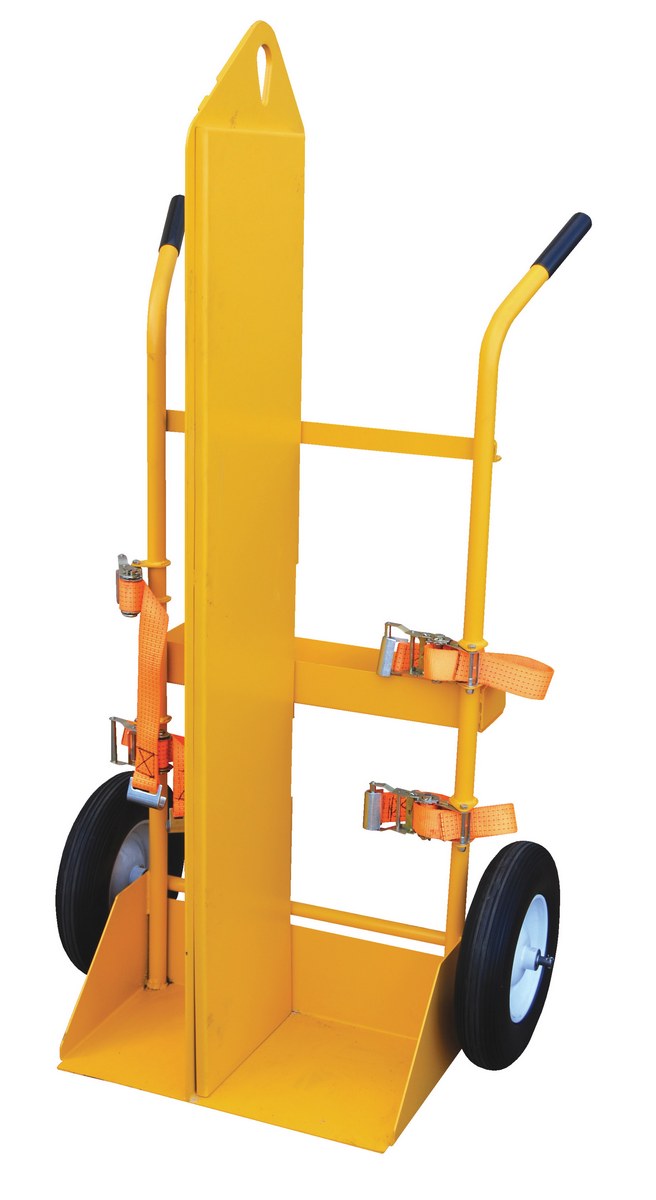

| CYL-EH-FP-FF |  | 90 Days Limited Warranty | Steel Torch Cart-Lift Eye-Fire Proof with Foam Filled Wheels 22-13/16 In. x 34-1/2 In. x 66-3/8 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 | 224 |
