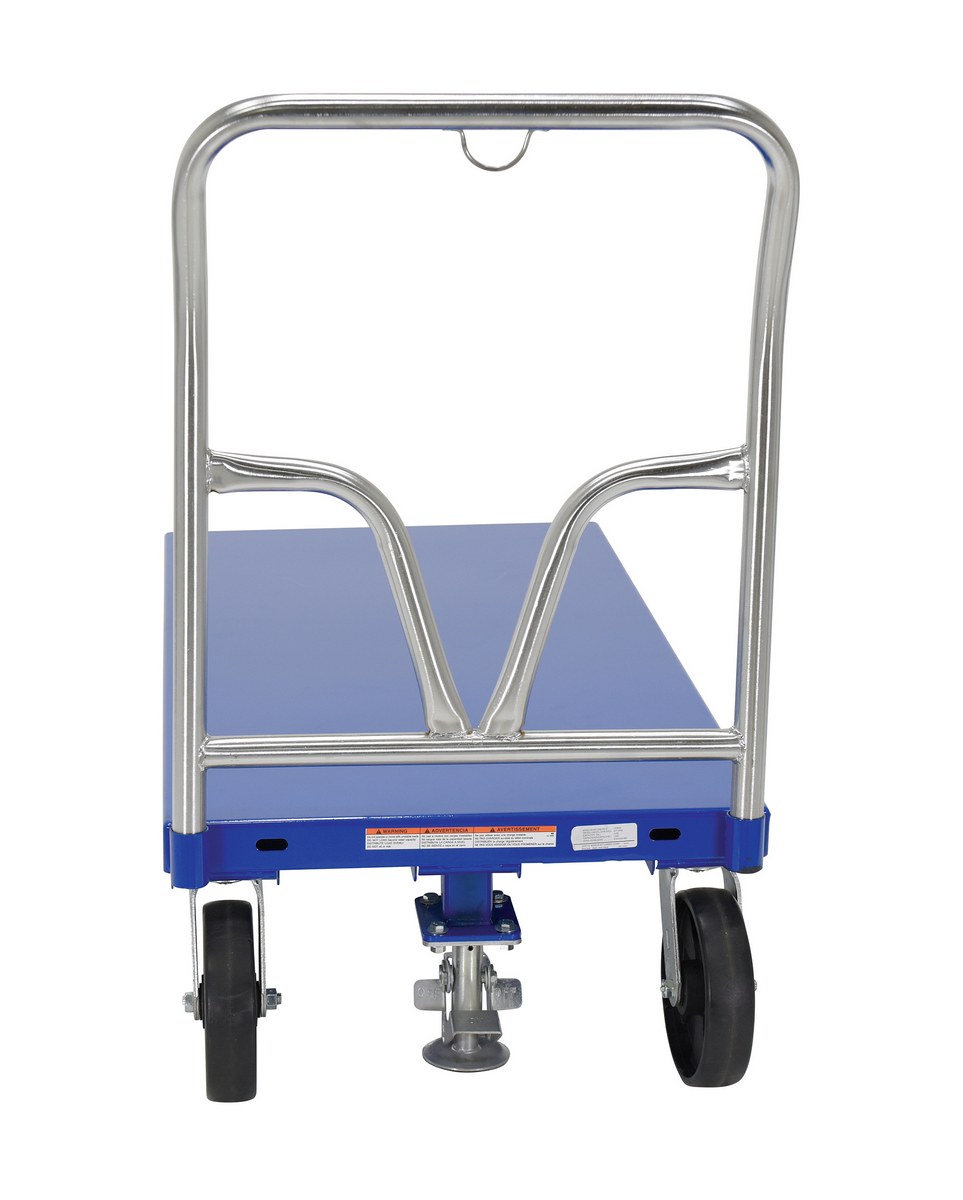

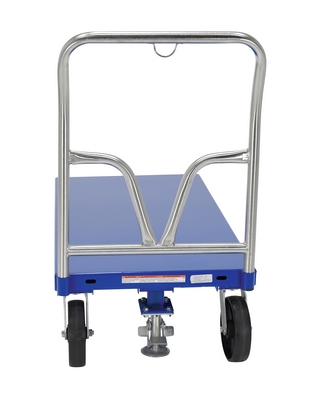

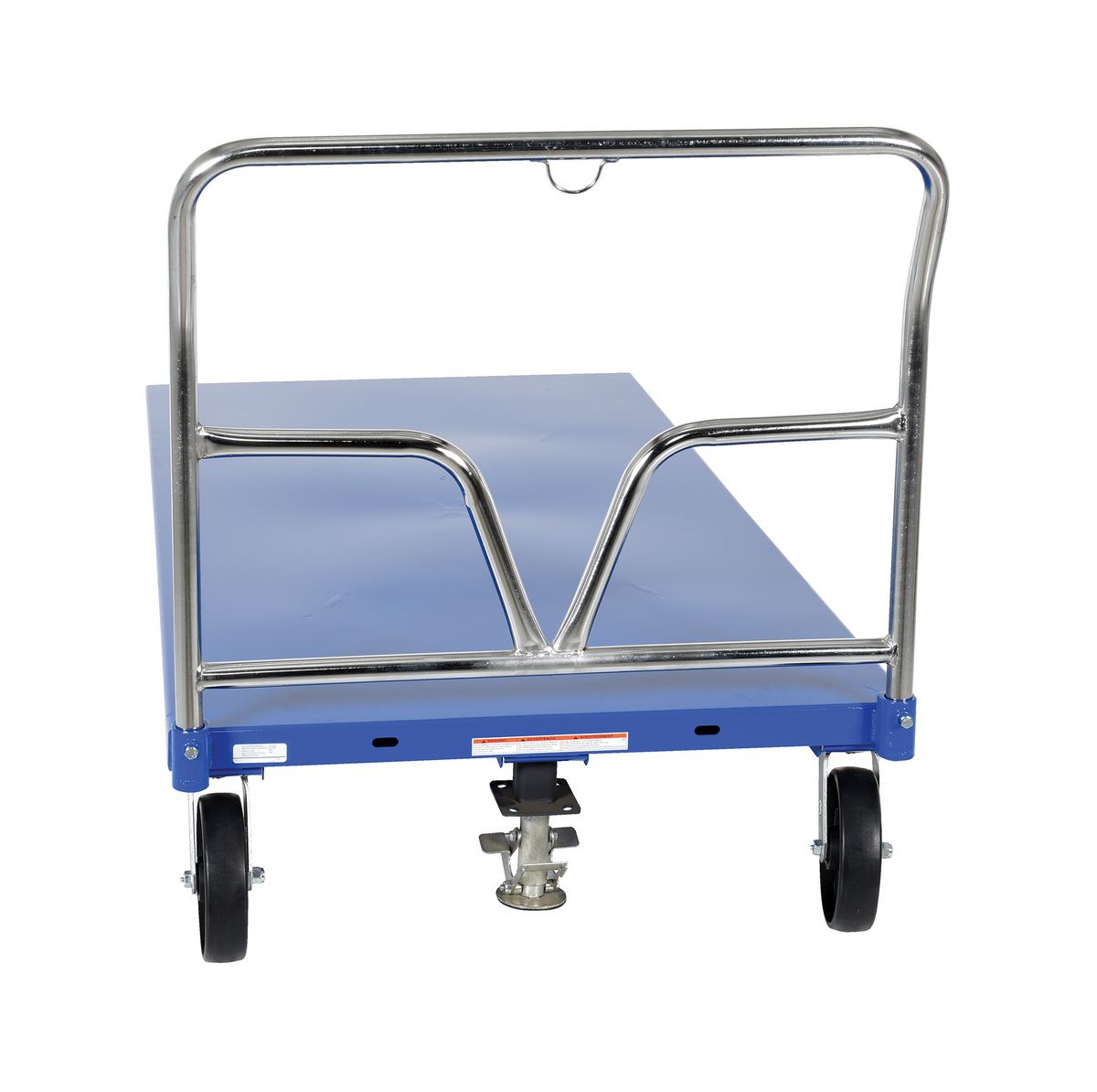

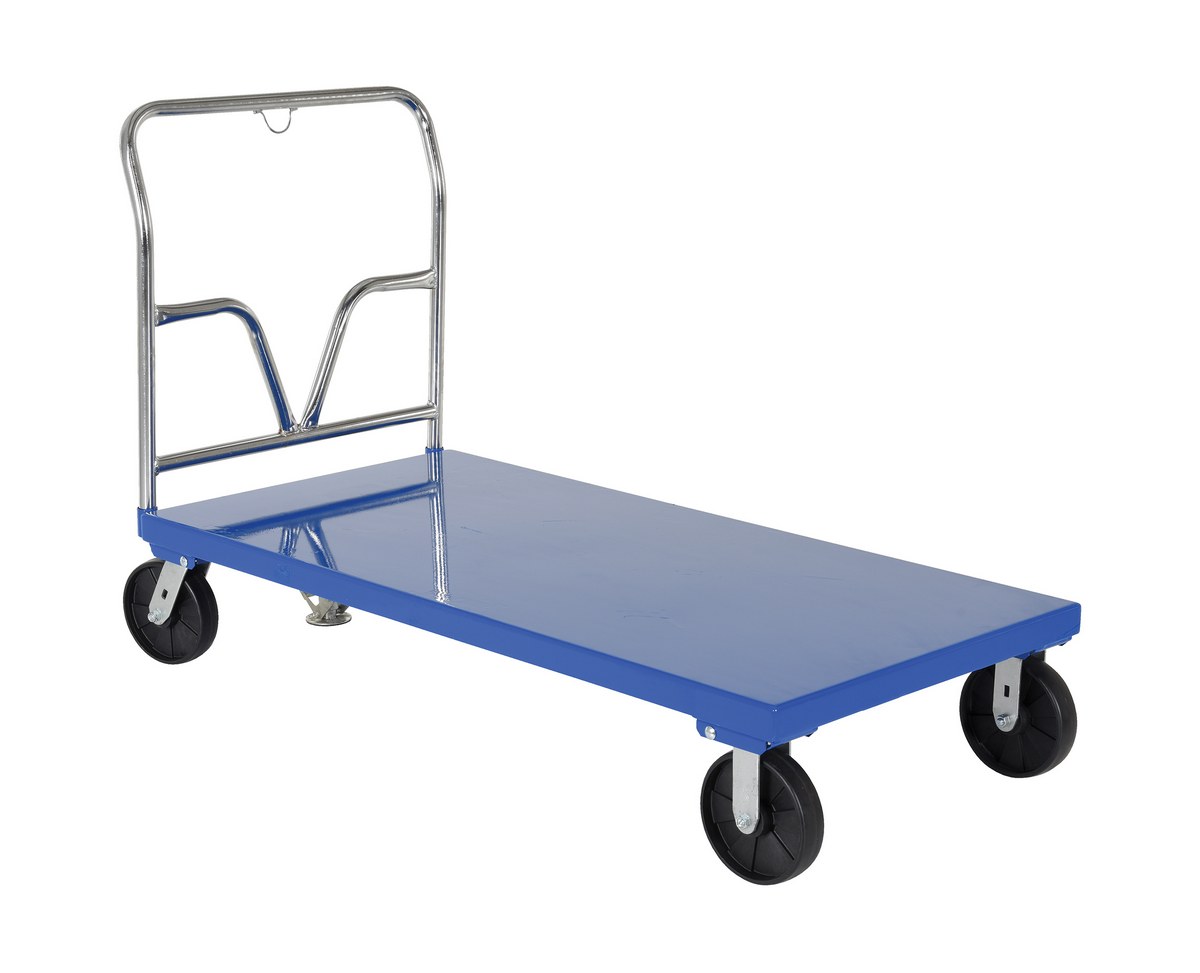

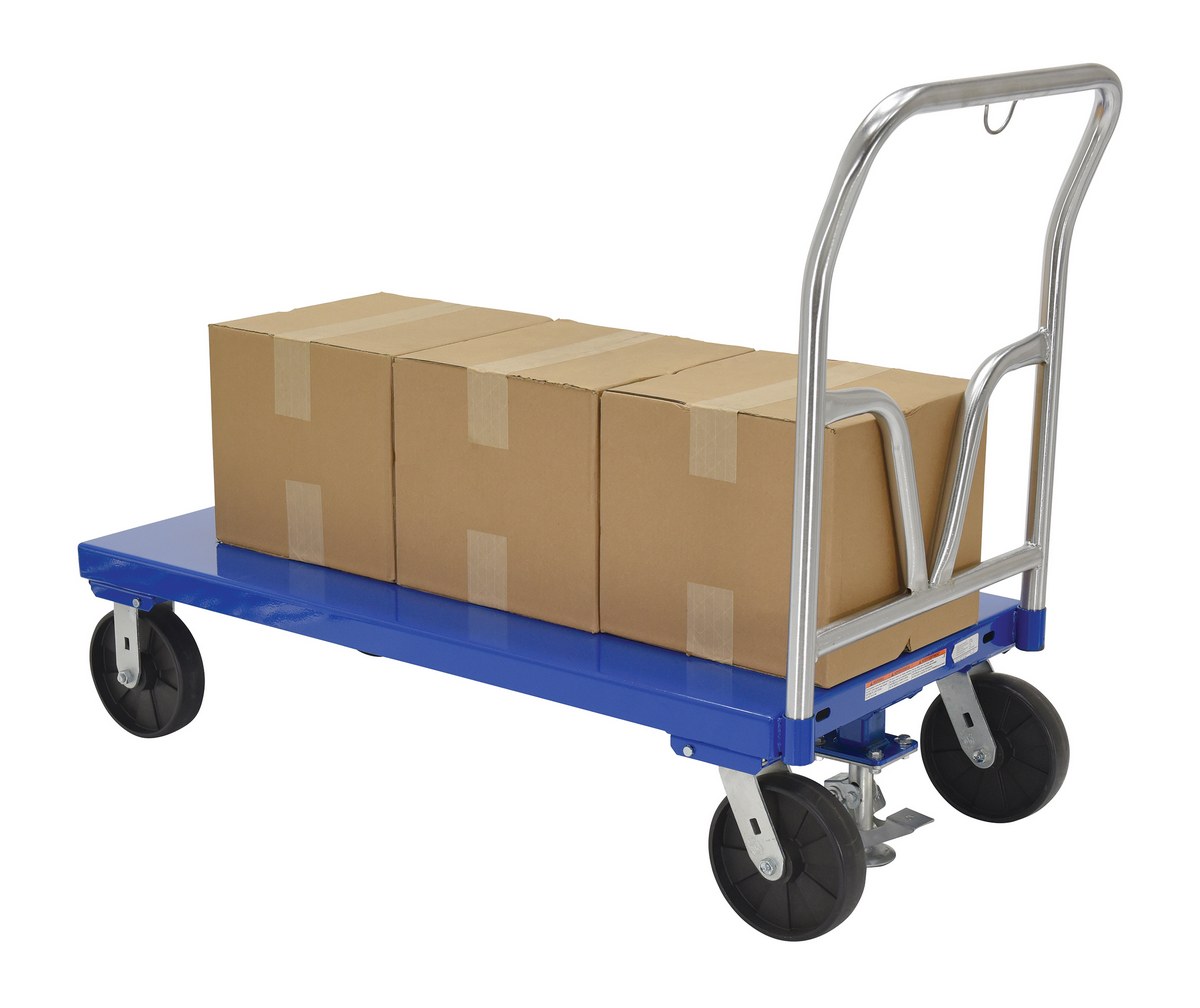

Steel Platform TrucksSolid, smooth steel deck is all welded and features structural reinforcement underneath for extra strength. Includes one removable high-polished steel handle and rolls smoothly on (2) rigid and (2) swivel casters. Series SPT comes standard with a floor lock and a durable blue powder coat finish.

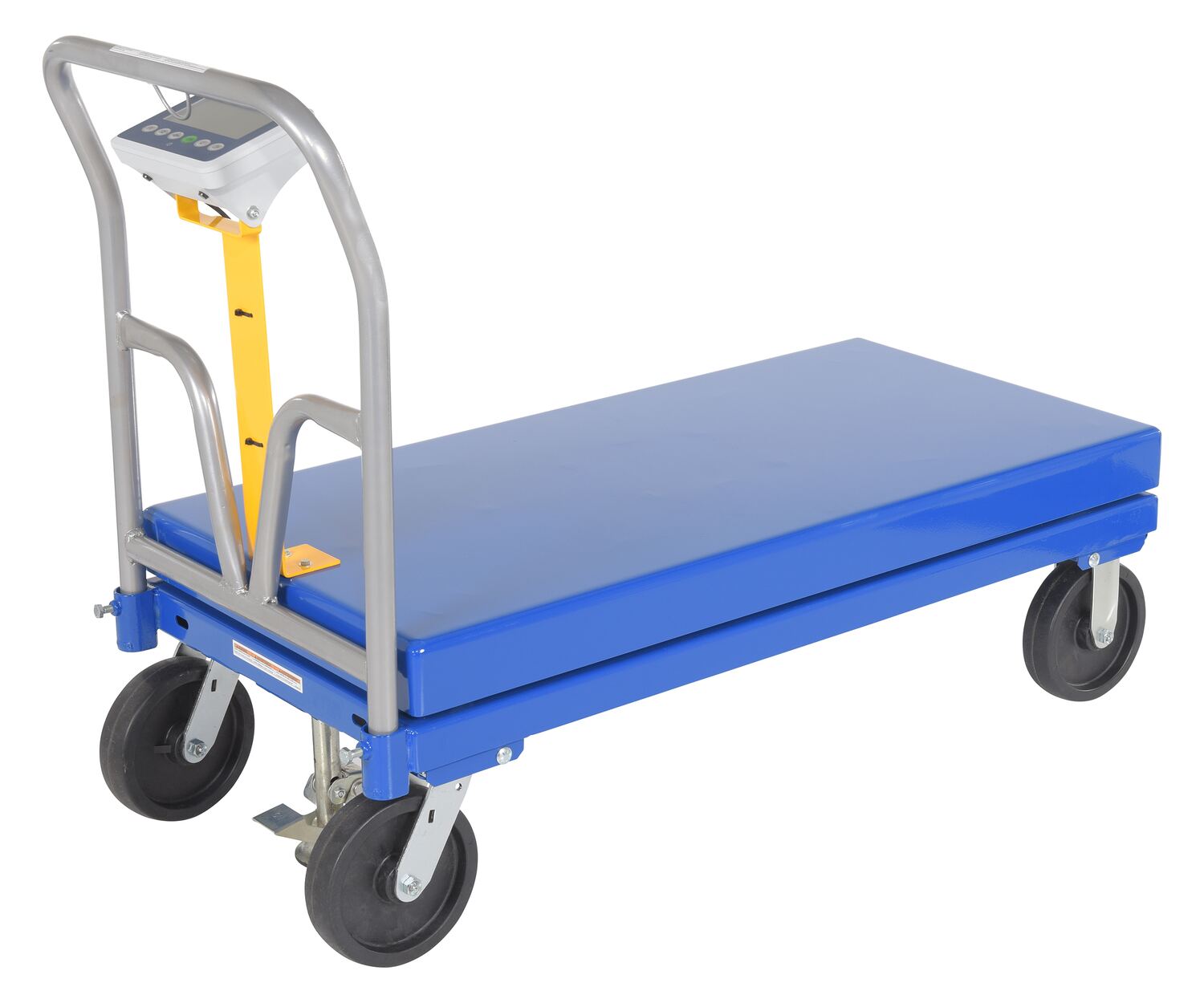

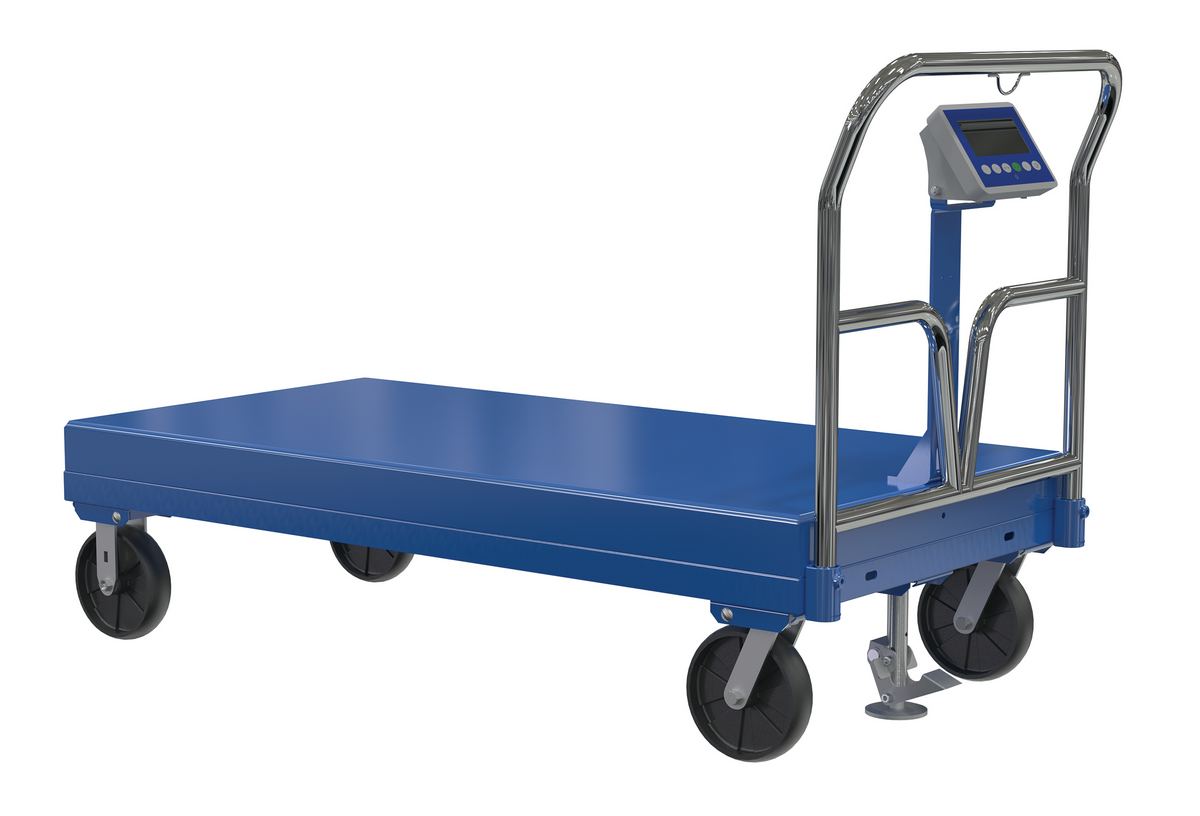

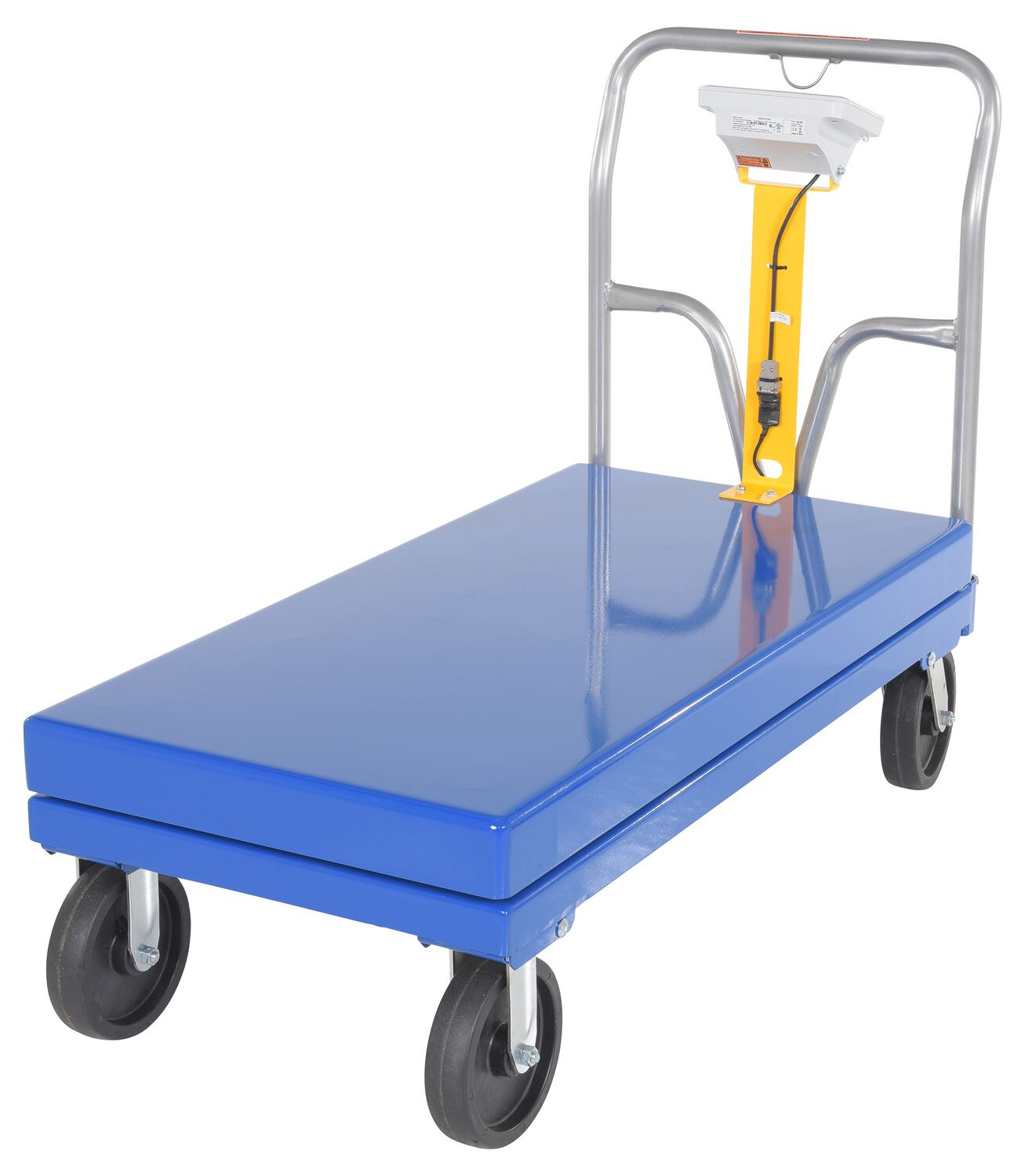

Models ending in -SCL include a functional scale. The scale gives the users the ability to weigh items during picking rather than in congested designated shipping areas. A digital screen sits atop a built in pedestal for clear reading.
- Welded steel deck with floor lock
- Has structural reinforcement for extra strength
- Includes one removable high-polished steel handle
- Rolls smoothly on two rigid and two swivel casters
Steel Platform Truck (Smooth or Treadplate)
Heavy Duty Aluminum Treadplate Platform Trucks
Platform Carts with Versatile Dividers
Heavy-Duty Plastic Platform TrucksAdditional Models In This Family
SPT-2448
SPT-2448-SCL
SPT-3672
SPT-2448-SCL
SPT-3060
SPT-2448-SCL
SPT-2448-SCL
SPT-2472
SPT-3672
SPT-3060
SPT-2448-SCL
SPT-2448-SCL
SPT-2472-SCL
SPT-2436-SCL
SPT-2436
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| SPT-2436 | | 90 Days Limited Warranty | Steel Platform Truck 40-1/2 In. x 24 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 24 | 177 | ||

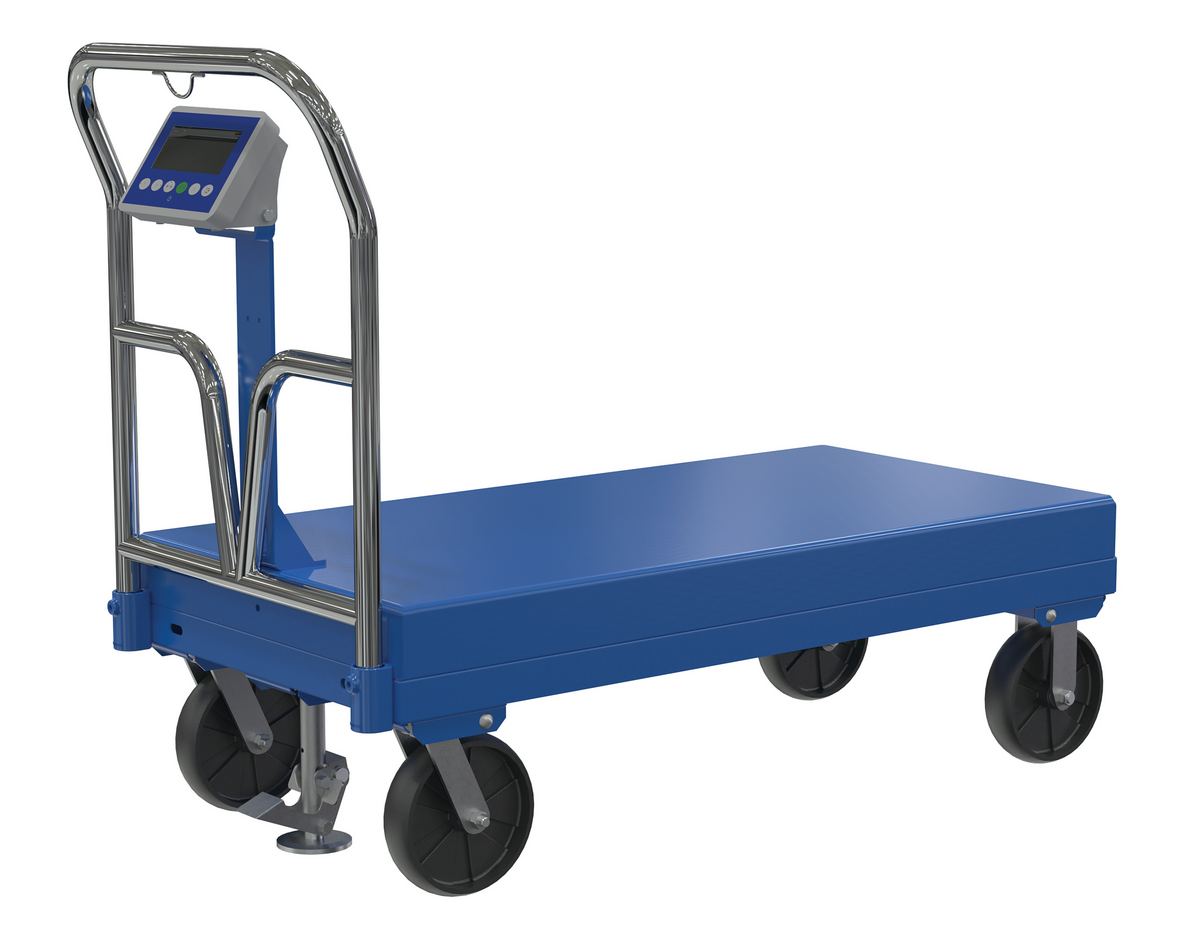

| SPT-2436-SCL | | 90 Days Limited Warranty | Steel Platform Truck with Scale 40-1/2 In. x 24 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 24 | 335 | ||

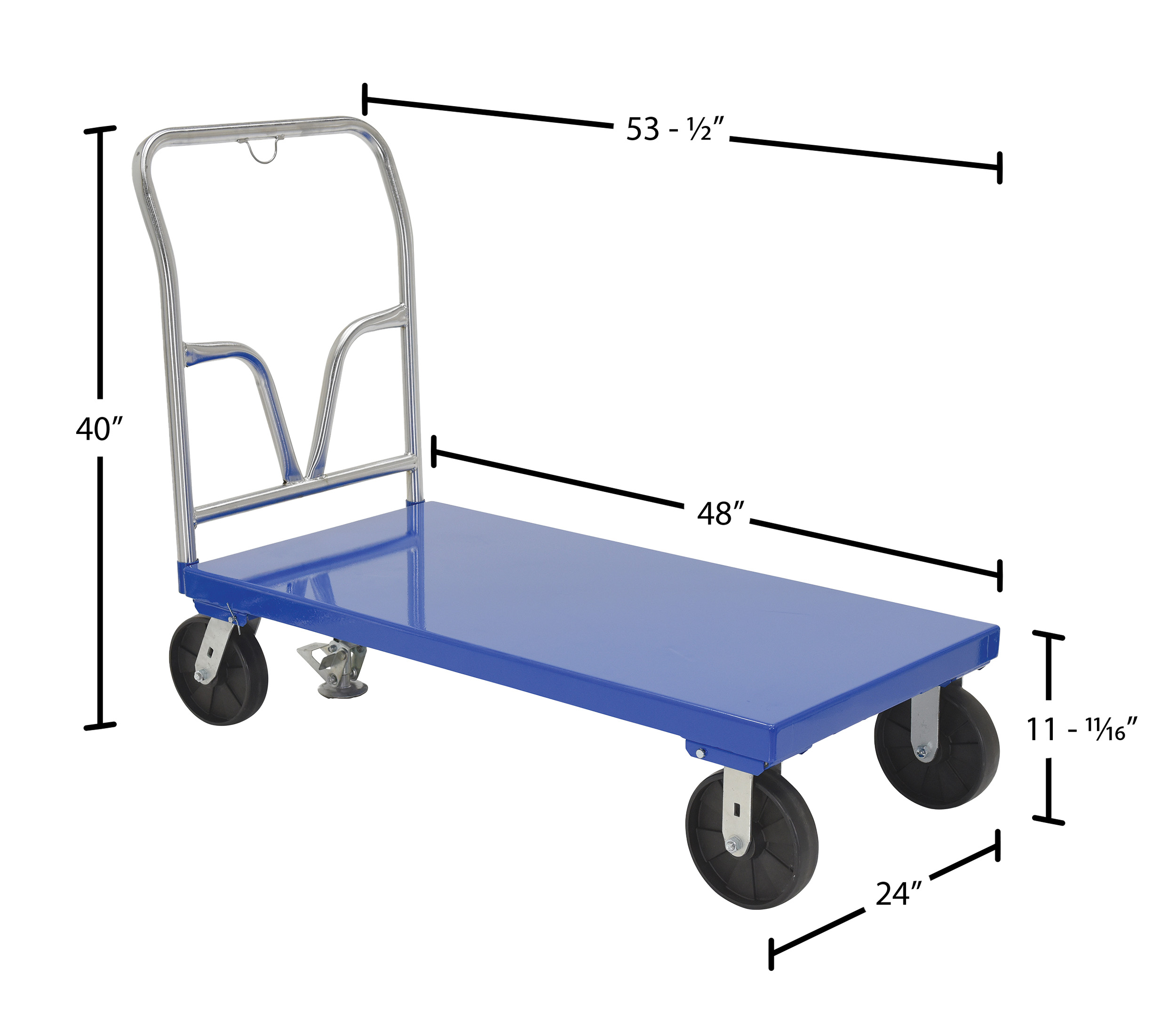

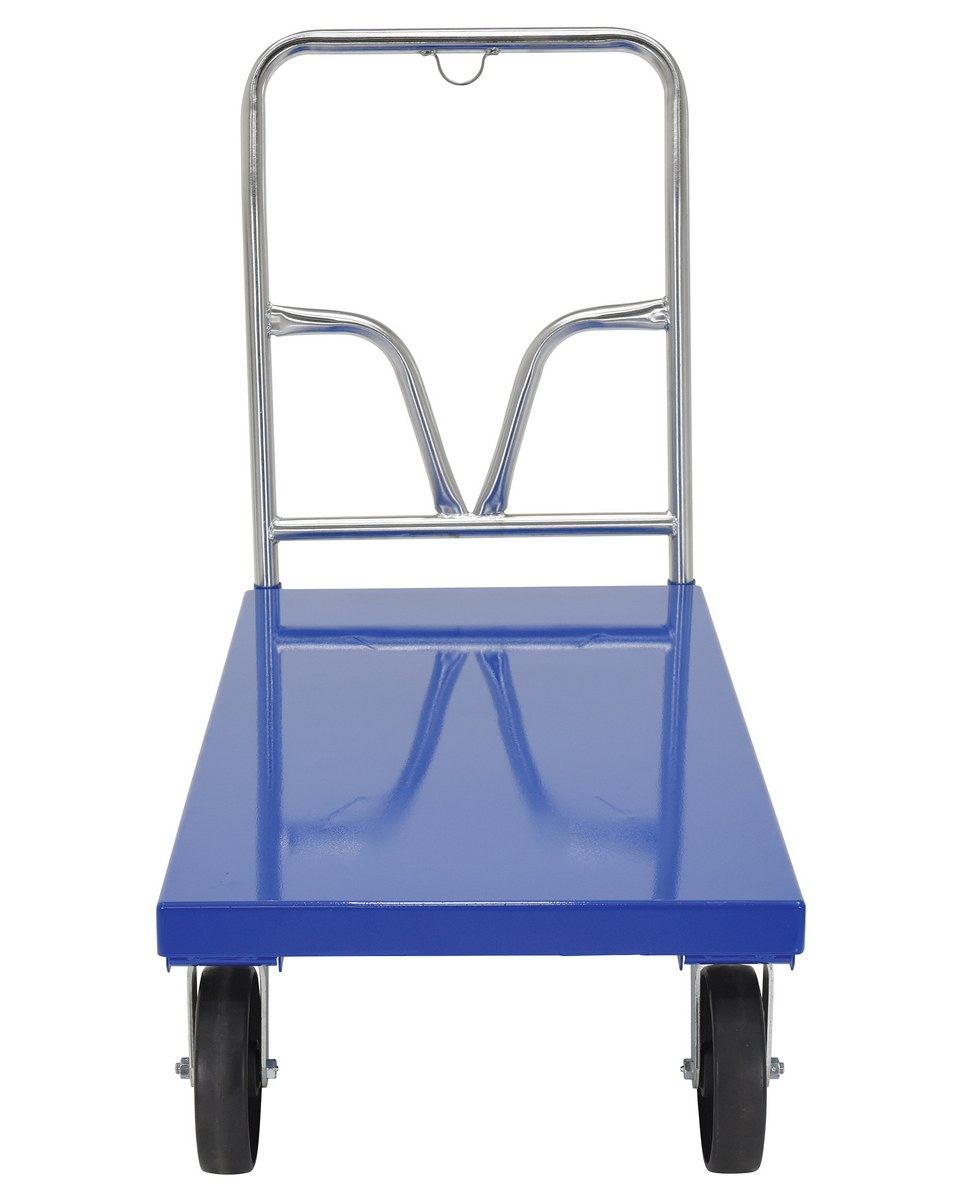

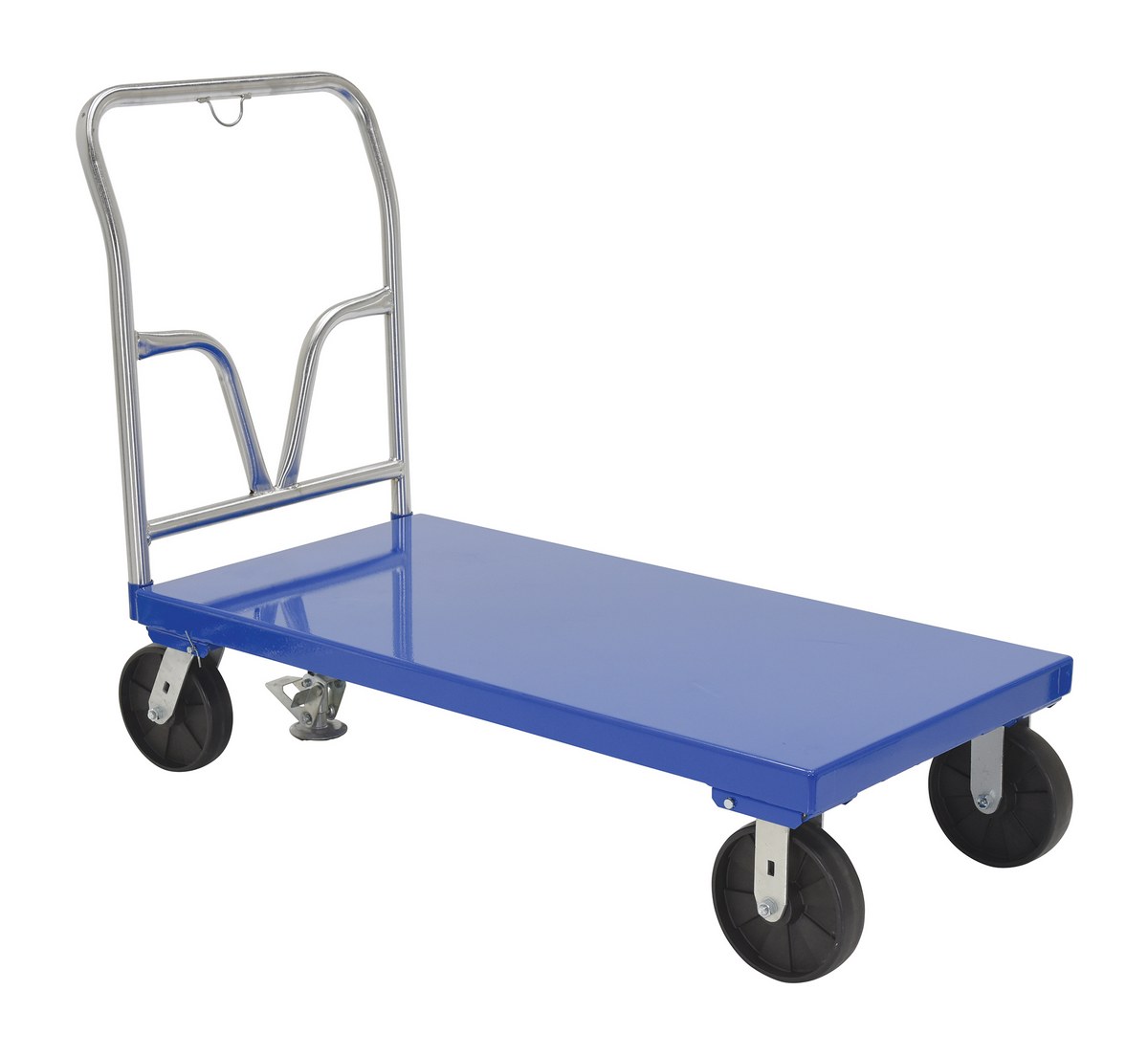

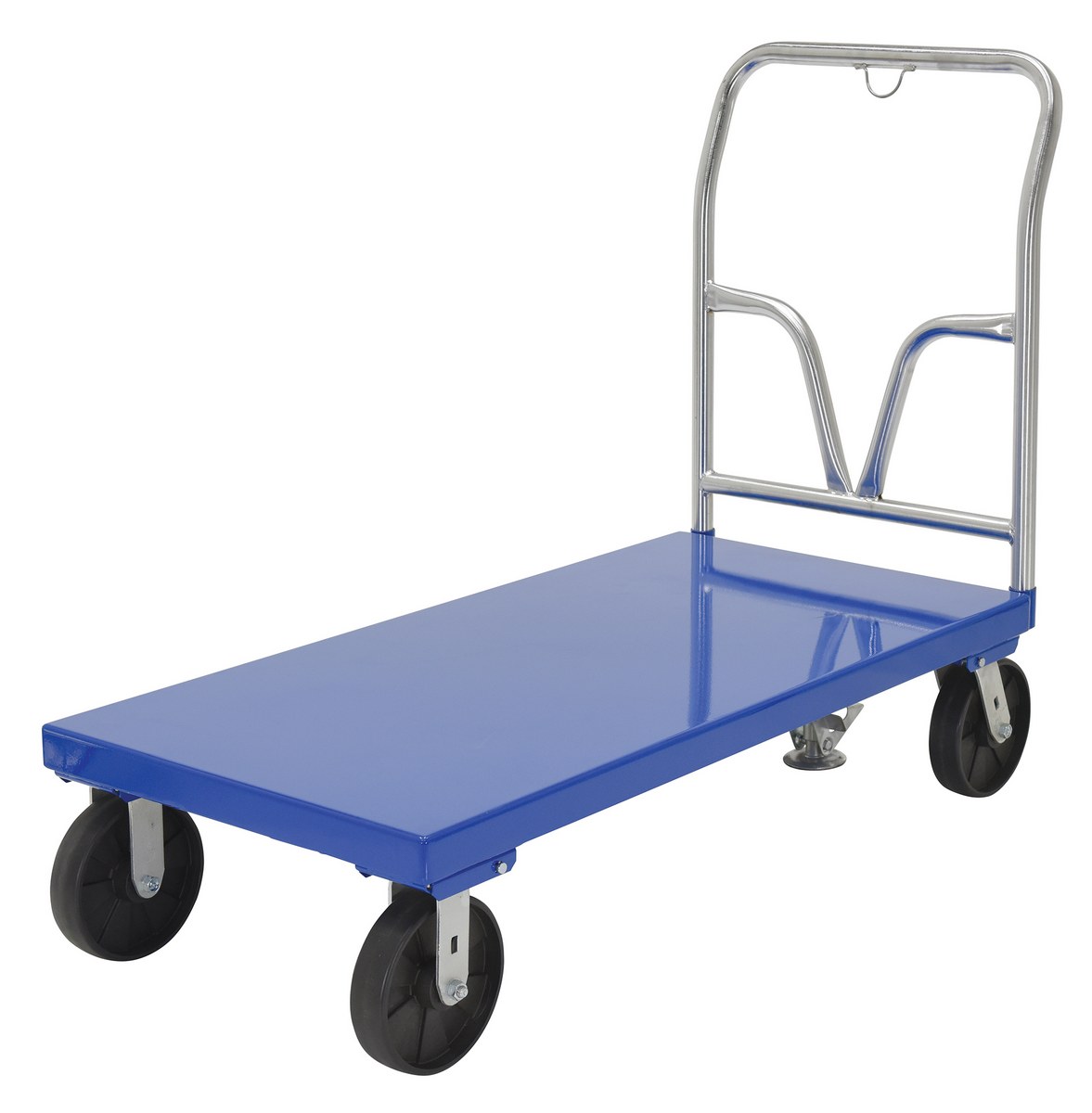

| SPT-2448 |  | 90 Days Limited Warranty | Steel Platform Truck 53-1/2 In. x 24 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 24 | 197 | ||
| SPT-2448-SCL | | 90 Days Limited Warranty | Steel Platform Truck with Scale 53-7/8 In. x 24 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 24 | 375 | ||
| SPT-2460 |  | 90 Days Limited Warranty | Steel Platform Truck 64-1/2 In. x 24 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 24 | 222 | ||
| SPT-2460-SCL |  | 90 Days Limited Warranty | Steel Platform Truck with Scale 64-1/2 In. x 24 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 24 | 420 | ||
| SPT-2472 | | 90 Days Limited Warranty | Steel Platform Truck 76-1/2 In. x 24 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 24 | 242 | ||
| SPT-2472-SCL | | 90 Days Limited Warranty | Steel Platform Truck with Scale 76-1/2 In. x 24 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 24 | 460 | ||
| SPT-2496 |  | 90 Days Limited Warranty | Steel Platform Truck 100-1/2 In. x 24 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 24 | 282 | ||
| SPT-2496-SCL |  | 90 Days Limited Warranty | Steel Platform Truck with Scale 100-1/2 In. x 24 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 24 | 540 | ||
| SPT-3060 | | 90 Days Limited Warranty | Steel Platform Truck 65-1/2 In. x 30 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 30 | 229 | ||
| SPT-3060-SCL |  | 90 Days Limited Warranty | Steel Platform Truck with Scale 65-7/8 In. x 30 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 30 | 463 | ||

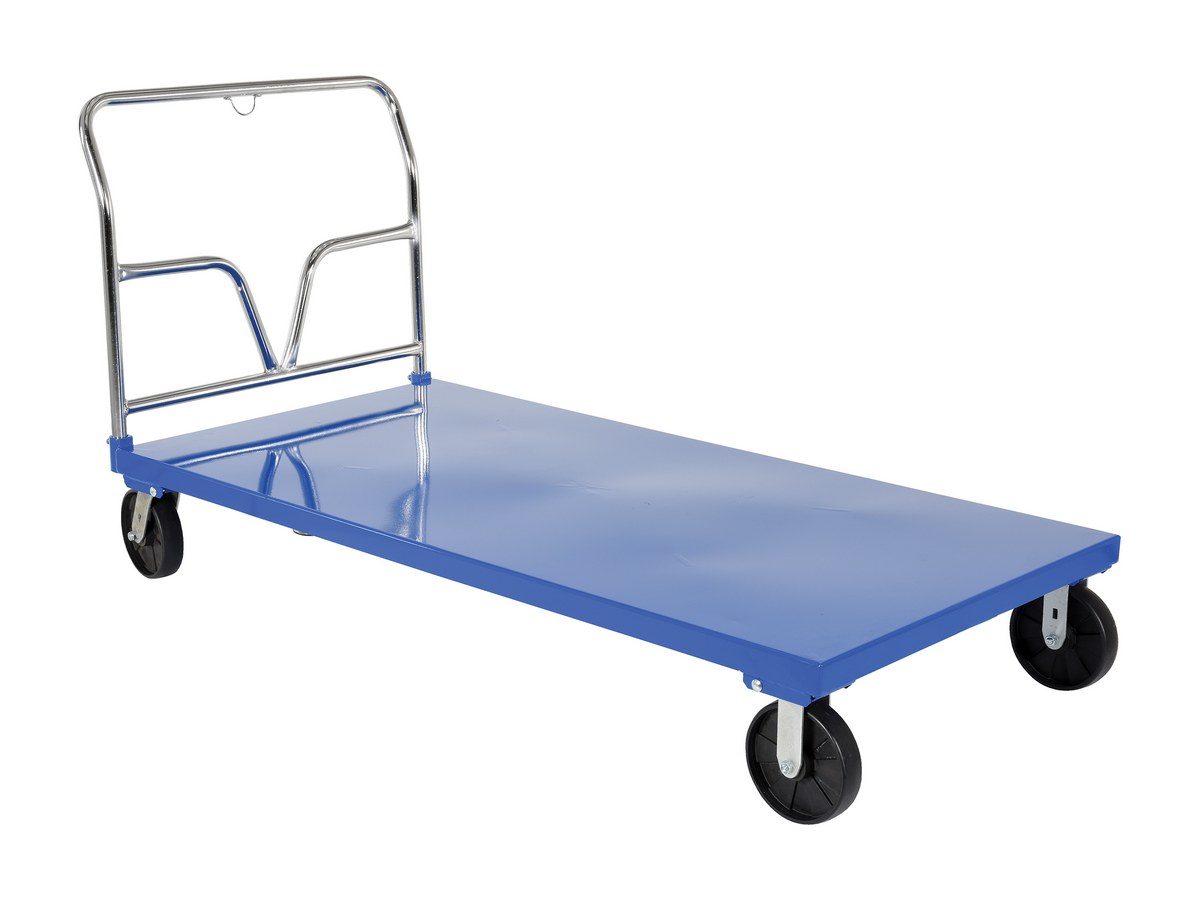

| SPT-3672 |  | 90 Days Limited Warranty | Steel Platform Truck 77-1/2 In. x 36 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 36 | 265 | ||

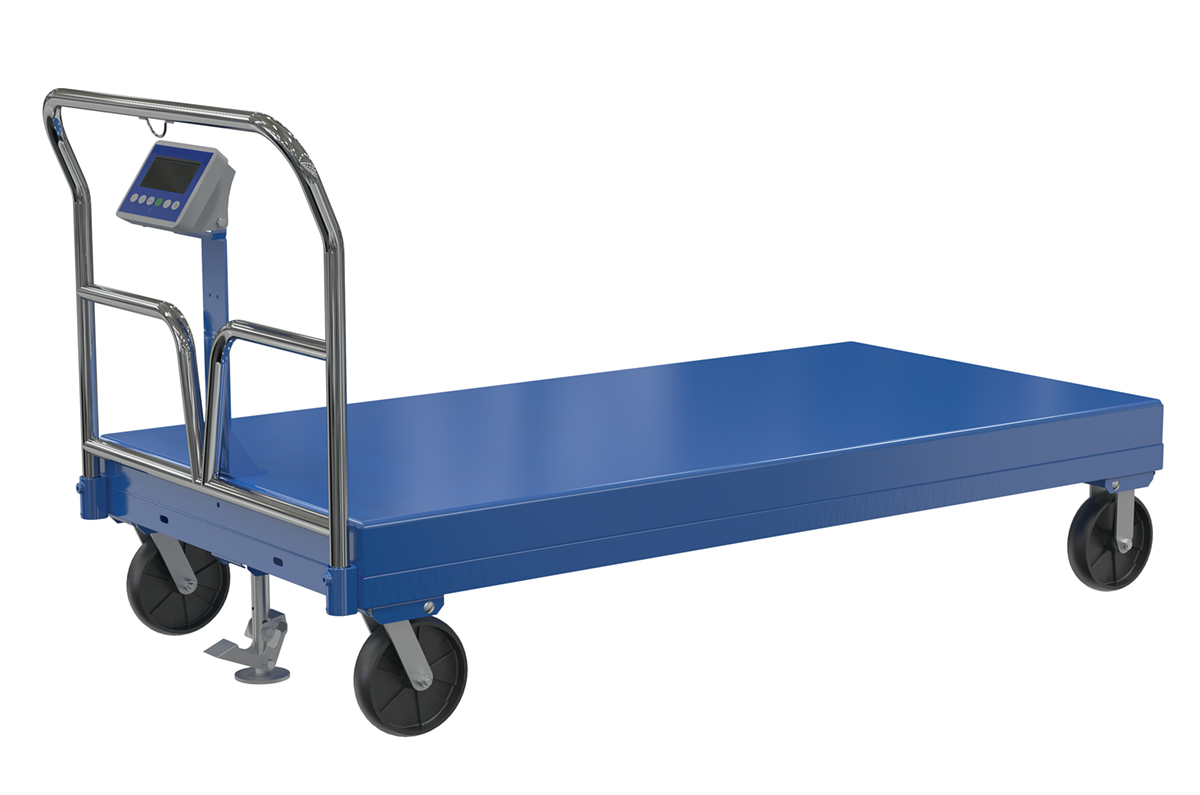

| SPT-3672-SCL |  | 90 Days Limited Warranty | Steel Platform Truck with Scale 77-7/8 In. x 36 In. x 40 In. 3,600 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3600 Deck Width (in.): 36 | 569 | ||

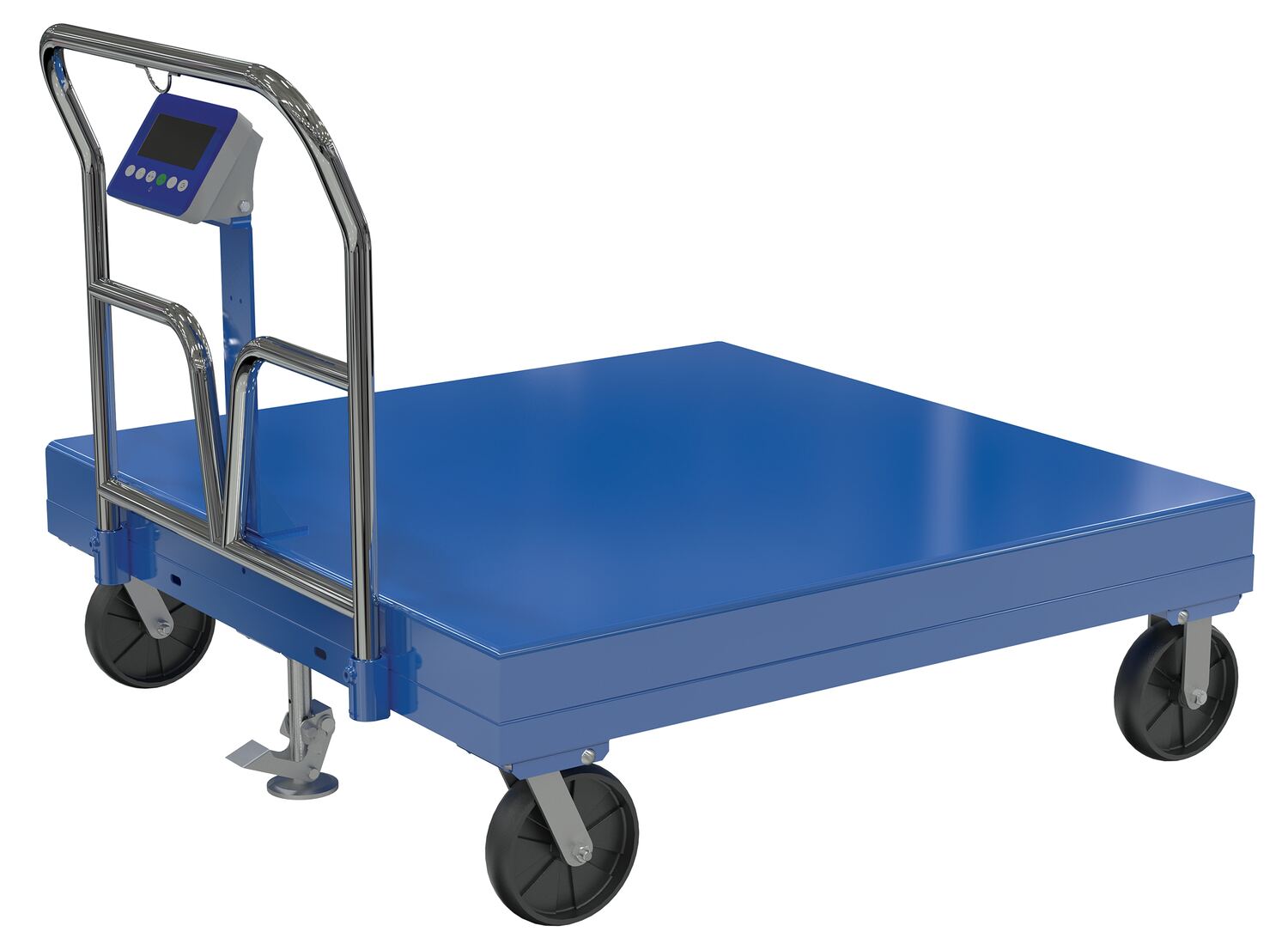

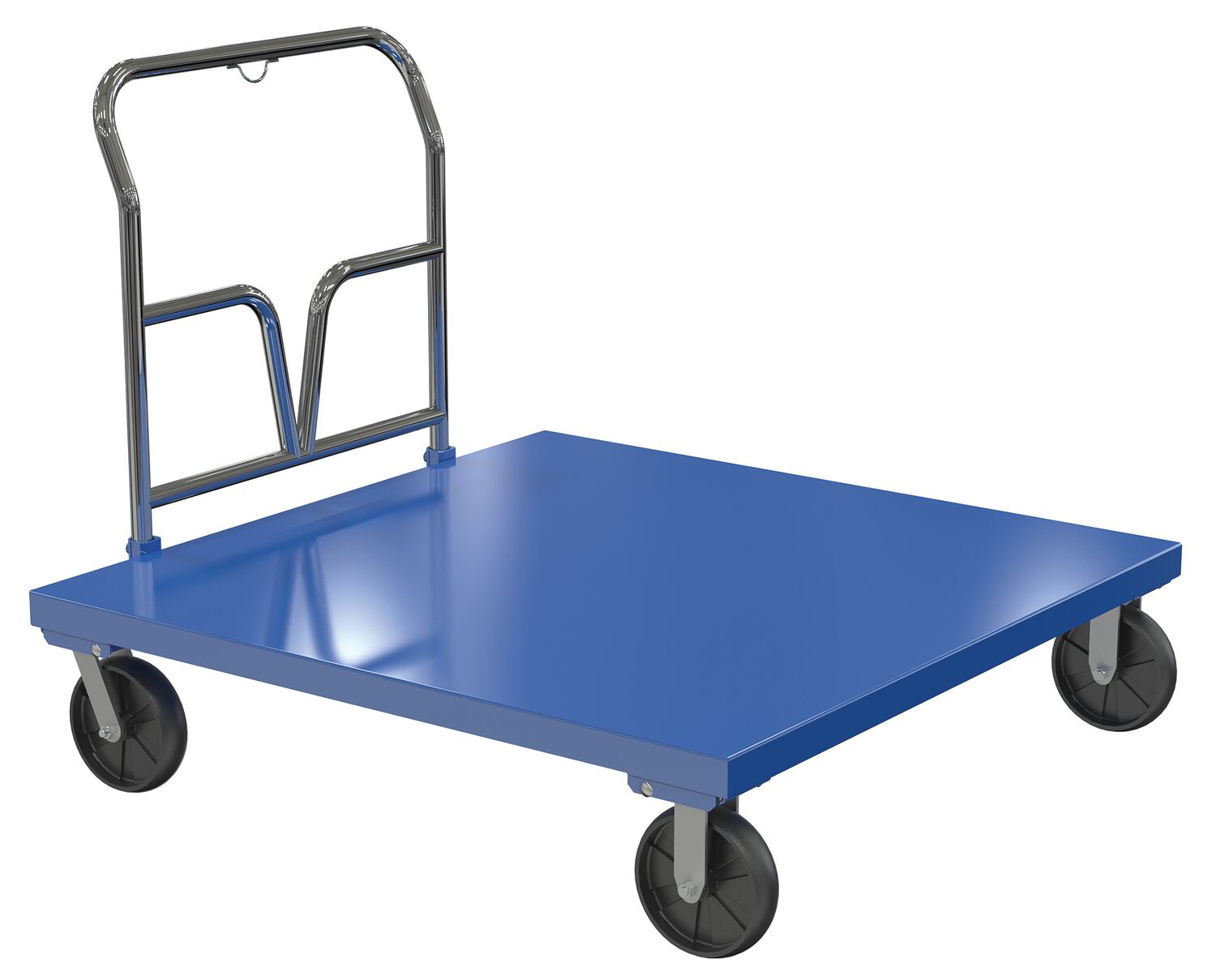

| SPT-4848 |  | 90 Days Limited Warranty | Steel Platform Hand Truck 48 In x 48 In 3,600 Lb. Capacity Blue | Uniform Capacity (lb.): 3600 Usable Platform Size (in.): 48 x 48 | 247 | ||
| SPT-4848-SCL |  | 90 Days Limited Warranty | Steel Platform Hand Truck with Scale 48 In x 48 In 3,600 Lb. Capacity Blue | Uniform Capacity (lb.): 3600 Usable Platform Size (in.): 48 x 48 | 516 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 30
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 30
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 36
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 36
Uniform Static Capacity (lb.): 3600
Deck Width (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3600
Usable Platform Size (in.): 48 x 48
Uniform Capacity (lb.): 3600
Usable Platform Size (in.): 48 x 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3600
Usable Platform Size (in.): 48 x 48
Uniform Capacity (lb.): 3600
Usable Platform Size (in.): 48 x 48
For More Details of the Option Click the Red Model Button
| Model | Image | Description | WT. | |||||
| WT-TBL |  |
   |
Writing Table measures 10-1/2"Wx13-9/16"H with 1" lip | 7 | ||||
| SPT-SL-JACK |  |
|
Semi-Live Skid Jack | 25 | ||||
| SPT-SL-LEG-24 |  |
|
Leg Kit for 24" SPT | 15 | ||||
| SPT-SL-LEG-30 | |
|
Leg Kit for 30" SPT | 16 | ||||
| SPT-SL-LEG-36 | |
|
Leg Kit for 36" SPT | 17 | ||||
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Steel Platform Trucks PDF's will open in a new window when clicked.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
Directory Links Of Available PDF's For All Products
Q: How is the scale powered on this steel platform truck?

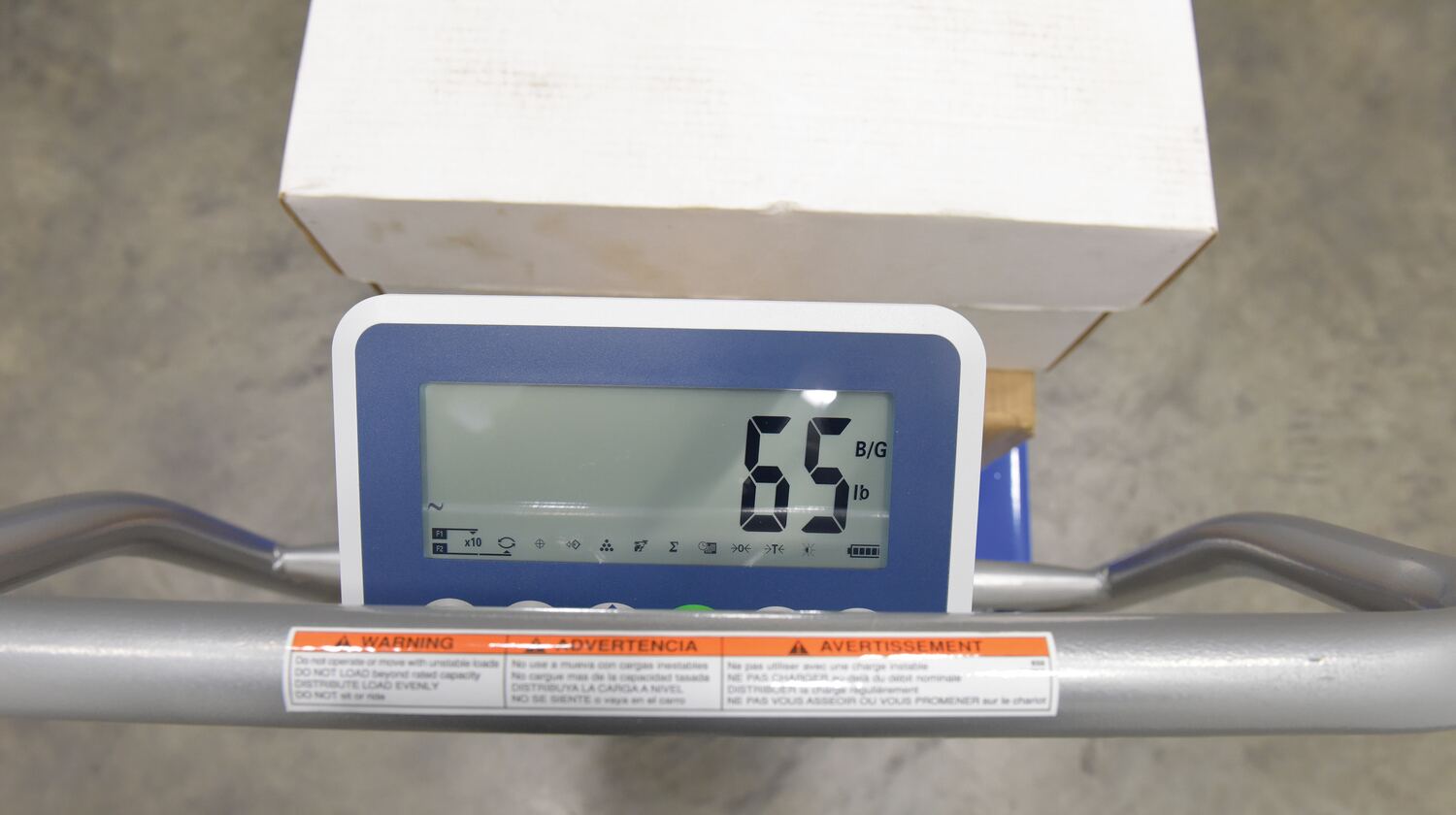

A: The LCD scale operates on 6 AA batteries. The scale has 5 function keys including Zero, Tare, Net/Gross, Print, LB. /KG. Scale head includes port for serial printing.
Q: Does the scale have multiple units of measure?
A: The scale on the SPT-2448-SCL, SPT-3060-SCL, SPT-3072-SCL can measure KG, G and LBS. Unit of measure in LBS extends to 4 places (i.e. .0001)
Q: I am looking at the SPT-3672. What is the mounting hole pattern and bracket size of the default casters?
A: The SPT utilizes a bull dog caster plate. It will accept caster pads that are 4" w x 4-1/2" lg x 3/16" thick.
Q: What is the thickness of the SPT series deck?
A: 12 GA. (0.1046")
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Steel Platform Trucks |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Solid, smooth steel deck is all welded and features structural reinforcement underneath for extra strength. Includes one removable high-polished steel handle and rolls smoothly on (2) rigid and (2) swivel casters. Series SPT comes standard with a floor lock and a durable blue powder coat finish. Models ending in -SCL include a functional scale. The scale gives the users the ability to weigh items during picking rather than in congested designated shipping areas. A digital screen sits atop a built in pedestal for clear reading.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
