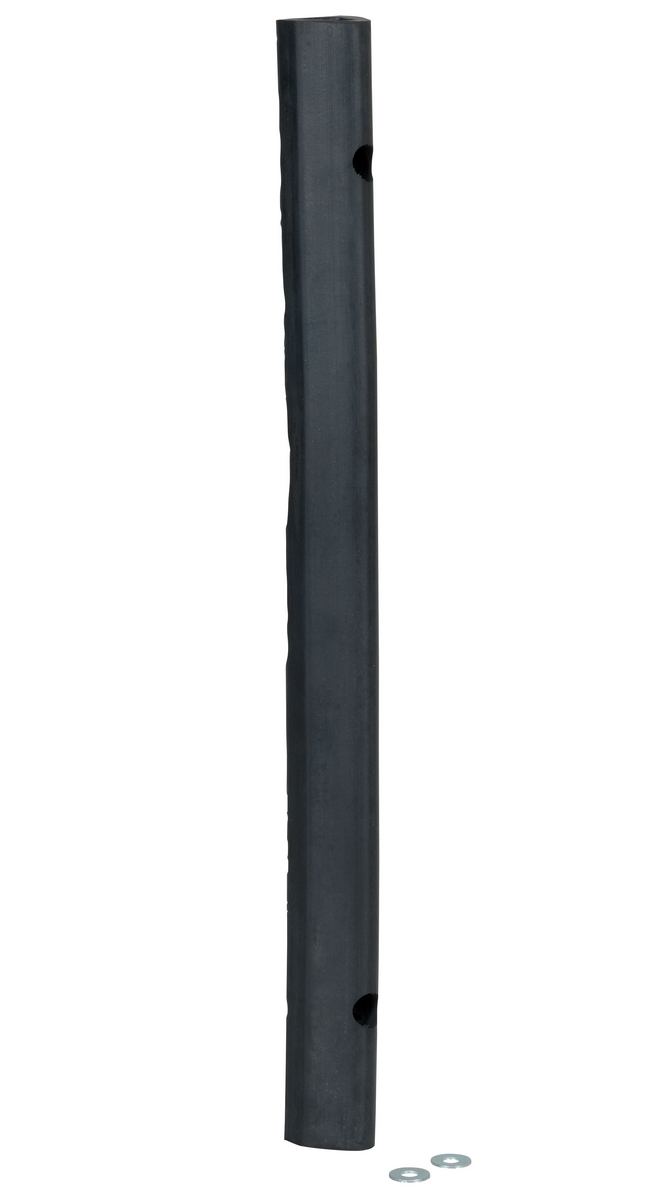

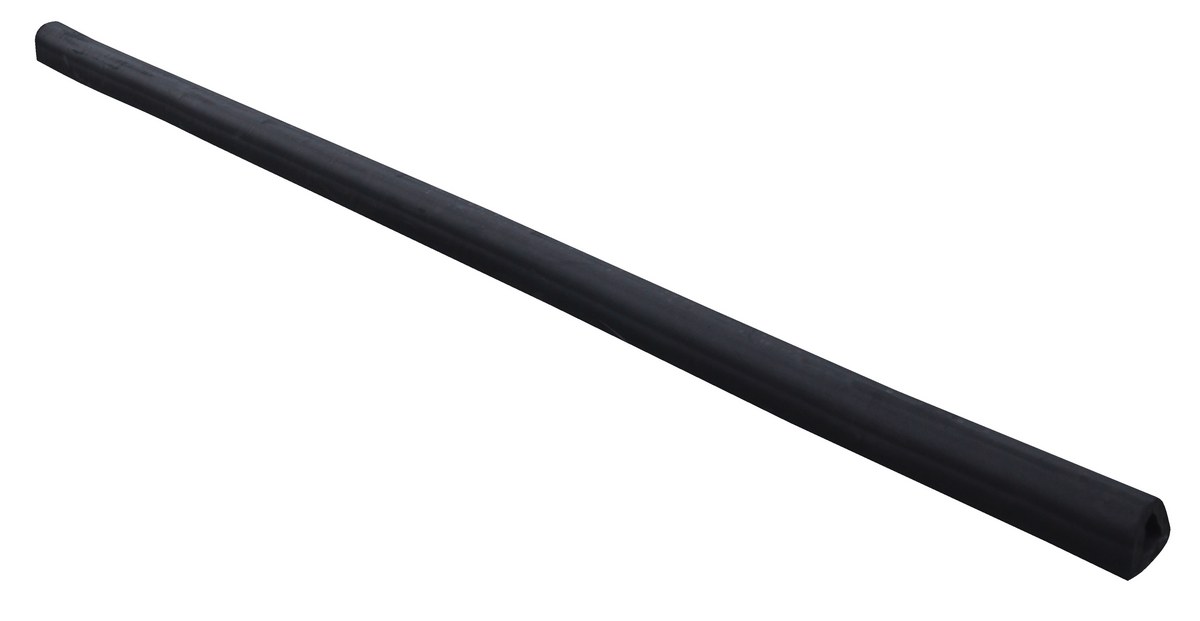

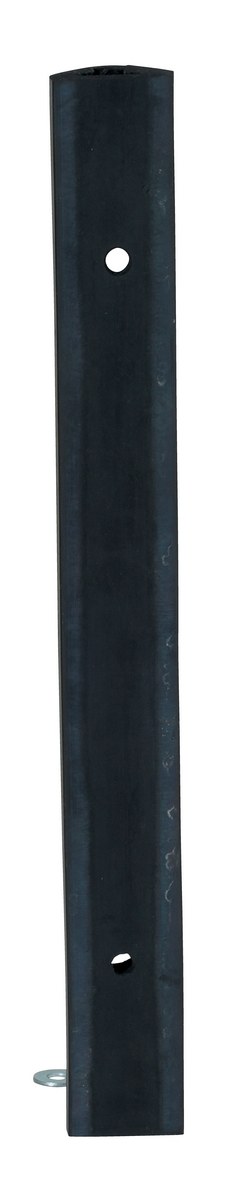

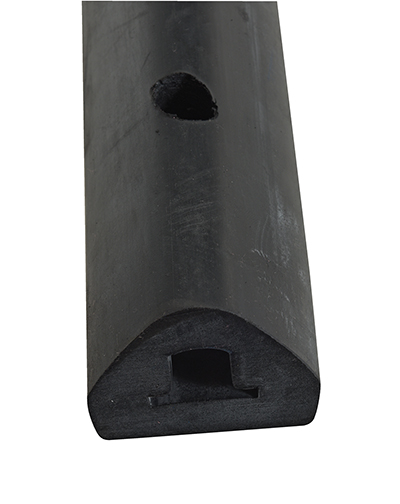

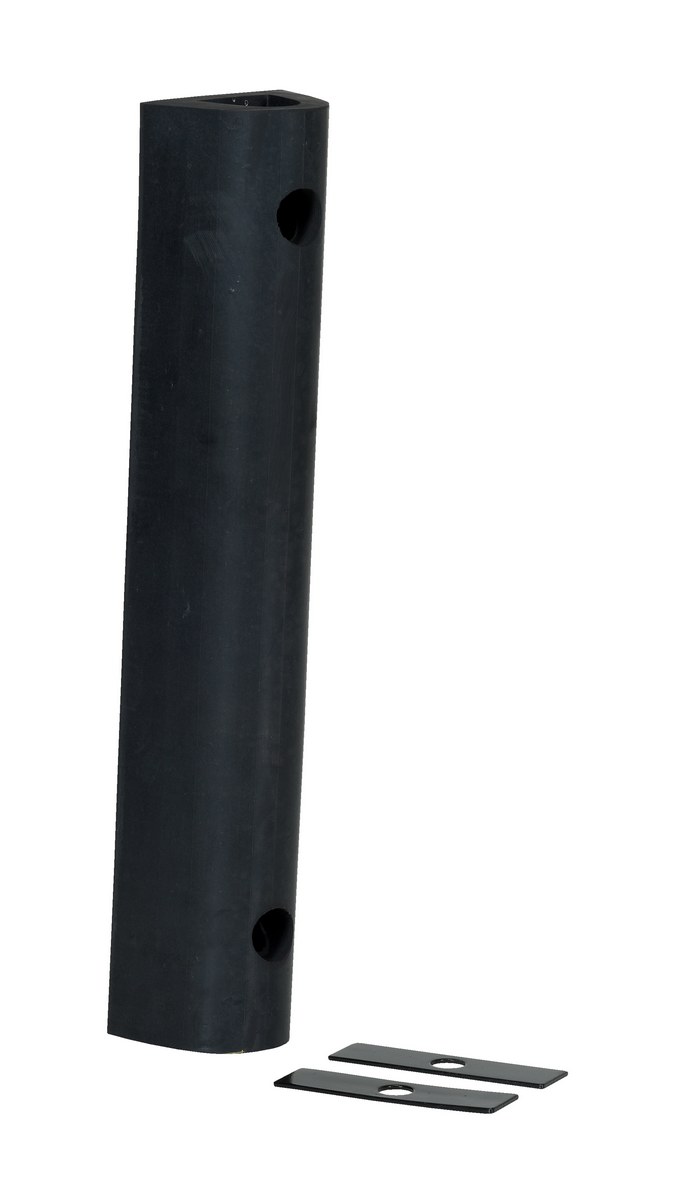

Extruded BumpersMade of all weather and abrasion resistant rubber. The half-oval shape allows for effective fendering action over a wide radius. A metal plate is located inside 4" and 6" projection bumpers for support while the 2" unit comes with one washer per hole. 120" models do not include holes or support material. 120" long bumpers run longer in order to be cut to final length. Custom lengths available up to 10 feet. Installation hardware sold separately.

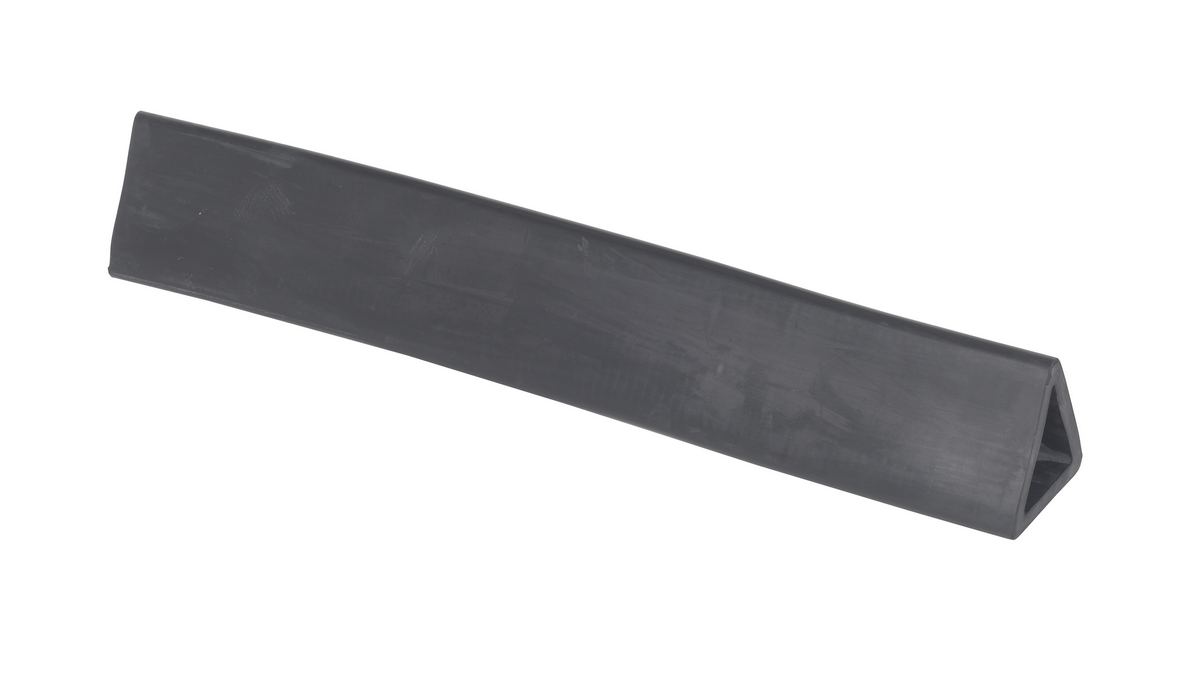

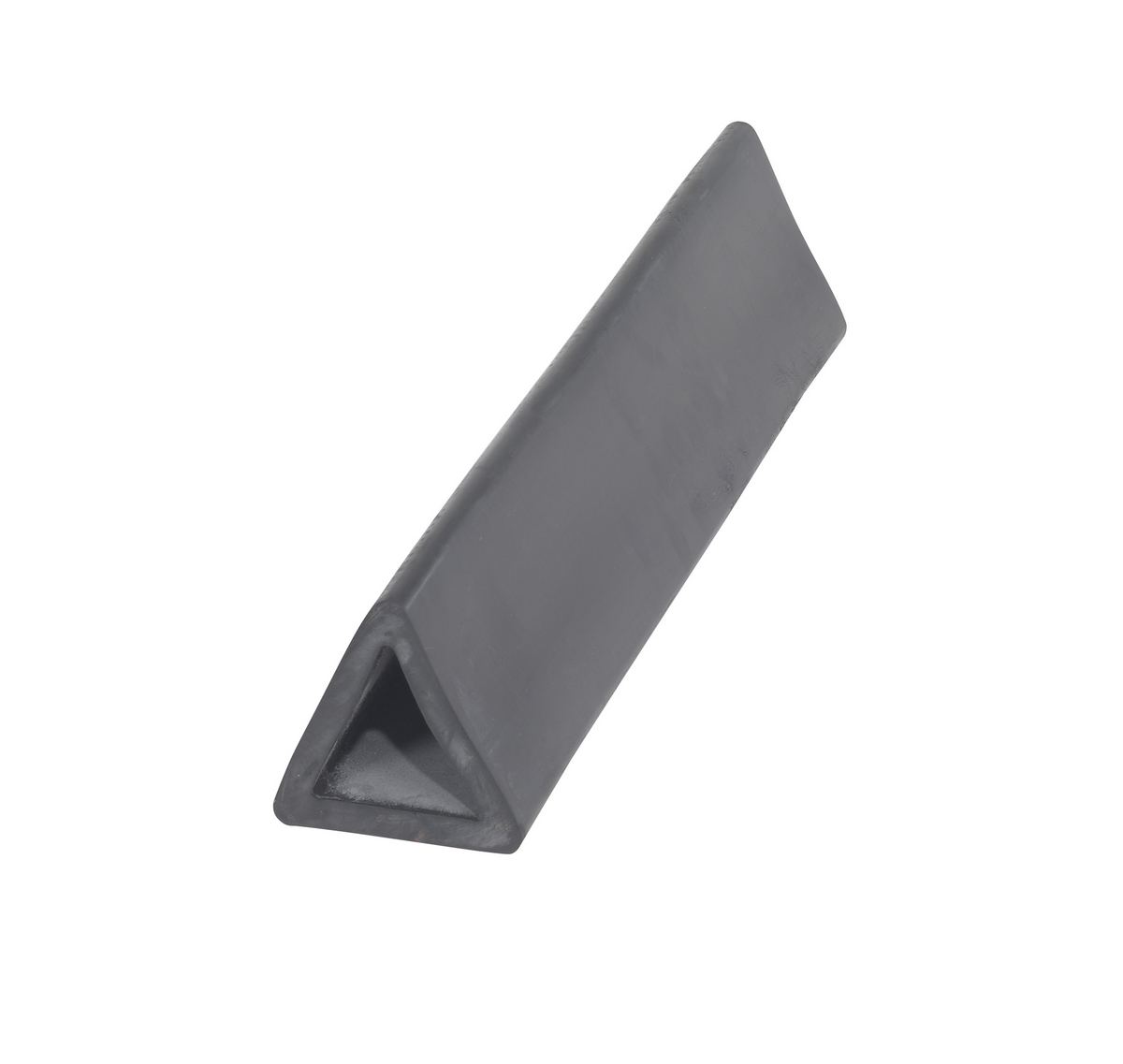

Extruded Triangular Bumpers
The Extruded Triangular Bumper protects against heavy impact and damaging results of daily contact. This Bumper is made of resistant rubber that allows for effective protection over a wide radius. Lightweight and simple to install. The installation hardware is not included, but it is available separately.
Rounded Dome Bumpers
Specialty Molded Dock Bumpers
Trailer Crane BumpersAdditional Models In This Family
M-ET-2-24
M-ET-2-48
M-2-12
M-4-24
M-2-36
M-2-18
M-6-12
M-4-18
M-ET-2-12
M-2-18
M-ET-2-48
M-2-12
M-4-24
M-ET-2-36
M-ET-2-12
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

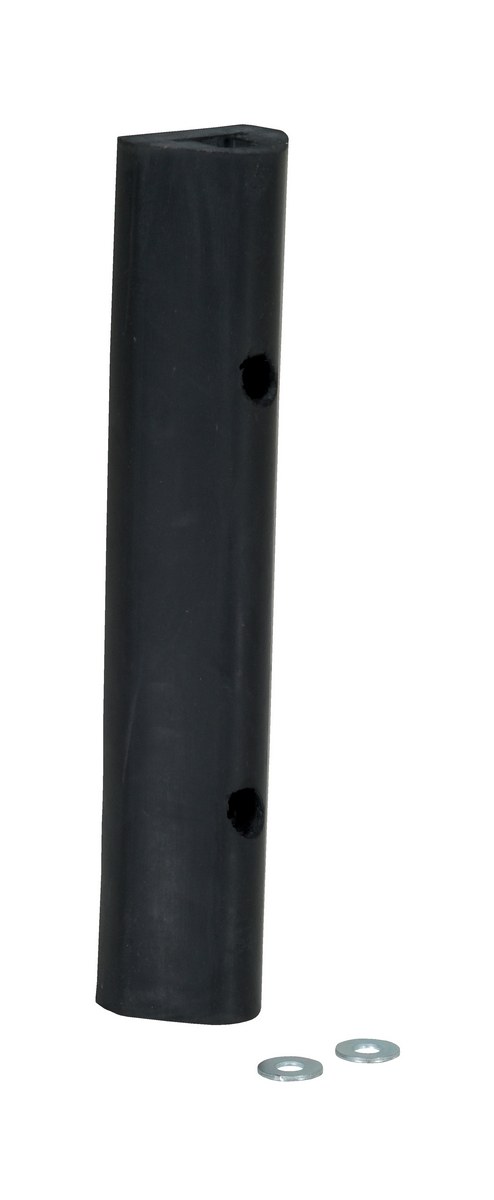

| M-2-12 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 12 In. x 2 In. x 1-3/4 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 2 | 2 | ||

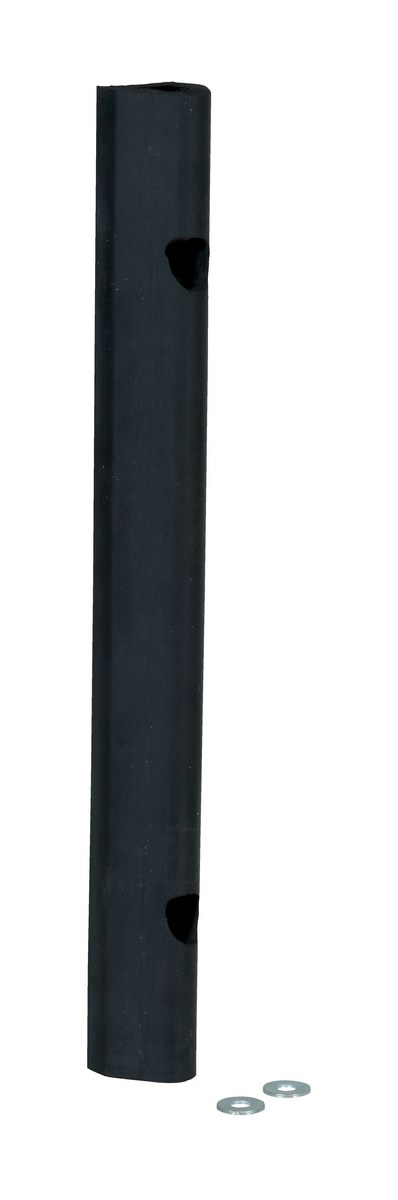

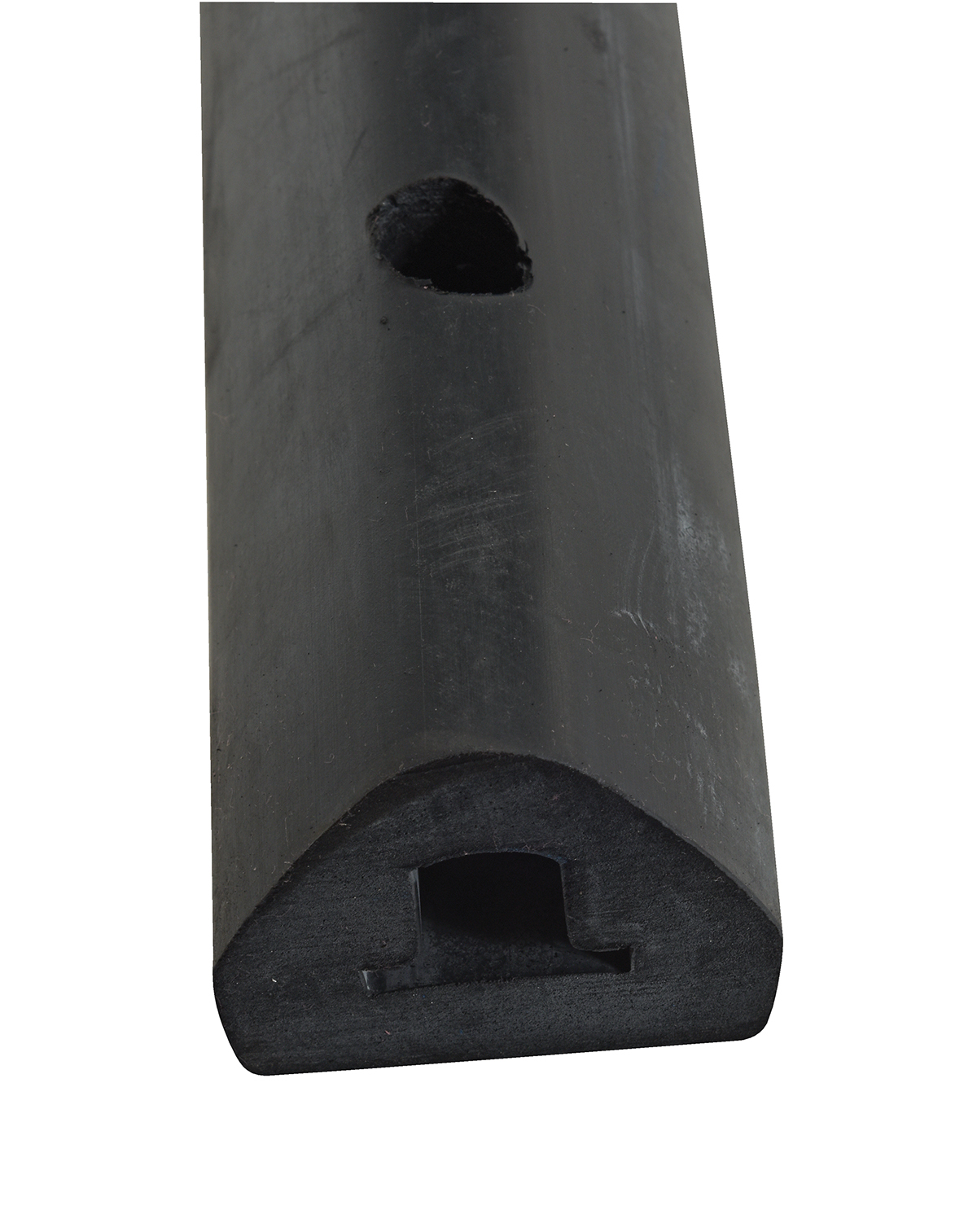

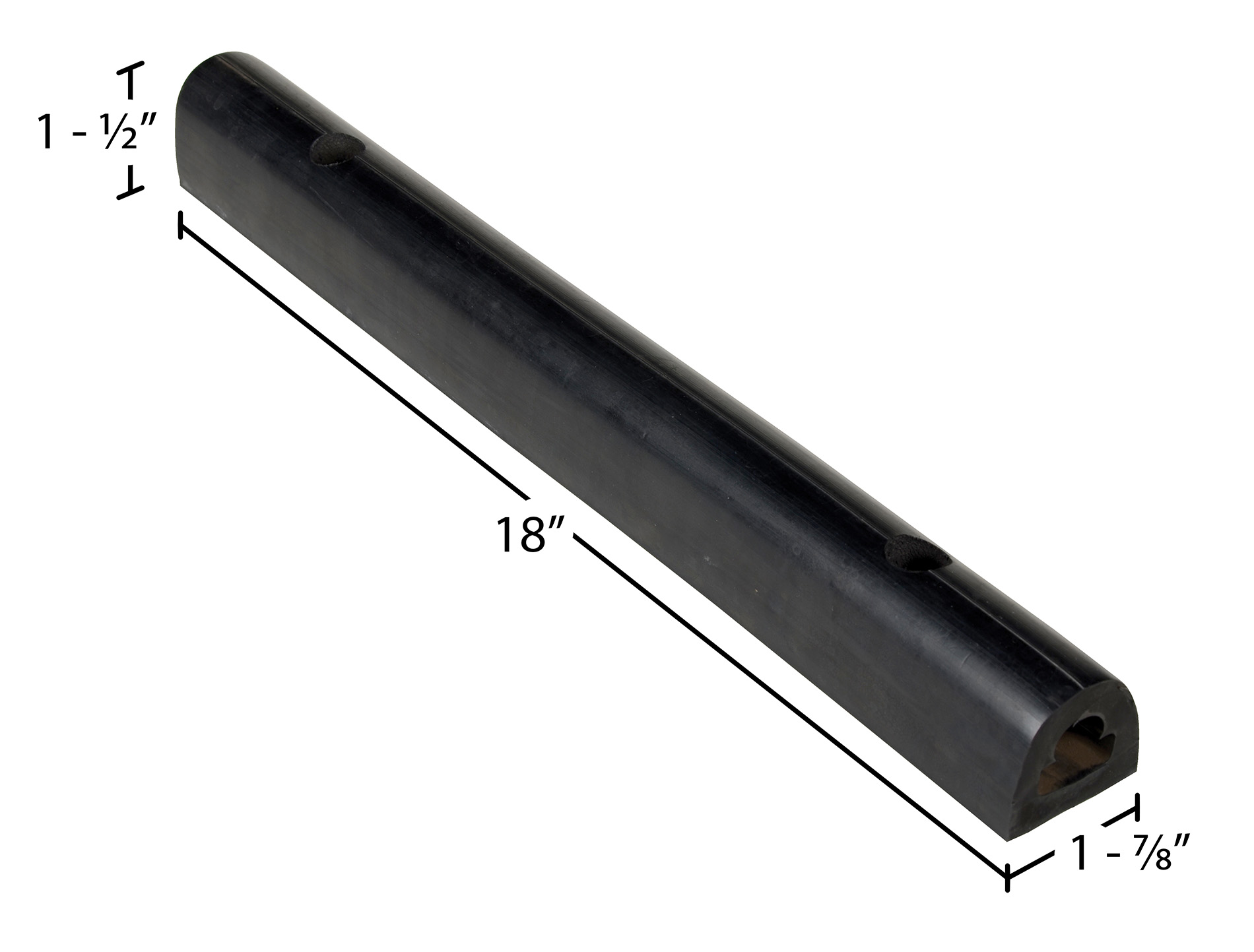

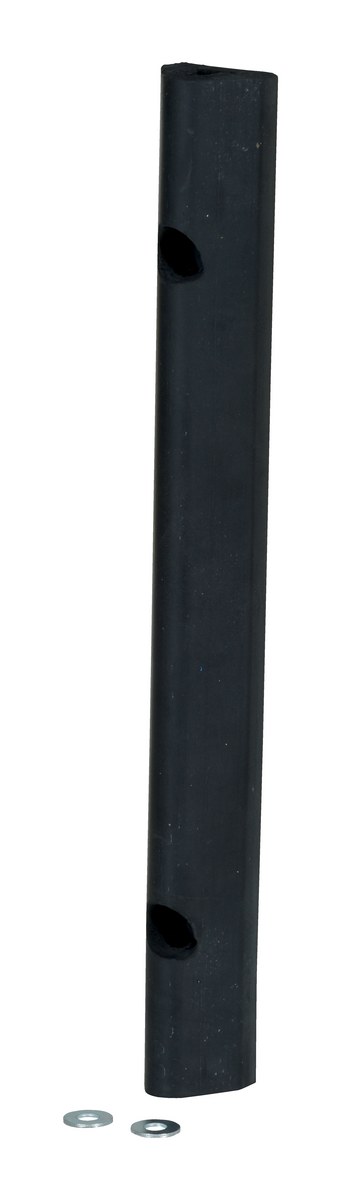

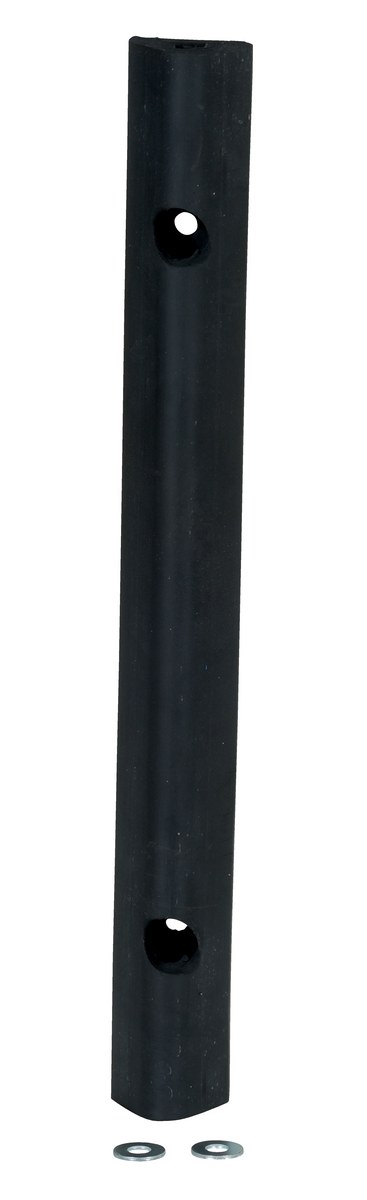

| M-2-18 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 18 In. x 2 In. x 1-3/4 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 1/2 | 2 | ||
| M-2-24 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 24 In. x 2 In. x 1-3/4 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 2 | 3 | ||

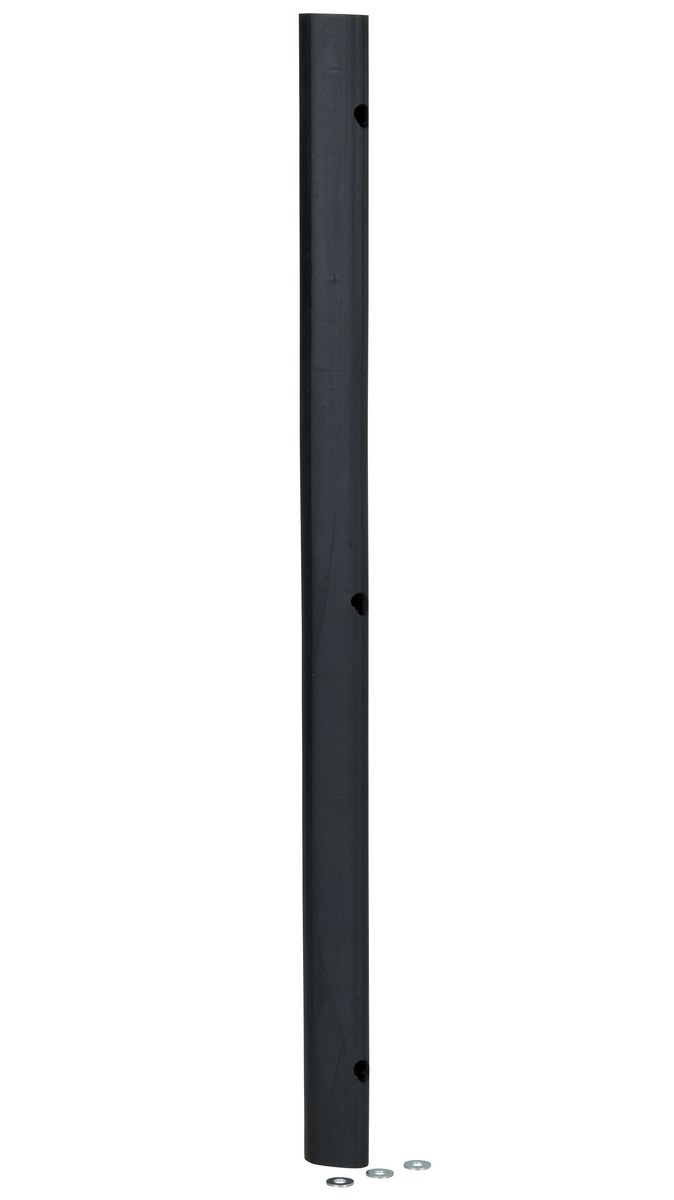

| M-2-36 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 36 In. x 2 In. x 1-3/4 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 3 | 8 | ||

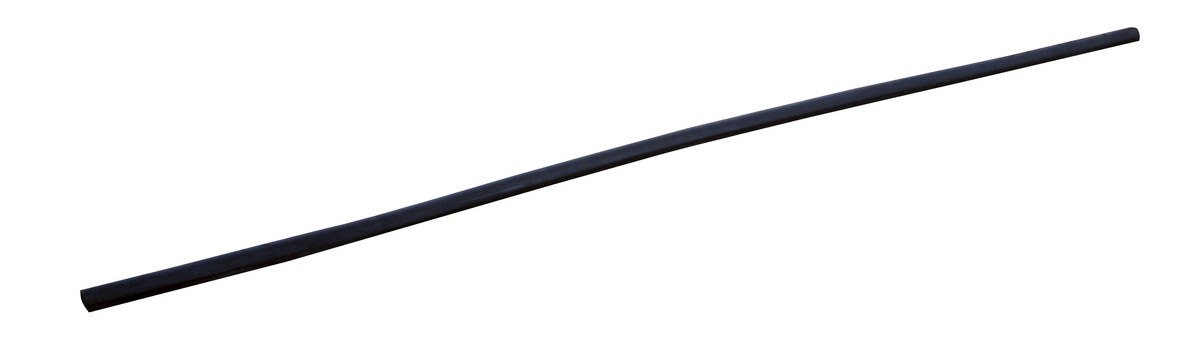

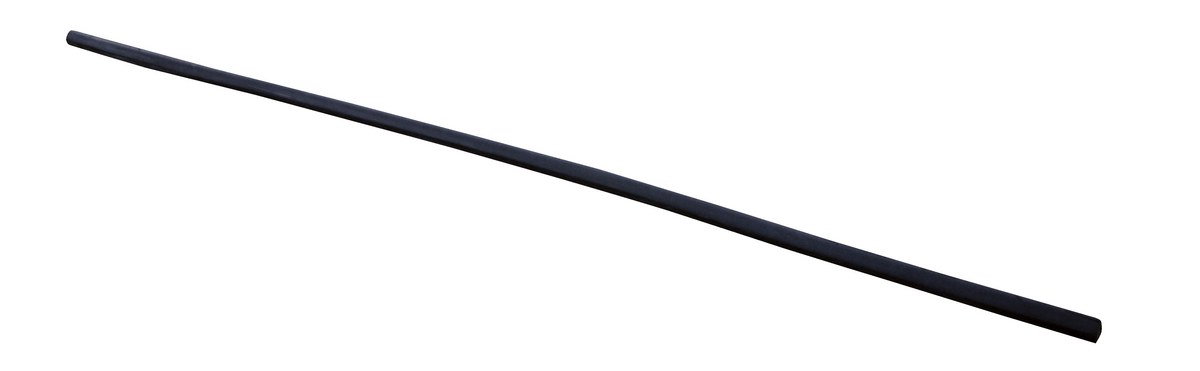

| M-2-120 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 120 In. x 1.875 In. x 1.5 In. Black | Durometer: +/- 70 | 12 | ||

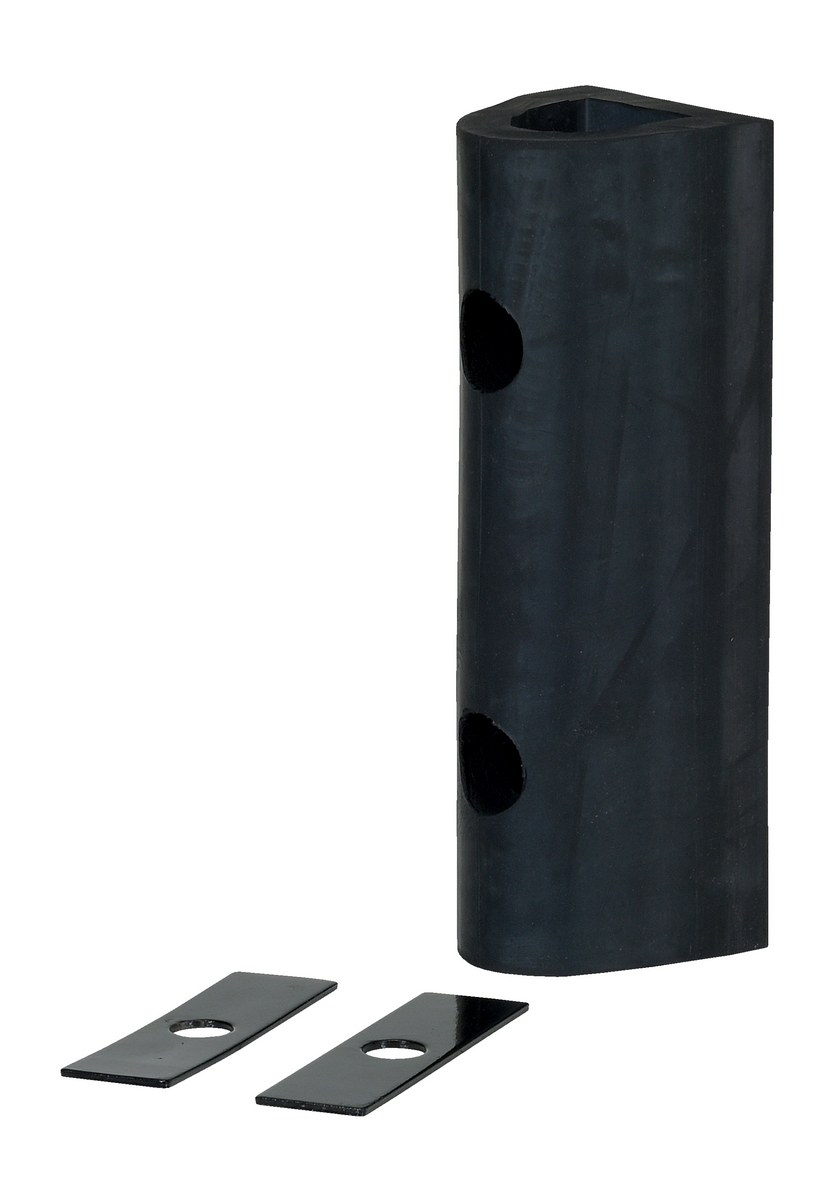

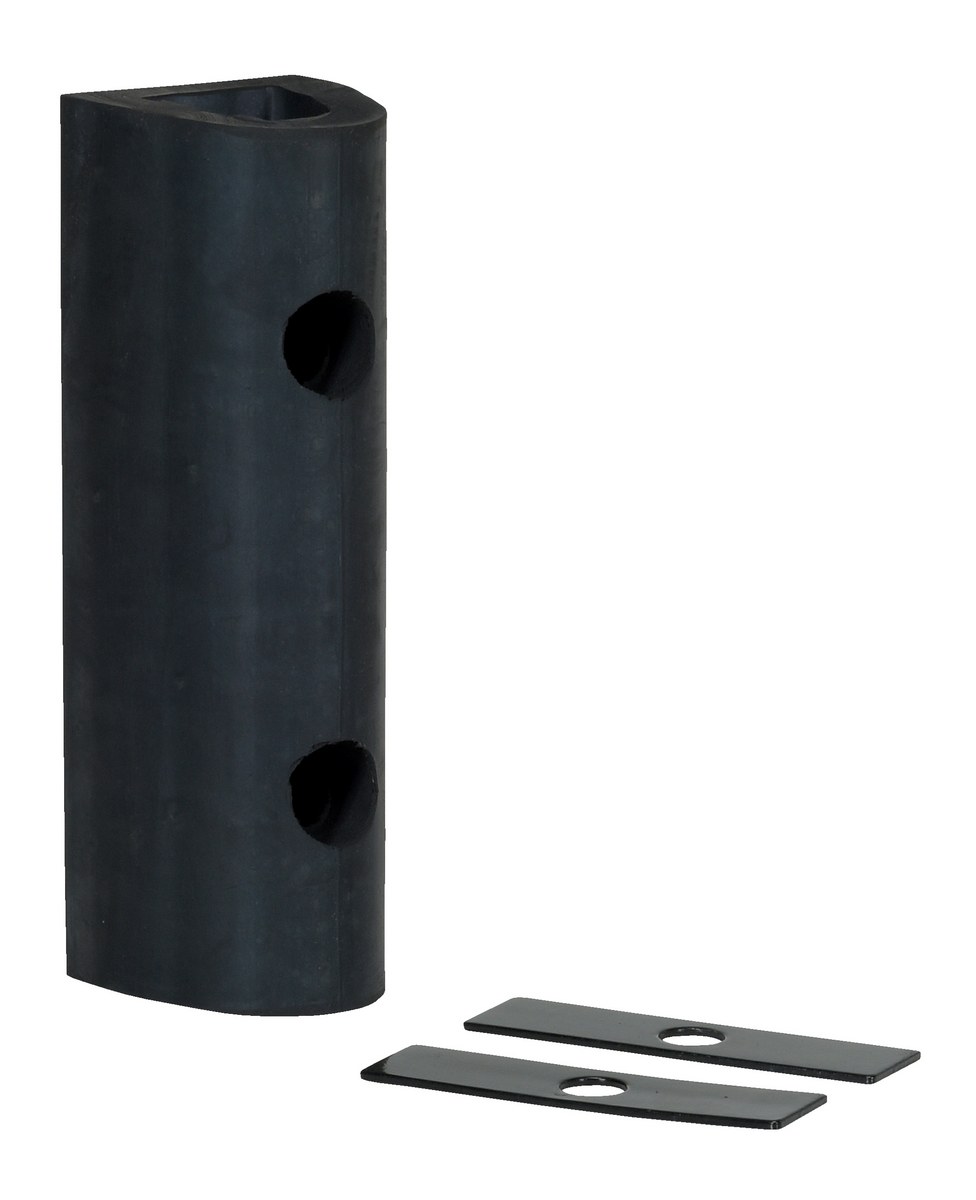

| M-4-12 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 12 In. x 4-1/4 In. x 4 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 2 | 8 | ||

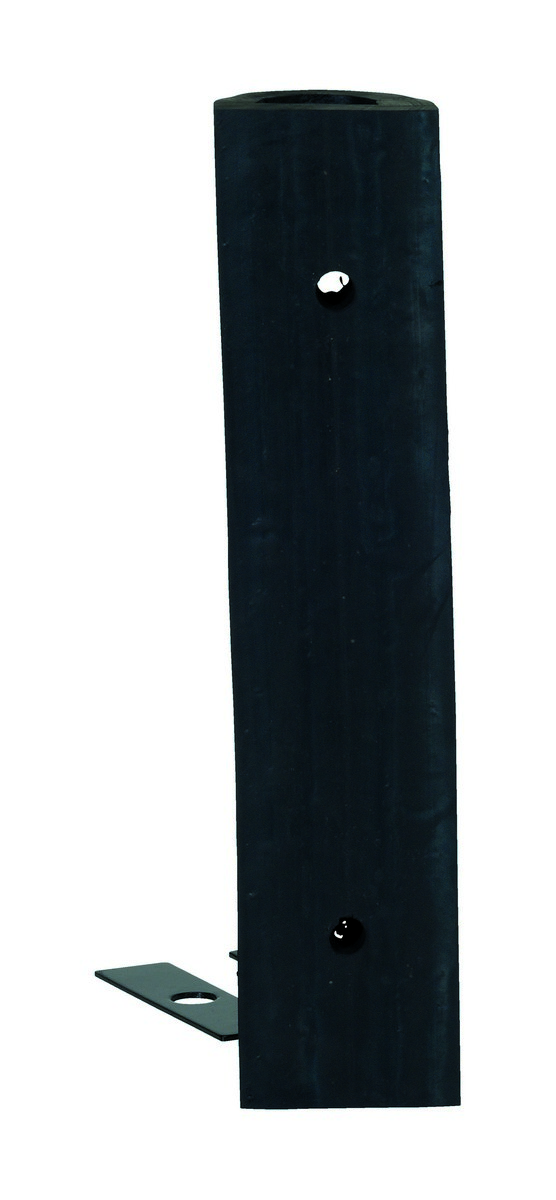

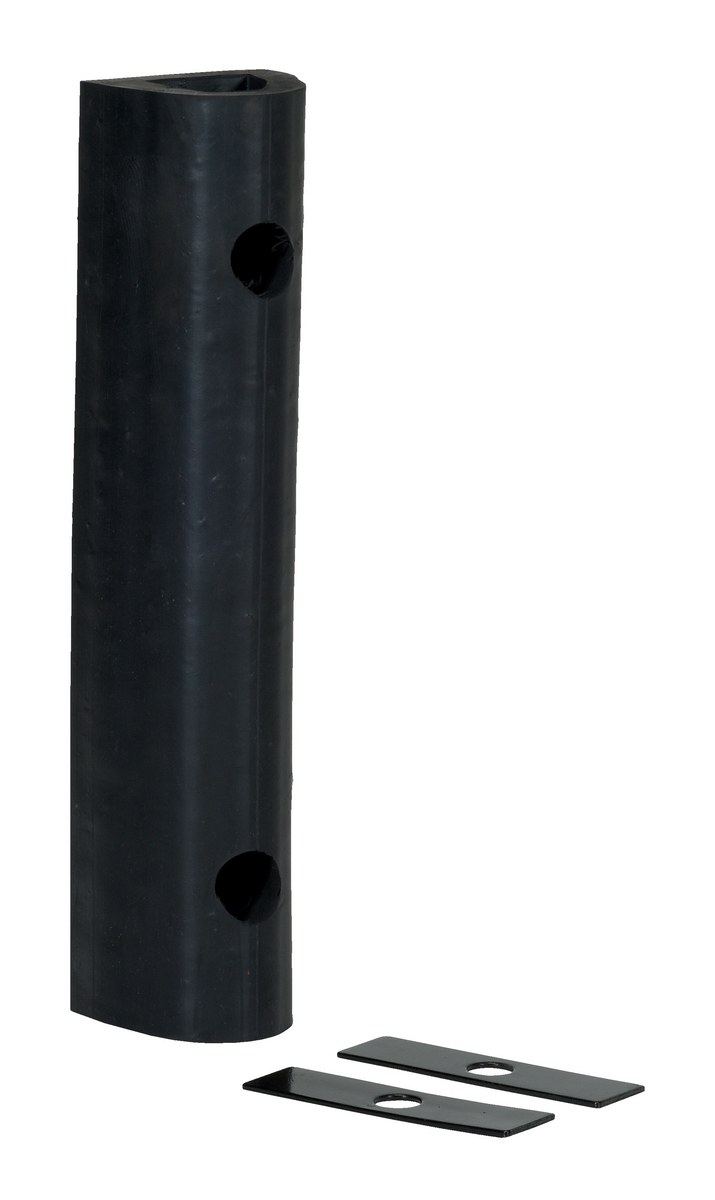

| M-4-18 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 18 In. x 4-1/4 In. x 4 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 2 | 10 | ||

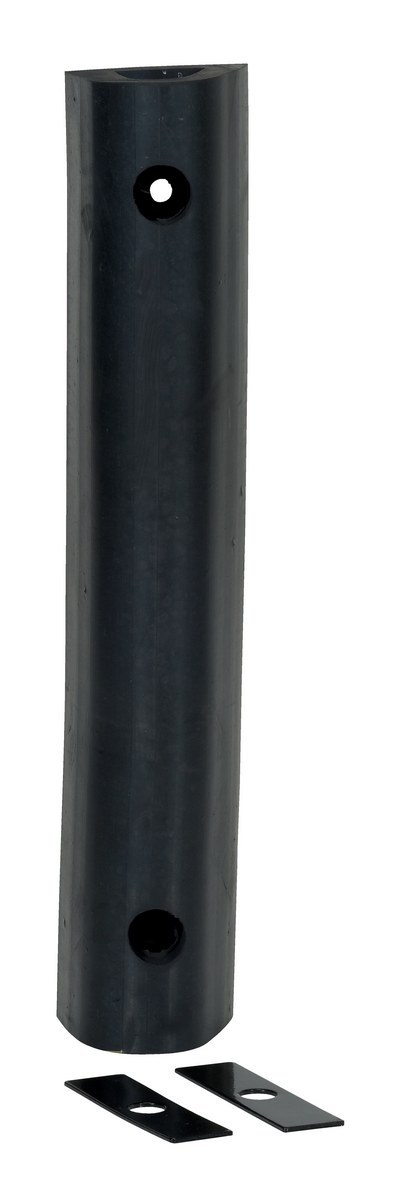

| M-4-24 | | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 24 In. x 4-1/4 In. x 4 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 2 | 14 | ||

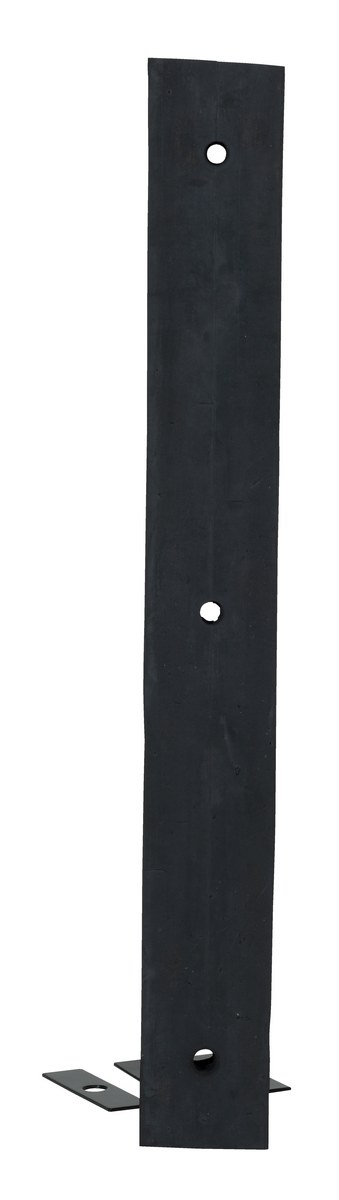

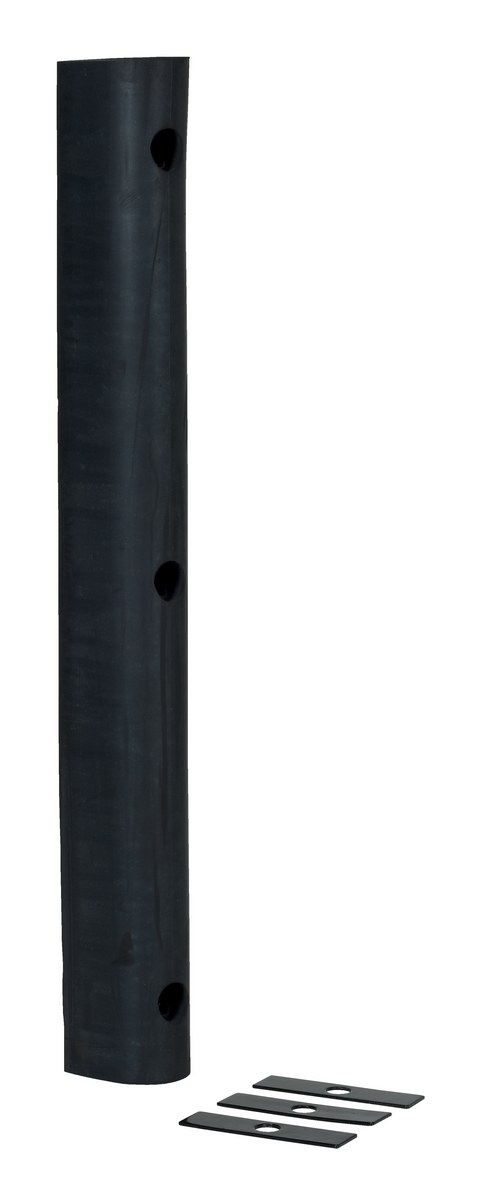

| M-4-36 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 36 In. x 4-1/4 In. x 4 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 3 | 18 | ||

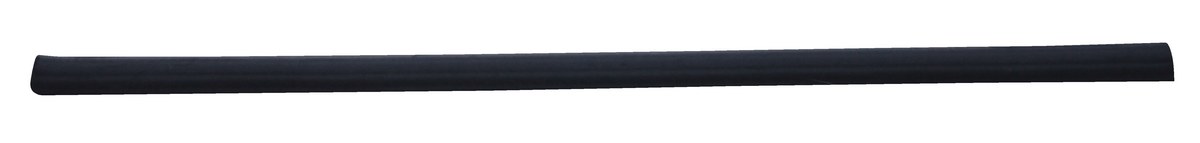

| M-4-120 | POPULAR |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 120 In. x 4-1/4 In. x 4 In. Black | Durometer: +/- 70 | 61 | |

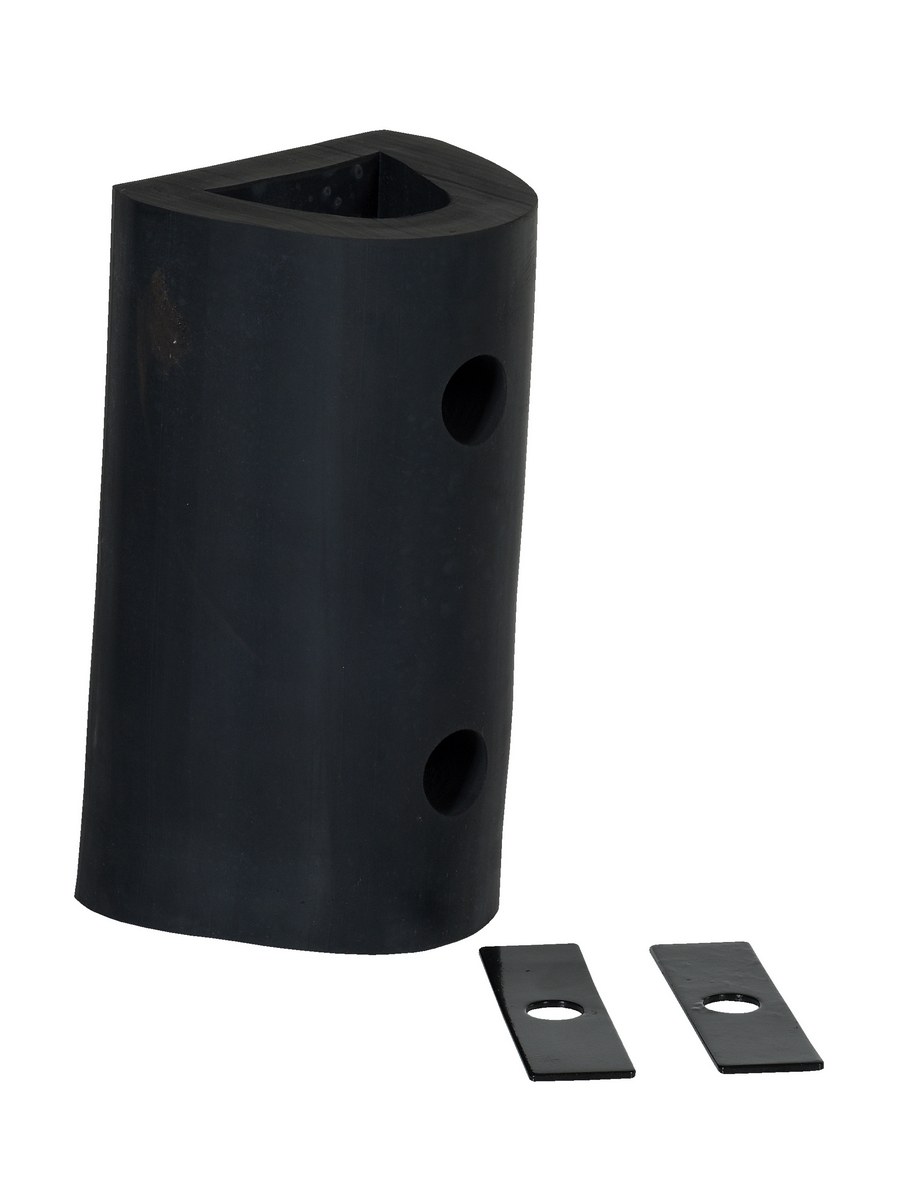

| M-6-12 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 12 In. x 6 In. x 6 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 2 | 14 | ||

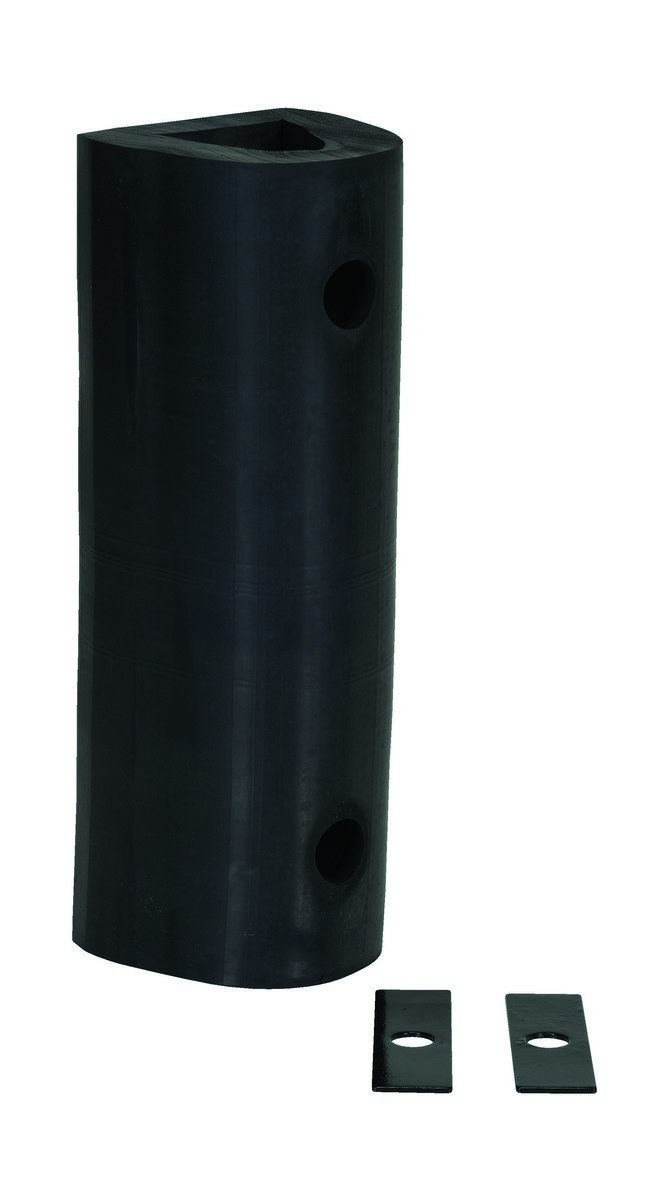

| M-6-18 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 18 In. x 6 In. x 6 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 2 | 18 | ||

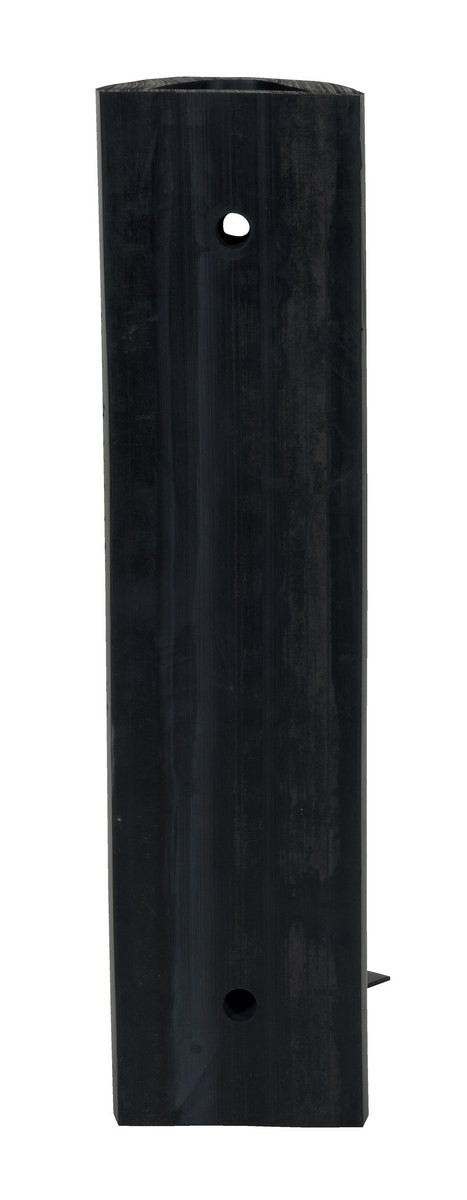

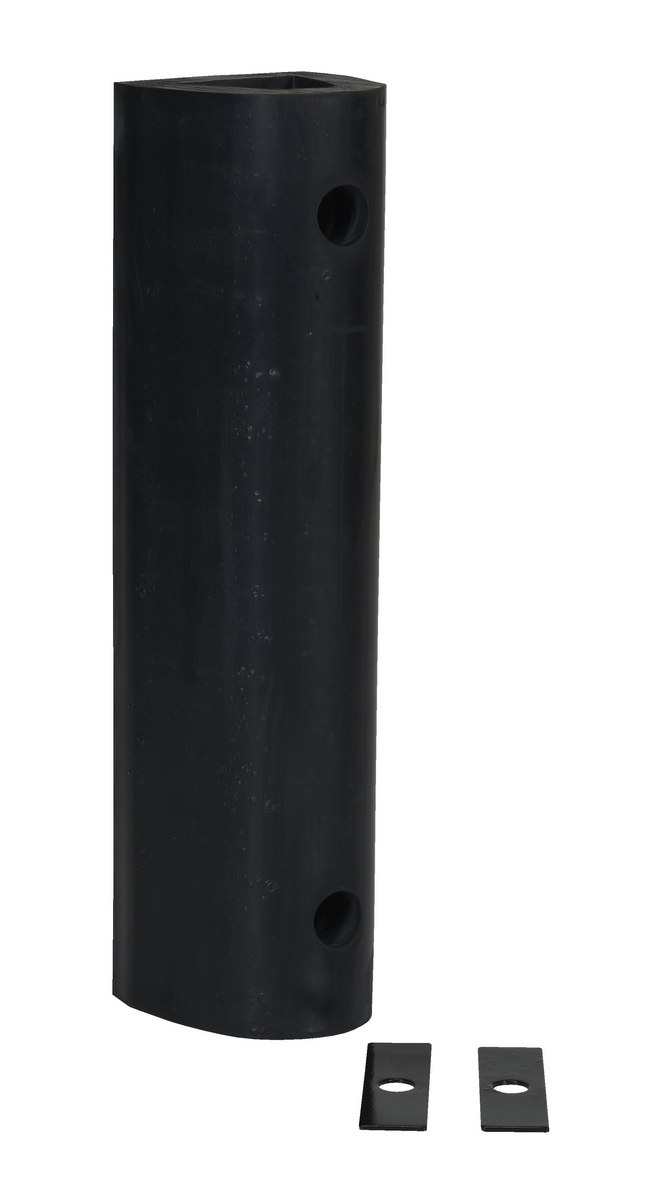

| M-6-24 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 24 In. x 6 In. x 6 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 2 | 24 | ||

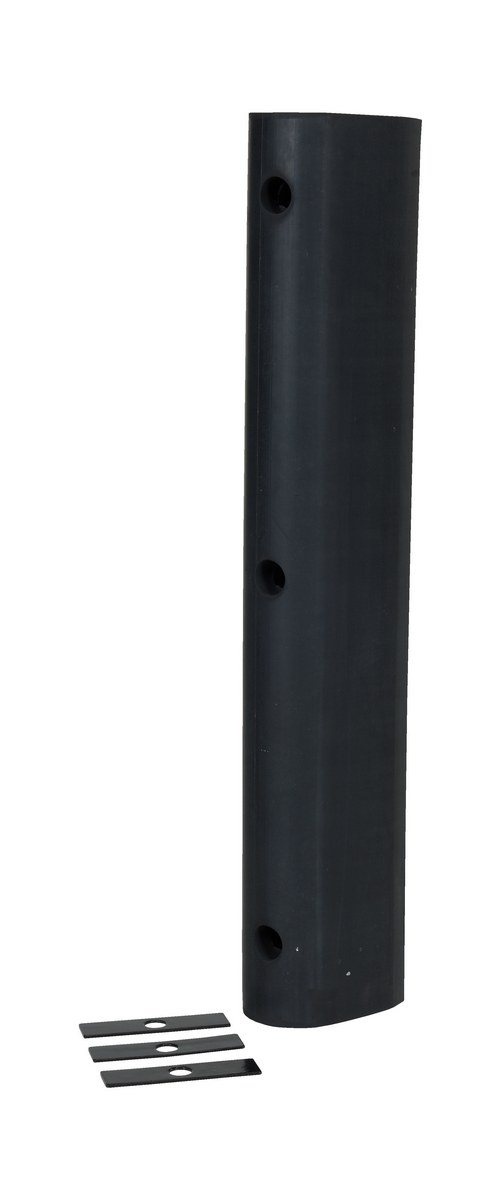

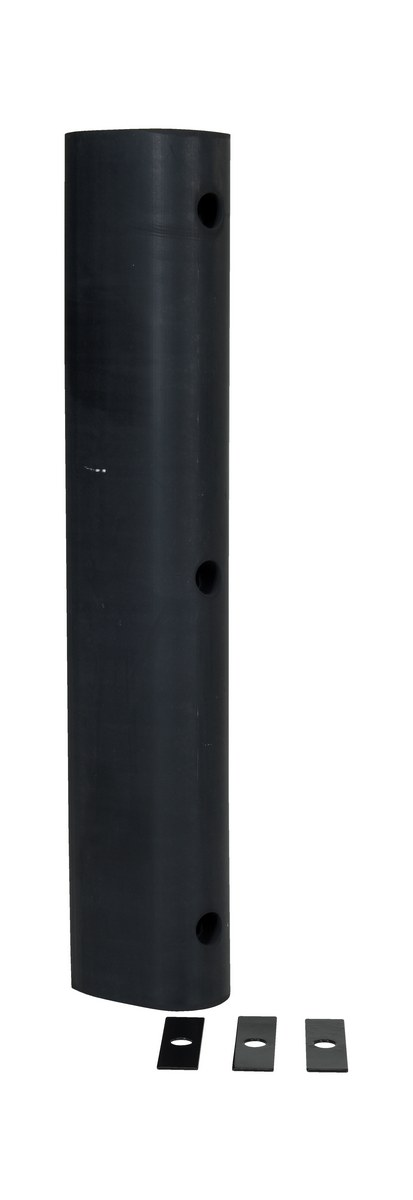

| M-6-36 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 36 In. x 6 In. x 6 In. Black | Durometer: (+/-5) 70 Mounting Hole Quantity: 3 | 34 | ||

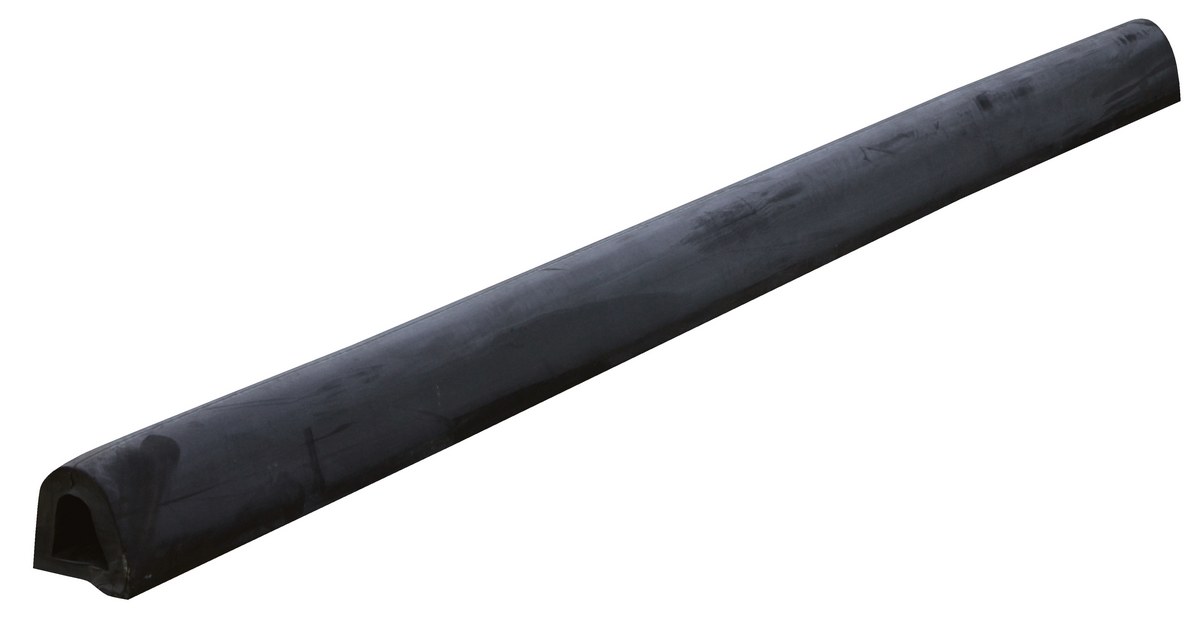

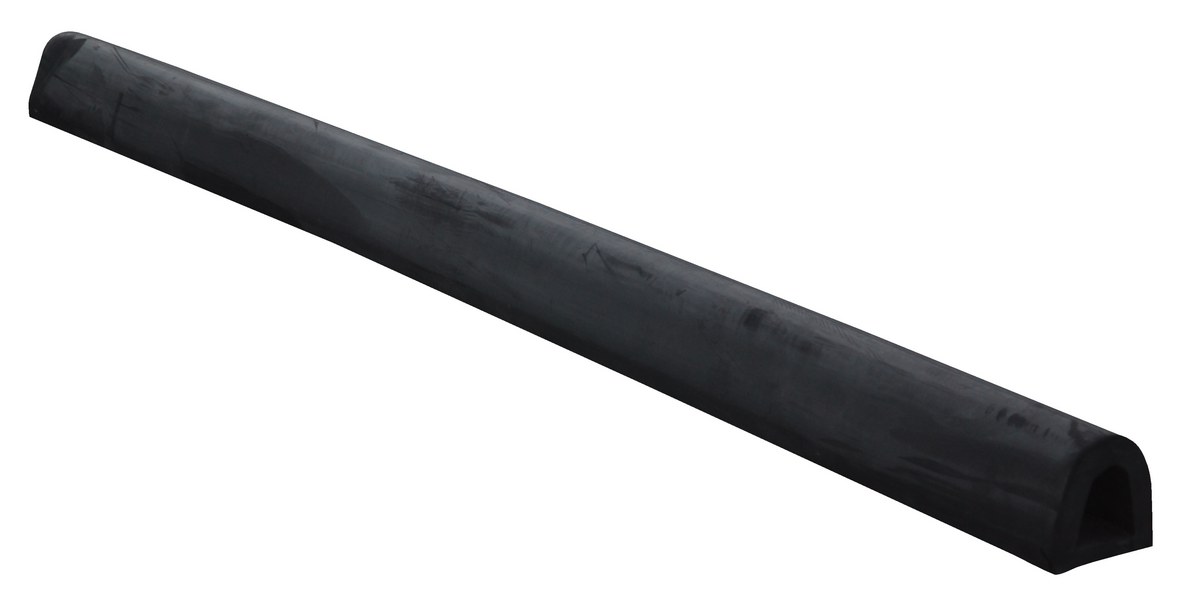

| M-6-120 |  | 30 Days Limited Warranty | Extruded Rubber Fender Bumper 120 In. x 6 In. x 6 In. Black | Durometer: +/- 70 | 137 | ||

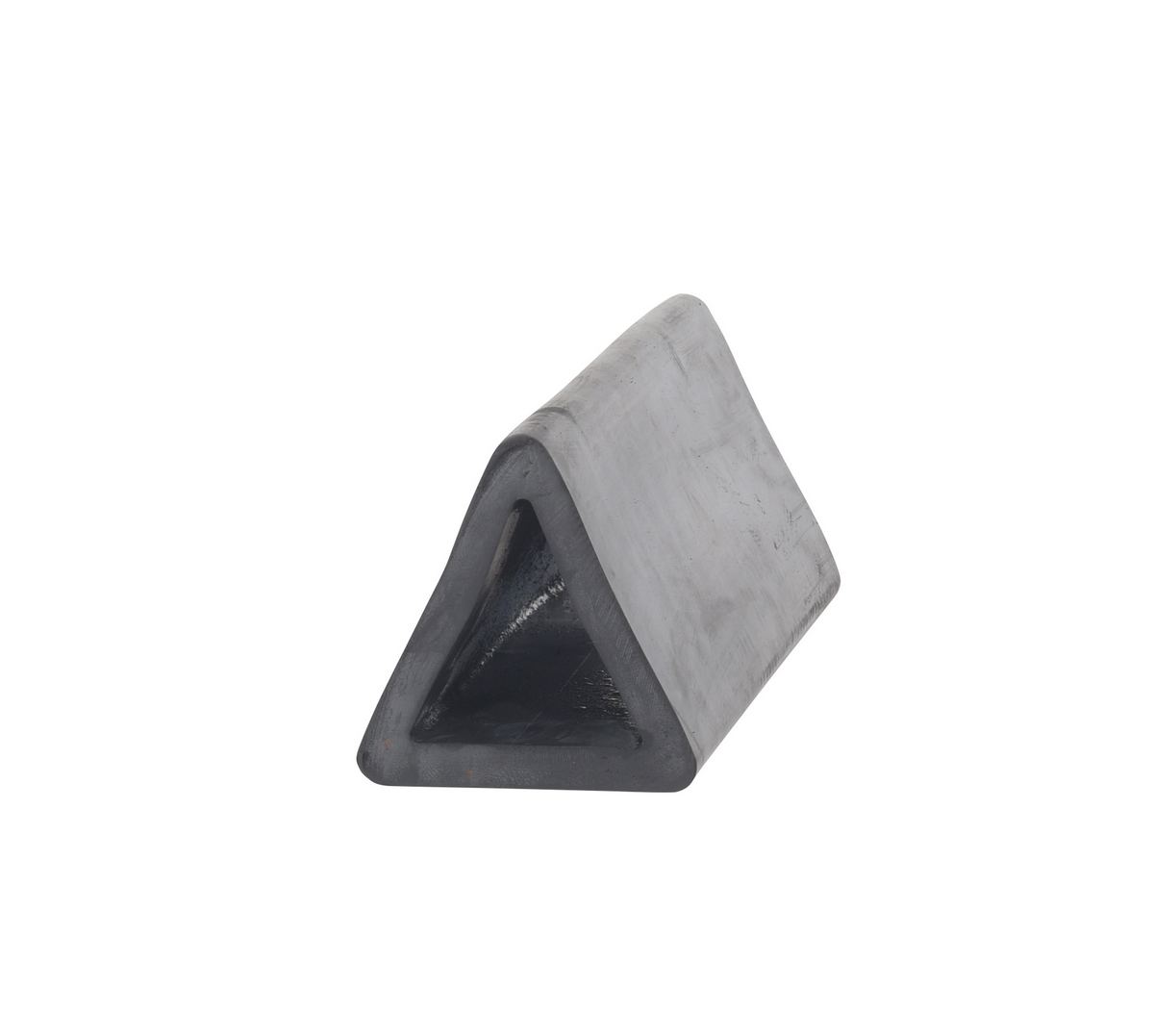

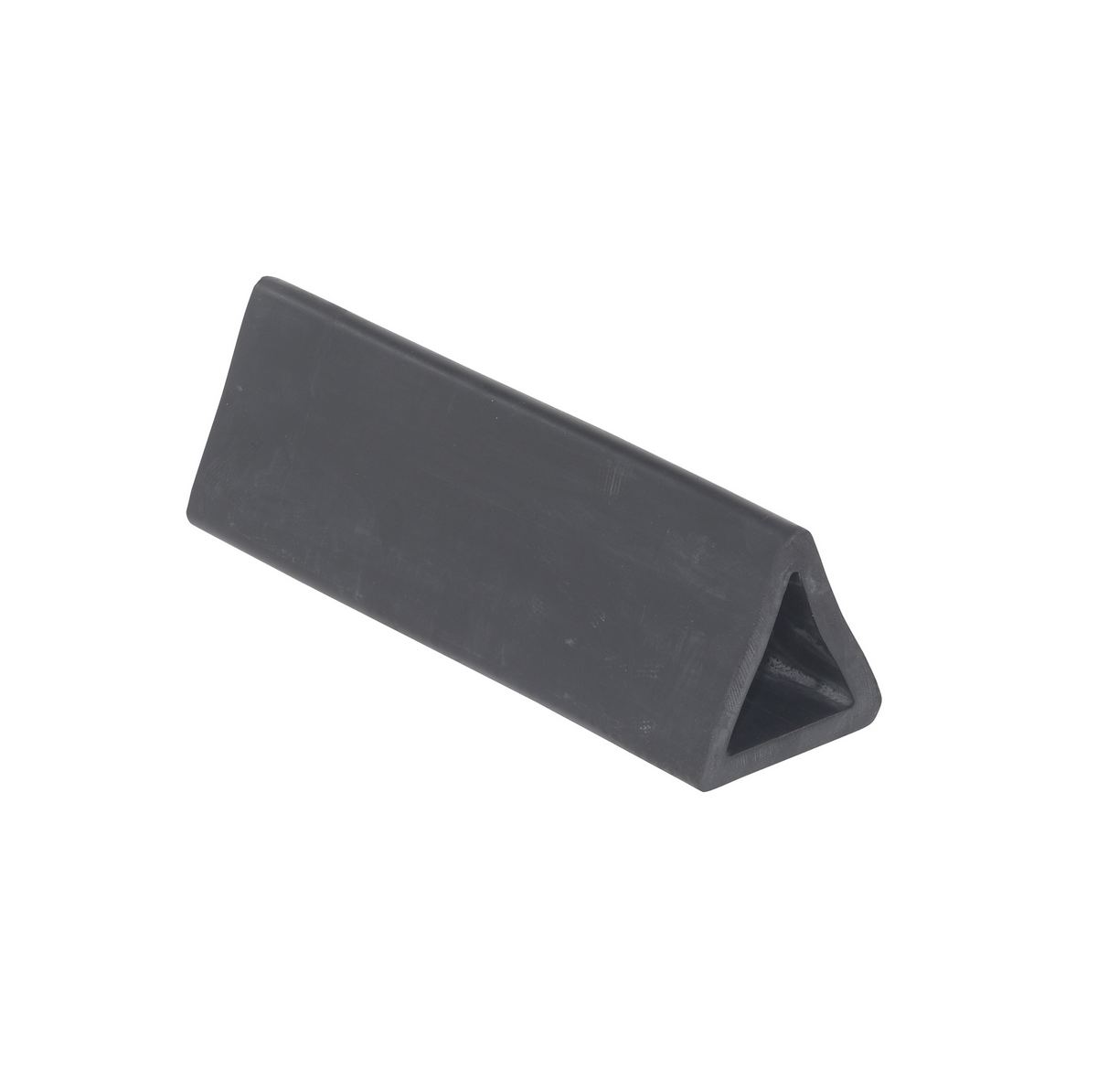

| M-ET-2-12 | | 30 Days Limited Warranty | Molded Rubber Extruded Triangular Bumper 12 In. x 3-5/8 In. x 3-3/4 In. Black | Hardware: Not Included | 3 | ||

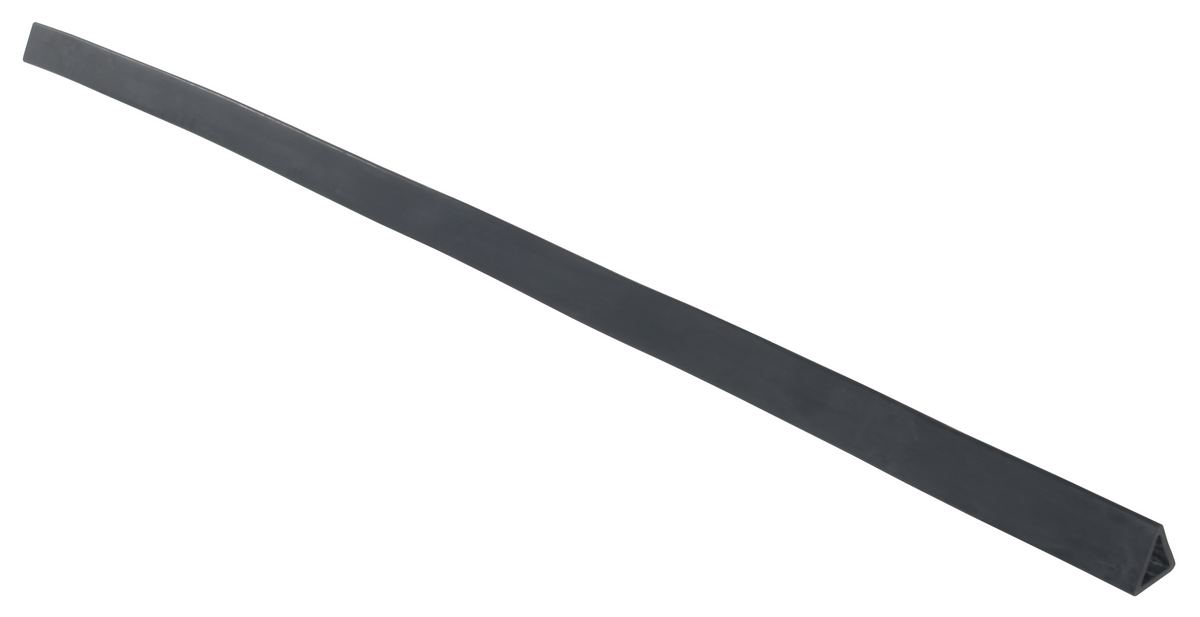

| M-ET-2-120 |  | 30 Days Limited Warranty | Molded Rubber Extruded Triangular Bumper 120 In. x 3-5/8 In. x 3-3/4 In. Black | Hardware: Not Included | 20 | ||
| M-ET-2-18 |  | 30 Days Limited Warranty | Molded Rubber Extruded Triangular Bumper 18 In. x 3-5/8 In. x 3-3/4 In. Black | Hardware: Not Included | 4 | ||
| M-ET-2-24 | | 30 Days Limited Warranty | Molded Rubber Extruded Triangular Bumper 24 In. x 3-5/8 In. x 3-3/4 In. Black | Hardware: Not Included | 5 | ||

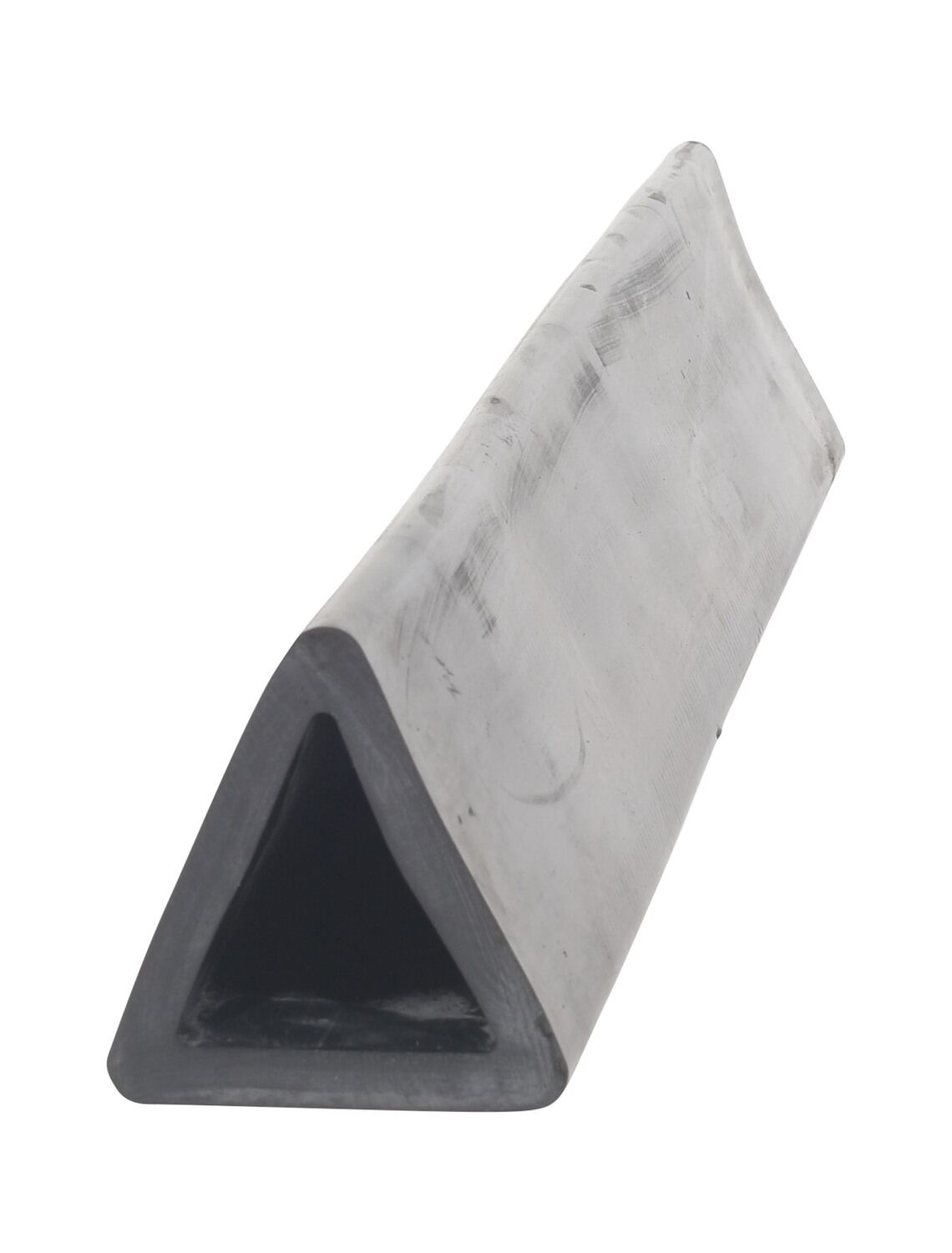

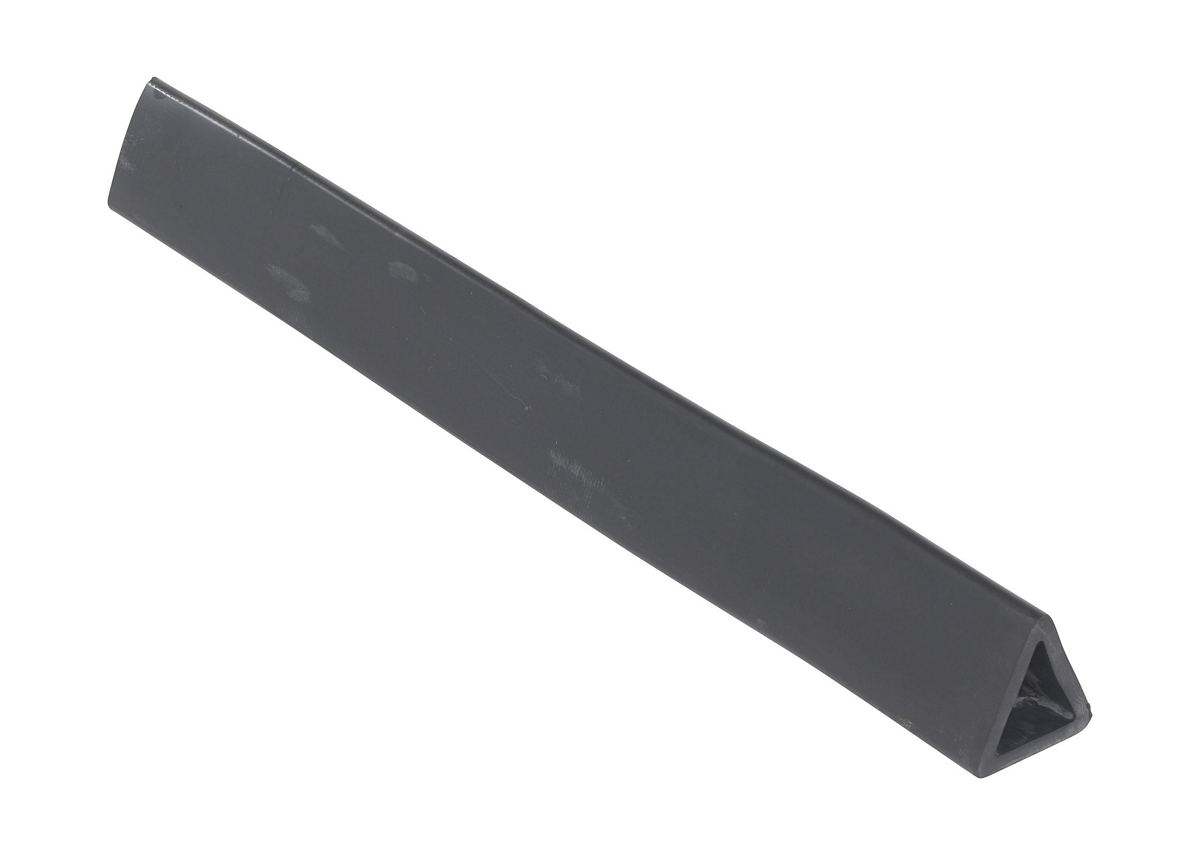

| M-ET-2-36 |  | 30 Days Limited Warranty | Molded Rubber Extruded Triangular Bumper 36 In. x 3-5/8 In. x 3-3/4 In. Black | Hardware: Not Included | 7 | ||

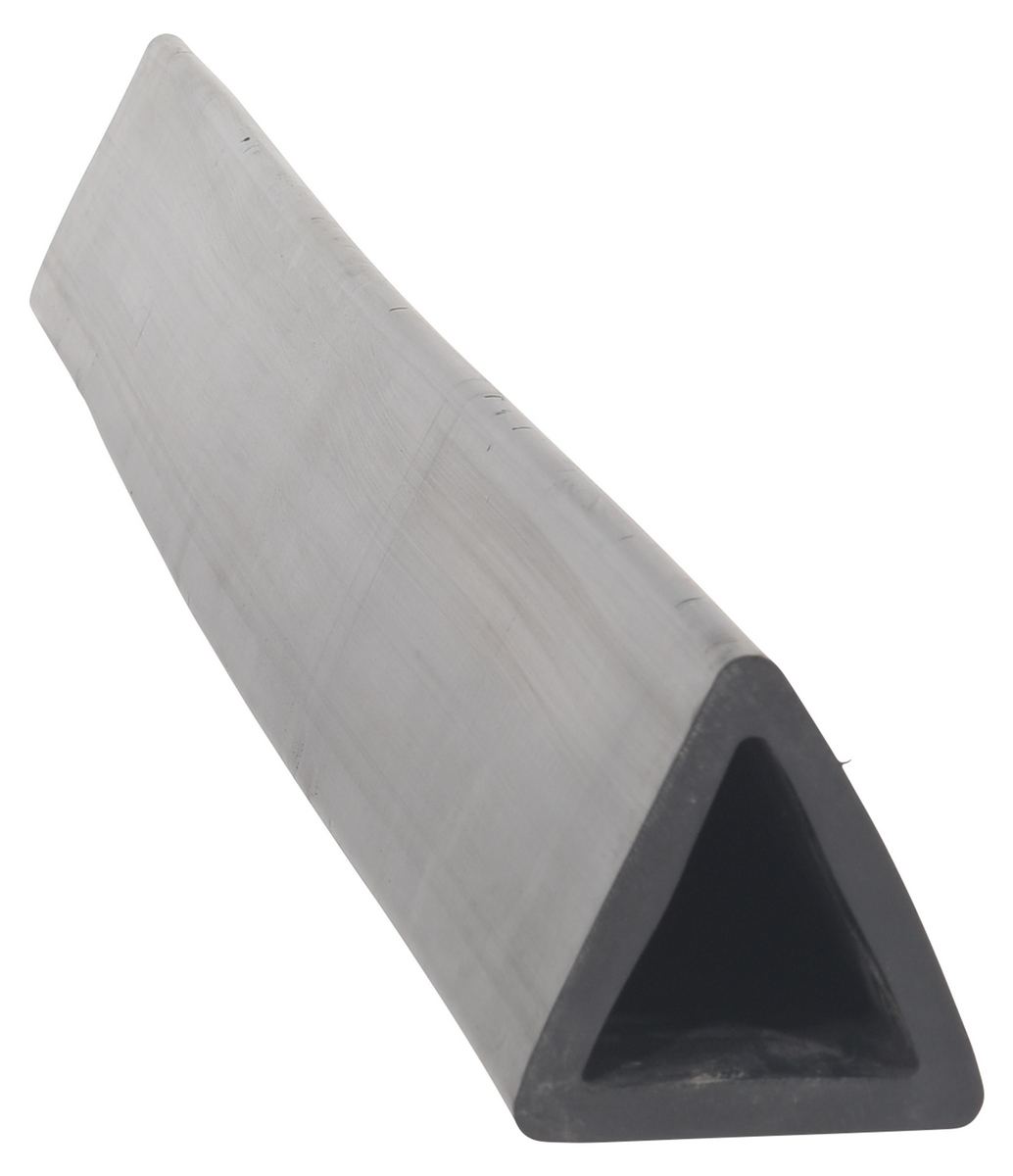

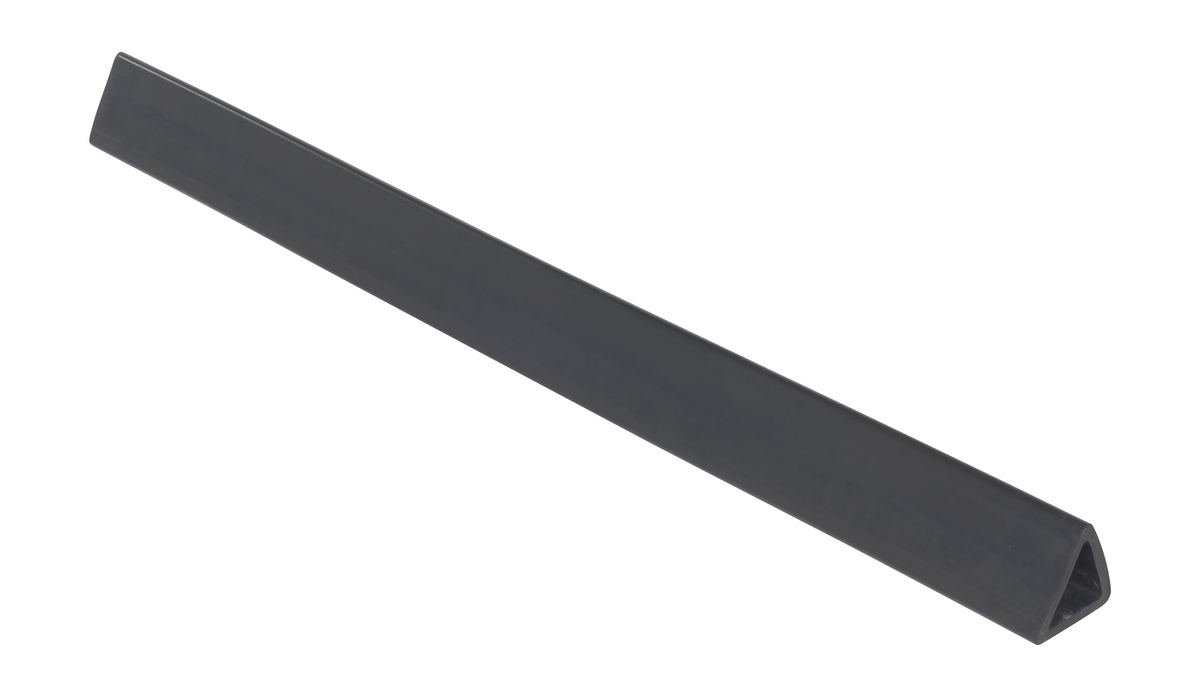

| M-ET-2-48 | | 30 Days Limited Warranty | Molded Rubber Extruded Triangular Bumper 48 In. x 3-5/8 In. x 3-3/4 In. Black | Hardware: Not Included | 12 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 1/2
Durometer: (+/-5) 70
Mounting Hole Quantity: 1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 3
Durometer: (+/-5) 70
Mounting Hole Quantity: 3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 3
Durometer: (+/-5) 70
Mounting Hole Quantity: 3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 3
Durometer: (+/-5) 70
Mounting Hole Quantity: 3
For More Details of the Option Click the Red Model Button
| Anchor Bolts Hardware For Concrete Installation | ||||
| Model | Image | Description | Quantity | |
| AS-383 |  |
3/8" x 3", Use with M-2 Series | 1 | |
| AS-383-4PK |  |
3/8" x 3", Use with M-2 Series | 4 | |
| AS-344 |  |
3/4" x 4", Use with M-4 & M-6 Series | 1 | |
| AS-344-4PK |  |
3/4" x 4", Use with M-4 & M-6 Series | 4 | |
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
