Multi-Tier Stock Carts

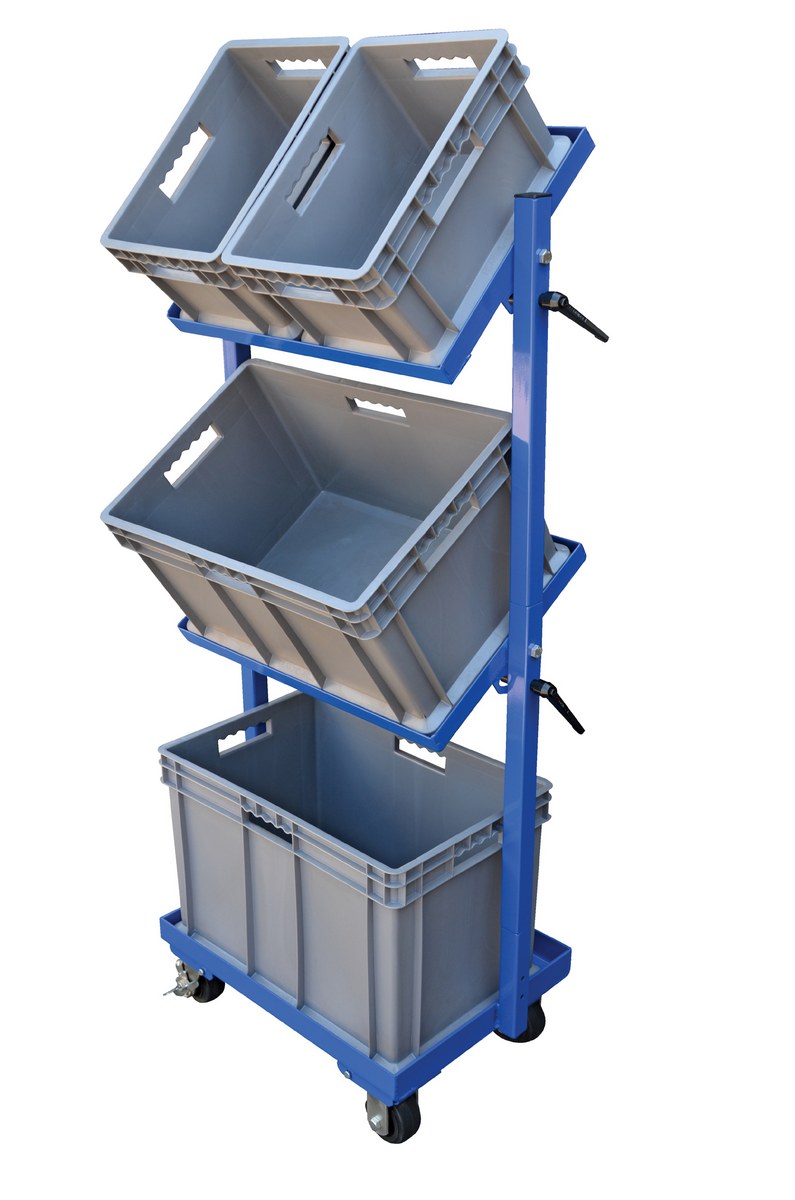

model: TSCT-3B

TSCT-3B_A.jpg TSCT-3B_B.jpg TSCT-3B_C.jpg TSCT-3B_D.jpg More Images +
Multi-Tier Stock Carts
SERIES: TSCT

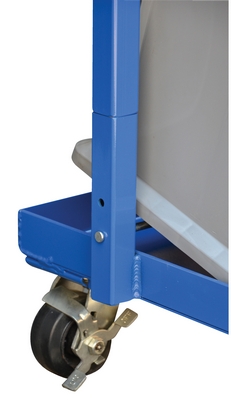

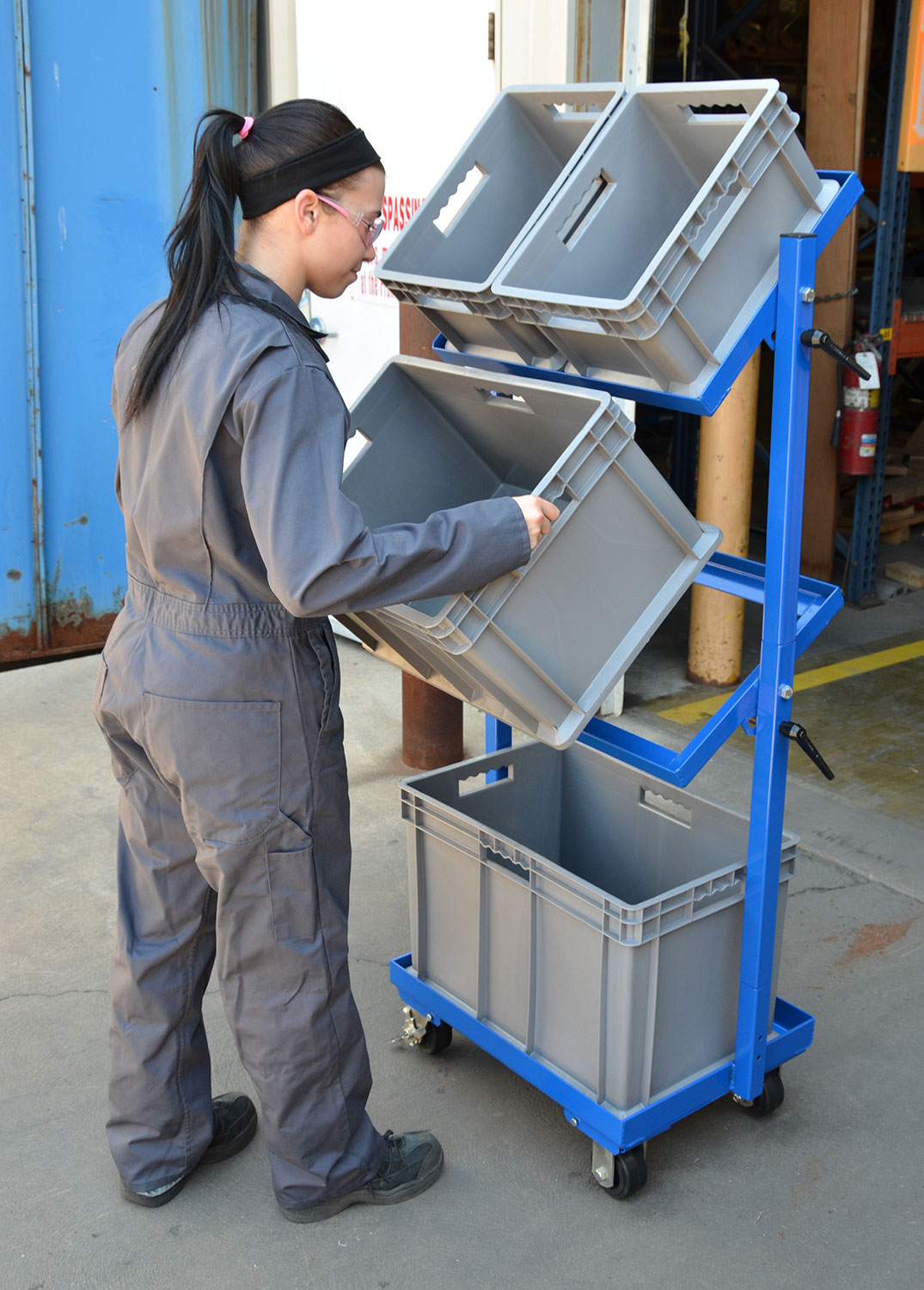

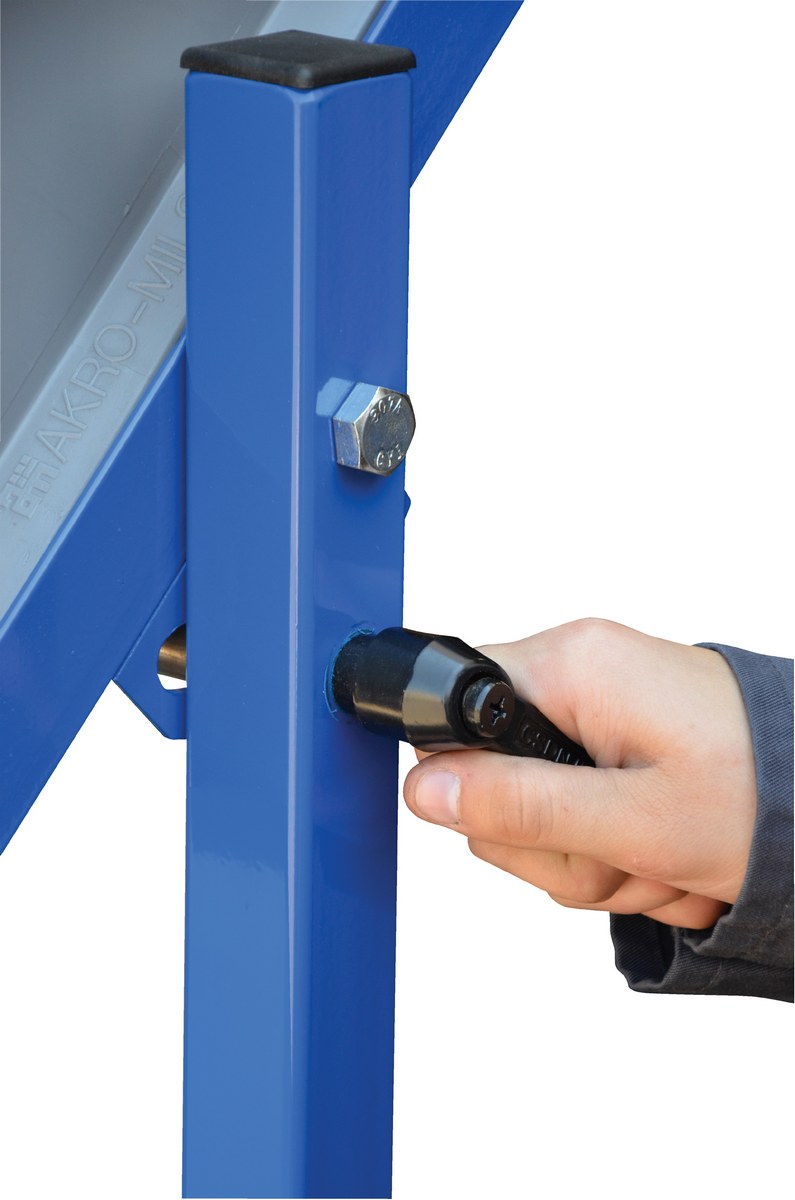

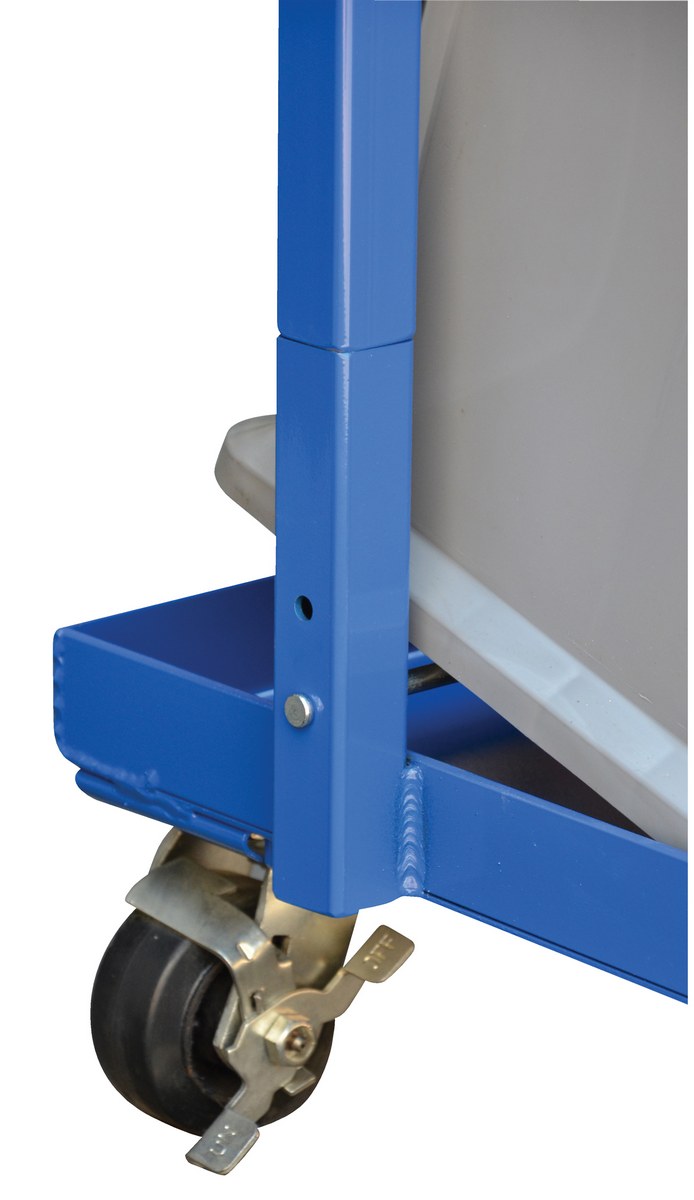

This unique cart makes it easy to organize and reach parts. Tilting shelves allow easy access to baskets. Ideal for stocking parts in work stations. Casters allow the parts to be moved to wherever they are needed. Upper shelves will tilt between 0-45 degrees. Shelf angle is locked with a hand operated friction lock screw. Bottom shelf will tilt at 26 degrees with clevis pens provided. Bottom shelf includes a 2" high lip on all four sides. Middle and top shelves include a 1-1/2."H lip on all four sides. Bottom shelf height is 5-7/8.". Middle shelf height is 34". Top shelf height is 57." Overall cart size (not including baskets) is 19-1/16"W x 30-11/16"L x 60-5/8"H (37-5/8"H for two-shelf models). Rolls smoothly on two (2) rigid and two (2) swivel with brakes 4" x 2" casters. Steel construction. Baked-in powder-coated toughness. (Weight must be evenly distributed between the shelves)

  • Tilting shelf design allows easy access to baskets
  • Vertical uprights knock-down for convenient shipping and storage
  • Casters allow the parts to be moved where needed
  • Shelves include a lip on all four sides for added safety


Multi-Tier Stock Carts

model: TSCT-3B

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
TSCT-2
TSCT-2B
TSCT-3
TSCT-3B
TSCT-LGB
TSCT-MDB
TSCT-SMB
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

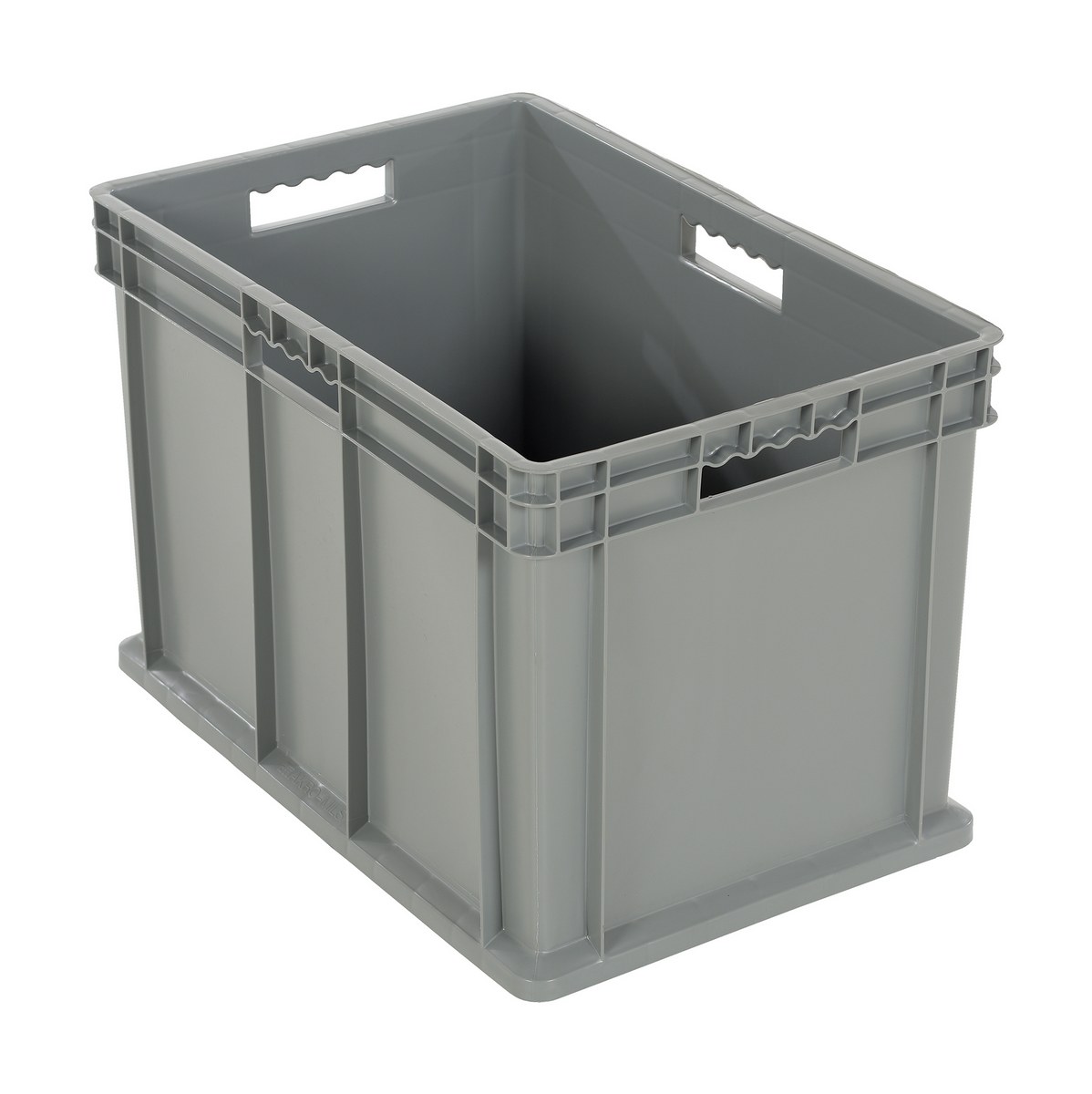

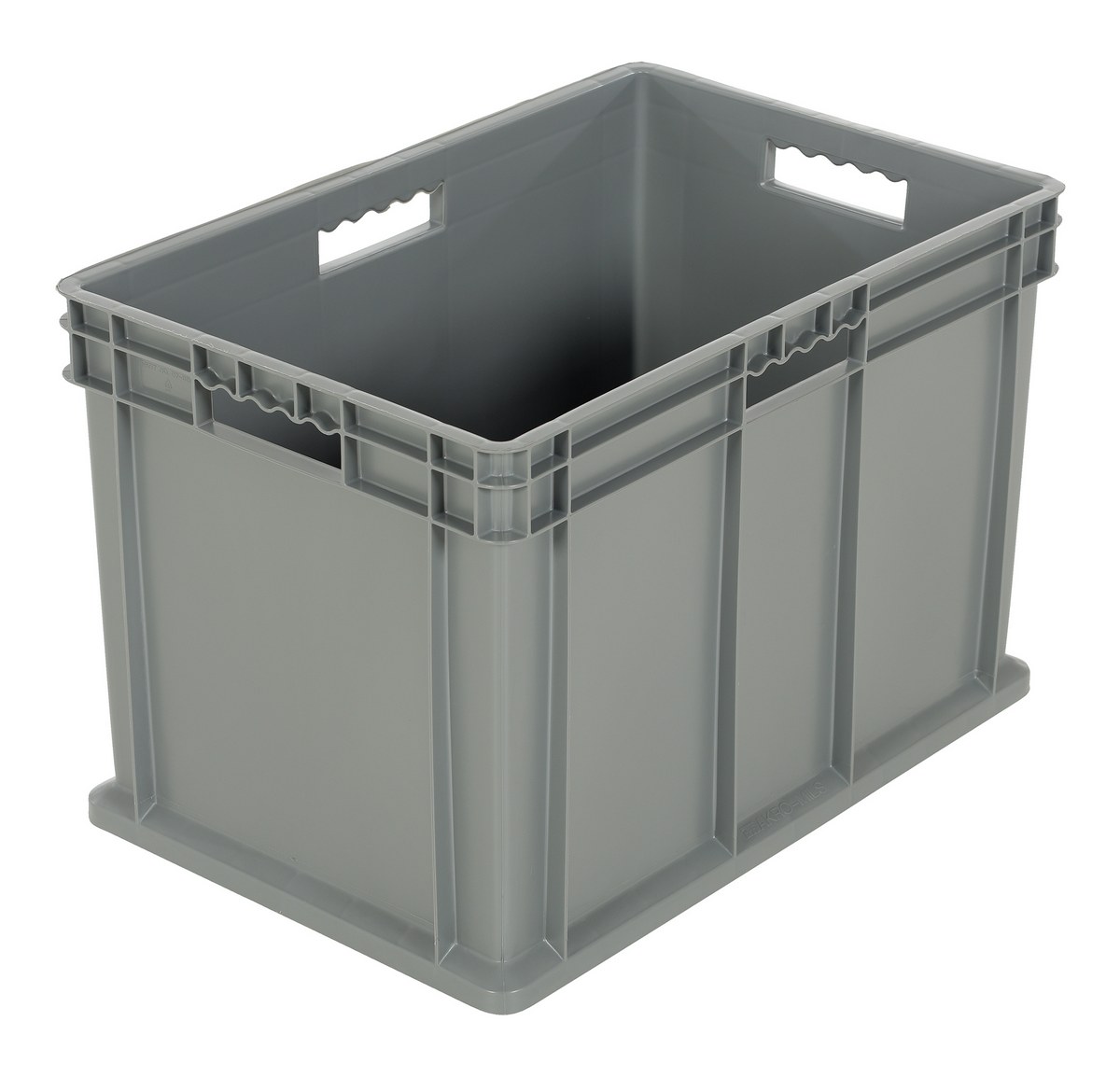

TSCT-LGB TSCT-LGB Plastic Multi-Tier Stack Cart Large Bin 150 Lb. Load Capacit… 30 Days Limited Warranty 10

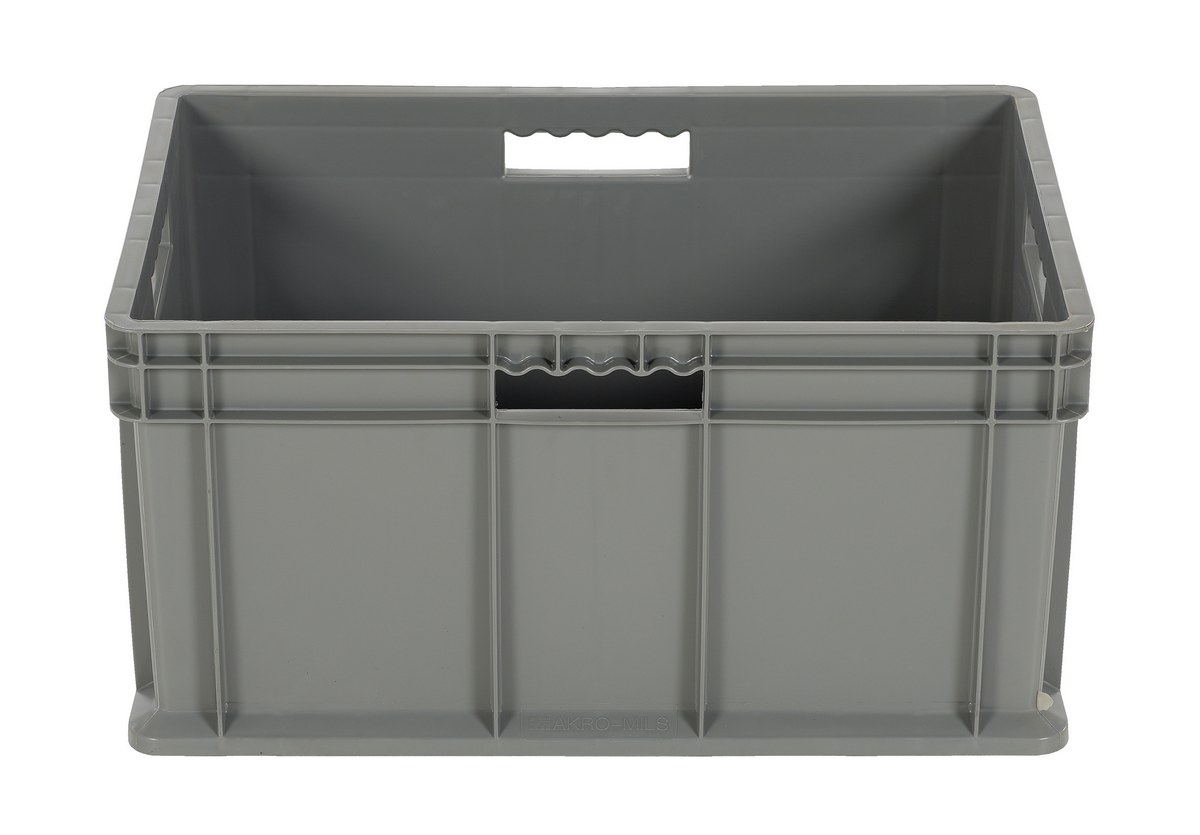

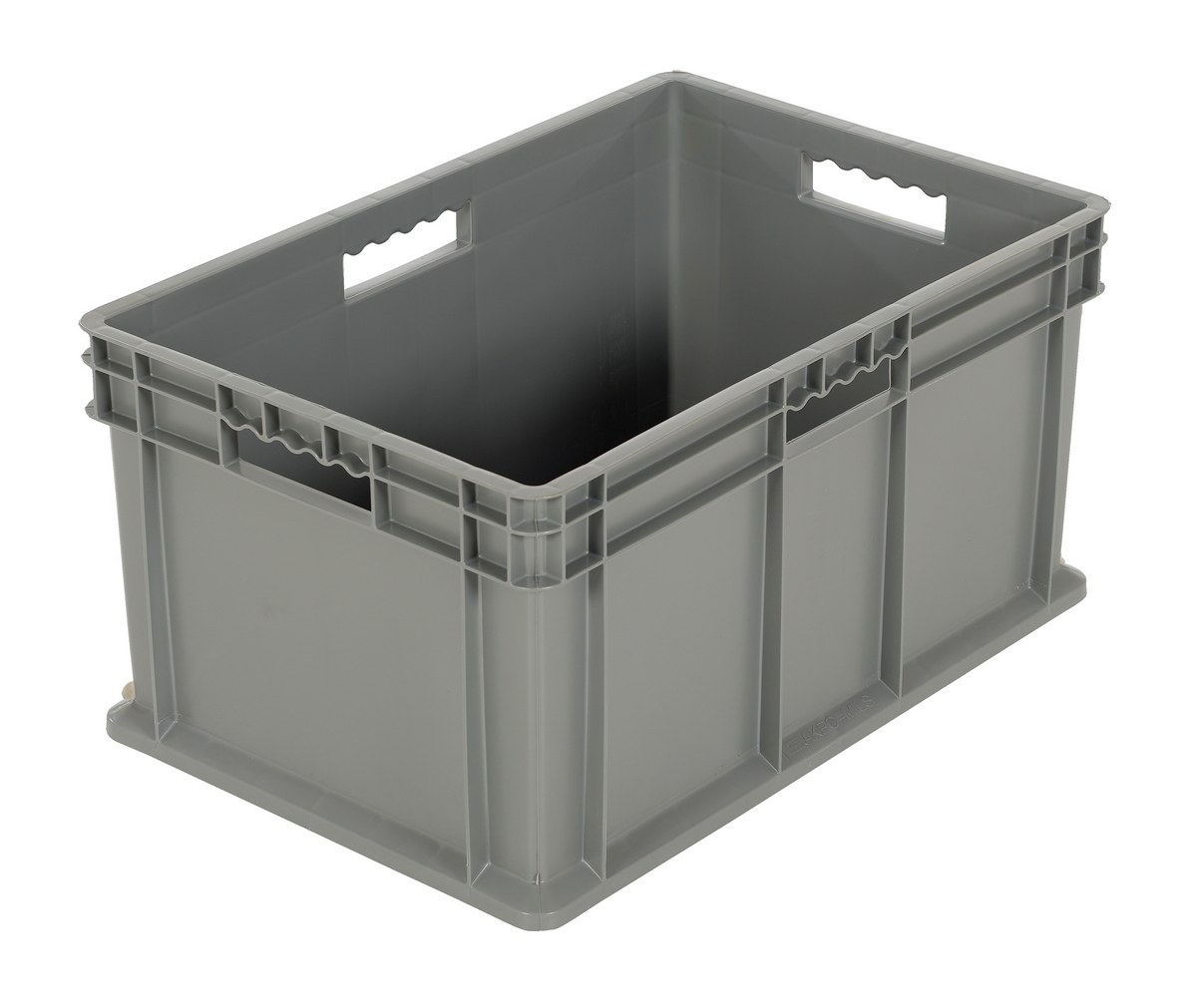

TSCT-MDB TSCT-MDB Plastic Multi-Tier Stack Cart Medium Bin 125 Lb. Load Capaci… 30 Days Limited Warranty 8

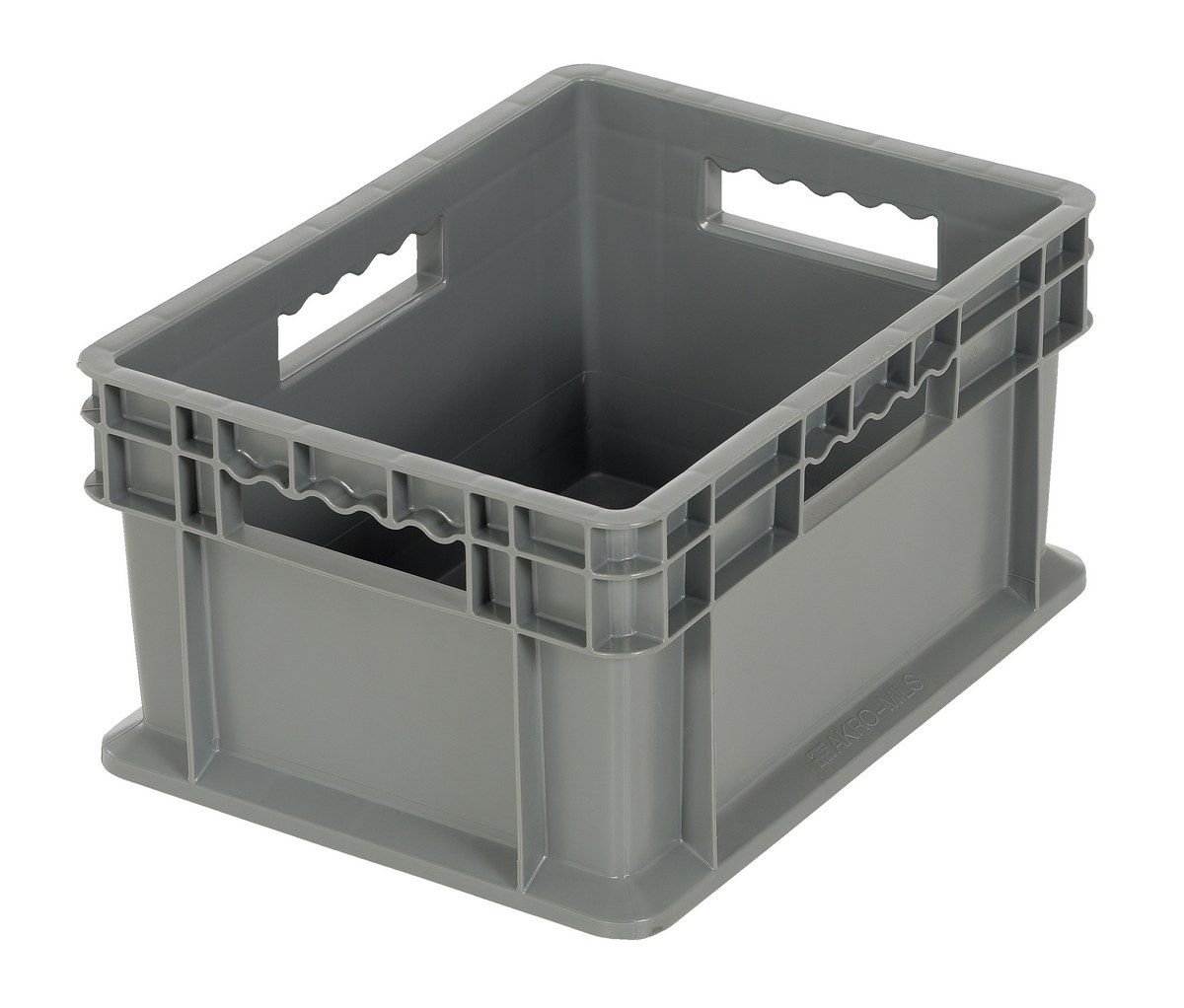

TSCT-SMB TSCT-SMB Plastic Multi-Tier Stack Cart Small Bin 83 Lb. Load Capacity… 30 Days Limited Warranty 4

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

TSC

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

TSCT-2

TSCT-2B

TSCT-3

TSCT-3B

TSCT-LGB

TSCT-MDB

TSCT-SMB

Testing Certificates

TSCT-2

TSCT-2B

TSCT-3

TSCT-3B

TSCT-LGB

TSCT-MDB

TSCT-SMB

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Related or Similar Products:

More From Stockpicker Trucks





Multi-Tier Stock Carts




This unique cart makes it easy to organize and reach parts. Tilting shelves allow easy access to baskets. Ideal for stocking parts in work stations. Casters allow the parts to be moved to wherever they are needed. Upper shelves will tilt between 0-45 degrees. Shelf angle is locked with a hand operated friction lock screw. Bottom shelf will tilt at 26 degrees with clevis pens provided. Bottom shelf includes a 2" high lip on all four sides. Middle and top shelves include a 1-1/2."H lip on all four sides. Bottom shelf height is 5-7/8.". Middle shelf height is 34". Top shelf height is 57." Overall cart size (not including baskets) is 19-1/16"W x 30-11/16"L x 60-5/8"H (37-5/8"H for two-shelf models). Rolls smoothly on two (2) rigid and two (2) swivel with brakes 4" x 2" casters. Steel construction. Baked-in powder-coated toughness. (Weight must be evenly distributed between the shelves)

  • Tilting shelf design allows easy access to baskets
  • Vertical uprights knock-down for convenient shipping and storage
  • Casters allow the parts to be moved where needed
  • Shelves include a lip on all four sides for added safety



Model # Description Attributes Net Wt.
(lbs)

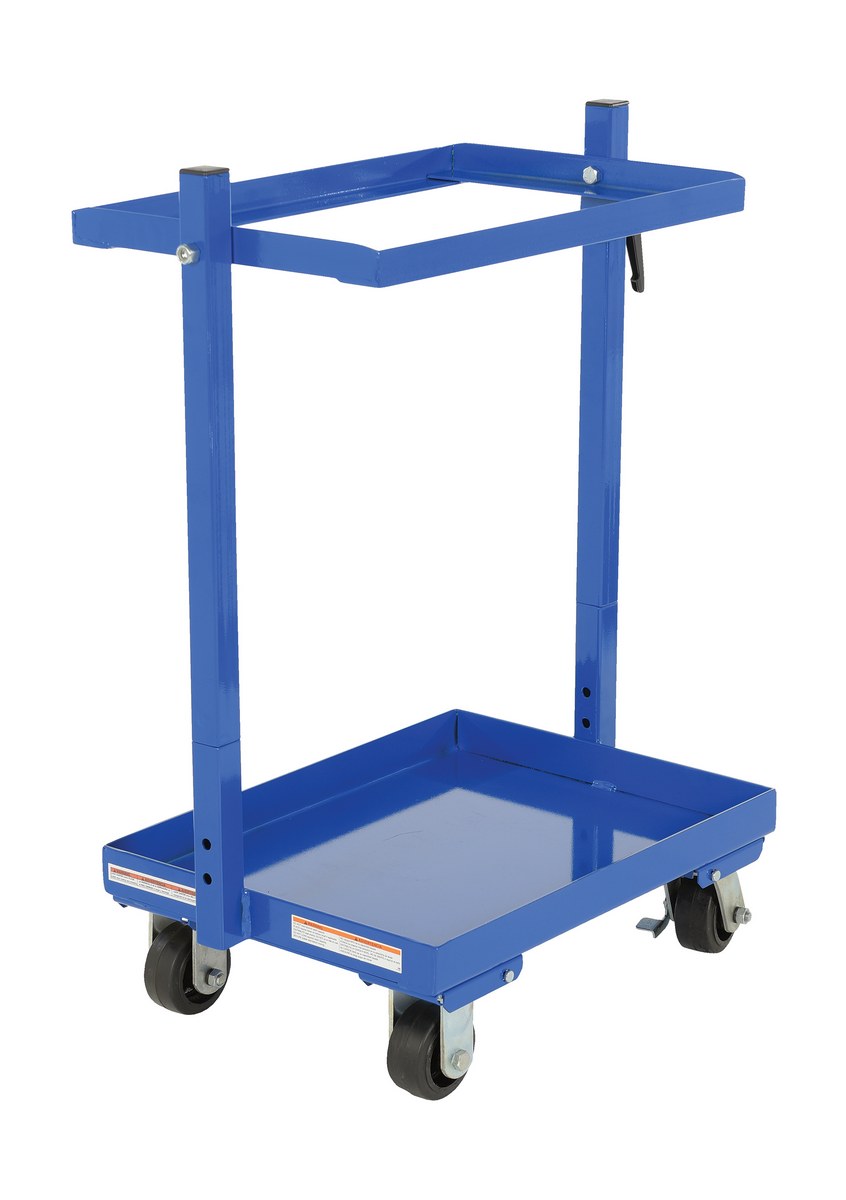

TSCT-2 TSCT-2Steel Multi-Tier Cart with 2 Shelves 200 Lb. Static Capacity BlueUniform Static Capacity (lb.): 200
Uniform Static Capacity per shelf/bin (lb.): 100		108

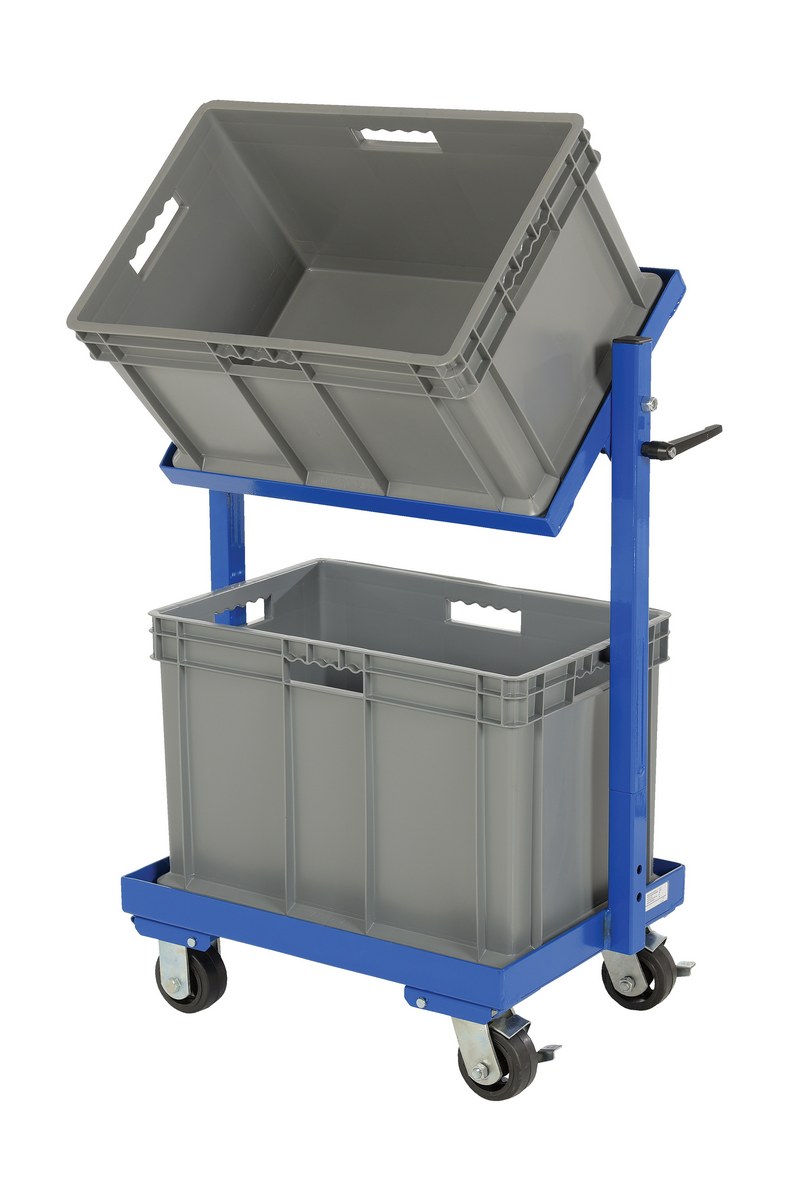

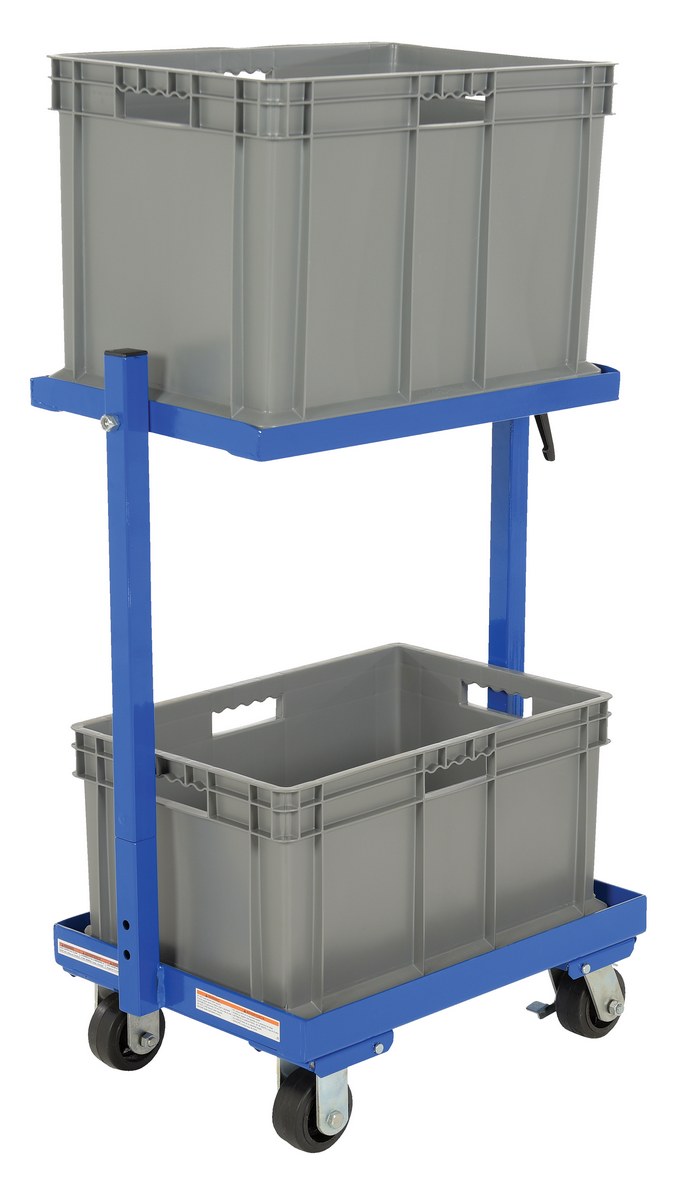

TSCT-2B TSCT-2BSteel Multi-Tier Cart with 2 Shelves and 2 Baskets 200 Lb. Static Capacity BlueUniform Static Capacity (lb.): 200
Uniform Static Capacity per shelf/bin (lb.): 100		154

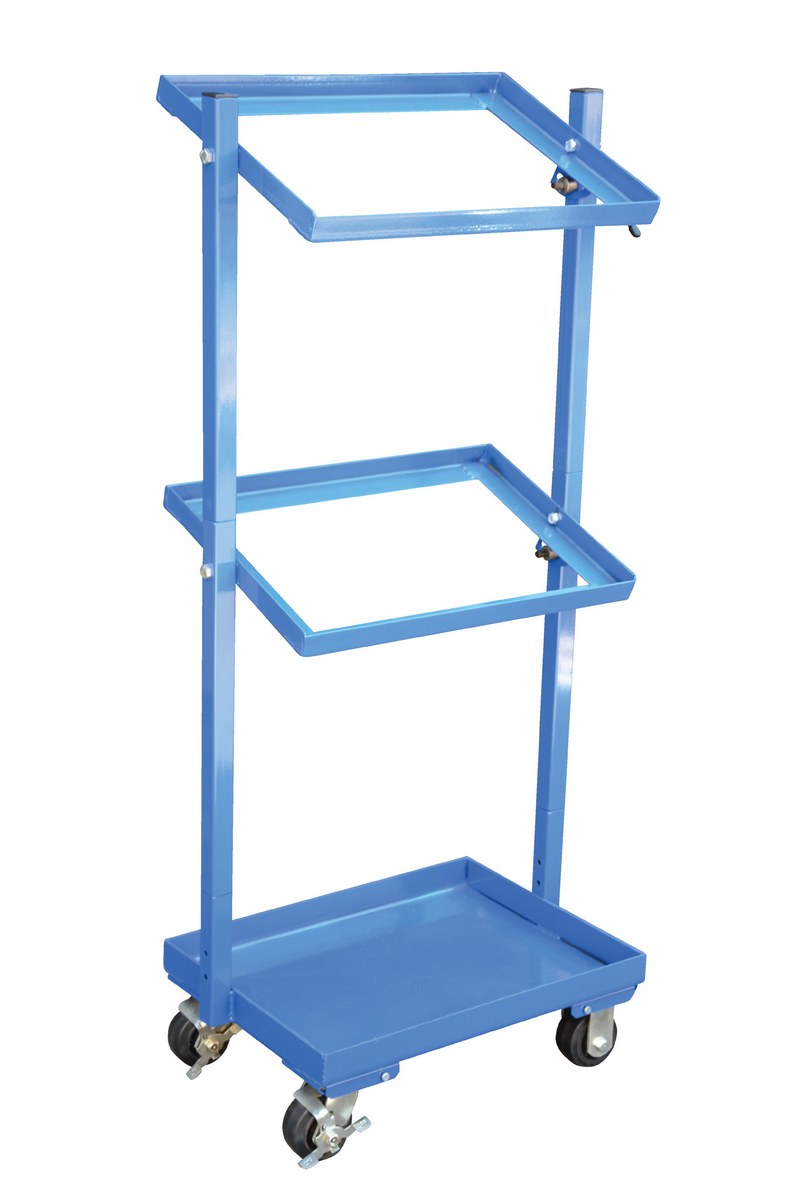

TSCT-3 TSCT-3Steel Multi-Tier Cart with 3 Shelves 300 Lb. Static Capacity BlueUniform Static Capacity (lb.): 300
Uniform Static Capacity per shelf/bin (lb.): 100		134
TSCT-3B TSCT-3BSteel Multi-Tier Cart with 3 Shelves and 3 Baskets 300 Lb. Evenly Distributed Static Capacity BlueUniform Static Capacity (lb.): 300
Uniform Static Capacity per shelf/bin (lb.): 100		182
