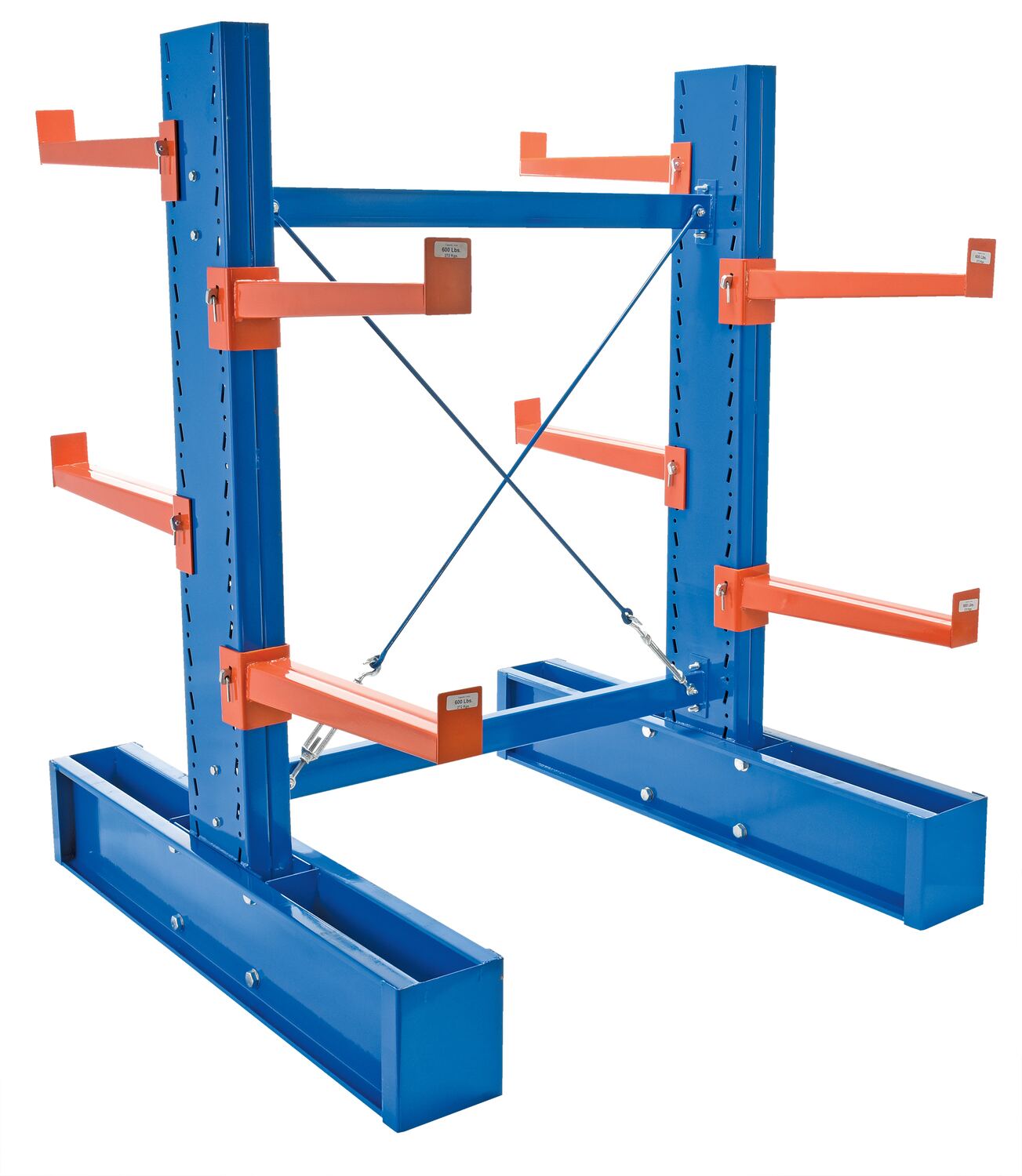

Medium-Duty Cantilever RackingMedium-Duty Cantilever Racks are ideal for manual loading; open design affords easy forklift accessibility. Store bar stock, pipe, tubing, lumber and other light hard-to-stock items that must be kept off the floor. Arms are adjustable up and down the full length of the upright. To adjust align arms with pre-drilled holes and secure with key lock. All arms feature lips to prevent product from falling off. Uprights are sold separately, not in pairs. Custom rack systems can be designed for your special application. Capacity listed is per upright.
Check Out Vestil's Other Cantilever Racking:
 Standard-Duty Cantilever Racking |
 Heavy-Duty Cantilever Racking |
 Cantilever Rack Kits |
Structural Cantilever Racking
Heavy-Duty Cantilever Racking
Standard-Duty Cantilever RackingAdditional Models In This Family
MDU-C-6-36
MIA-C-36
MDU-C-10-18
MIA-C-18
MIA-C-24
MU-C-6-24
MB-C-10-36
MDU-C-10-24
MB-C-8-36
MIA-C-18
MDU-C-6-24
MDU-C-6-12
MB-C-6-36
MIA-C-12
MSA-C-12
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

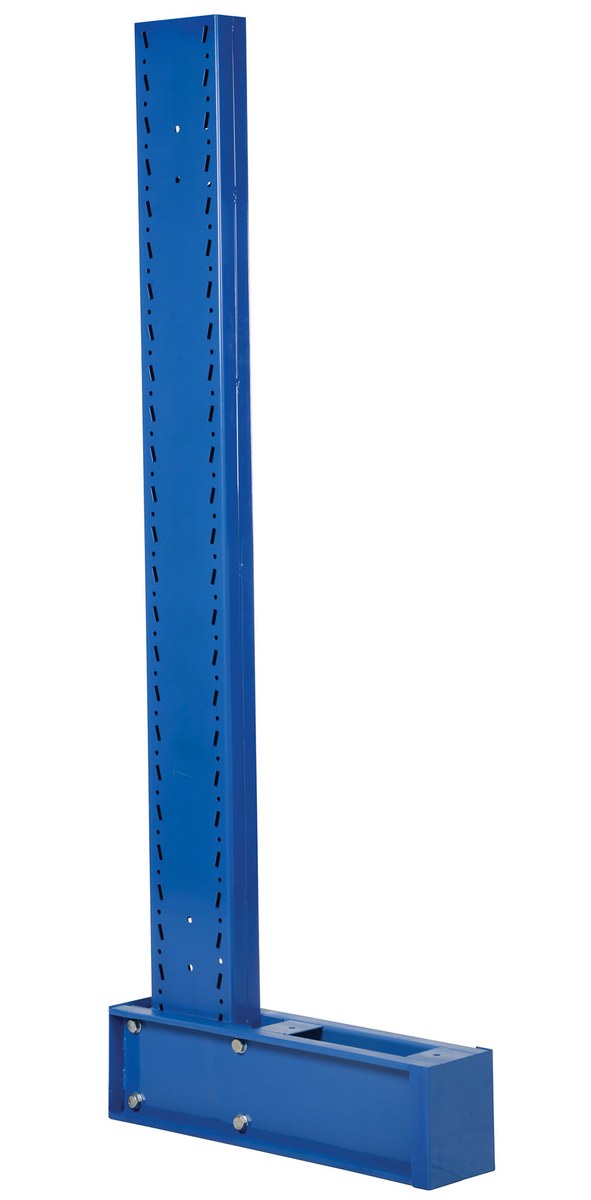

| MU-C-10-24 |  | 1 Year Limited Warranty | Steel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 10 Ft. 5,000 Lb. Capacity Blue | Uniform Capacity Per Upright (lb.): 5,000 Component: Single-Sided Upright | 225 | ||

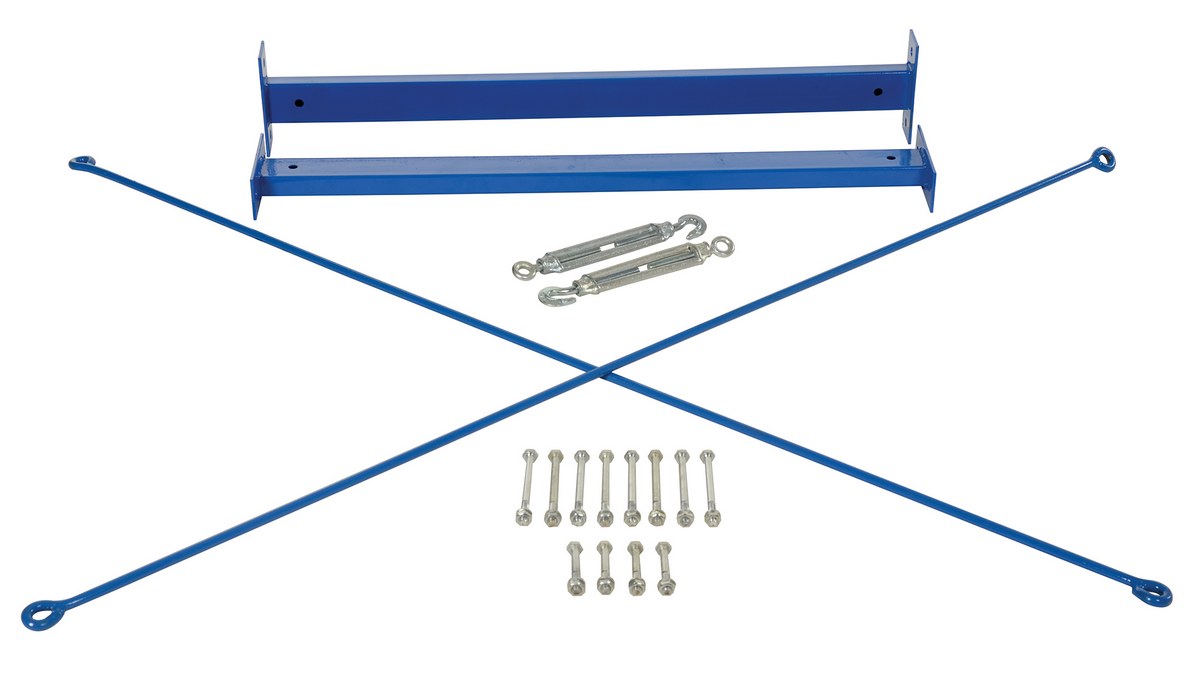

| MB-C-10-36 | | 1 Year Limited Warranty | Steel Medium Duty Cantilever Brace Set 36 In. x 35 In. x 6 In. Blue | Component: Brace Set Fits Upright (ft.): 10 | 30 | ||

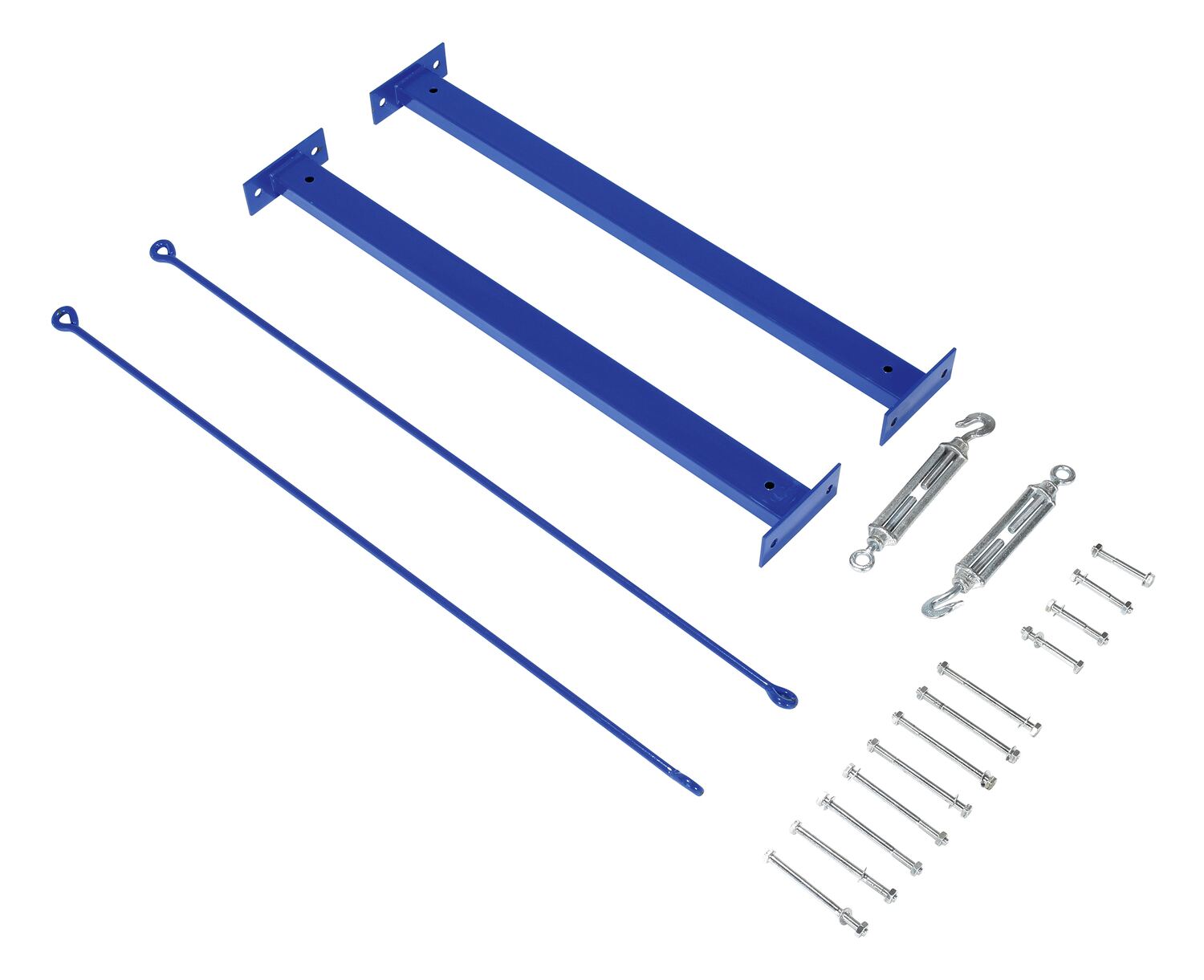

| MB-C-6-36 |  | 1 Year Limited Warranty | Steel Medium Duty Cantilever Brace Set 35 In. x 35 In. x 6 In. Blue | Component: Brace Set Fits Upright (ft.): 6 | 26 | ||

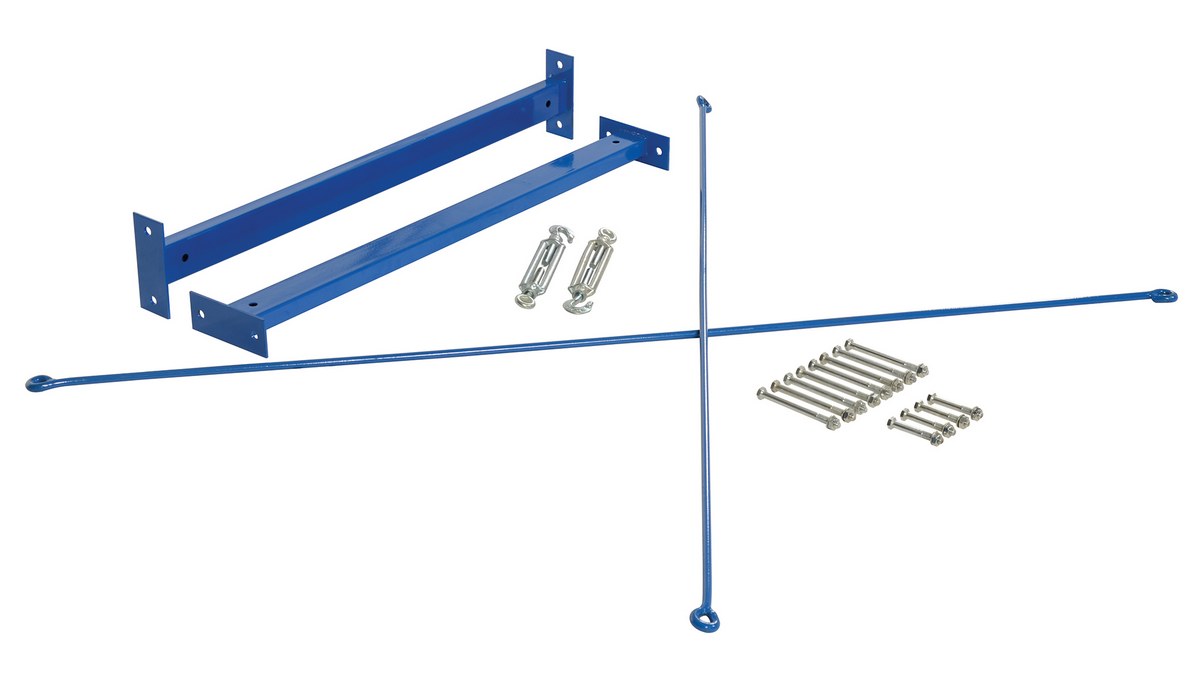

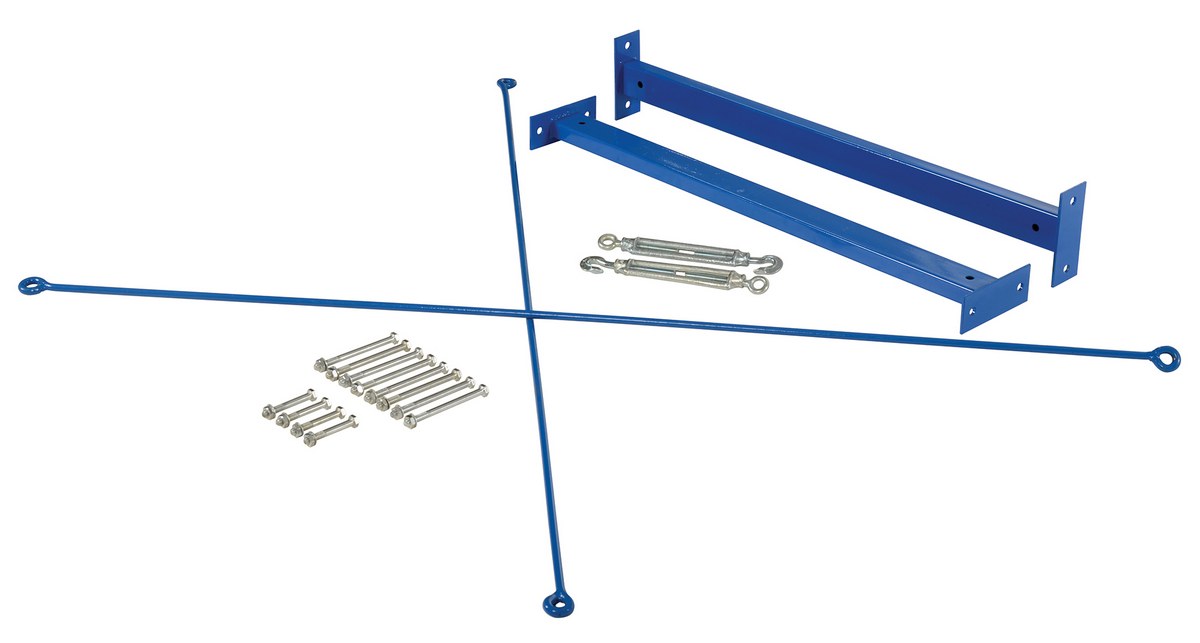

| MB-C-8-36 | | 1 Year Limited Warranty | Steel Medium Duty Cantilever Brace Set 36 In. x 35 In. x 6 In. Blue | Component: Brace Set Fits Upright (ft.): 8 | 28 | ||
| MDU-C-10-12 |  | 1 Year Limited Warranty | Steel Medium Duty Double Sided Cantilever Upright for 12 In. Arms 14,200 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 14,200 Component: Double-Sided Upright | 225 | ||
| MDU-C-10-18 | | 1 Year Limited Warranty | Steel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 11,800 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 11,800 Component: Double-Sided Upright | 236 | ||
| MDU-C-10-24 | | 1 Year Limited Warranty | Steel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 10,000 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 10,000 Component: Double-Sided Upright | 249 | ||
| MDU-C-10-36 |  | 1 Year Limited Warranty | Steel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 8,800 or 7,600 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 8,800 or 7,600 Component: Double-Sided Upright | 270 | ||
| MDU-C-6-12 | | 1 Year Limited Warranty | Steel Medium Duty Double Sided Cantilever Upright for 12 in. Arms 16,200 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 16,200 Component: Double-Sided Upright | 172 | ||
| MDU-C-6-18 |  | 1 Year Limited Warranty | Steel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 13,200 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 13,200 Component: Double-Sided Upright | 183 | ||
| MDU-C-6-24 | | 1 Year Limited Warranty | Steel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 11,000 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 11,000 Component: Double-Sided Upright | 195 | ||
| MDU-C-6-36 | | 1 Year Limited Warranty | Steel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 9,400 or 8,200 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 9,400 or 8,200 Component: Double-Sided Upright | 215 | ||

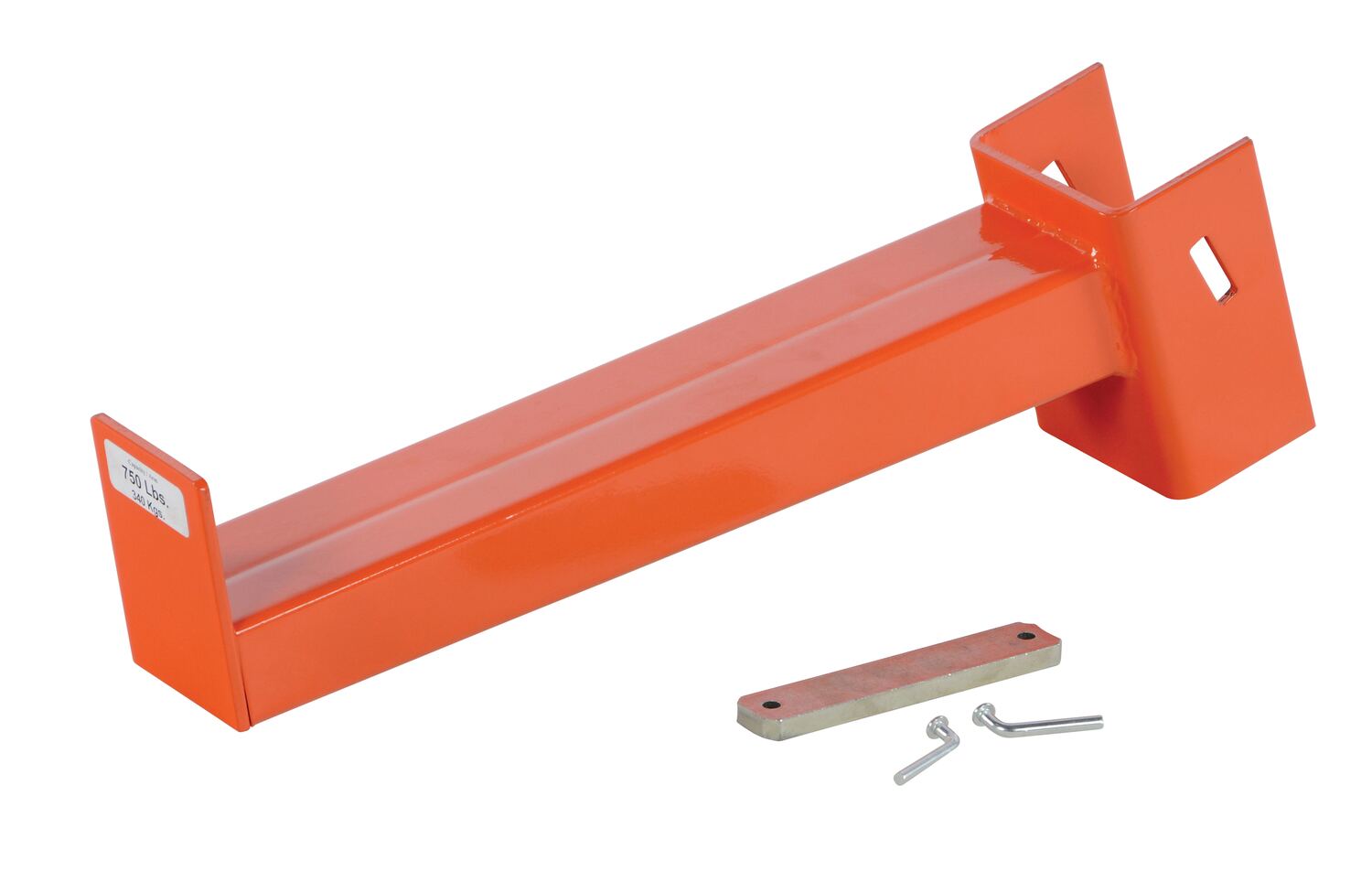

| MIA-C-12 | | 1 Year Limited Warranty | Steel Medium Duty Cantilever 10 Degree Incline Arm 12 In. 1000 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1000 Component: Incline Arm | 11 | ||

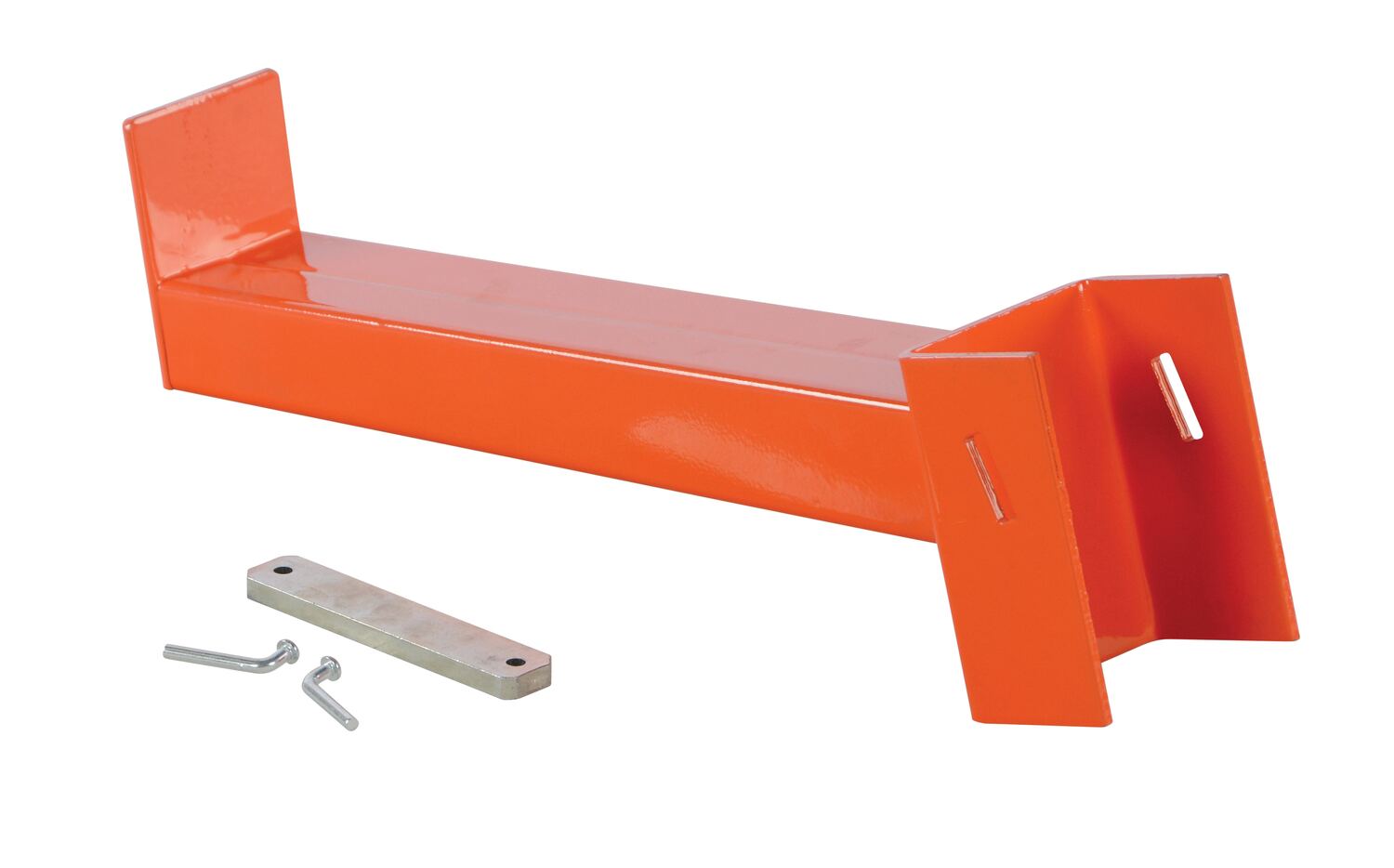

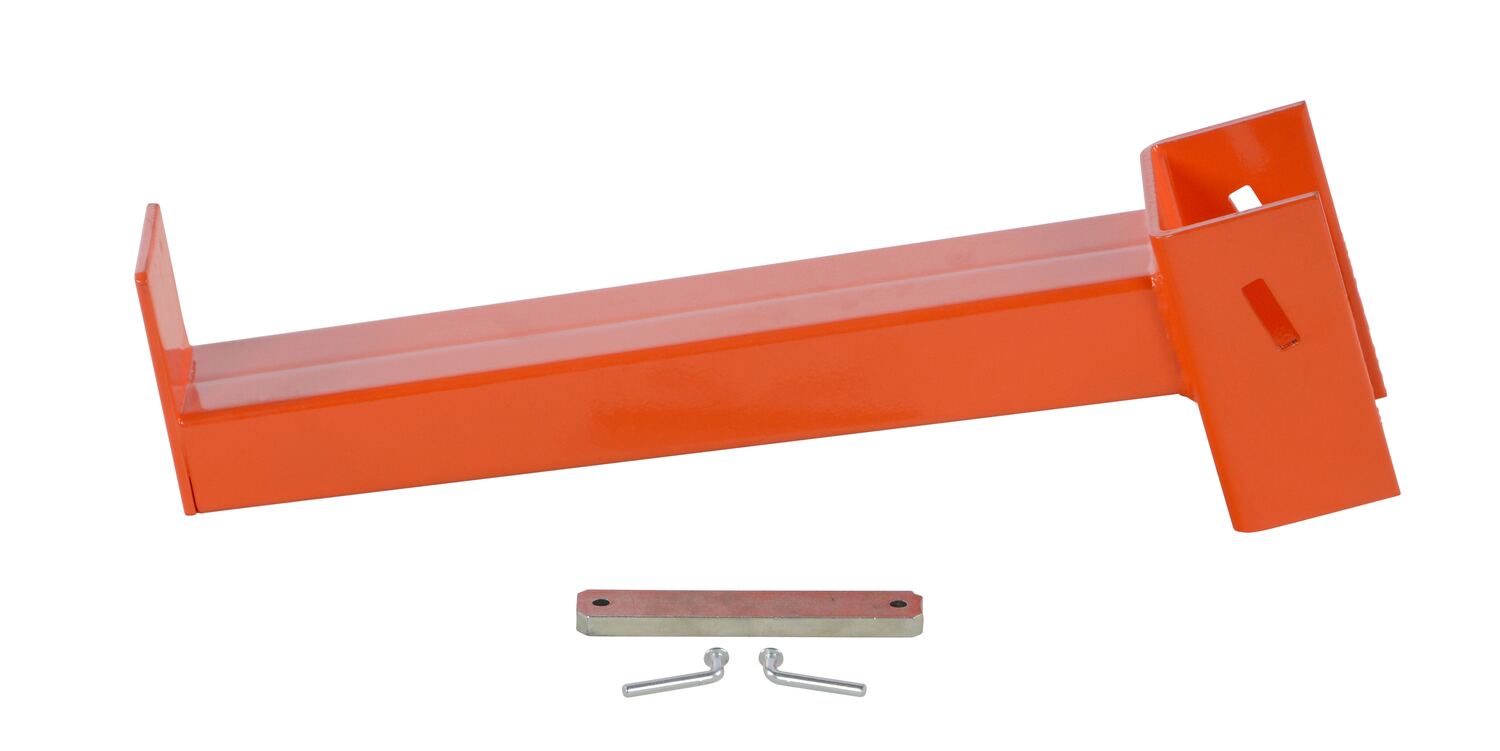

| MIA-C-18 |  | 1 Year Limited Warranty | Steel Medium Duty Cantilever 10 Degree Incline Arm 18 In. 750 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 750 Component: Incline Arm | 13 | ||

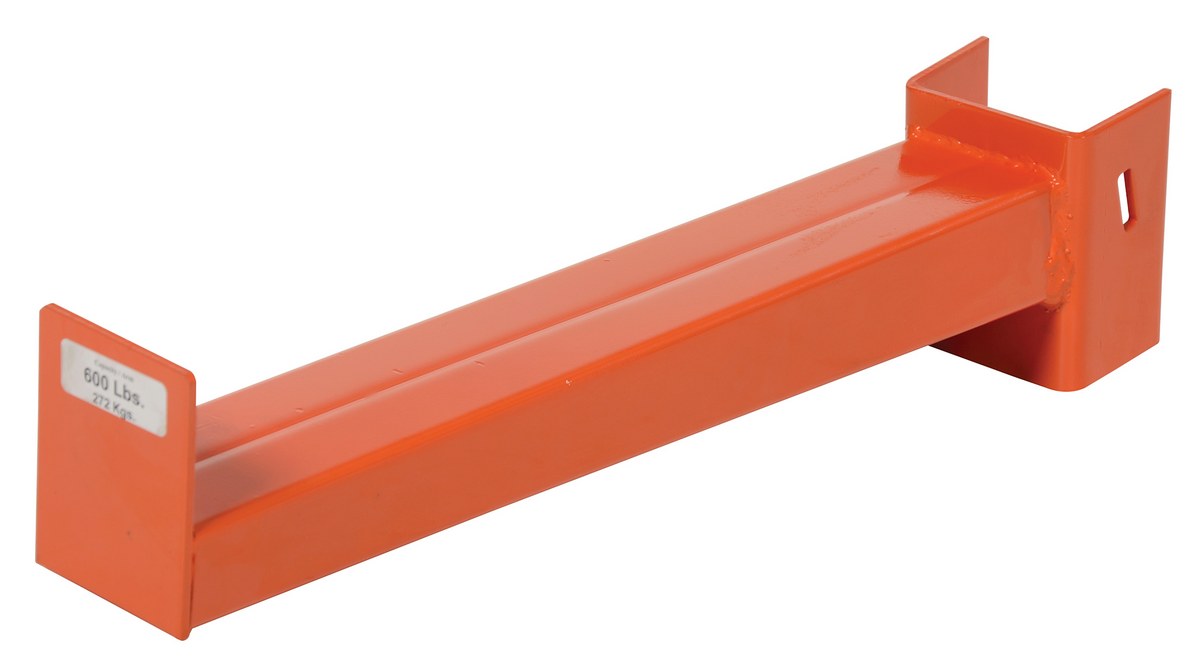

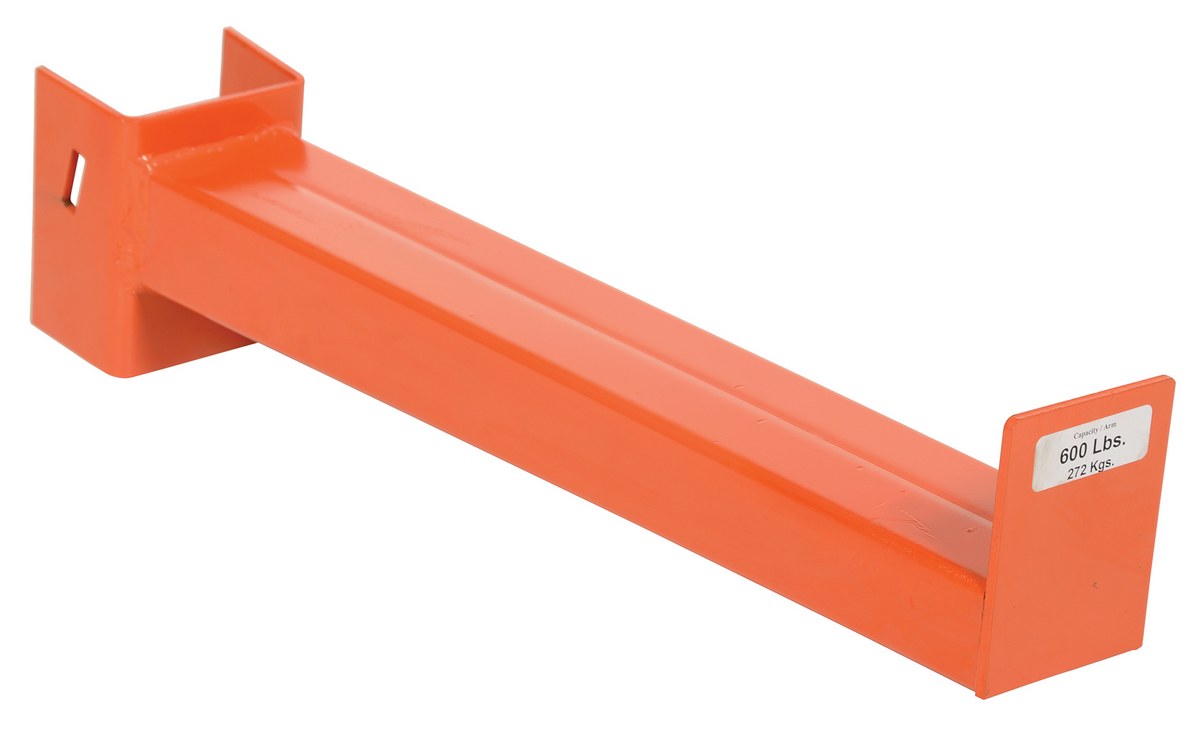

| MIA-C-24 | | 1 Year Limited Warranty | Steel Medium Duty Cantilever 10 Degree Incline Arm 24 In. 600 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 600 Component: Incline Arm | 15 | ||
| MIA-C-30 |  | 1 Year Limited Warranty | Steel Medium Duty Cantilever 10 Degree Incline Arm 30 In. 500 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 500 Component: Incline Arm | 17 | ||
| MIA-C-36 | | 1 Year Limited Warranty | Steel Medium Duty Cantilever 10 Degree Incline Arm 36 In. 400 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 400 Component: Incline Arm | 21 | ||
| MSA-C-12 | | 1 Year Limited Warranty | Steel Medium Duty Cantilever Racking Straight Arm 15 In. x 4.75 In. x 6 In. 1000 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1,000 Component: Straight Arm | 10 | ||
| MSA-C-30 |  | 1 Year Limited Warranty | Steel Medium Duty Cantilever Racking Straight Arm 33 In. x 4.75 In. x 6 In. 500 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 500 Component: Straight Arm | 17 | ||
| MSA-C-36 |  | 1 Year Limited Warranty | Steel Medium Duty Cantilever Racking Straight Arm 39 In. x 4.75 In. x 6 In. 400 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 400 Component: Straight Arm | 21 | ||
| MU-C-10-12 |  | 1 Year Limited Warranty | Steel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 10 Ft. 7,100 Lb. Capacity Blue | Uniform Capacity Per Upright (lb.): 7,100 Component: Single-Sided Upright | 214 | ||
| MU-C-6-12 |  | 1 Year Limited Warranty | Steel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 6 Ft. 8,100 Lb. Capacity Blue | Uniform Capacity Per Upright (lb.): 8,100 Component: Single-Sided Upright | 161 | ||
| MU-C-6-24 | | 1 Year Limited Warranty | Steel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 6 Ft. 5,500 Lb. Capacity Blue | Uniform Capacity Per Upright (lb.): 5,500 Component: Single-Sided Upright | 170 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 5,000
Component: Single-Sided Upright
Uniform Capacity Per Upright (lb.): 5,000
Component: Single-Sided Upright
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 10
Component: Brace Set
Fits Upright (ft.): 10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 6
Component: Brace Set
Fits Upright (ft.): 6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 8
Component: Brace Set
Fits Upright (ft.): 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 14,200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 14,200
Component: Double-Sided Upright
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 11,800
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 11,800
Component: Double-Sided Upright
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 10,000
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 10,000
Component: Double-Sided Upright
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 8,800 or 7,600
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 8,800 or 7,600
Component: Double-Sided Upright
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 16,200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 16,200
Component: Double-Sided Upright
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 13,200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 13,200
Component: Double-Sided Upright
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 11,000
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 11,000
Component: Double-Sided Upright
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 9,400 or 8,200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 9,400 or 8,200
Component: Double-Sided Upright
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1000
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 1000
Component: Incline Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 750
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 750
Component: Incline Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 600
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 600
Component: Incline Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 500
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 500
Component: Incline Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 400
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 400
Component: Incline Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 500
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 500
Component: Straight Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 400
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 400
Component: Straight Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 7,100
Component: Single-Sided Upright
Uniform Capacity Per Upright (lb.): 7,100
Component: Single-Sided Upright
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 8,100
Component: Single-Sided Upright
Uniform Capacity Per Upright (lb.): 8,100
Component: Single-Sided Upright
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 5,500
Component: Single-Sided Upright
Uniform Capacity Per Upright (lb.): 5,500
Component: Single-Sided Upright
Medium-Duty Cantilever Racking PDF's will open in a new window when clicked.
Manuals
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: What type of paint is used on the racking? We'd like to use it outdoors
A: The powder used for the cantilever racking is not suitable for outdoor use.
Q: Is the hardware for the cantilever racking metric?
A: Yes, the hardware for the cantilever racking is metric.
Q: What is the height of the lip?
A: Lip height is 3-1/8" usable height.
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
