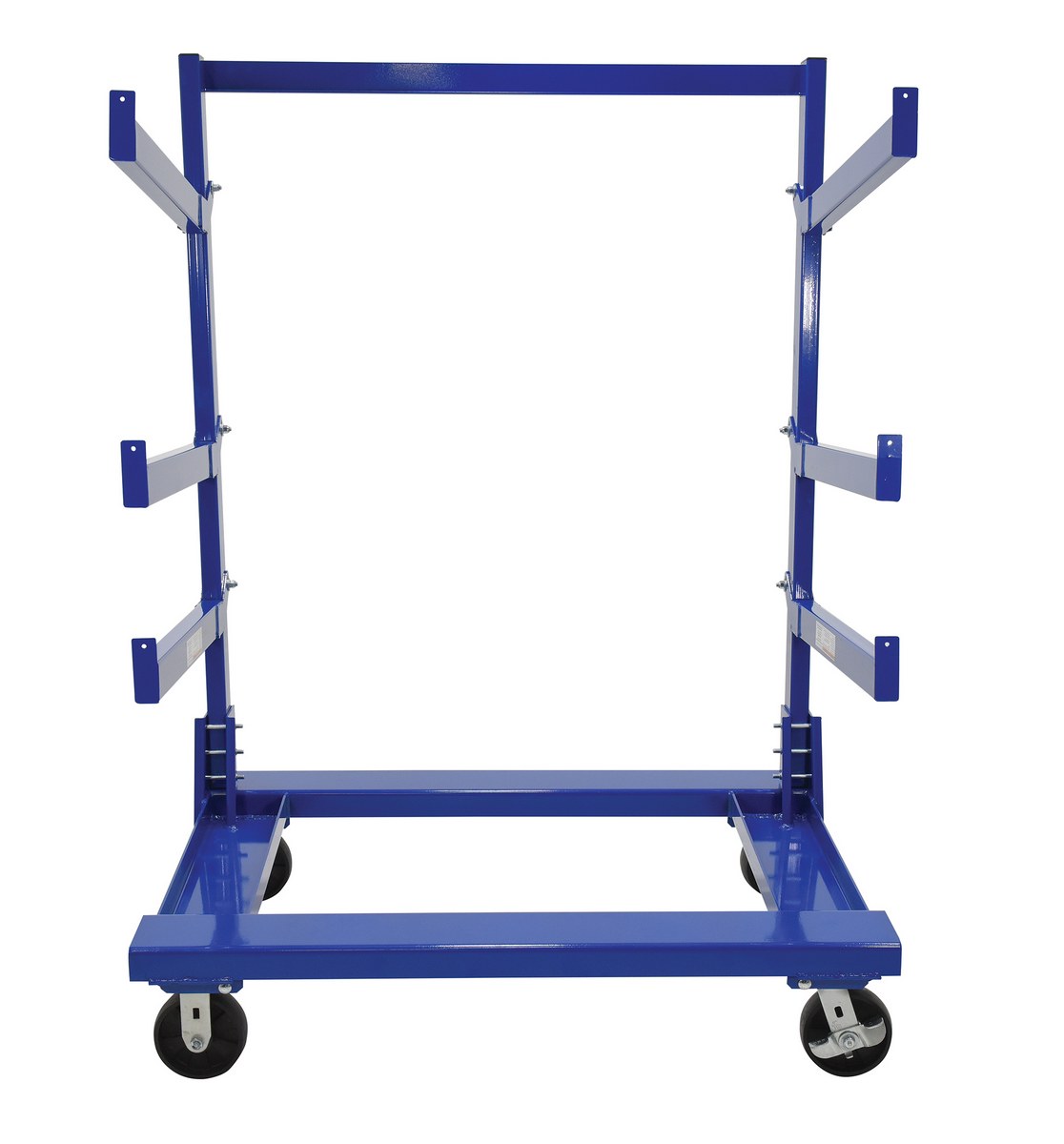

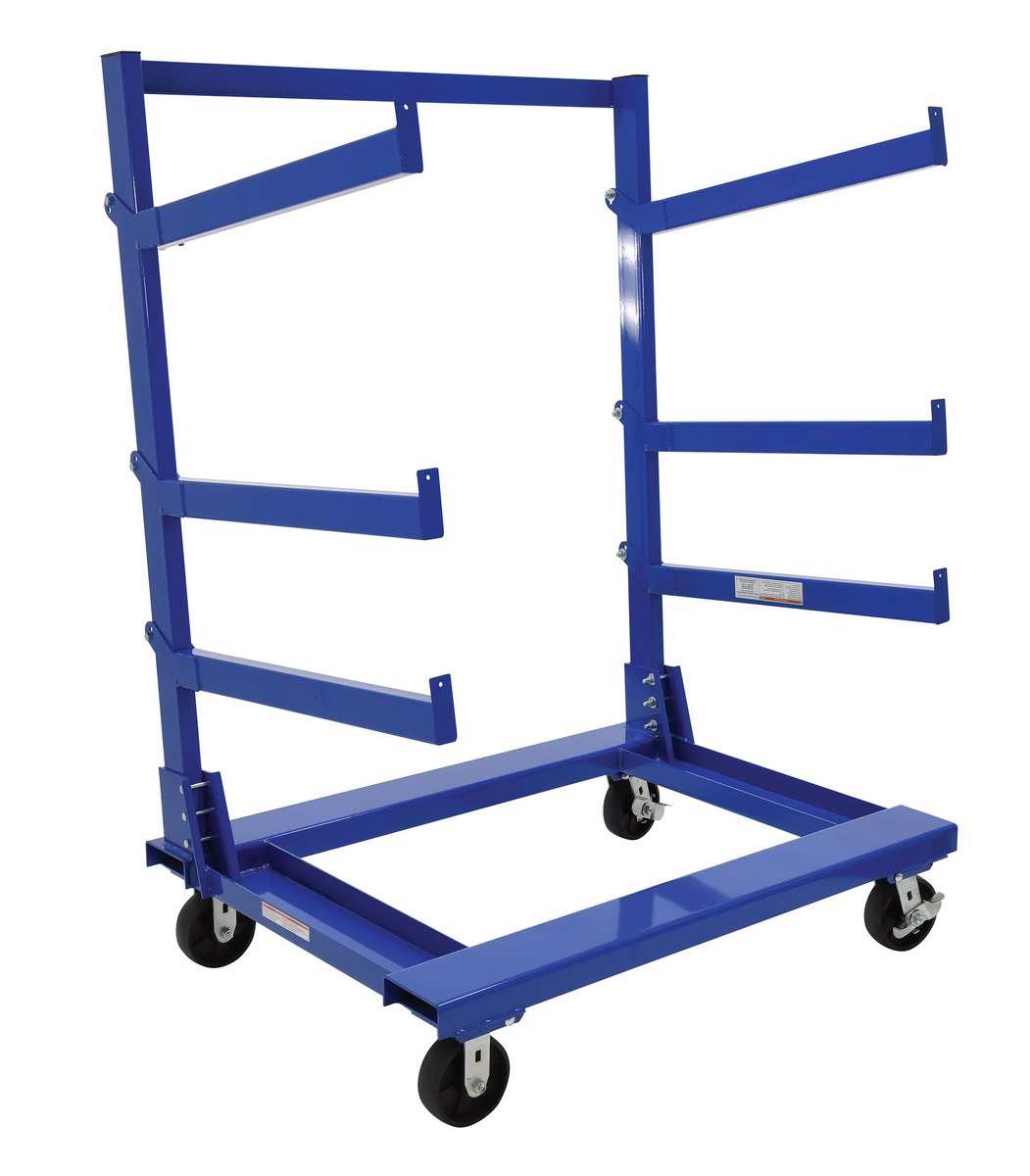

Cantilever CartsPortable Cantilever Cart for storage of bar stock type items. Each cart includes three pairs of arms. Arm height is adjustable in 6" increments. Arms are secured to cart with a bolt and nut and each arm features two holes so that it may be attached in the level or inclined position. Height of lowest arm position is 18-3/4" while the highest position is 60-3/4". The 10" high base includes built in fork pockets that are 5-3/8"W x 2"H usable. Units roll on (2) rigid and (2) locking swivel 6" x 2" casters. All steel construction with blue baked-in powder-coated toughness.
- Ideal for storage of bar stock type items

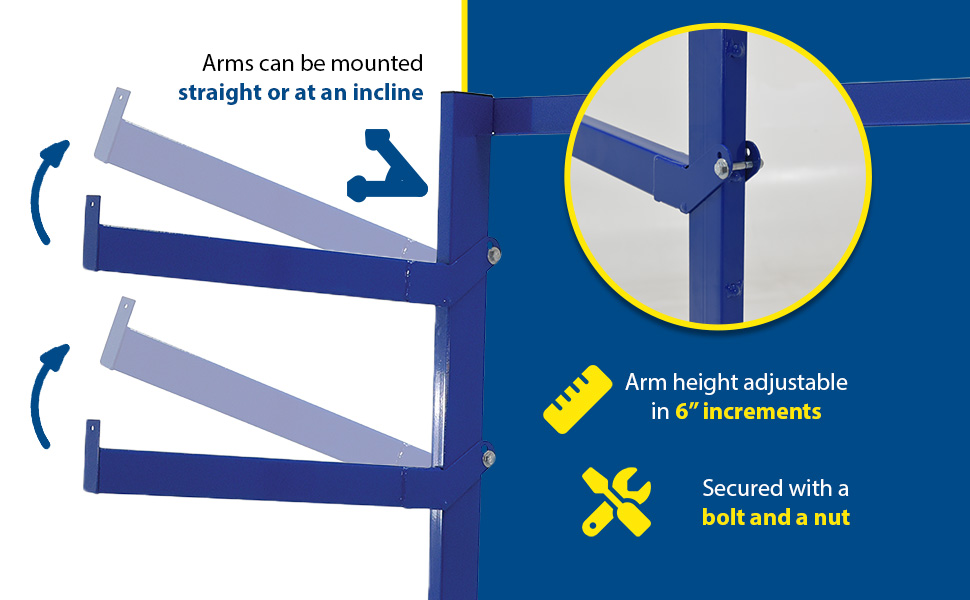

- Includes three pairs of arms, secured with a bolt and nut
- Adjustable arm height in six inch increments
- Base includes built in fork pockets for easy transportation
Economical Material Racks
Expandable Vertical Bar Racks
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

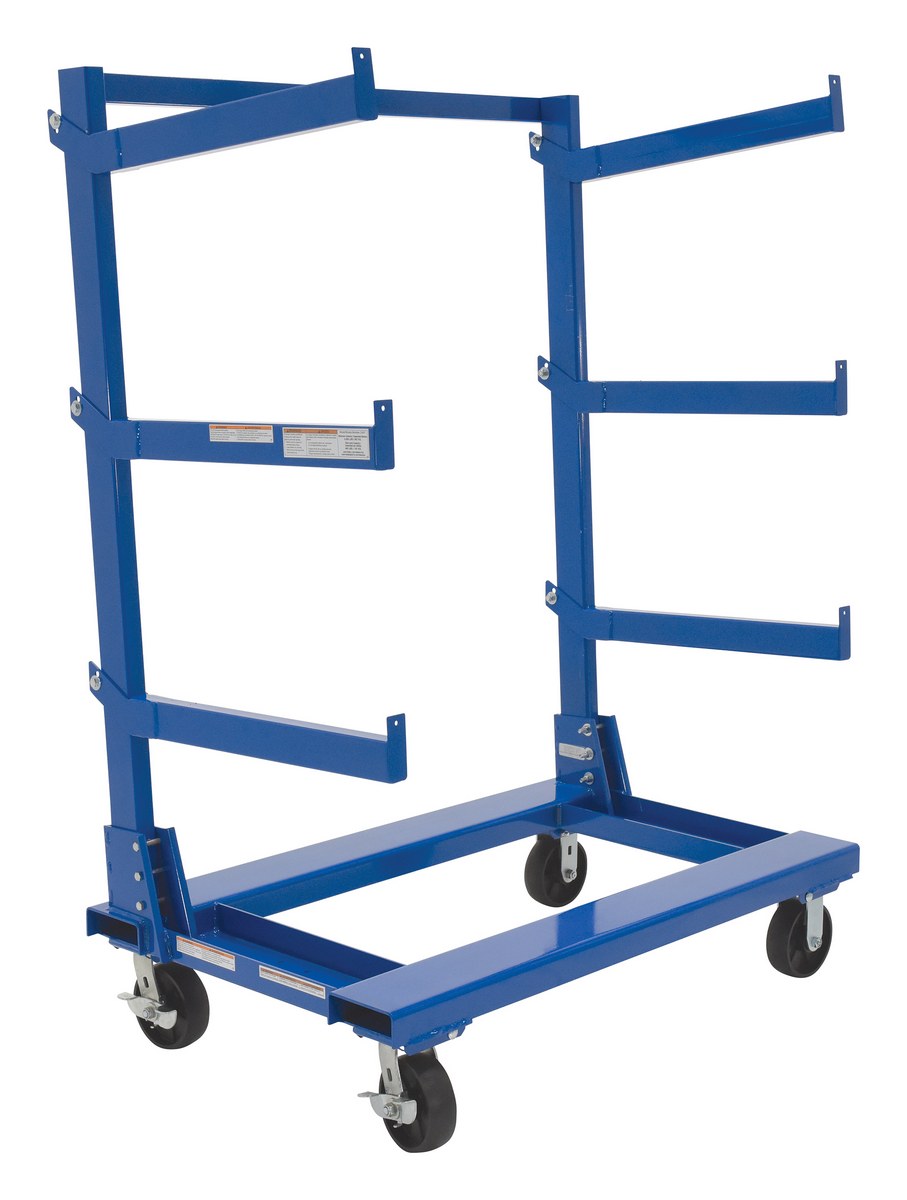

| CANT-3048 |  | 90 Days Limited Warranty | Steel Portable Cantilever Cart 30 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Uniform Capacity per Level (lb.): 400 | 212 | ||

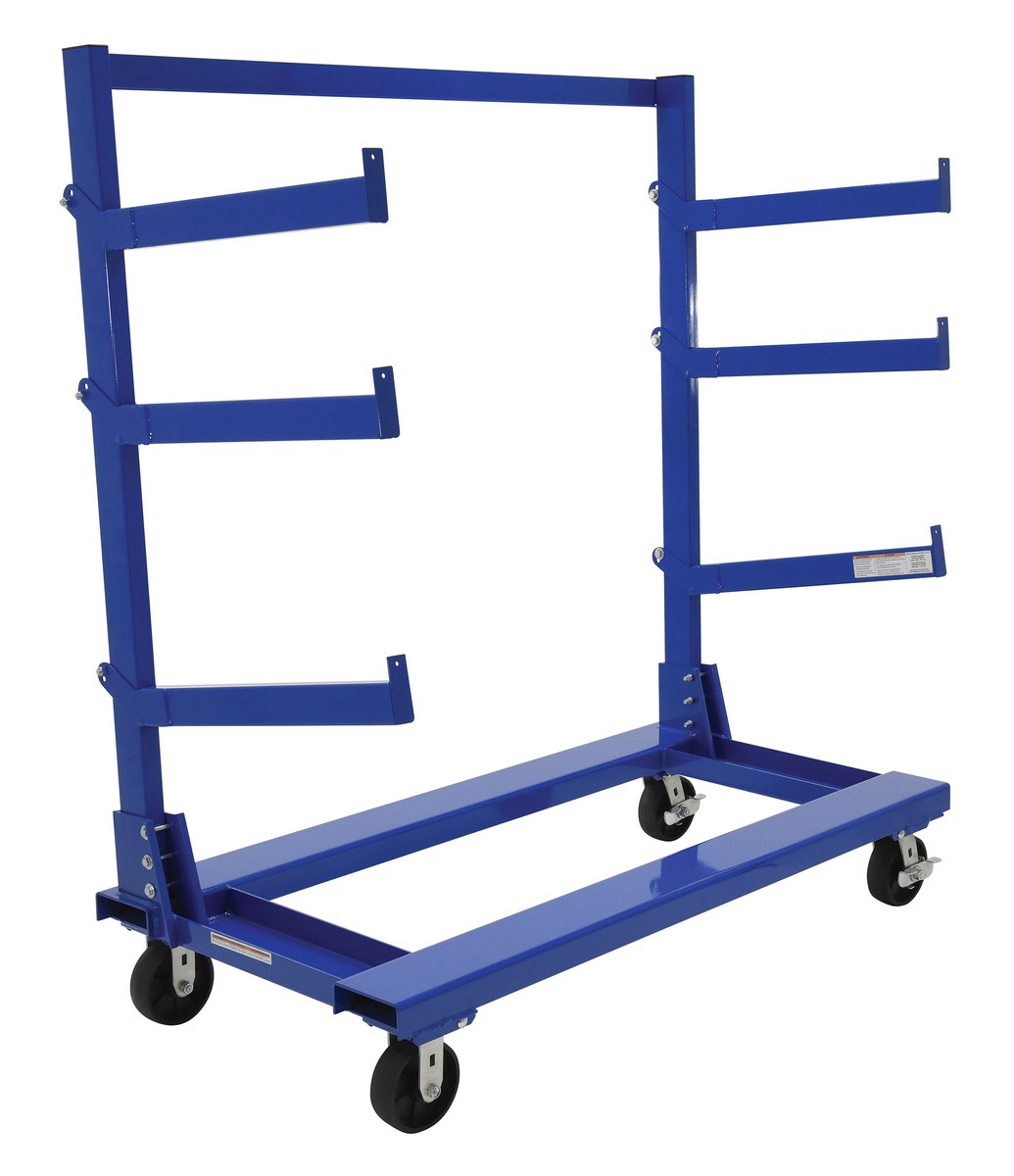

| CANT-3060 |  | 90 Days Limited Warranty | Steel Portable Cantilever Cart 30 In. x 60 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Uniform Capacity per Level (lb.): 400 | 225 | ||

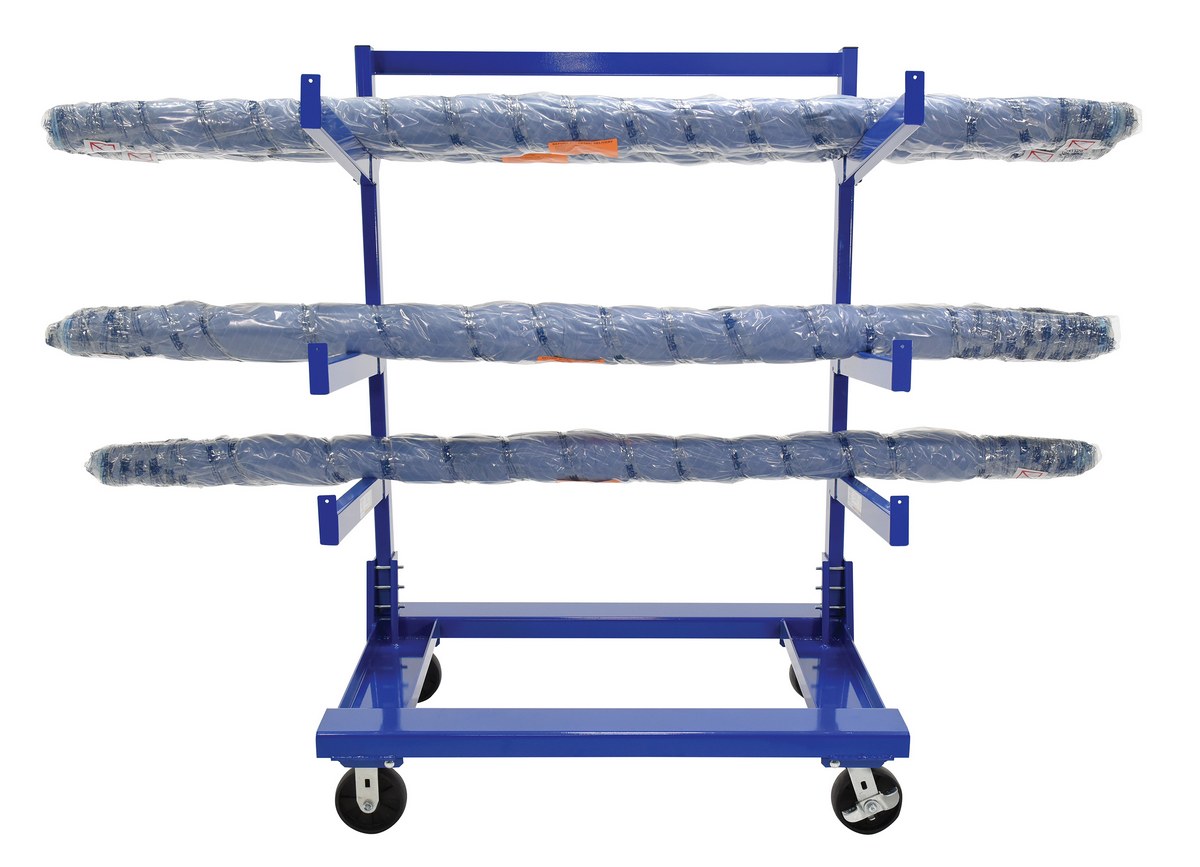

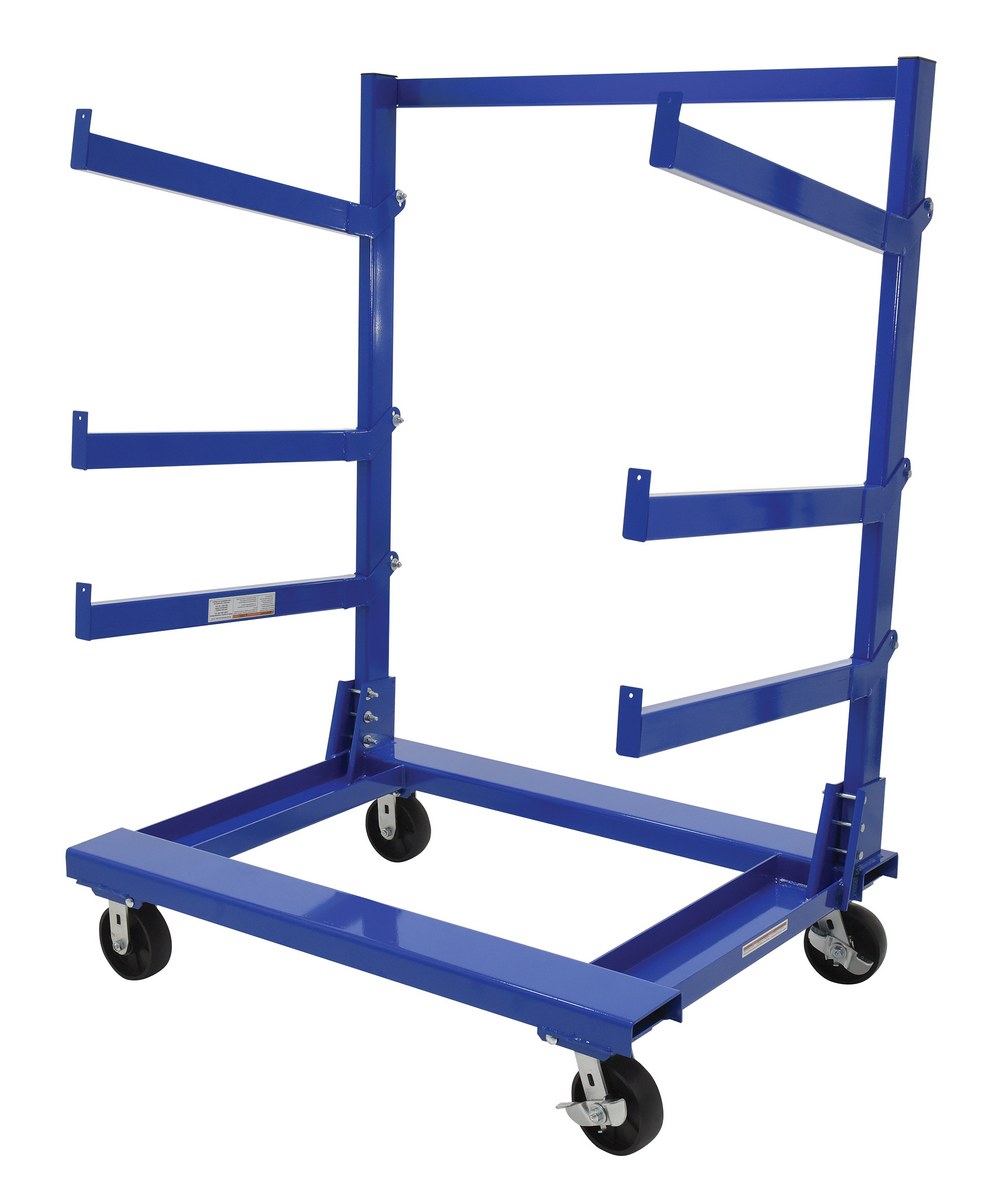

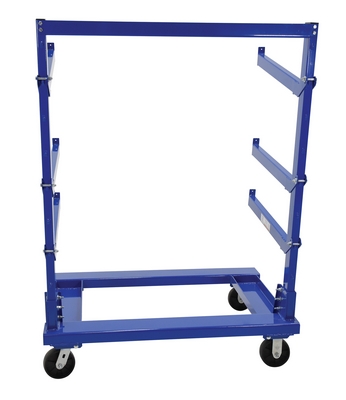

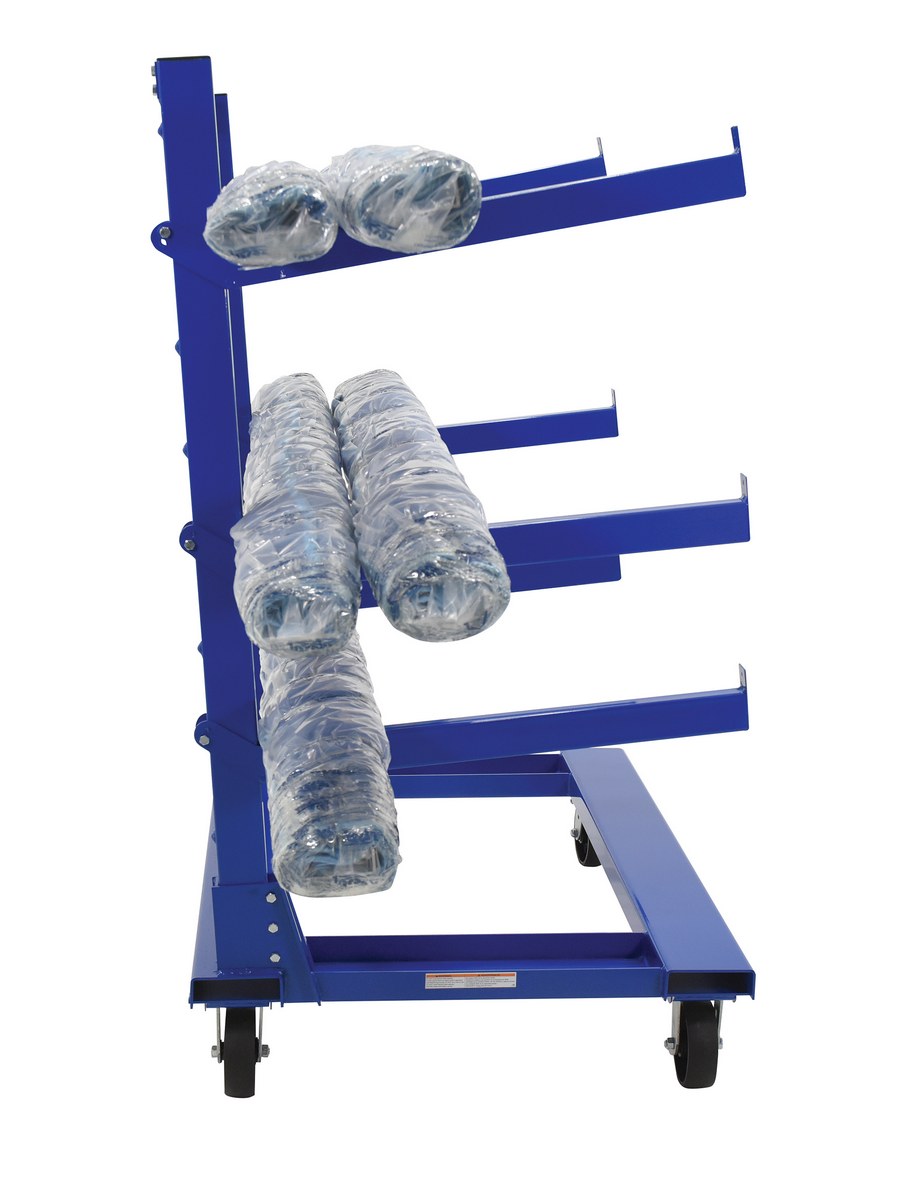

| CANT-3648 | POPULAR |  | 90 Days Limited Warranty | Steel Portable Cantilever Cart 36 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Uniform Capacity per Level (lb.): 400 | 226 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400
For More Details of the Option Click the Red Model Button

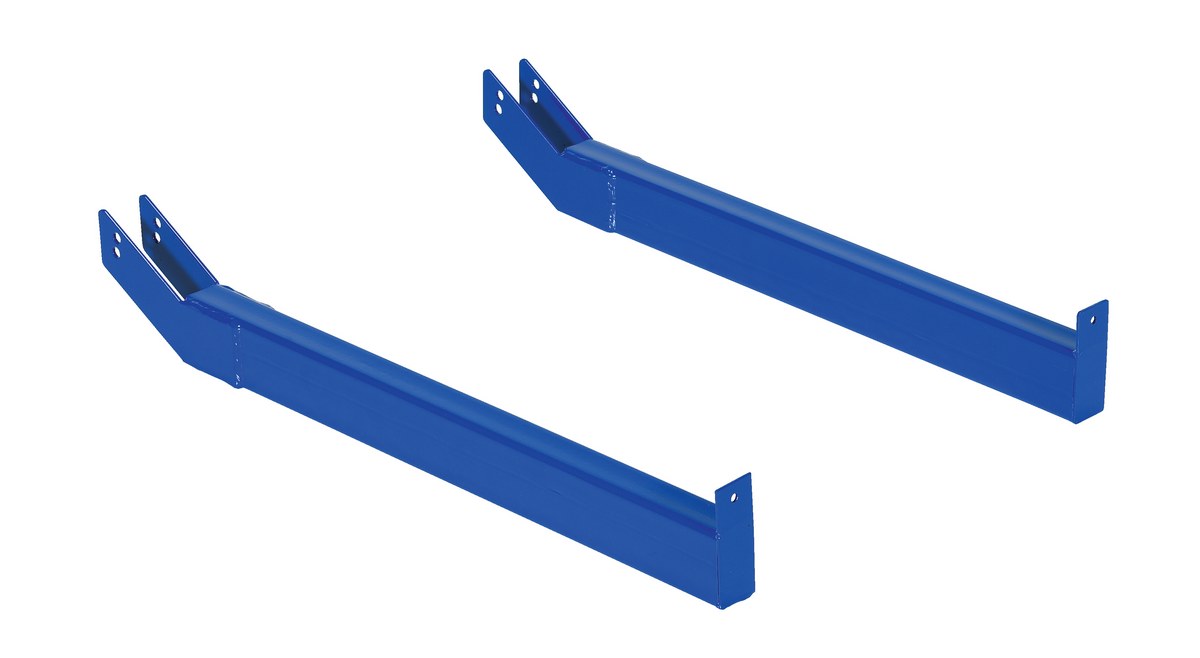

| CANT-A30 |  | 90 Days Limited Warranty | Steel Portable Cantilever Cart Arms 24 In. Blue | Uniform Capacity (lb.): 400 Component: Arms | 12 | |

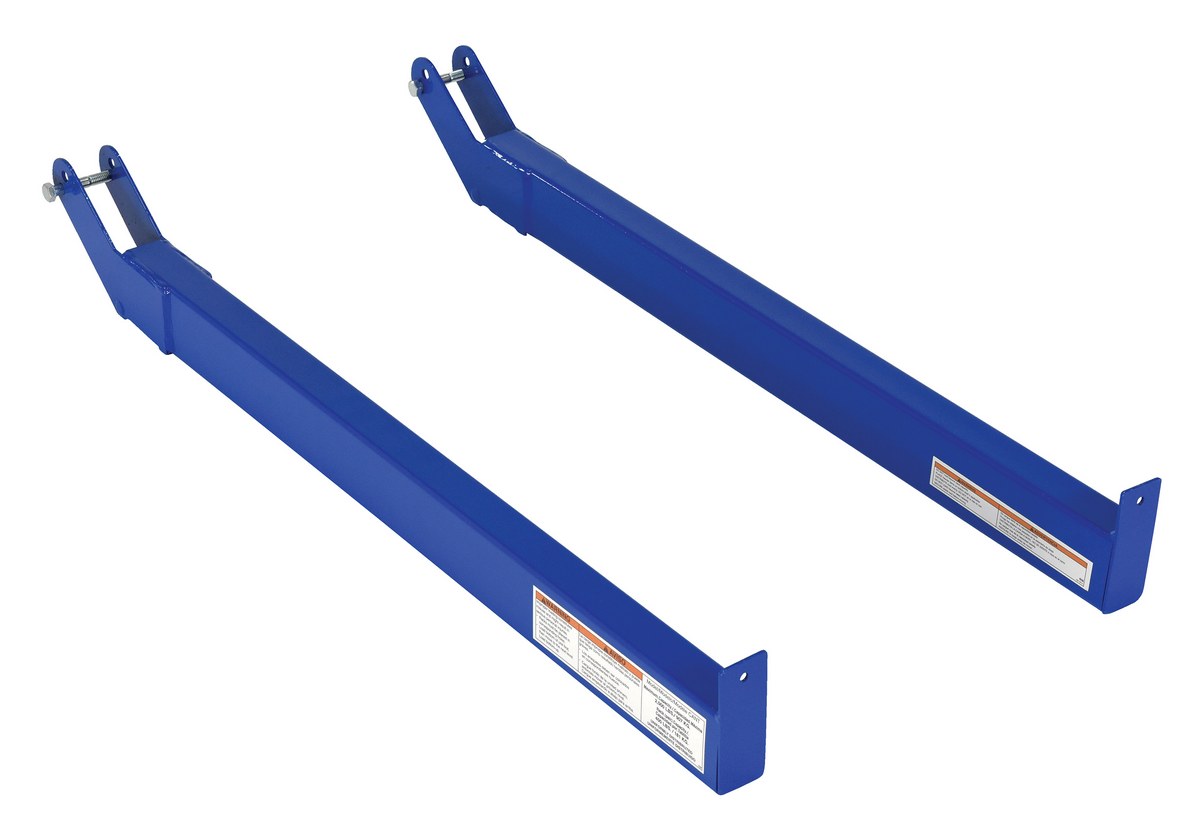

| CANT-A36 |  | 90 Days Limited Warranty | Steel Portable Cantilever Cart Arms 30 In. Blue | Uniform Capacity (lb.): 400 Component: Arms | 14 |
| Model | Image | PDFs | Description | Wt. (lbs.) | |||
| SCSC-SL5-RF |  |
  |
Works with CANT series carts! Auto-Hite Cart Stationary Option (2000 lbs. per set of 4) | 80 | |||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the horizontal space between arms on the CANT-3060?
A: 56"
 |
||||||||||||||||||||||
Cantilever Carts |
||||||||||||||||||||||
 |
||||||||||||||||||||||
Portable Cantilever Cart for storage of bar stock type items. Each cart includes three pairs of arms. Arm height is adjustable in 6" increments. Arms are secured to cart with a bolt and nut and each arm features two holes so that it may be attached in the level or inclined position. Height of lowest arm position is 18-3/4" while the highest position is 60-3/4". The 10" high base includes built in fork pockets that are 5-3/8"W x 2"H usable. Units roll on (2) rigid and (2) locking swivel 6" x 2" casters. All steel construction with blue baked-in powder-coated toughness.
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
