Thermoplastic Polyurethane Rubber CastersThermoplastic polyurethane rubber casters provide low resistance when maneuvering with heavy loads. Resistant to chemicals, acids, bases, alcohol, salts, and steam. Gray tread color. Wheel core is constructed of polypropylene. CST-B28 85 +/-5 Shore A. Made in China.
- Resistant to chemical, acids, bases, alcohol, salts, & The Steam
- Hardened Bearing Raceway
- Anti-Corrosive & Rust Resistant Zinc Plate Finish
- Precision Ball Bearing
Poly On Poly Casters (Orange)
Polyurethane Casters
Cast Iron Casters
TPR (Thermoplastic Rubber) CastersAdditional Models In This Family
CST-B28-5X1TPR-R
CST-B28-5X1TPR-S
CST-B28-5X1TPR-S
CST-B28-4X1TPR-SWB
CST-B28-5X1TPR-R
CST-B28-4X1TPR-S
CST-B28-5X1TPR-SWB
CST-B28-4X1TPR-R
CST-B28-5X1TPR-S
CST-B28-4X1TPR-R
CST-B28-4X1TPR-SWB
CST-B28-4X1TPR-R
CST-B28-4X1TPR-S
CST-B28-5X1TPR-SWB
CST-B28-5X1TPR-SWB
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

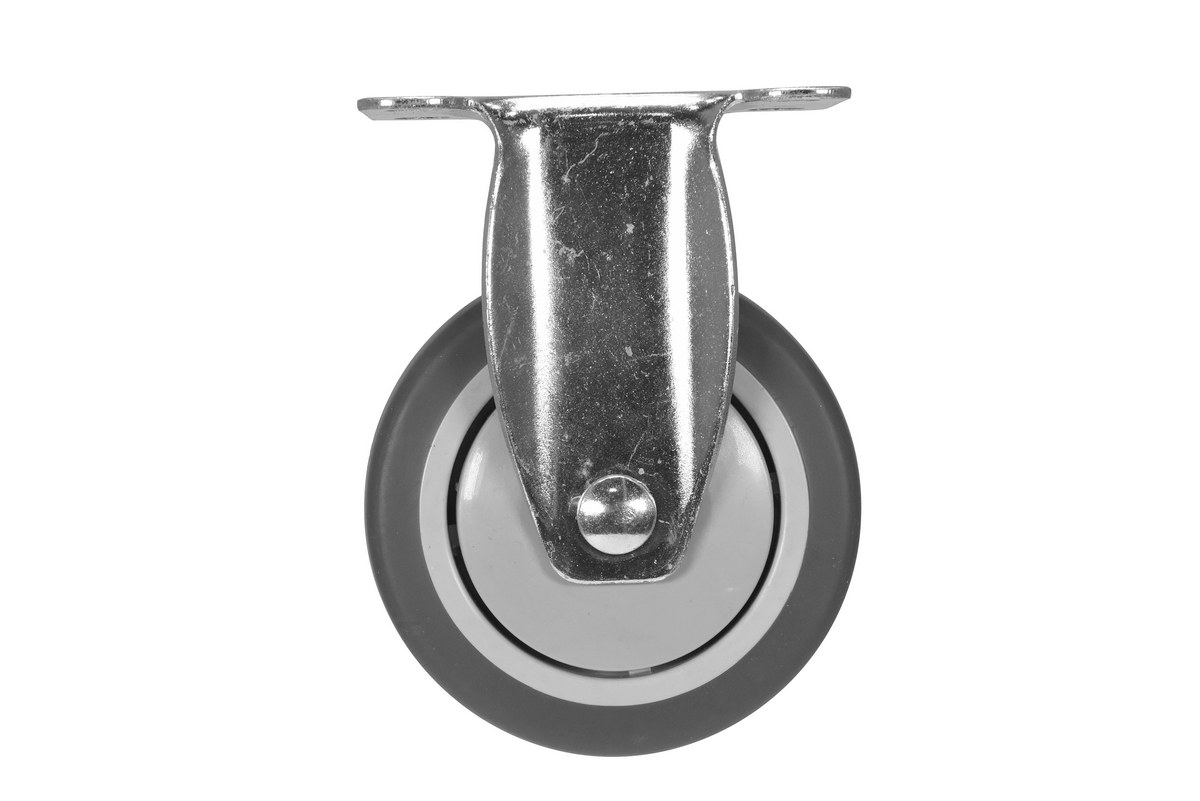

| CST-B28-4X1TPR-R | | 1YEAR Limited Warranty | 4 x 1-1/4 | RIGID | 220 | 5-1/4 | 2-5/8 x 3-3/4 | 3 |
| CST-B28-5X1TPR-R |  | 1YEAR Limited Warranty | 5 x 1-1/4 | RIGID | 308 | 6-1/4 | 2-16/25 x 3-3/4 | 3 |

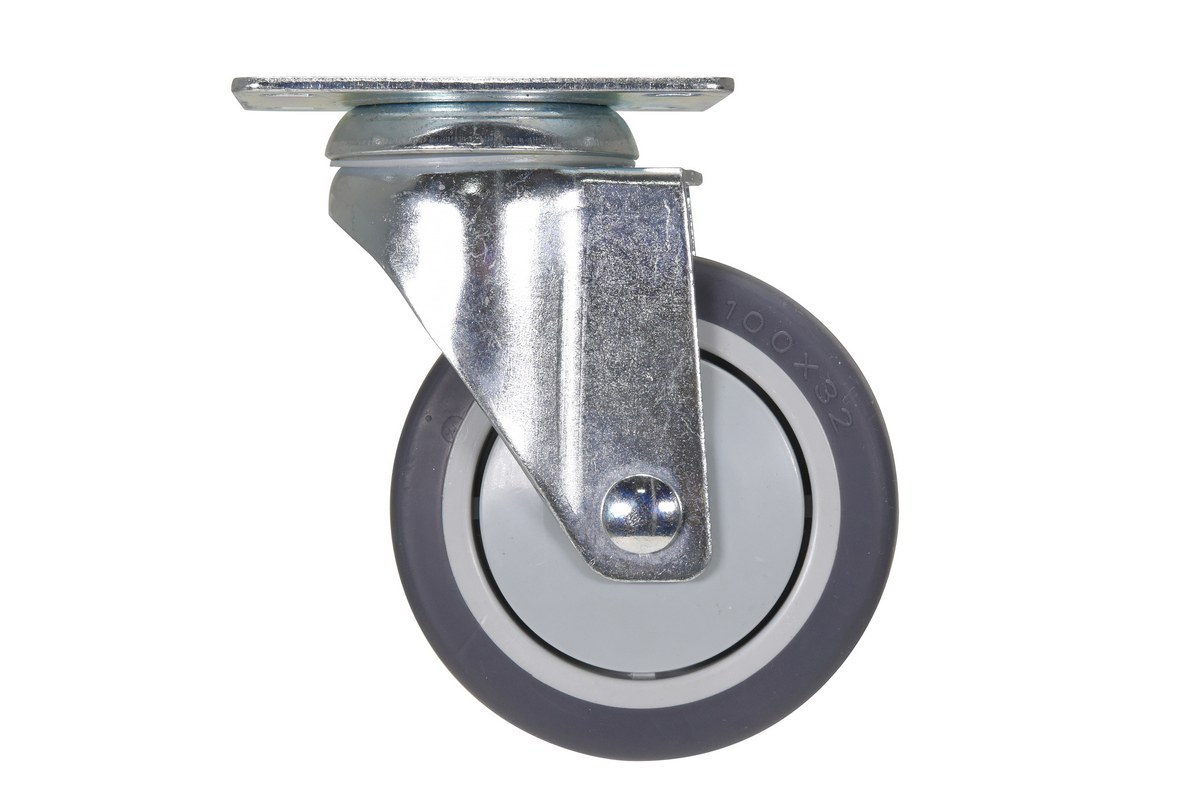

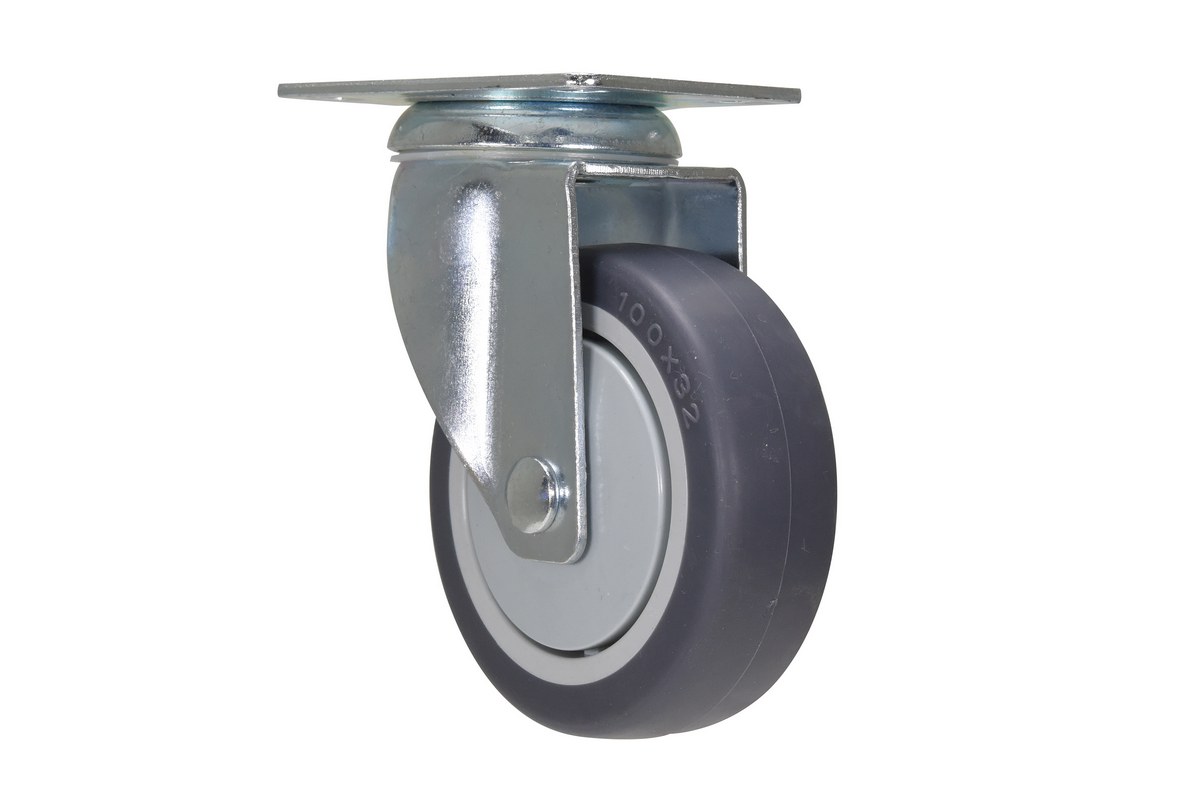

| CST-B28-4X1TPR-S | | 1YEAR Limited Warranty | 4 x 1-1/4 | SWIVEL | 220 | 5-1/4 | 2-5/8 x 3-3/4 | 3 |

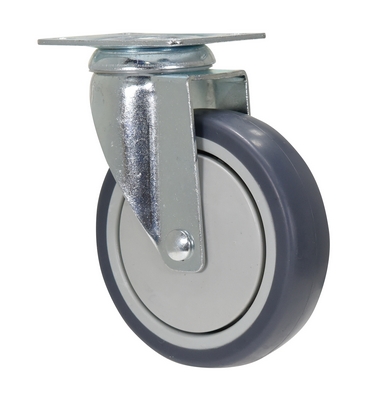

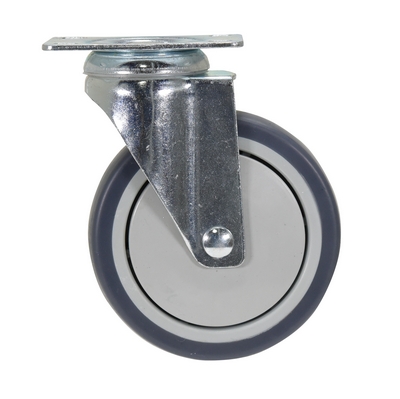

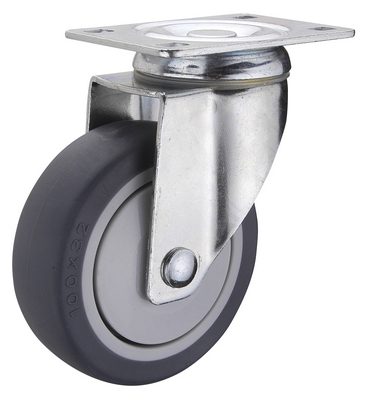

| CST-B28-5X1TPR-S | | 1YEAR Limited Warranty | 5 x 1-1/4 | SWIVEL | 308 | 6-1/4 | 2-16/25 x 3-3/4 | 3 |

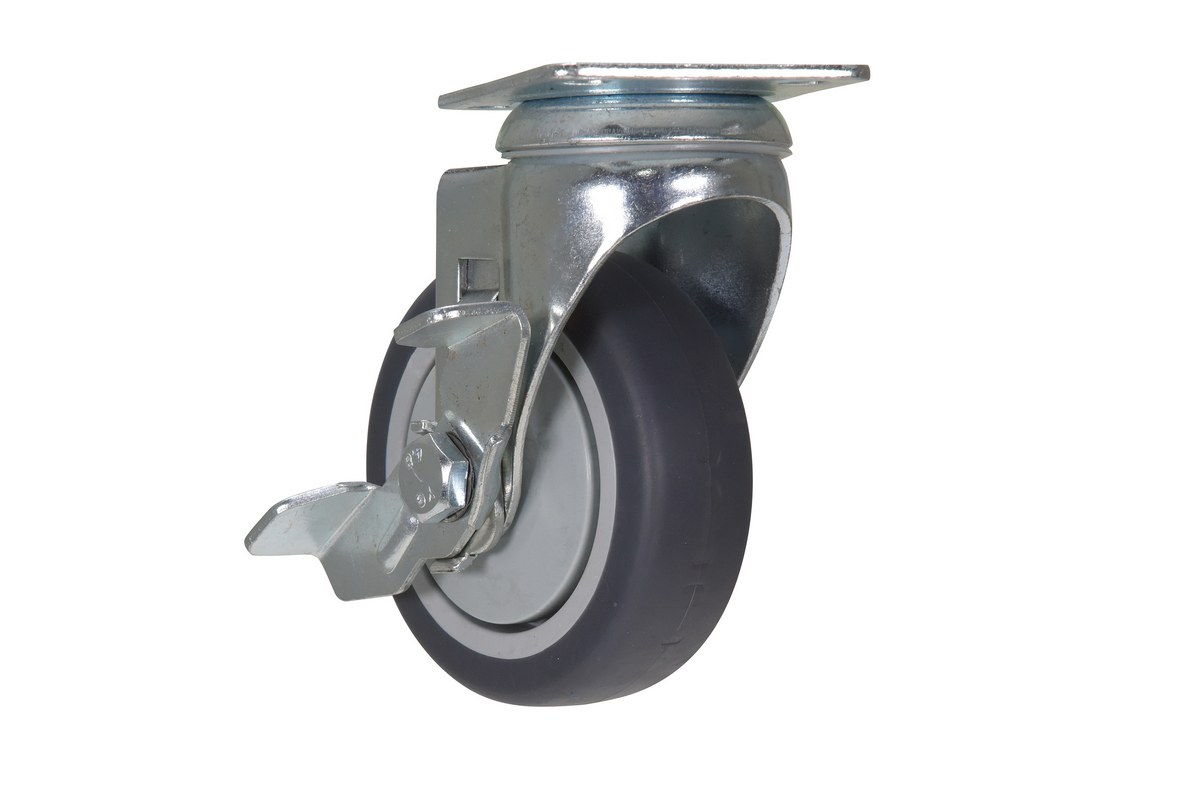

| CST-B28-4X1TPR-SWB | | 1YEAR Limited Warranty | 4 x 1-1/4 | SWIVEL W/BRAKE | 220 | 5-1/4 | 2-5/8 x 3-3/4 | 4 |

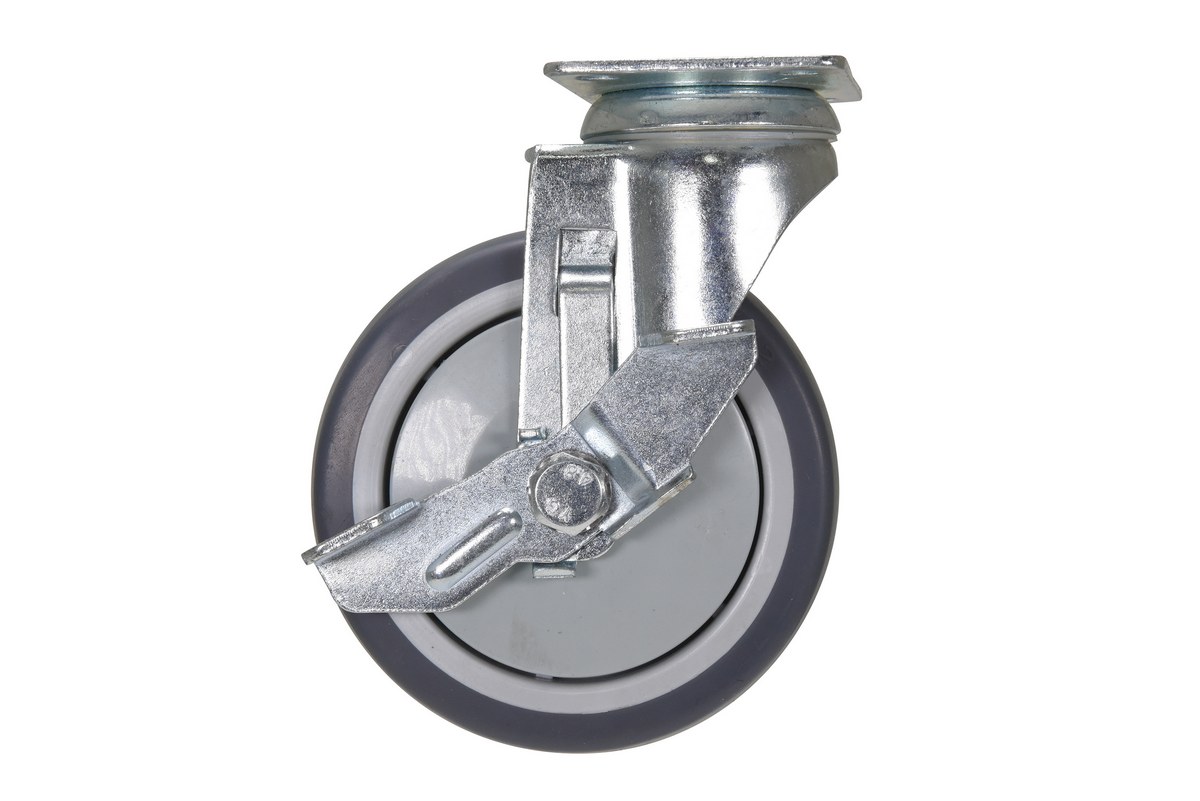

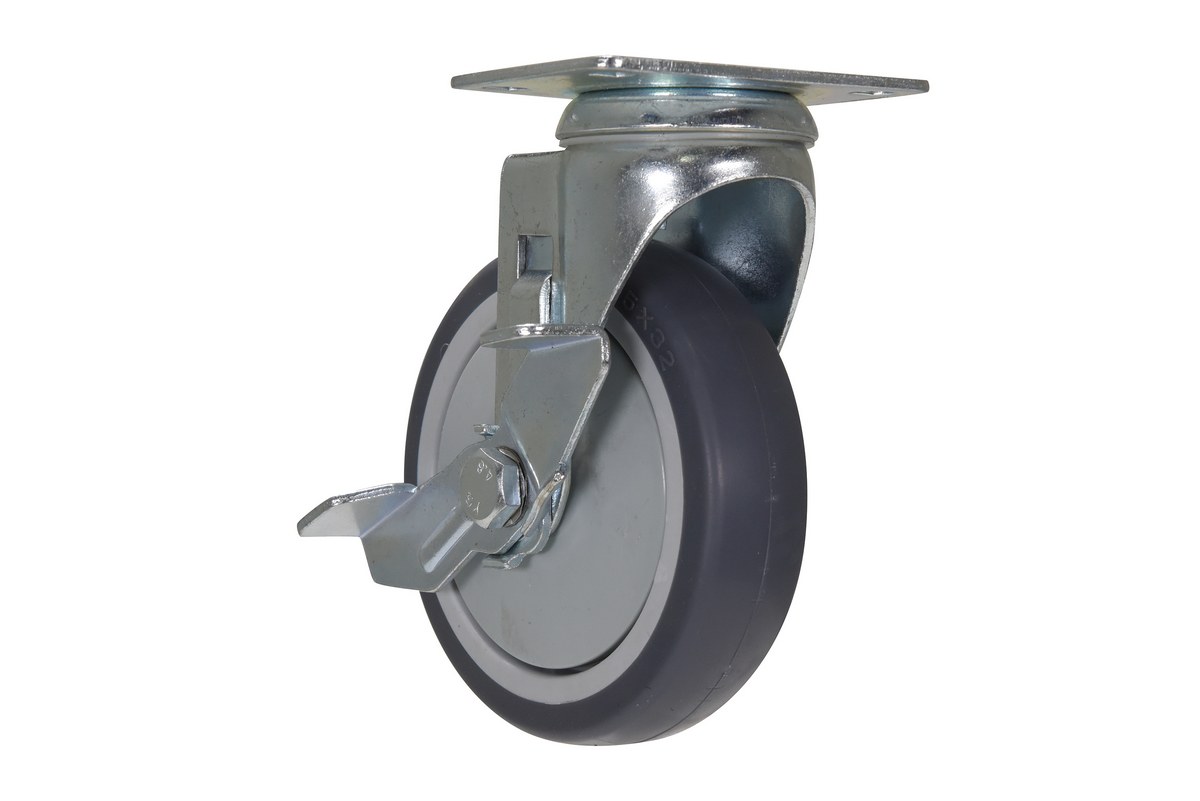

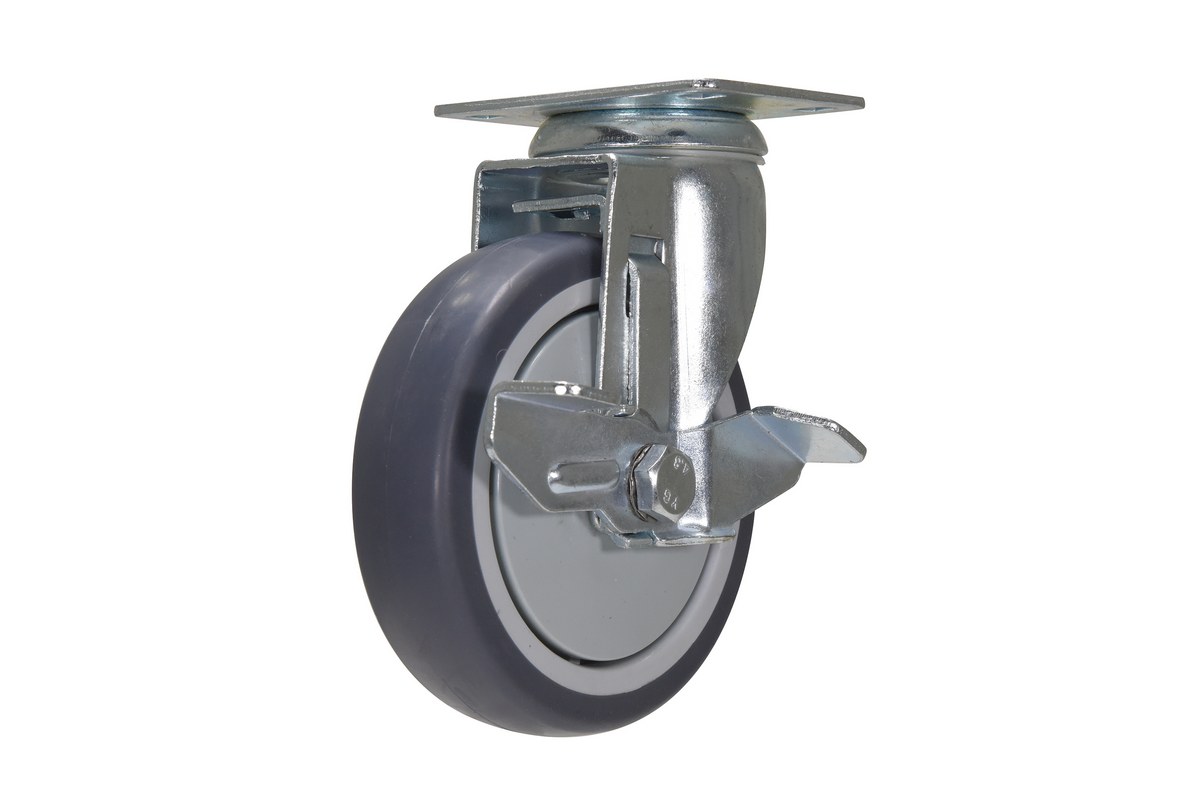

| CST-B28-5X1TPR-SWB | | 1YEAR Limited Warranty | 5 x 1-1/4 | SWIVEL W/BRAKE | 308 | 6-1/4 | 2-16/25 x 3-3/4 | 4 |
