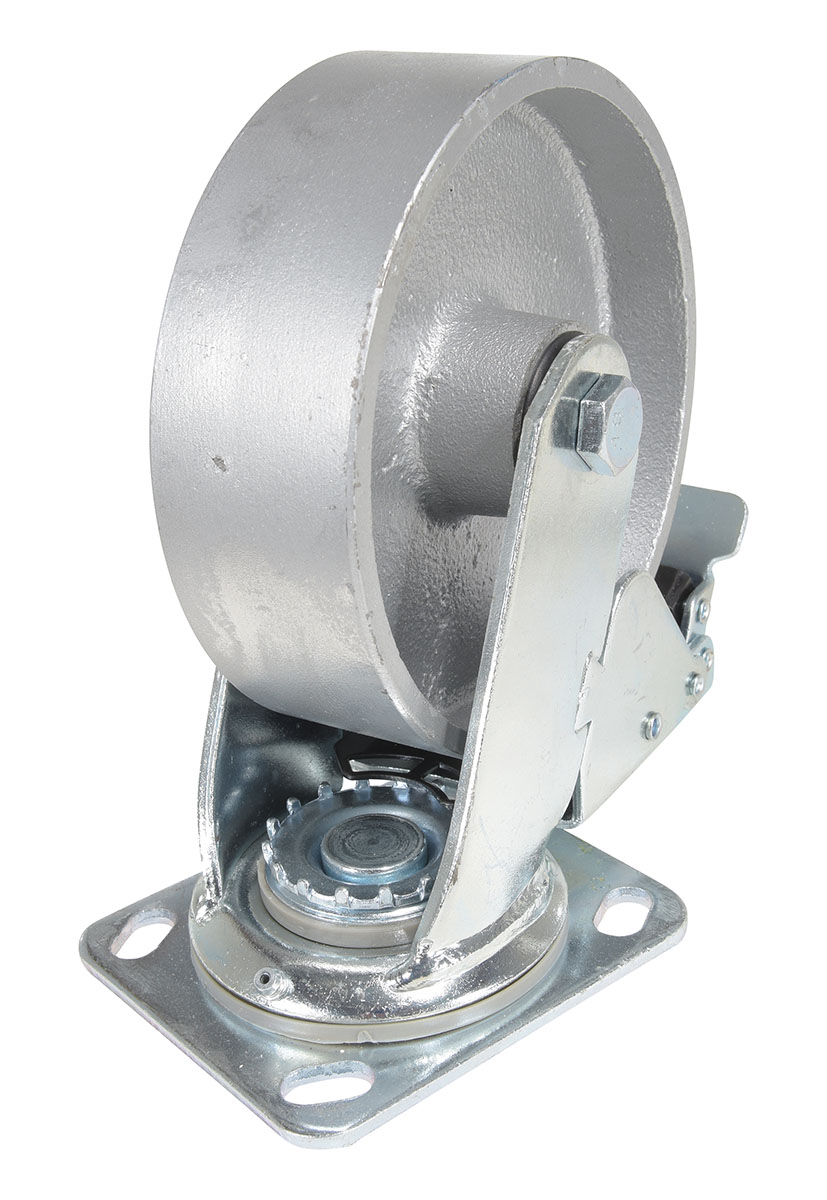

model: CST-VE-6X2CI-SWTB

Cast Iron/ Semi-Steel Casters

model: CST-VE-6X2CI-SWTB

Featured Casters & Wheels

Dual Wheel Polyurethane (SI) - Highly Ergonomic Upgrade Casters

Polyurethane Casters (Blue)

Wheels

Cast Iron Wheel

Stainless Steel Nylon Caster

TPR(Thermoplastic Rubber) On Stainless Still Casters

Polyurethane with Thread Guard Casters

VE Wheel

Polyurethane-Elastomer

model chart

Print Friendly

Cast Iron/ Semi-Steel Casters

SERIES: CST-VE-CI

Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly. The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user to change directions and maintain increased control over the device. Simple attachment for immediate use upon installation. Gray tread color.

Bearing dust cover seals
Hardened bearing raceway
Double welds on inside & outside of fork mounts
Roller bearing
Anti-corrosive & rust resistant zinc plated finish

Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly. The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user to change directions and maintain increased control over the device. Simple attachment for immediate use upon installation. Gray tread color.

Bearing dust cover seals
Hardened bearing raceway
Double welds on inside & outside of fork mounts
Roller bearing
Anti-corrosive & rust resistant zinc plated finish

Other "Go-To" Casters

Upgraded Glass Filled Nylon, Light Duty (RX) Casters

Polyurethane Casters

Polyurethane (SI) Casters

TPR (Thermoplastic Rubber) Casters

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

model CST-VE-4X2CI-SWTB

model CST-VE-5X2CI-SWTB

model CST-VE-8X2CI-S

model CST-VE-8X2CI-SWTB

model chart

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.

Model	PDFs	Caster Size	Type	Capacity (lbs.)	Overall Height	Top Plate Size	Net Wt. (lbs)

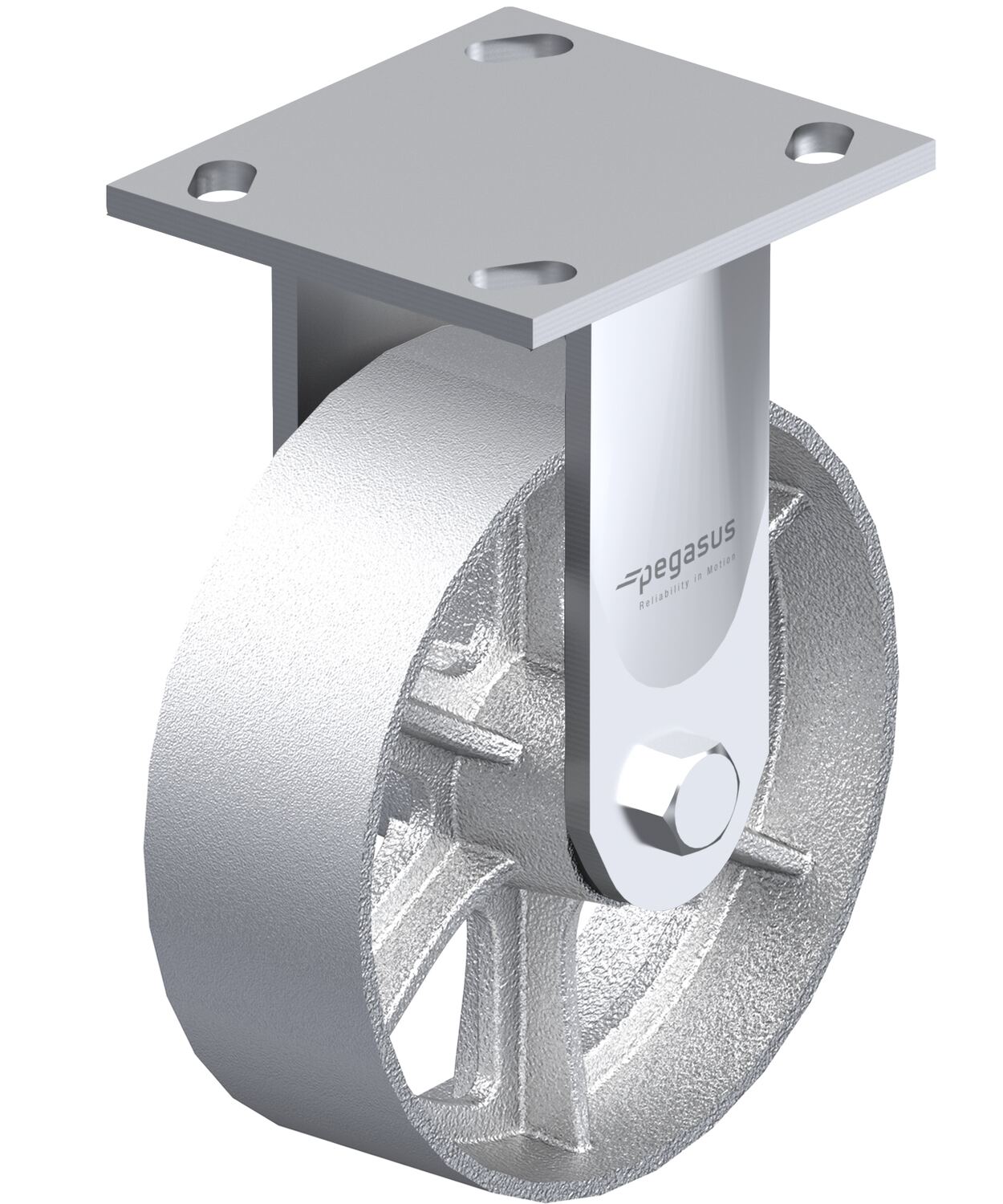

CST-BL-4X2CI-R	1YEAR Limited Warranty	4x2	Rigid	700	5-5/8	4-1/2 x 4	6
CST-BL-5X2CI-R	1YEAR Limited Warranty	5x2	Rigid	1000	6-1/2	4-1/2 x 4	8
CST-BL-6X2CI-R	1YEAR Limited Warranty	6x2	Rigid	1200	7-1/2	4-1/2 x 4	8
CST-BL-8X2CI-R	1YEAR Limited Warranty	8x2	Rigid	1250	9-1/2	4-1/2 x 4	11
CST-VE-4X2CI-R	1YEAR Limited Warranty	4 x 2	RIGID	1102	5-5/8	4 x 4-1/2	7
CST-VE-5X2CI-R	1YEAR Limited Warranty	5 x 2	RIGID	1322	6-1/2	4 x 4-1/2	8
CST-VE-6X2CI-R	1YEAR Limited Warranty	6 x 2	RIGID	1543	7-1/2	4 x 4-1/2	9
CST-VE-8X2CI-R	1 YEAR Limited Warranty	8 x 2	RIGID	1760	9-1/2	4 x 4-1/2	10
CST-BL-4X2CI-S	1YEAR Limited Warranty	4x2	Swivel	700	5-5/8	4-1/2 x 4	7
CST-BL-5X2CI-S	1YEAR Limited Warranty	5x2	Swivel	1000	6-1/2	4-1/2 x 4	8
CST-BL-6X2CI-S	1YEAR Limited Warranty	6x2	Swivel	1200	7-1/2	4-1/2 x 4	8

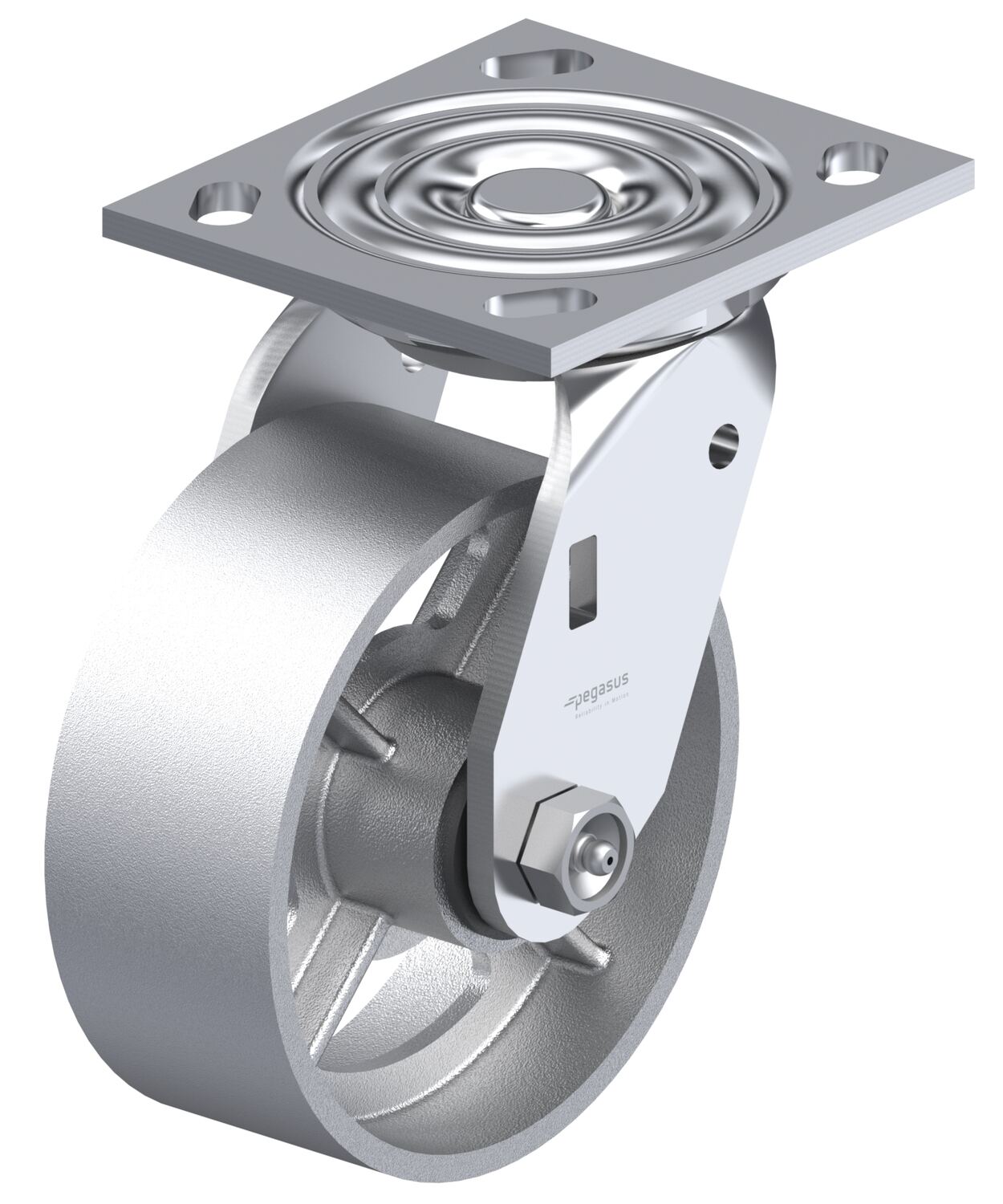

CST-BL-8X2CI-S	1YEAR Limited Warranty	8x2	Swivel	1250	9-1/2	4-1/2 x 4	13
CST-VE-4X2CI-S	1YEAR Limited Warranty	4 x 2	SWIVEL	1102	5-5/8	4 x 4-1/2	7
CST-VE-5X2CI-S	1YEAR Limited Warranty	5 x 2	SWIVEL	1322	6-1/2	4 x 4-1/2	8
CST-VE-6X2CI-S	1YEAR Limited Warranty	6 x 2	SWIVEL	1543	7-1/2	4 x 4-1/2	10
CST-VE-8X2CI-S	1 YEAR Limited Warranty	8 x 2	SWIVEL	1760	9-1/2	4 x 4-1/2	11
CST-BL-4X2CI-SWB	1YEAR Limited Warranty	4x2	Swivel W/Brake	700	5-5/8	4-1/2 x 4	9
CST-BL-5X2CI-SWB	1YEAR Limited Warranty	5x2	Swivel W/Brake	1000	6-1/2	4-1/2 x 4	9

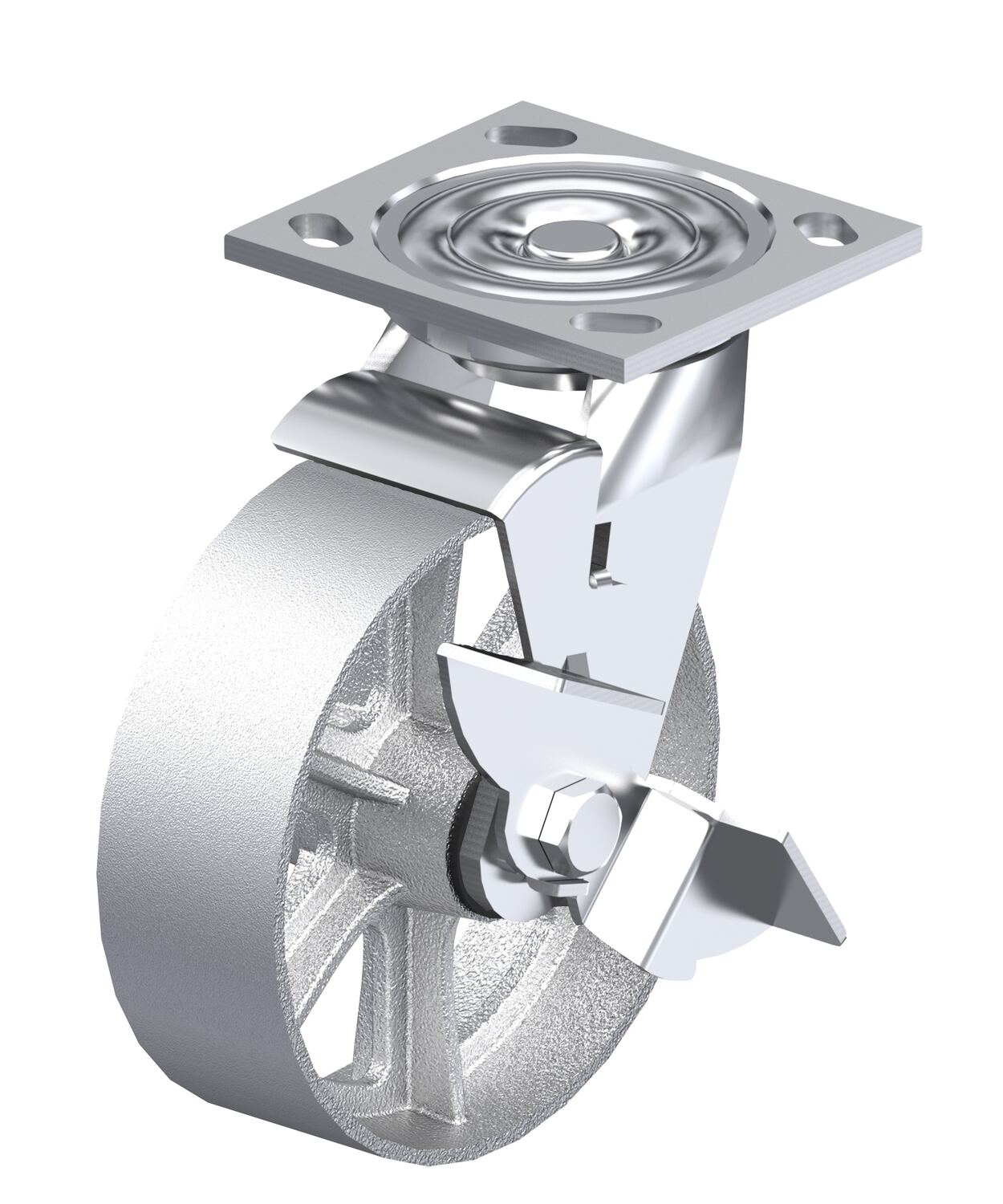

CST-BL-6X2CI-SWB	1YEAR Limited Warranty	6x2	Swivel W/Brake	1200	7-1/2	4-1/2 x 4	10
CST-BL-8X2CI-SWB	1YEAR Limited Warranty	8x2	Swivel W/Brake	1250	9-1/2	4-1/2 x 4	14
CST-VE-4X2CI-SWTB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/TOTAL BRAKE	1100	5-1/2	4 x 4-1/2	8
CST-VE-5X2CI-SWTB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/TOTAL BRAKE	1320	6-1/2	4 x 4-1/2	9

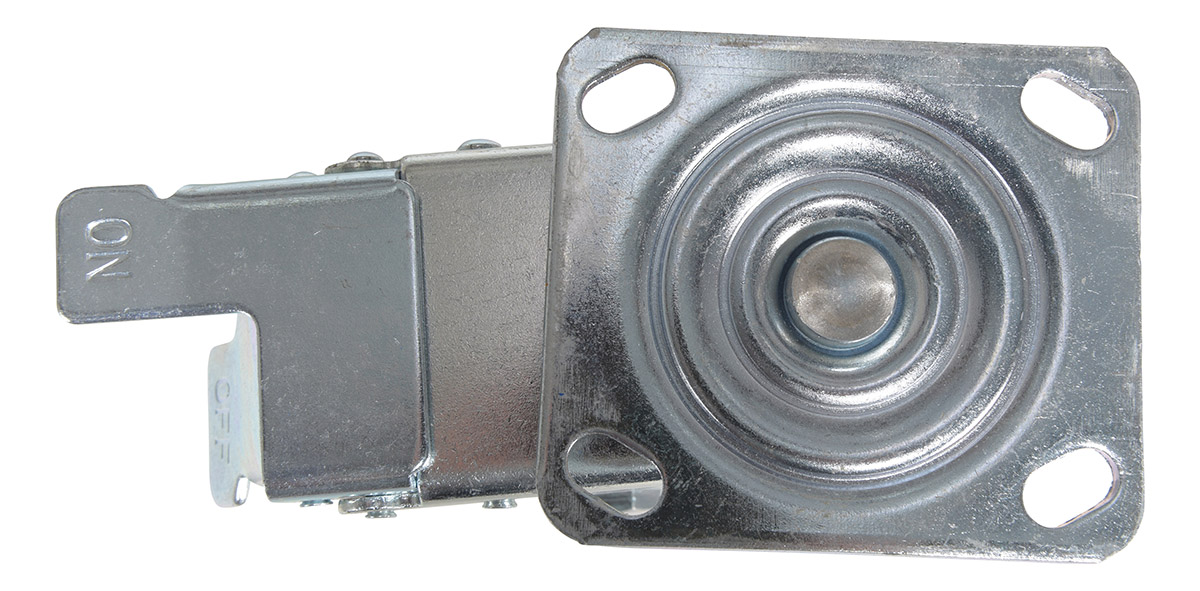

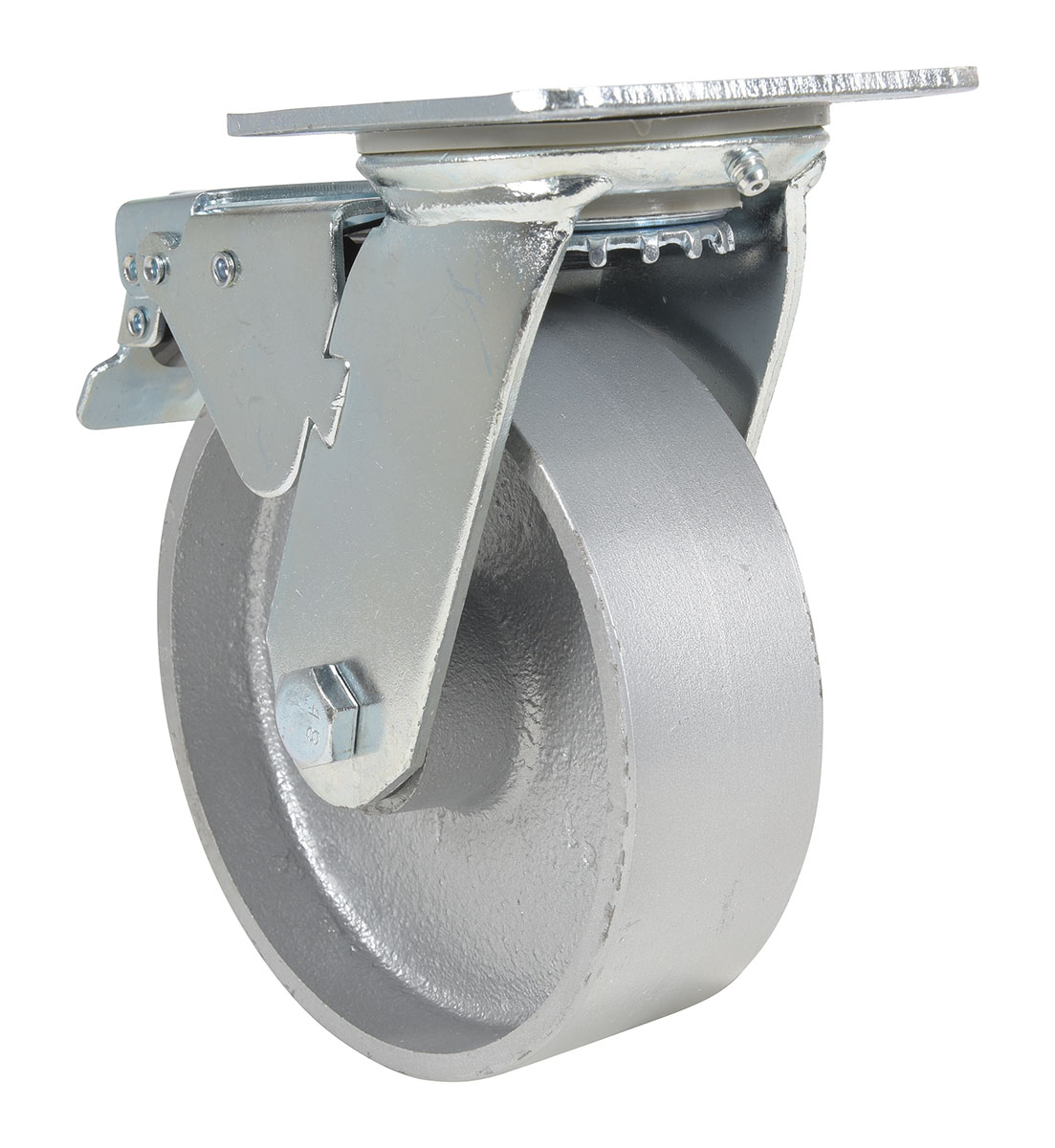

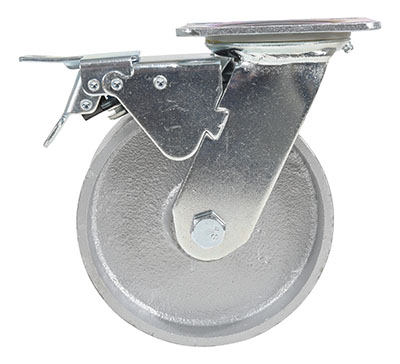

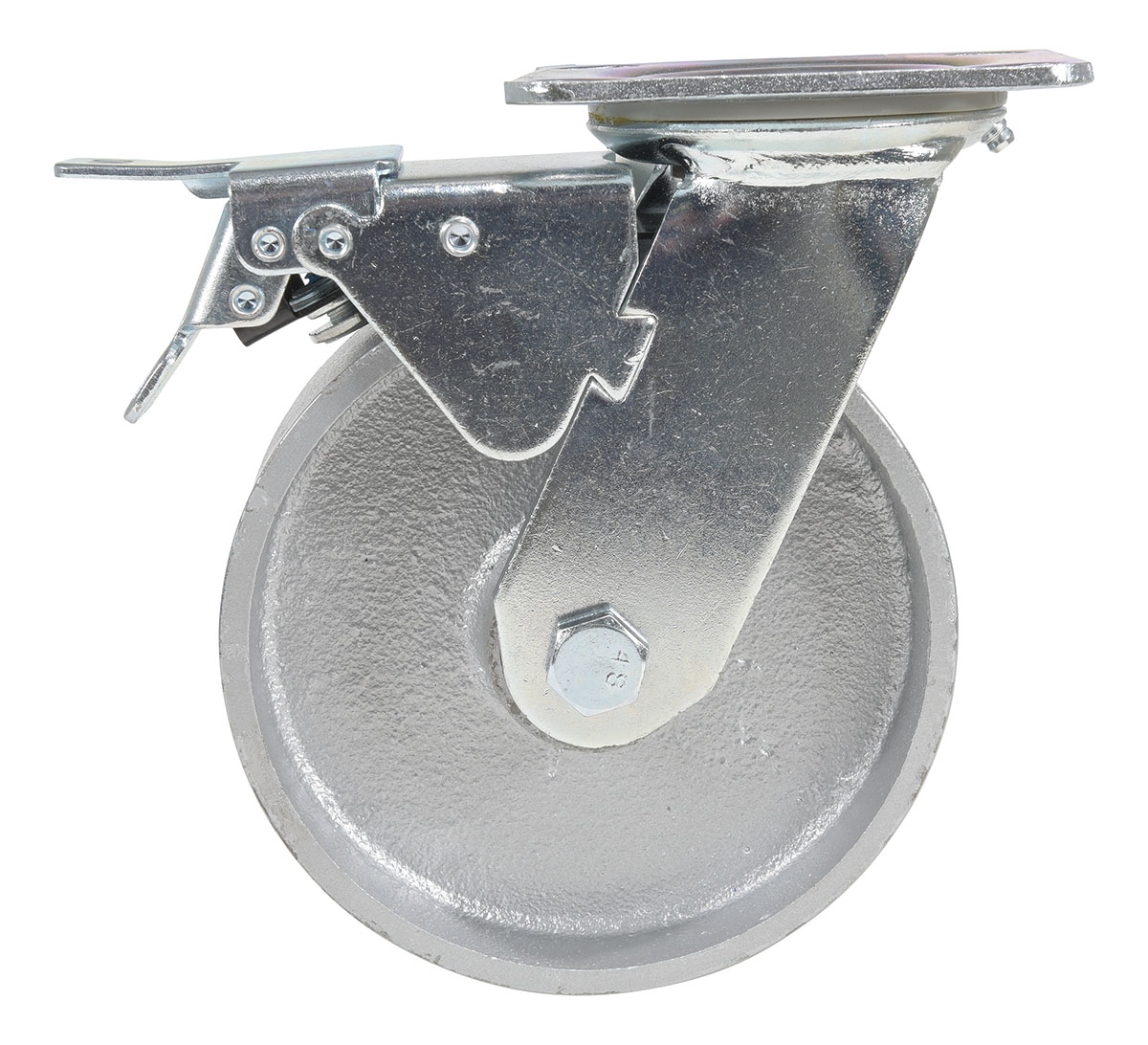

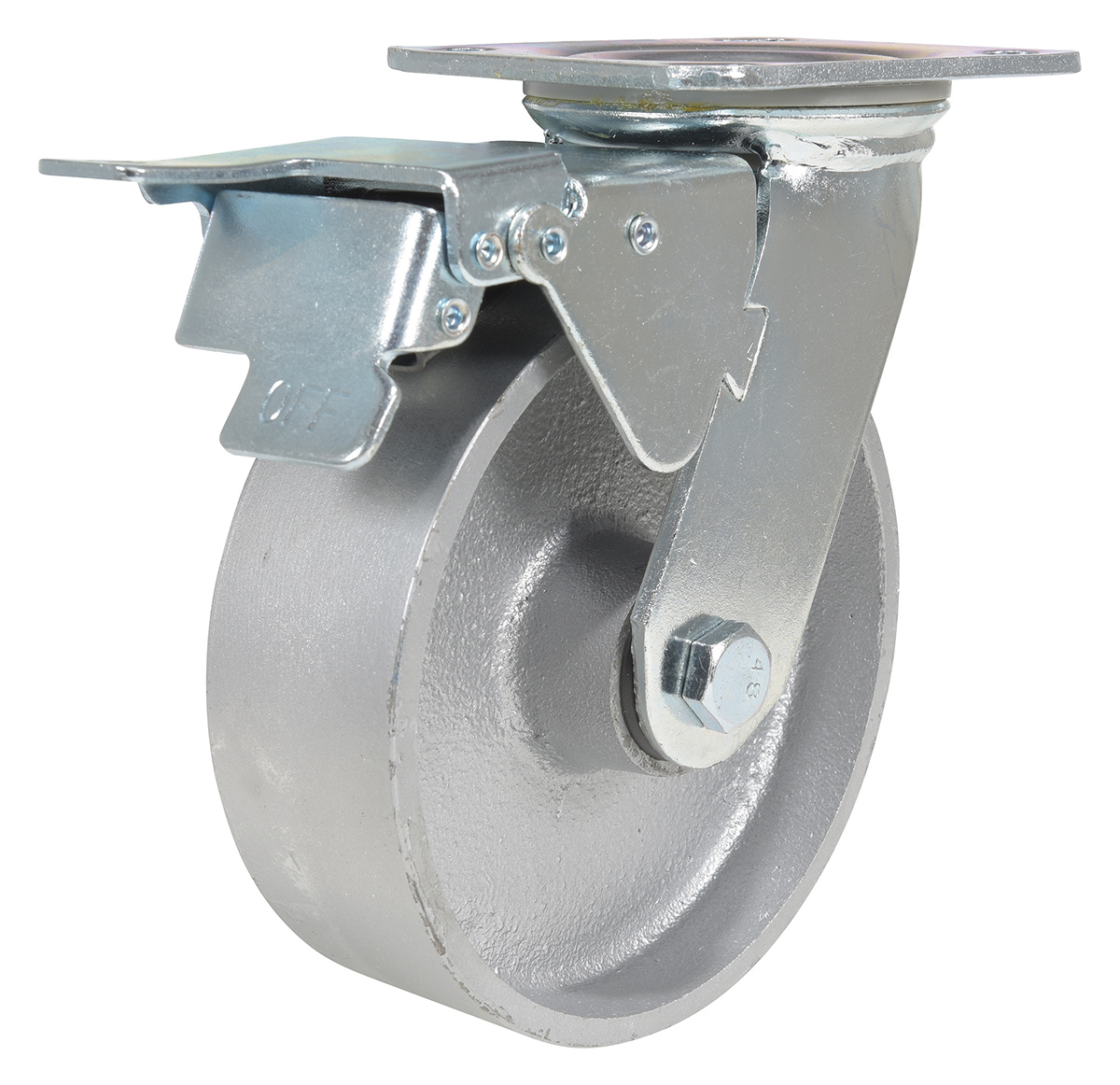

CST-VE-6X2CI-SWTB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/TOTAL BRAKE	1540	7-1/2	4 x 4-1/2	10
CST-VE-8X2CI-SWTB	1 YEAR Limited Warranty	8 x 2	SWIVEL W/TOTAL BRAKE	1760	9-1/2	4 x 4-1/2	12
