Polyurethane with Thread Guard CastersPolyurethane casters are the perfect asset for an assortment of commercial and non-commercial settings. The large capacity diminishes the number of trips needed to be taken while reducing the amount of physical labor needed to transport products. The polyurethane construction lessens the amount of noise caused through travel across rough surfaces. It is resistant to a variety of chemicals. Swivel design allows the user to maneuver and change directions instantaneously. Orange tread color. Wheel core is made of polypropylene. 95 +/-5 Shore A. Made in China.
- Thread Guard Provides Added Protection Against Debris & Corrosion
- Resistant to a Variety of Chemicals
- Precision Ball Bearing
- Hardened Bearing Raceway
- Anti-Corrosive Paint Finish
- S and SWTB have Swivel Rig Zerk Fitting
Elastic Rubber (Blue) Casters
Phenolic Casters
Polyurethane (SI) Casters
Polyurethane (Solid) Casters
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |

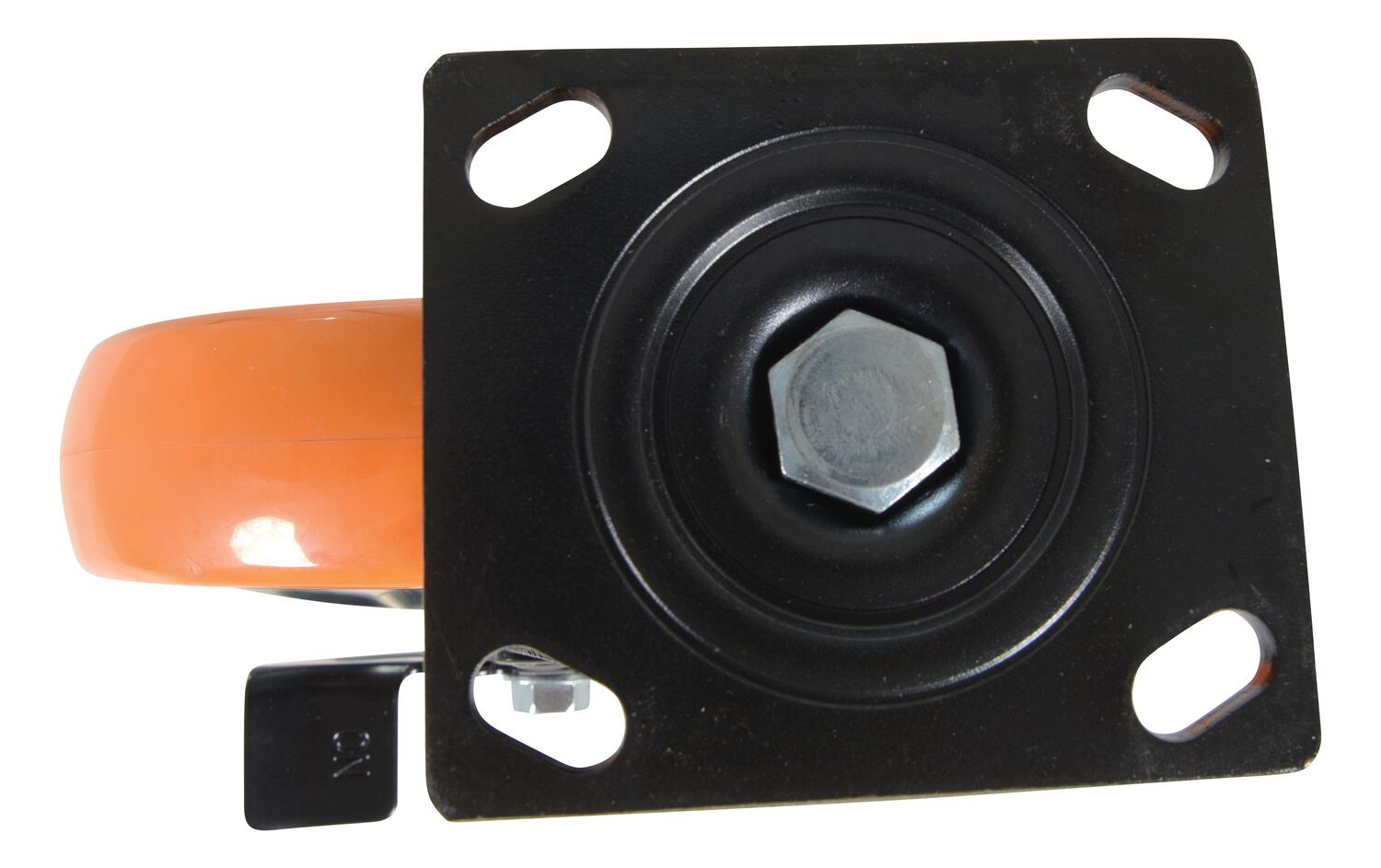

Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|
| CST-E6-4X2PUP-R |  | 1 YEAR Limited Warranty | 4 x 2 | RIGID | 551 | 5-5/8 | 4 x 4-1/2 | 4 |

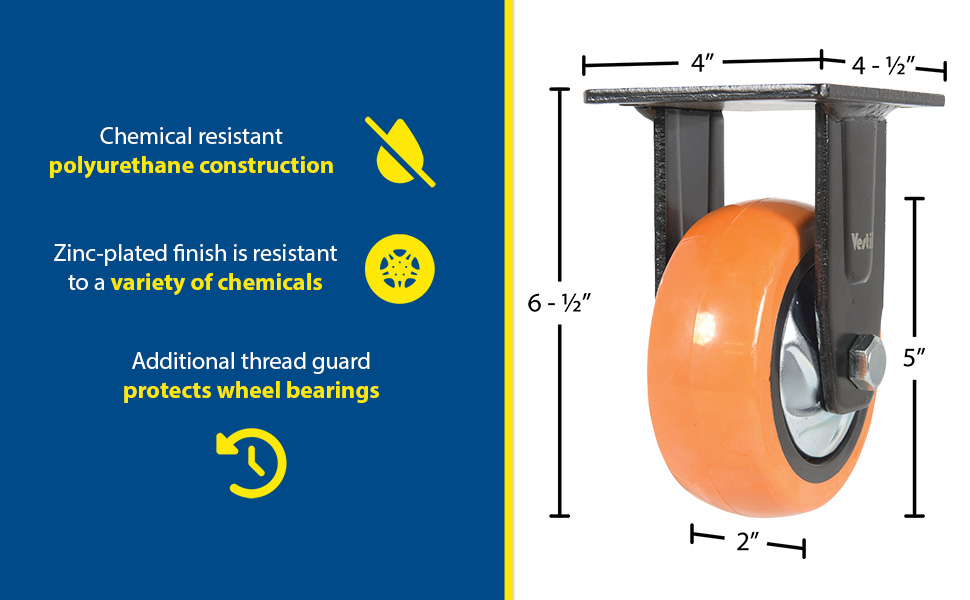

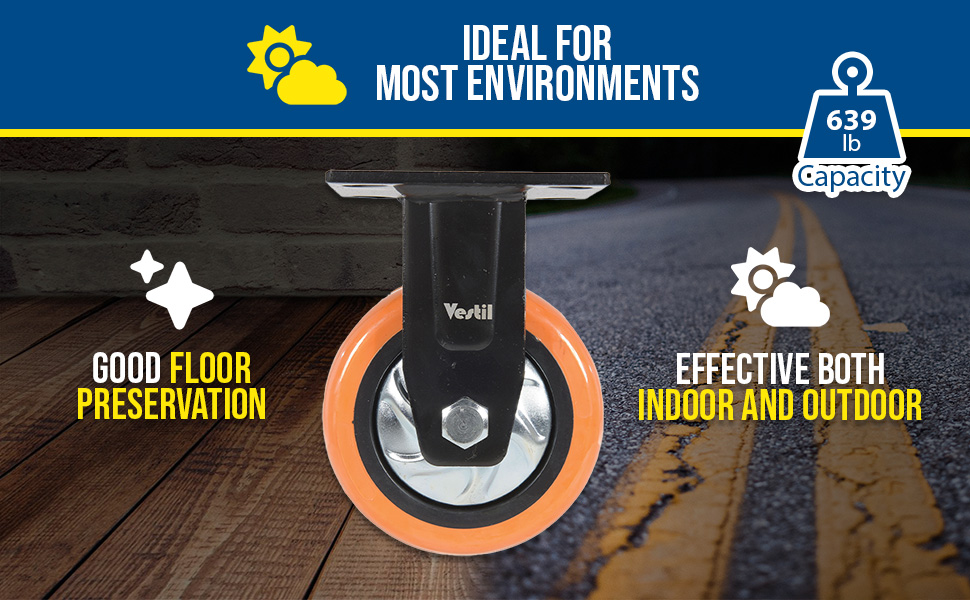

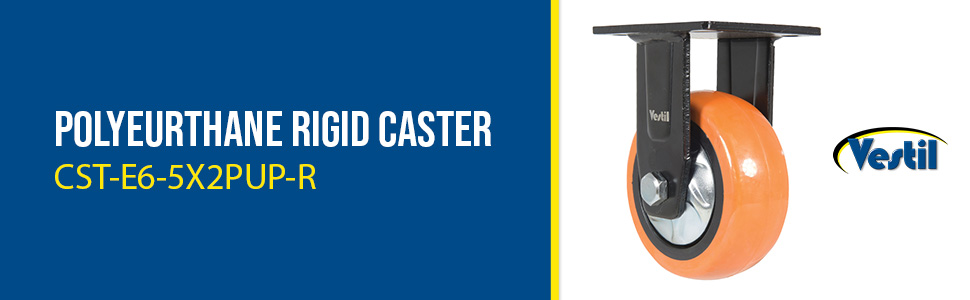

| CST-E6-5X2PUP-R |  | 1 YEAR Limited Warranty | 5 x 2 | RIGID | 639 | 6-1/2 | 4 x 4-1/2 | 5 |
| CST-E6-8X2PUP-R |  | 1 YEAR Limited Warranty | 8 x 2 | RIGID | 925 | 9-1/2 | 4 x 4-1/2 | 6 |
| CST-E6-4X2PUP-S |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL | 551 | 5-5/8 | 4 x 4-1/2 | 5 |
| CST-E6-5X2PUP-S |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL | 639 | 6-1/2 | 4 x 4-1/2 | 6 |
| CST-E6-6X2PUP-S |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL | 837 | 7-1/2 | 4 x 4-1/2 | 6 |
| CST-E6-8X2PUP-S |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL | 925 | 9-1/2 | 4 x 4-1/2 | 7 |

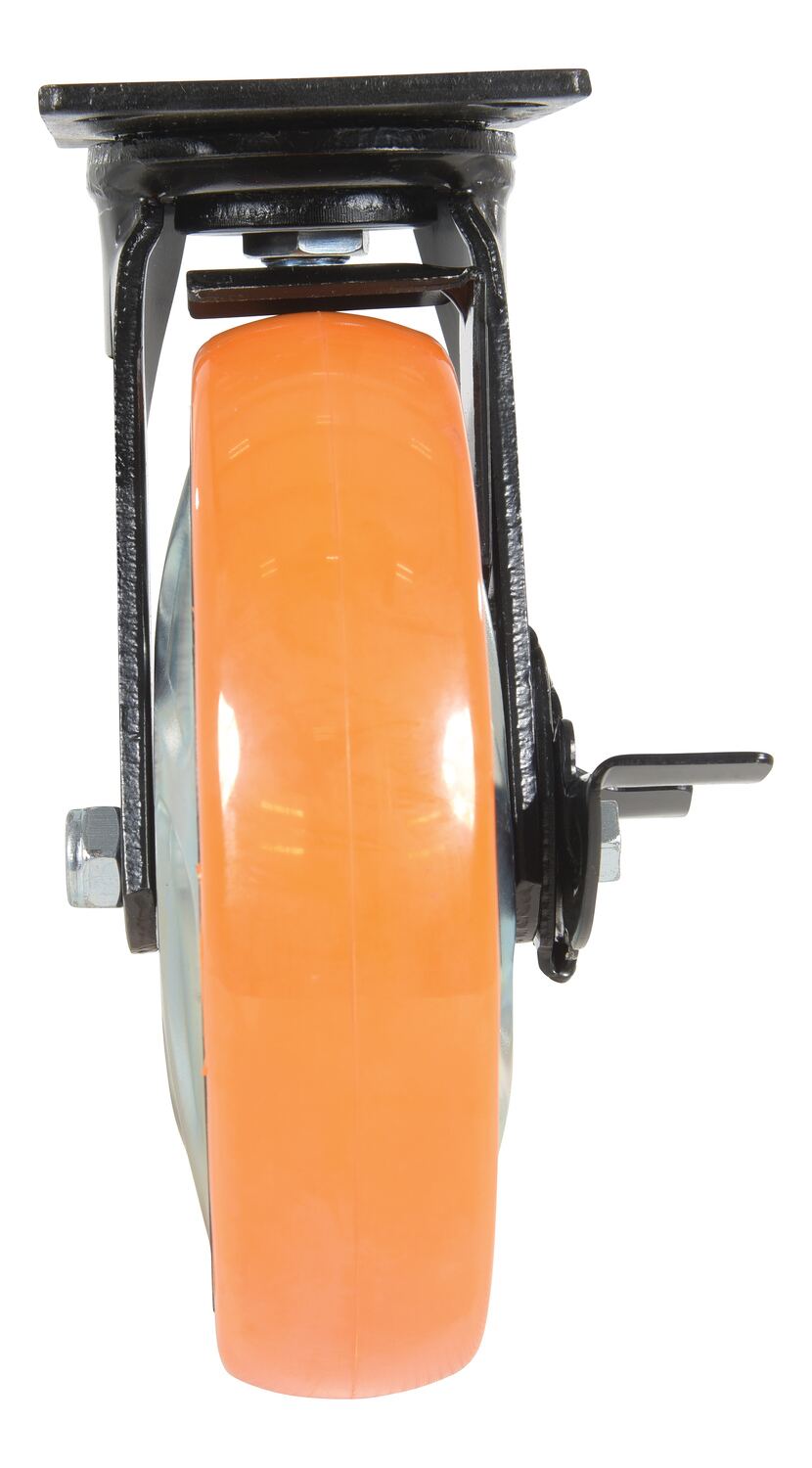

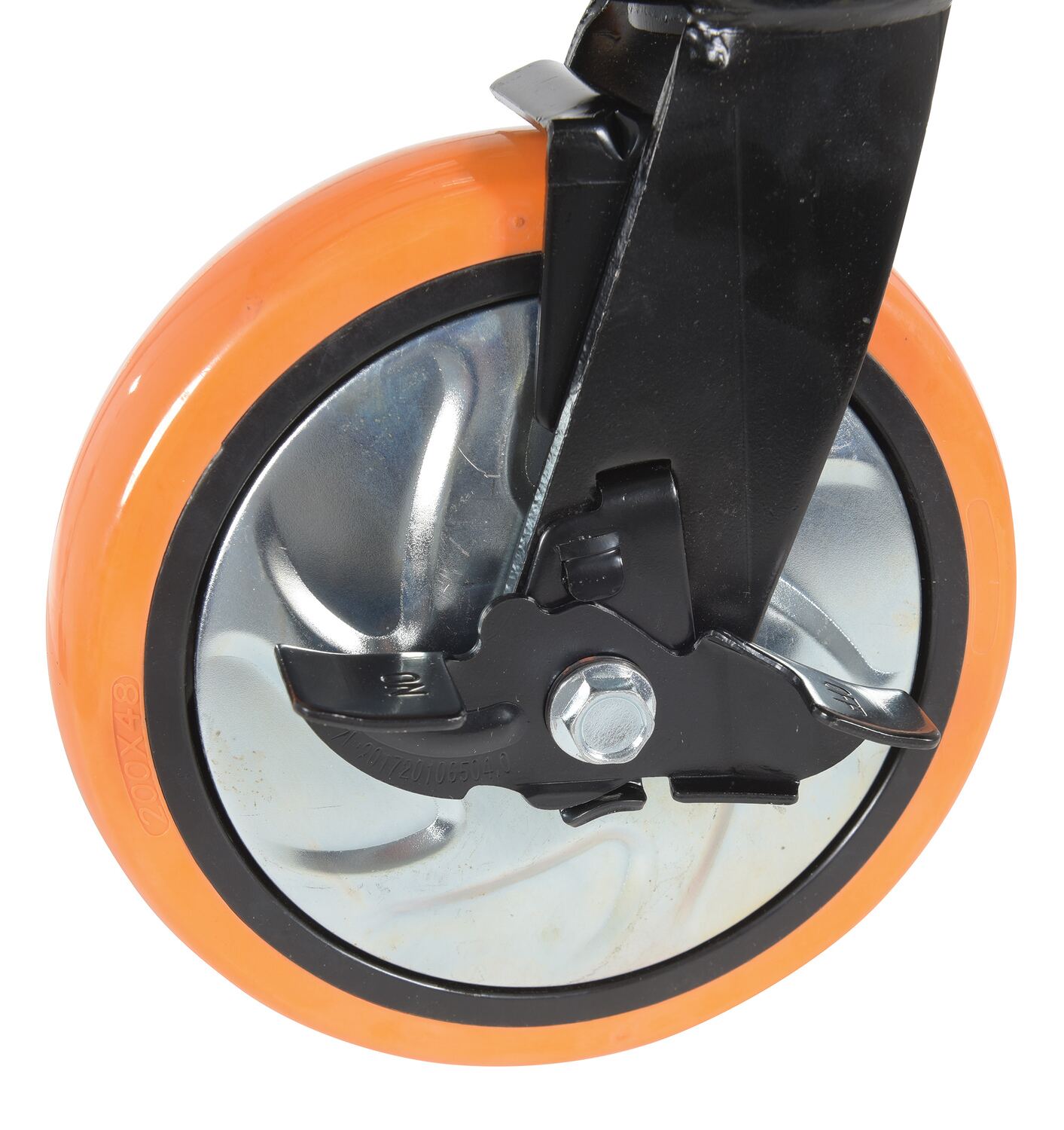

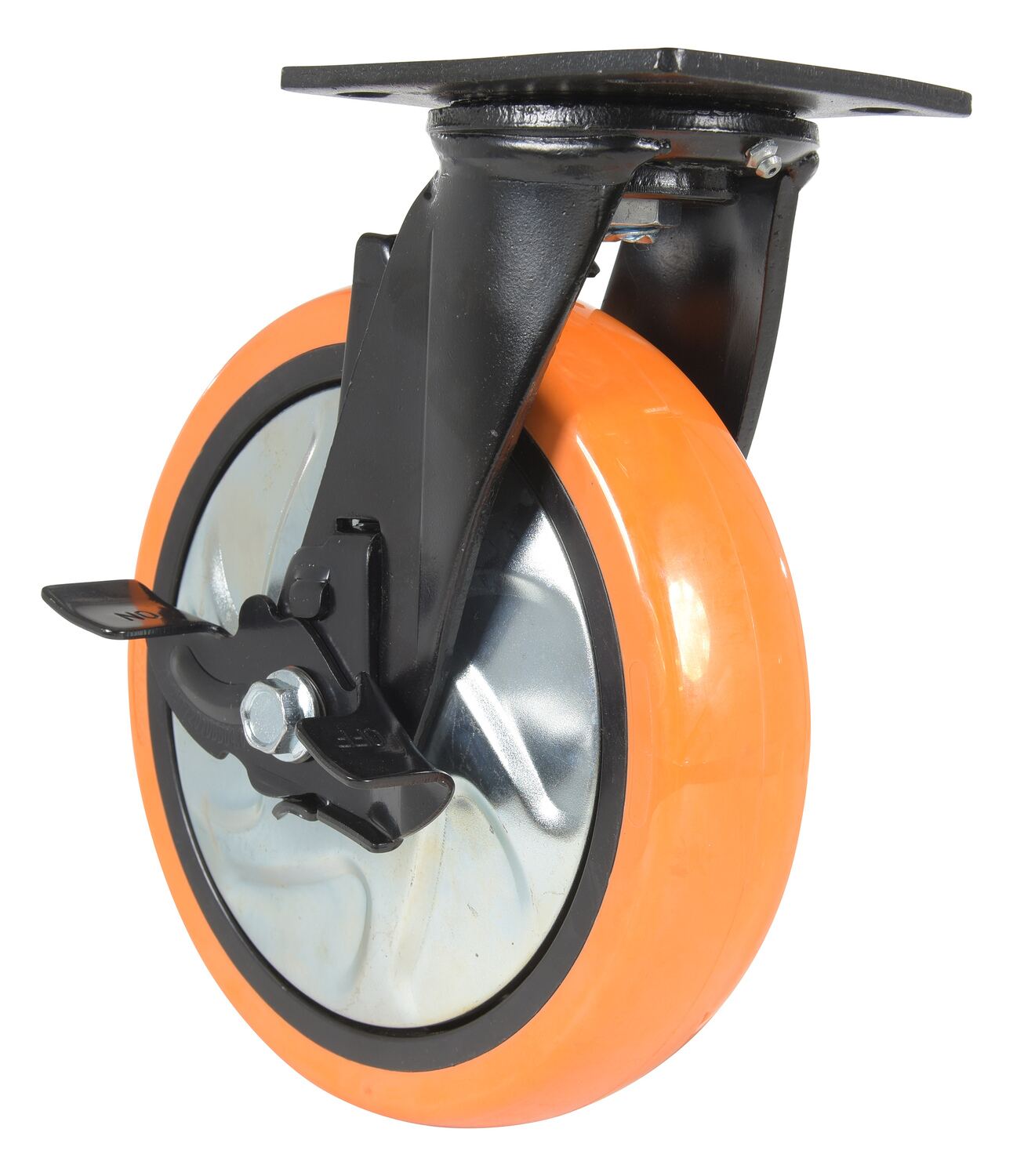

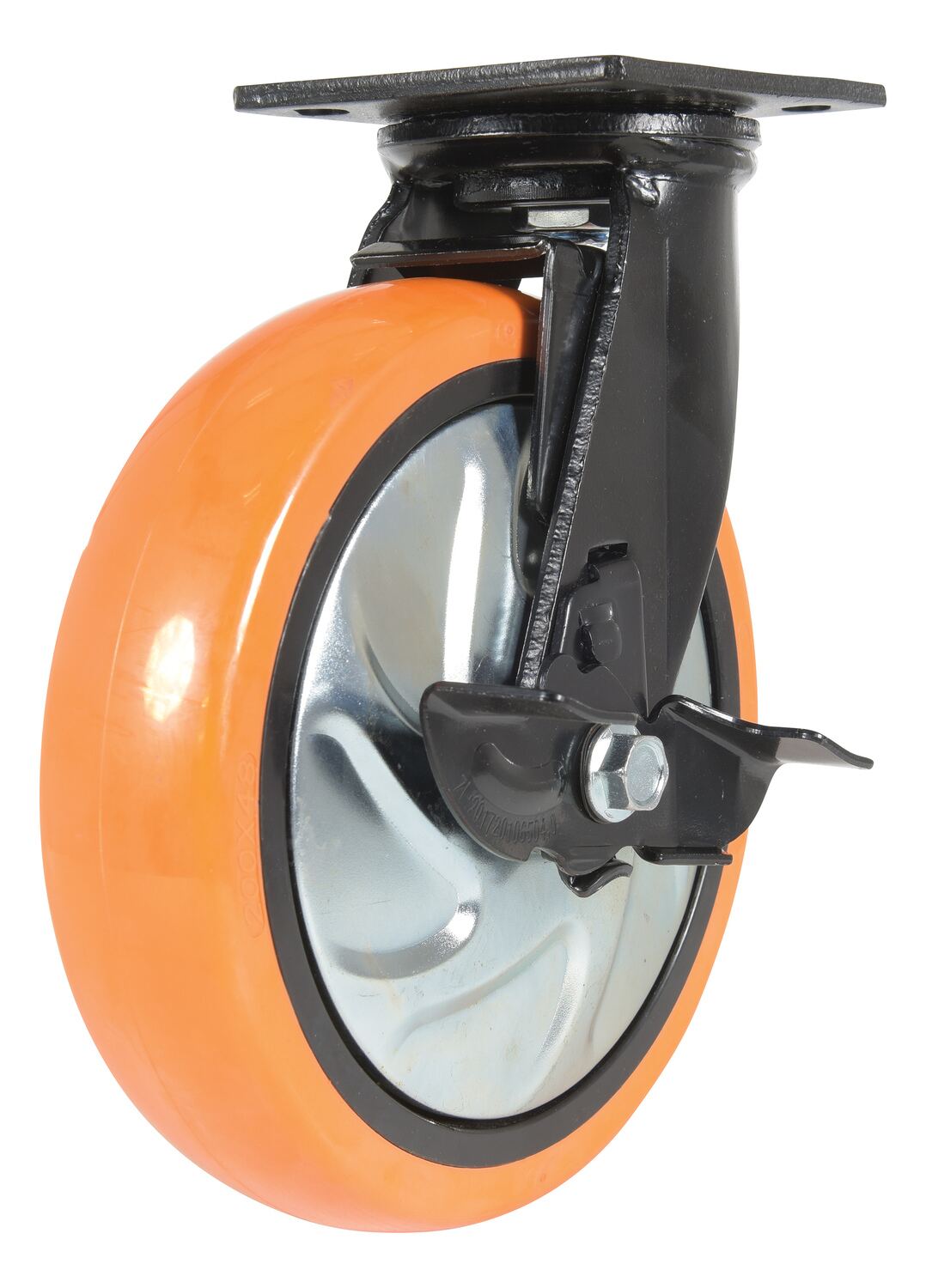

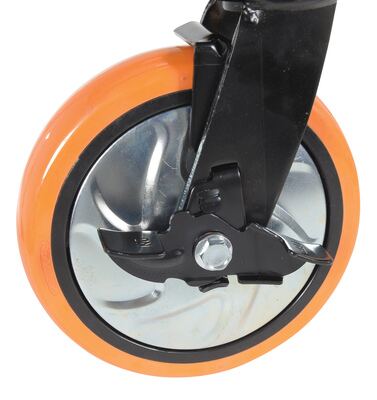

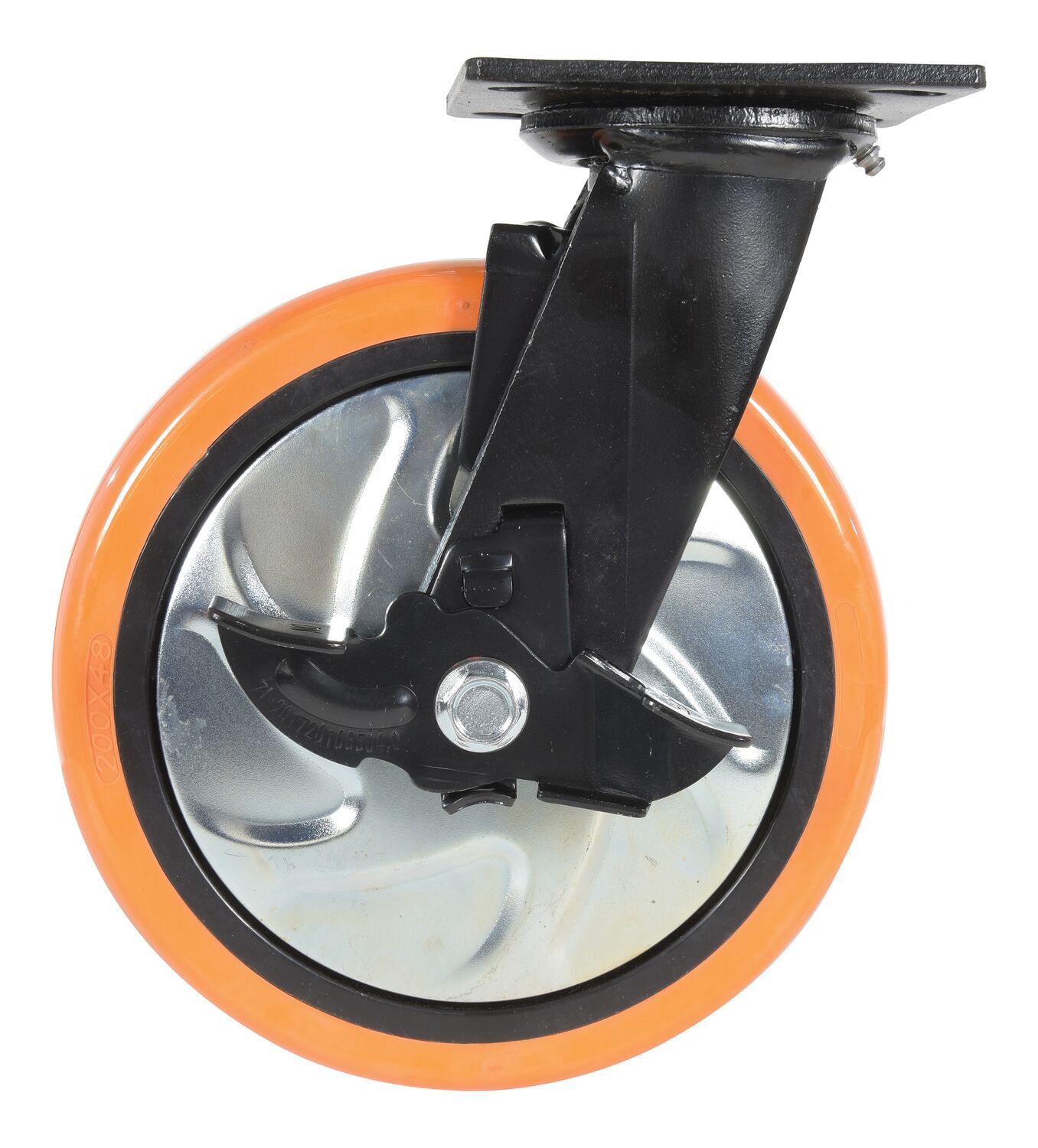

| CST-E6-4X2PUP-SWB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/BRAKE | 551 | 5-5/8 | 4 x 4-1/2 | 5 |
| CST-E6-5X2PUP-SWB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/BRAKE | 639 | 6-1/2 | 4 x 4-1/2 | 6 |
| CST-E6-6X2PUP-SWB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 837 | 7-1/2 | 4 x 4-1/2 | 7 |
| CST-E6-8X2PUP-SWB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/BRAKE | 925 | 9-1/2 | 4 x 4-1/2 | 8 |
| CST-E6-4X2PUP-SWTB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/TOTAL BRAKE | 551 | 5-5/8 | 4 x 4-1/2 | 6 |
| CST-E6-5X2PUP-SWTB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/TOTAL BRAKE | 639 | 6-1/2 | 4 x 4-1/2 | 7 |
| CST-E6-8X2PUP-SWTB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/TOTAL BRAKE | 925 | 9-1/2 | 4 x 4-1/2 | 8 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the best economical caster?
A: The CST-E6 series is the best economical caster.
 |
|||||||
Polyurethane with Thread Guard... |
|||||||
 |
|||||||
Polyurethane casters are the perfect asset for an assortment of commercial and non-commercial settings. The large capacity diminishes the number of trips needed to be taken while reducing the amount of physical labor needed to transport products. The polyurethane construction lessens the amount of noise caused through travel across rough surfaces. It is resistant to a variety of chemicals. Swivel design allows the user to maneuver and change directions instantaneously. Orange tread color. Wheel core is made of polypropylene. 95 +/-5 Shore A. Made in China.
|
|||||||
|
|
|||||||
|
|||||||
