Ground Lift Scissor Tables with HandrailsGreat For Loading/Unloading Semi Trucks with a Pallet Truck!

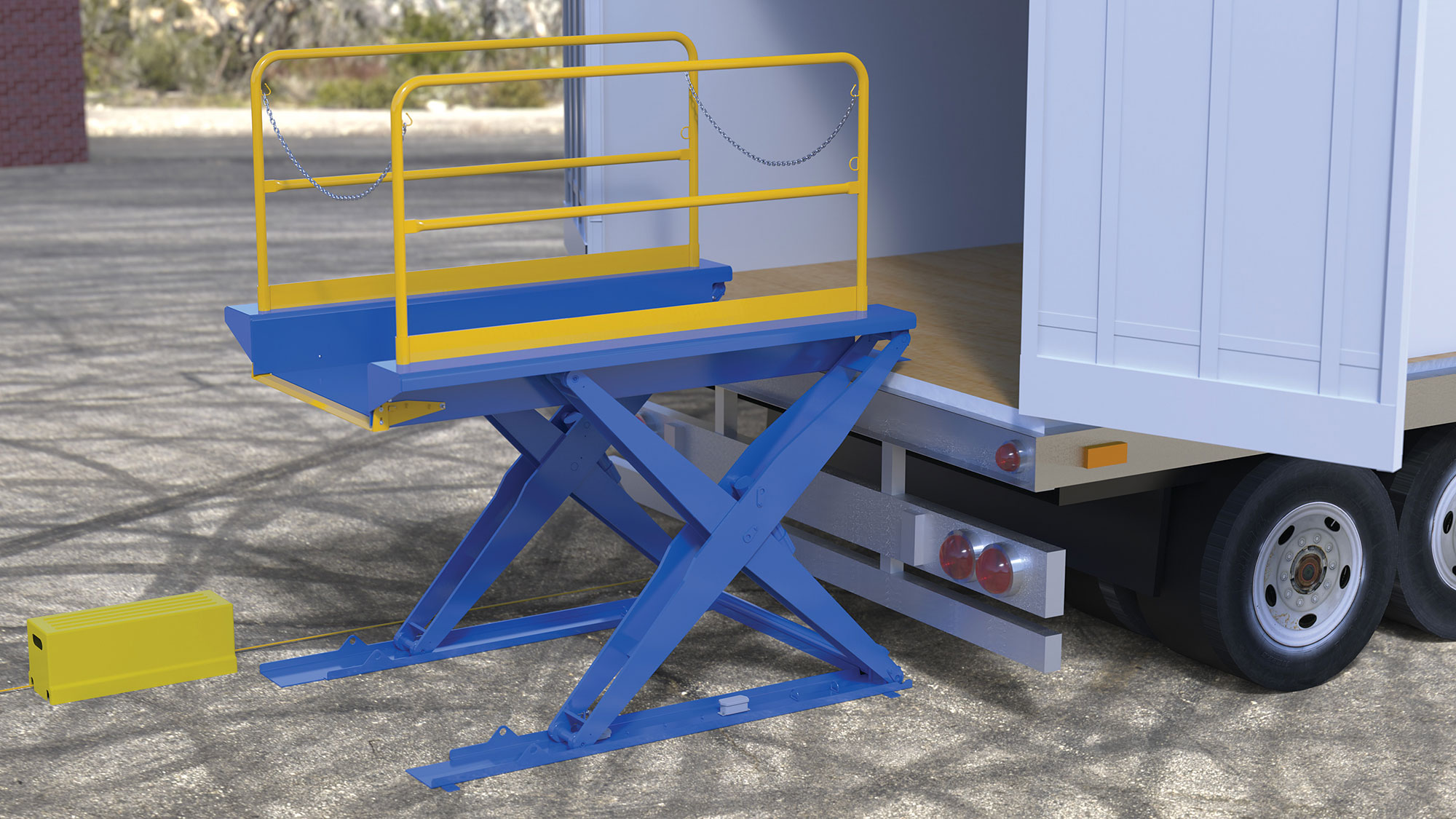

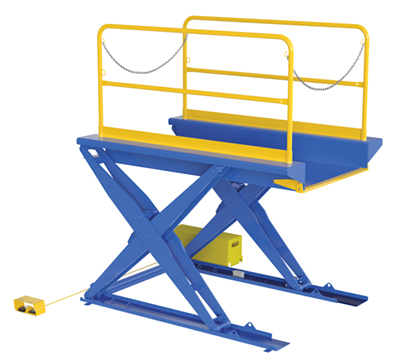

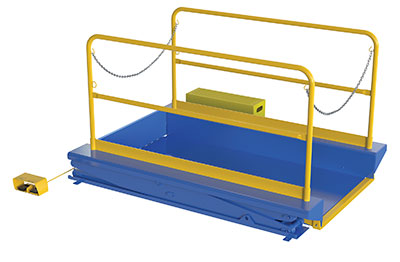

The Ground Lift Scissor Table with Handrails is designed for use when fork trucks or other dock lifts are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. The safety features include: entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. The motor is totally enclosed standard with optional voltages available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.
- Pallets can be loaded onto the platform and raised to a working height
- Features toe guard to protect pinch points
- Guardrails for stability and support
- Remote power unit can be located up to eight feet away from the table
Check Out Our Standard Ground Lift Scissor Tables
Lift & Tilt Workstation Tables
Ground Tilter
Single Scissor Lift & Tilt Tables
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

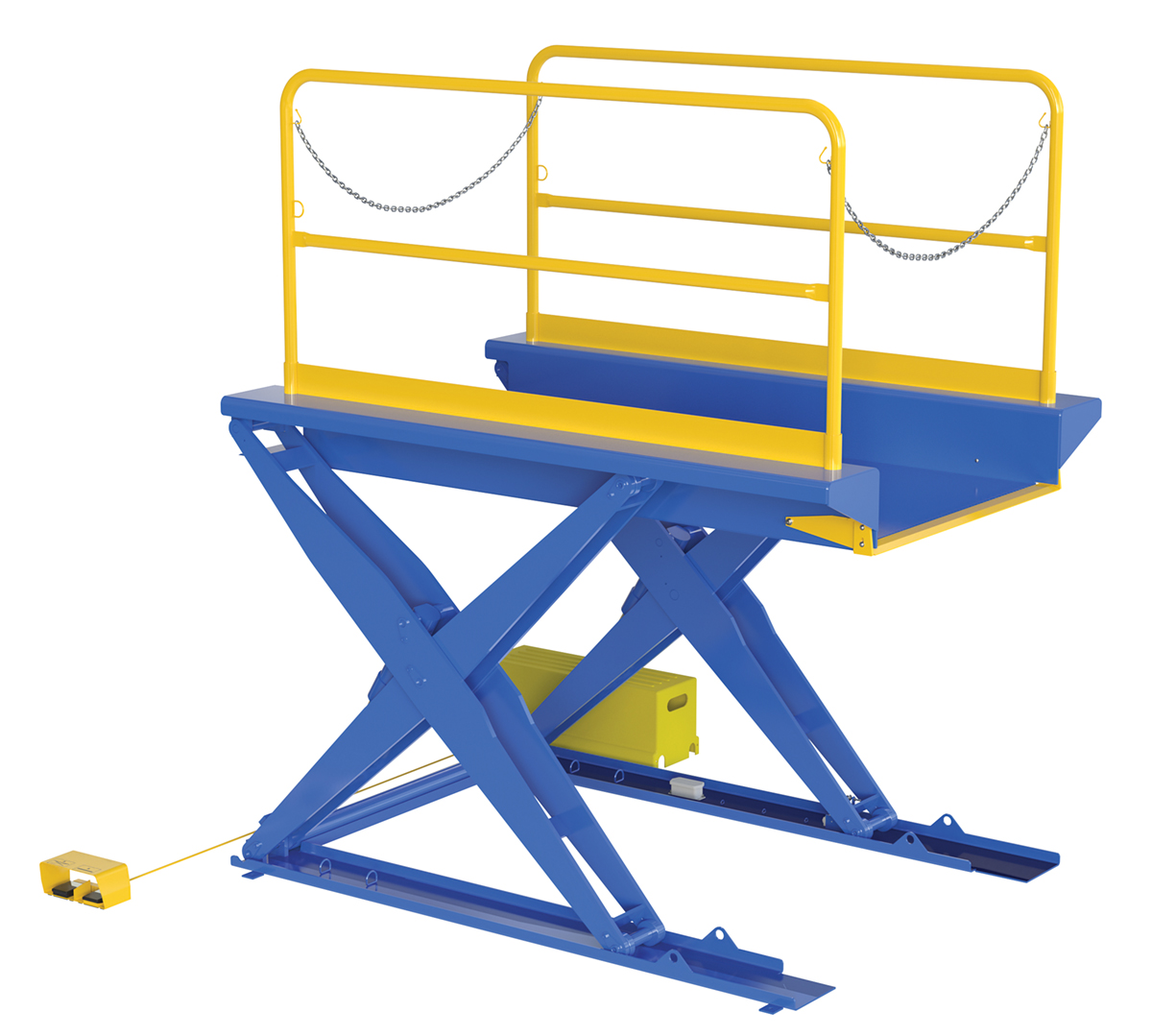

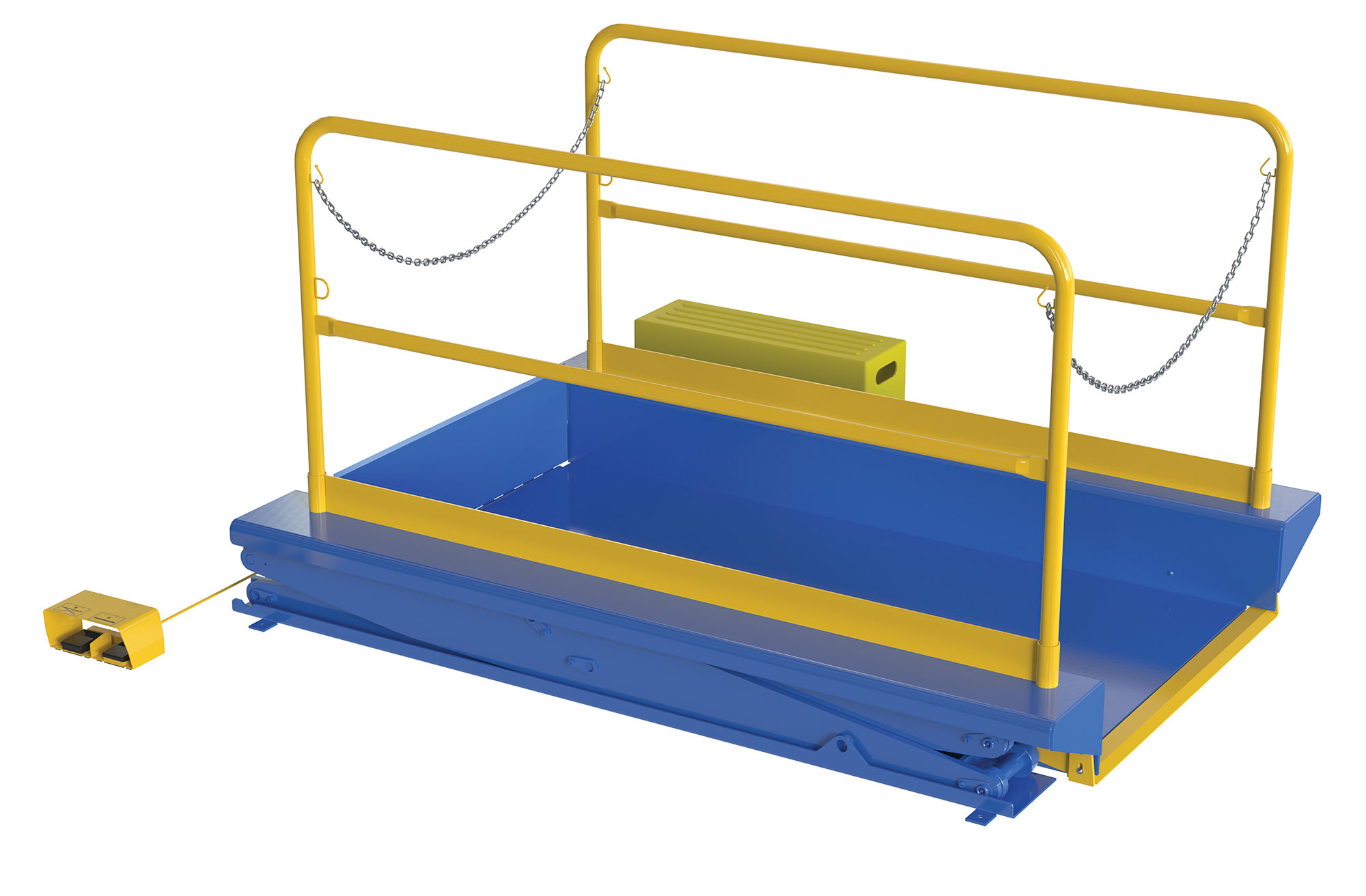

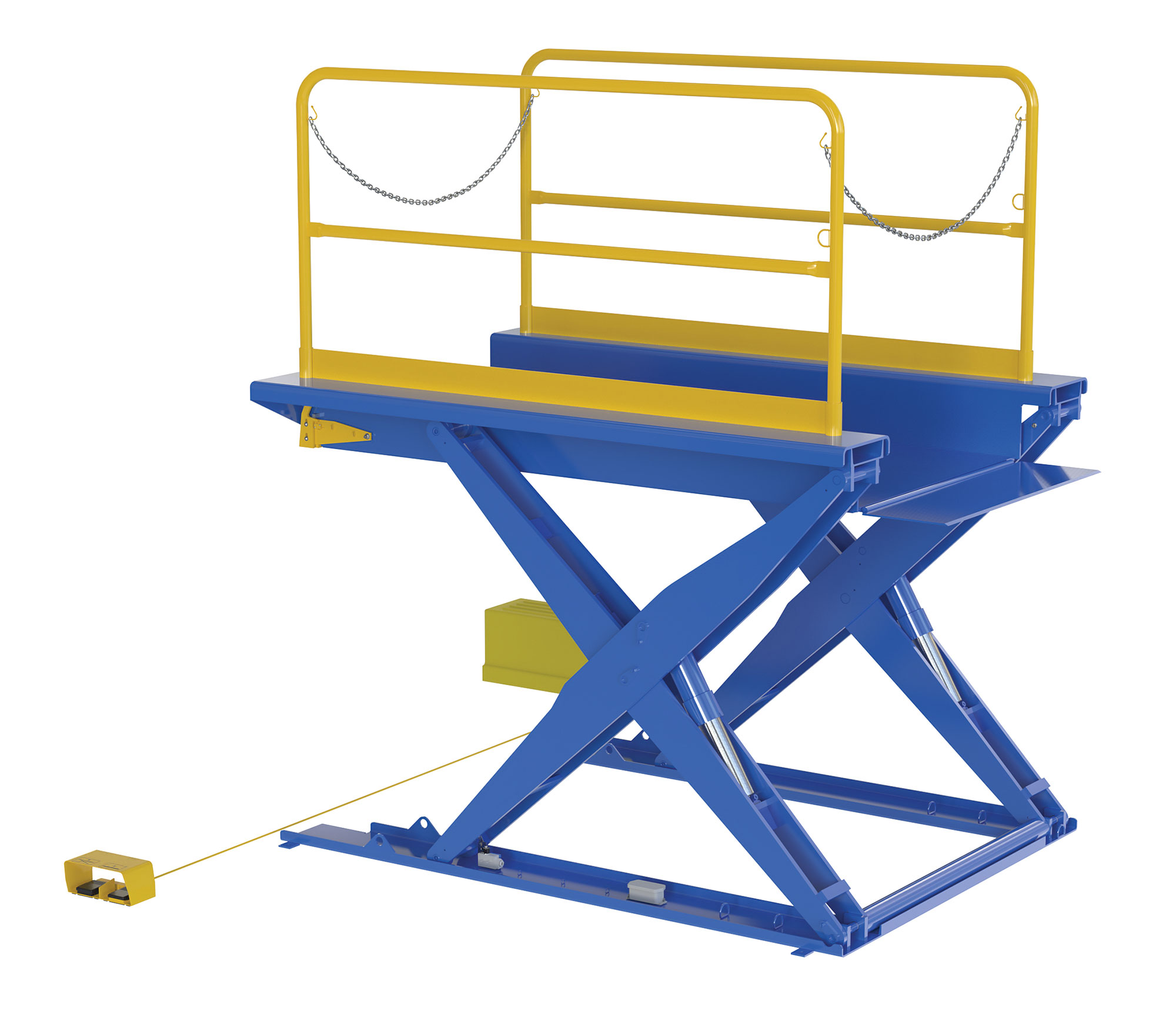

| EHLTG-4484-3-54 | |  | 1 Year Limited Warranty | Steel Ground Lift Scissor Table 44 In. x 84 In. 3000 Lb. Capacity Blue | Power Source: Electric - Corded Maximum Height (in): 54 | 2889 | |

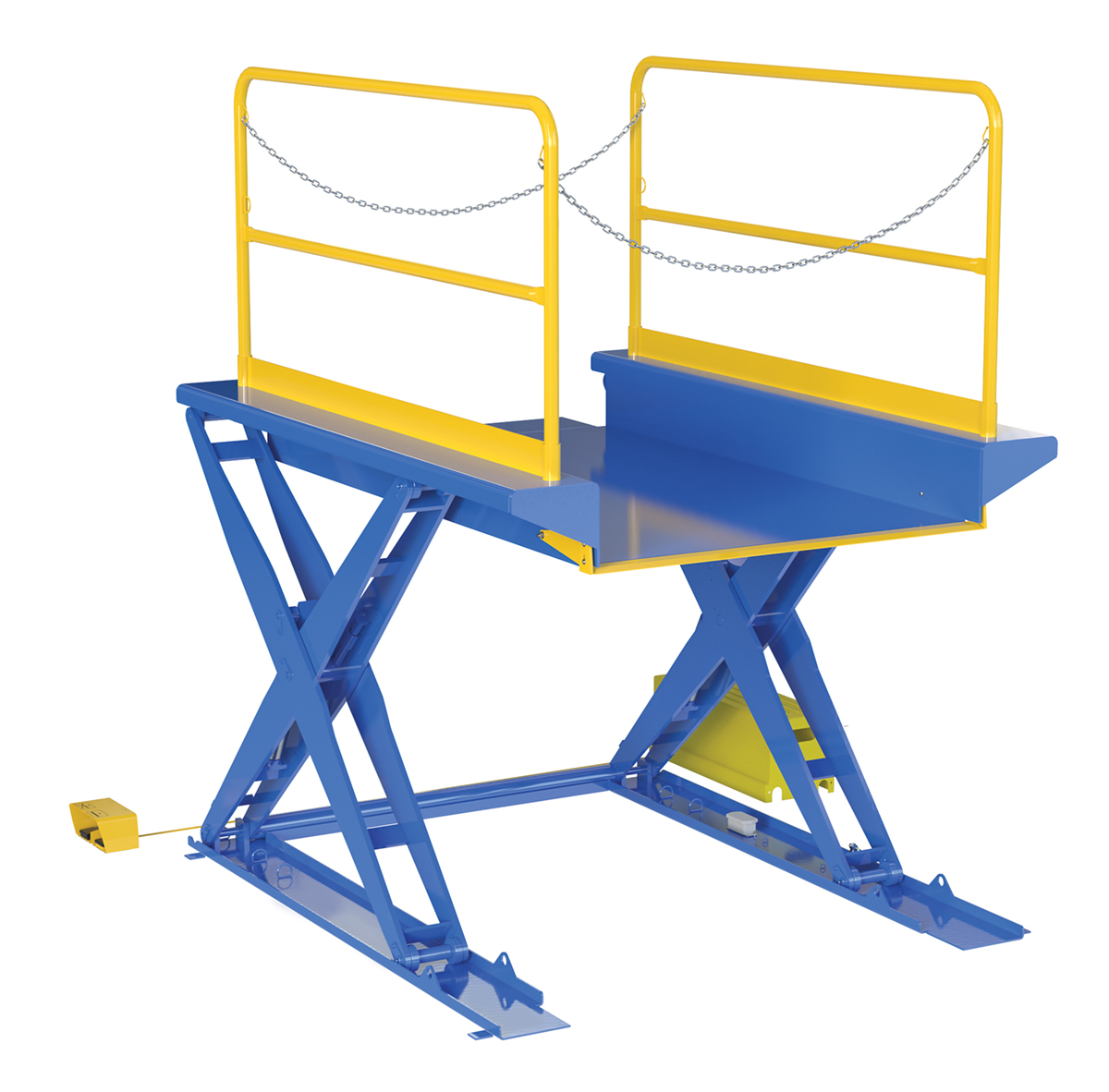

| EHLTG-5284-3-54 | |  | 1 Year Limited Warranty | Steel Ground Lift Scissor Table 52 In. x 84 In. 3000 Lb. Capacity Blue | Power Source: Electric - Corded Maximum Height (in): 54 | 3044 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Maximum Height (in): 54
Power Source: Electric - Corded
Maximum Height (in): 54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Maximum Height (in): 54
Power Source: Electric - Corded
Maximum Height (in): 54
For More Details of the Option Click the Red Model Button
| Model | Description | WT (lbs.) | |||||
| HH2PB-8-FC2 | Hand Held Pendant Control (foot control Standard) | 2 | |||||
| EHLTG-44-SB | Steel Rollover Bridge For 44"W Decks (12" Long) / 3,000 lbs. capacity | 36 | |||||
| EHLTG-52-SB | Steel Rollover Bridge For 52"W Decks (12" Long) /3,000 lbs. capacity | 42 | |||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the standard voltage and phase? Can the voltage and phase be changed?
A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
 |
||||||||||||||||||||||||||||||||||
Ground Lift Scissor Tables wit... |
||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||
Great For Loading/Unloading Semi Trucks with a Pallet Truck! The Ground Lift Scissor Table with Handrails is designed for use when fork trucks or other dock lifts are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. The safety features include: entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. The motor is totally enclosed standard with optional voltages available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.
|
||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
