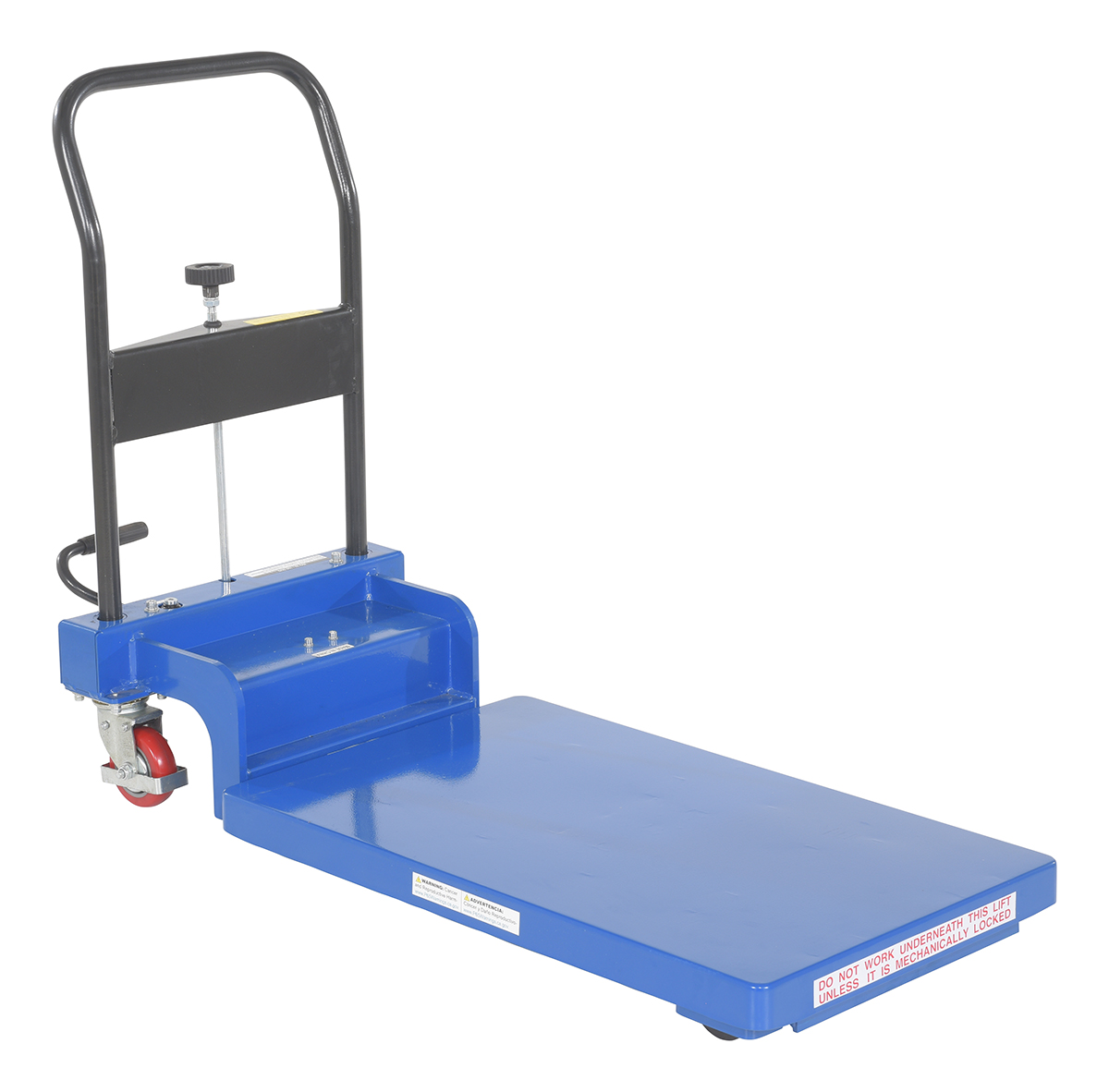

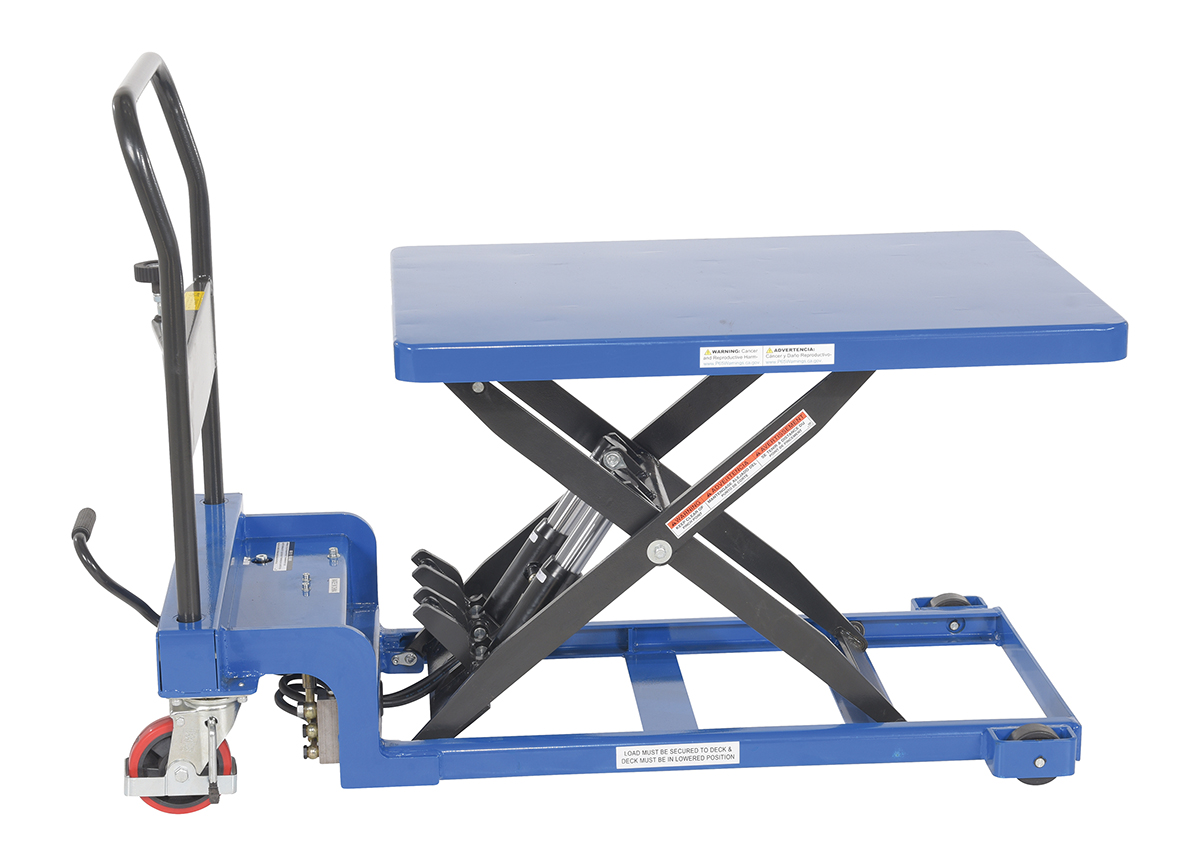

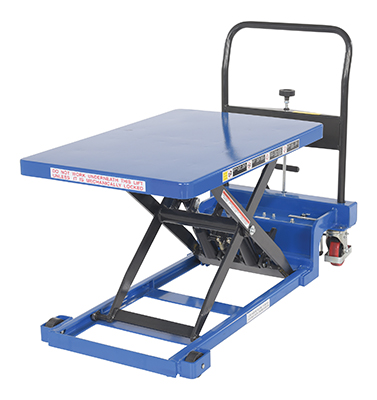

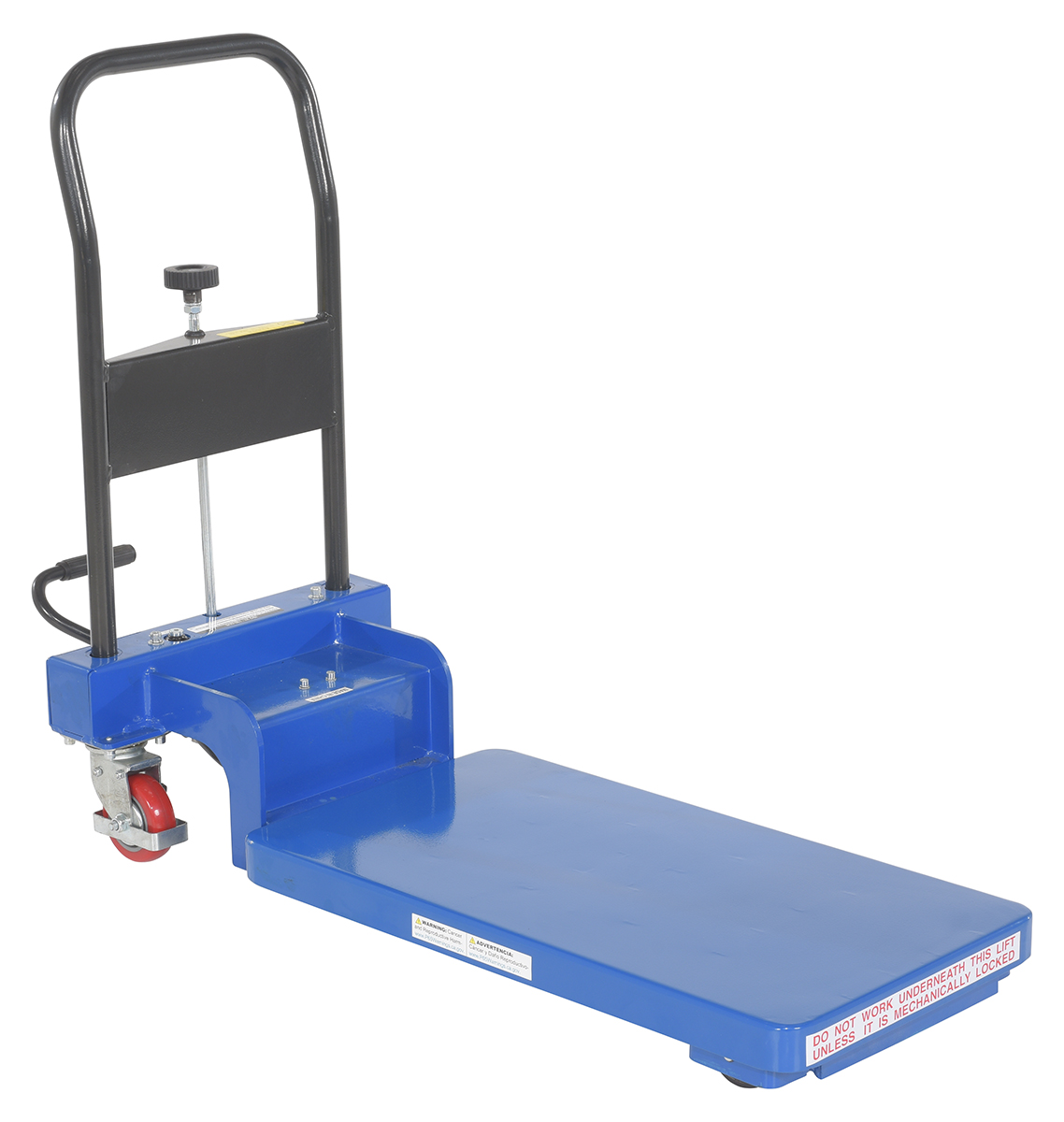

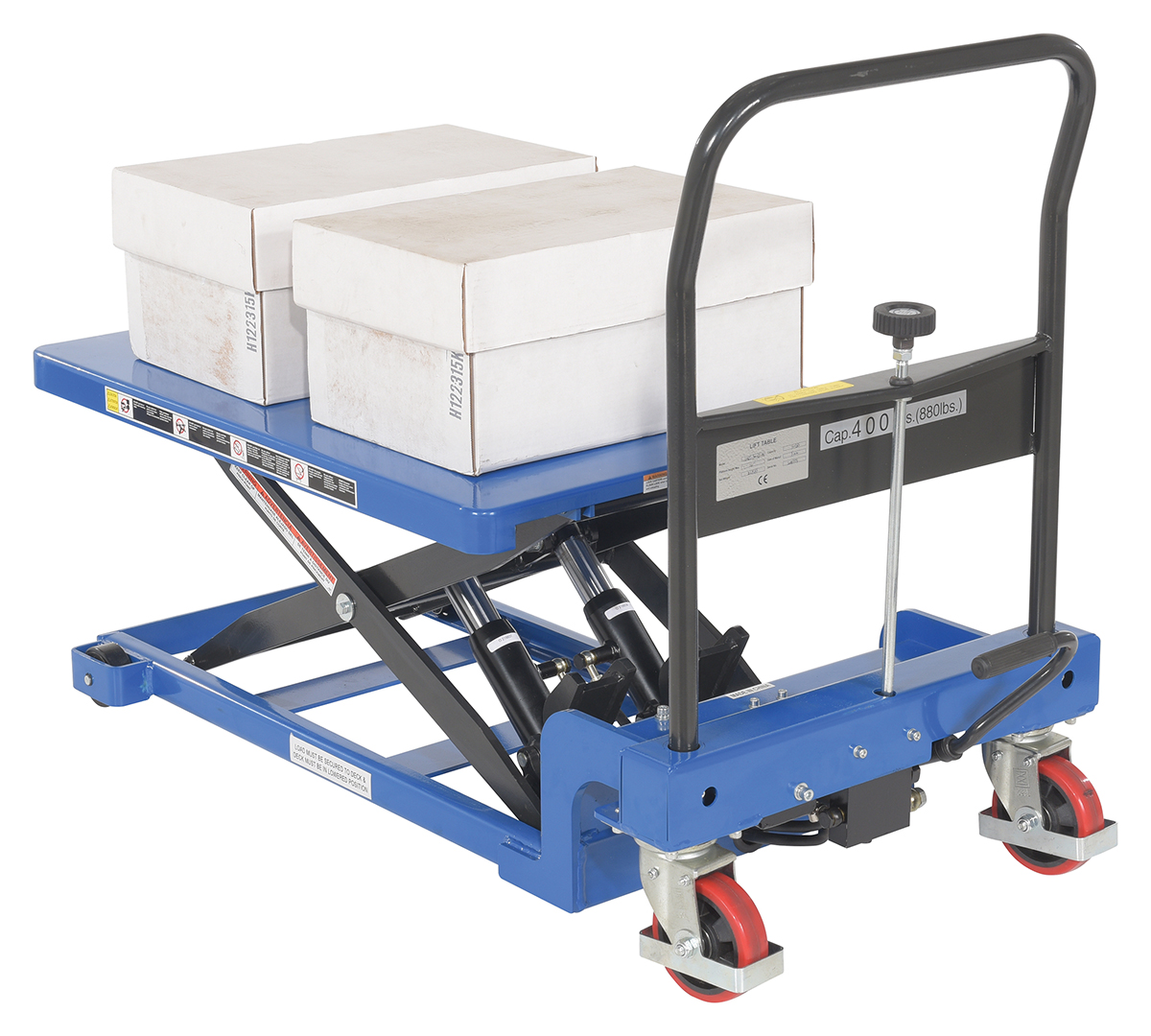

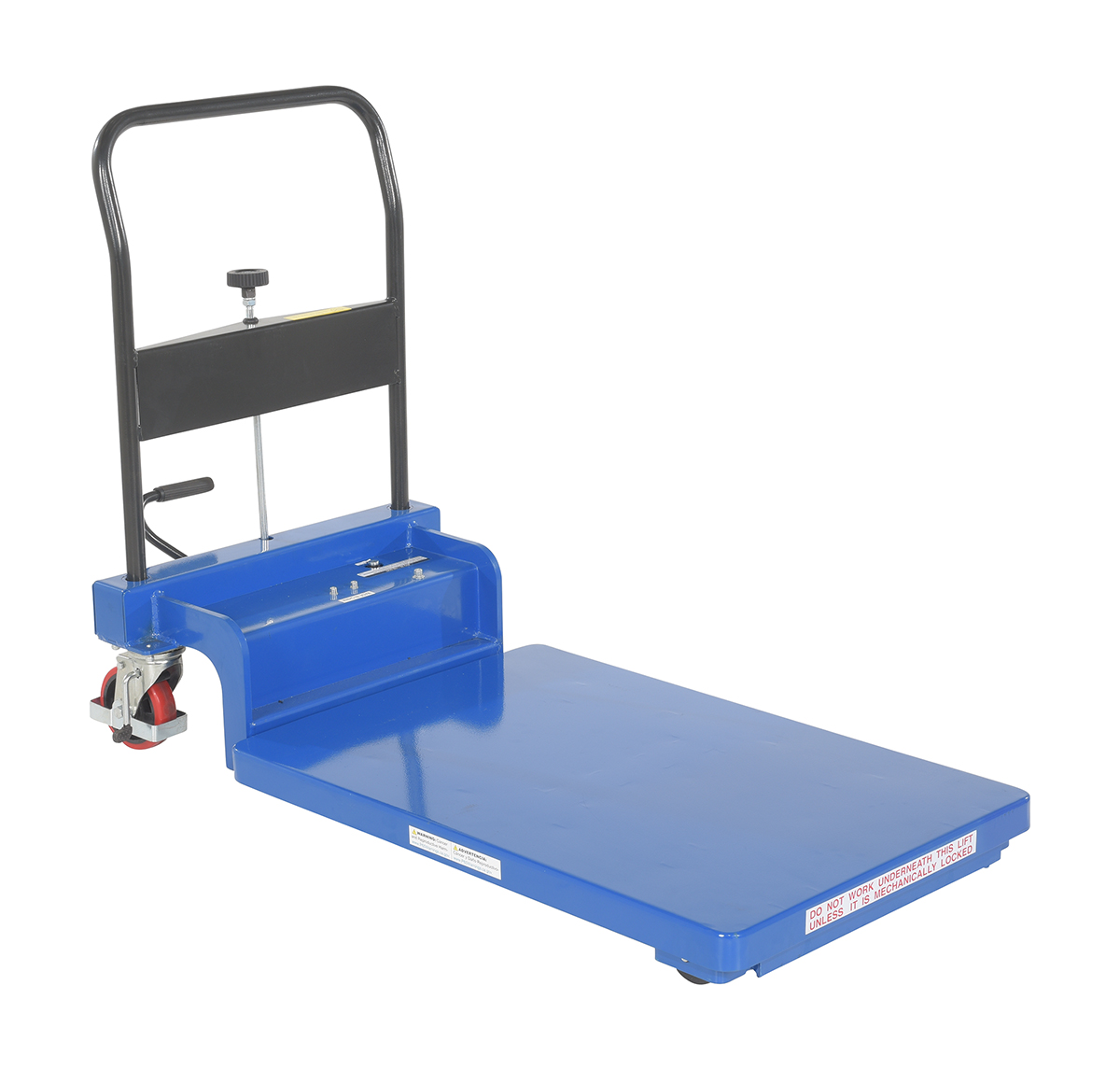

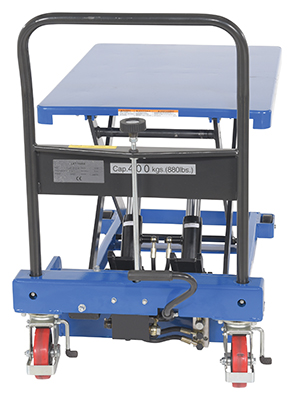

Low Profile Scissor Cart w/ Auto-Shift

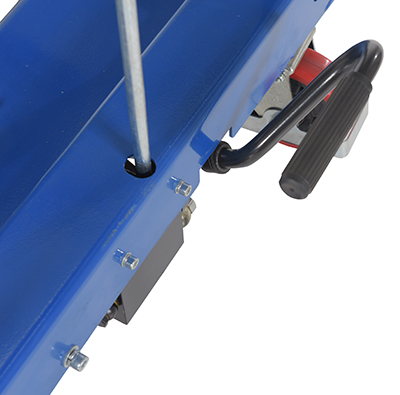

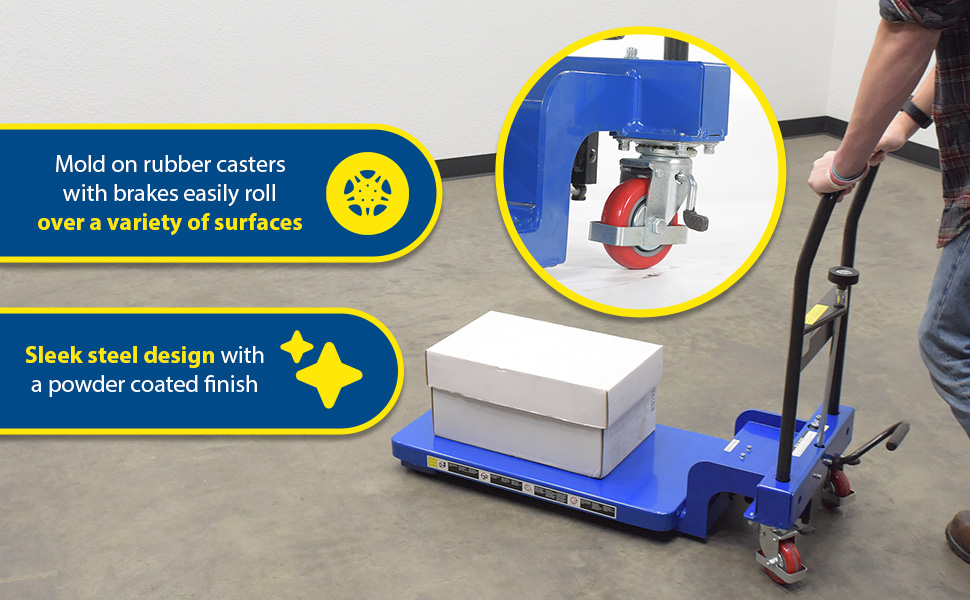

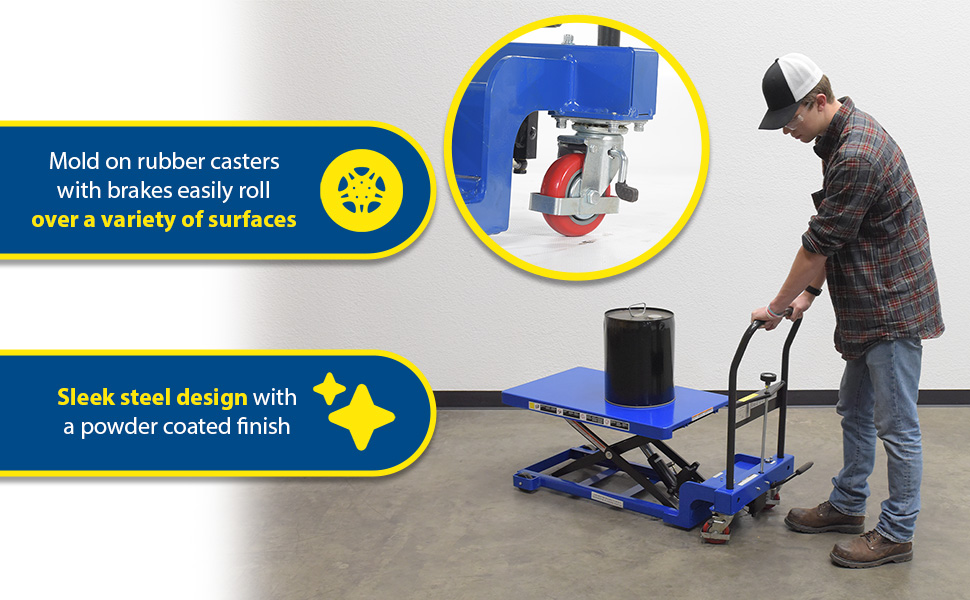

In areas of congestion a low profile scissor cart is a must. With a two speed foot pump, the platform is easily raised/lowered to the desired position. Not only is this design extremely efficient but also ergonomically friendly. With a raised steering handle the user can maintain a proper working posture during transit. The sleek steel design, with a powder coated finish for baked in added toughness, is simple to clean and limits needless scuffs or abrasions. Mold on rubber casters with brakes roll easily over a variety of surfaces.
- Robust capacity is great for handling products both large and small

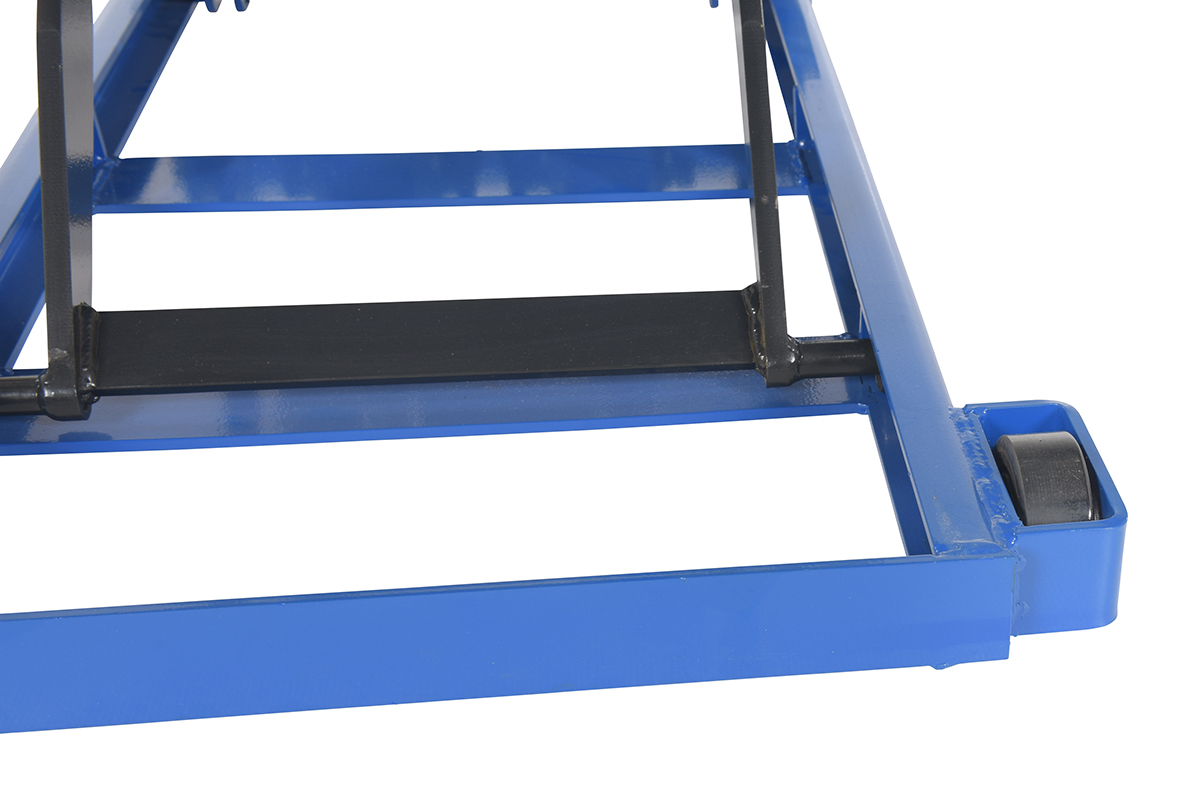

- Included casters roll smoothly

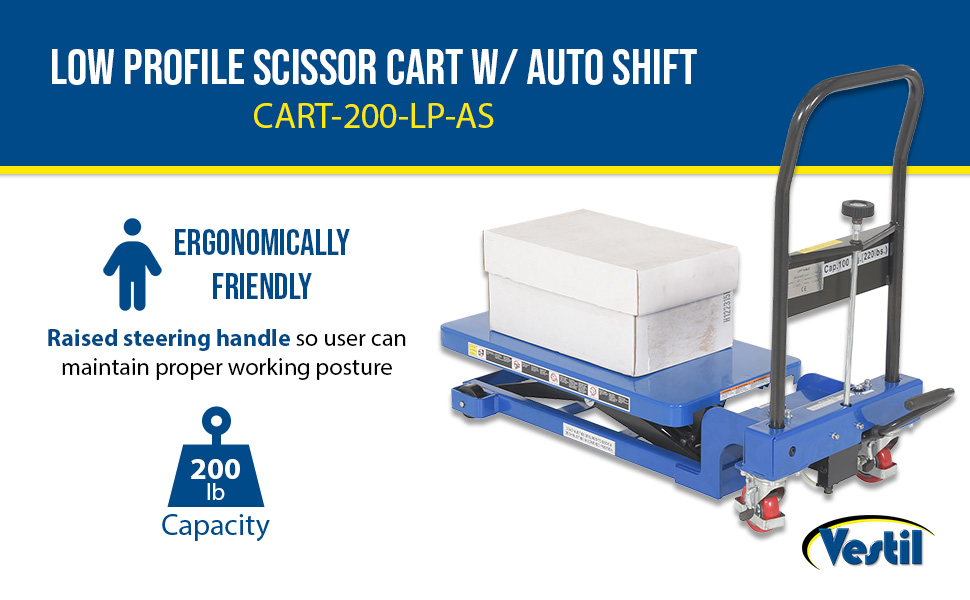

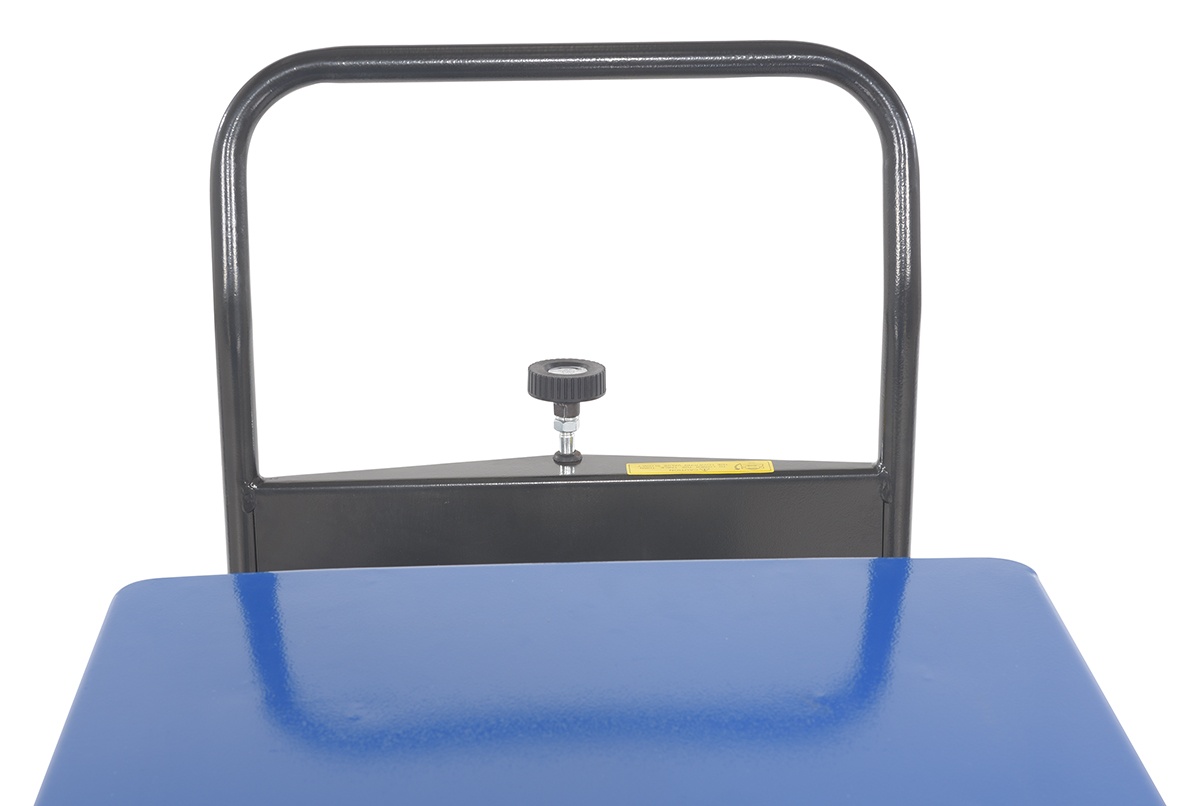

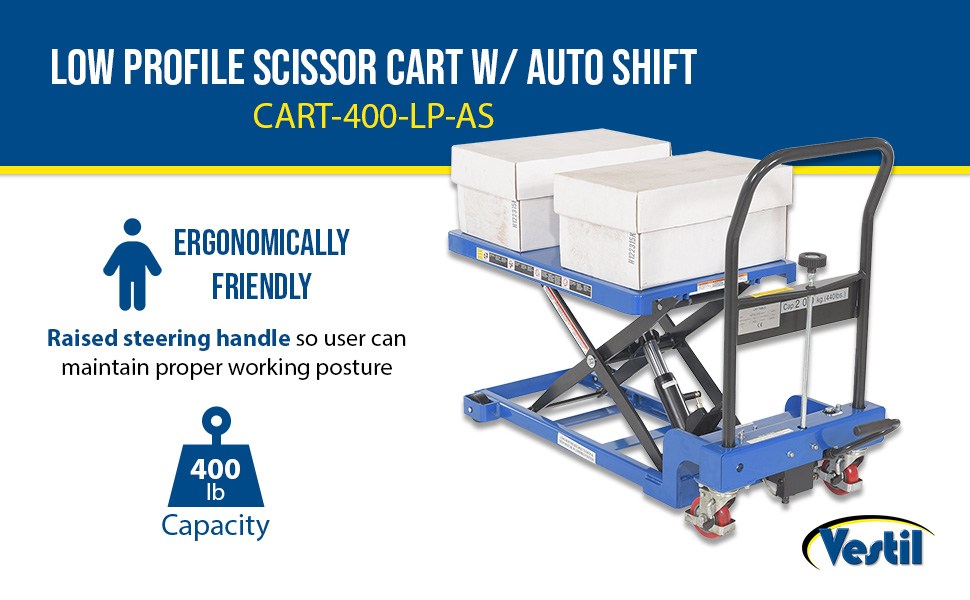

- High handle to minimize slouching during transportation

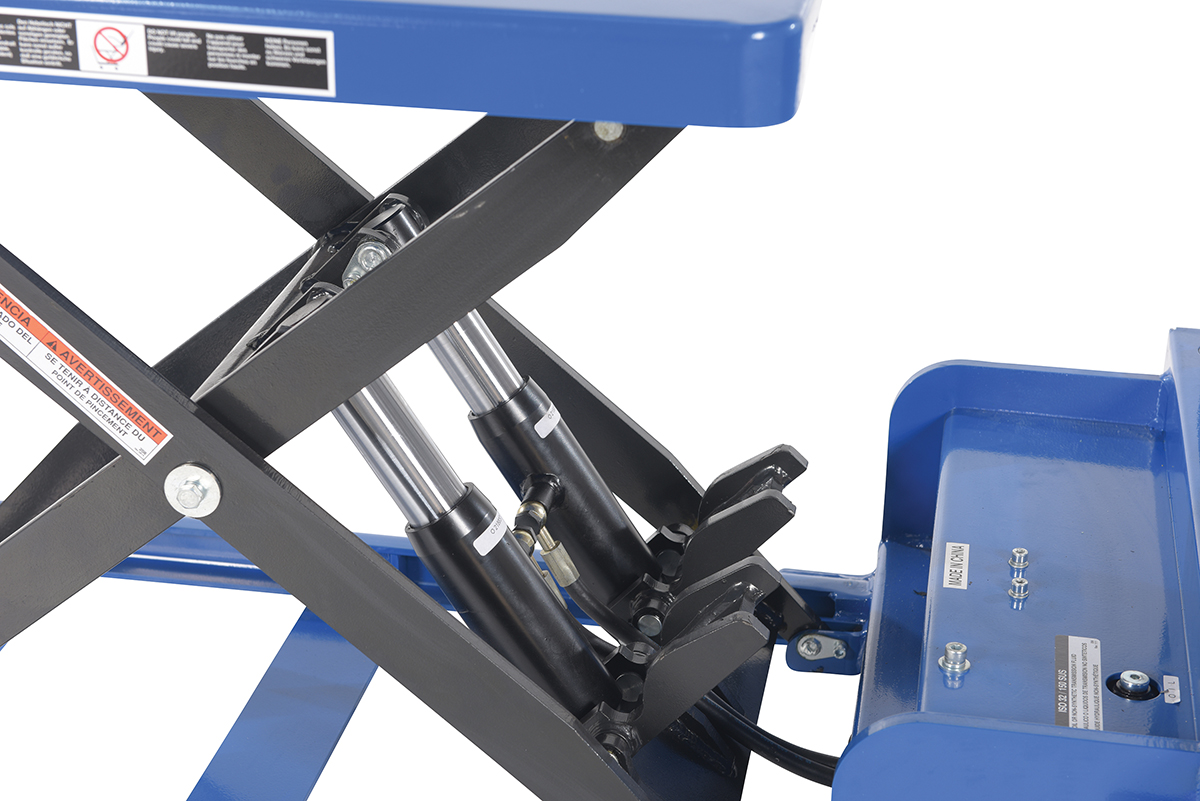

- Single scissor design

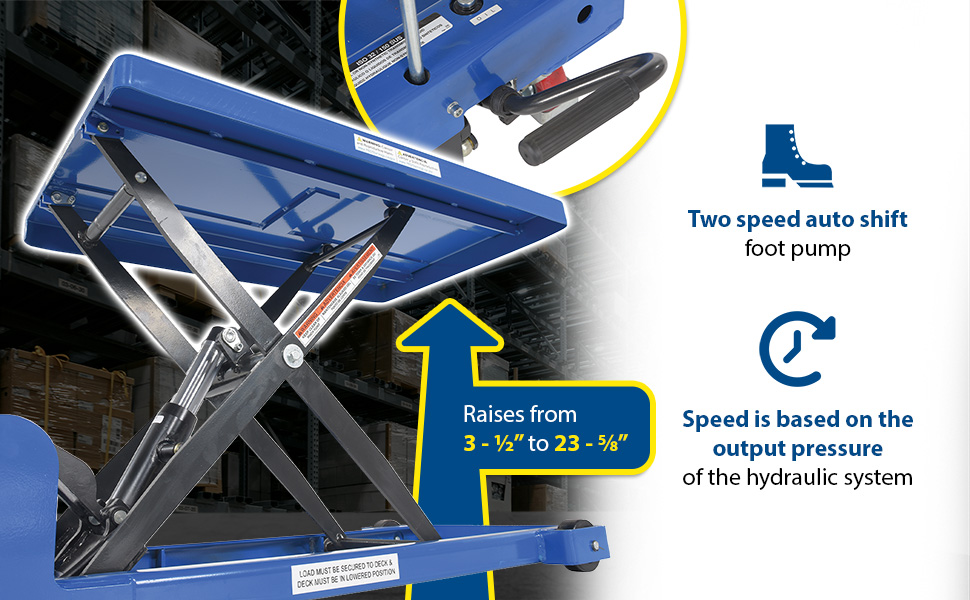

Auto-Shift

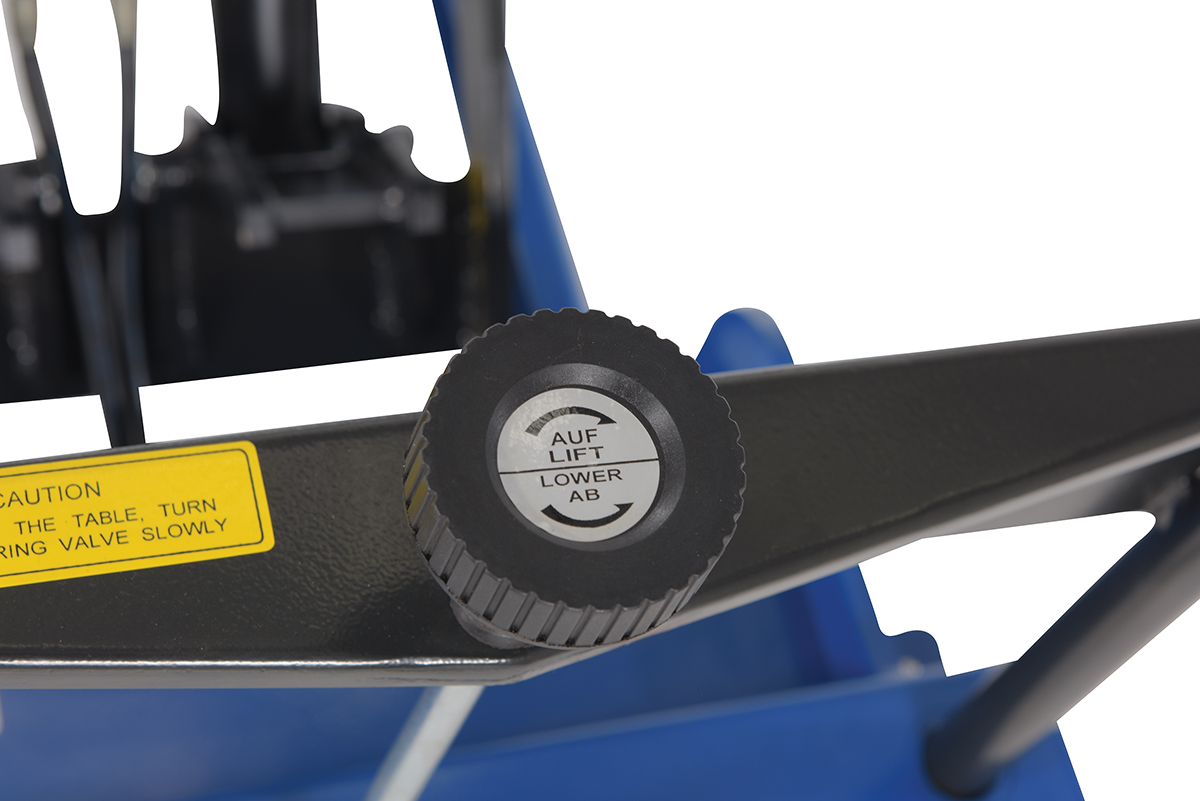

Auto-Shift is a two-speed pump that automatically shifts between speeds based on the output pressure of the hydraulic system. Internal features of the pump include primary pressure relief and pressure compensated return-flow mechanisms, an integrated lowering valve, and an auto-shifting valve assembly. The pump also utilizes replaceable sleeve bearings, valve components, and seals to simplify maintenance requirements and maximize service life.
Premium Scissor Lift Carts
Lift & Tilt Carts with Sequence Select
Low Profile Scissor Lift Cart
Linear Actuated Elevating Carts
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| CART-200-LP-AS |  | 1 Year Limited Warranty | Low Profile Scissor Cart with Auto Shift 17-3/4 In. x 27-1/2 In. 200 Lb. Capacity Blue/Black | Capacity: 200 lbs. Deck Deminsions: 17-3/4"x27-1/2" | 186 | ||
| CART-400-LP-AS |  | 1 Year Limited Warranty | Steel Low Profile Scissor Lift Cart Auto Shift 19-5/8 In. x 32-1/4 In. 400 Lb. Capacity Blue | Capacity: 400 lbs. Deck Deminsions: 19-5/8"x32-1/4" | 312 | ||
| CART-900-LP-AS | POPULAR |  | 1 Year Limited Warranty | Steel Low Profile Scissor Carts with Auto Shift 23-5/8 In. x 35-1/2 In. 900 Lb. Capacity Blue | Capacity: 900 lbs. Deck Deminsions: 23-5/8"x35-1/2" | 310 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Capacity: 200 lbs.
Deck Deminsions: 17-3/4"x27-1/2"
Capacity: 200 lbs.
Deck Deminsions: 17-3/4"x27-1/2"
Unit:
Size: W x L x H
Weight:
Limited Warranty
Capacity: 400 lbs.
Deck Deminsions: 19-5/8"x32-1/4"
Capacity: 400 lbs.
Deck Deminsions: 19-5/8"x32-1/4"
Unit:
Size: W x L x H
Weight:
Limited Warranty
Capacity: 900 lbs.
Deck Deminsions: 23-5/8"x35-1/2"
Capacity: 900 lbs.
Deck Deminsions: 23-5/8"x35-1/2"
