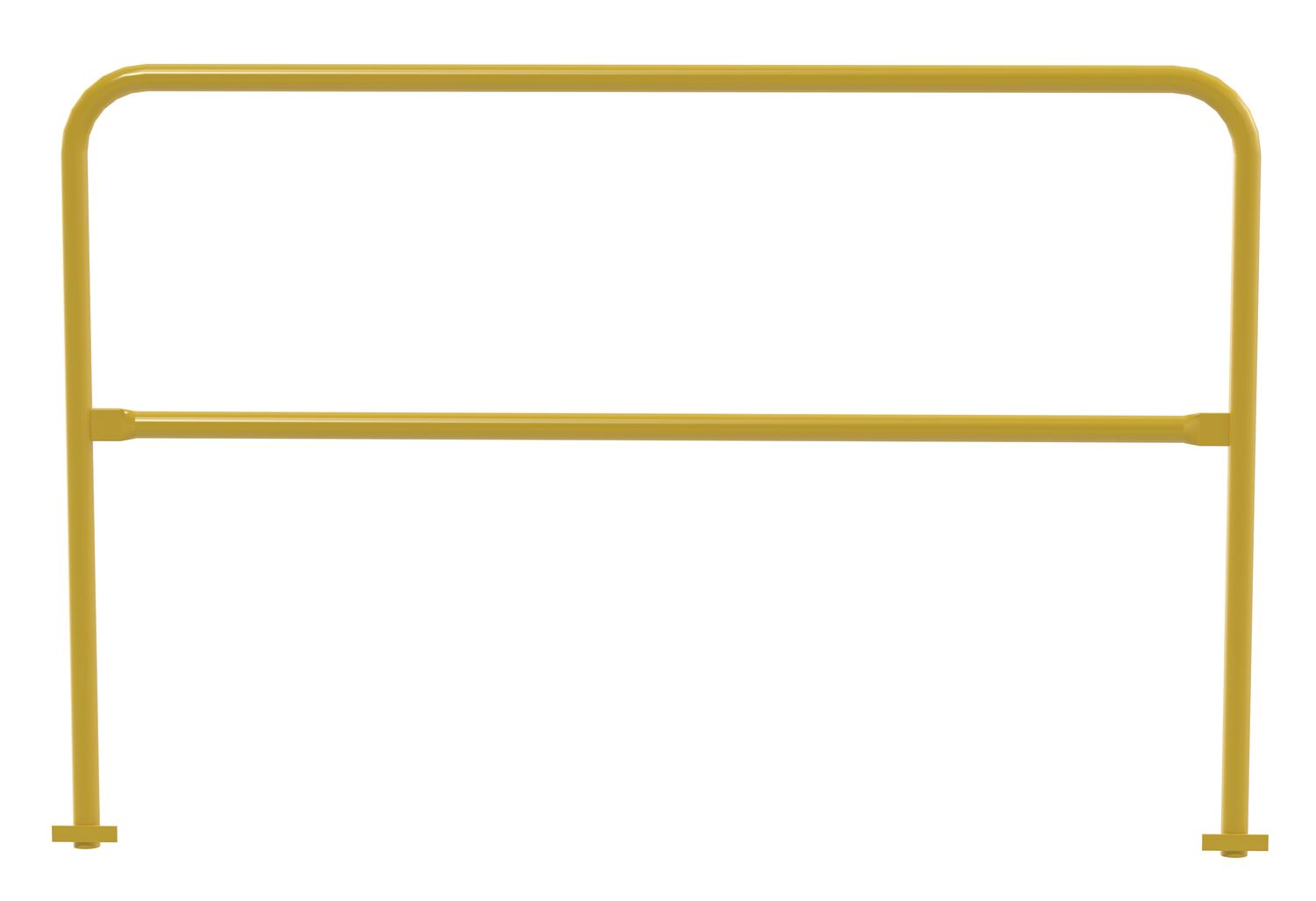

Pour-In-Place Handrails

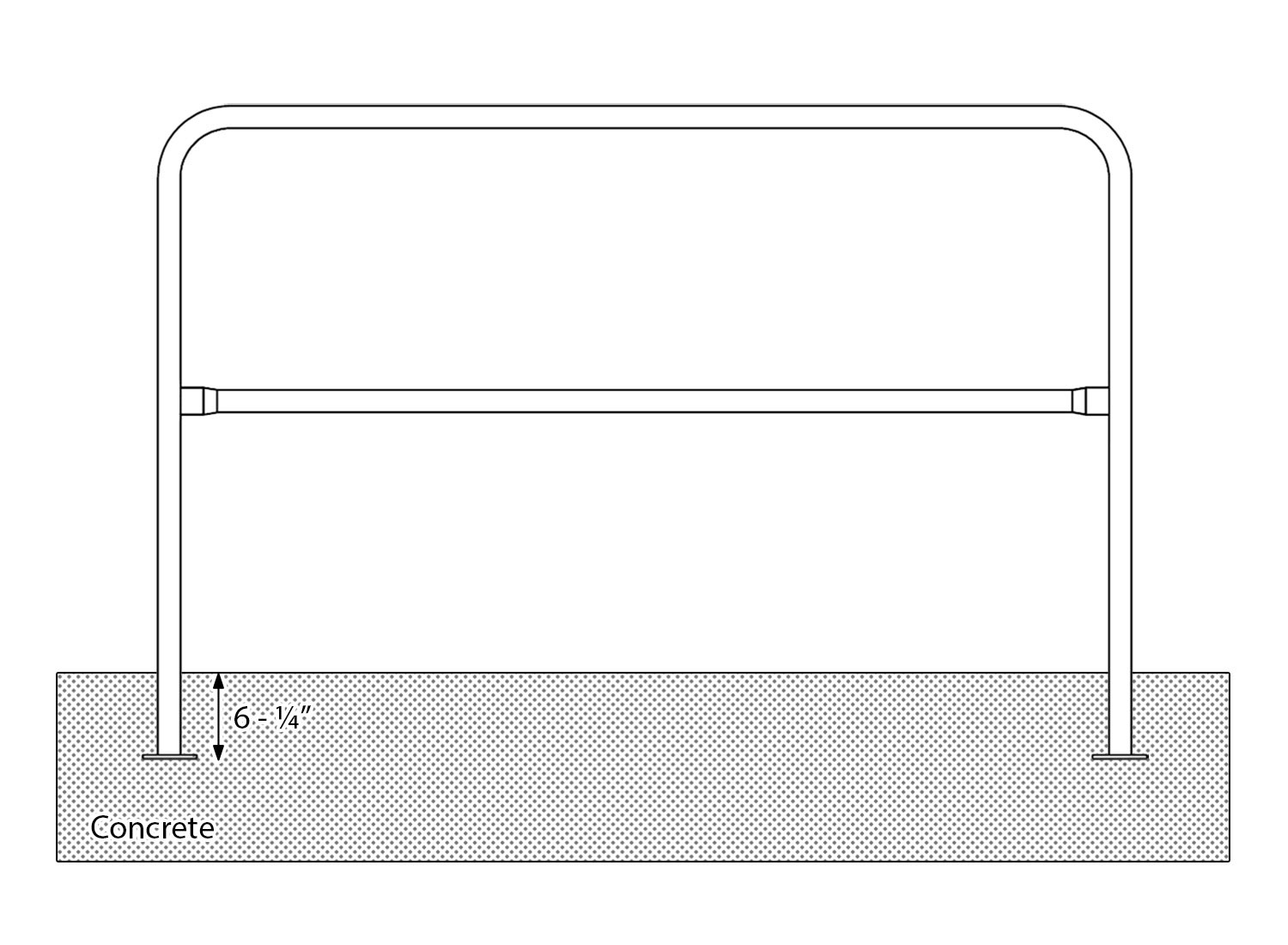

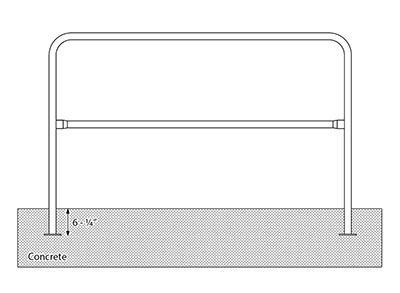

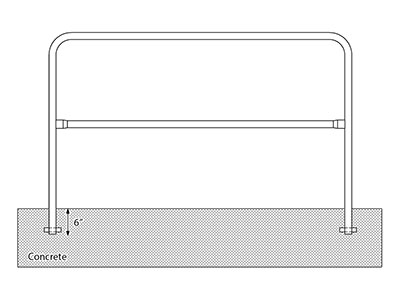

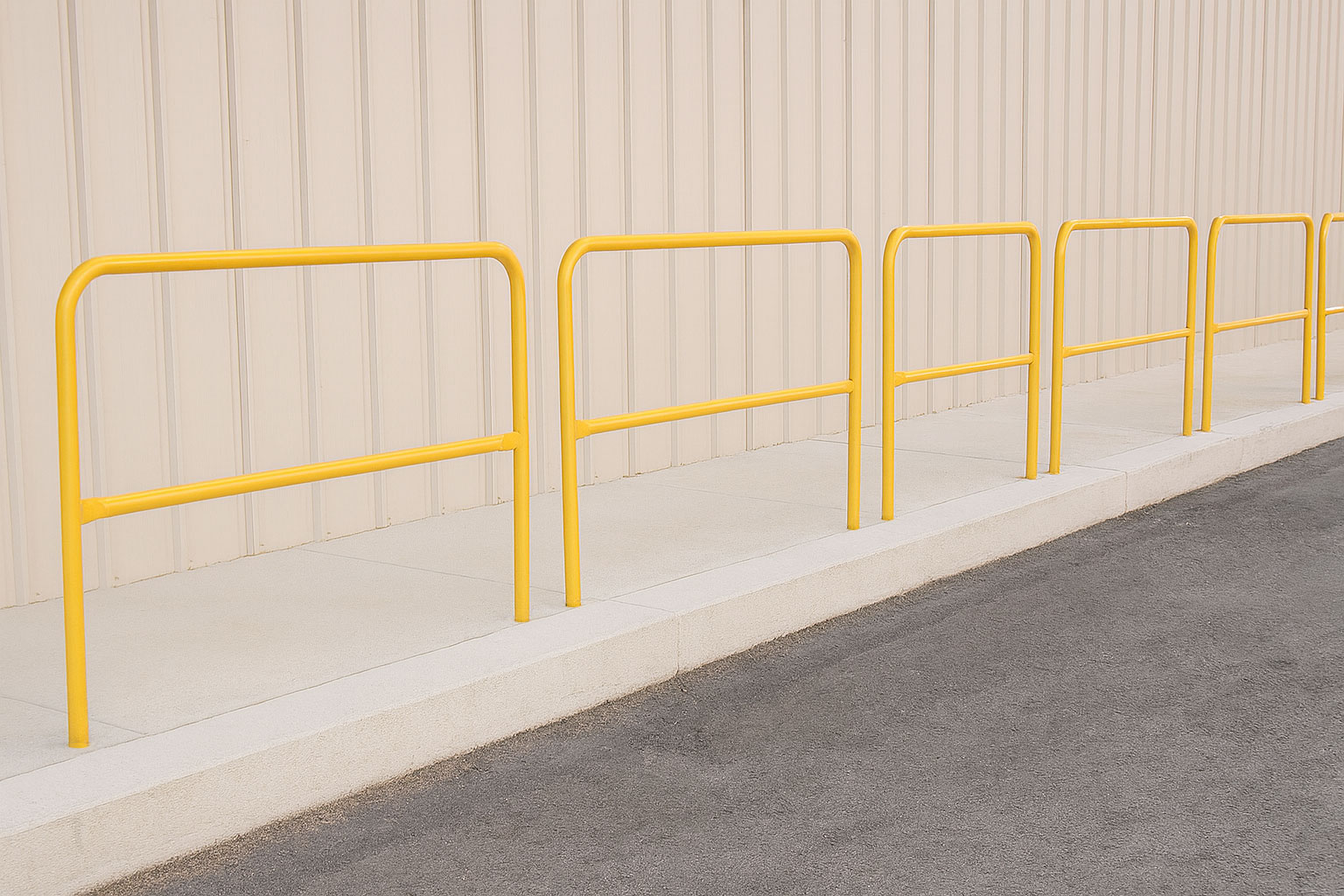

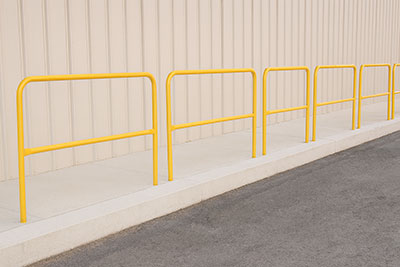

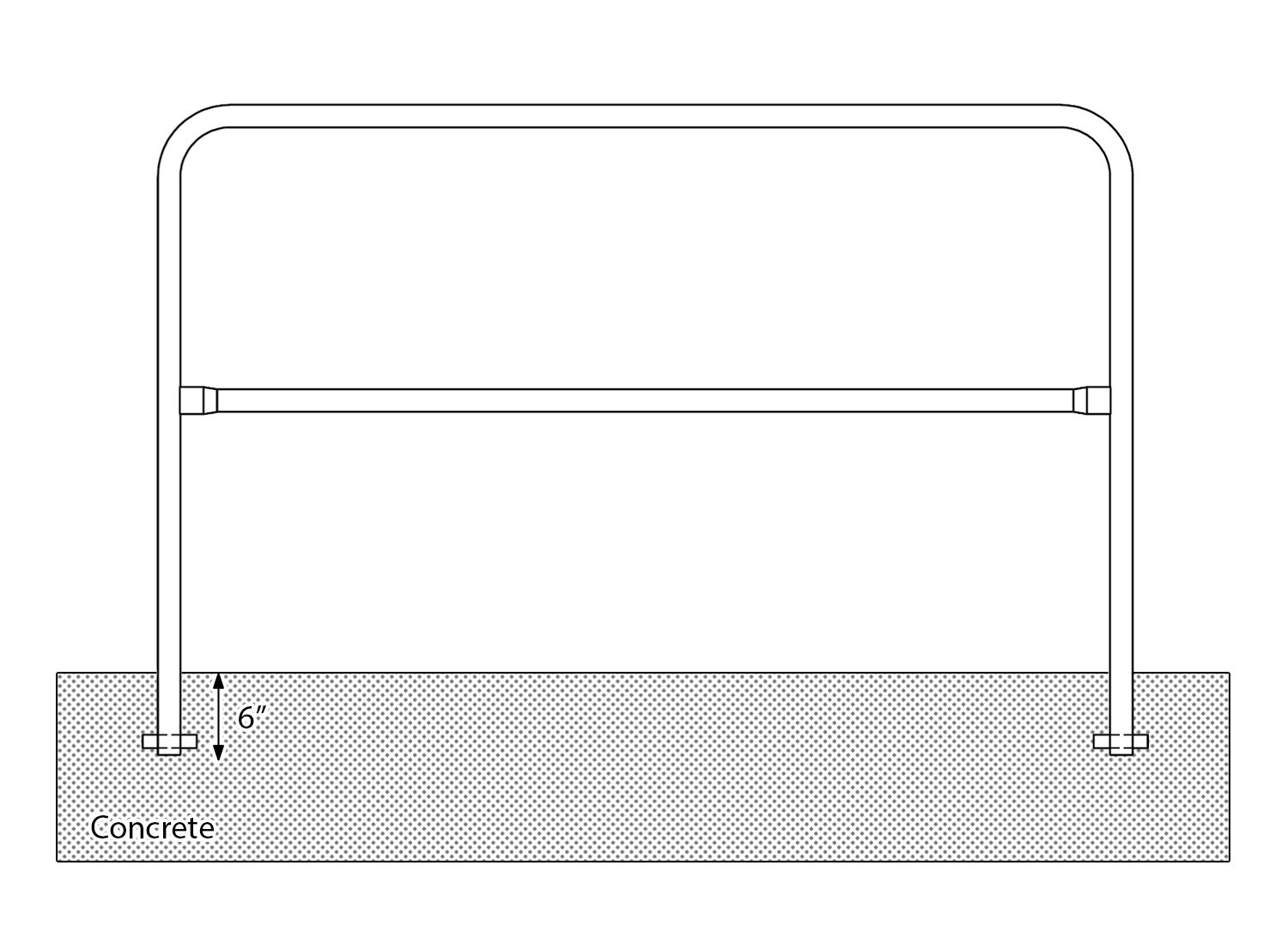

Elevated surfaces at any height can lead to a dangerous situation. Protect those areas, like walkways and mezzanine drop-off's with a steel handrail. This design is specifically engineered to be installed directly into the concrete, instead of attaching to the surface. 6” inches have been added to the leg length to accommodate for the direct ground installation. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General Industry requirements for guardrail systems in 29 CFR 1910.29.
- Pour-in-place design
- Built of schedule 10 steel
- Mid and Hand rail protection
- Powder coated finish
  Check Out Our Standard Steel Safety Railing |
 Check Out Our Aluminum Safety Railing |
Steel Safety Railings
Economical Safety Swing Gate
Mezzanine Safety GatesAdditional Models In This Family
VDKR-PP-4
VDKR-PP-4
VDKR-PP-2
VDKR-PP-4
VDKR-PP-4
VDKR-PP-4
VDKR-PP-4
VDKR-PP-4
VDKR-PP-4
VDKR-PP-3
VDKR-PP-4
VDKR-PP-3
VDKR-PP-4
VDKR-PP-4
VDKR-PP-3
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

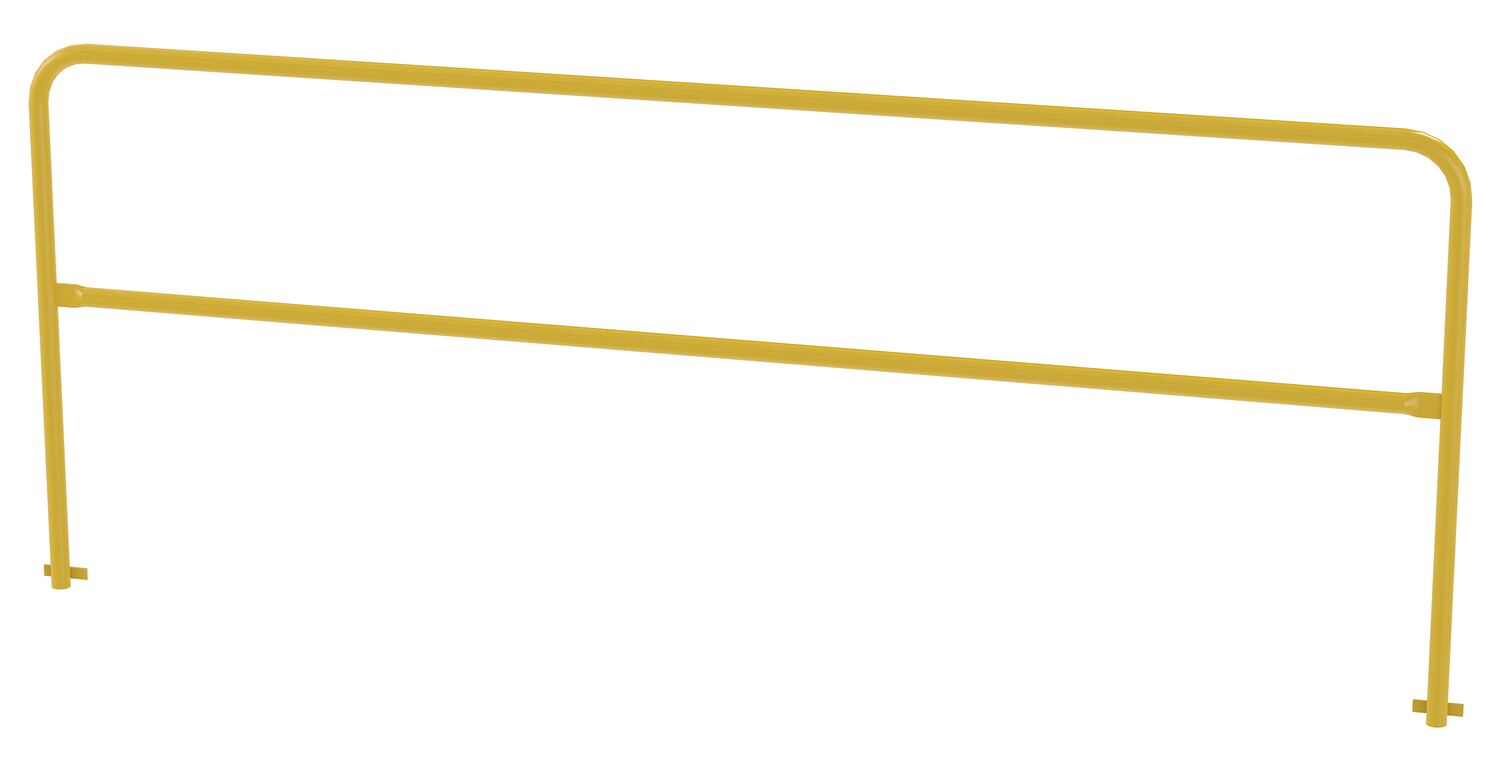

| VDKR-PP-10 | NEW | | 90 Days Limited Warranty | Steel Safety Railing Pour in Place 10 Ft. Length Yellow | Overall Height (in.): 48-1/4" Overall Length (in.): 122-1/4" | 96 | |

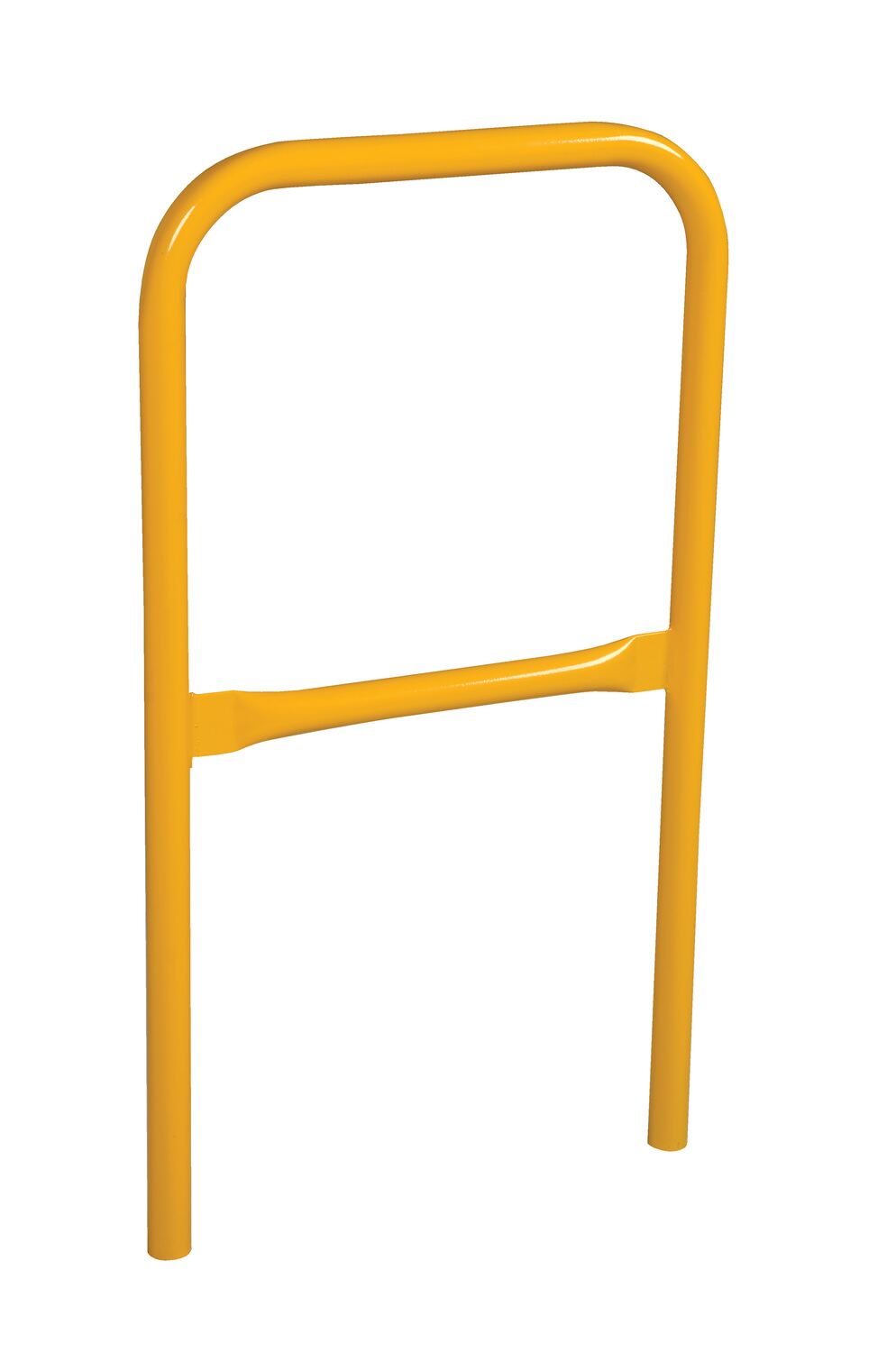

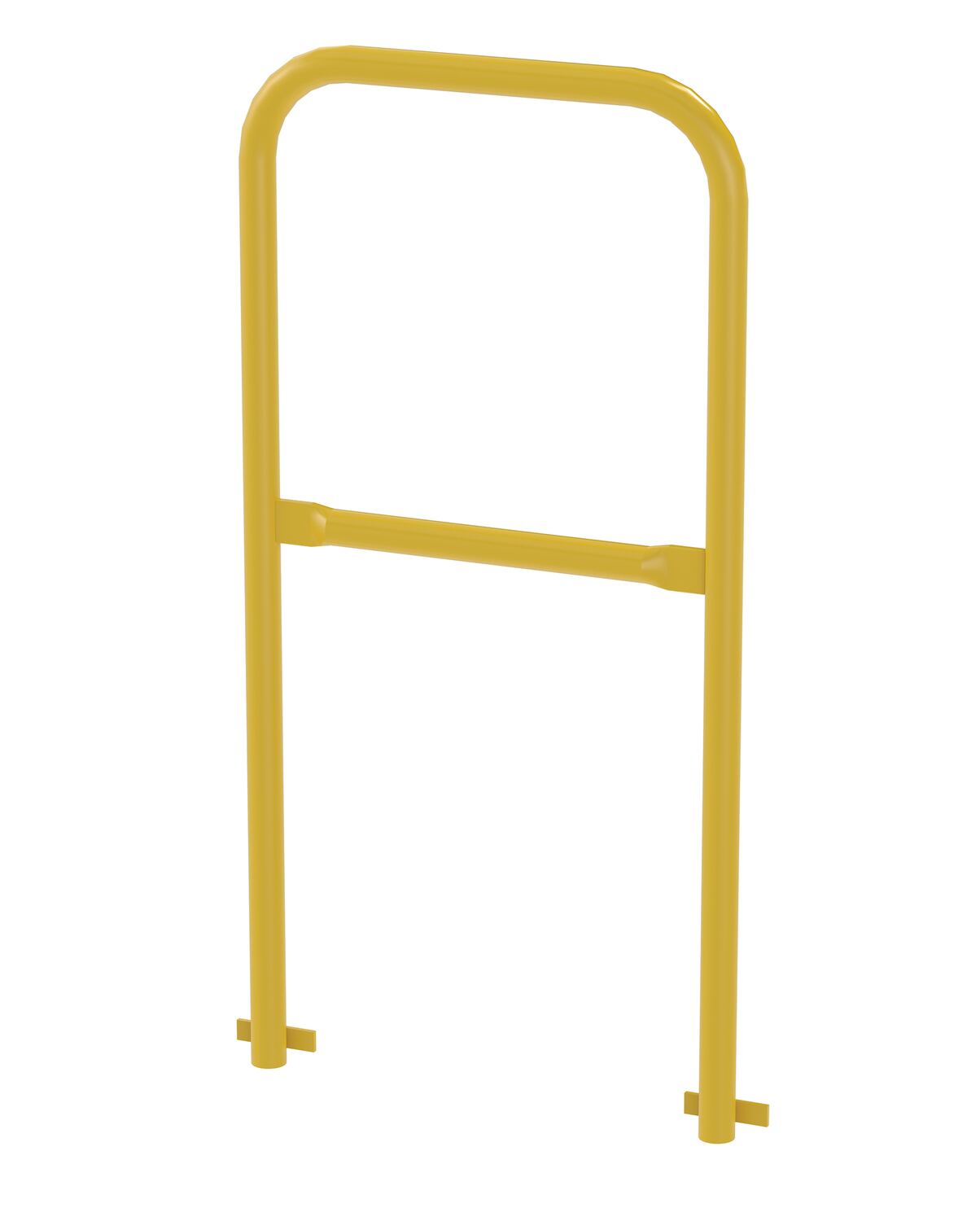

| VDKR-PP-2 | NEW |  | 90 Days Limited Warranty | Steel Safety Railing Pour in Place 2 Ft. Length Yellow | Overall Length (in.): 26-1/2" Overall Width (in.): 1-1/4" | 21 | |

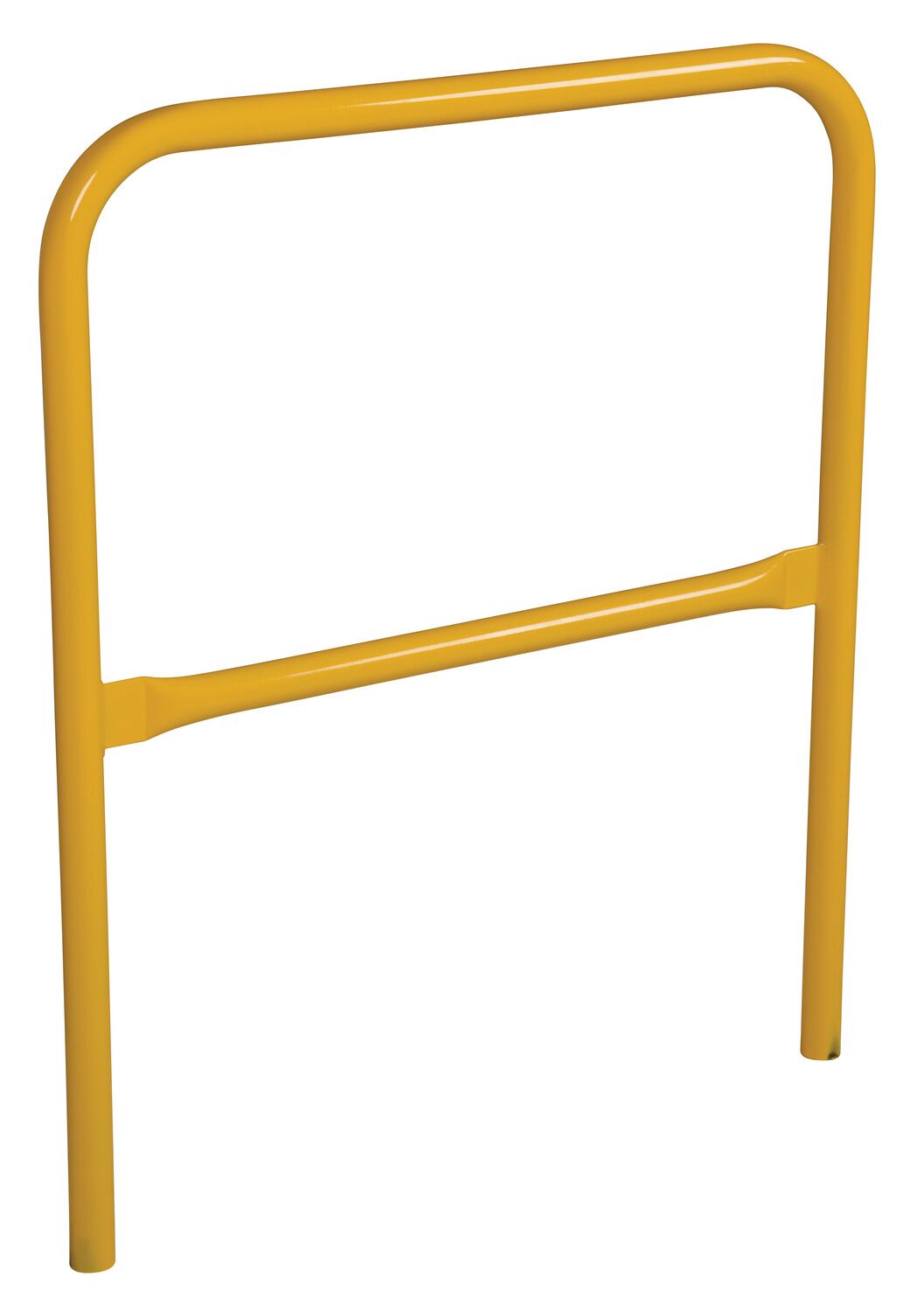

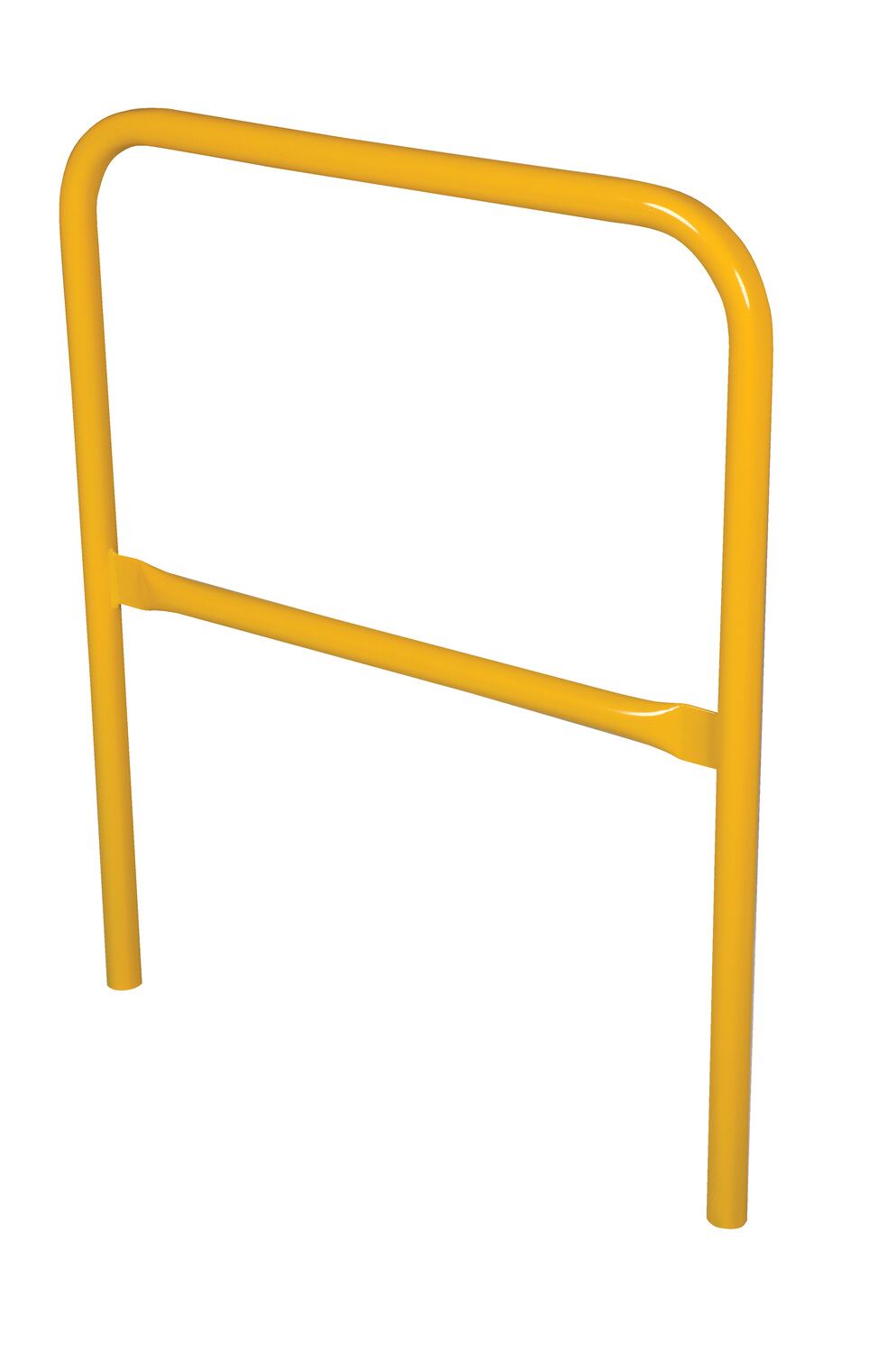

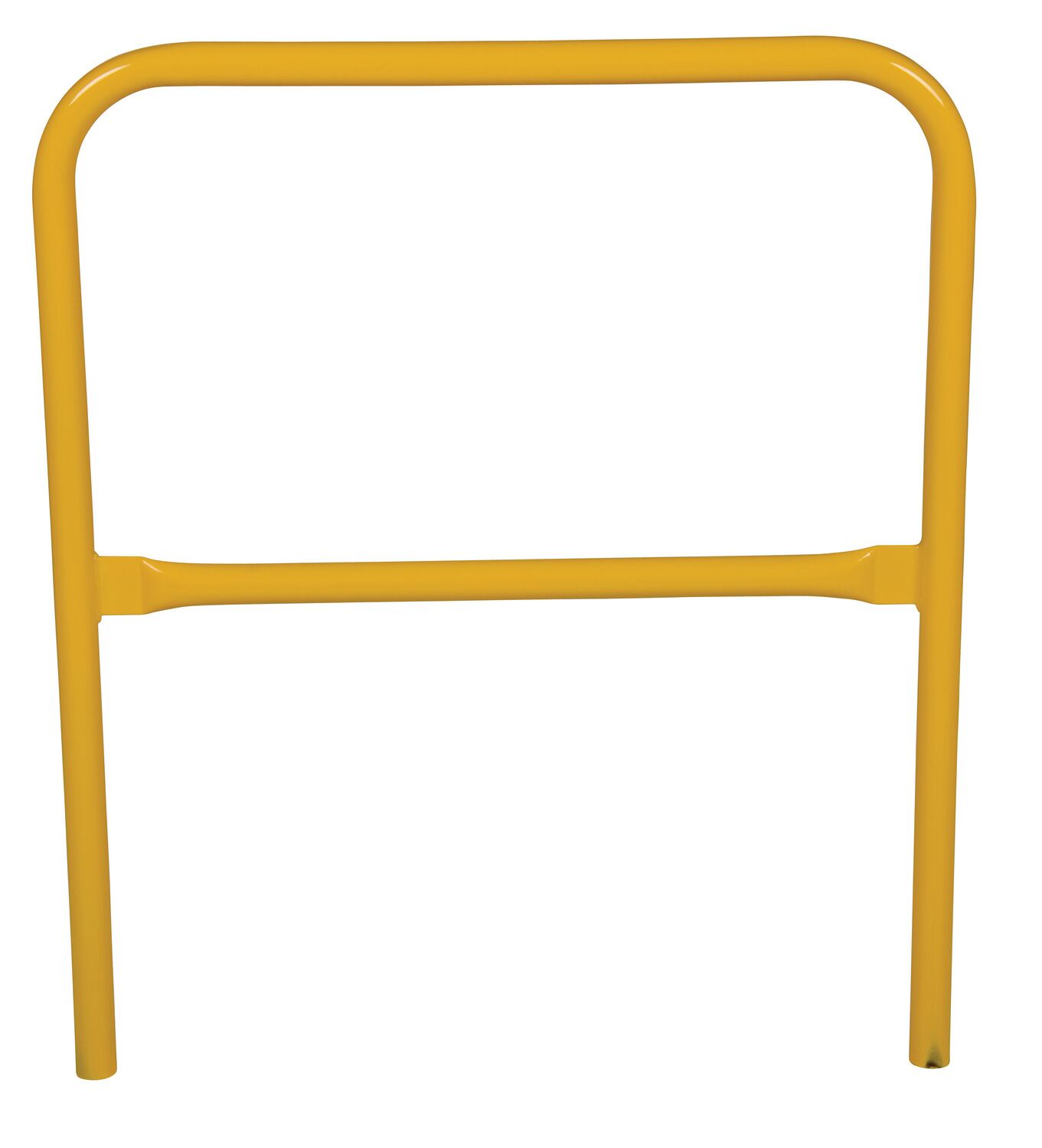

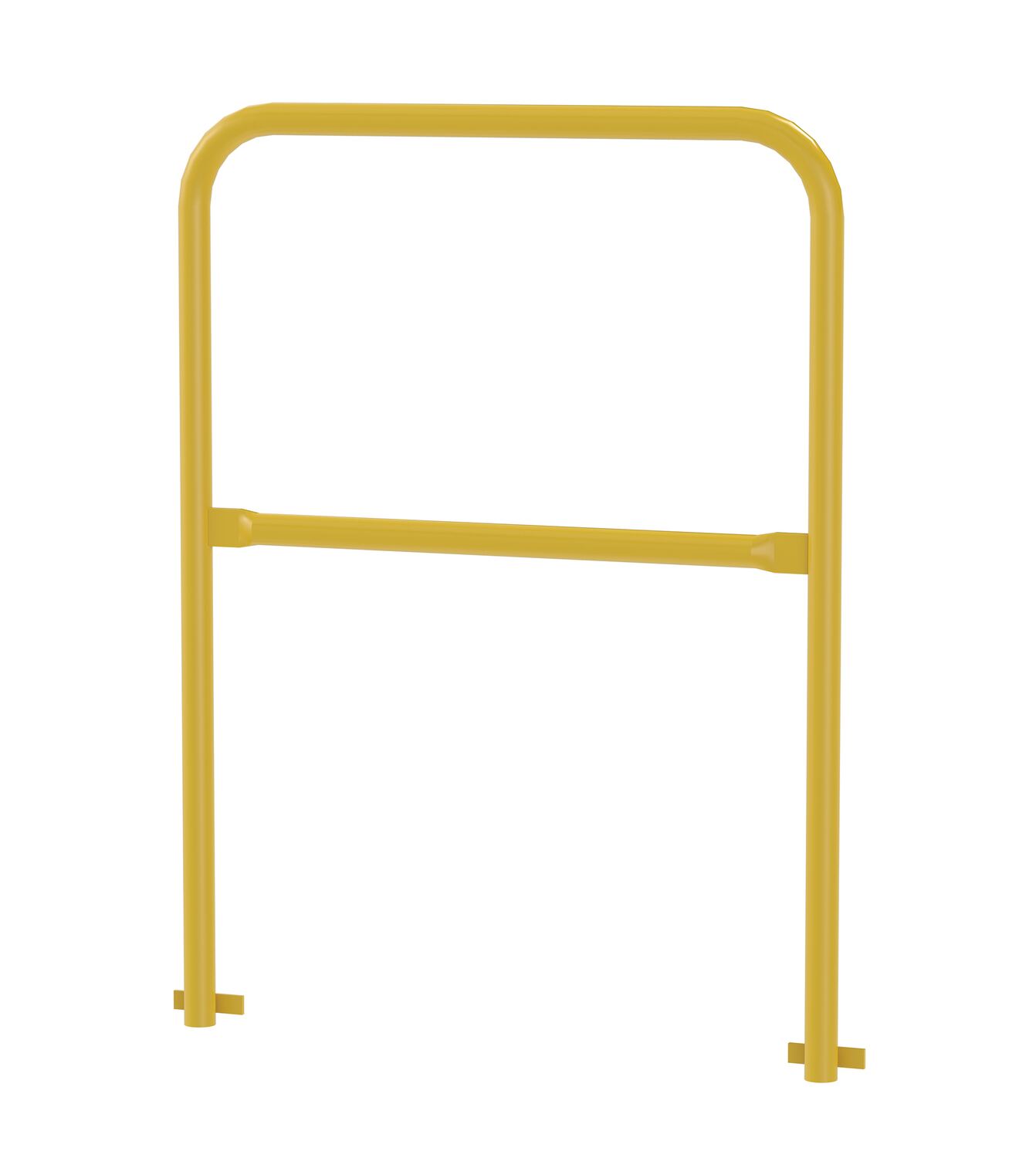

| VDKR-PP-3 | NEW | | 90 Days Limited Warranty | Steel Safety Railing Pour in Place 3 Ft. Length Yellow | Overall Length (in.): 38-1/4" Overall Width (in.): 1-1/4" | 25 | |

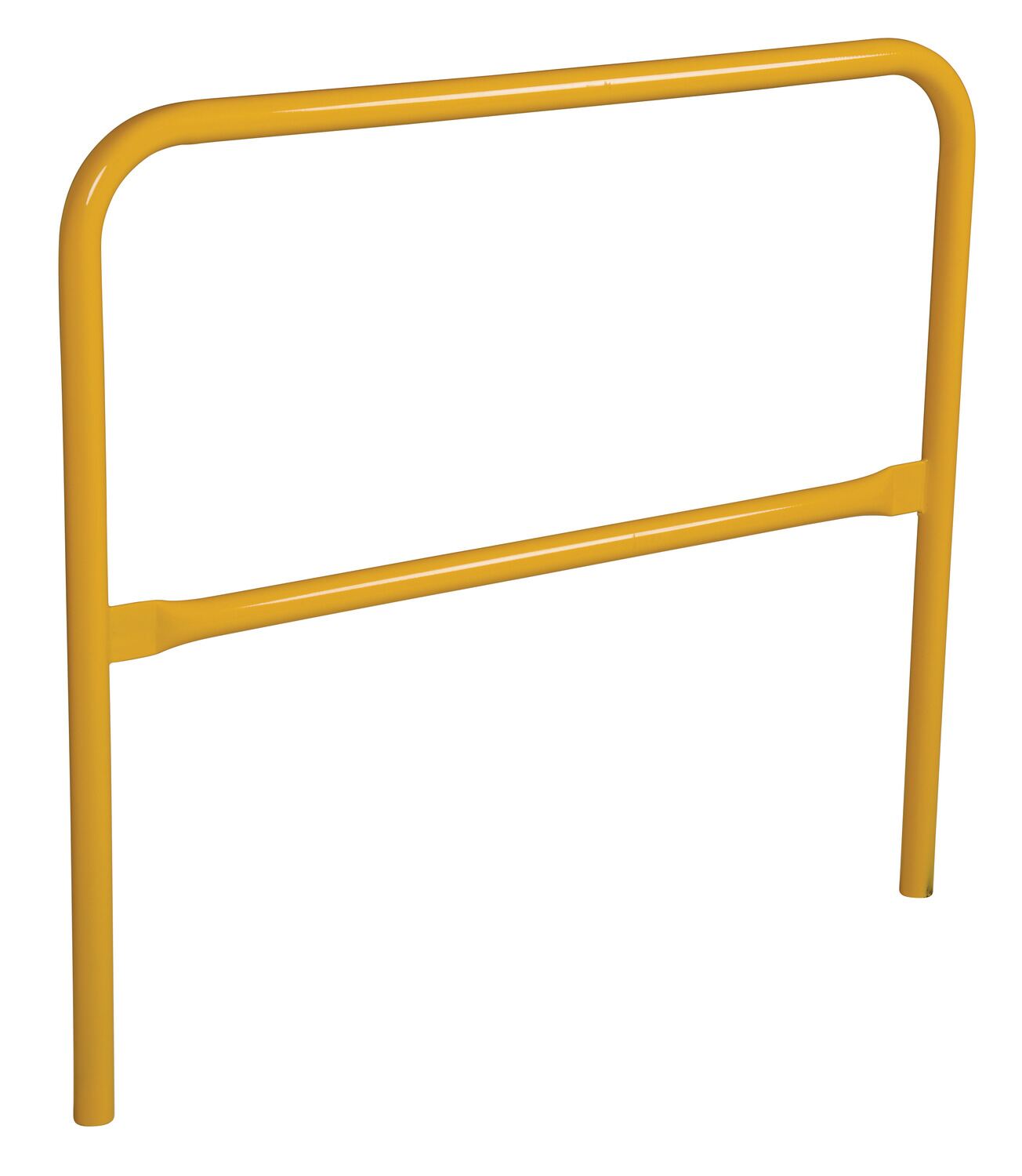

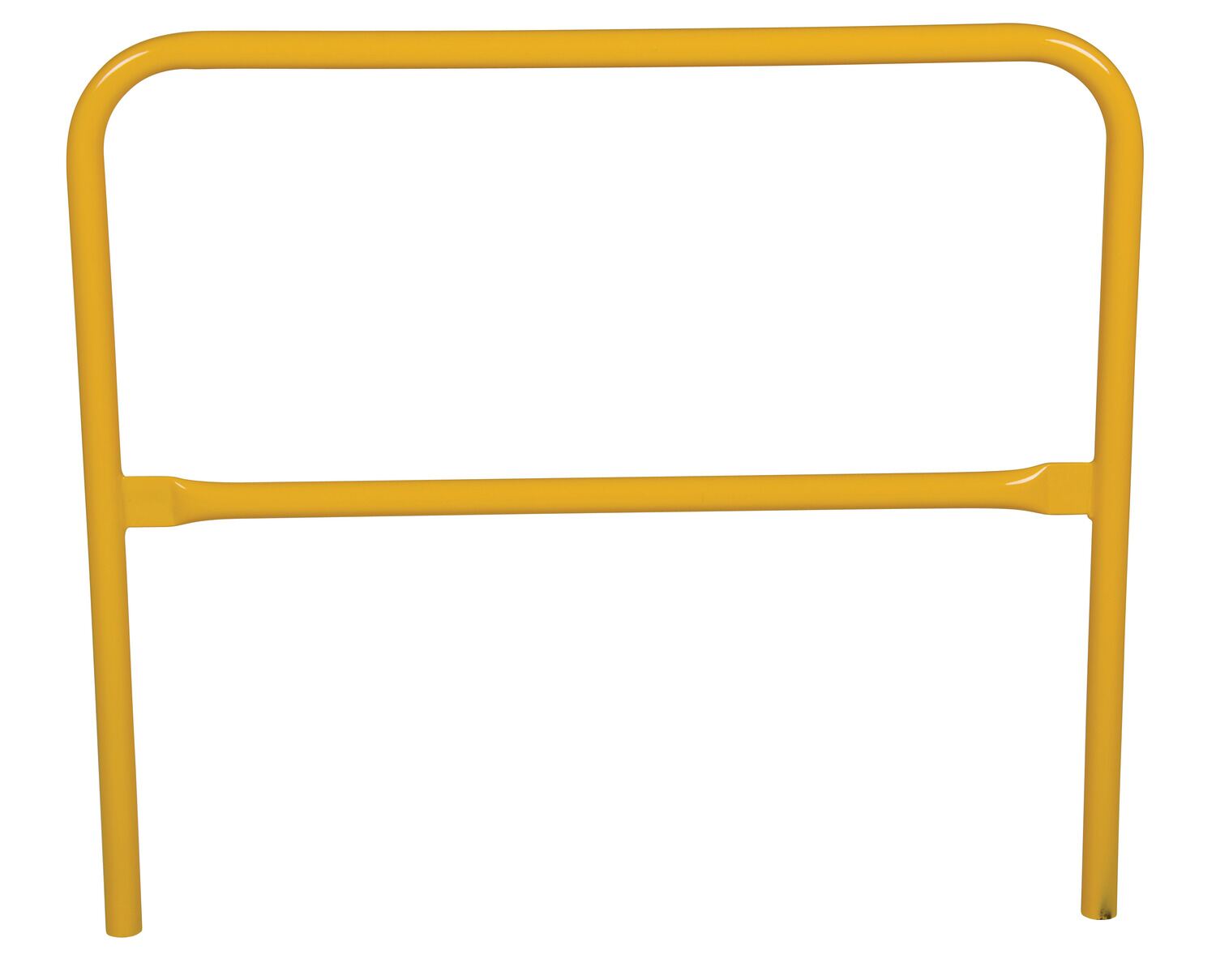

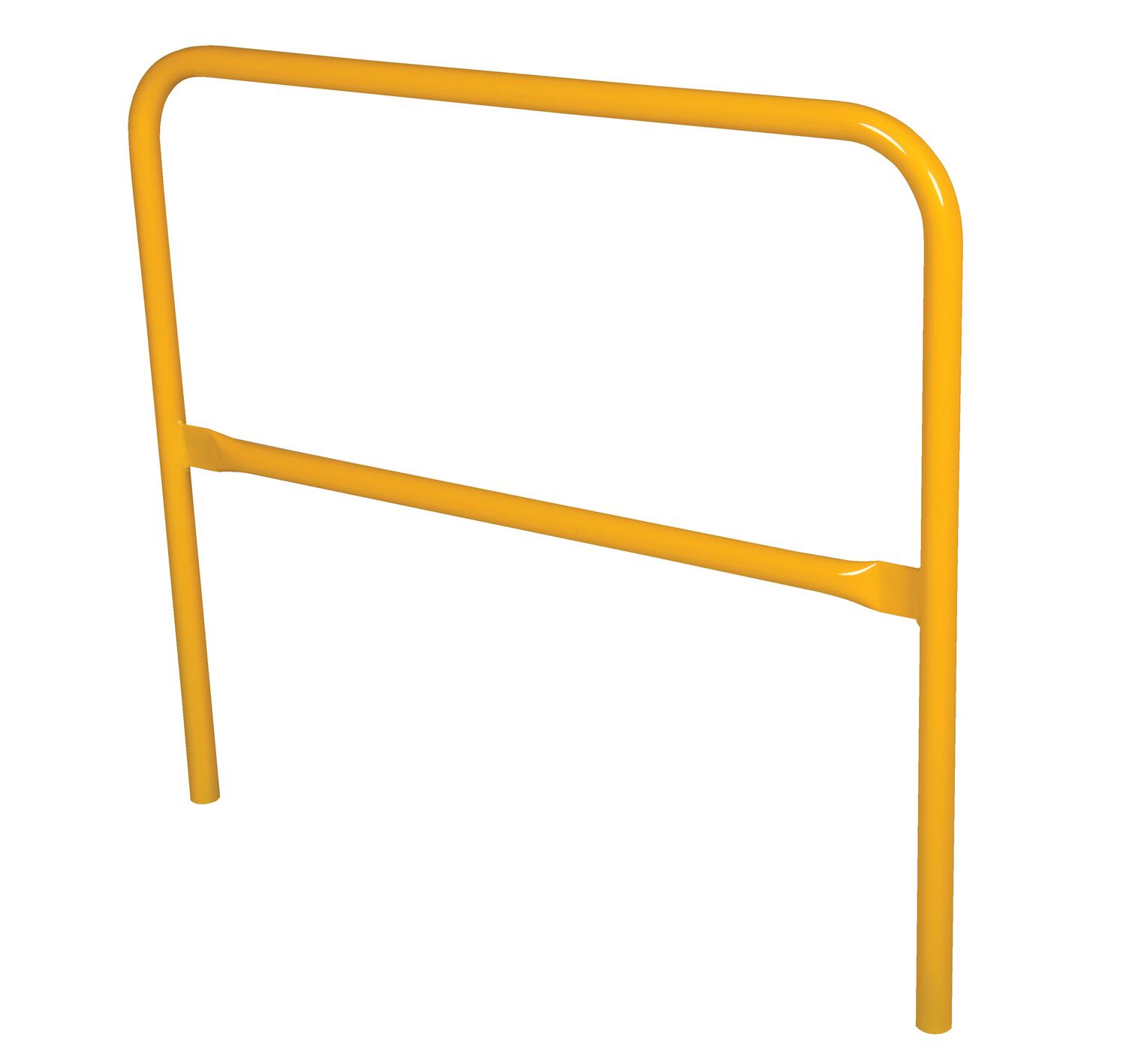

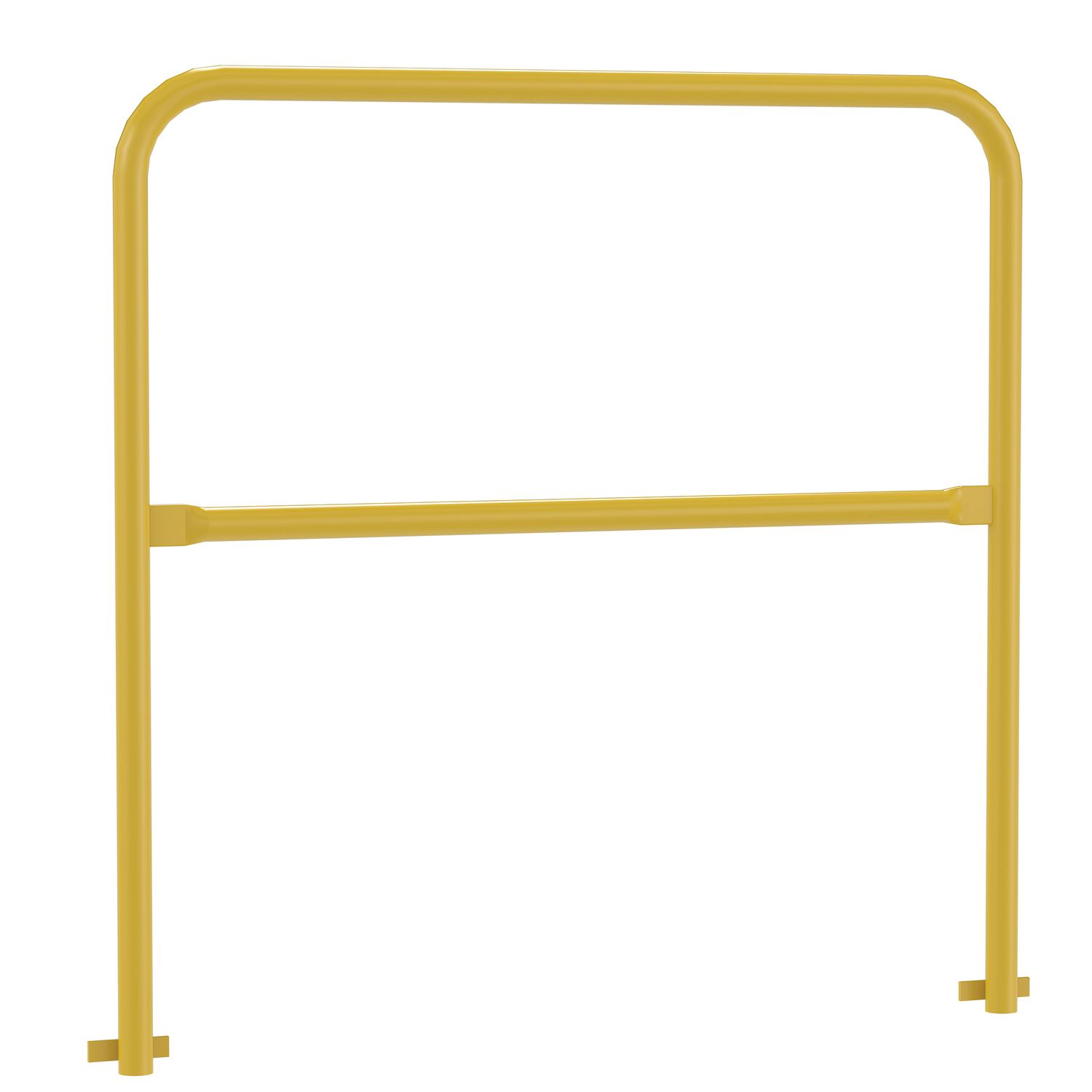

| VDKR-PP-4 | NEW | | 90 Days Limited Warranty | Steel Safety Railing Pour in Place 4 Ft. Length Yellow | Overall Length (in.): 50-1/2" Overall Width (in.): 1-1/4" | 29 | |

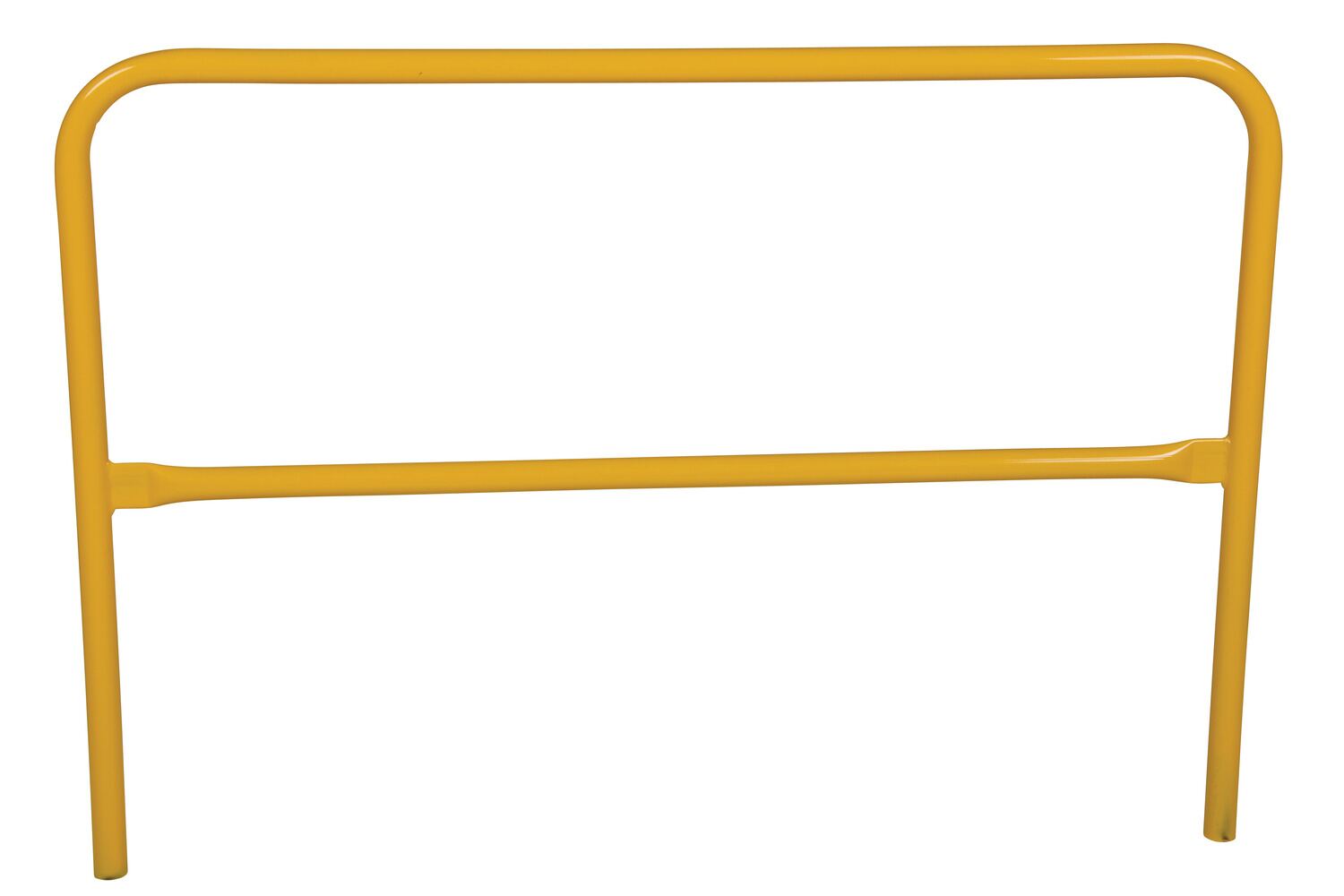

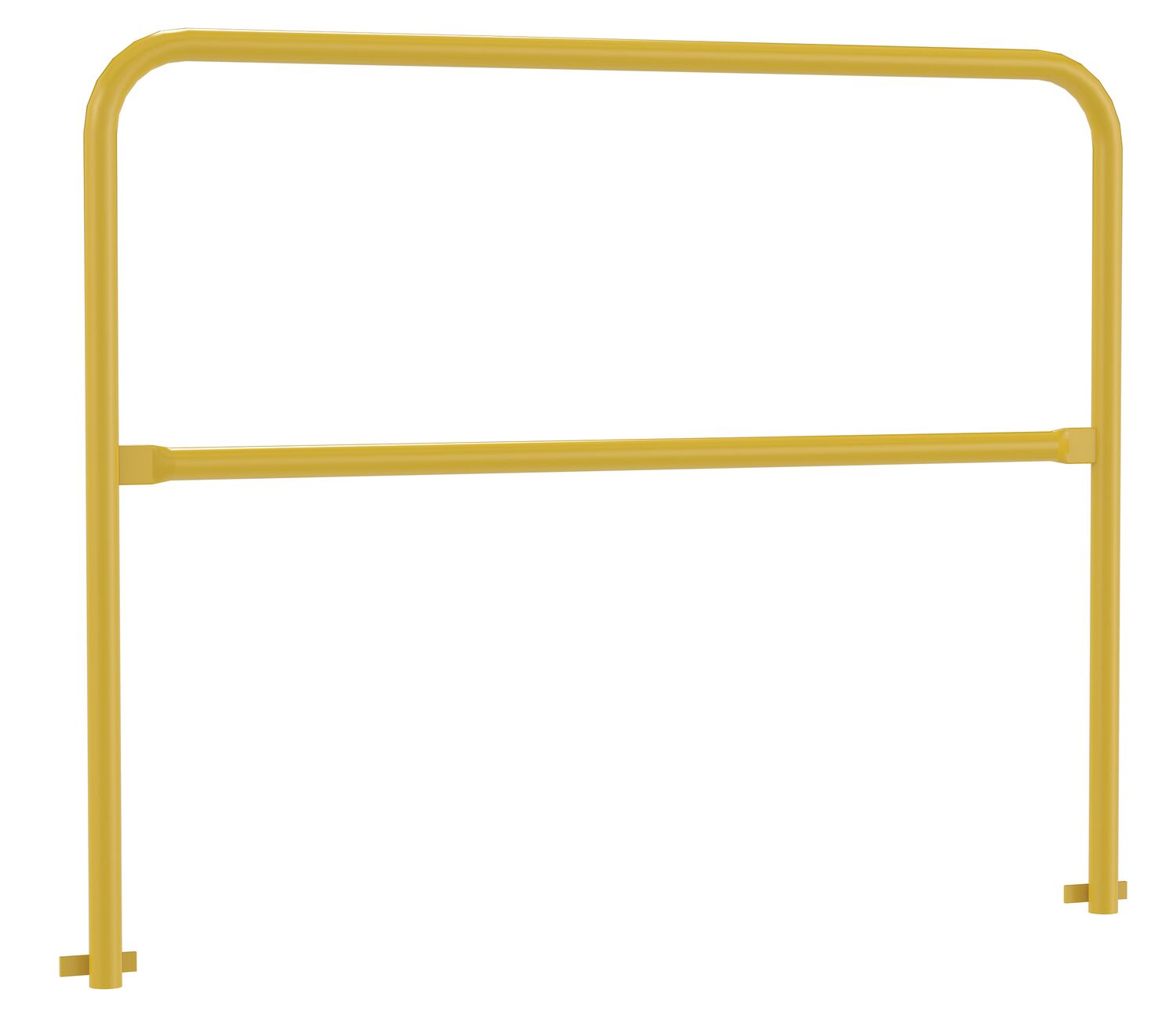

| VDKR-PP-5 | NEW | | 90 Days Limited Warranty | Steel Safety Railing Pour in Place 5 Ft. Length Yellow | Overall Length (in.): 62-1/4" Overall Width (in.): 1-1/4" | 62 | |

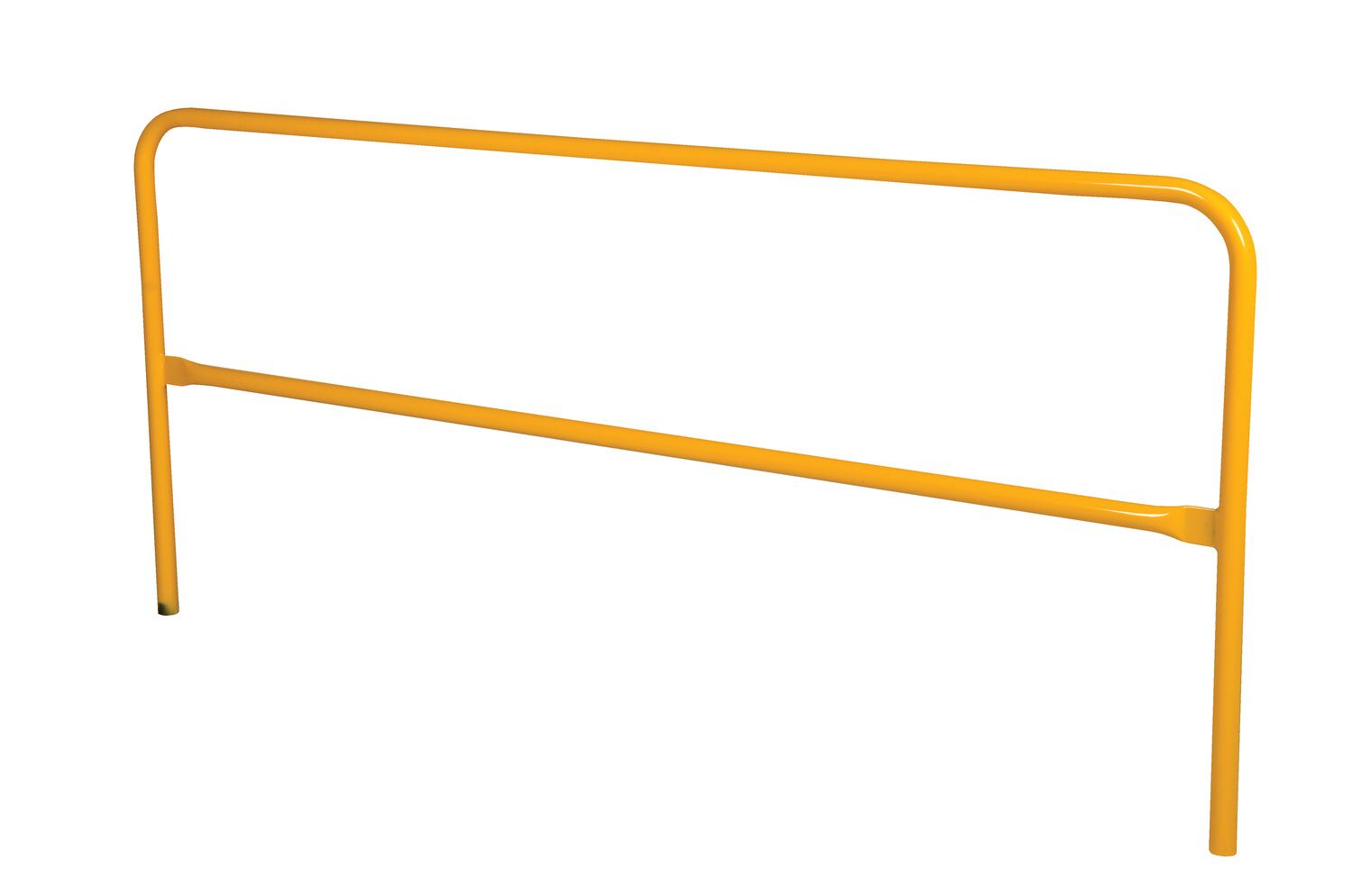

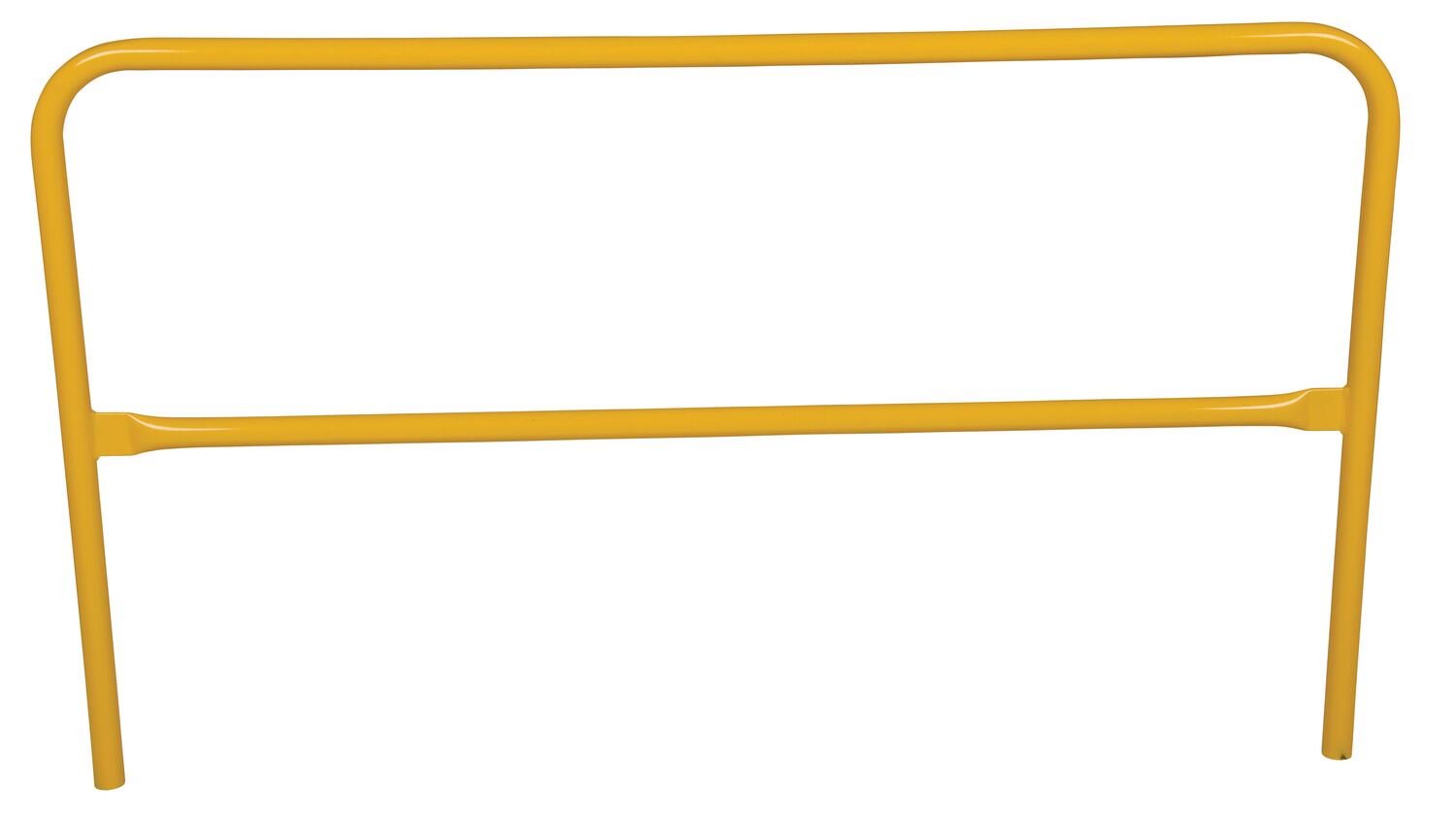

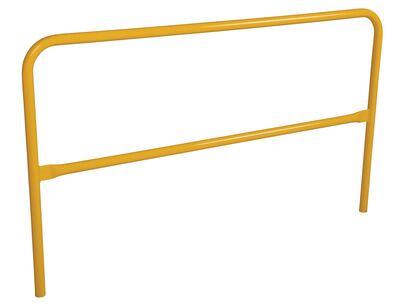

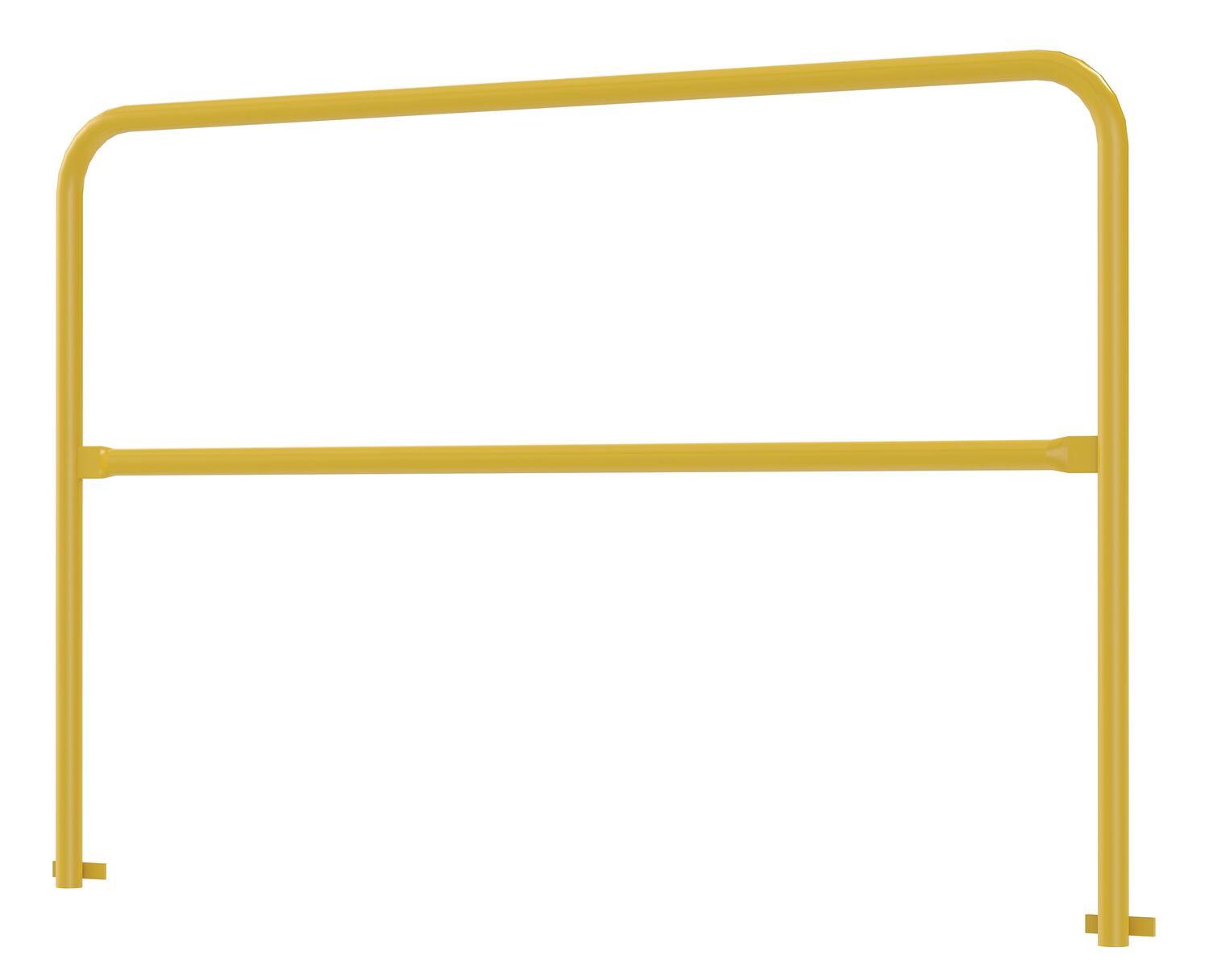

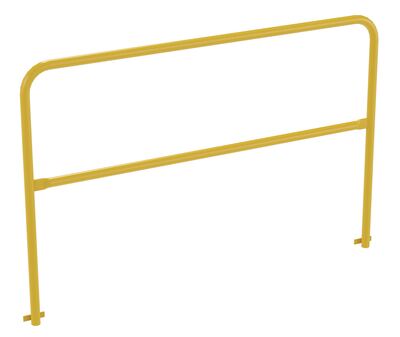

| VDKR-PP-6 | NEW | | 90 Days Limited Warranty | Steel Safety Railing Pour in Place 6 Ft. Length Yellow | Overall Length (in.): 74-1/4" Overall Width (in.): 1-1/4" | 65 | |

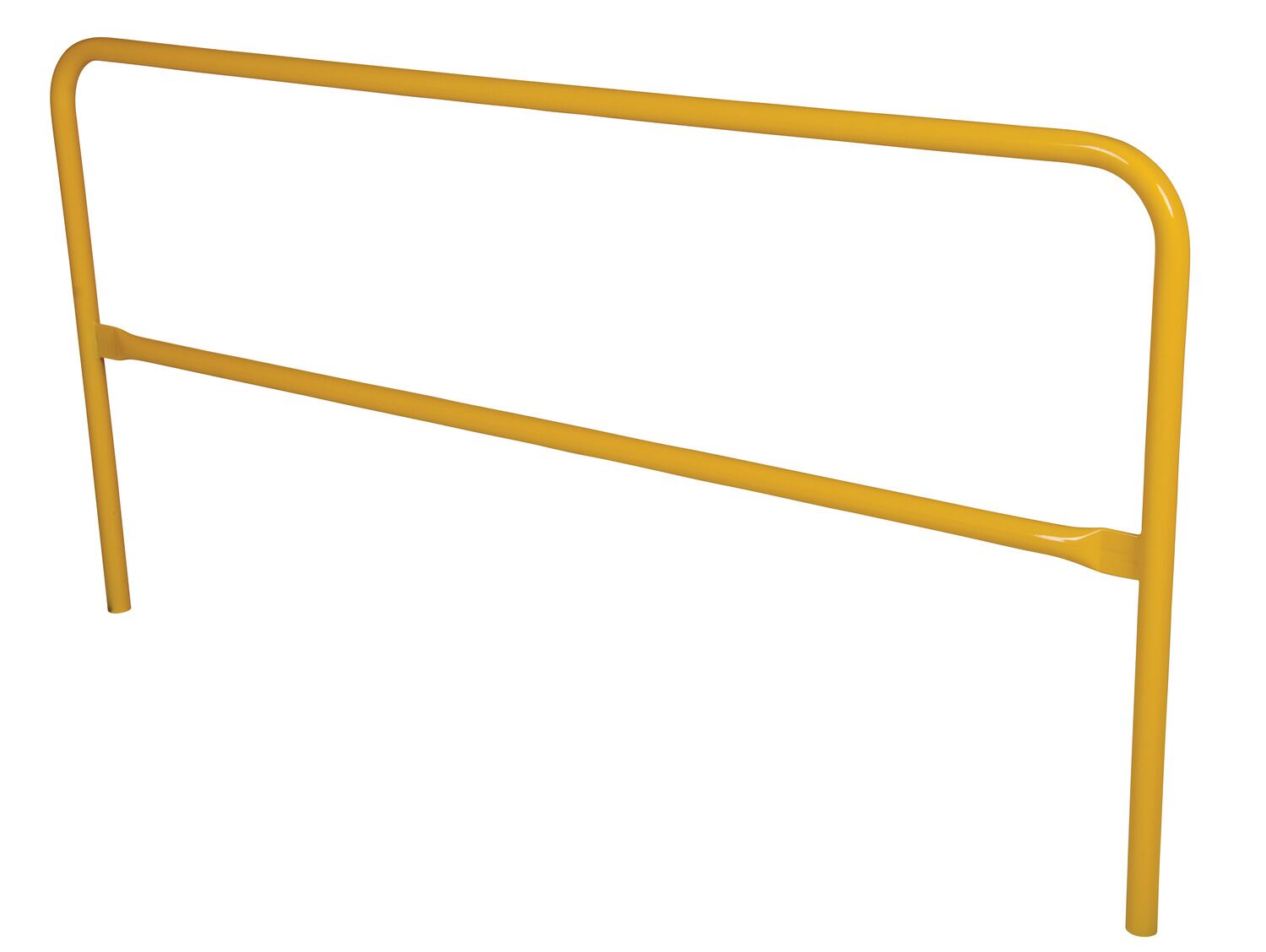

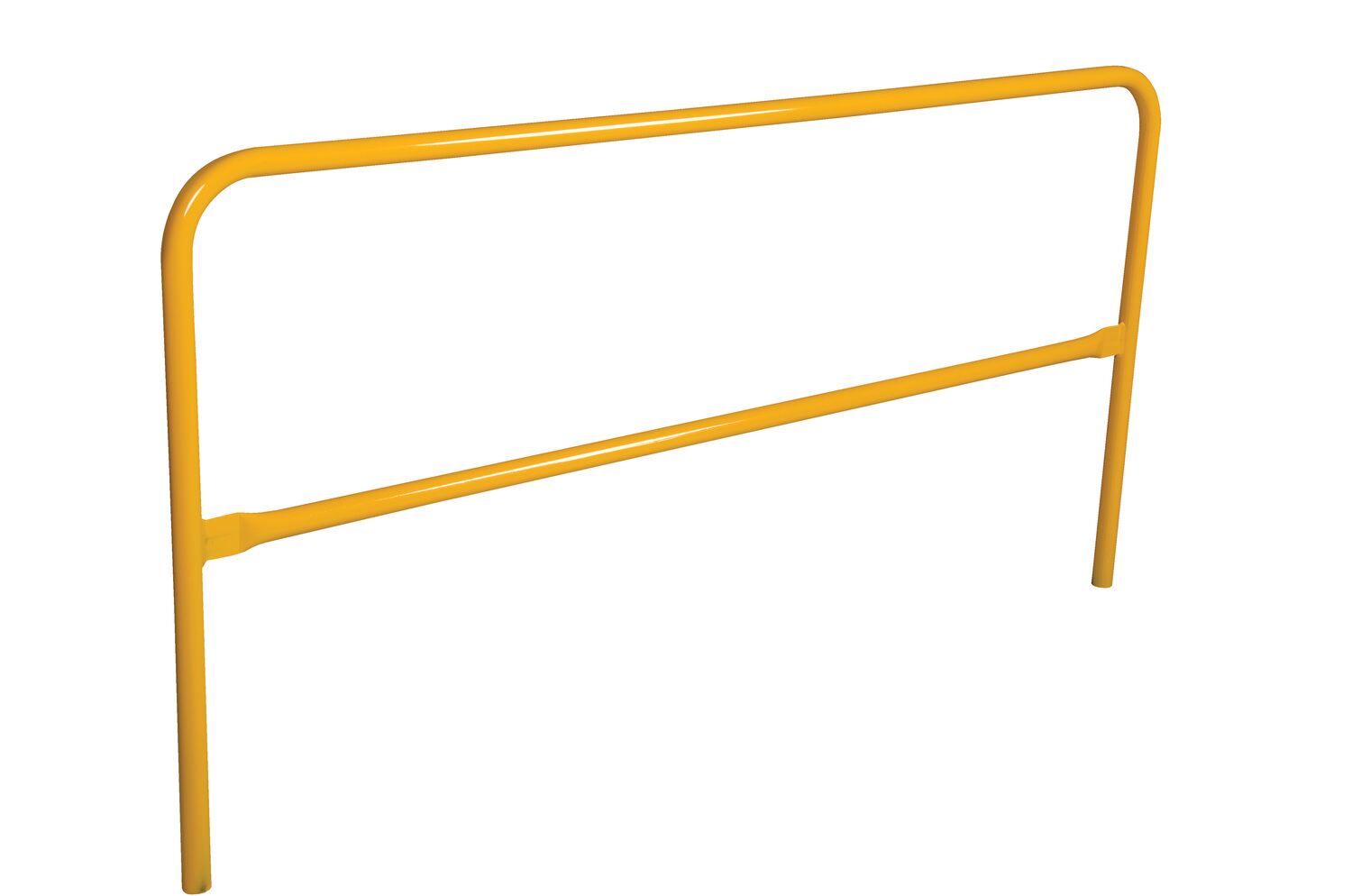

| VDKR-PP-7 | NEW | | 90 Days Limited Warranty | Steel Safety Railing Pour in Place 7 Ft. Length Yellow | Overall Length (in.): 86-1/4" Overall Width (in.): 1-1/4" | 67 | |

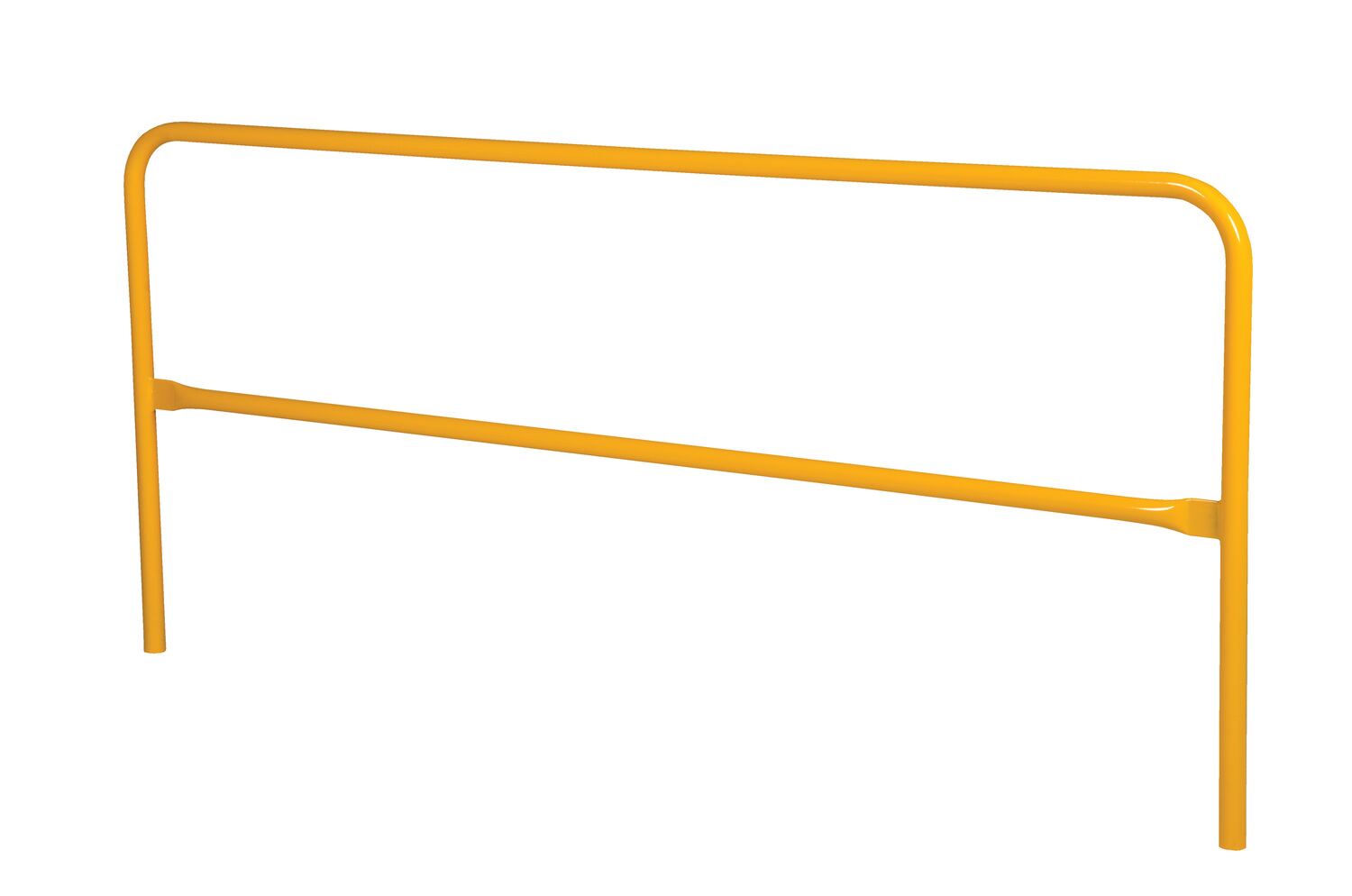

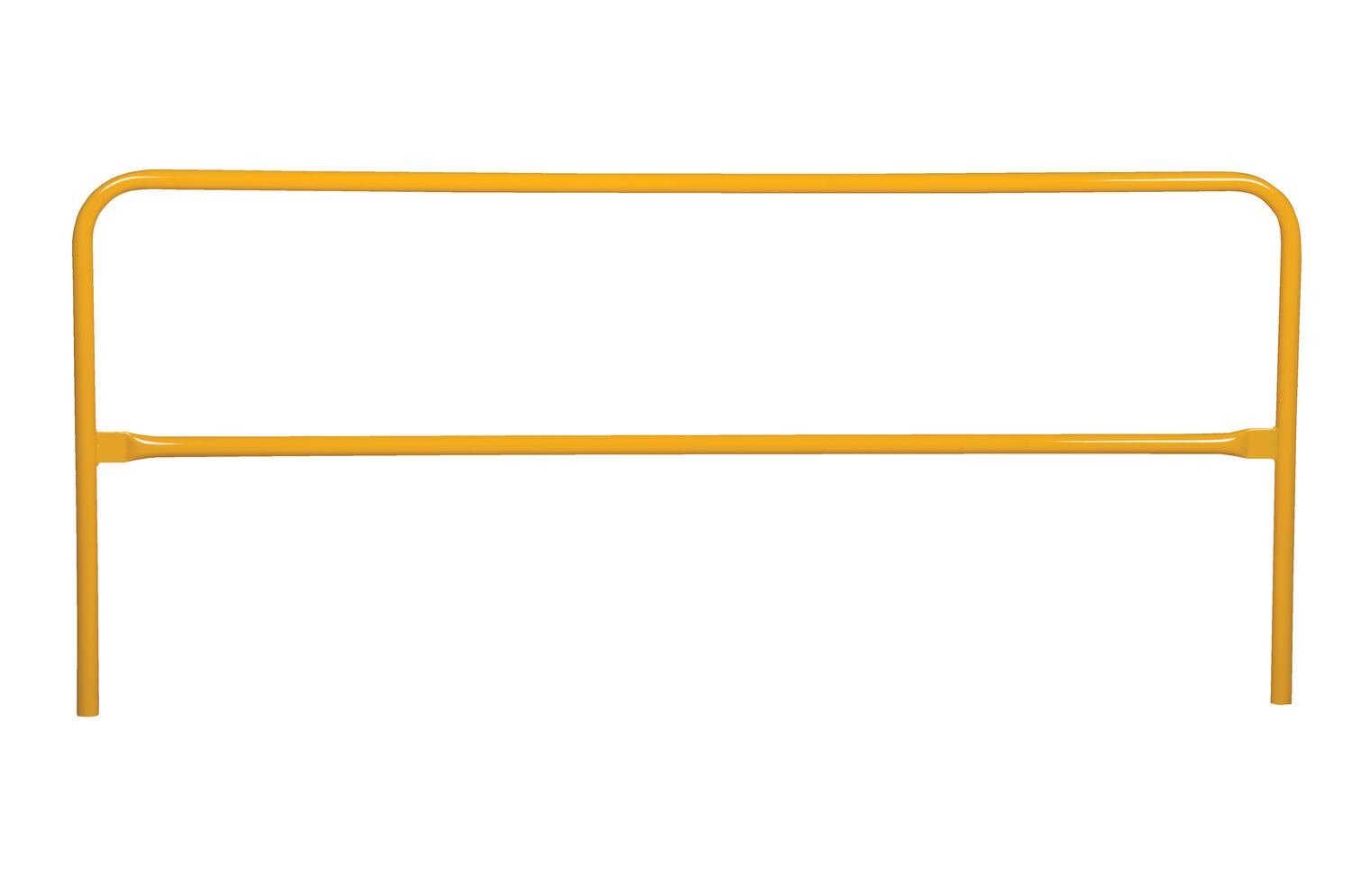

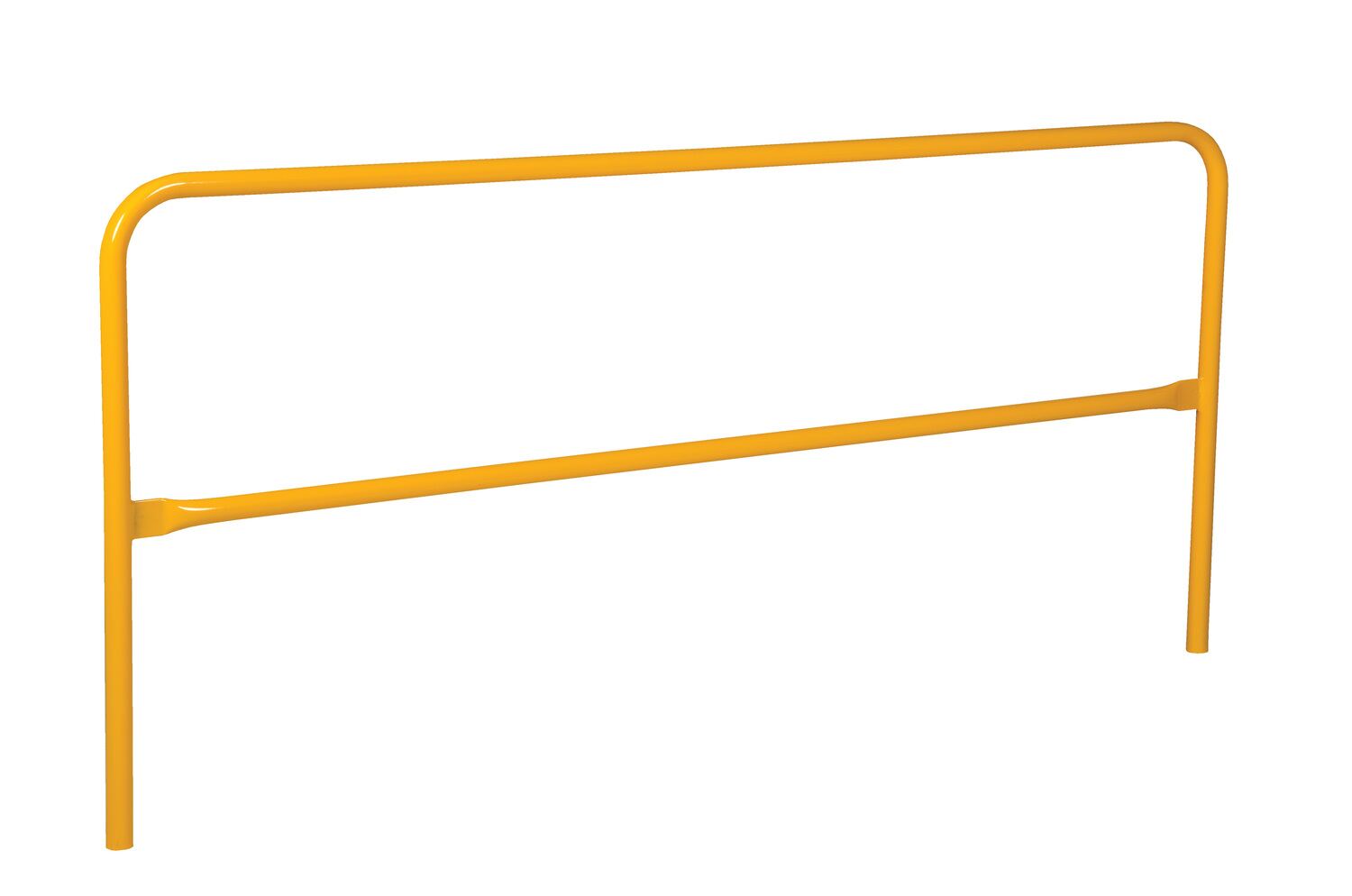

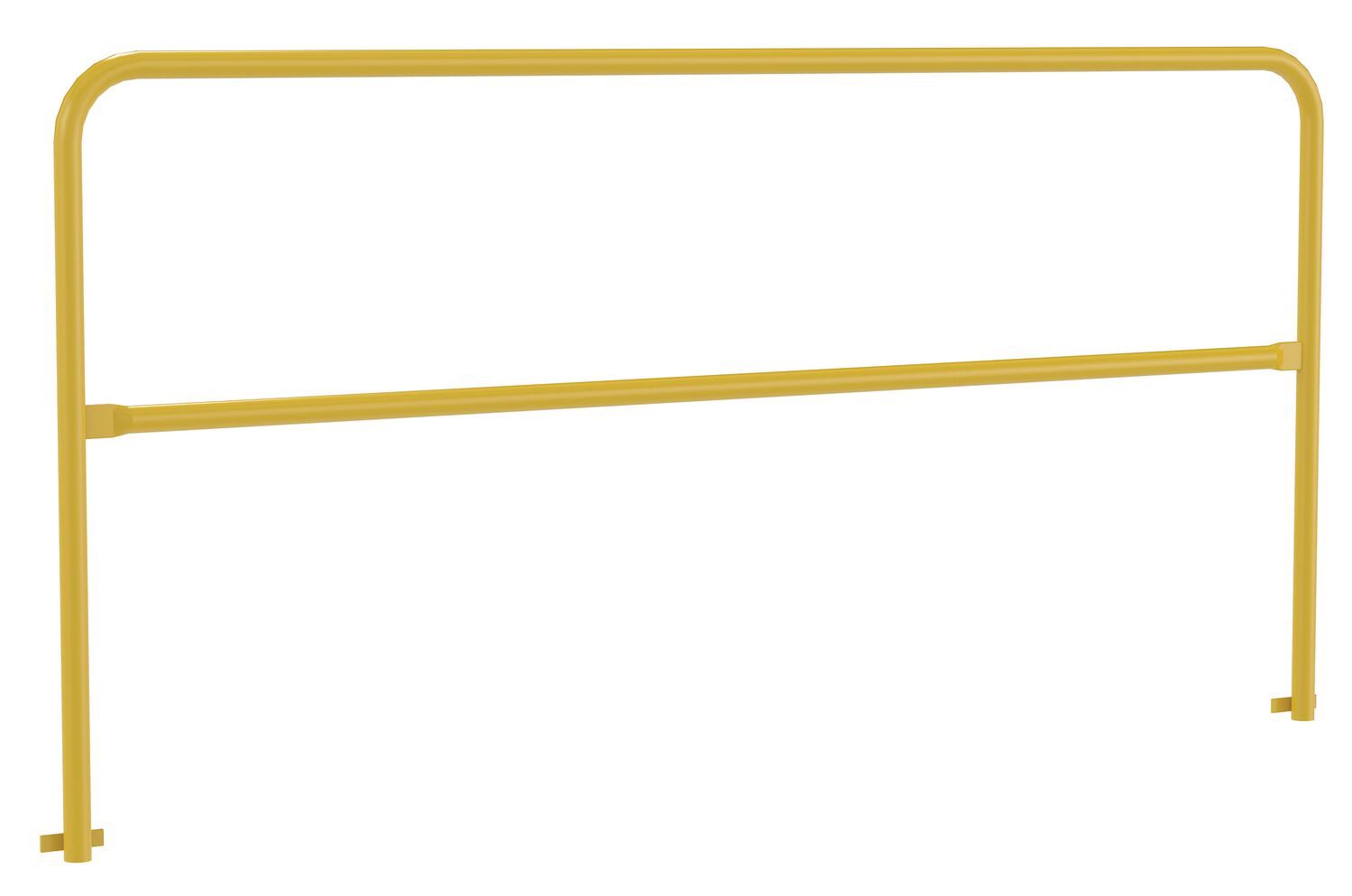

| VDKR-PP-8 | NEW |  | 90 Days Limited Warranty | Steel Safety Railing Pour in Place 8 Ft. Length Yellow | Overall Length (in.): 98-1/4" Overall Width (in.): 1-1/4" | 77 |
