Steel Safety Railings

Print Friendly

Related Items
Model Chart
Options
PDF's
Image Gallery
Steel Safety Railings

model: VDKR

VDKR_A.jpg VDKR_1.jpg VDKR-P101_E.jpg VDKR-P102_D.jpg More Images +
Steel Safety Railings
SERIES: VDKR

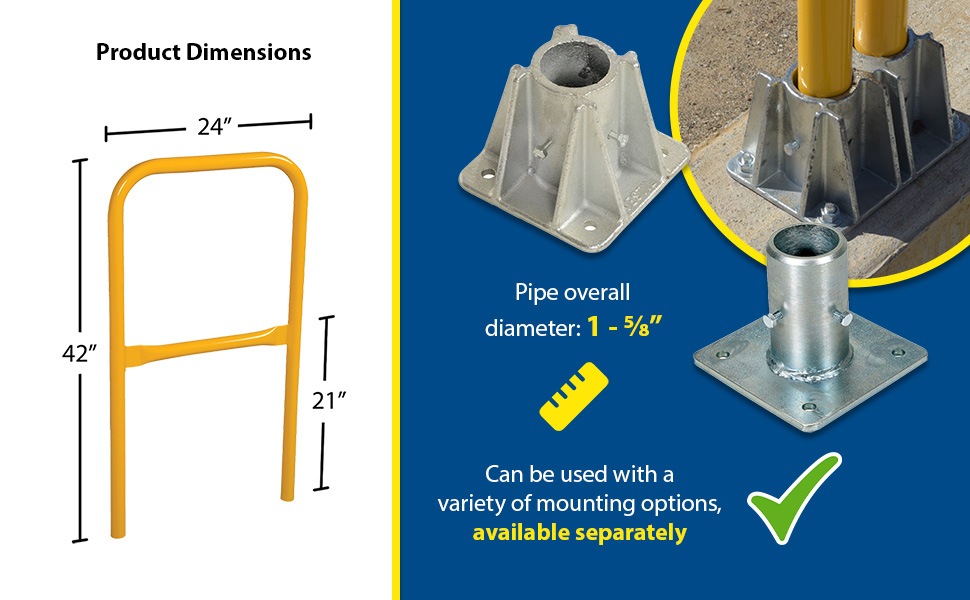

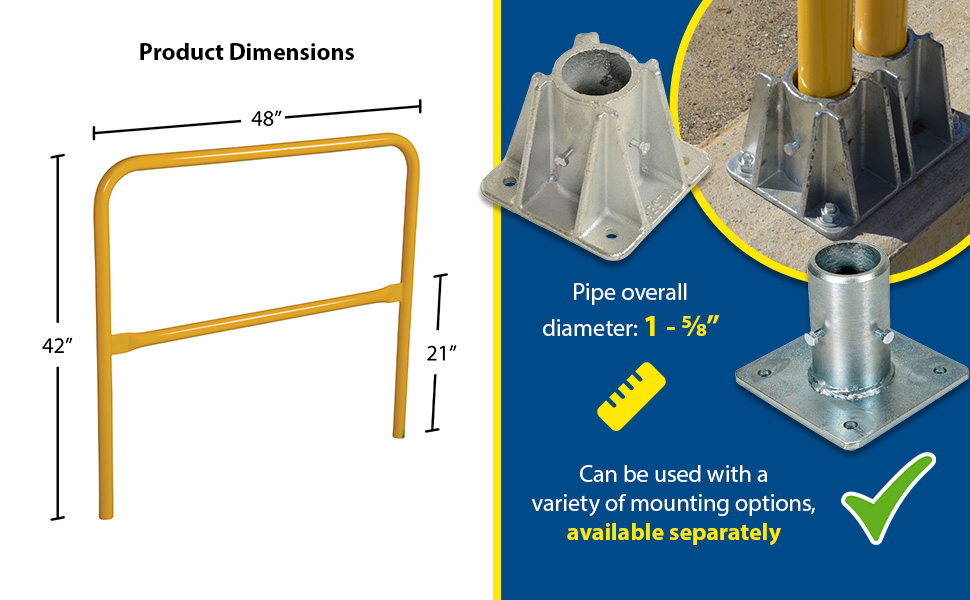

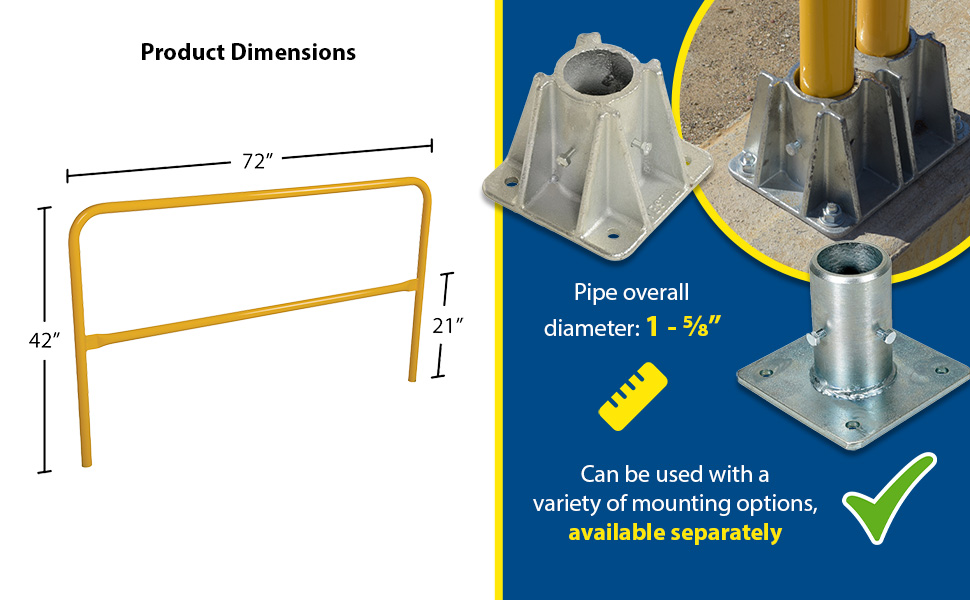

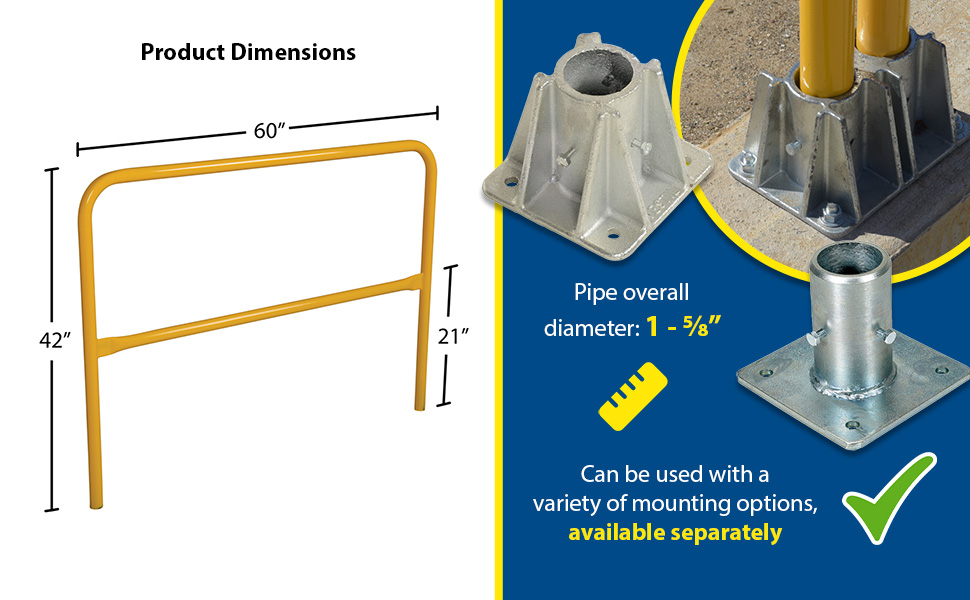

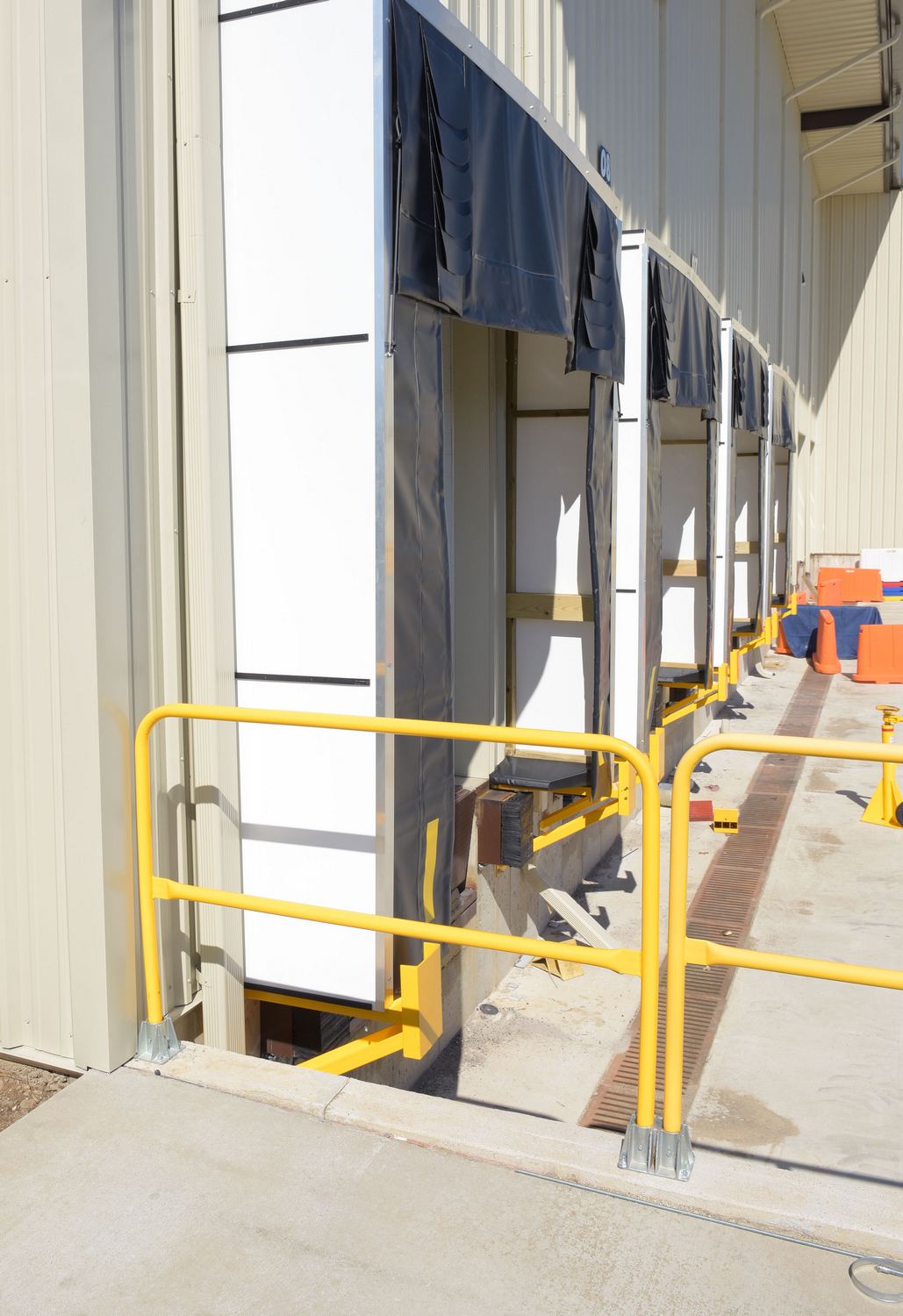

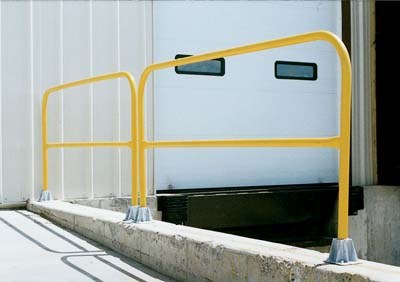

Protect people from uneven walkways and mezzanine drop-off's. The safety railing is constructed of schedule 10 steel. All models have an outside pipe diameter of 1-5/8". Handrails are 42" high with a 21" mid-rail. Mounting options include socket sleeves, cast steel base, barricade base, or cast steel sockets for convenient handrail removal. The cast steel sockets accept wood 2" x 4" or 2" x 6" when toe boards are required. Two (2) lag down holes are pre-drilled for permanently mounting the railing. The steel design includes a baked-in powder-coated finish, which is available in a variety of colors found in the table below. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General Industry requirements for guardrail systems in 29 CFR 1910.29.

central rudder

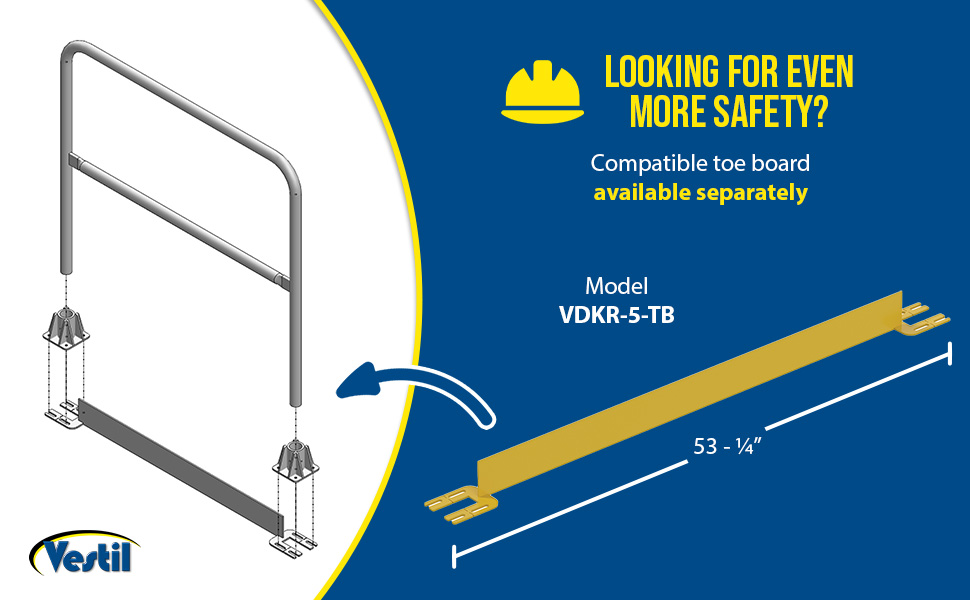

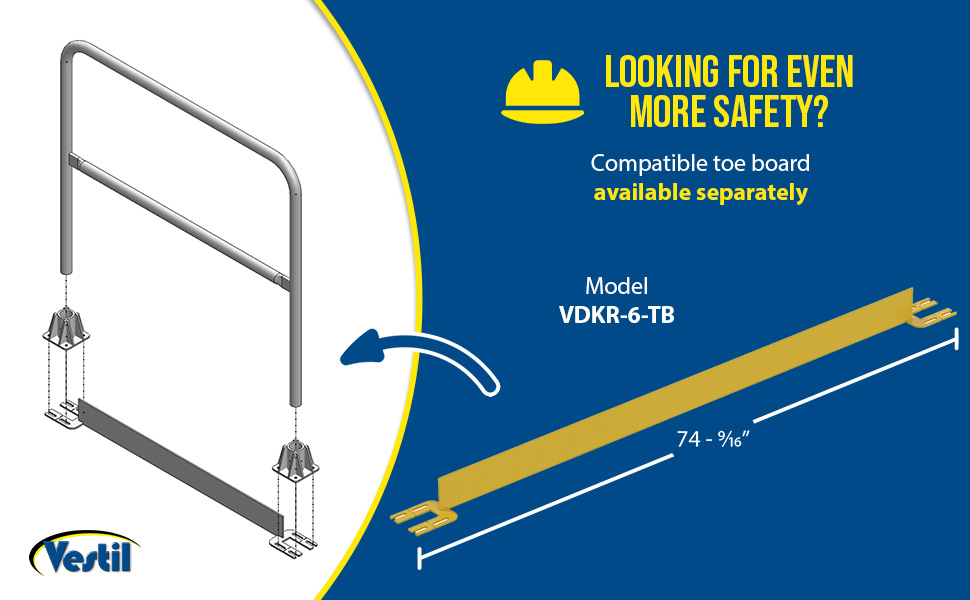

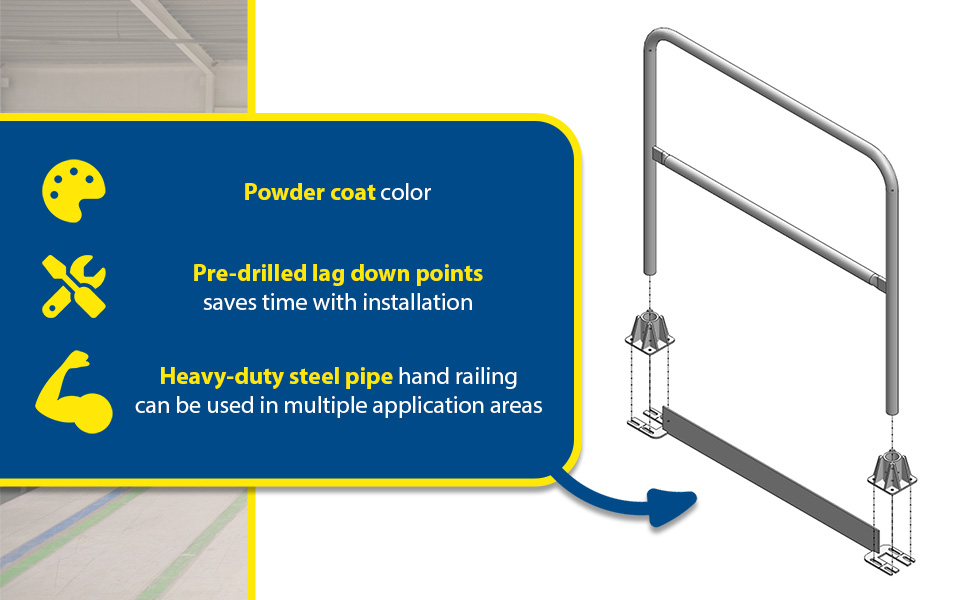

Rail + Sockets + Toe Board

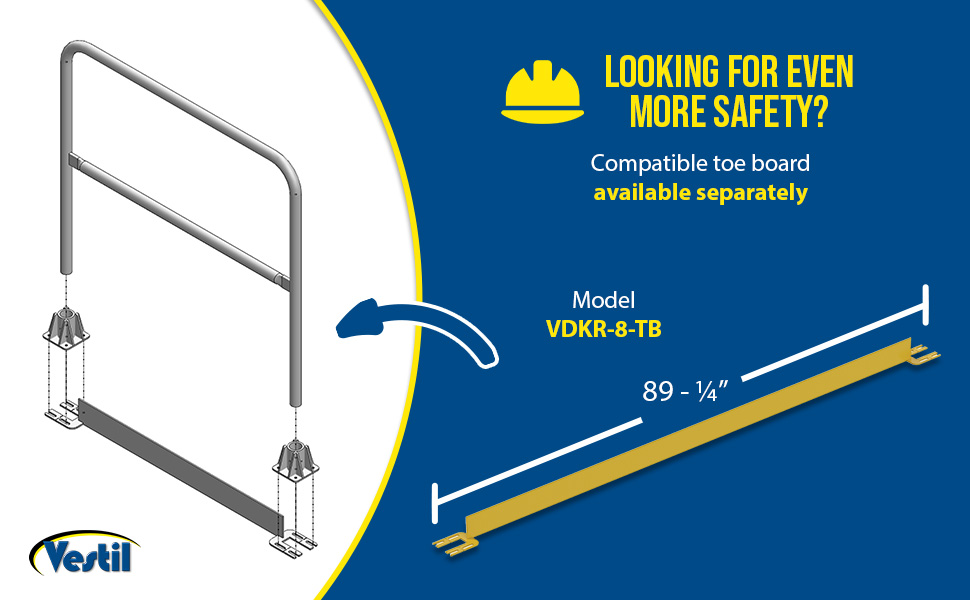

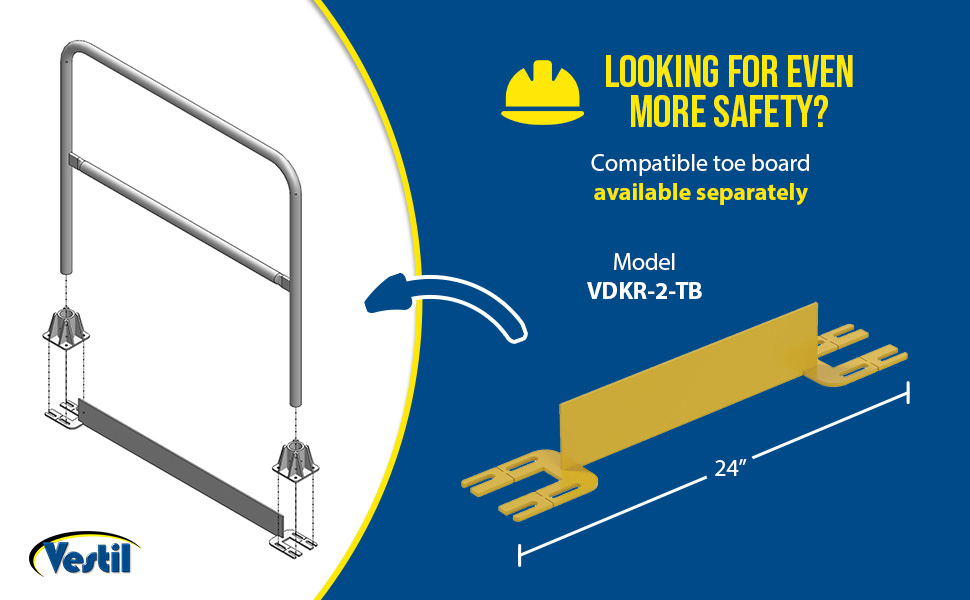

Add a toe board to your railing for extra safety! Installation is fast and easy with the predrilled lag down points. Protect people or employees from uneven walkways and mezzanine drop-offs.

Check Out Vestil's Other Safety Railing Styles:


Aluminum Safety Railing 		VDKR-PP-5_A.jpg
Pour-In-Place Safety Railing
Steel Safety Railing w/ Welded Baseplate
Steel Safety Railings

model: VDKR

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
VDKR-10
VDKR-10-TB
VDKR-2
VDKR-2-TB
VDKR-3
VDKR-3-TB
VDKR-4
VDKR-4-TB
VDKR-5
VDKR-5-TB
VDKR-6
VDKR-6-TB
VDKR-7
VDKR-7-TB
VDKR-8
VDKR-8-TB
VDKR-BASE
VDKR-BASE-W
VDKR-BB-F
VDKR-BB-W
VDKR-CON
VDKR-G3
VDKR-G3-B
VDKR-G4
VDKR-P101
VDKR-P102
VDKR-P107
VDKR-VM1
VDKR-VM2
VDKR-W-101
VDKR-W-102
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

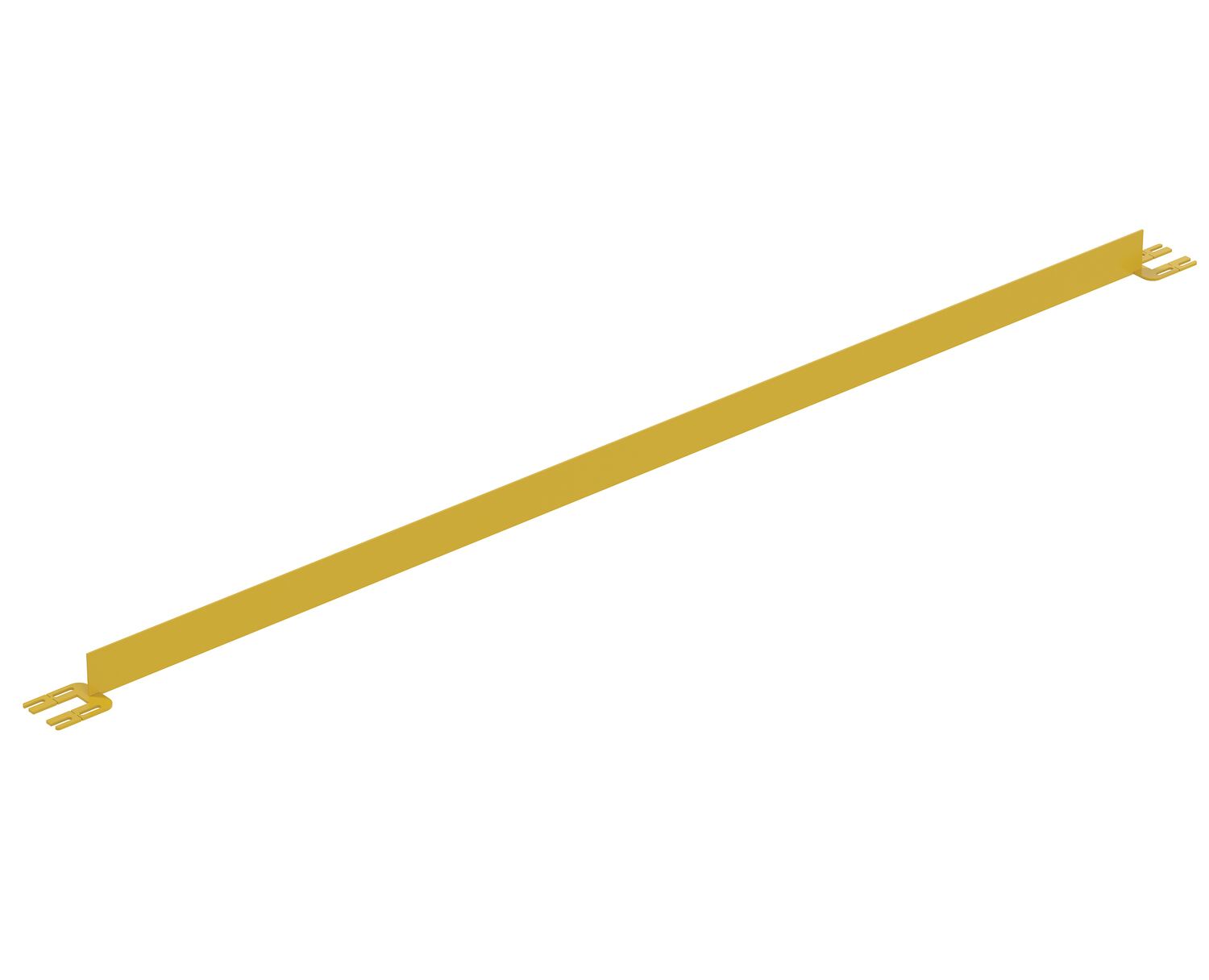

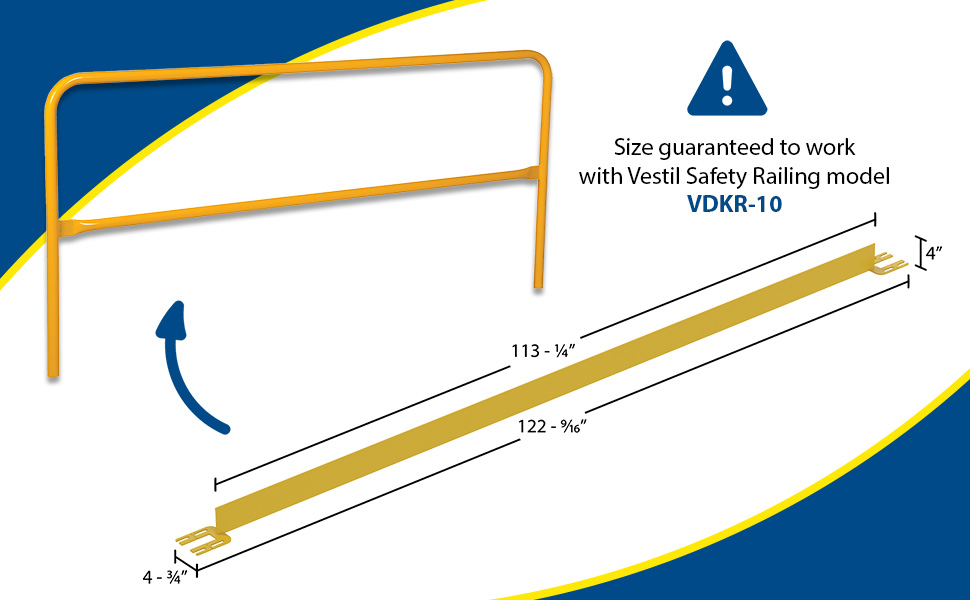

VDKR-10-TB VDKR-10-TB Steel Toe Board for Pipe Safety Railing 10 Ft. Length Yellow 90 Days Limited Warranty 27

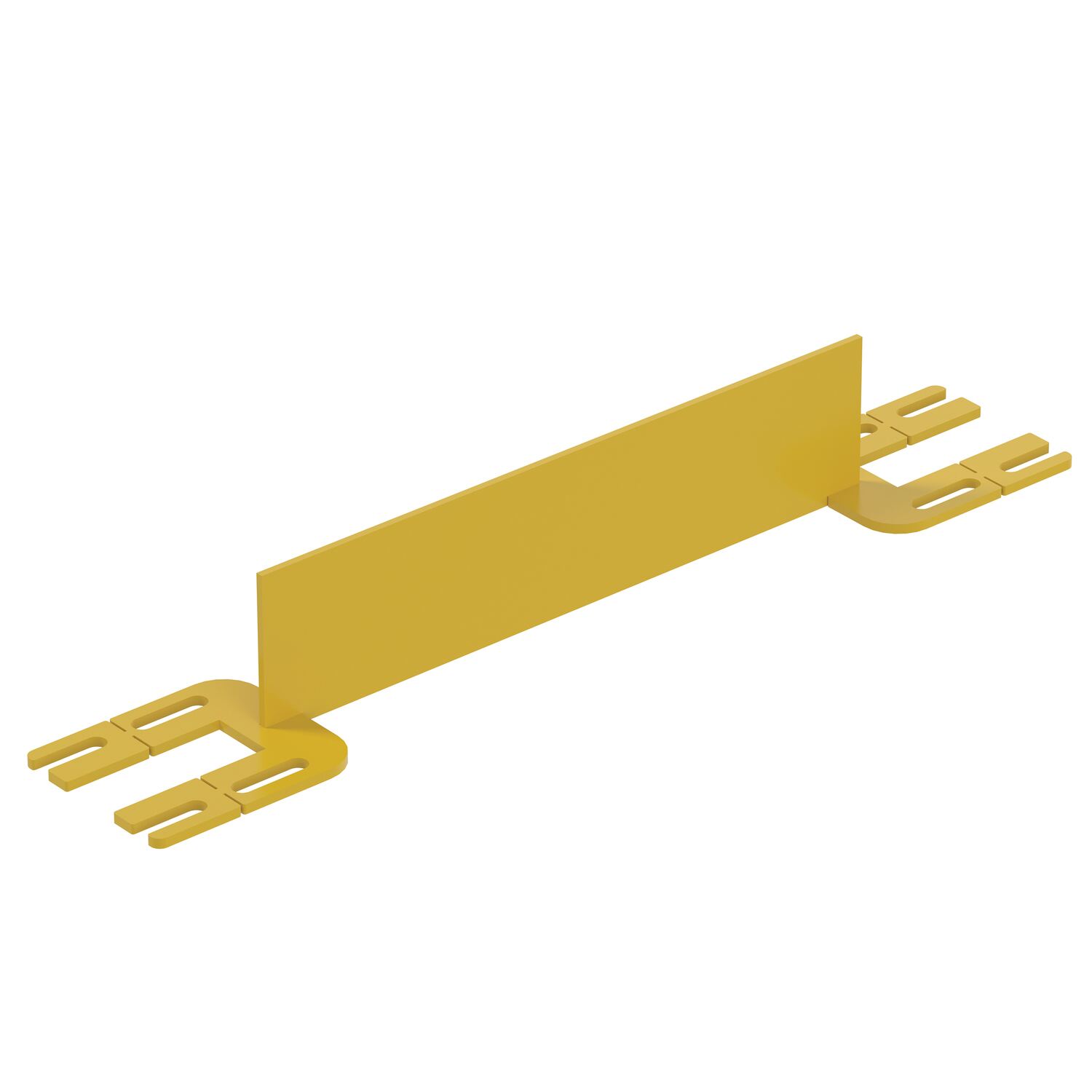

VDKR-2-TB VDKR-2-TB Steel Toe Board for Pipe Safety Railing 2 Ft. Length Yellow 90 Days Limited Warranty 7

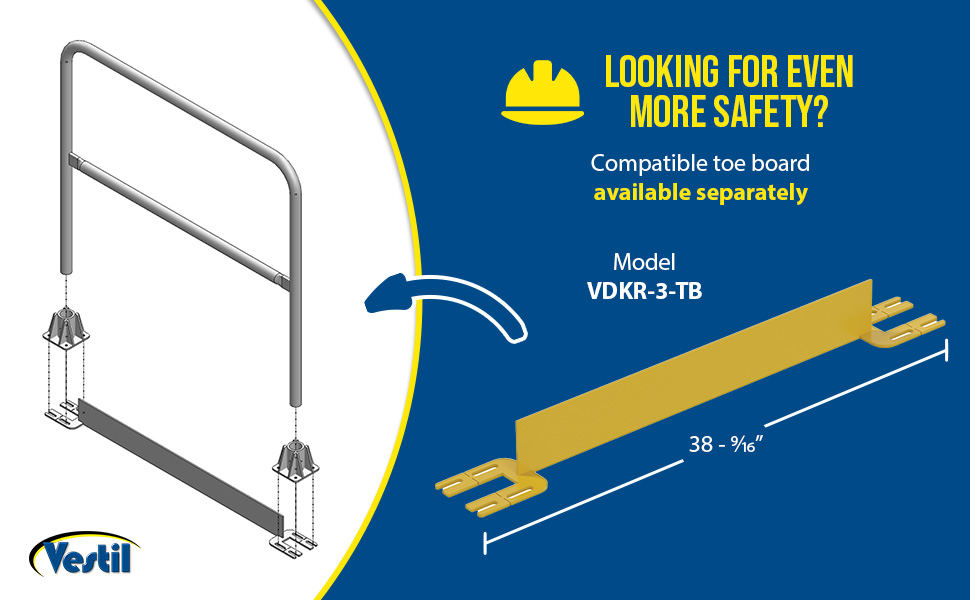

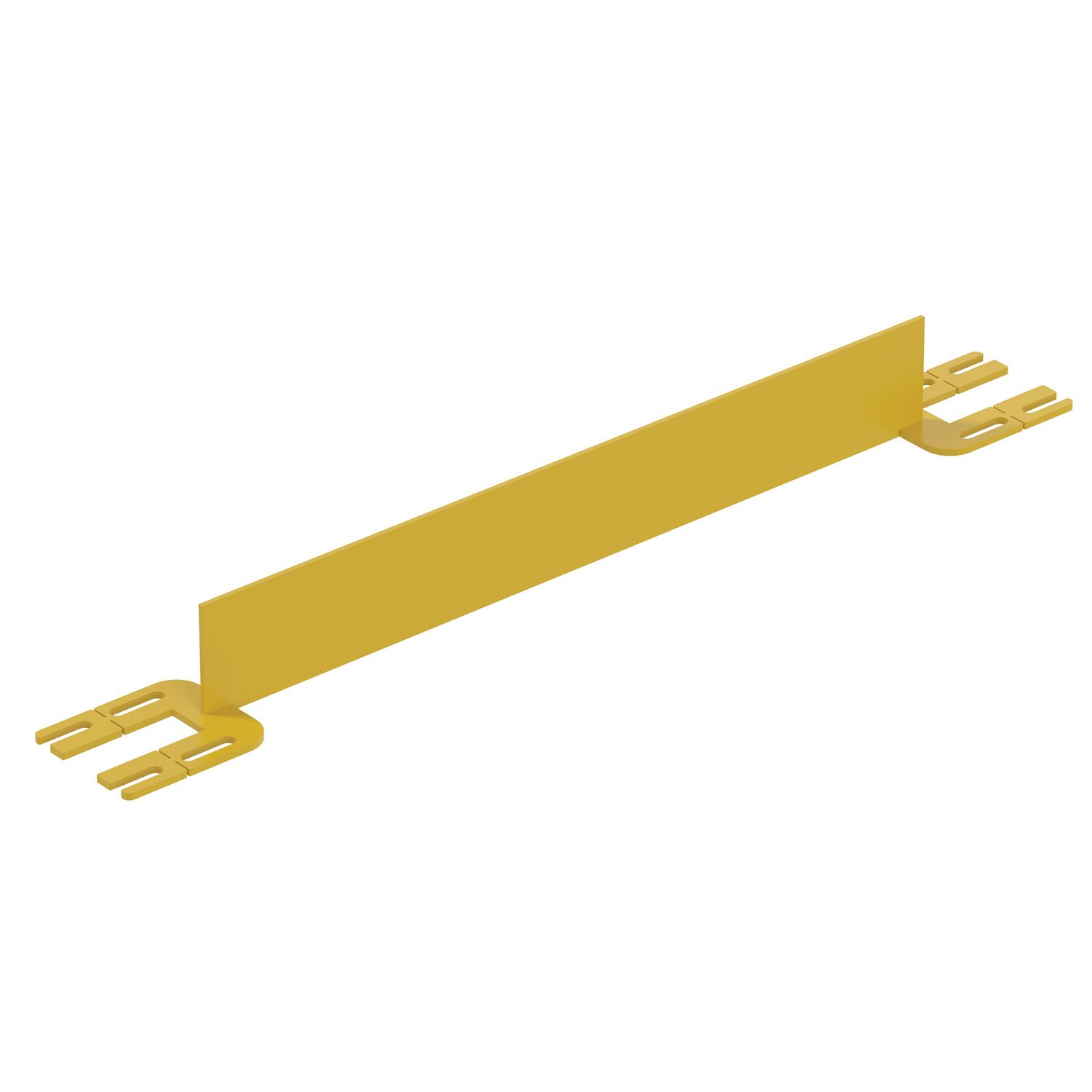

VDKR-3-TB VDKR-3-TB Steel Toe Board for Pipe Safety Railing 3 Ft. Length Yellow 90 Days Limited Warranty 10

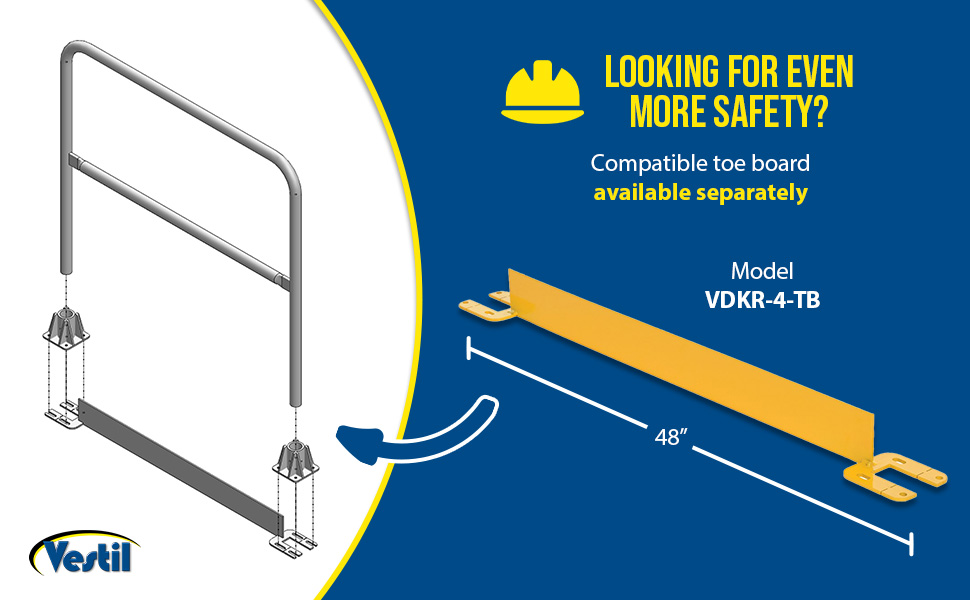

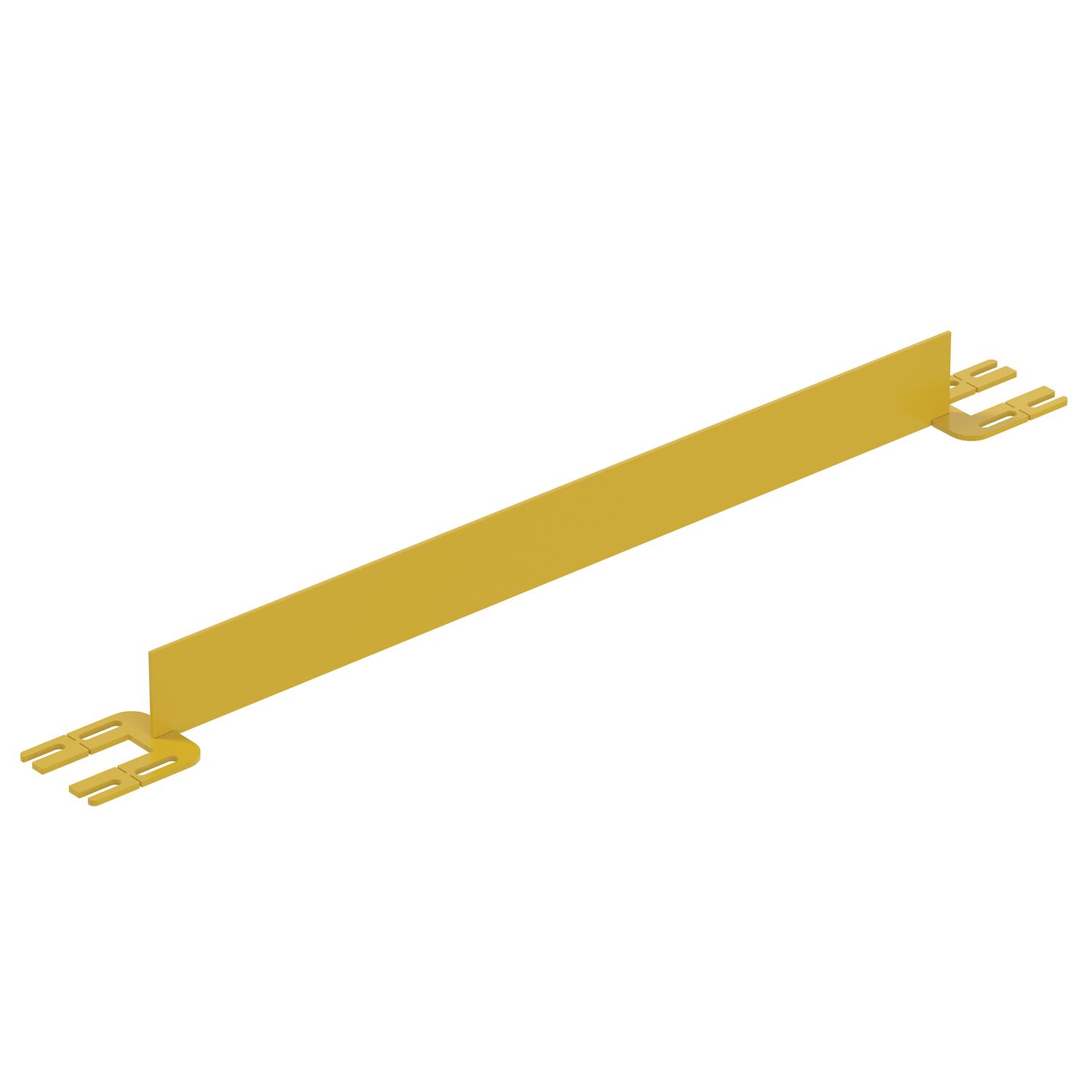

VDKR-4-TB VDKR-4-TB Steel Toe Board for Pipe Safety Railing 4 Ft. Length Yellow 90 Days Limited Warranty 14

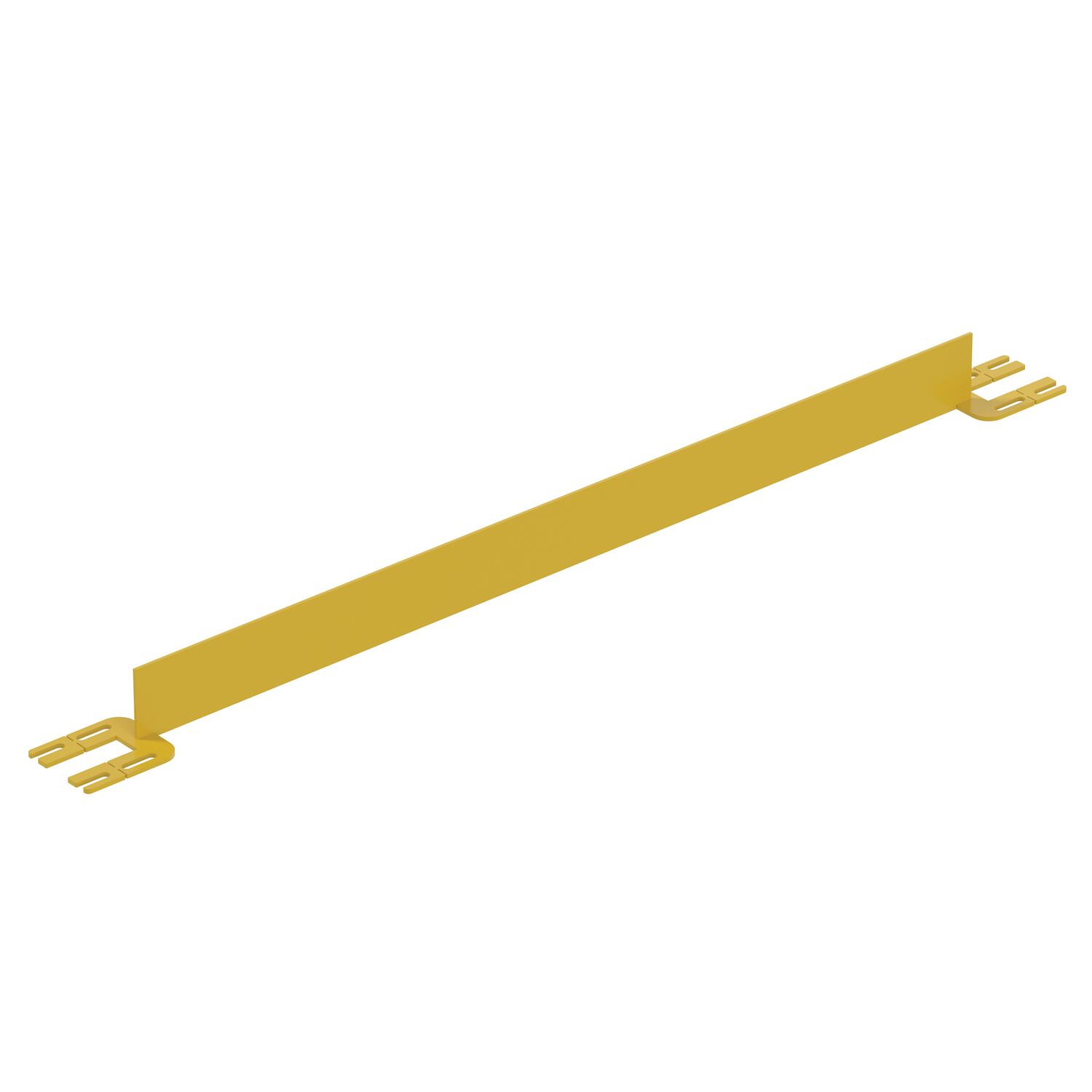

VDKR-5-TB VDKR-5-TB Steel Toe Board for Pipe Safety Railing 5 Ft. Length Yellow 90 Days Limited Warranty 22

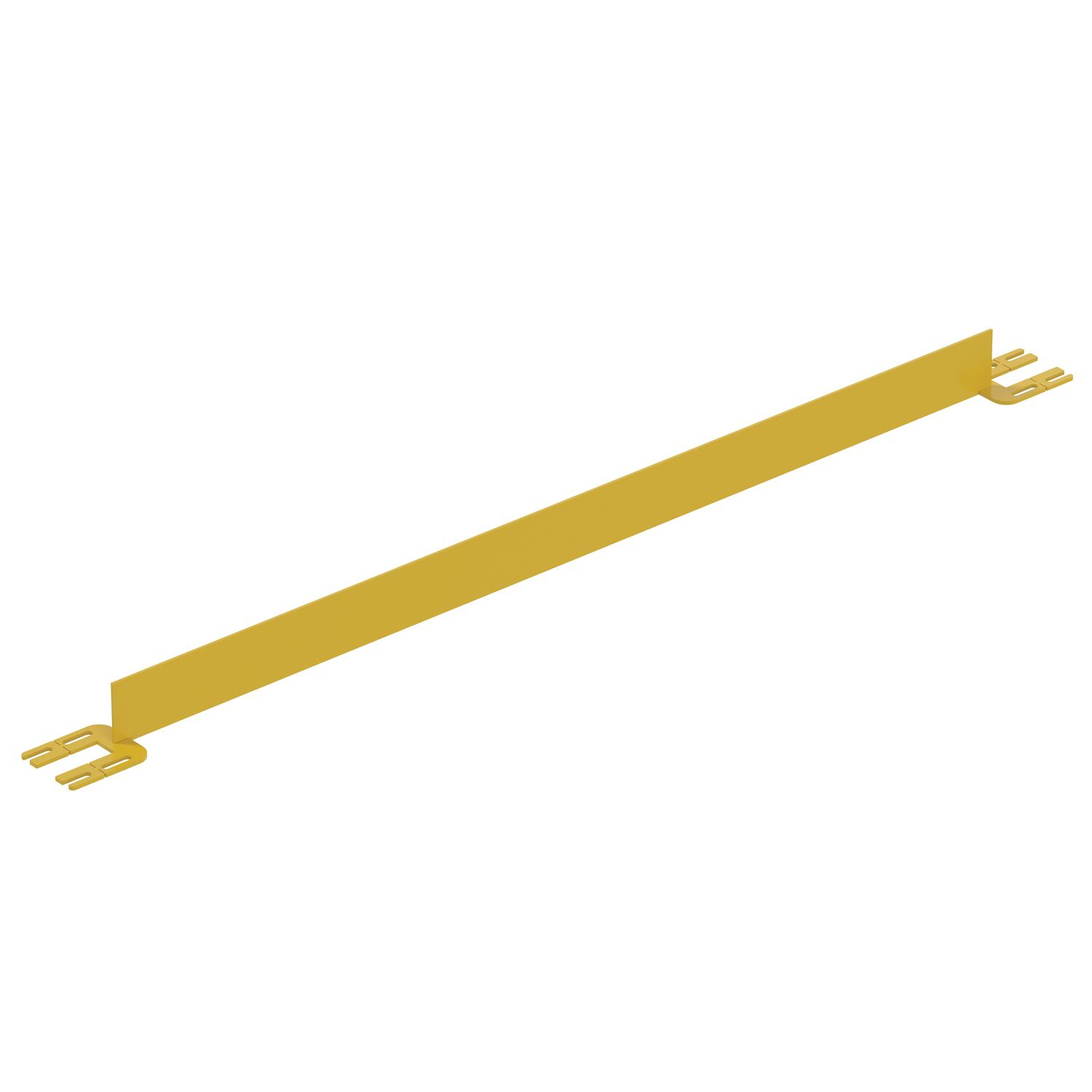

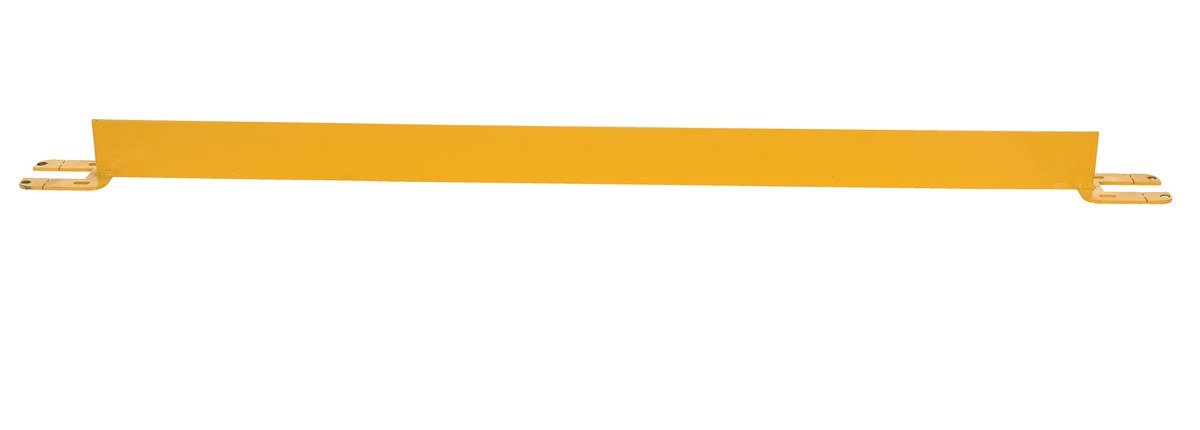

VDKR-6-TB VDKR-6-TB Steel Toe Board for Pipe Safety Railing 6 Ft. Length Yellow 90 Days Limited Warranty 51

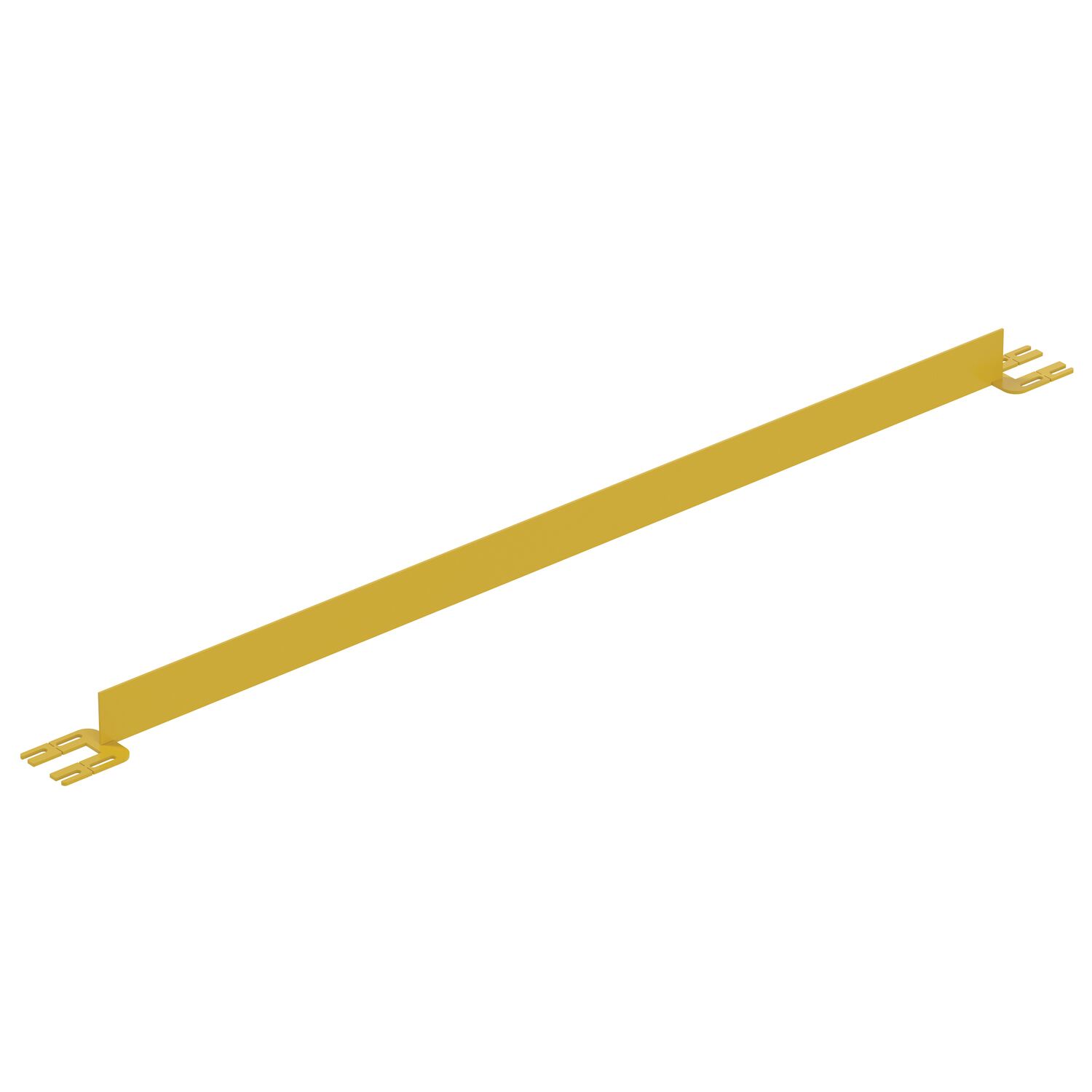

VDKR-7-TB VDKR-7-TB Steel Toe Board for Pipe Safety Railing 7 Ft. Length Yellow 90 Days Limited Warranty 30

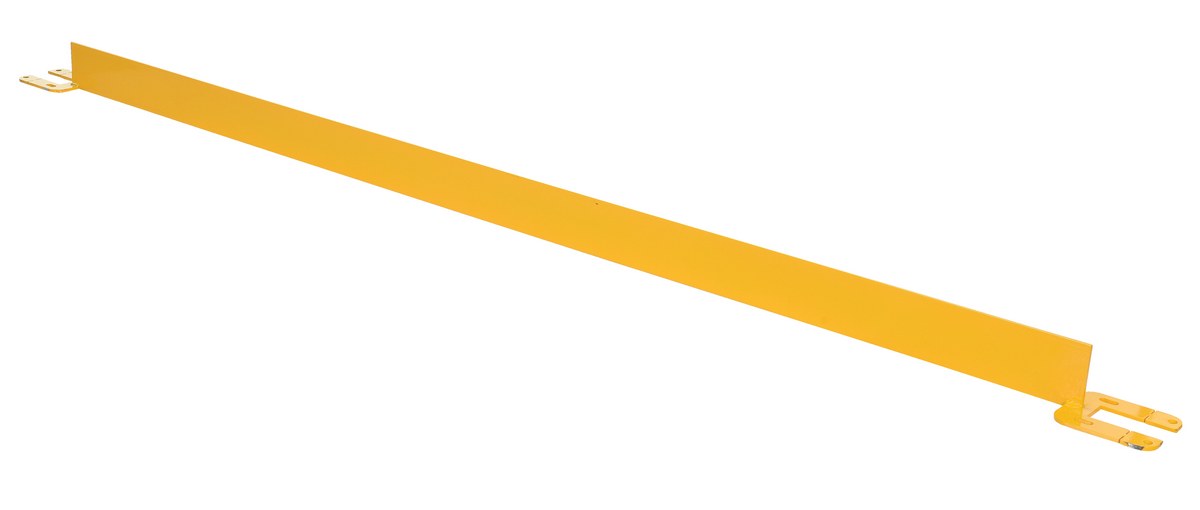

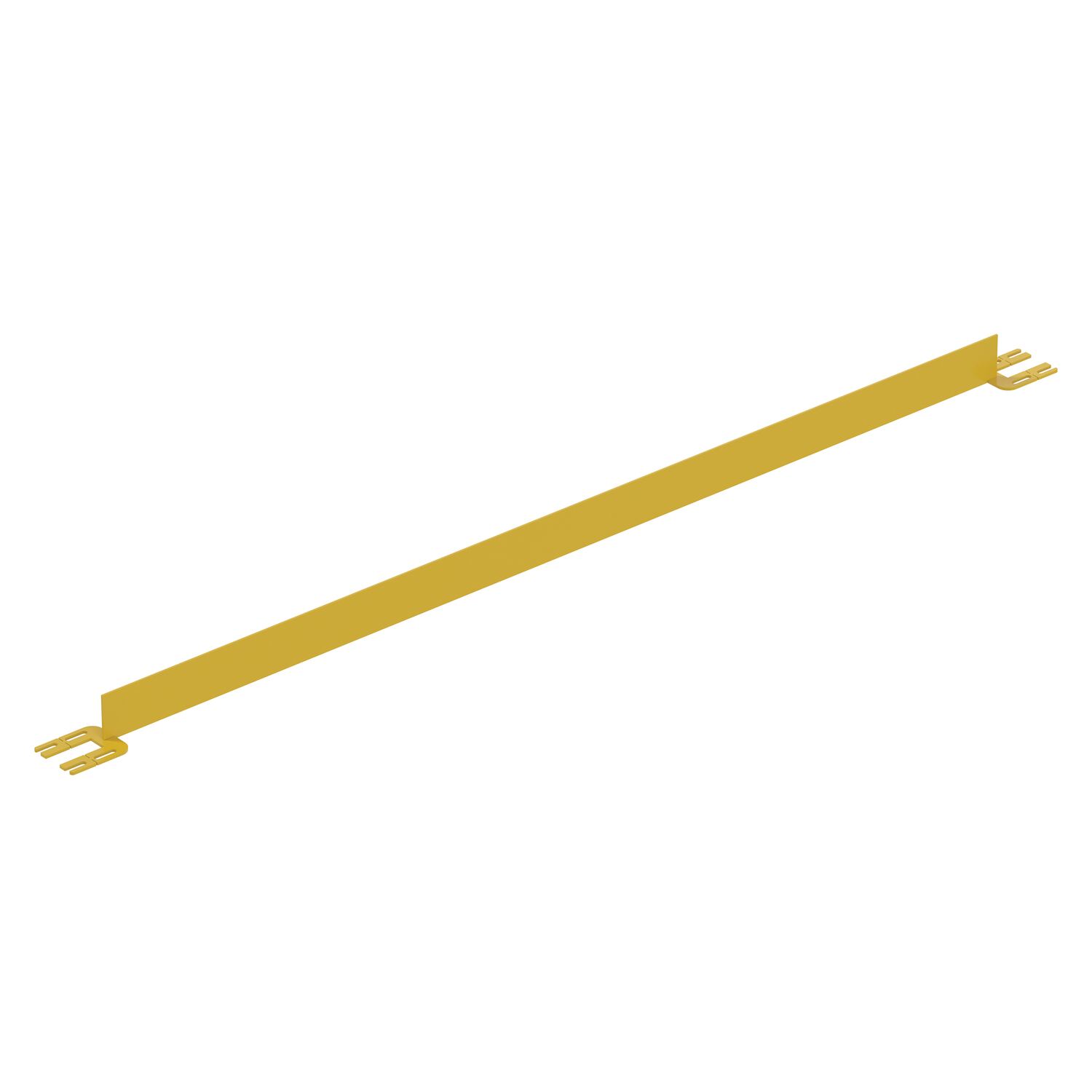

VDKR-8-TB VDKR-8-TB Steel Toe Board for Pipe Safety Railing 8 Ft. Length Yellow 90 Days Limited Warranty 58

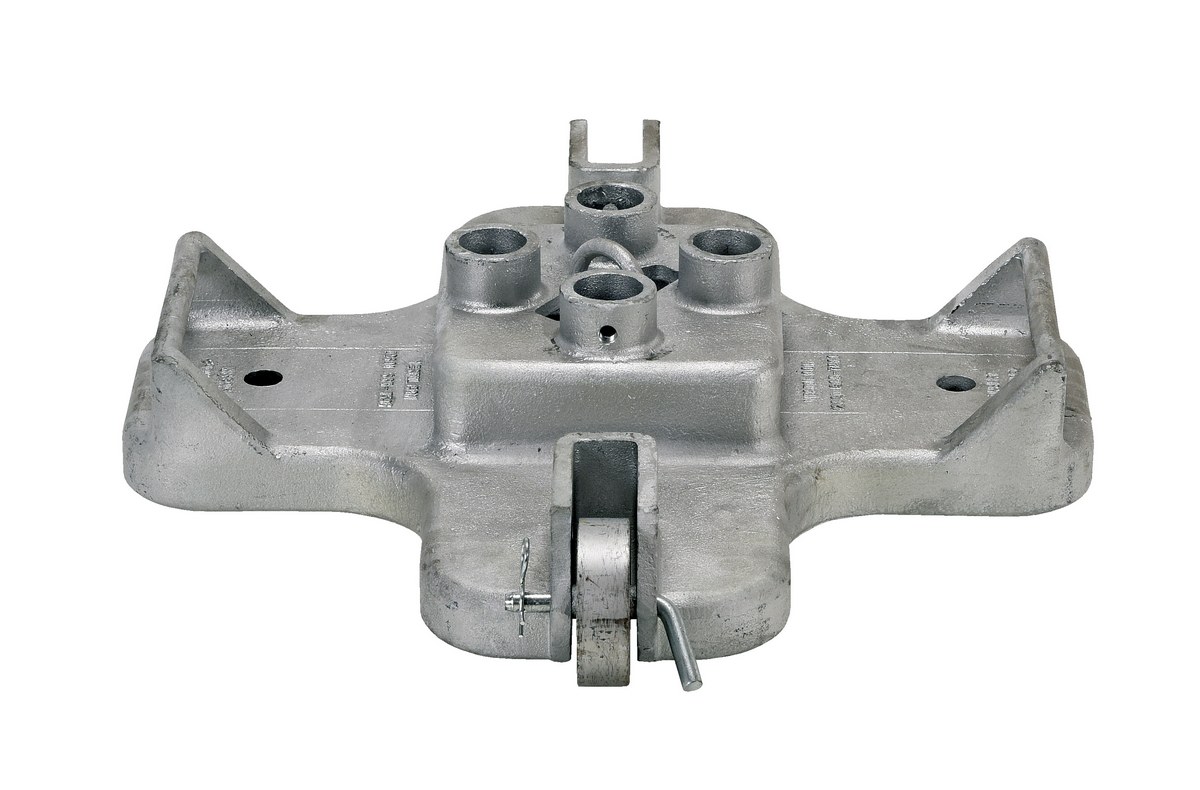

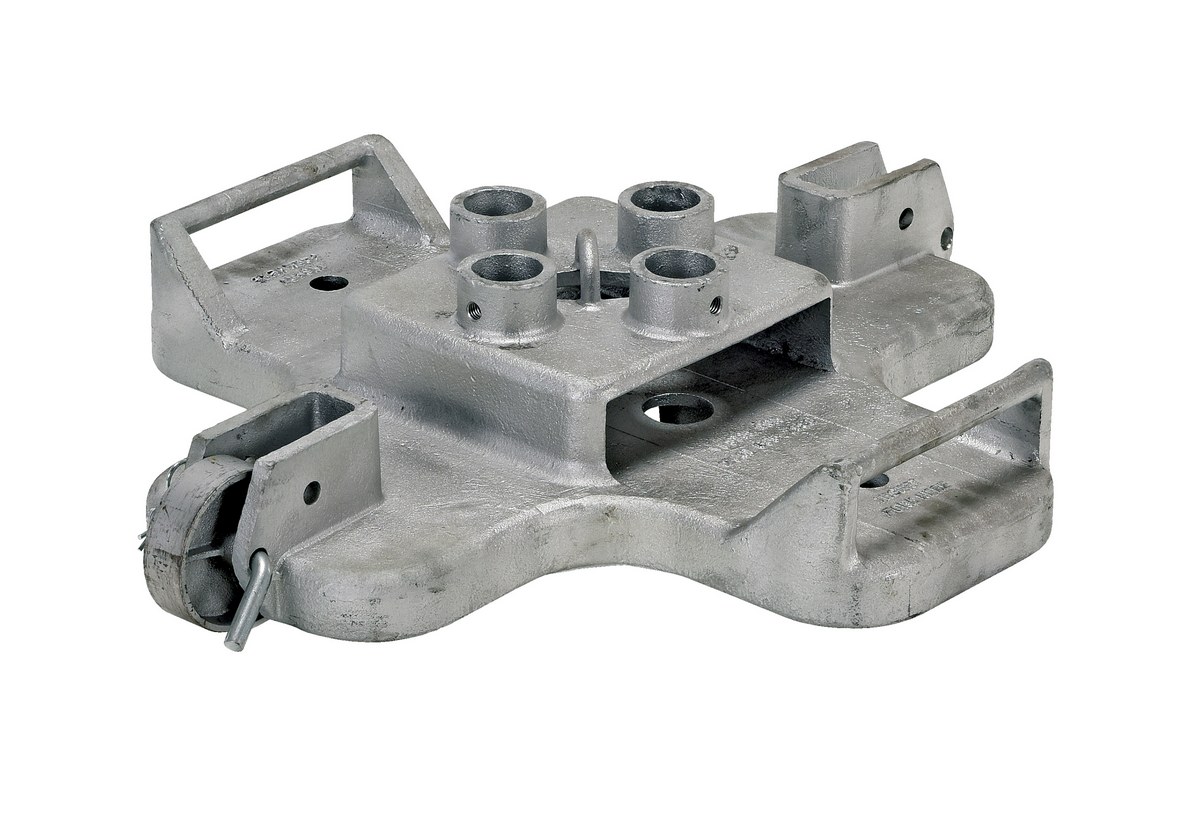

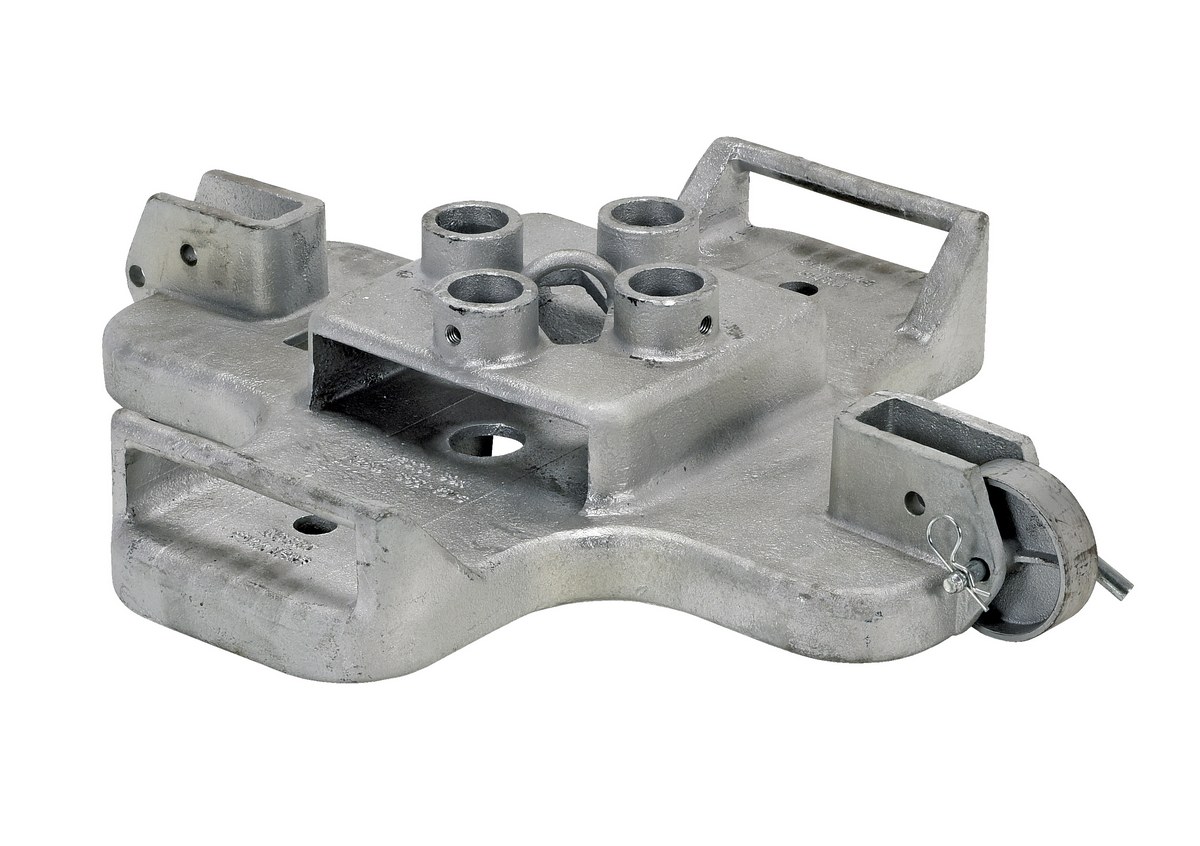

VDKR-BASE VDKR-BASE Cast Iron Pipe Safety Railing Base 2.13 In. x 28.5 In. x 5.7… 90 Days Limited Warranty 137

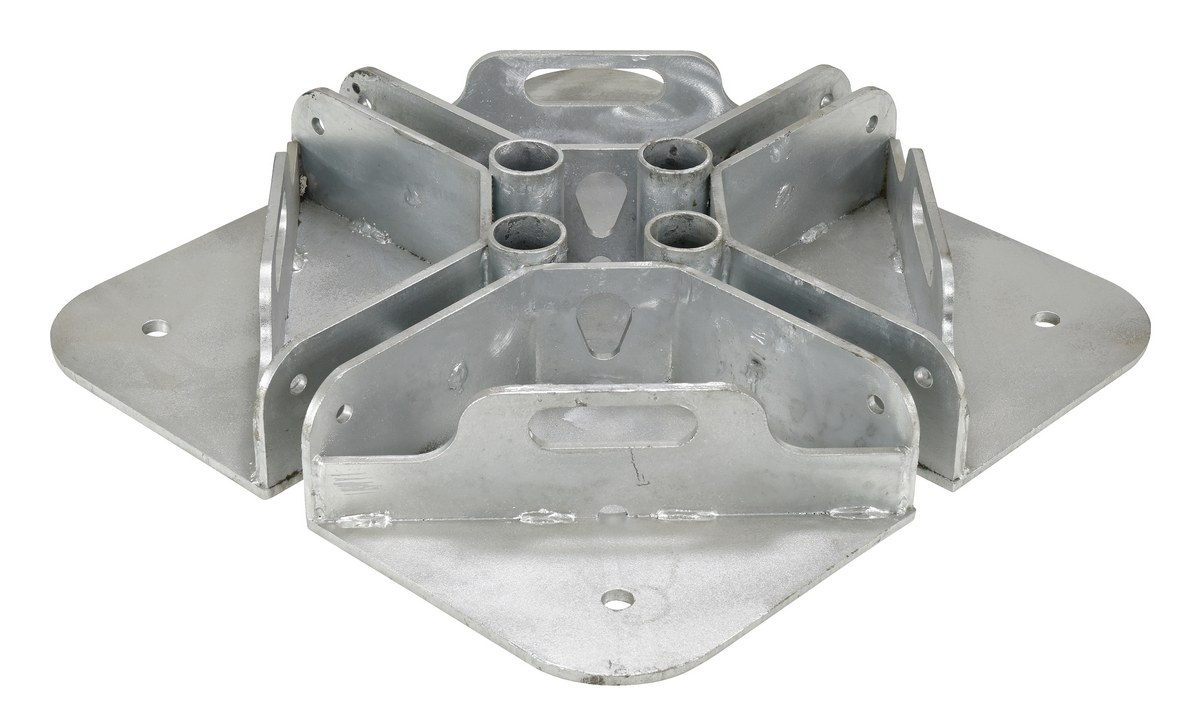

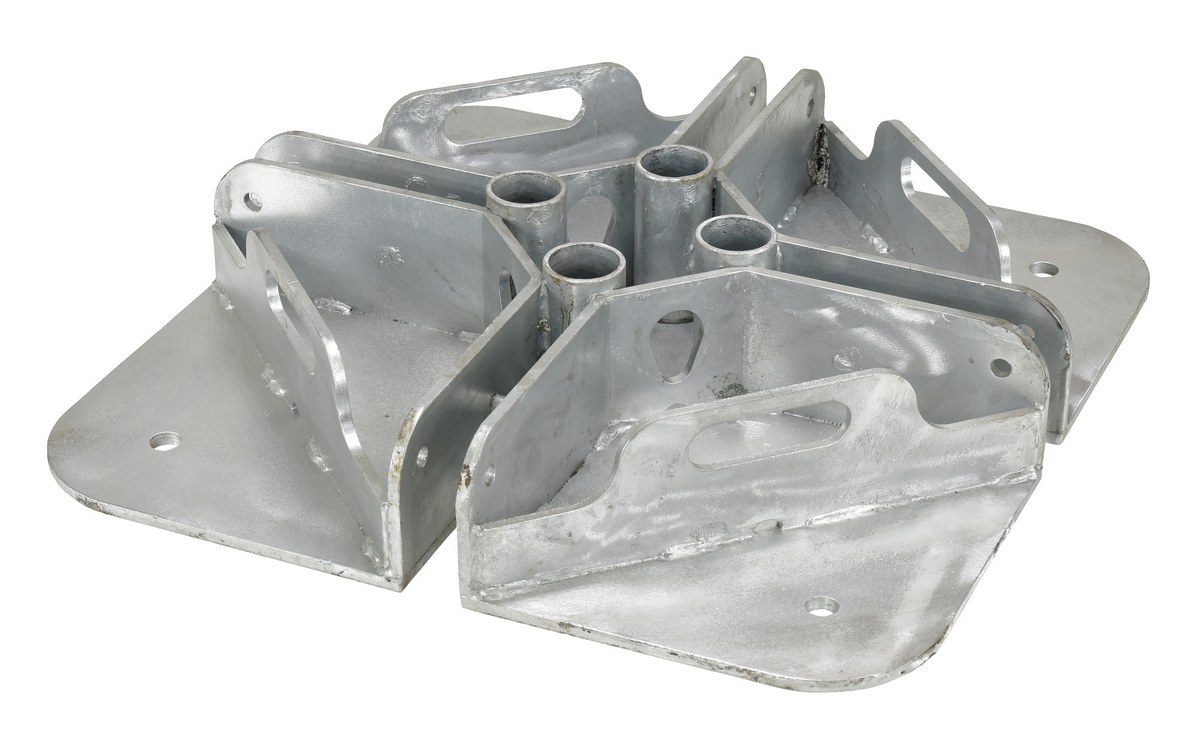

VDKR-BASE-W VDKR-BASE-W Galvanized Steel Pipe Safety Railing Welded Base 24 In. x 24… 90 Days Limited Warranty 135

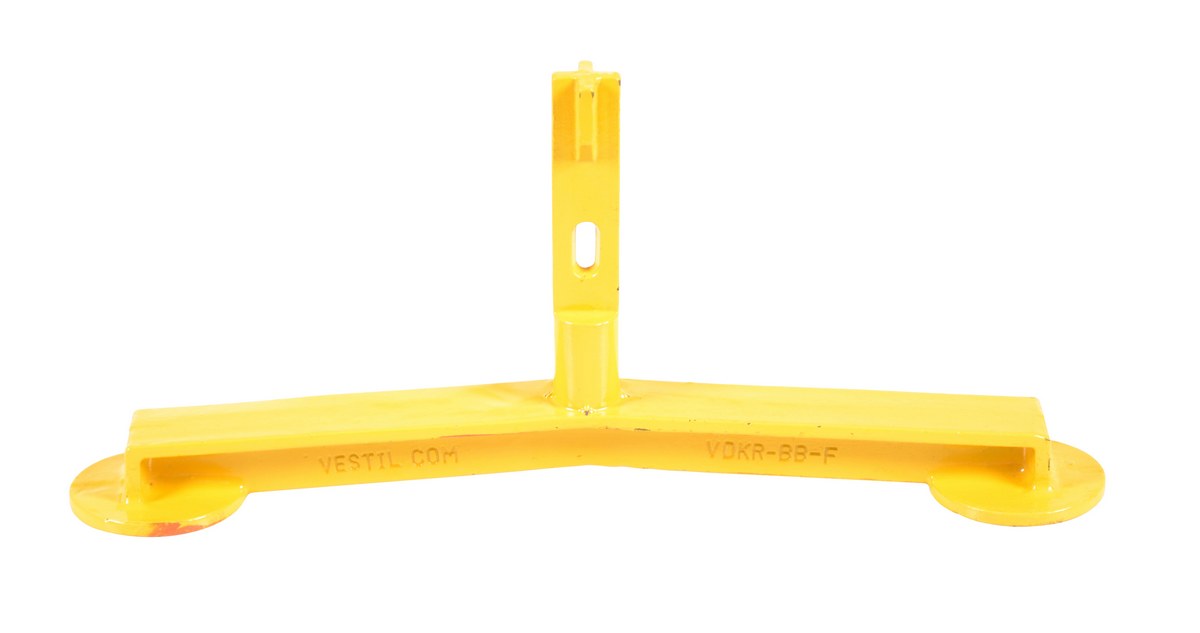

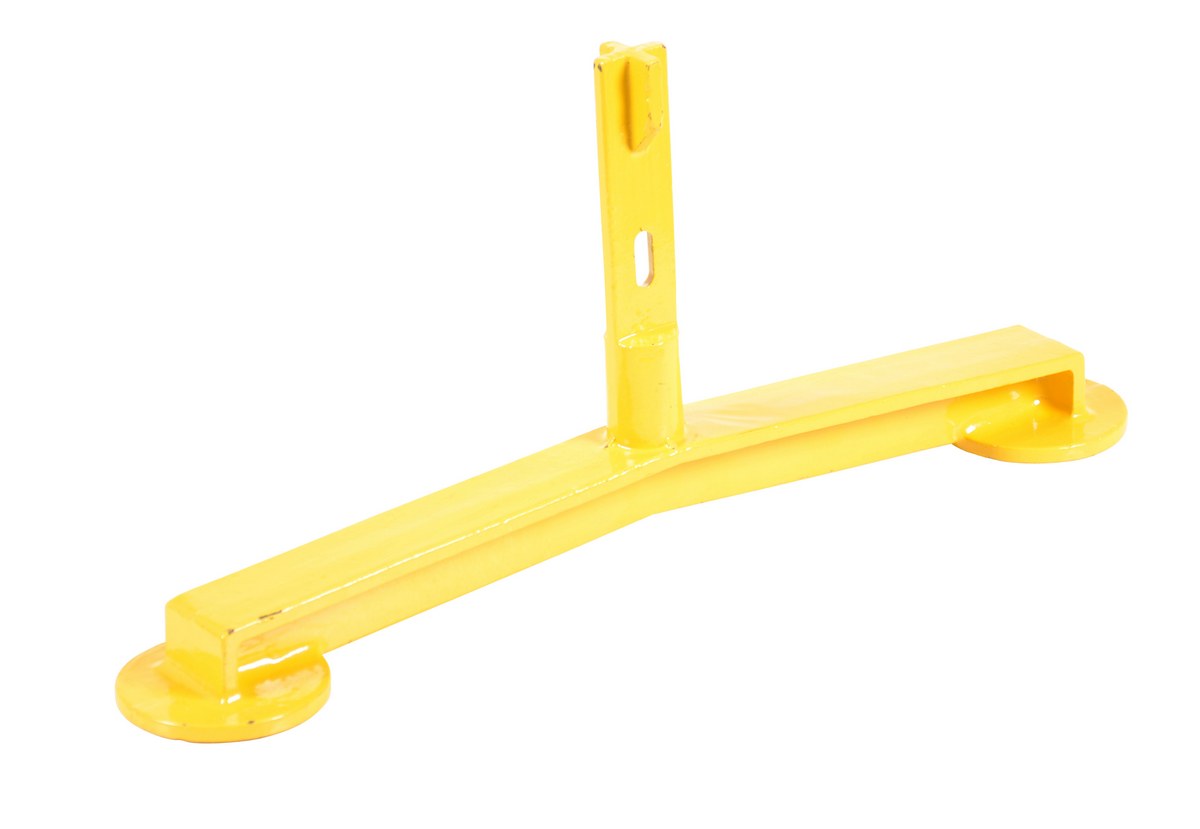

VDKR-BB-F VDKR-BB-F Steel Pipe Railing Barricade Base with Feet Yellow 90 Days Limited Warranty 6

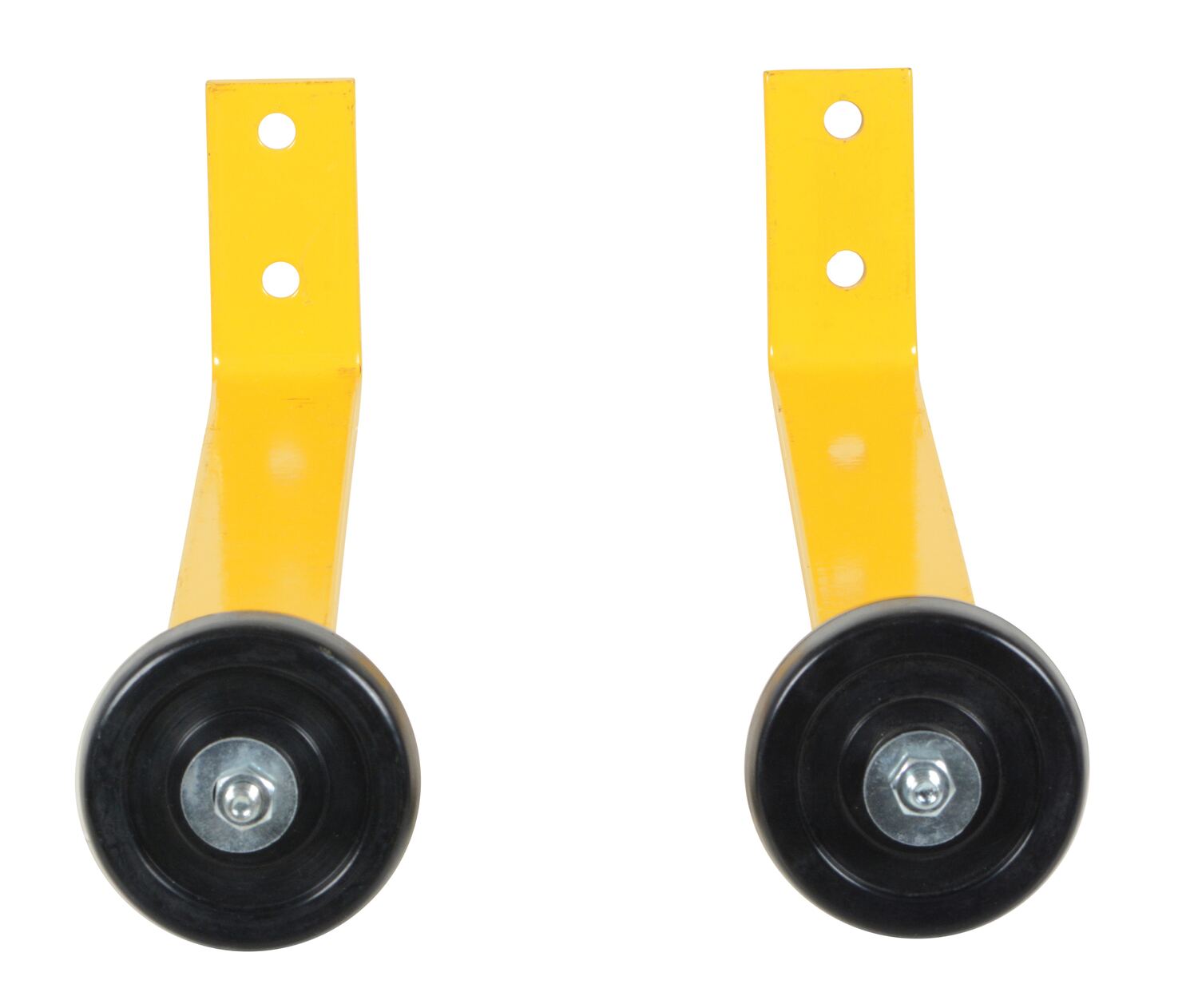

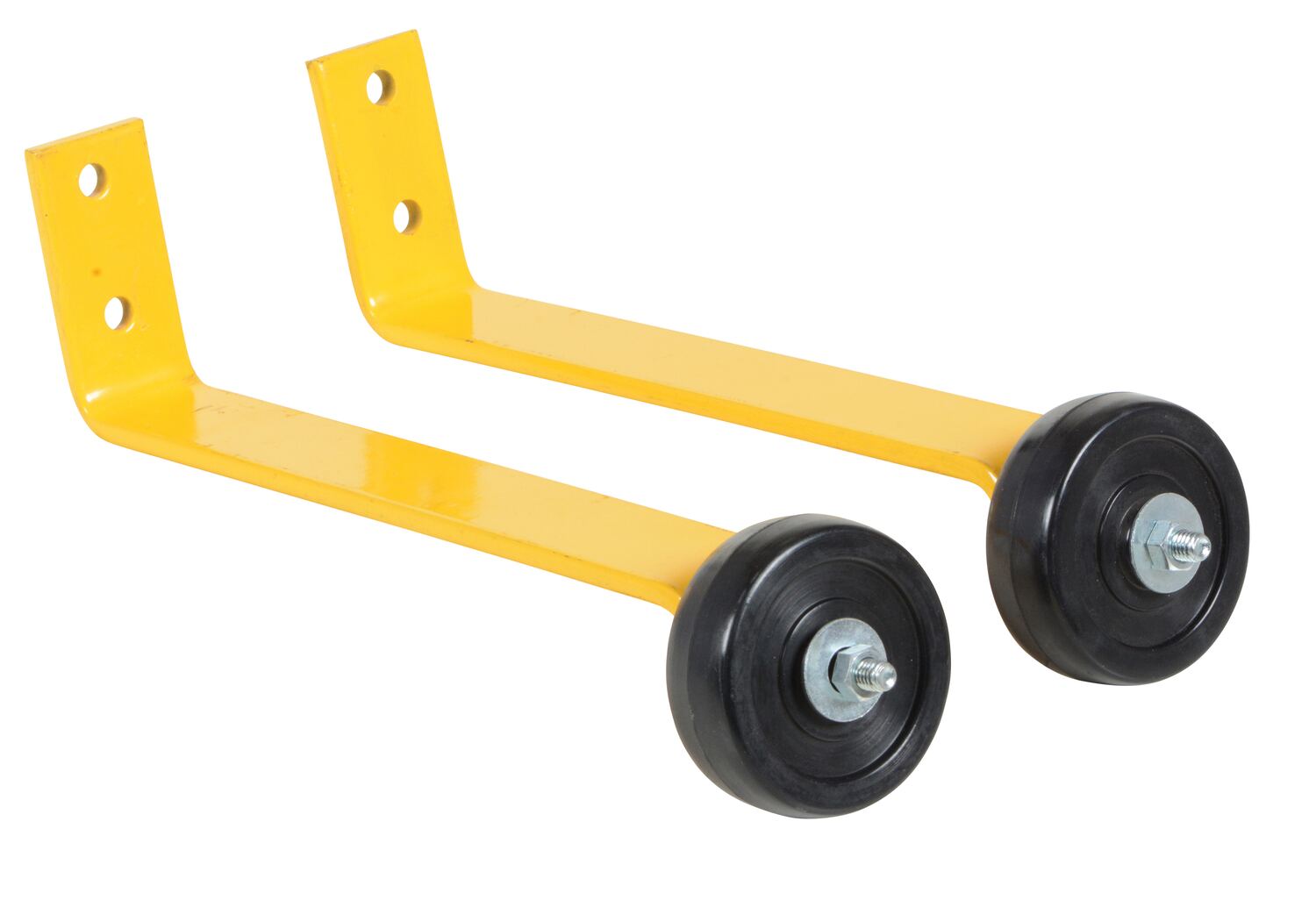

VDKR-BB-W VDKR-BB-W Steel Pipe Railing Barricade Base With Wheels Yellow 90 Days Limited Warranty 7

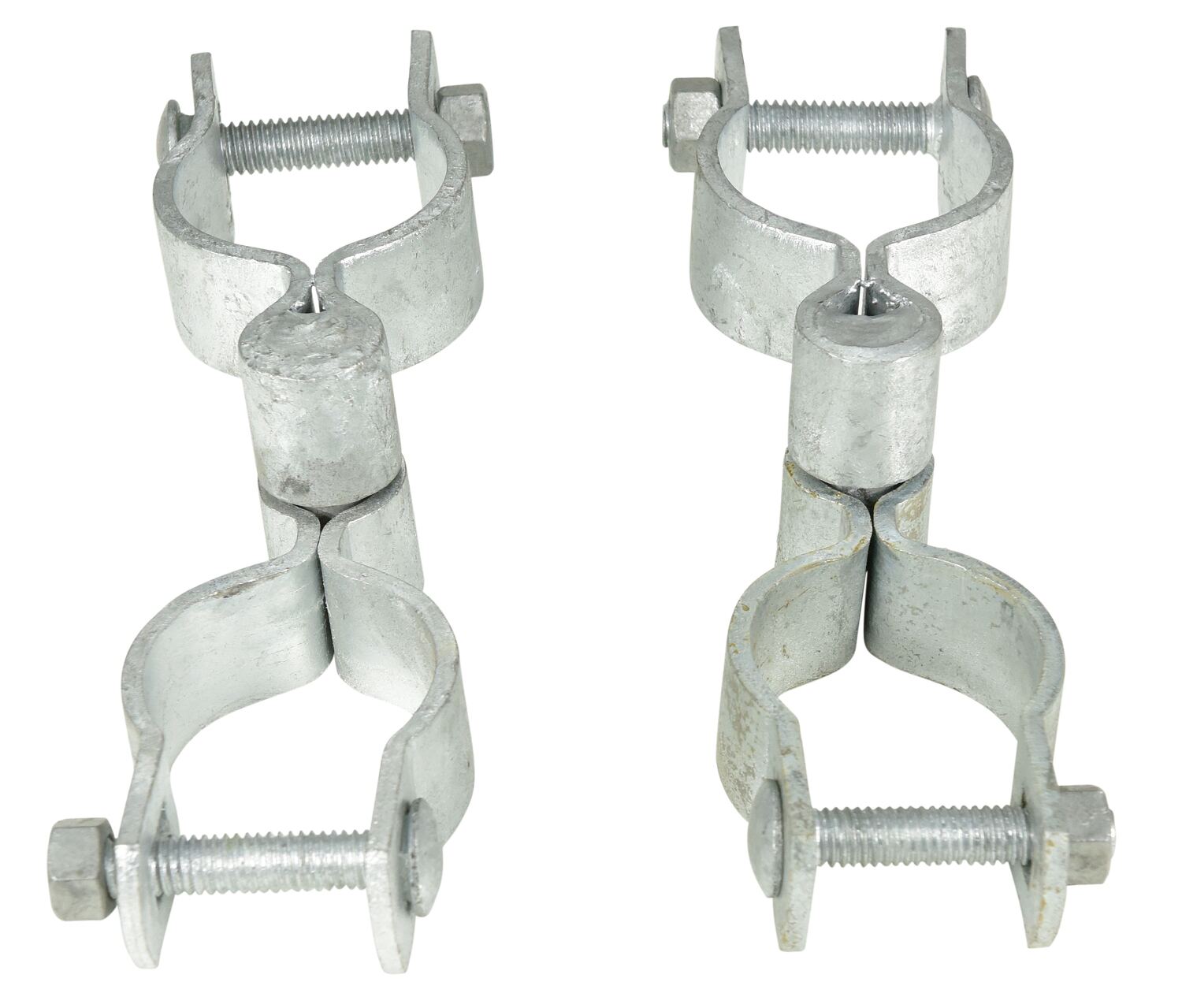

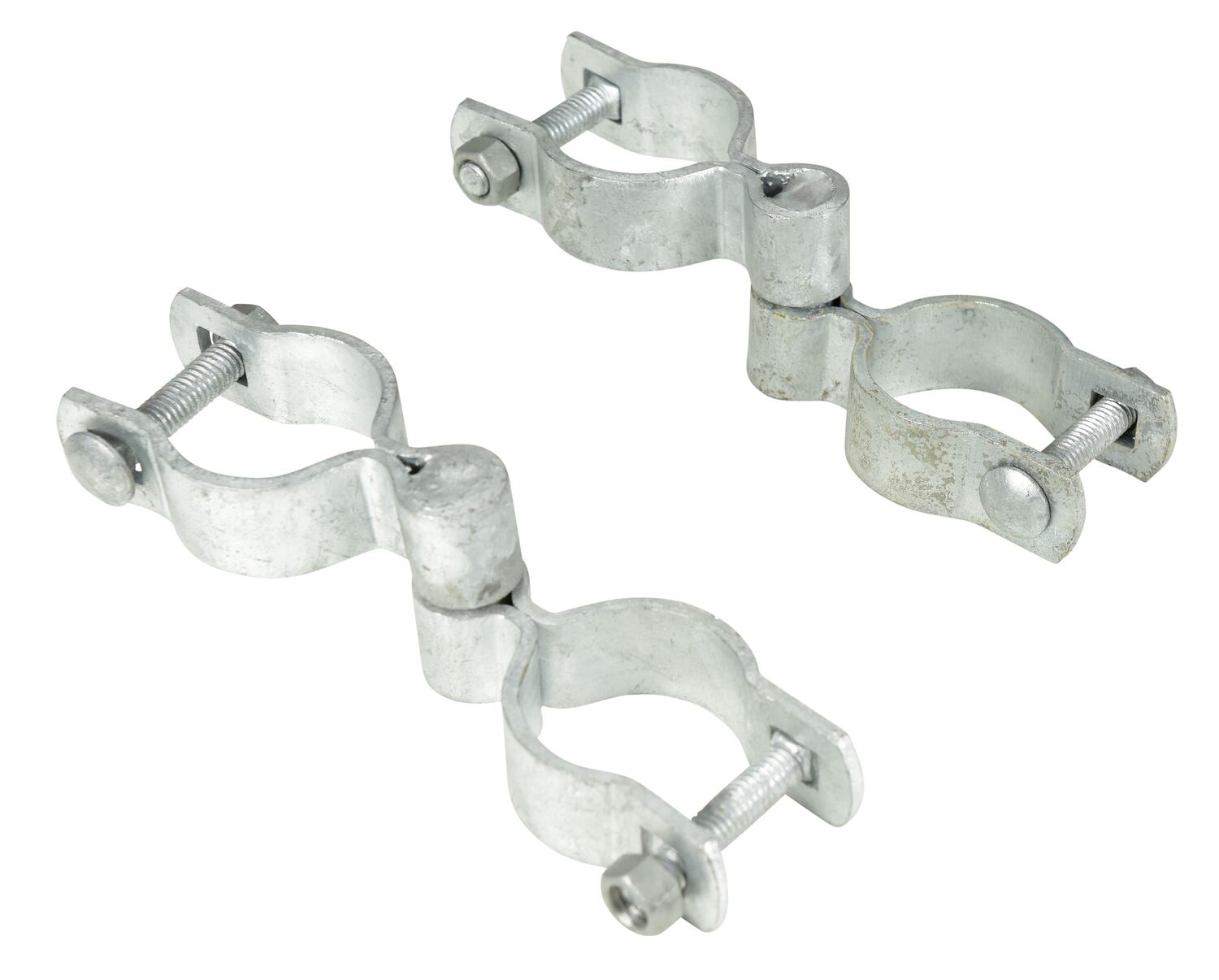

VDKR-CON VDKR-CON Steel Hinged Connectors For Pipe Safety Railing Silver 90 Days Limited Warranty 3

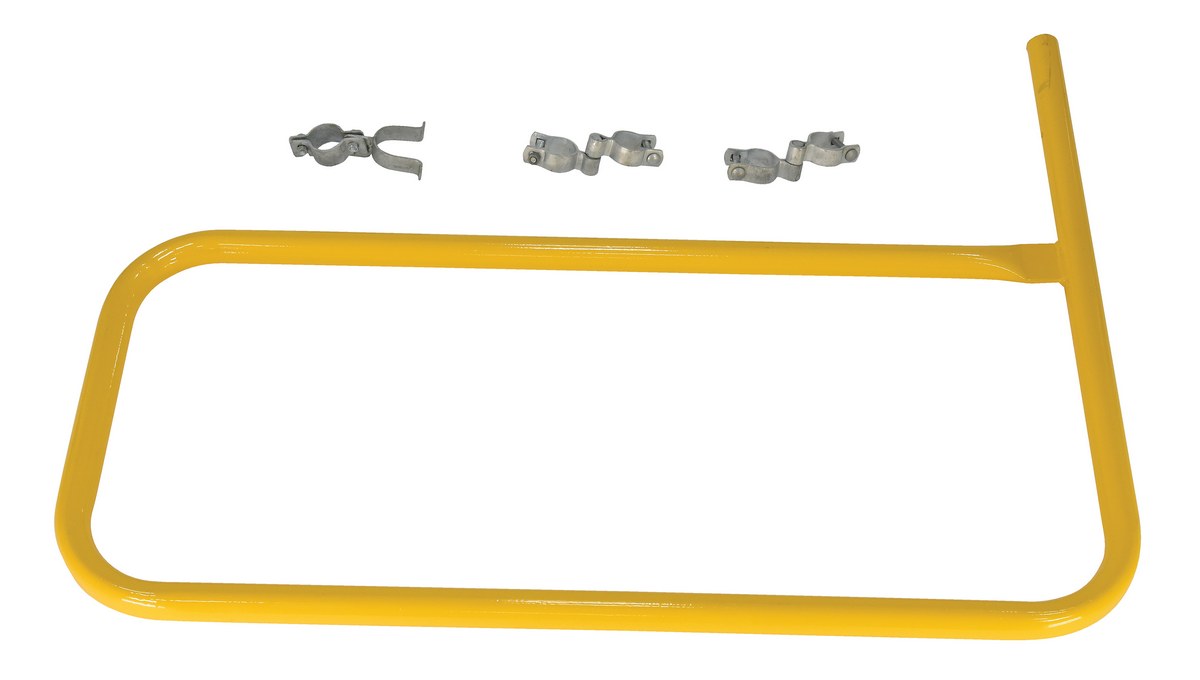

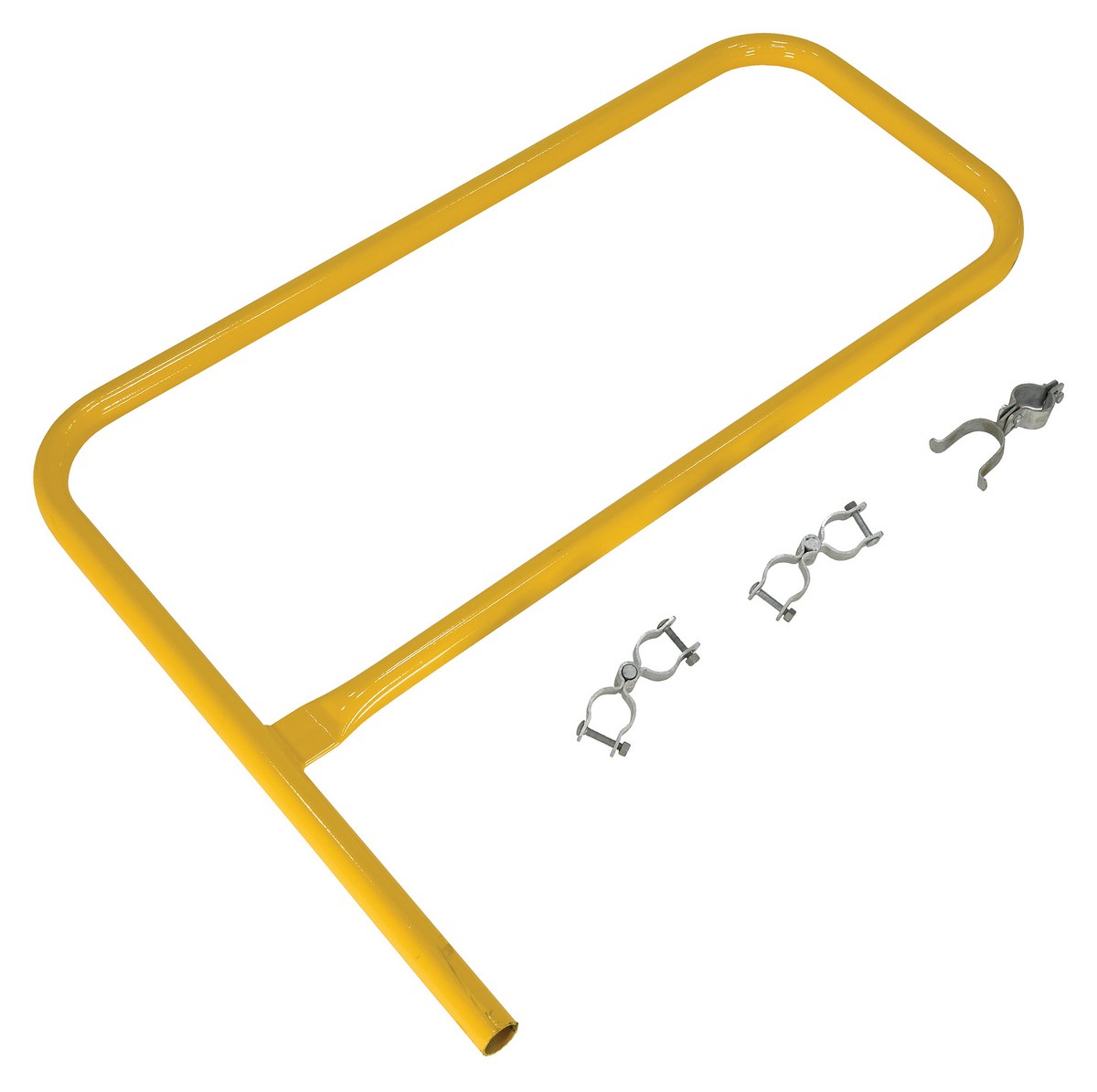

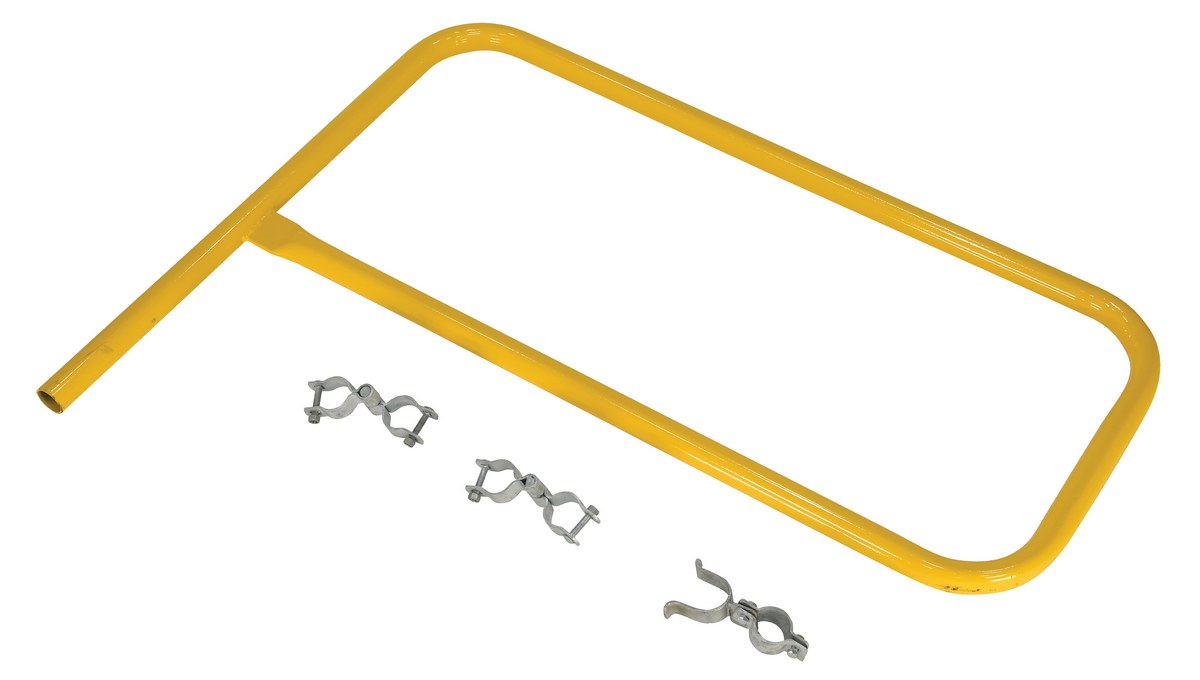

VDKR-G3 VDKR-G3 Steel Pipe Safety Railing Gate P-Shaped 36 In. x 36 In. Yell… 90 Days Limited Warranty 23

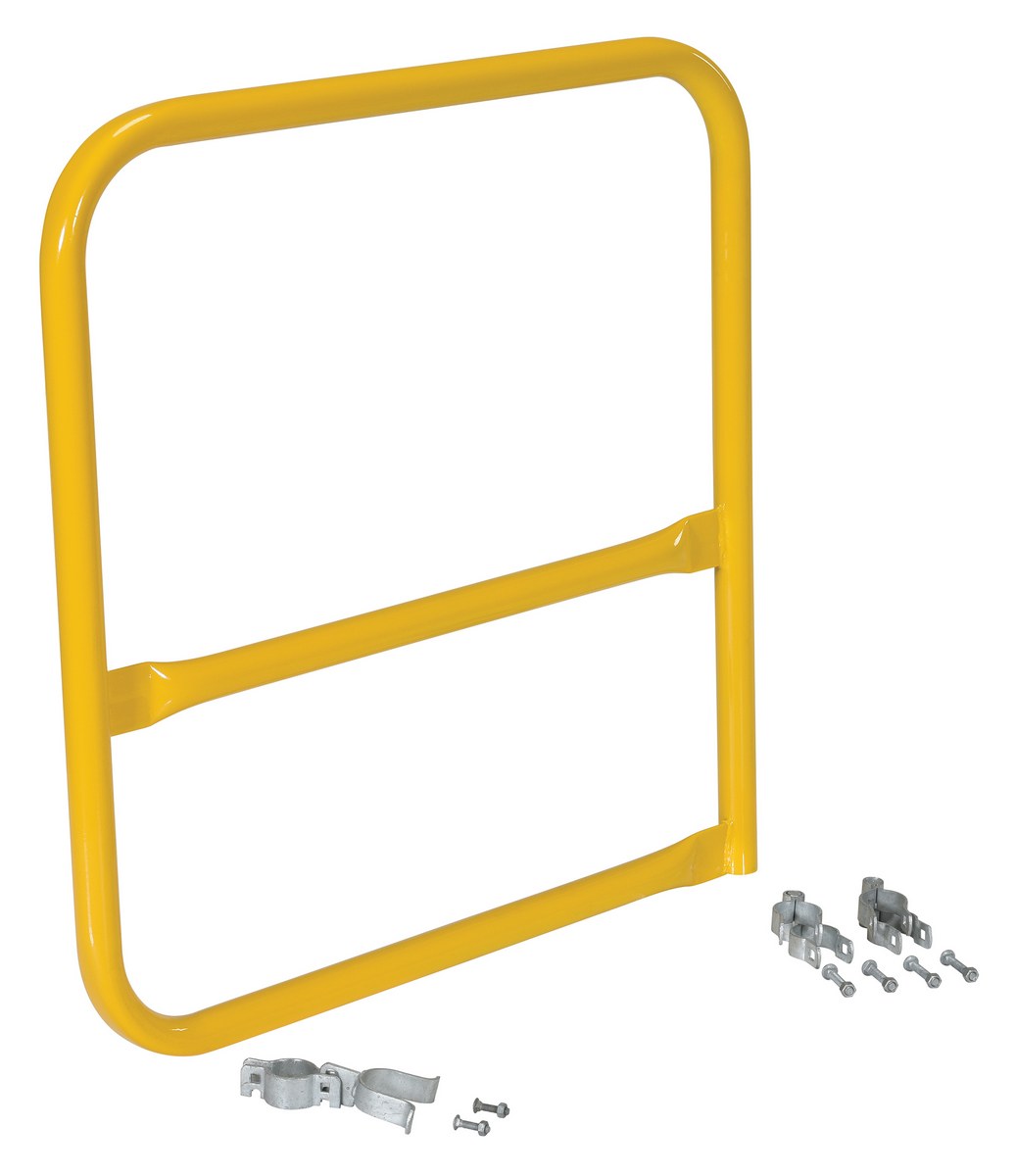

VDKR-G3-B VDKR-G3-B Steel Pipe Safety Railing Gate B-Shaped 36 In. x 36 In. Yell… 90 Days Limited Warranty 35

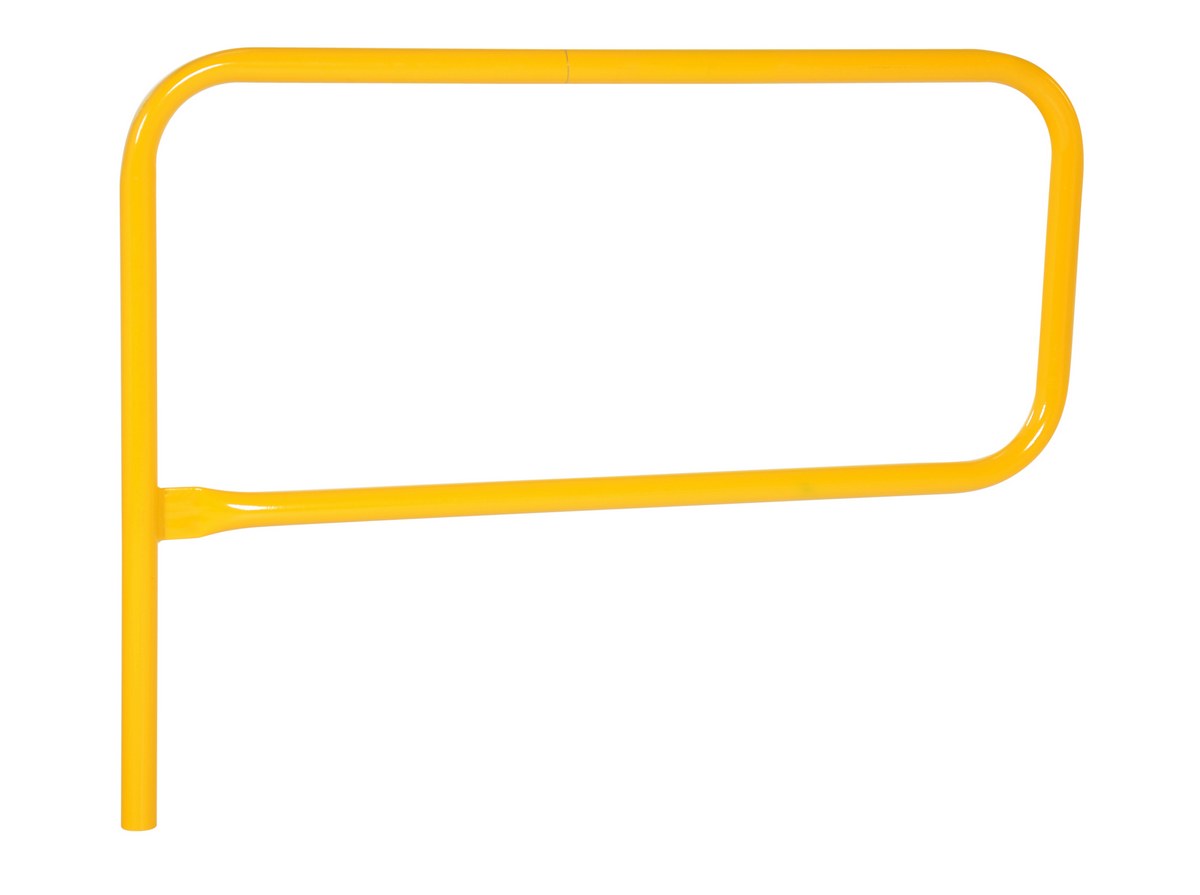

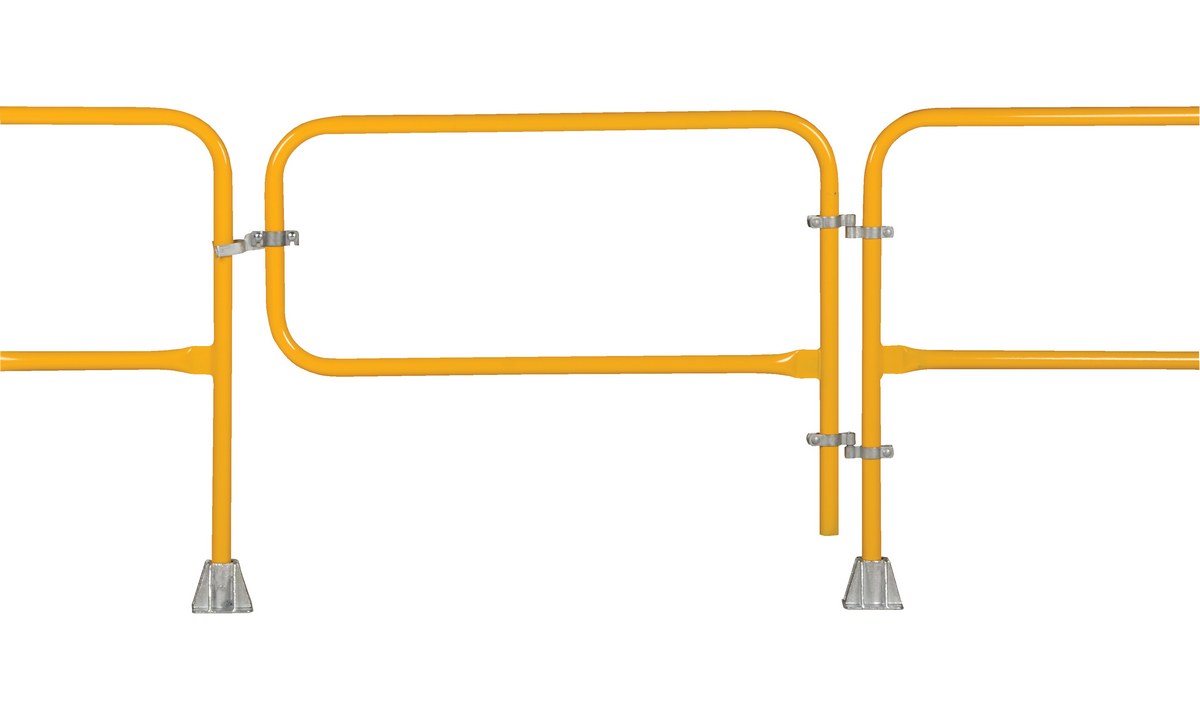

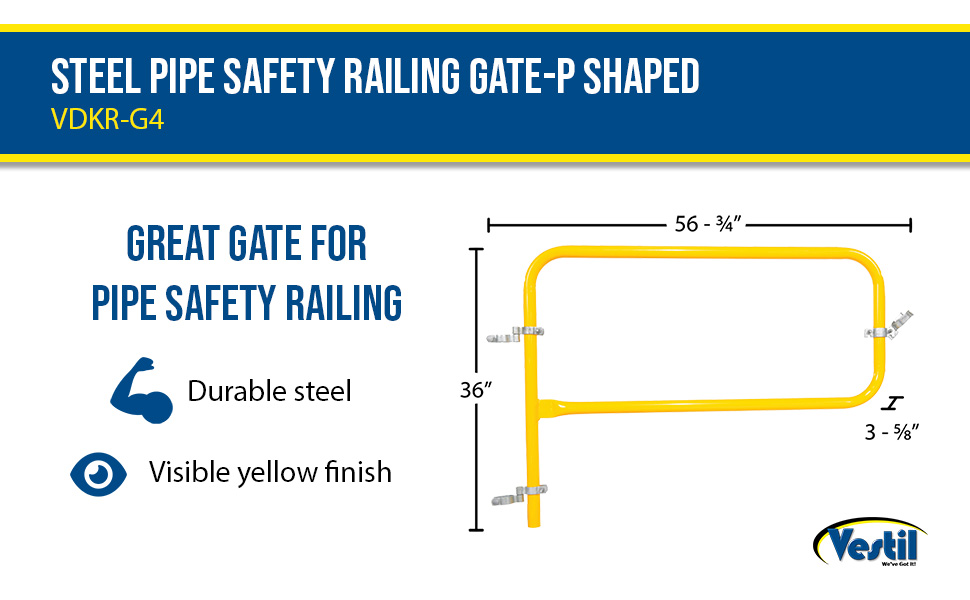

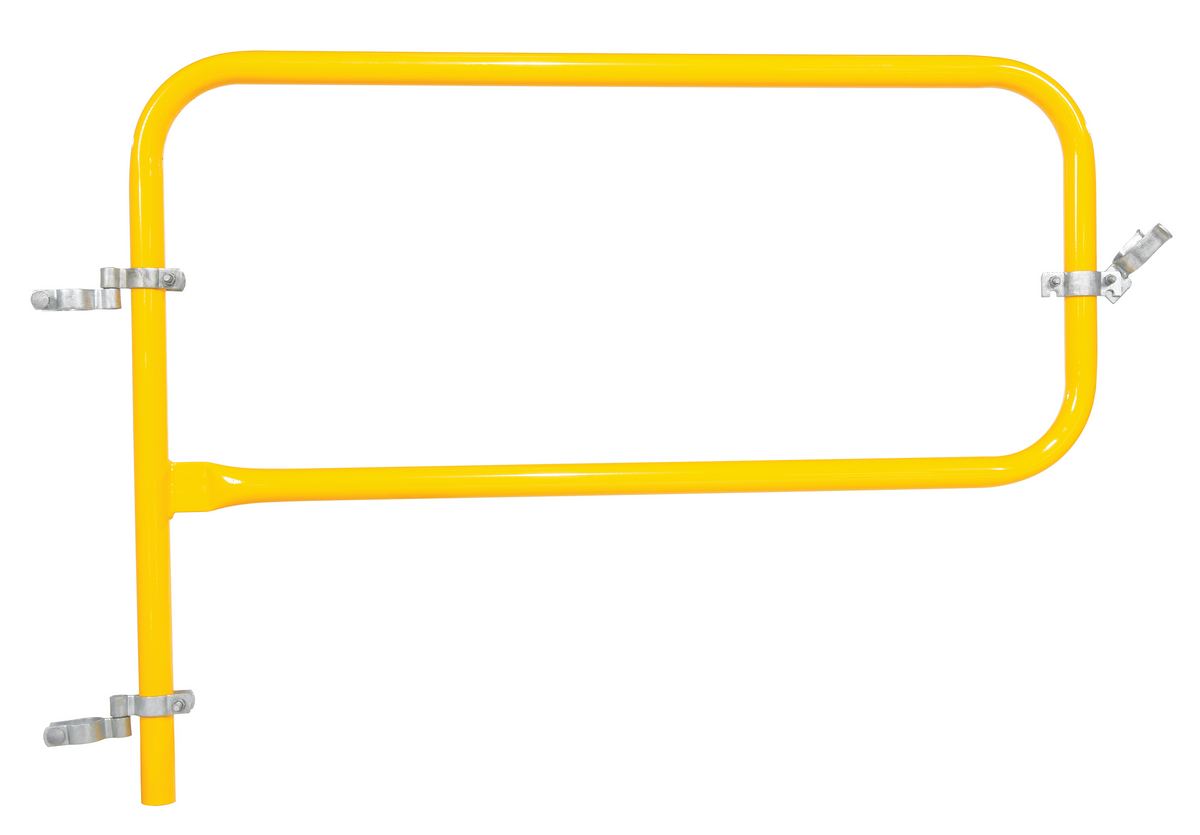

VDKR-G4 VDKR-G4 Steel Pipe Safety Railing Gate-P Shaped 48 In. x 36 In. Yell… 90 Days Limited Warranty 55

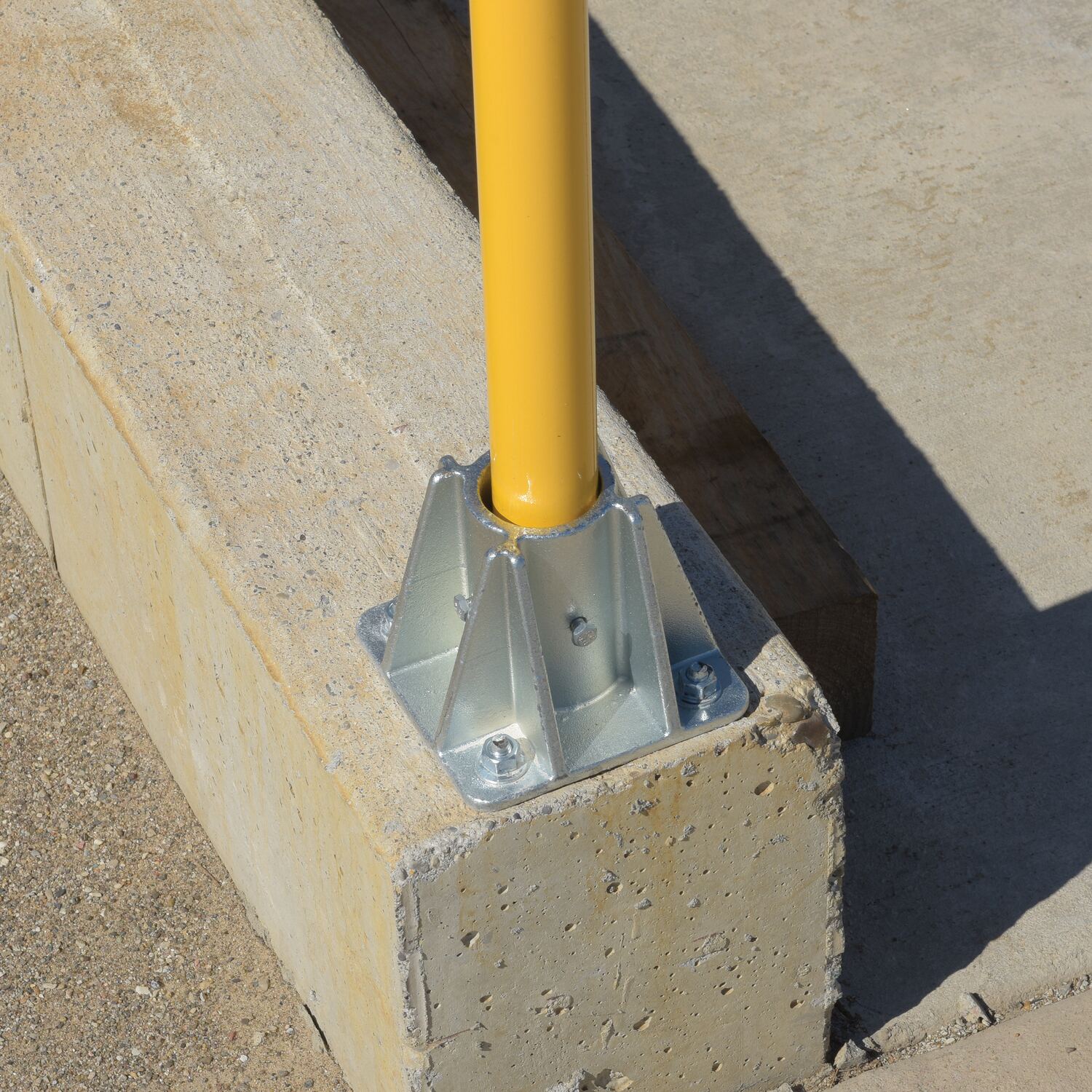

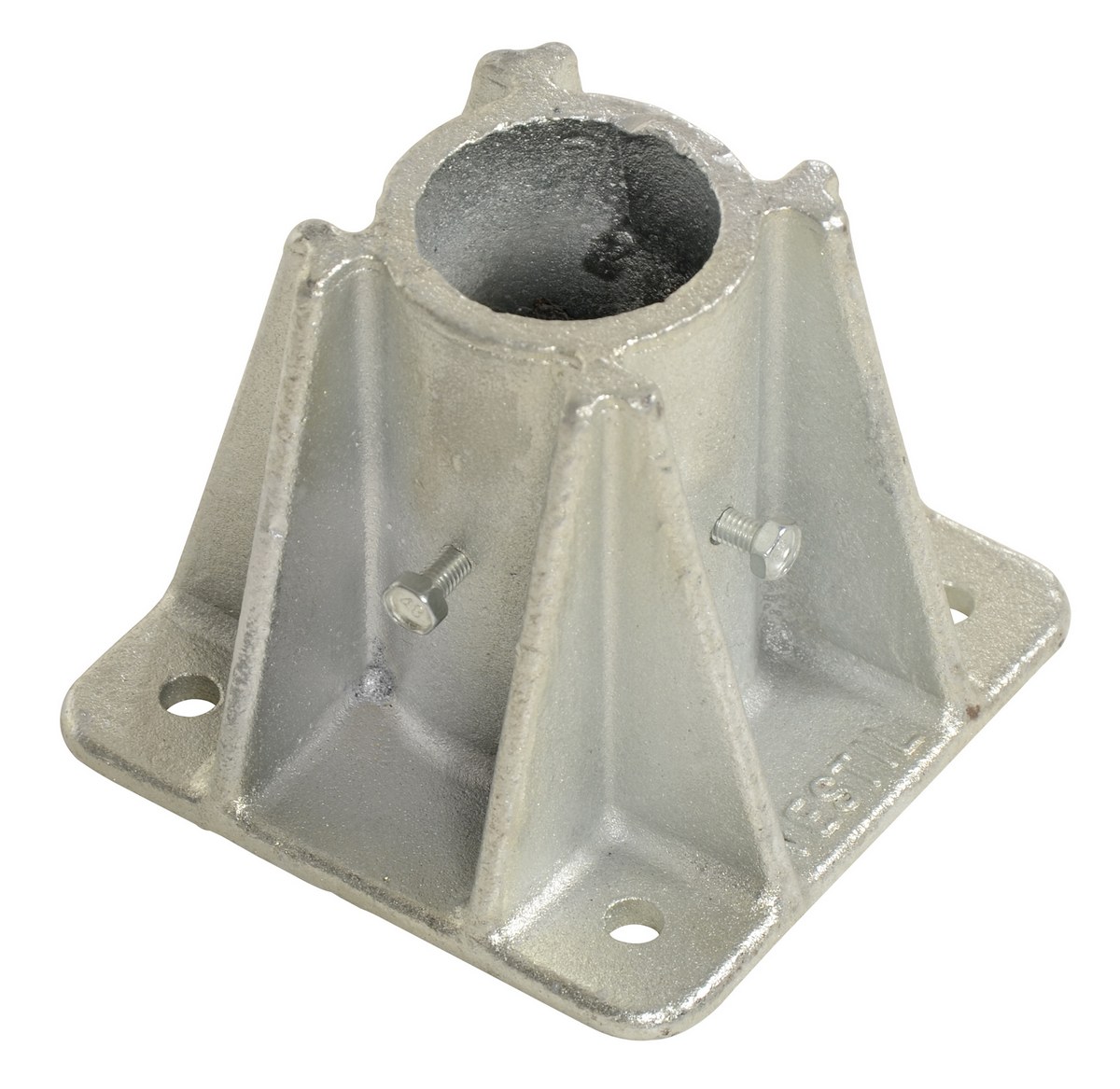

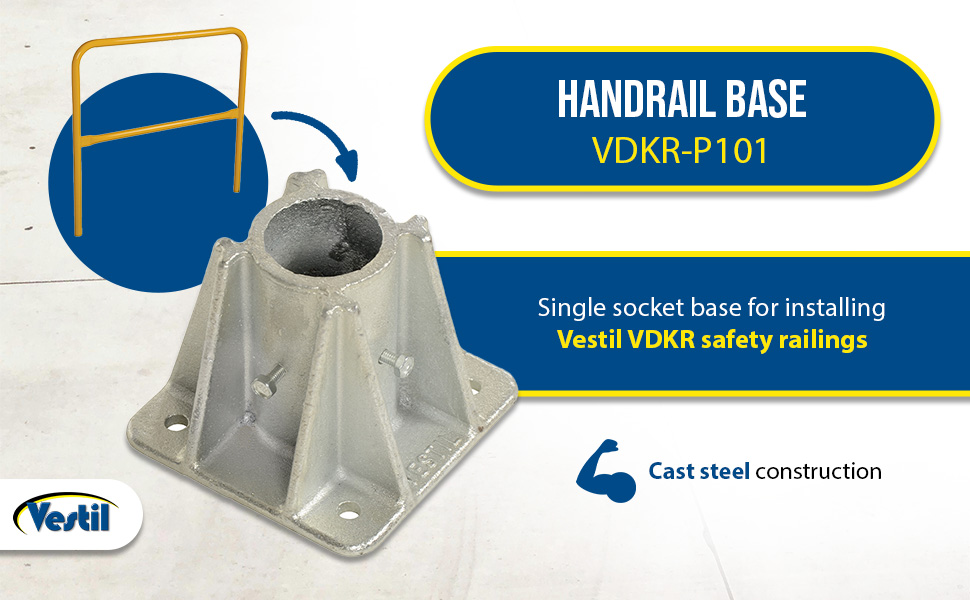

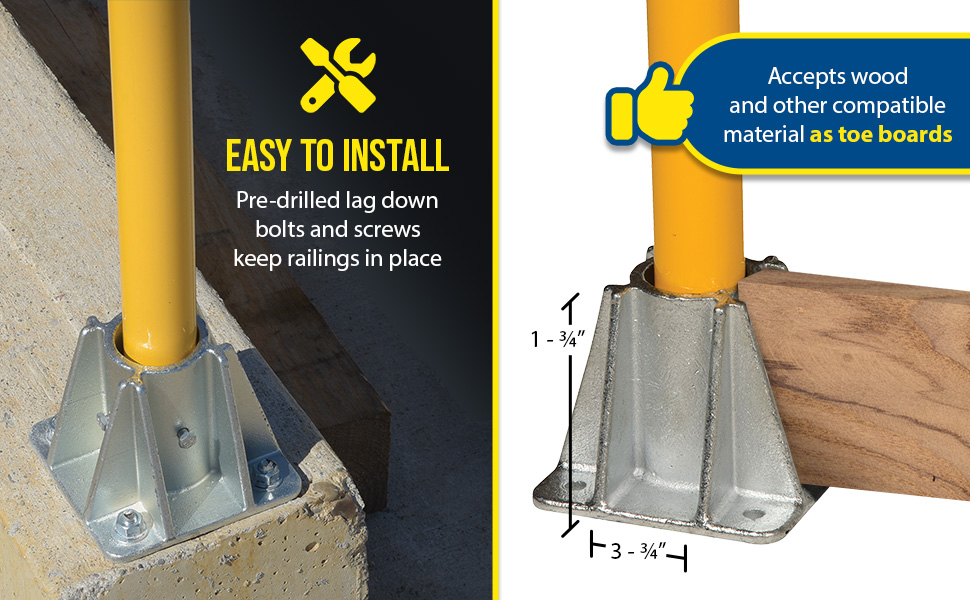

VDKR-P101 VDKR-P101 Cast Steel Single Socket For Pipe Safety Railing Silver 90 Days Limited Warranty 6

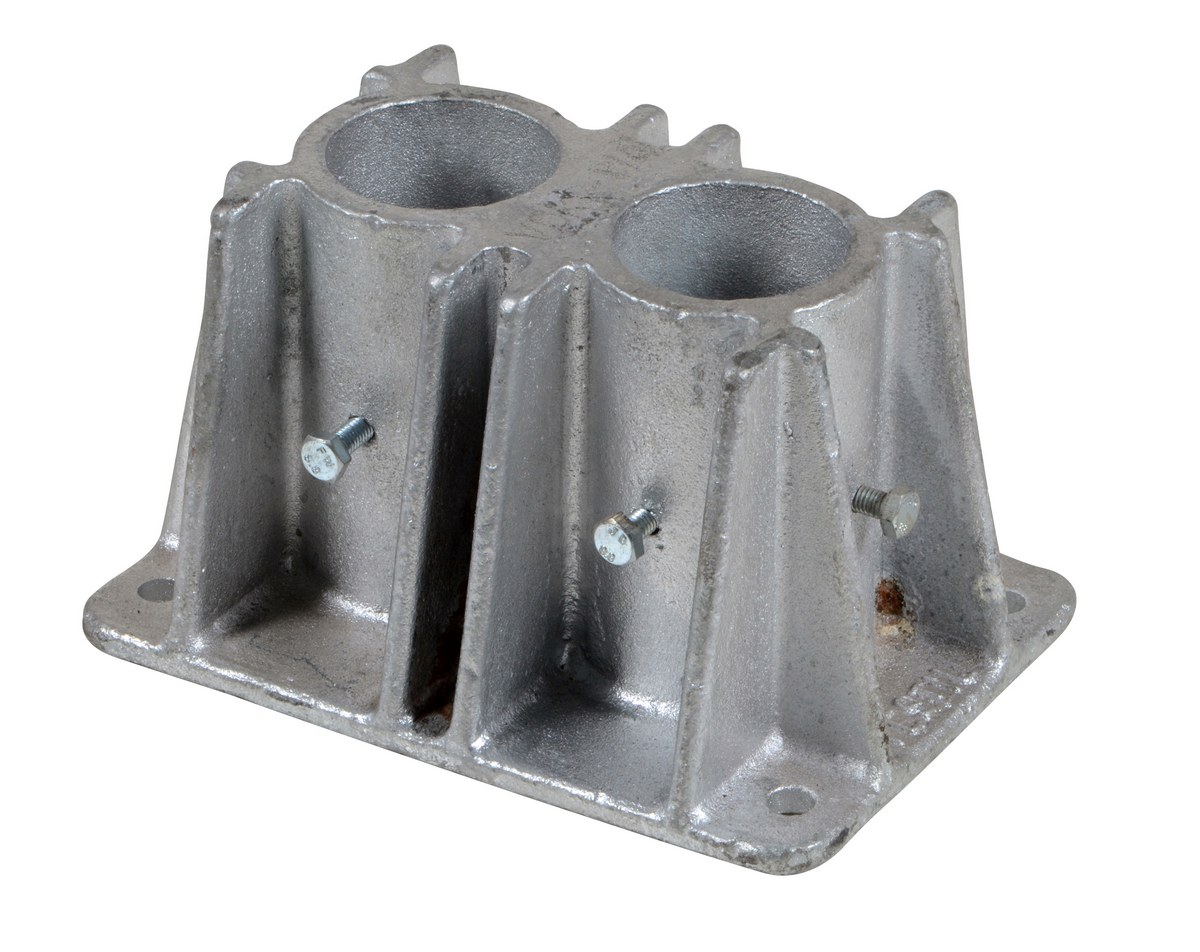

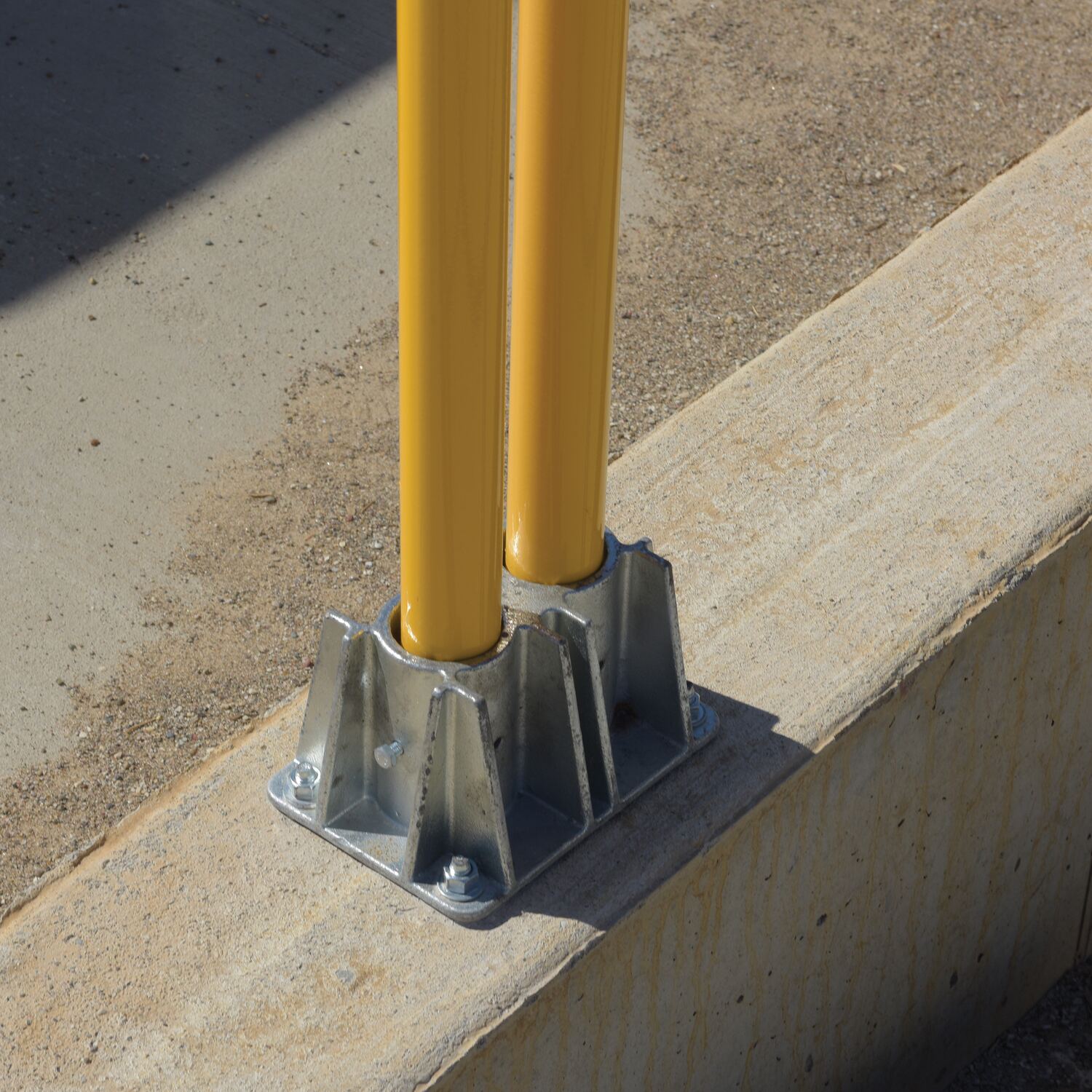

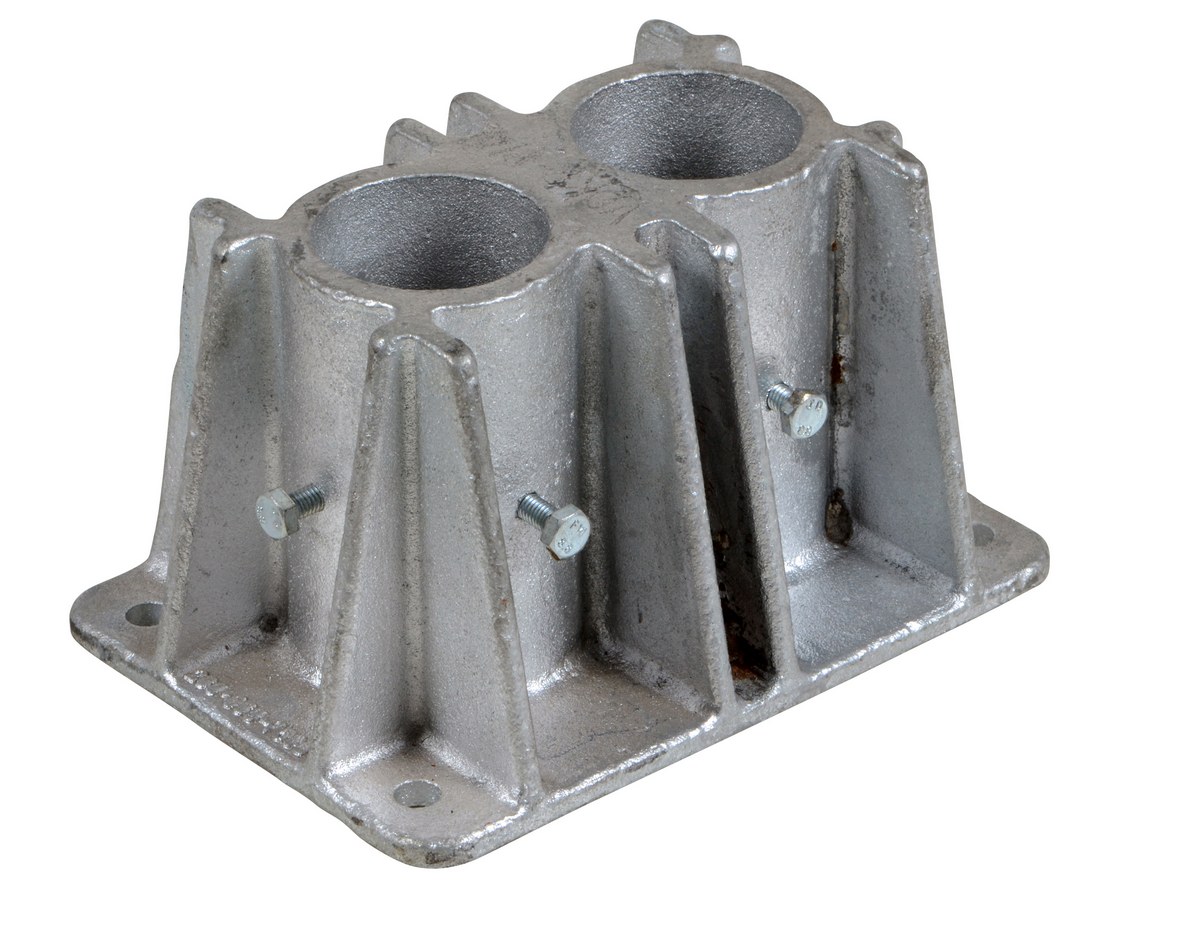

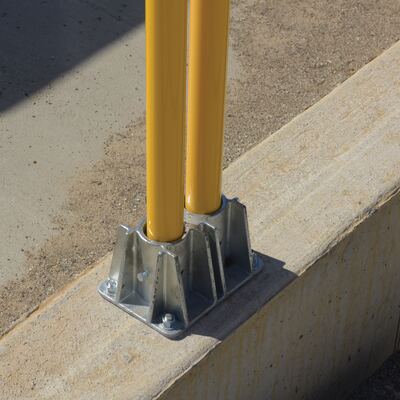

VDKR-P102 VDKR-P102 Cast Steel Double Socket For Pipe Safety Railing Silver 90 Days Limited Warranty 11

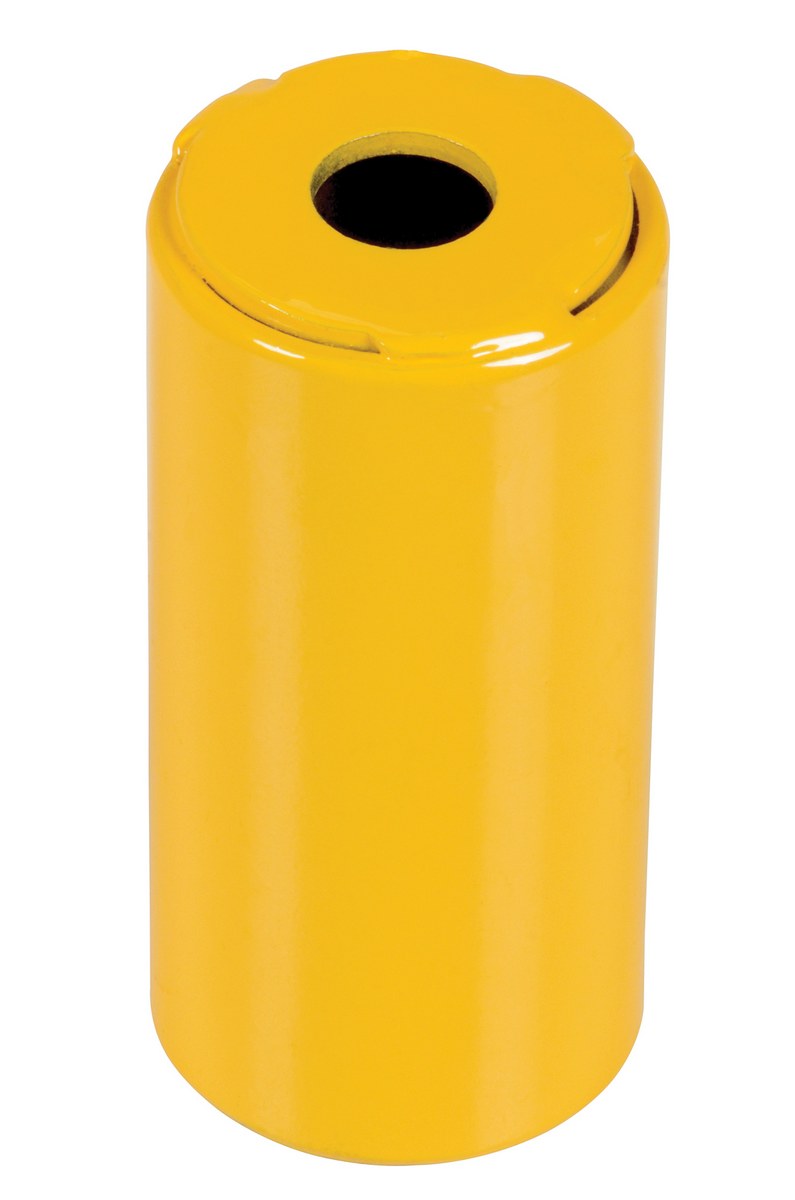

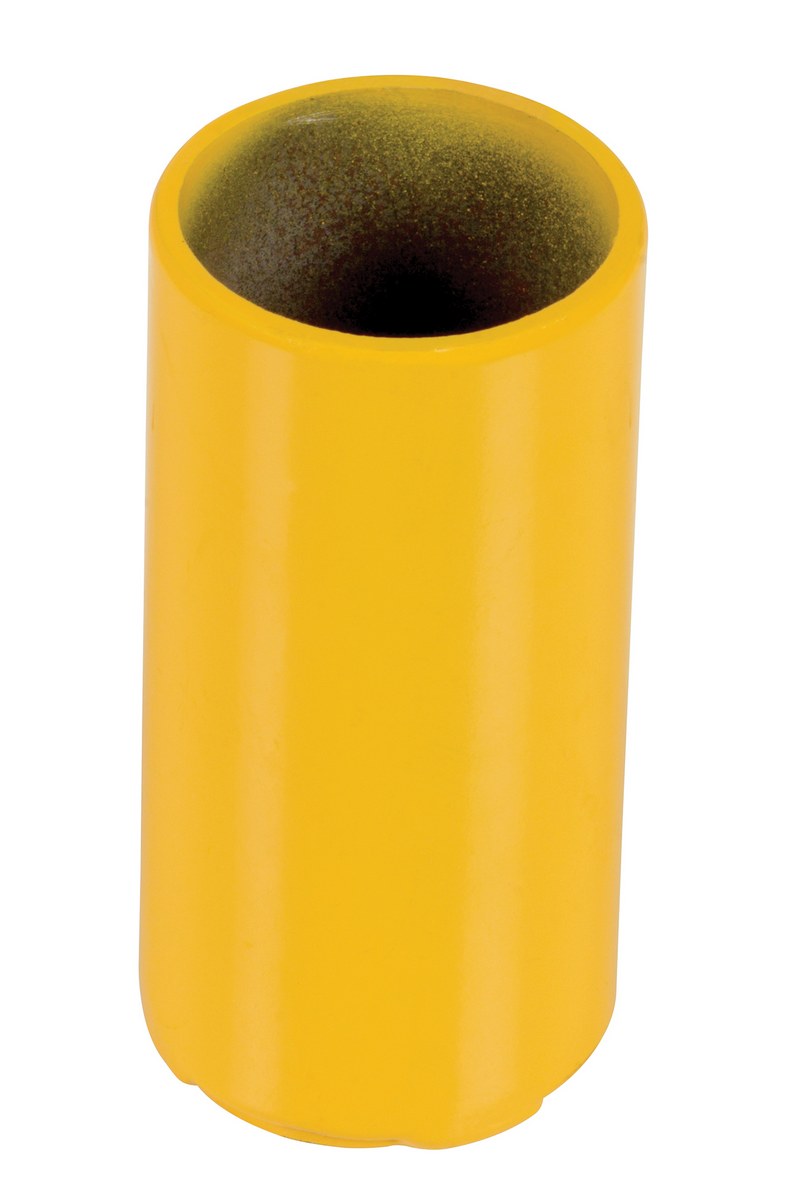

VDKR-P107 VDKR-P107 Steel Sleeve 2 In. Diameter For Pipe Safety Railing Yellow 90 Days Limited Warranty 1

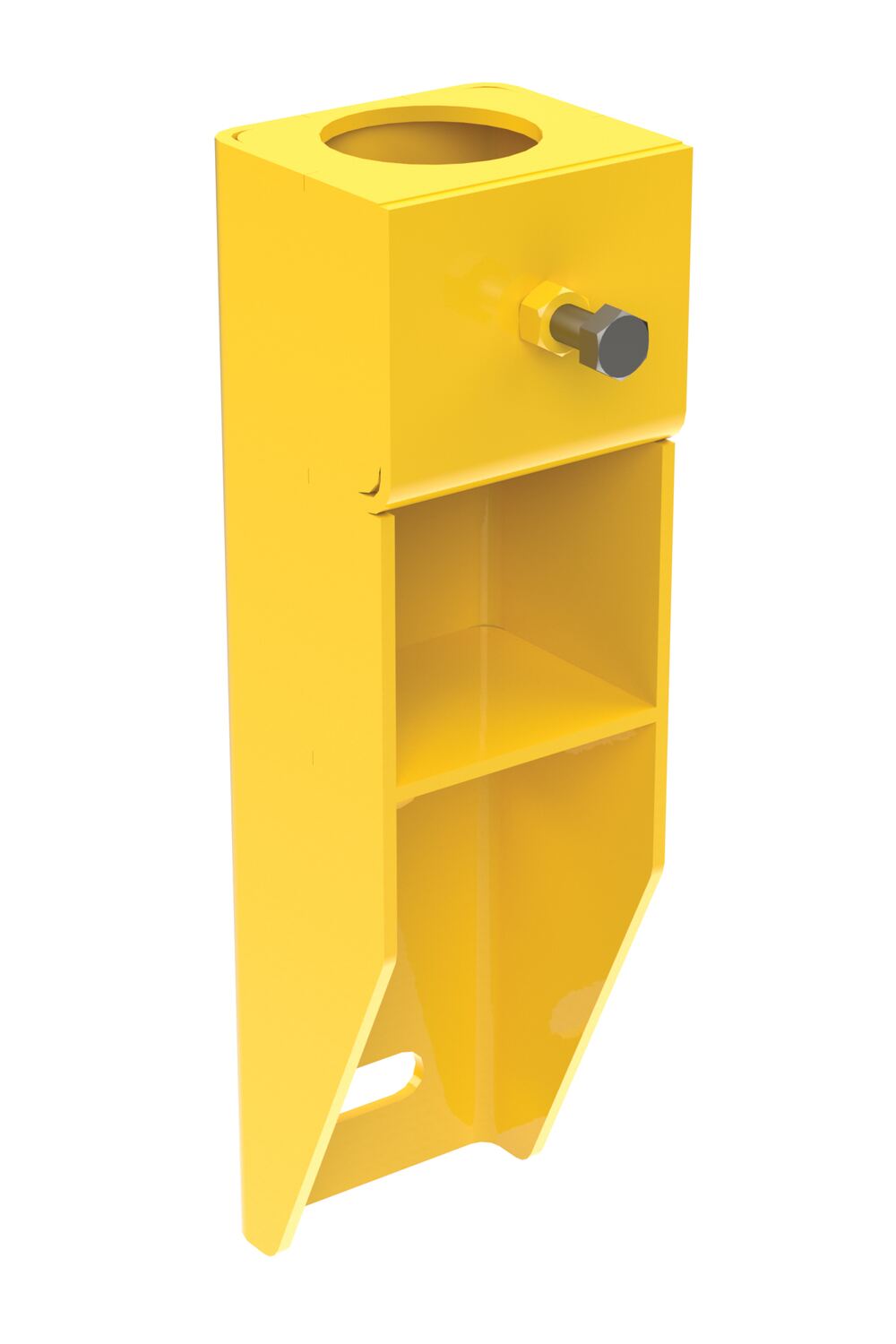

VDKR-VM1 VDKR-VM1 Steel Vertical Wall Mount Handrail Socket Single Pocket 90 Days Limited Warranty NEW 6

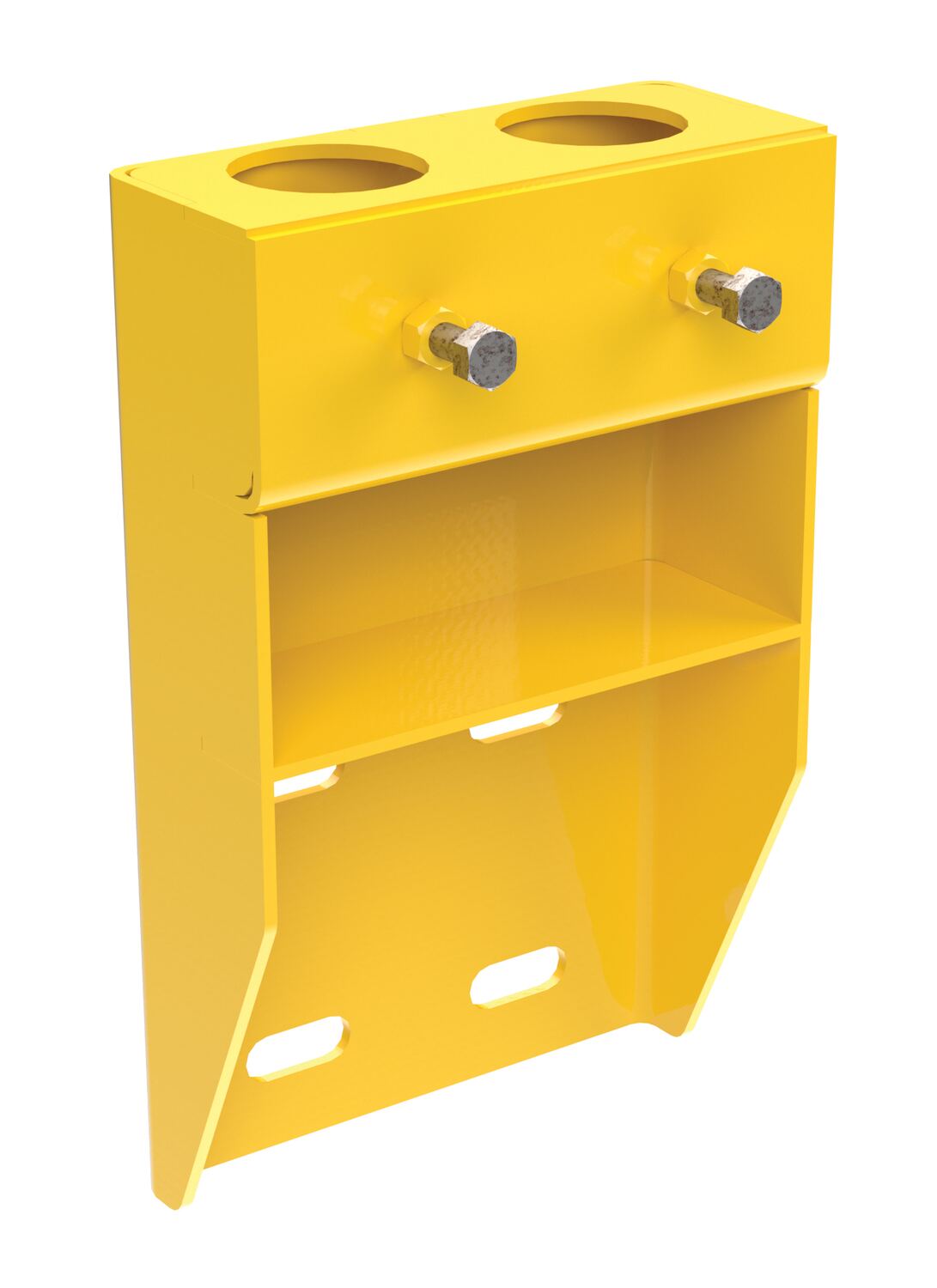

VDKR-VM2 VDKR-VM2 Steel Wall Mount Bracket For Pipe Safety Railing Yellow 90 Days Limited Warranty 10

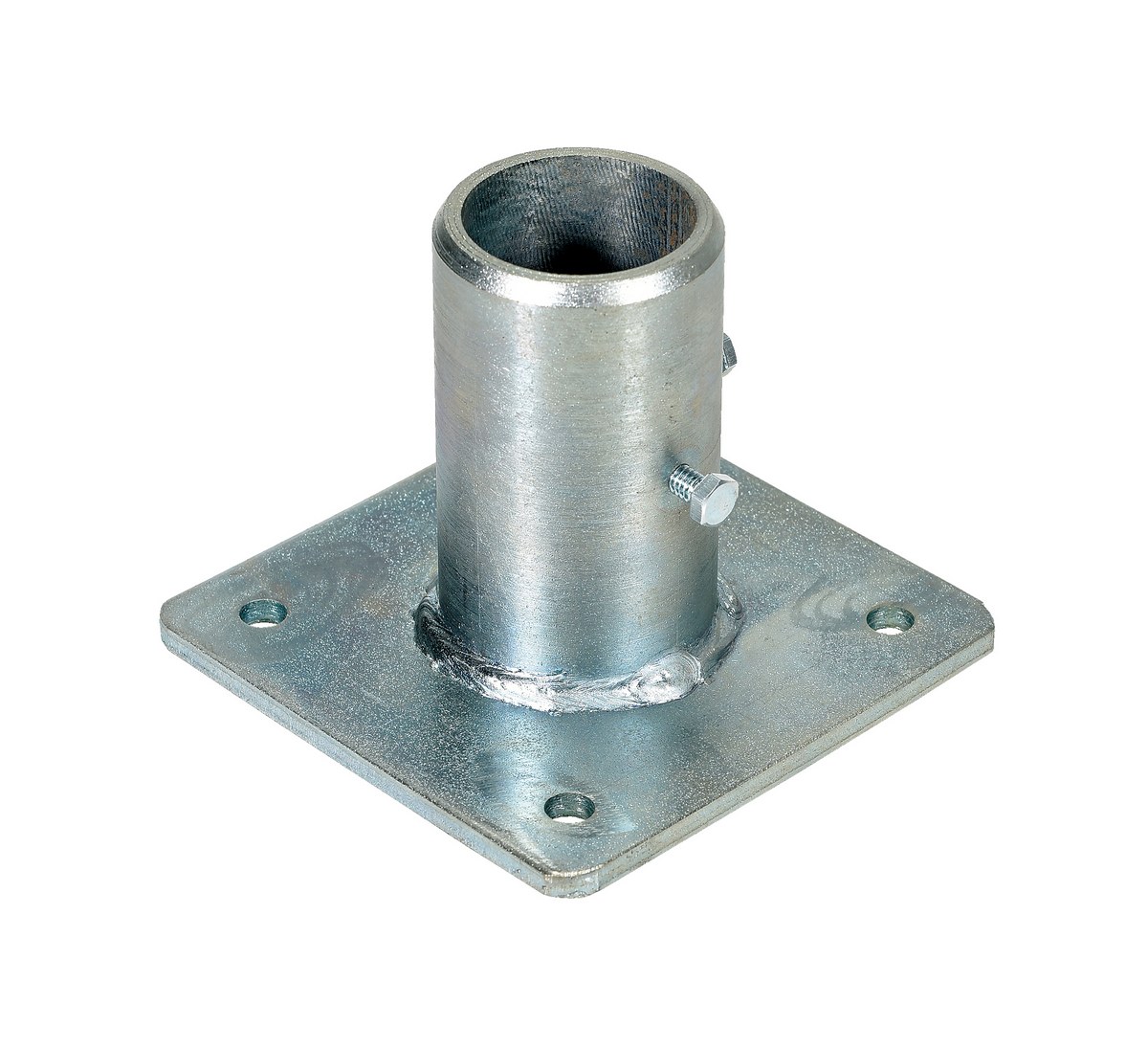

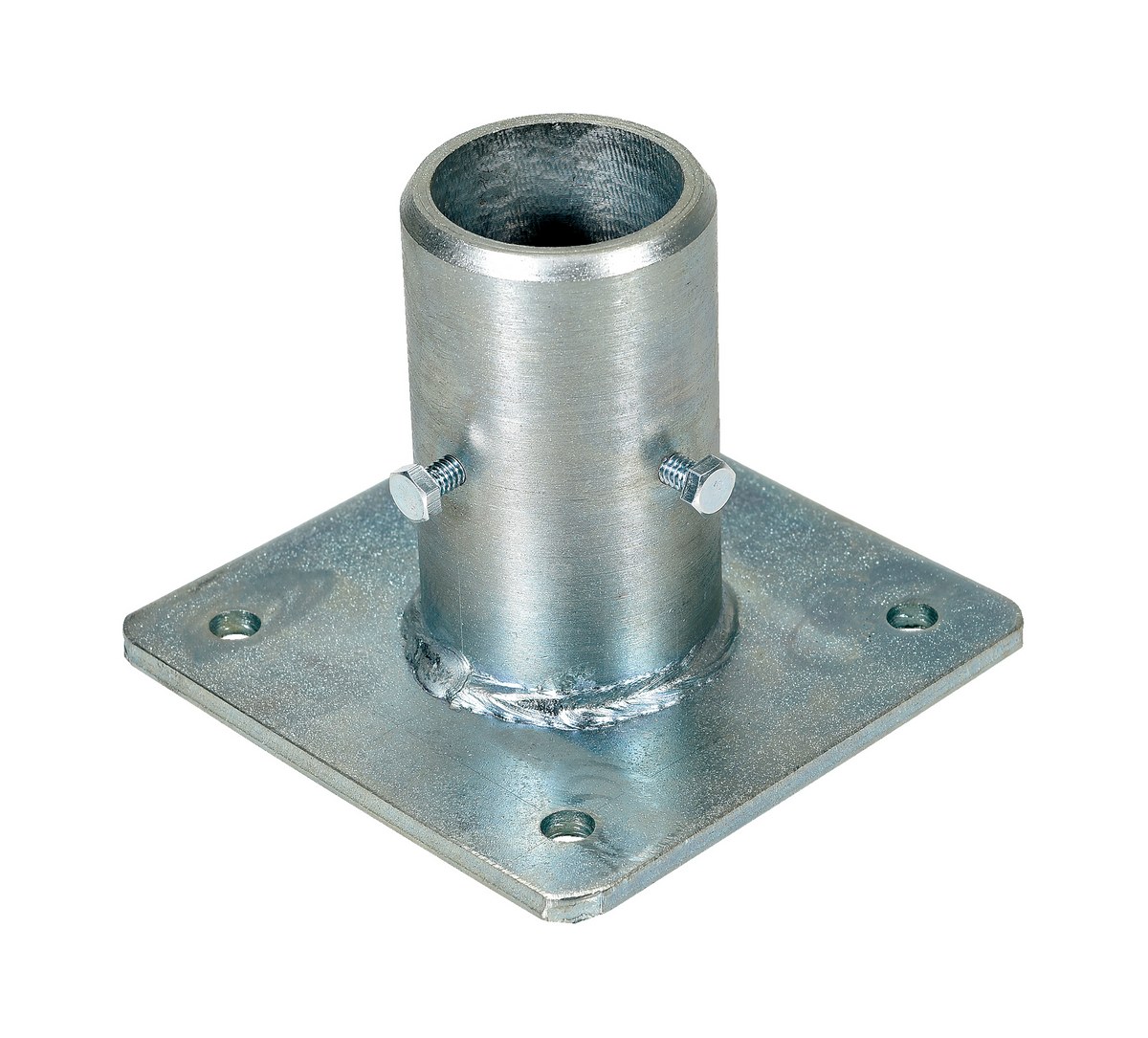

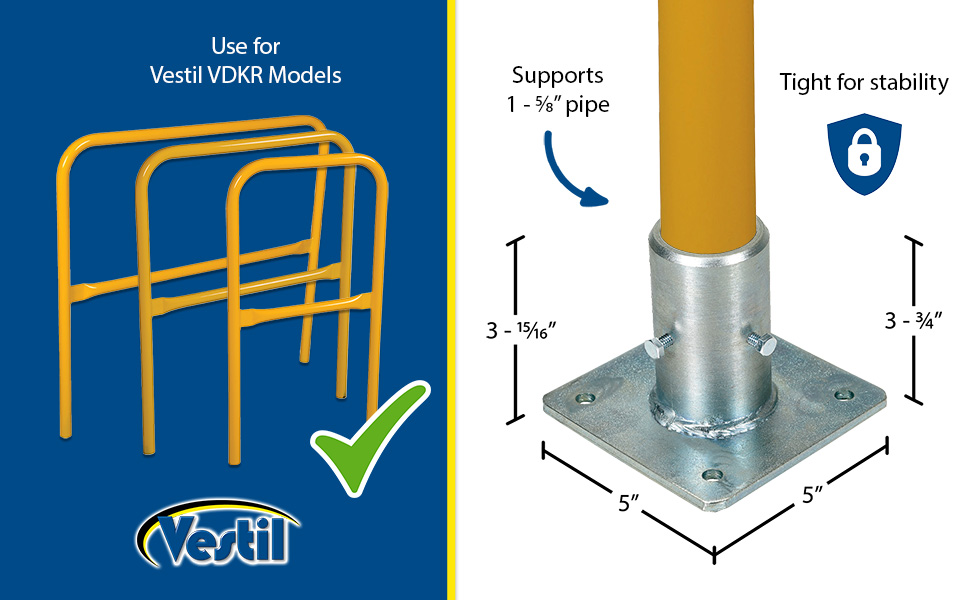

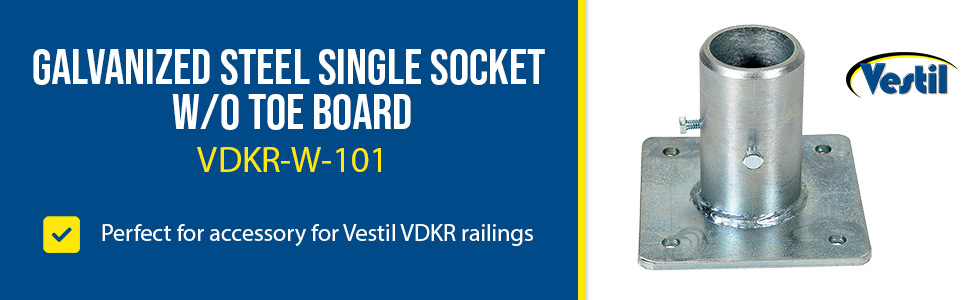

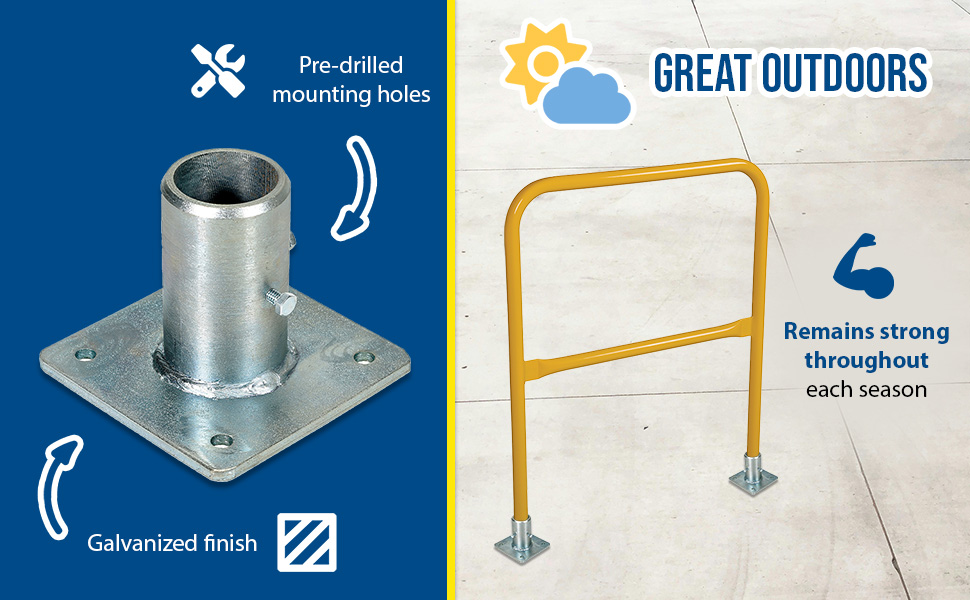

VDKR-W-101 VDKR-W-101 Galvanized Steel Single Socket Without Toe Board For VDKR Mo… 90 Days Limited Warranty 5

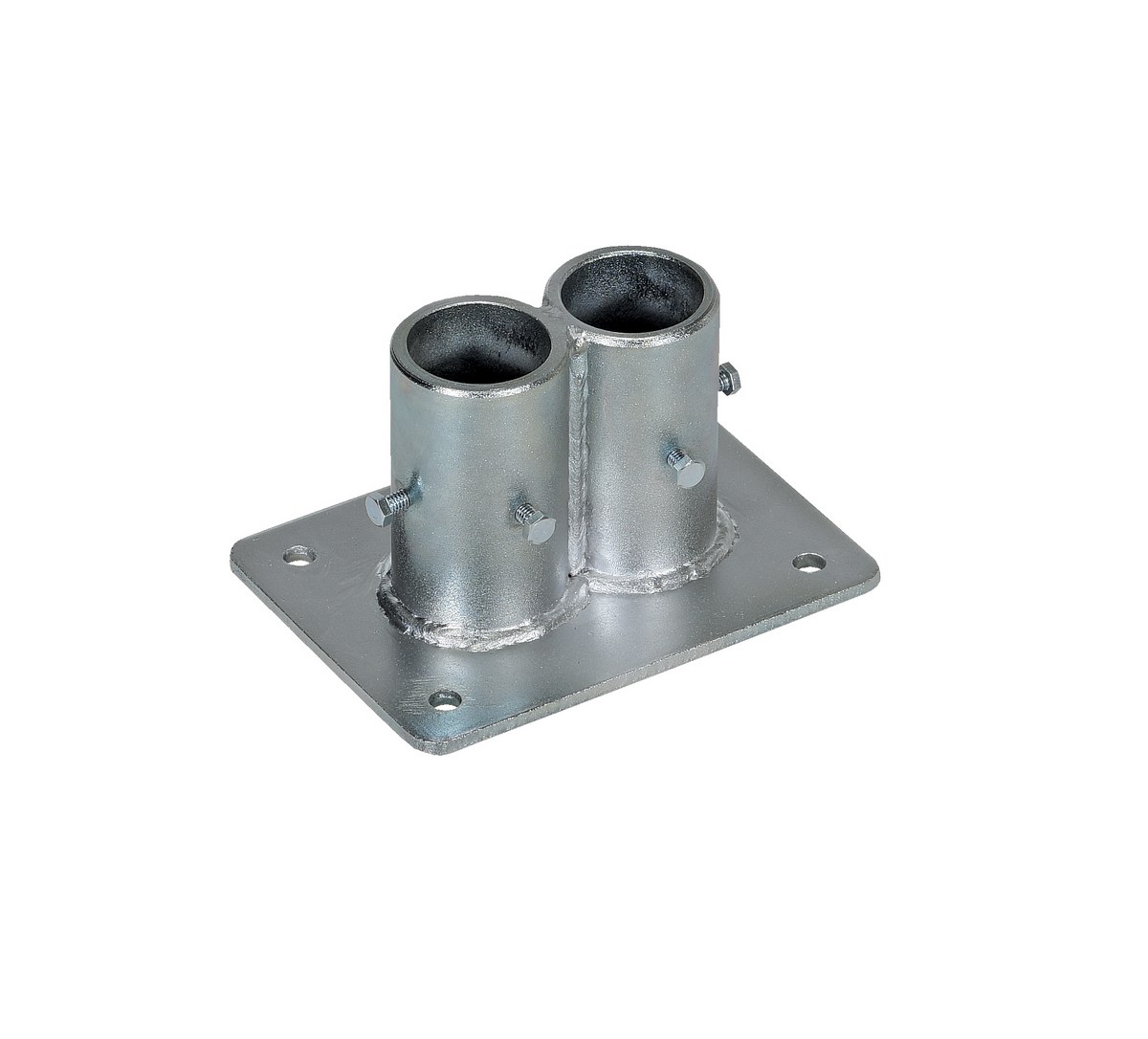

VDKR-W-102 VDKR-W-102 Galvanized Steel Double Socket Without Toe Board For VDKR Mo… 90 Days Limited Warranty 7
Model Image PDF Description Wt.
(lbs)
AS-383 Warranty PDF Anchor Bolts [for concrete (1) 3/8" x 3"] 1
AS-383-4PK Warranty PDF Anchor Bolts [for concrete (4) 3/8" x 3"] 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

VDKR

VDKR-BASE

Engineering Drawings

VDKR-10

VDKR-10-TB

VDKR-2

VDKR-2-TB

VDKR-3

VDKR-3-TB

VDKR-4

VDKR-4-TB

VDKR-5

VDKR-5-TB

VDKR-6

VDKR-6-TB

VDKR-7

VDKR-7-TB

VDKR-8

VDKR-8-TB

VDKR-BASE

VDKR-BASE-W

VDKR-BB-F

VDKR-BB-W

VDKR-CON

VDKR-G3

VDKR-G3-B

VDKR-G4

VDKR-P101

VDKR-P102

VDKR-VM1

VDKR-VM2

VDKR-W-101

VDKR-W-102

Testing Certificates

VDKR-10

VDKR-10-TB

VDKR-2

VDKR-2-TB

VDKR-3

VDKR-3-TB

VDKR-4

VDKR-4-TB

VDKR-5

VDKR-5-TB

VDKR-6

VDKR-6-TB

VDKR-7

VDKR-7-TB

VDKR-8

VDKR-8-TB

VDKR-BASE

VDKR-BASE-W

VDKR-BB-F

VDKR-BB-W

VDKR-CON

VDKR-G3

VDKR-G3-B

VDKR-G4

VDKR-P101

VDKR-P102

VDKR-P107

VDKR-VM1

VDKR-VM2

VDKR-W-101

VDKR-W-102

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

VDKR-2
VDKR-2 VDKR-2 A+ Content - 2
VDKR-2 VDKR-2 A+ Content - 1
VDKR-2 VDKR-2 A+ Content - 4
VDKR-2 VDKR-2 A+ Content - 3
VDKR-3

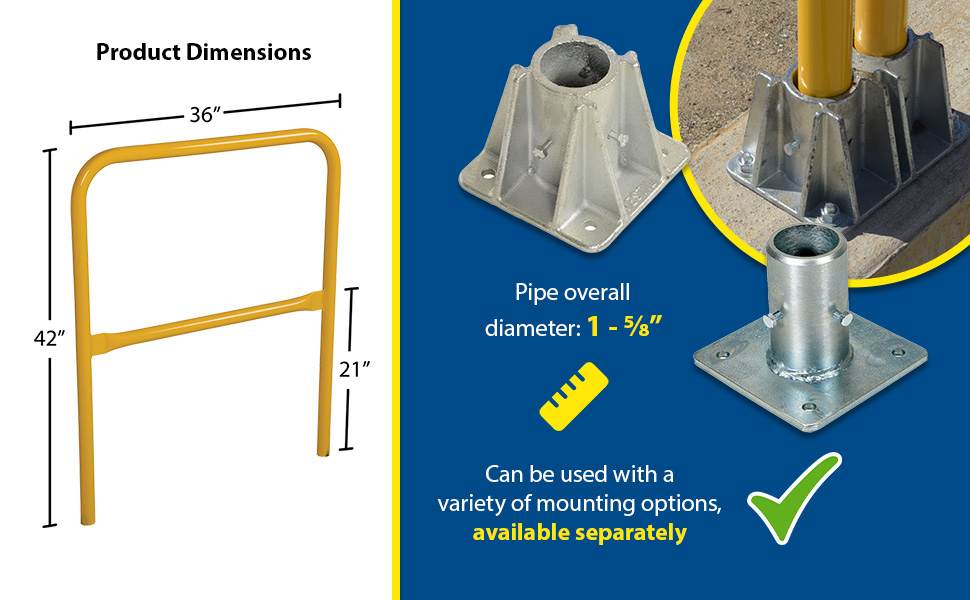

VDKR-3 VDKR-3 A+ Content - 2
VDKR-3 VDKR-3 A+ Content - 1
VDKR-3 VDKR-3 A+ Content - 4
VDKR-3 VDKR-3 A+ Content - 3
VDKR-4
VDKR-4 VDKR-4 A+ Content - 3
VDKR-4 VDKR-4 A+ Content - 2
VDKR-4 VDKR-4 A+ Content - 1
VDKR-4 VDKR-4 A+ Content - 4
VDKR-5
VDKR-5 VDKR-5 A+ Content - 3
VDKR-5 VDKR-5 A+ Content - 2
VDKR-5 VDKR-5 A+ Content - 1
VDKR-5 VDKR-5 A+ Content - 4
VDKR-6
VDKR-6 VDKR-6 A+ Content - 4
VDKR-6 VDKR-6 A+ Content - 3
VDKR-6 VDKR-6 A+ Content - 2
VDKR-6 VDKR-6 A+ Content - 1
VDKR-8

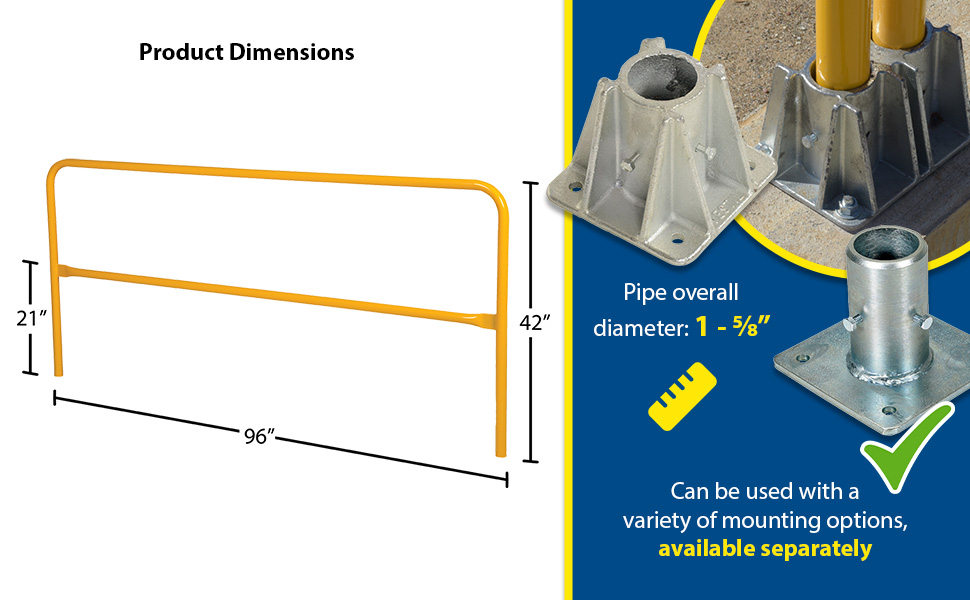

VDKR-8 VDKR-8 A+ Content - 4
VDKR-8 VDKR-8 A+ Content - 3
VDKR-8 VDKR-8 A+ Content - 2
VDKR-8 VDKR-8 A+ Content - 1
VDKR-G4
VDKR-G4 VDKR-G4 A+ Content - 1
VDKR-G4 VDKR-G4 A+ Content - 2
VDKR-W-101
VDKR-W-101 VDKR-W-101 A+ Content - 3
VDKR-W-101 VDKR-W-101 A+ Content - 2
VDKR-W-101 VDKR-W-101 A+ Content - 1

Safety Railing Specialty Colors Available!

Steel VDKR Colors

YELLOW (standard)

VDKR-6

YELLOW (standard)
Model Suffix: No Suffix

BLACK

VDKR-6-BK

BLACK
Model Suffix: -BK

BLUE

VDKR-6-BL

BLUE
Model Suffix: -BL

GRAY


GRAY
Model Suffix: -GYSG

ORANGE

VDKR-6-OR

ORANGE
Model Suffix: -OR

RED

VDKR-6-RD

RED
Model Suffix: -RD

SILVER

VDKR-6-SL

SILVER
Model Suffix: -SL

WHITE

VDKR-6-WT

WHITE
Model Suffix: -WT


Notice These swatches are a representation of the colors available, and may not be exact.

For a list of Model Numbers of each Color, Go down to the Model chart below and choose your color from the
Alternate Colors Menu alt-colors-icon.jpg

Applications



Construction Projects

Municipalities

Universities

Military

Restaurants

Warehouses

Hotels

Train Stations

Superstores

Related or Similar Products:

More From Safety Railing





Steel Safety Railings




Protect people from uneven walkways and mezzanine drop-off's. The safety railing is constructed of schedule 10 steel. All models have an outside pipe diameter of 1-5/8". Handrails are 42" high with a 21" mid-rail. Mounting options include socket sleeves, cast steel base, barricade base, or cast steel sockets for convenient handrail removal. The cast steel sockets accept wood 2" x 4" or 2" x 6" when toe boards are required. Two (2) lag down holes are pre-drilled for permanently mounting the railing. The steel design includes a baked-in powder-coated finish, which is available in a variety of colors found in the table below. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General Industry requirements for guardrail systems in 29 CFR 1910.29.

central rudder

Rail + Sockets + Toe Board

Add a toe board to your railing for extra safety! Installation is fast and easy with the predrilled lag down points. Protect people or employees from uneven walkways and mezzanine drop-offs.

Check Out Vestil's Other Safety Railing Styles:


Aluminum Safety Railing 		VDKR-PP-5_A.jpg
Pour-In-Place Safety Railing
Steel Safety Railing w/ Welded Baseplate

Model # Description Attributes Net Wt.
(lbs)

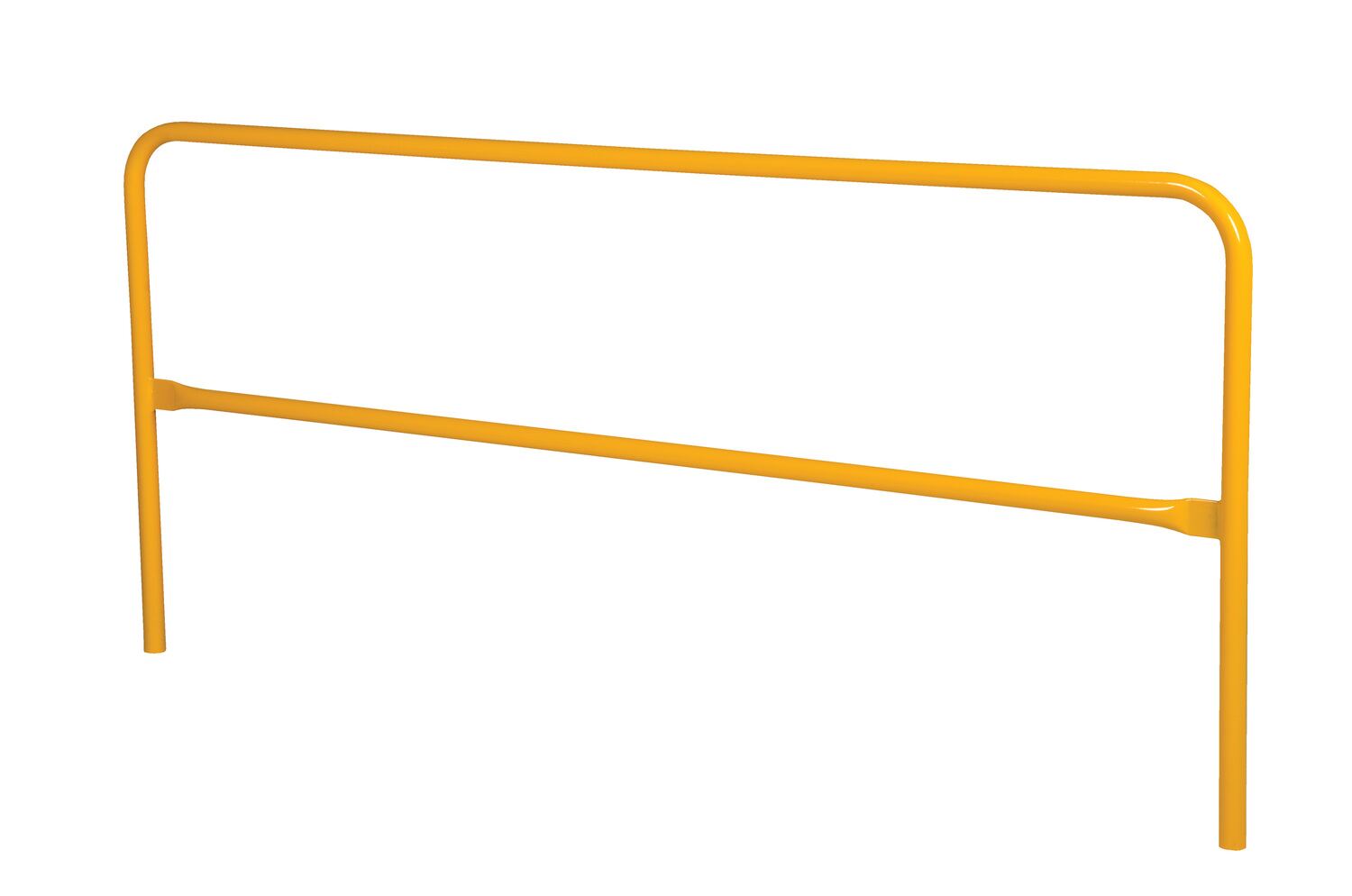

VDKR-10 VDKR-10Steel Safety Railing 10 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		99

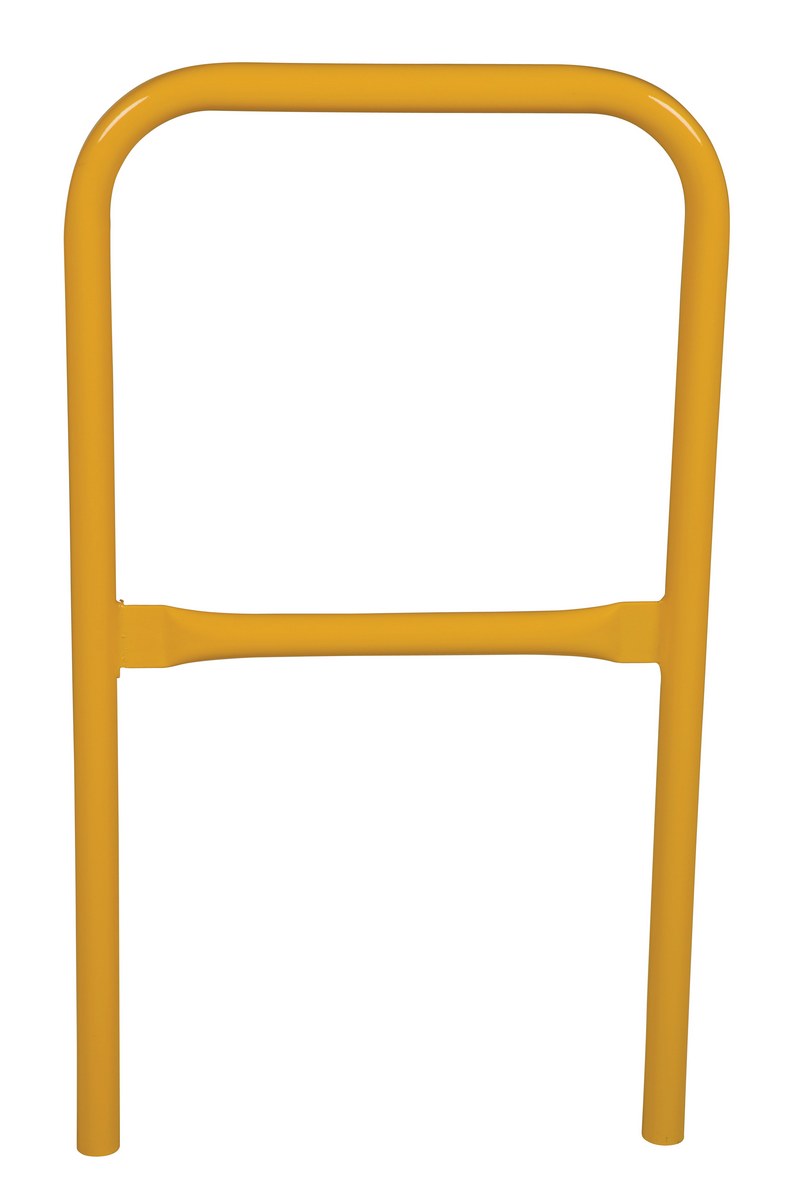

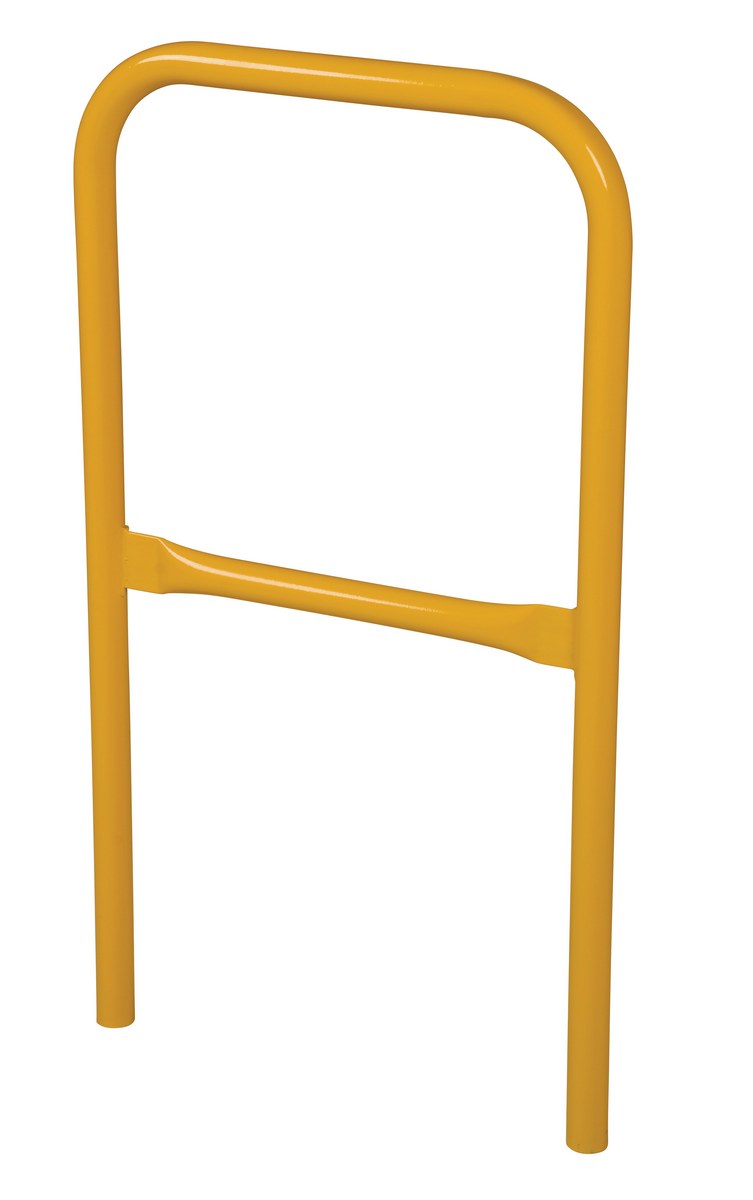

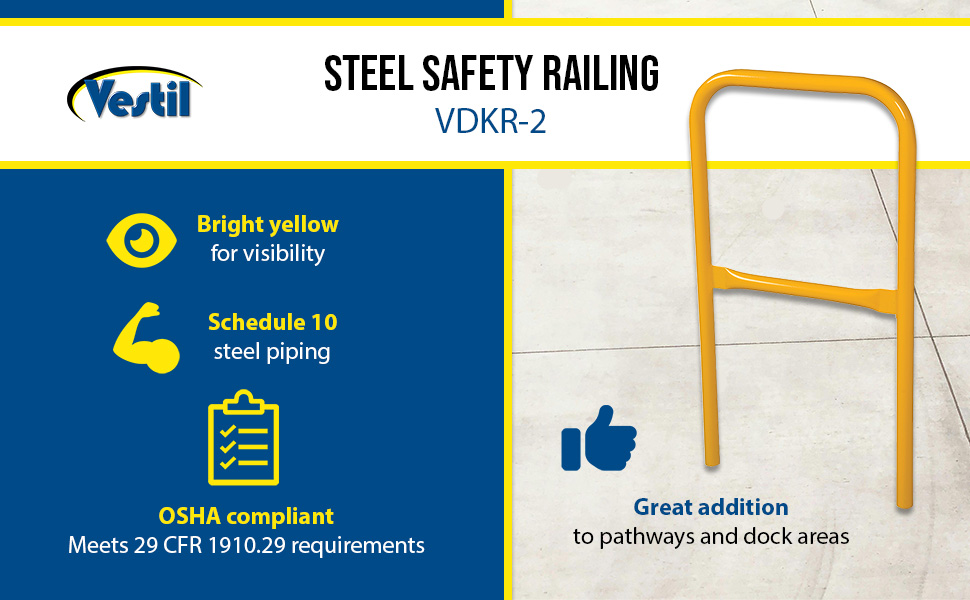

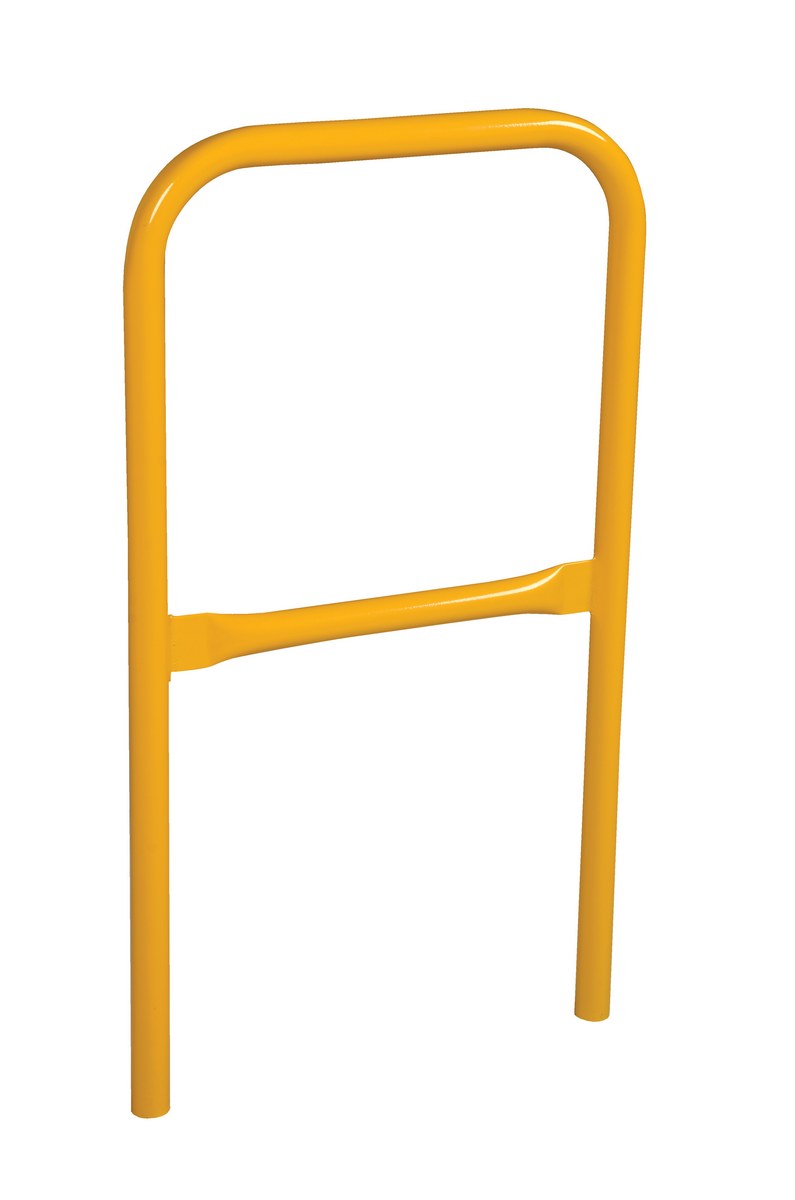

VDKR-2 VDKR-2Steel Safety Railing 2 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		19

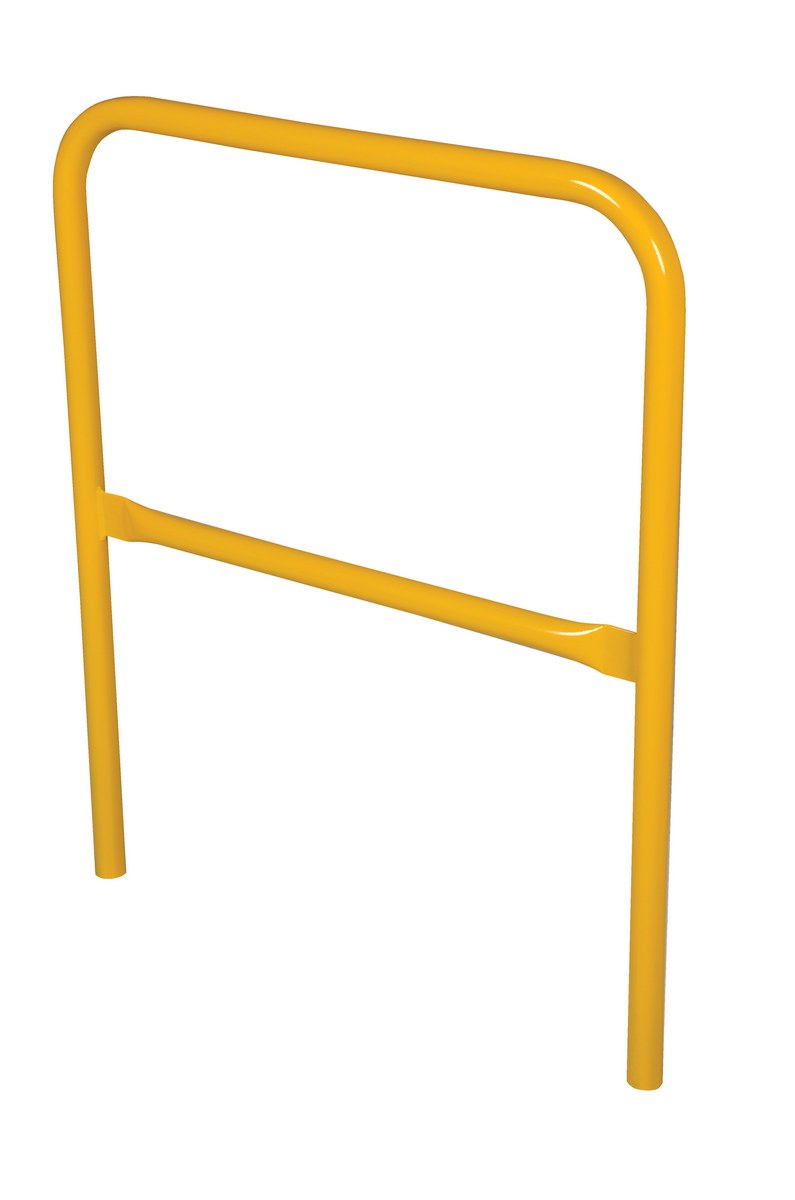

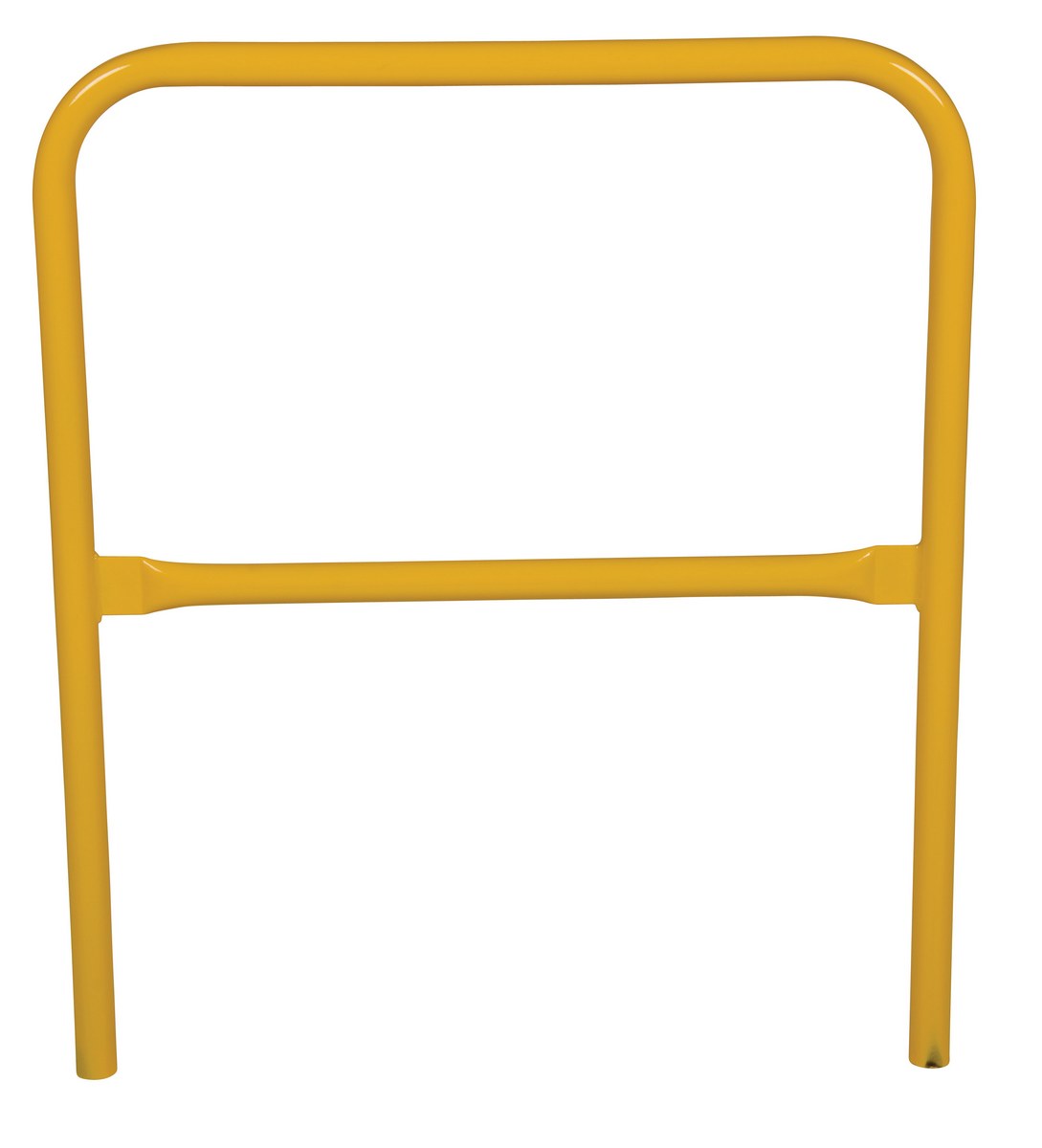

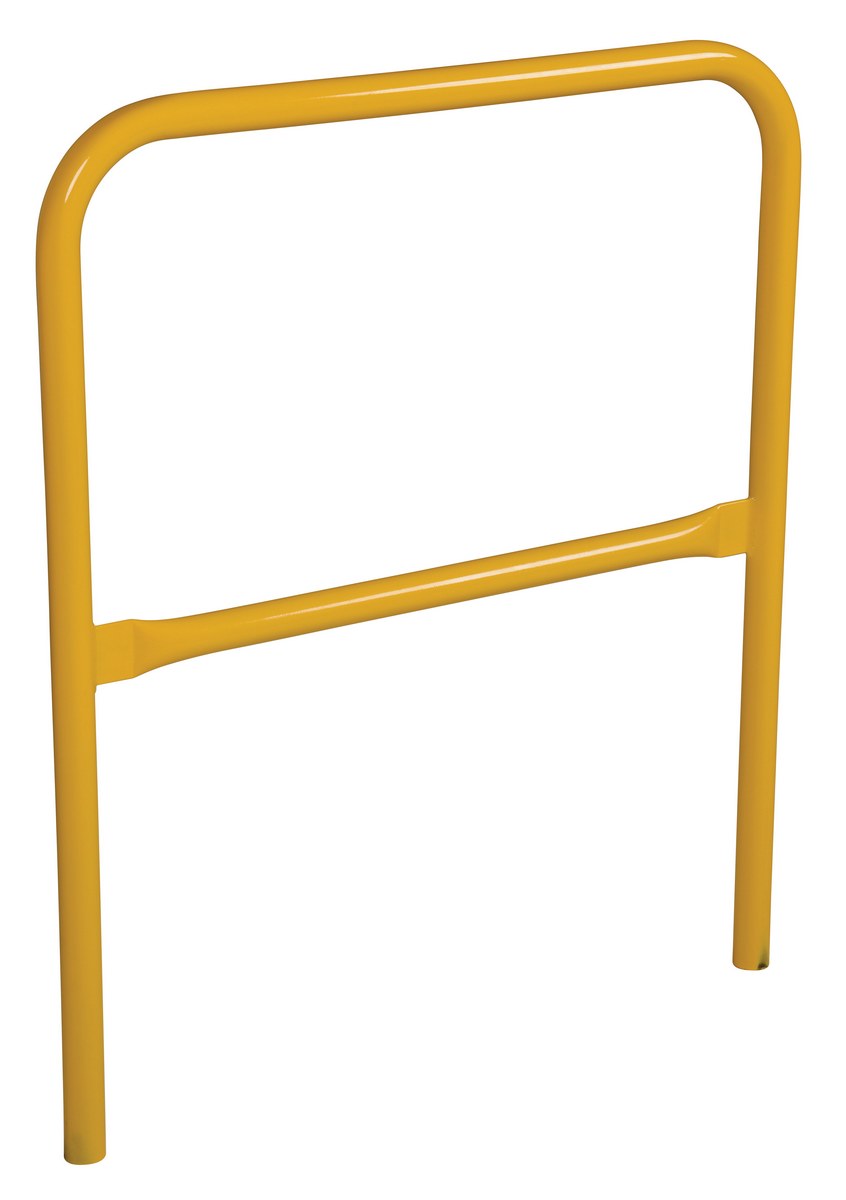

VDKR-3 VDKR-3Steel Safety Railing 3 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		24

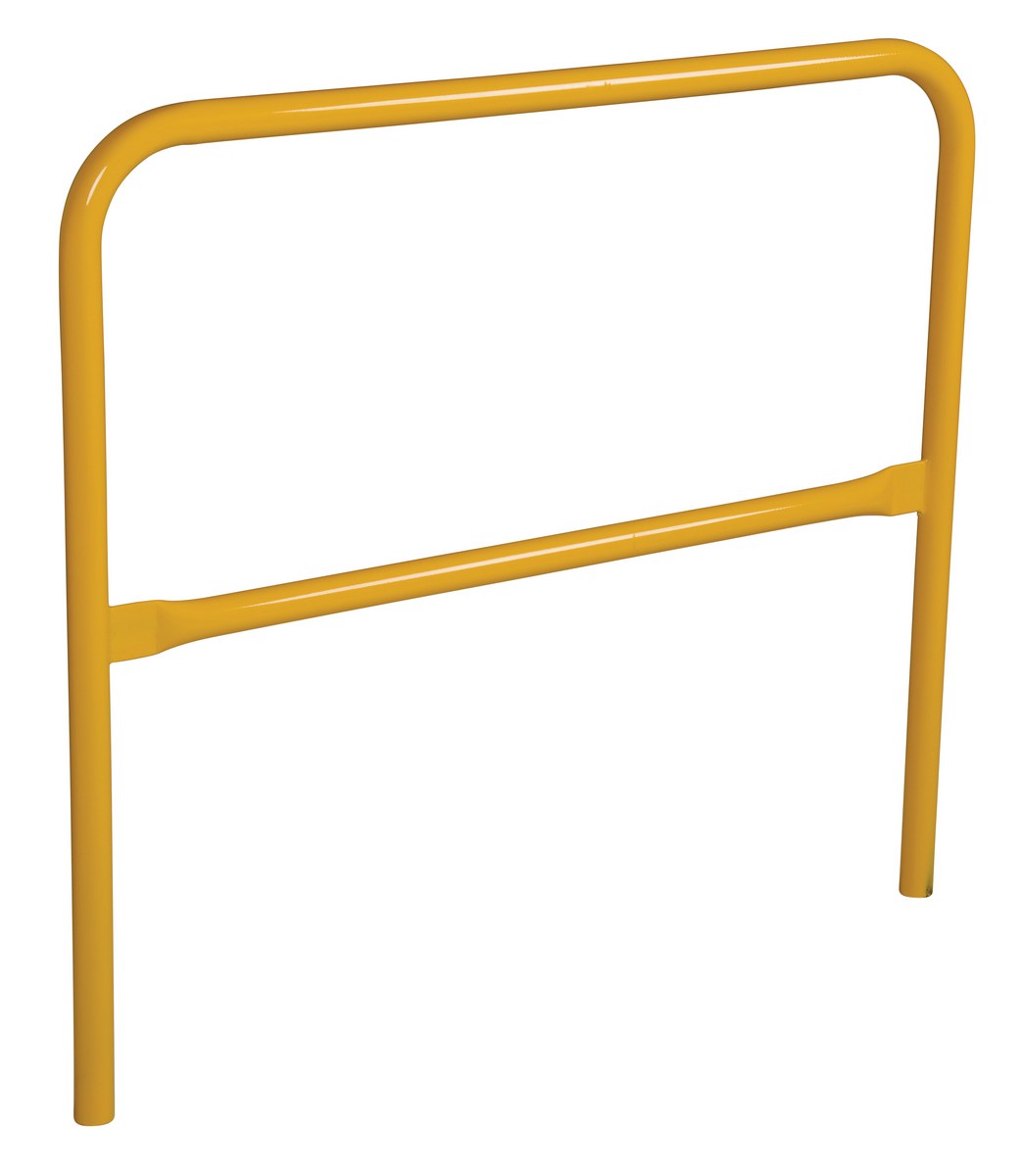

VDKR-4 VDKR-4Steel Safety Railing 4 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		54

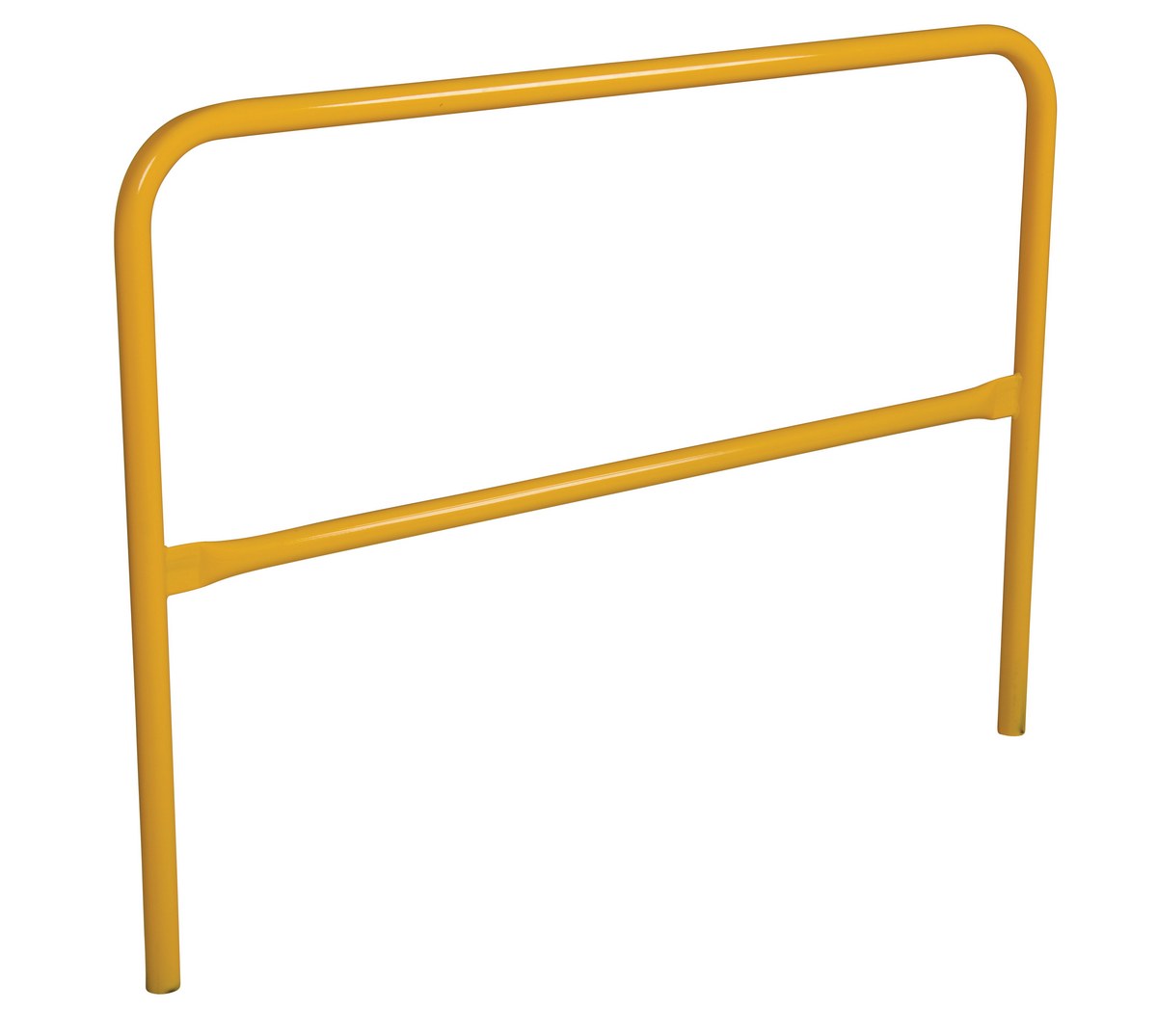

VDKR-5 VDKR-5Steel Safety Railing 5 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		72

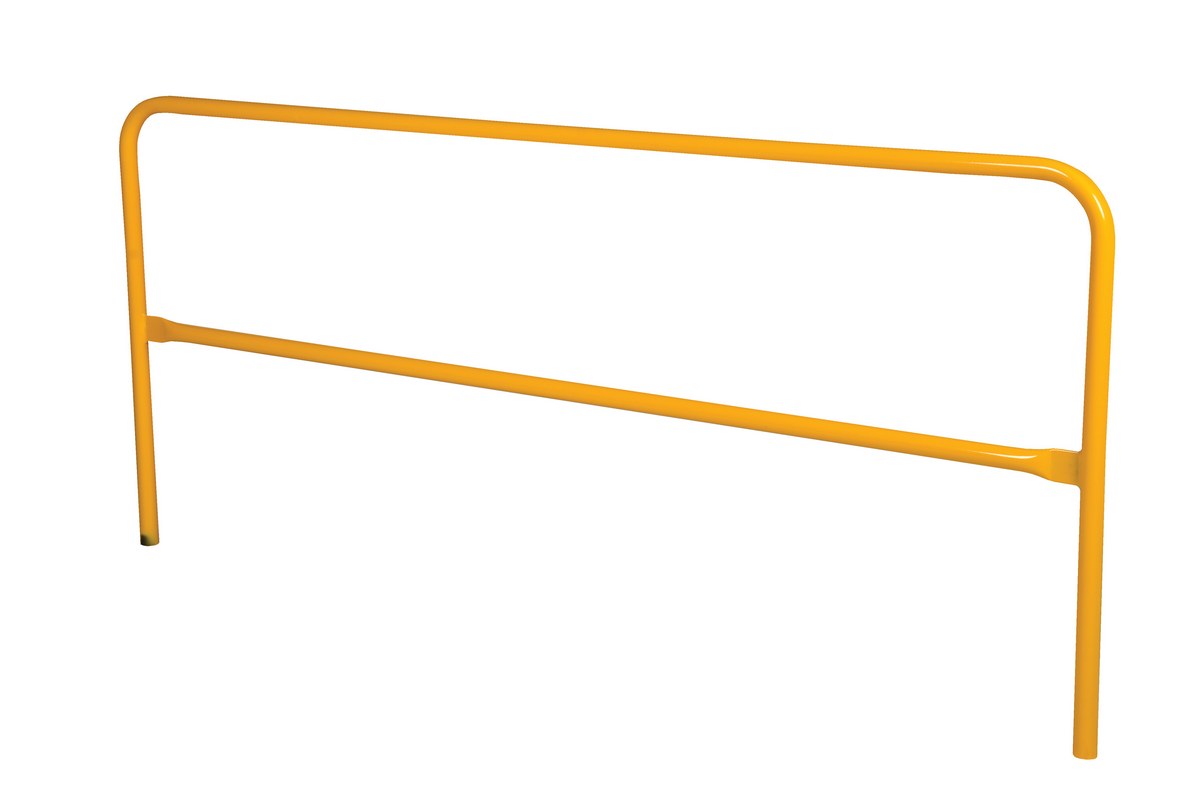

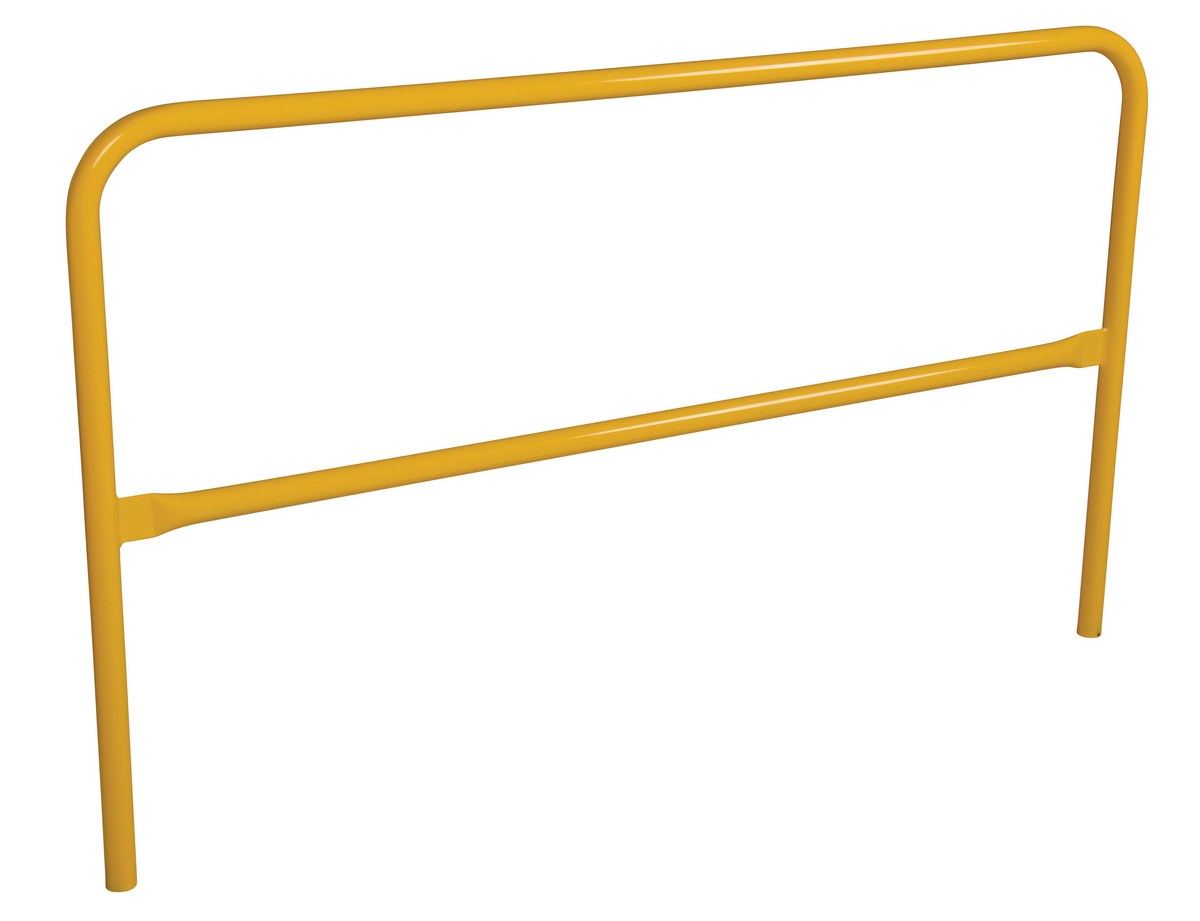

VDKR-6 VDKR-6Steel Safety Railing 6 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		106

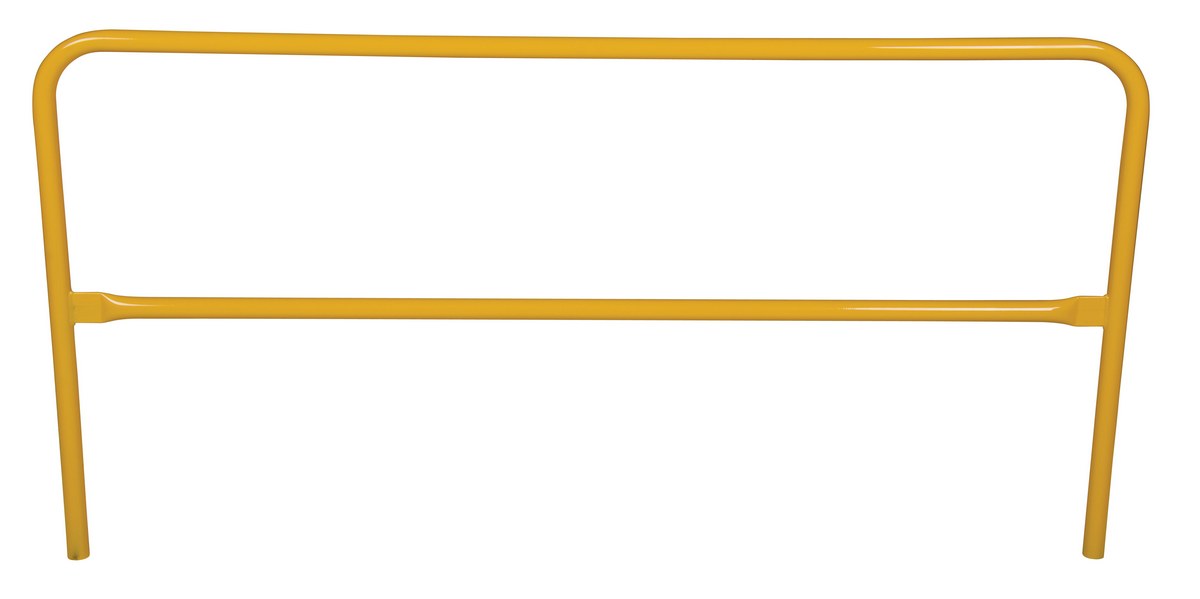

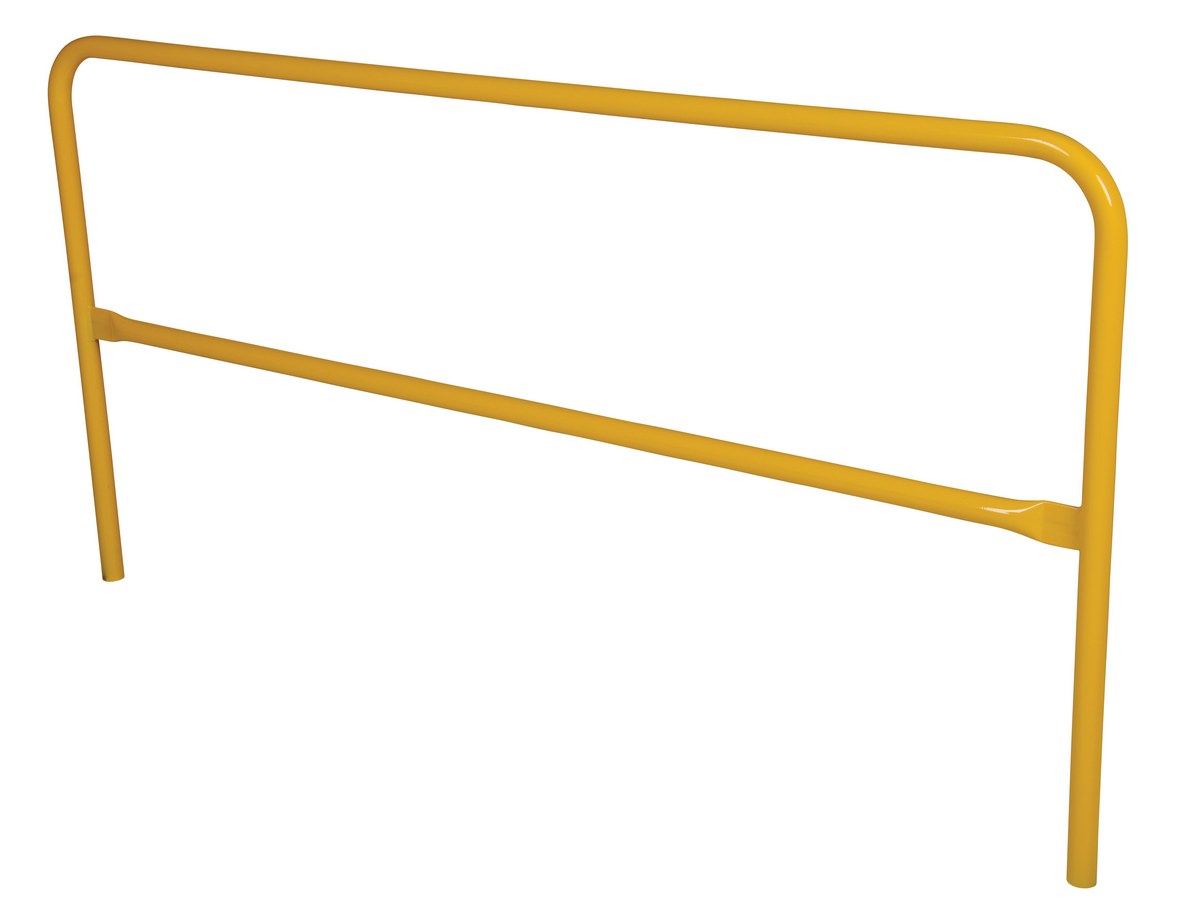

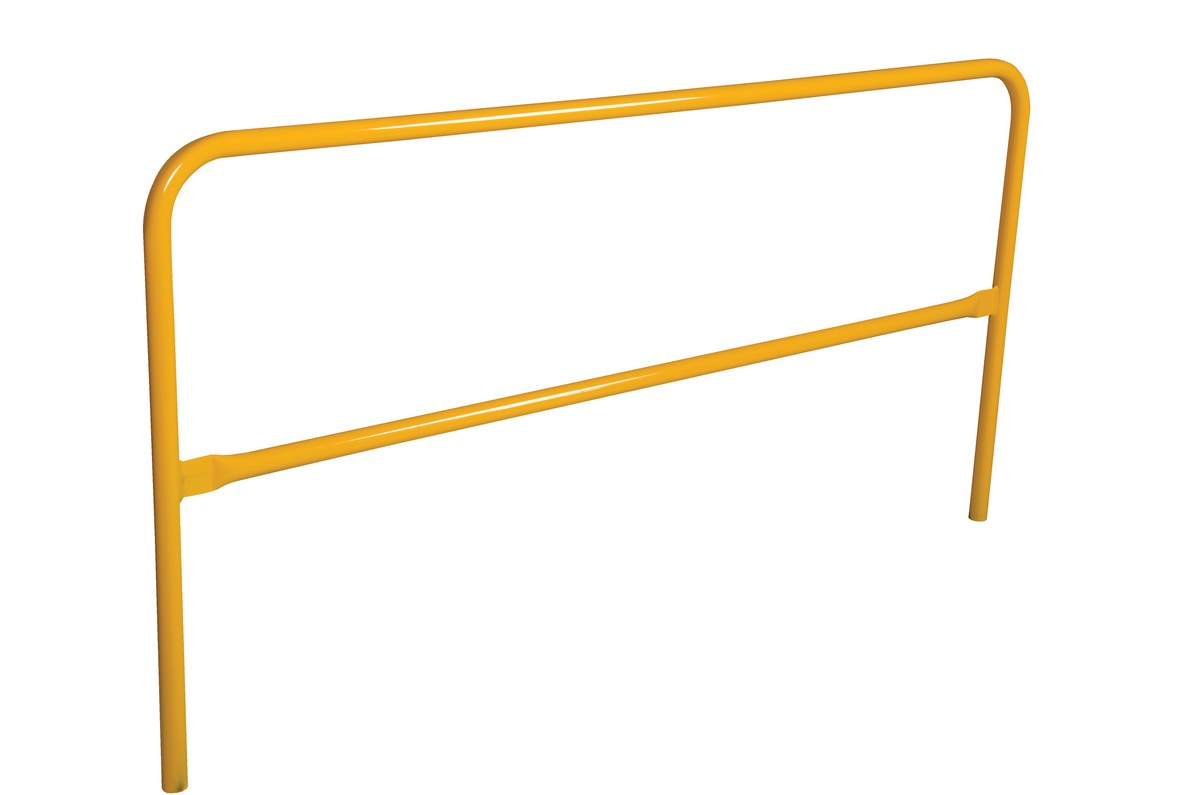

VDKR-7 VDKR-7Steel Safety Railing 7 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		86

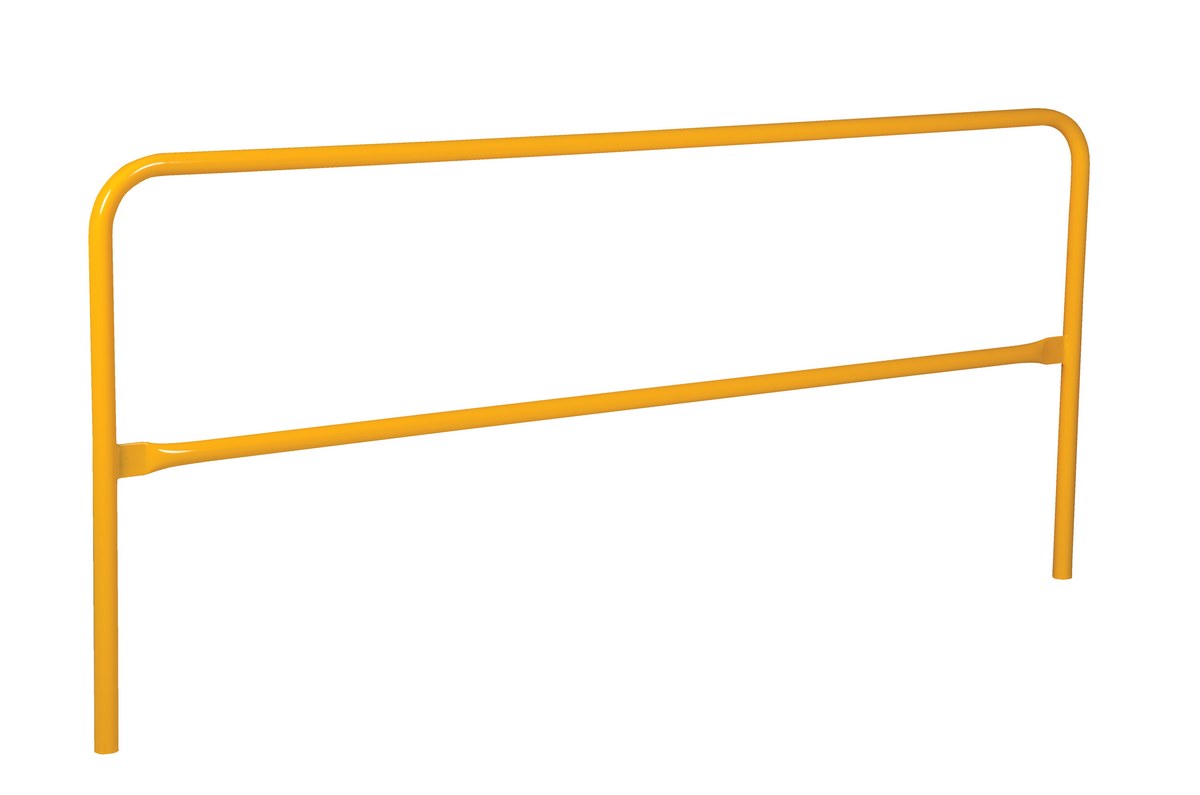

VDKR-8 VDKR-8Steel Safety Railing 8 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		112

Options


Model Image PDF Description Wt.
(lbs)
AS-383 Warranty PDF Anchor Bolts [for concrete (1) 3/8" x 3"] 1
AS-383-4PK Warranty PDF Anchor Bolts [for concrete (4) 3/8" x 3"] 4
