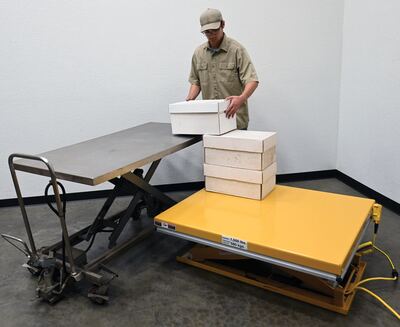

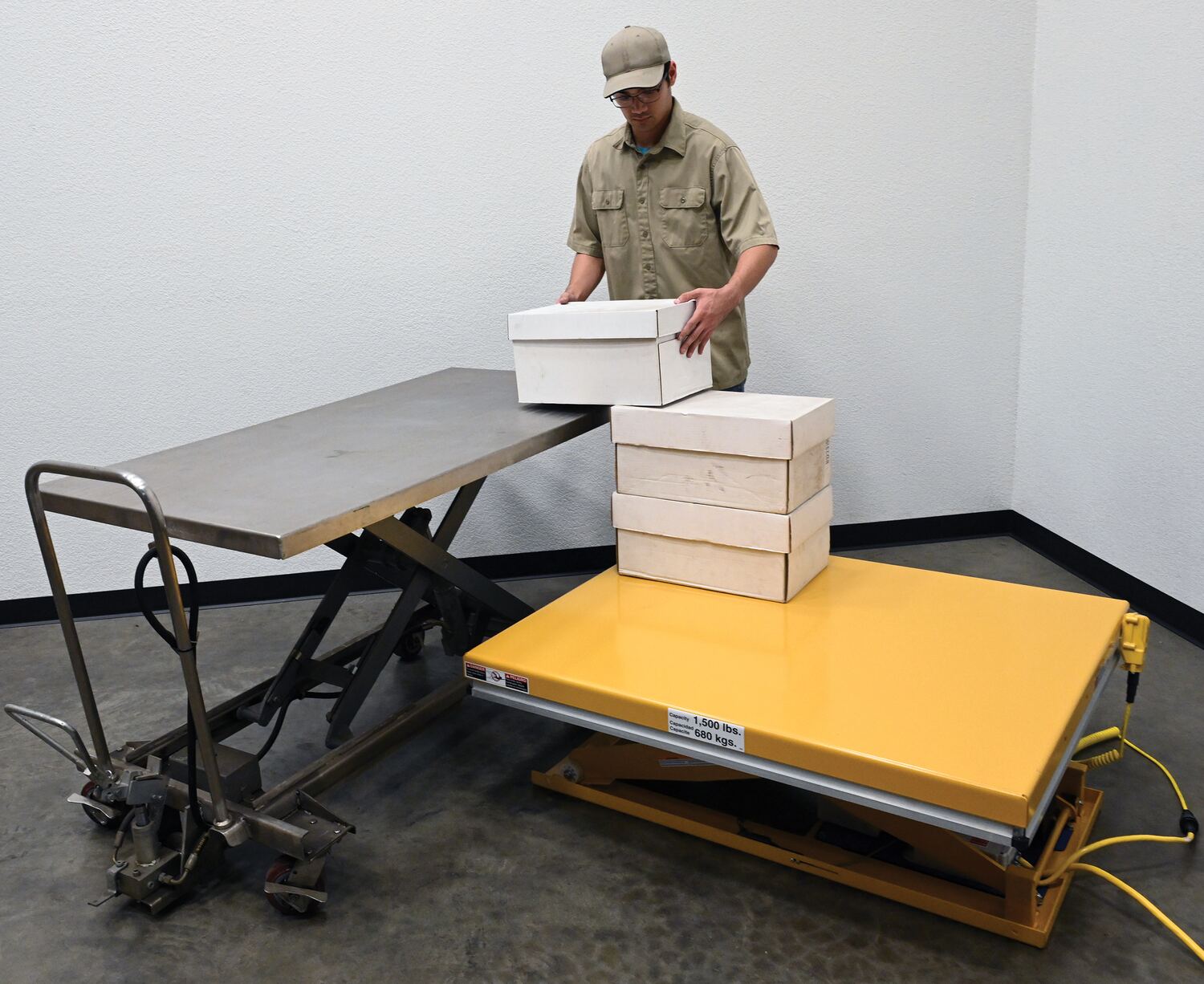

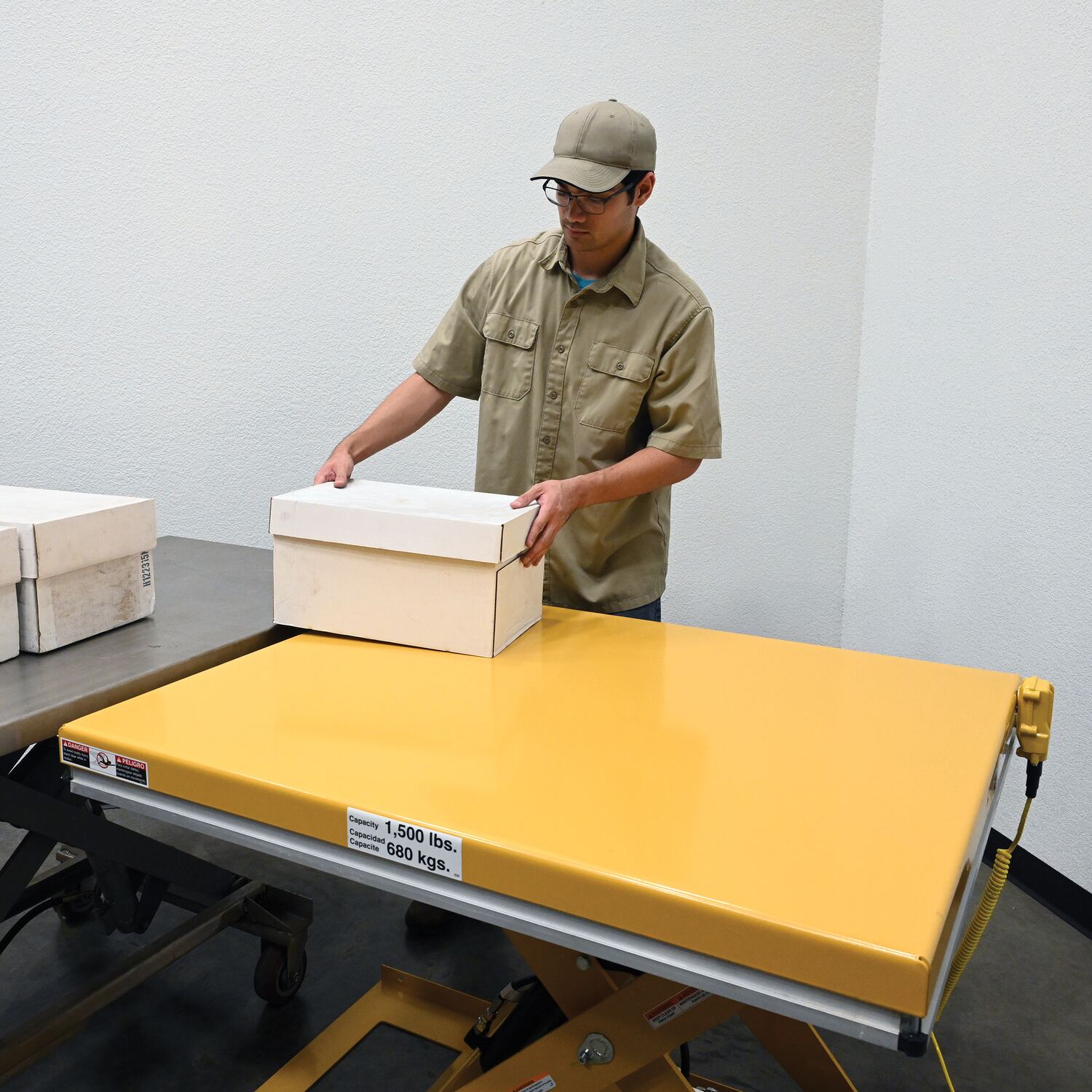

Work Station Electric Hydraulic Scissor TablesWork station electric hydraulic scissor tables are designed to raise products up to an ergonomic working height. They maximizes safety with minimum space requirements and are ideal for all types of manufacturing and warehouse facilities. An electric toe guard also comes standard with the unit. External power unit models and internal power unit models both have a 13 Second travel time (based on 3 phase motor)

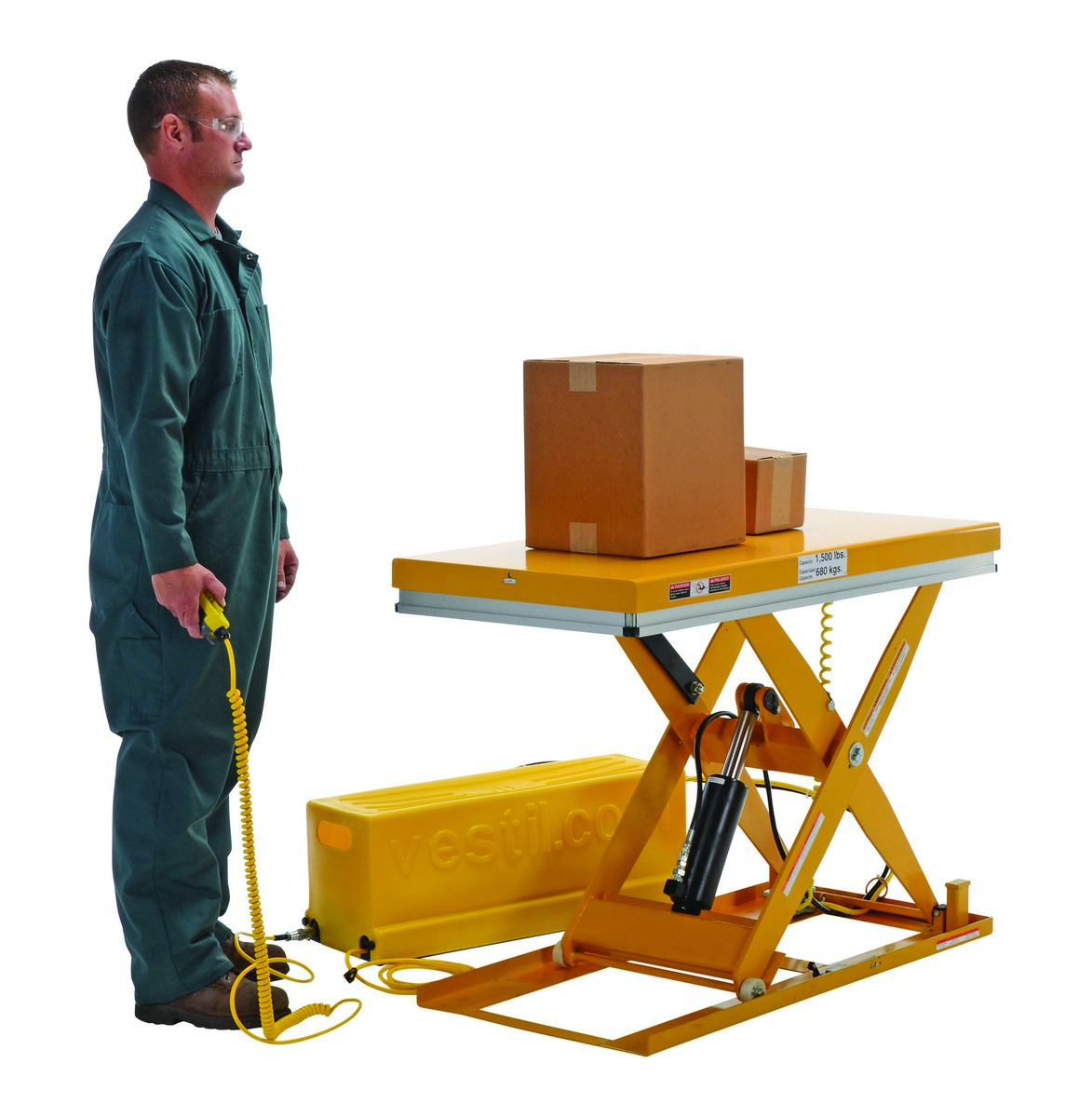

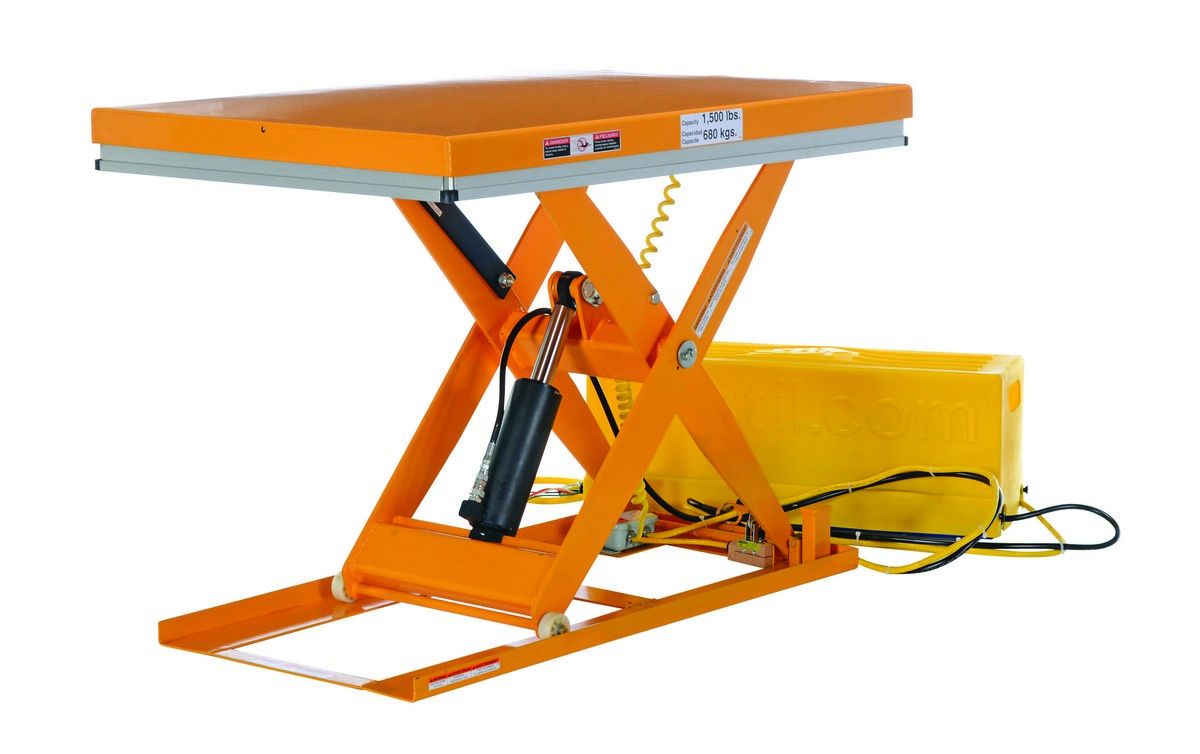

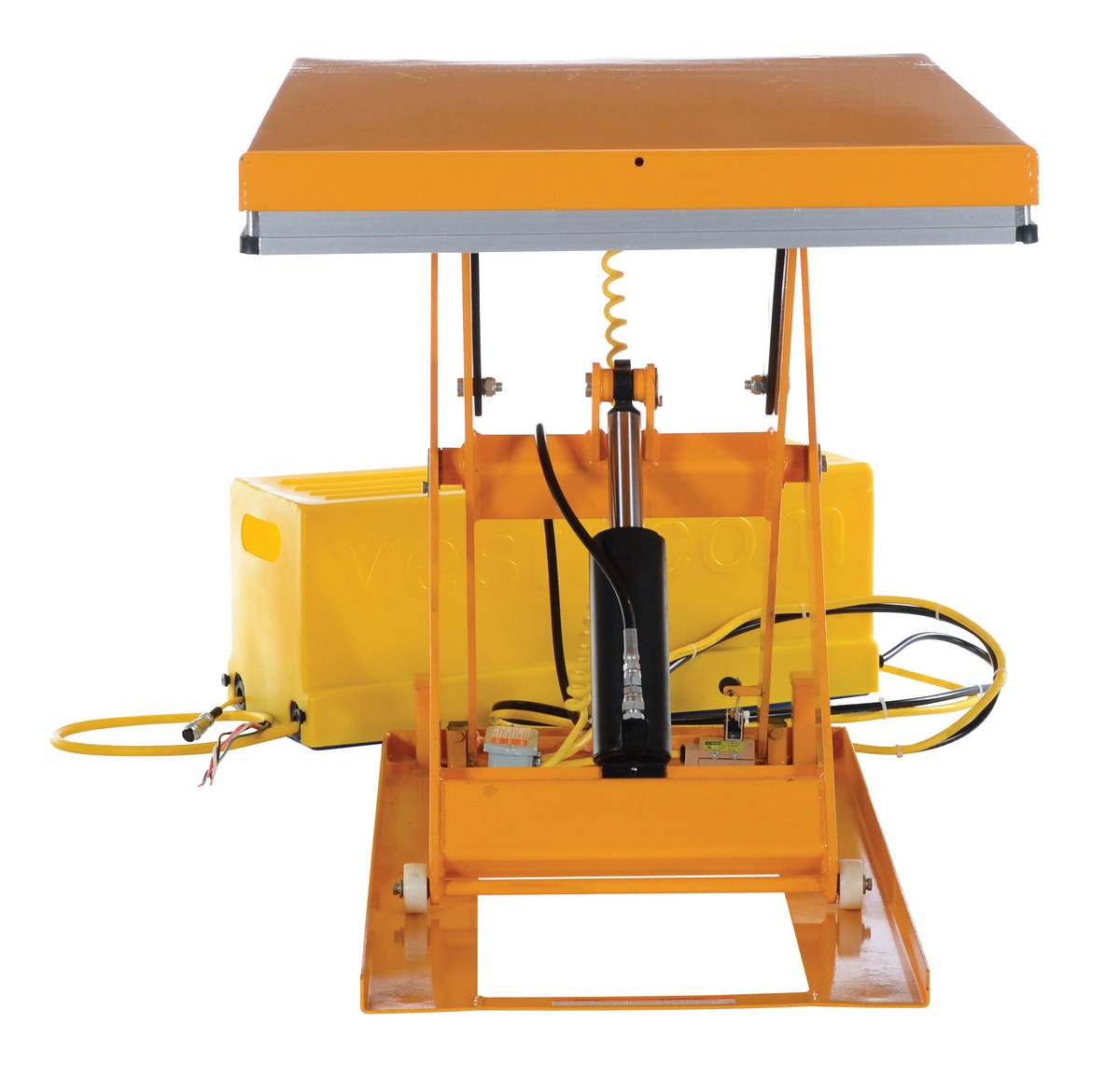

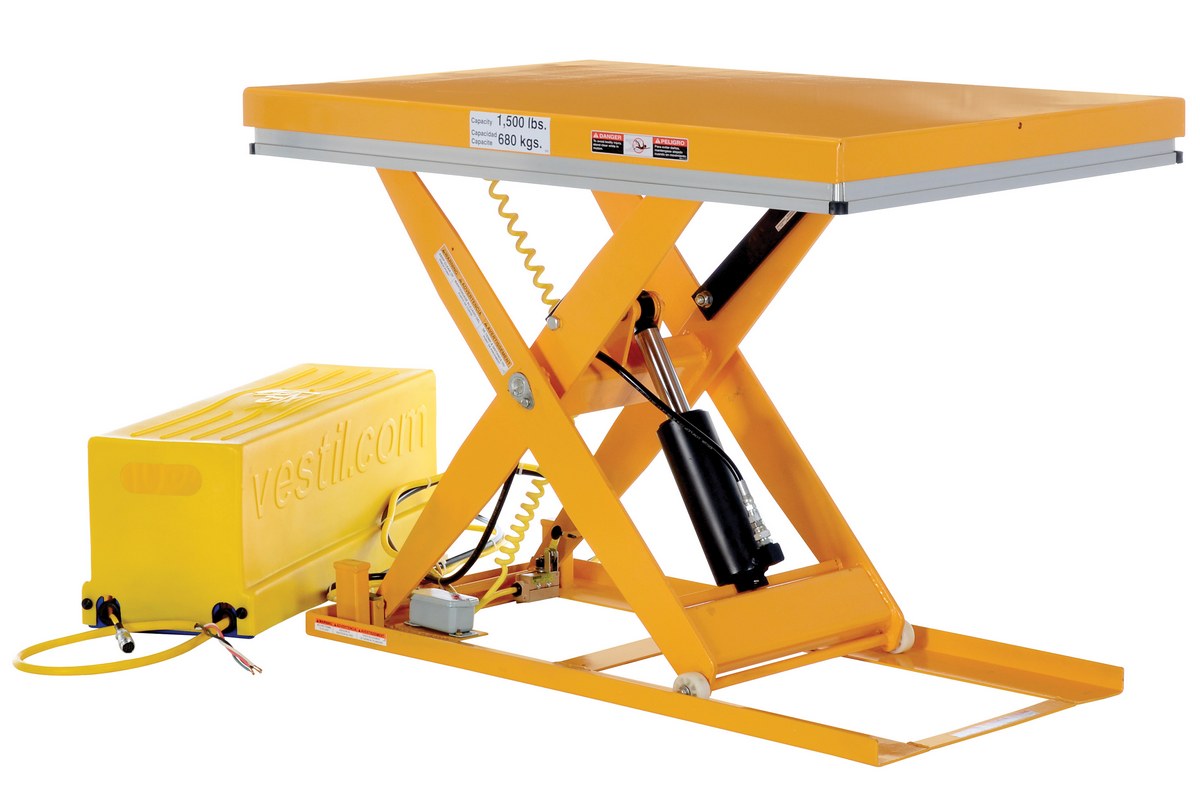

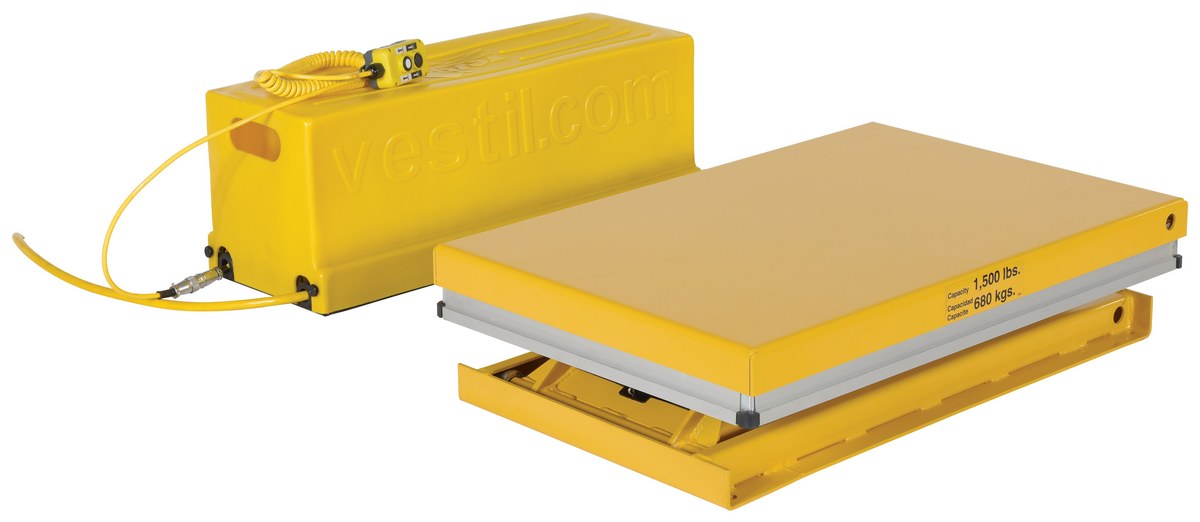

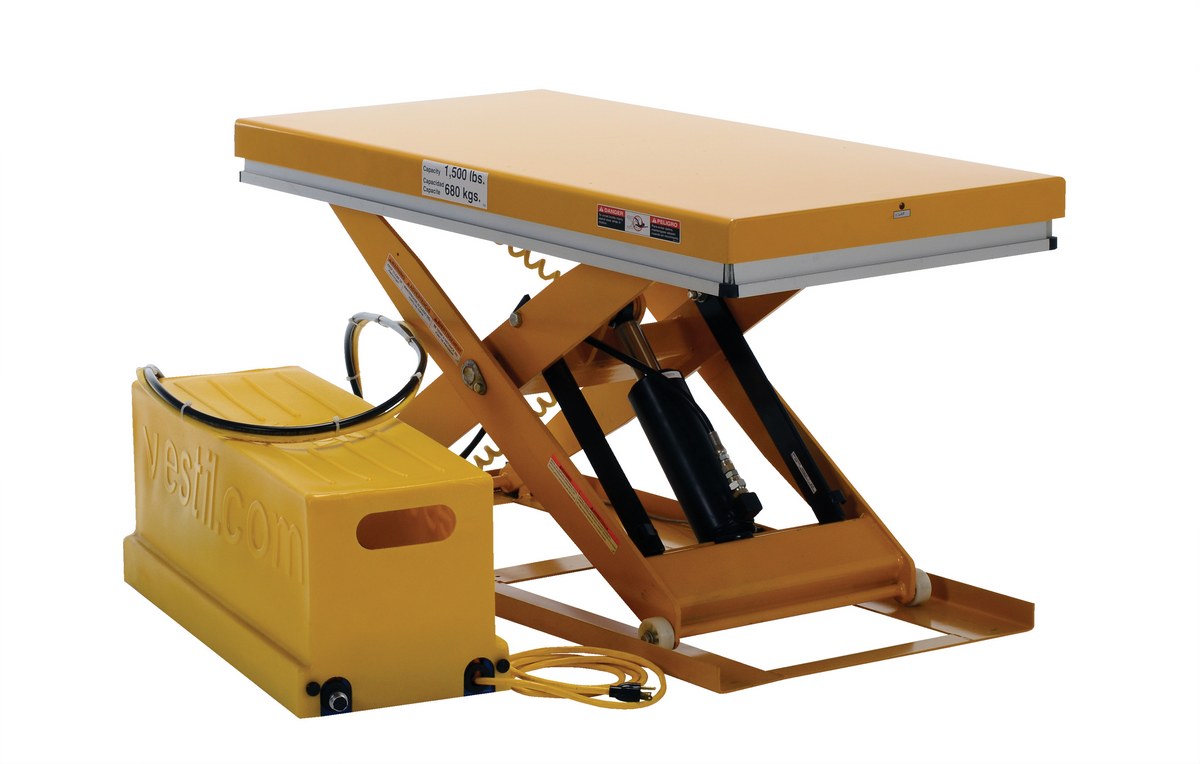

EHLT-WS (External Power Unit)
- The 460V 3-Phase external power unit can be located eight (8) feet away from the unit
- Steel & Partialy Stainless Steel Models available
- Comes with a standard hand control
Partially Stainless Steel Models Available!
(See Chart Below)

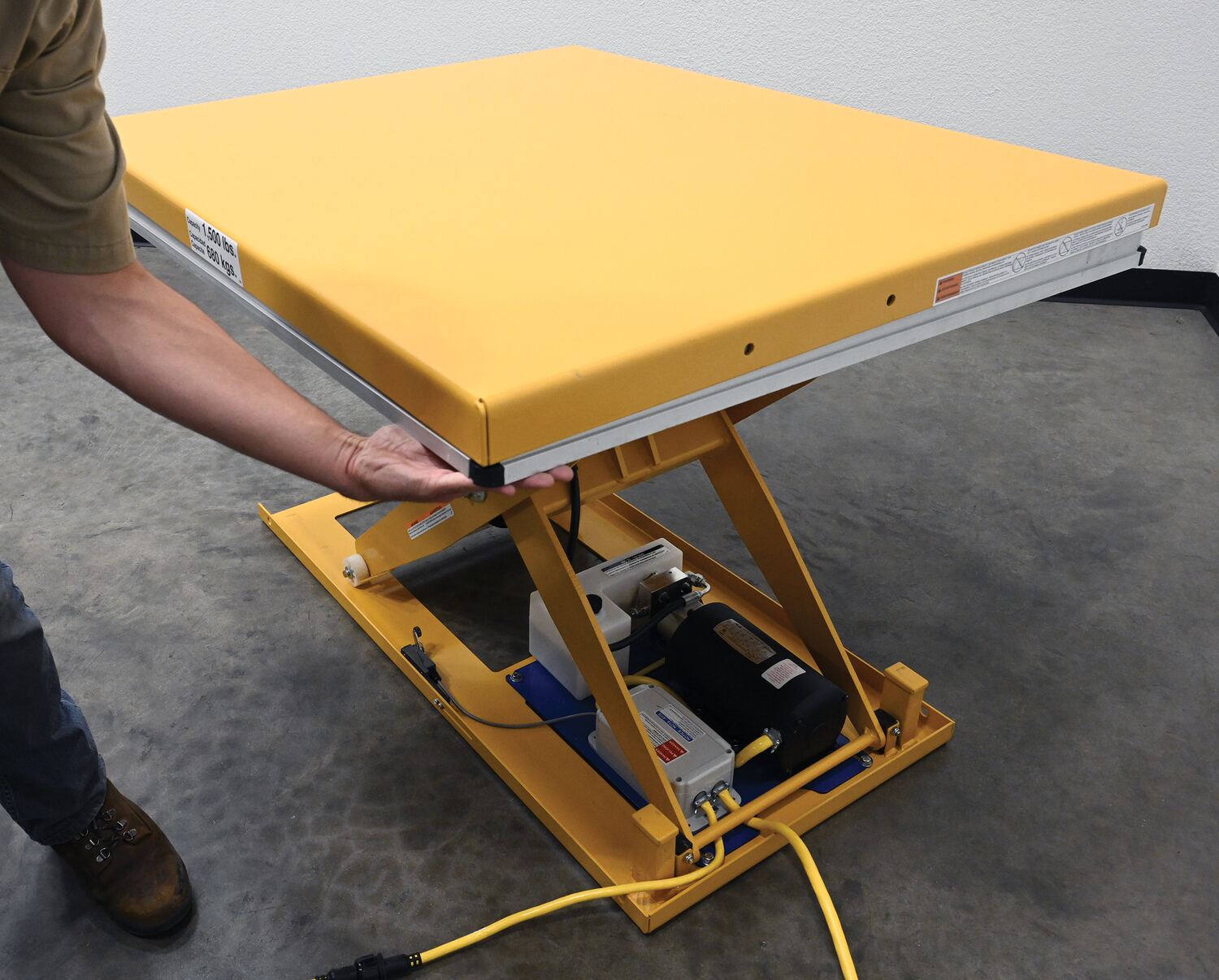

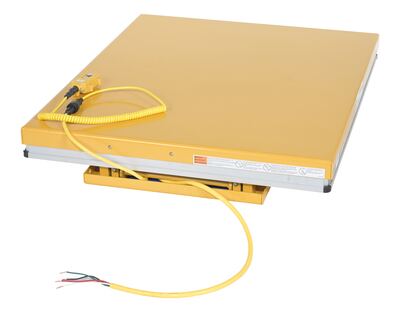

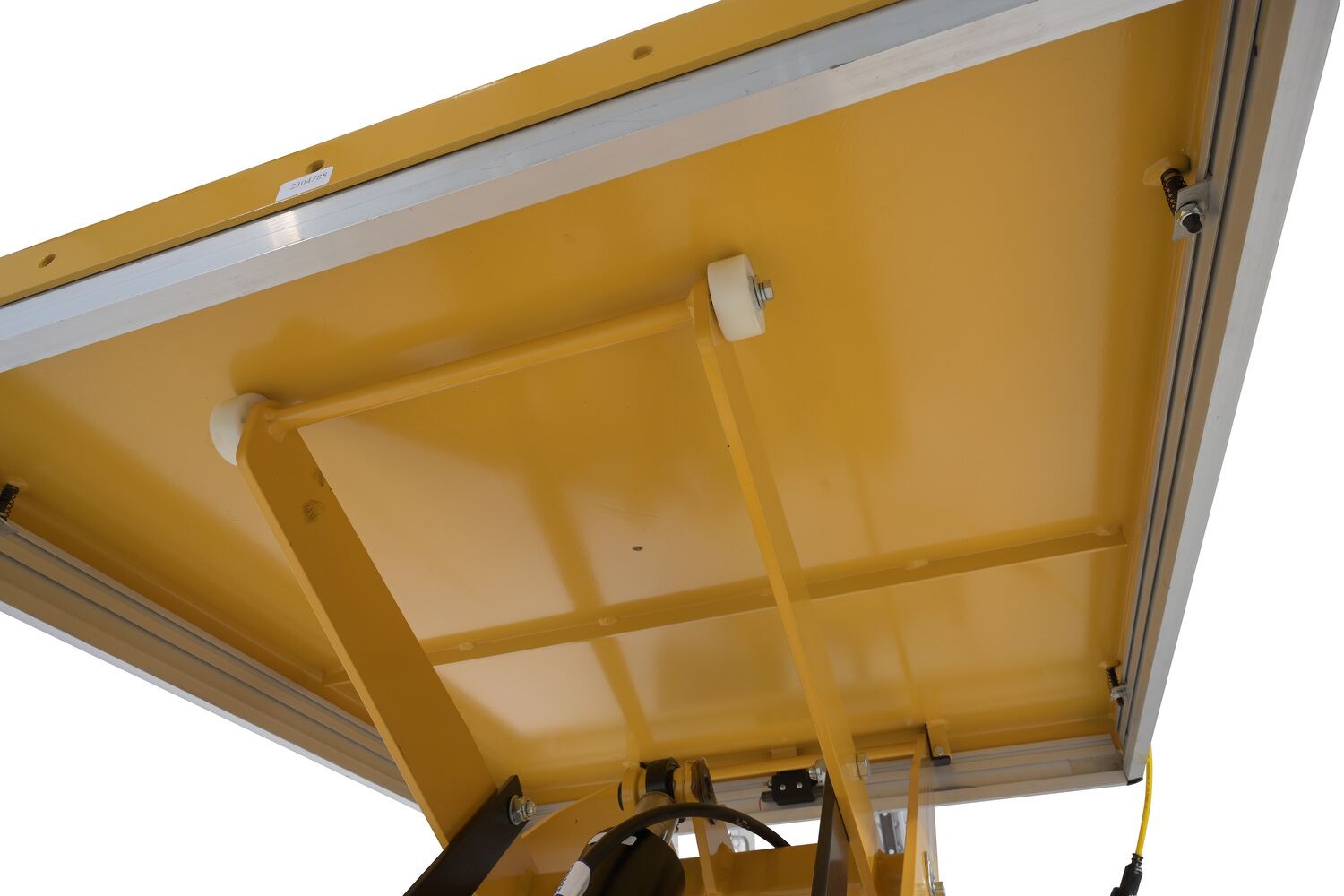

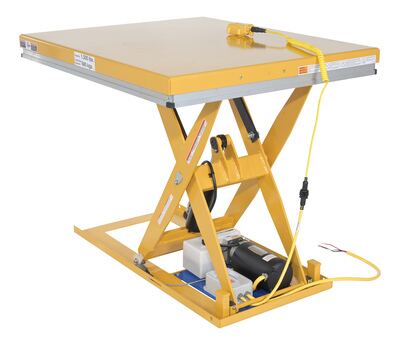

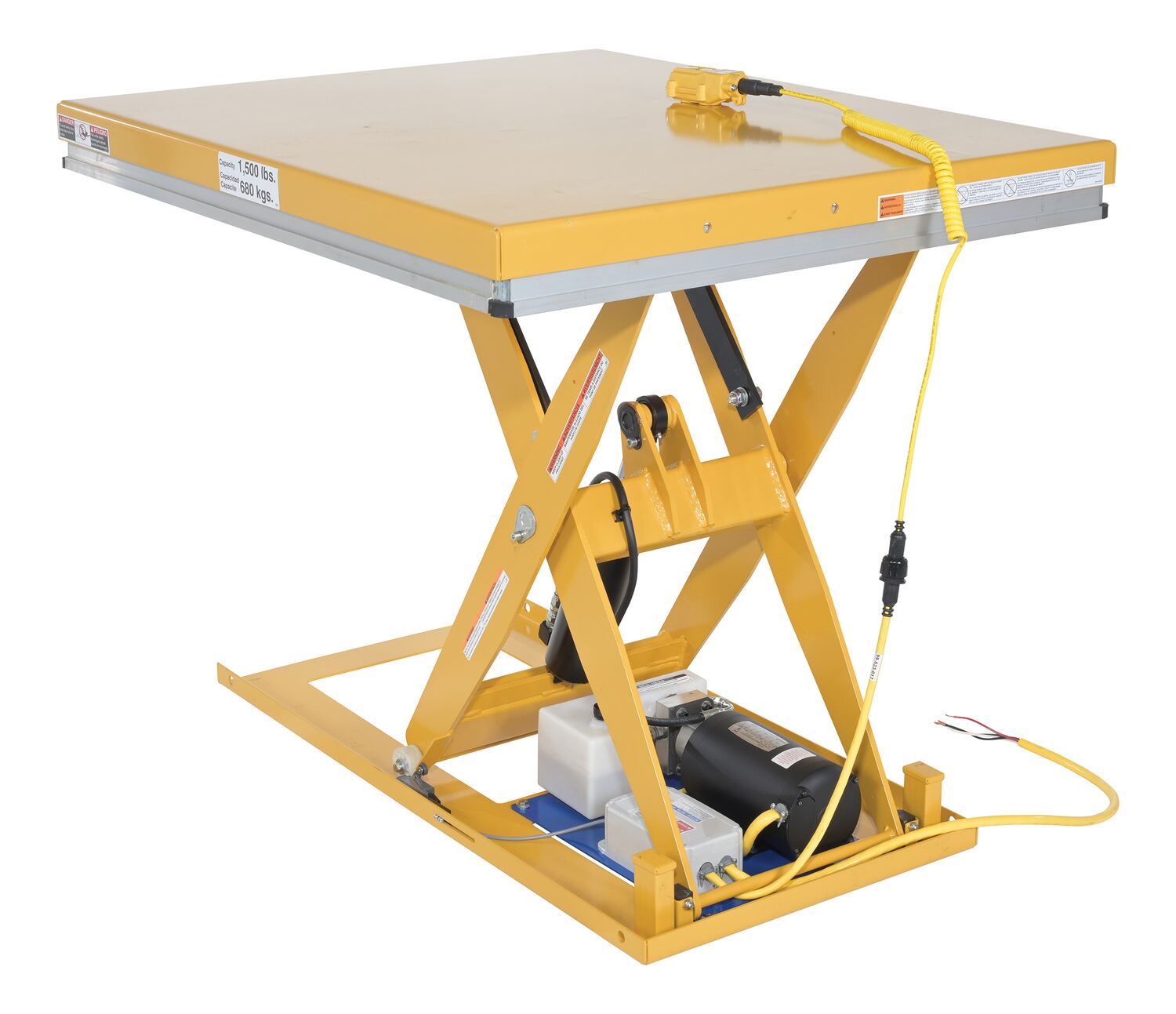

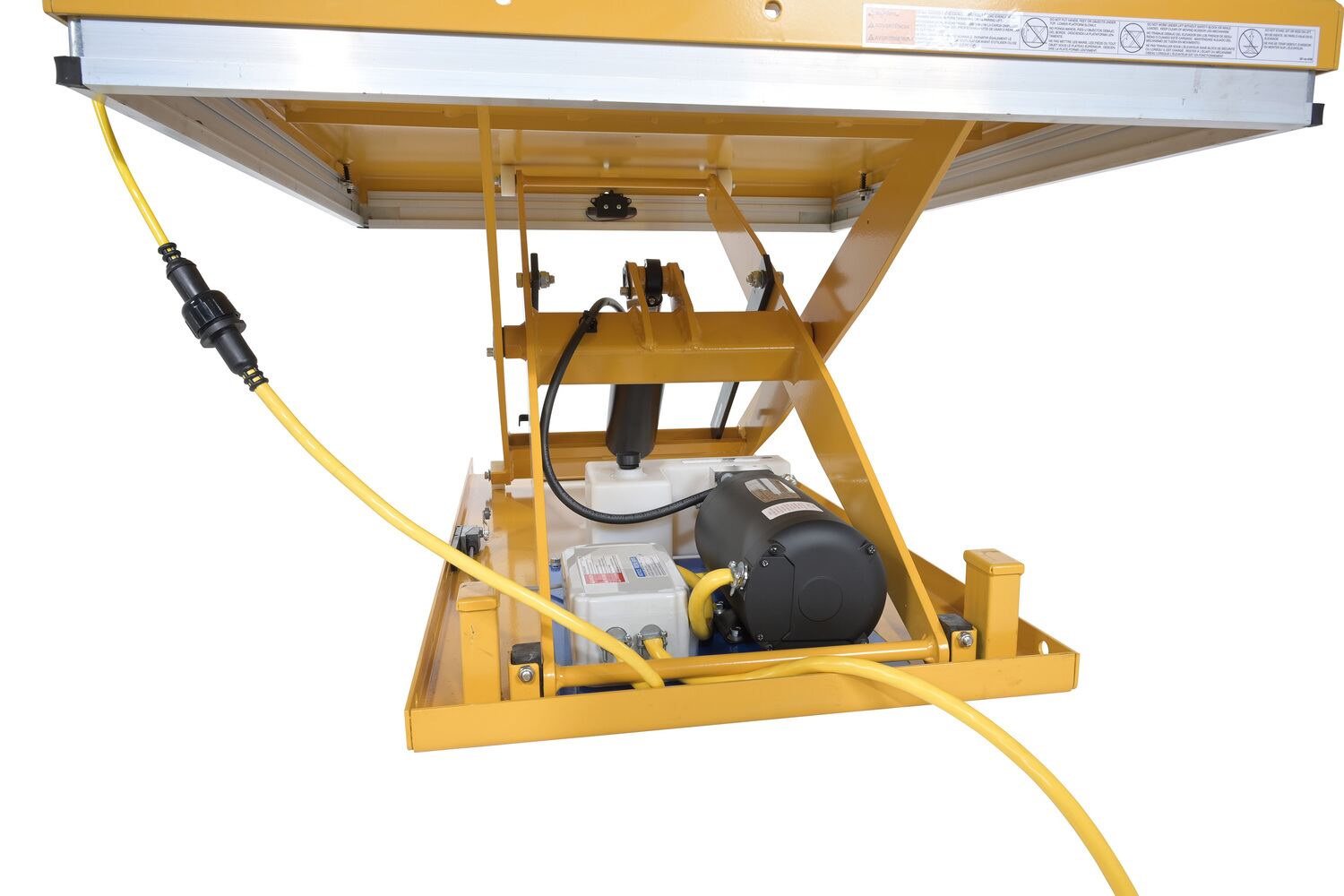

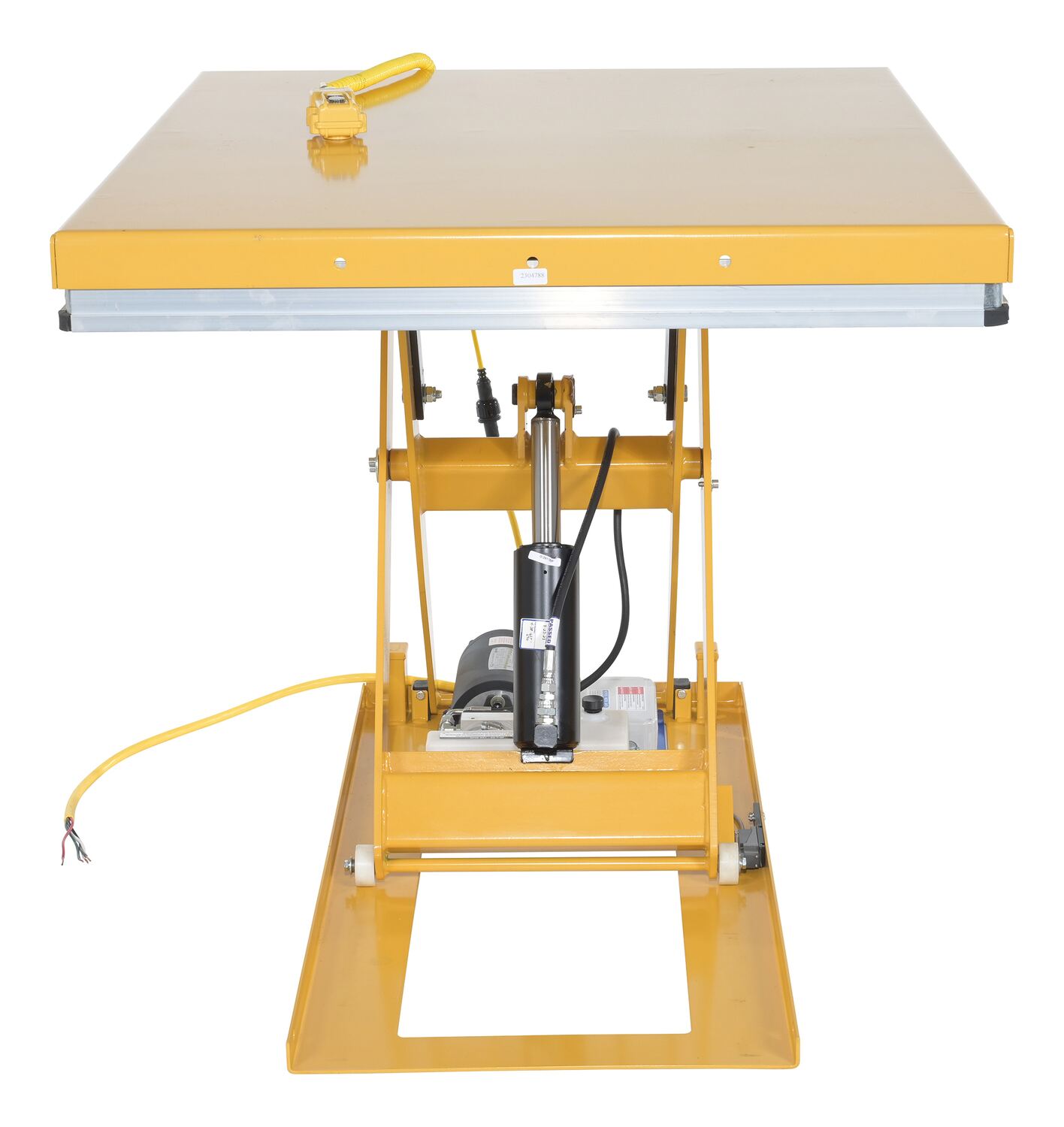

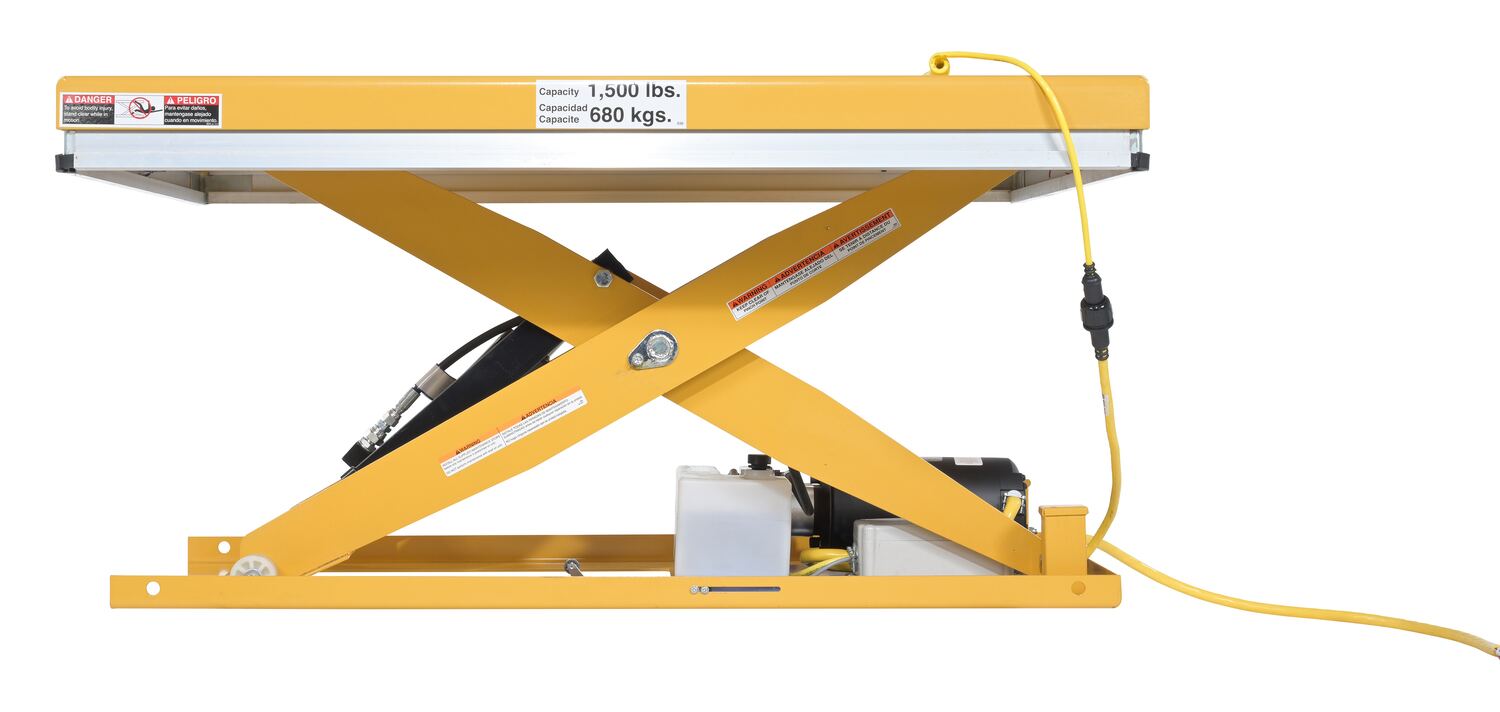

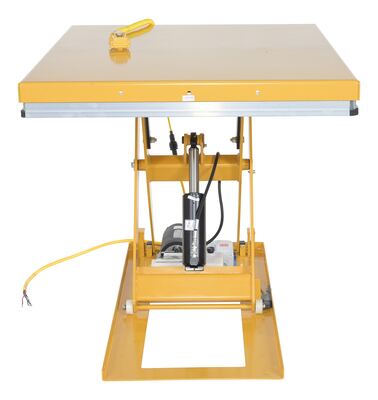

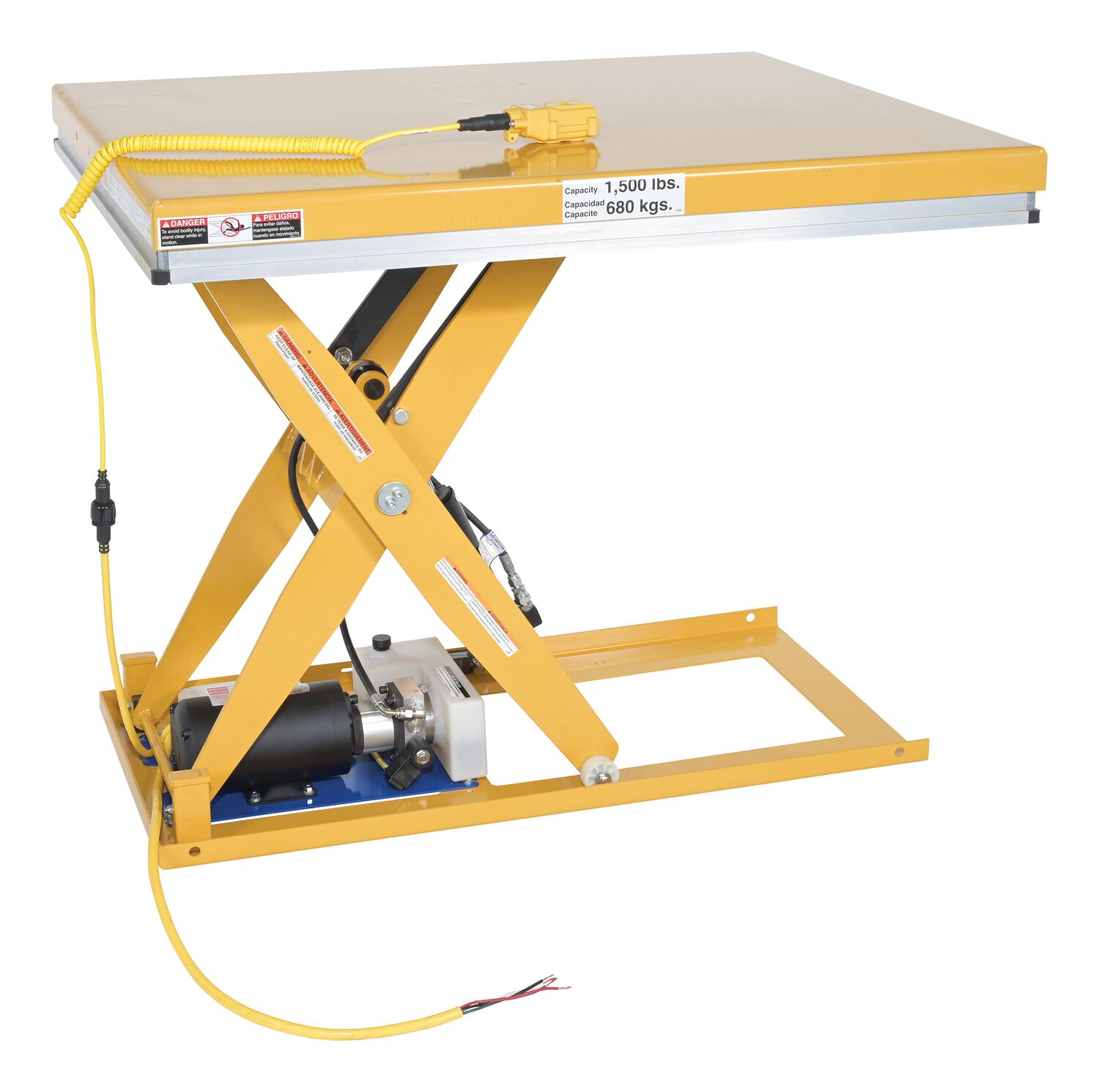

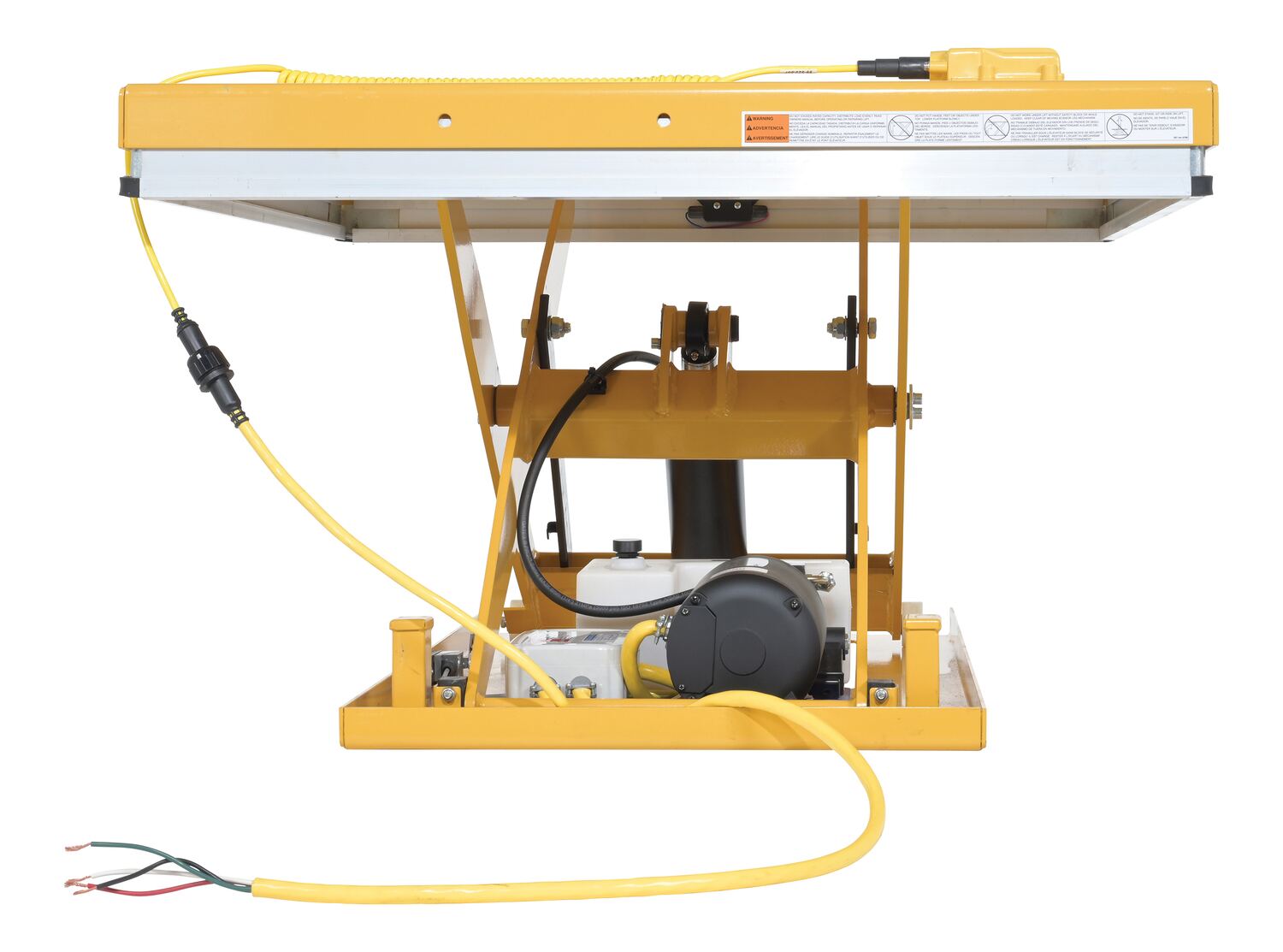

EHLT-WSI (Internal Power Unit) New!
- The 460V 3-phase internal power unit comes with a standard hand control
- Open design, functional from all four sides
- Emergency safety-stop hydraulic fuses

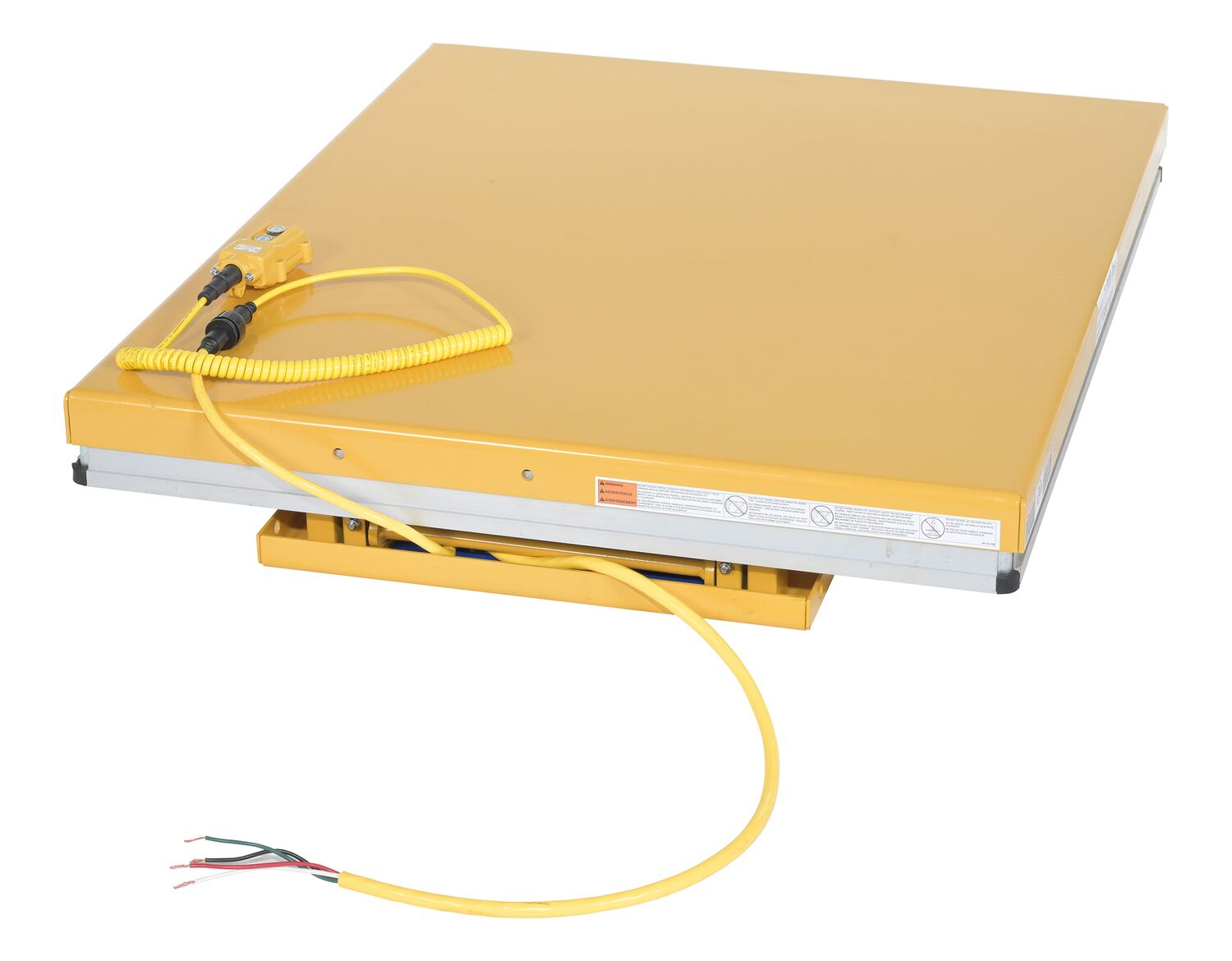

- Lengthy 8' hand pendant cord
Powered Lift Table With Manual Rotation
Double Scissor Lift Tables
Rotary Air/Hydraulic Scissor Lift Tables
Manual Built-In Carousel for Scissor TablesAdditional Models In This Family
EHLT-WS-2448-1.5-36

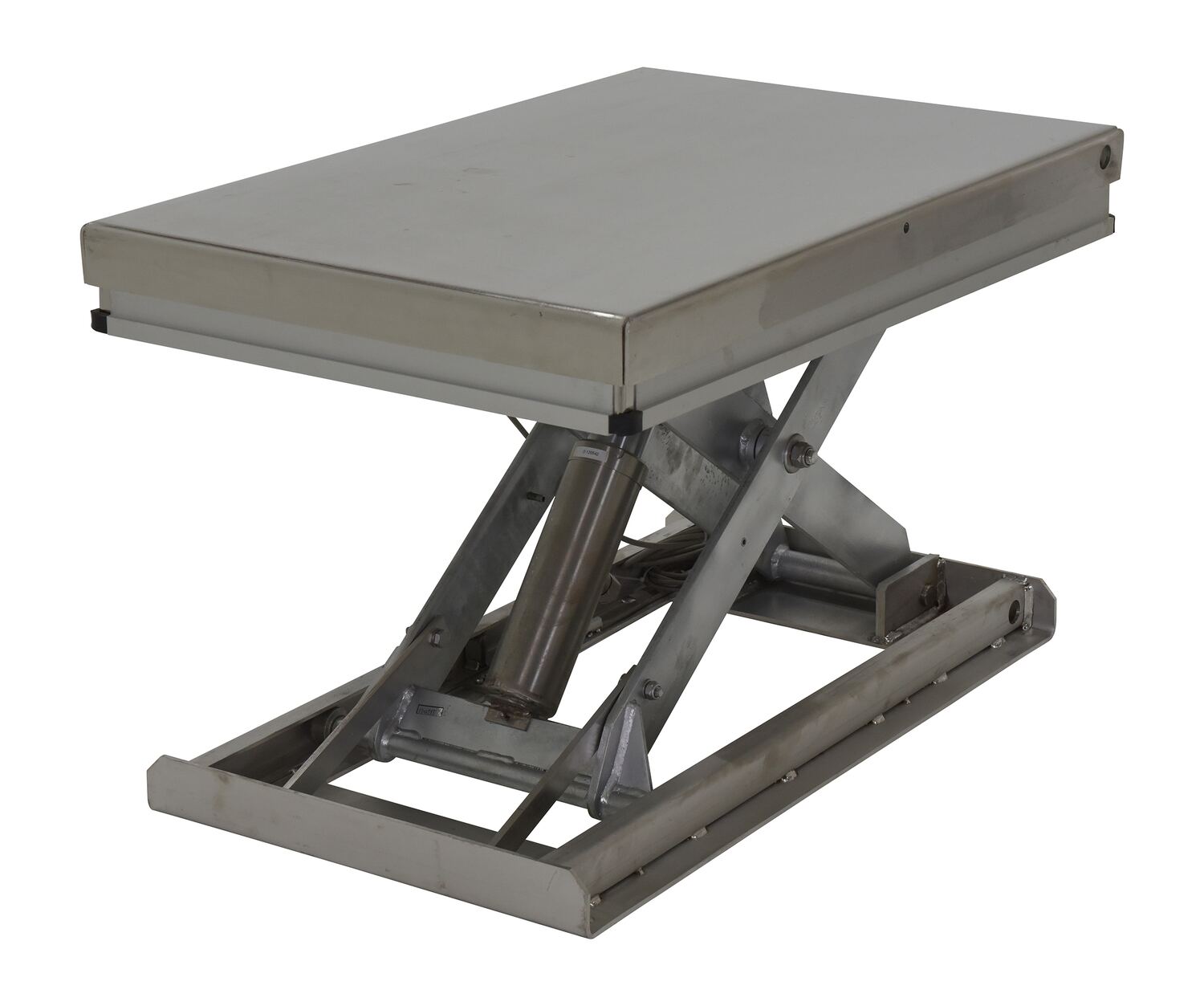

EHLT-WS-2448-PSS
EHLT-WSI-4048-1.5-36
EHLT-WS-3248-1.5-36
EHLT-WS-4048-1.5-36
EHLT-WS-2436-PSS
EHLT-WS-2436-1.5-31
EHLT-WSI-2448-1.5-36
EHLT-WSI-4048-1.5-36
EHLT-WSI-4048-1.5-36
EHLT-WS-2448-PSS
EHLT-WS-2448-PSS
EHLT-WSI-4048-1.5-36
EHLT-WSI-4048-1.5-36
EHLT-WS-2448-PSS
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| EHLT-WS-2436-1.5-31 | POPULAR |  | 1 Year Limited Warranty | Steel Work Station Electric Hydraulic Scissor Table 24 In. x 36 In. 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 8-5/8 to 31 | 385 | |
| EHLT-WS-2436-PSS | |  | 1 Year Limited Warranty | Partially Stainless Steel Work Station Electric Hydraulic Scissor Table 24 In. x 36 In. 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 7 to 36 | 407 | |
| EHLT-WS-2448-1.5-36 |  | 1 Year Limited Warranty | Steel Work Station Electric Hydraulic Scissor Table 24 In. x 48 In. 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 7 to 36 | 404 | ||
| EHLT-WS-3248-1.5-36 |  | 1 Year Limited Warranty | Steel Work Station Electric Hydraulic Scissor Table 32 In. x 48 In. 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 7 to 36 | 430 | ||
| EHLT-WS-4048-1.5-36 | | 1 Year Limited Warranty | Steel Work Station Electric Hydraulic Scissor Table 40 In. x 48 In. 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 7 to 36 | 457 | ||

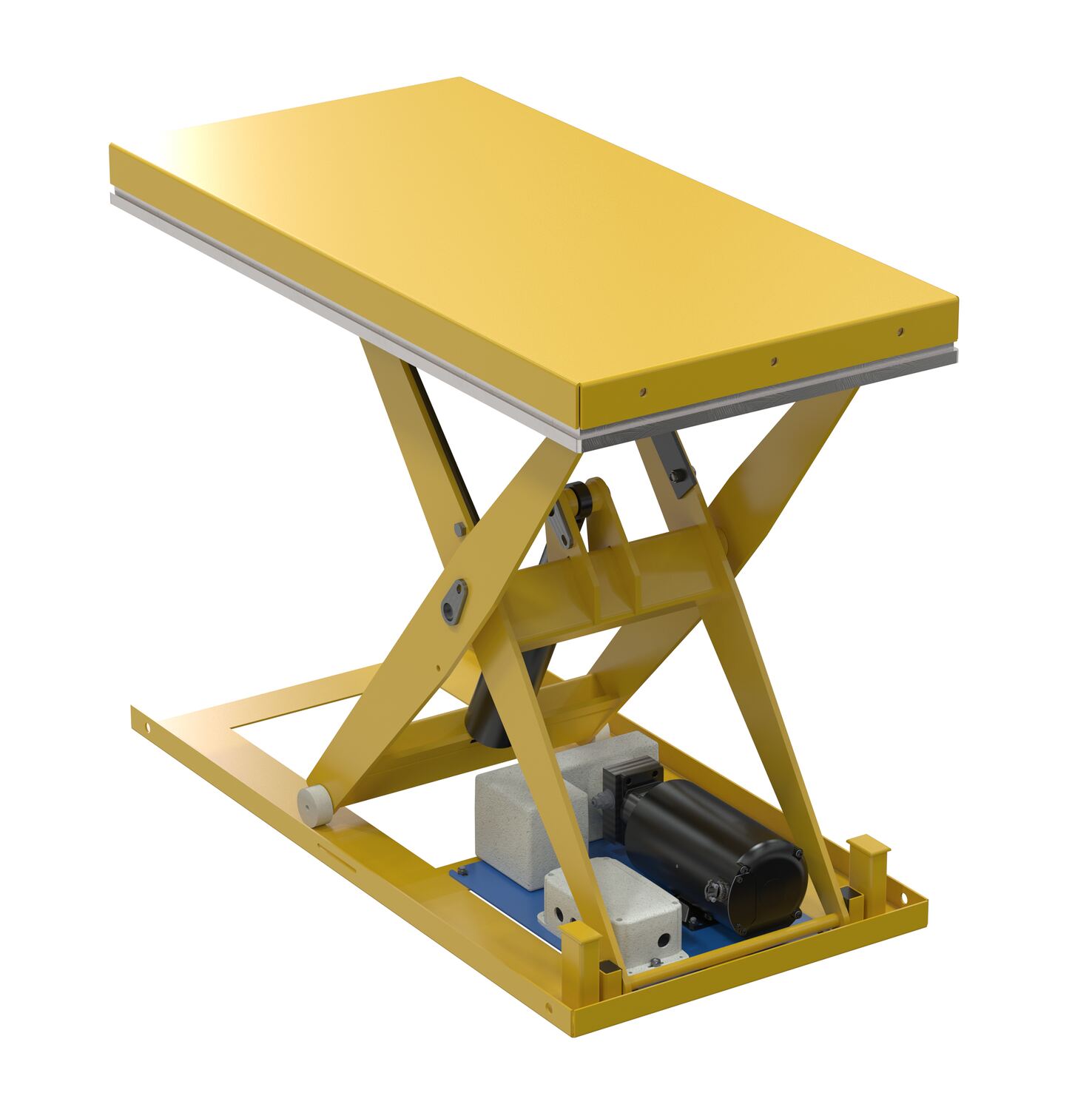

| EHLT-WSI-2448-1.5-36 | NEW | | 1 Year Limited Warranty | Steel Electric Hydraulic Scissor Table 24"x48" With Internal Power Unit 1,500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 7 to 36 | 331 | |

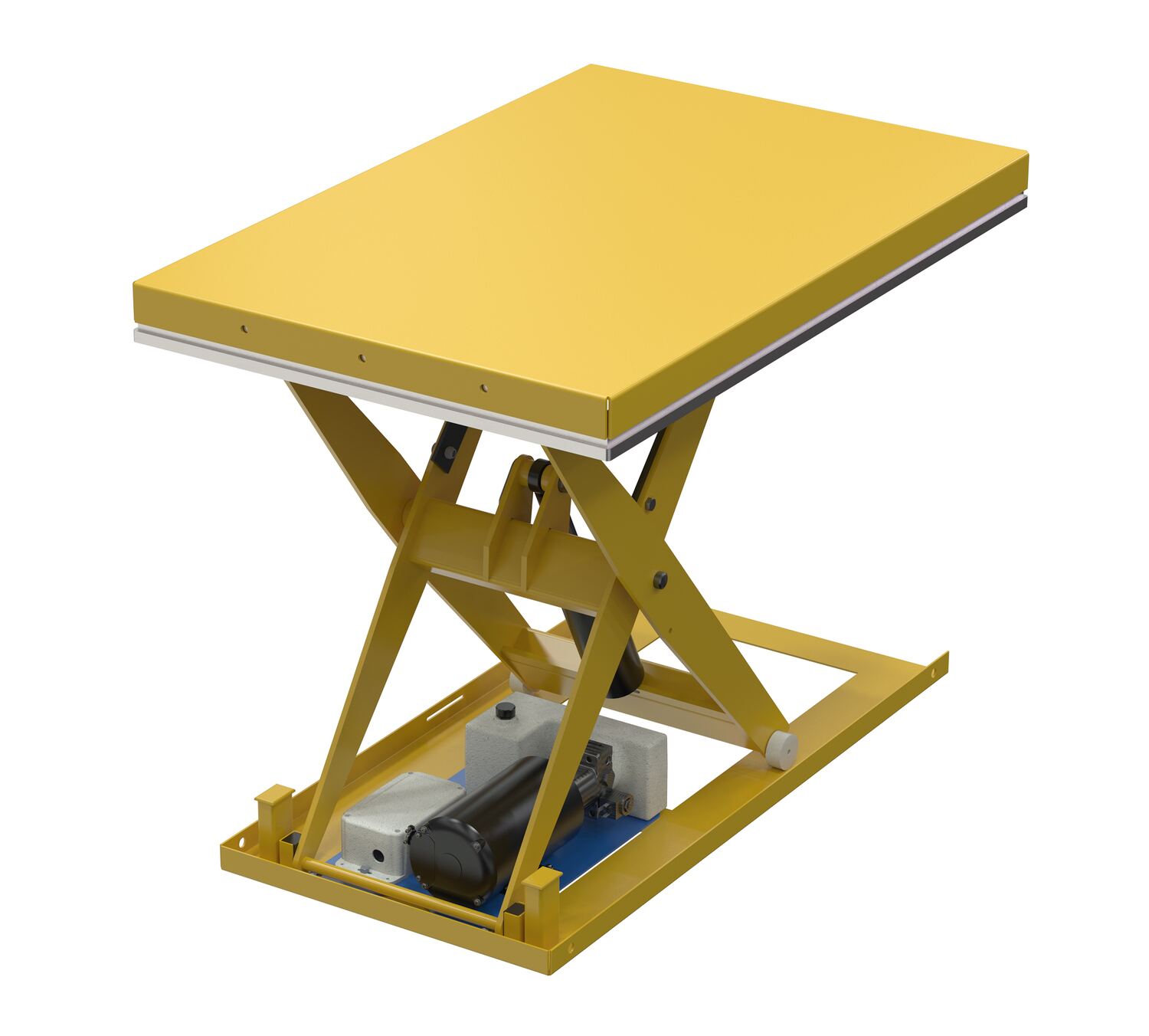

| EHLT-WSI-3248-1.5-36 | NEW |  | 1 Year Limited Warranty | Steel Electric Hydraulic Scissor Table 32"x48" With Internal Power Unit 1,500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 7 to 36 | 356 | |
| EHLT-WSI-4048-1.5-36 | NEW | | 1 Year Limited Warranty | Steel Electric Hydraulic Scissor Table 40"x48" With Internal Power Unit 1,500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 7 to 36 | 381 | |

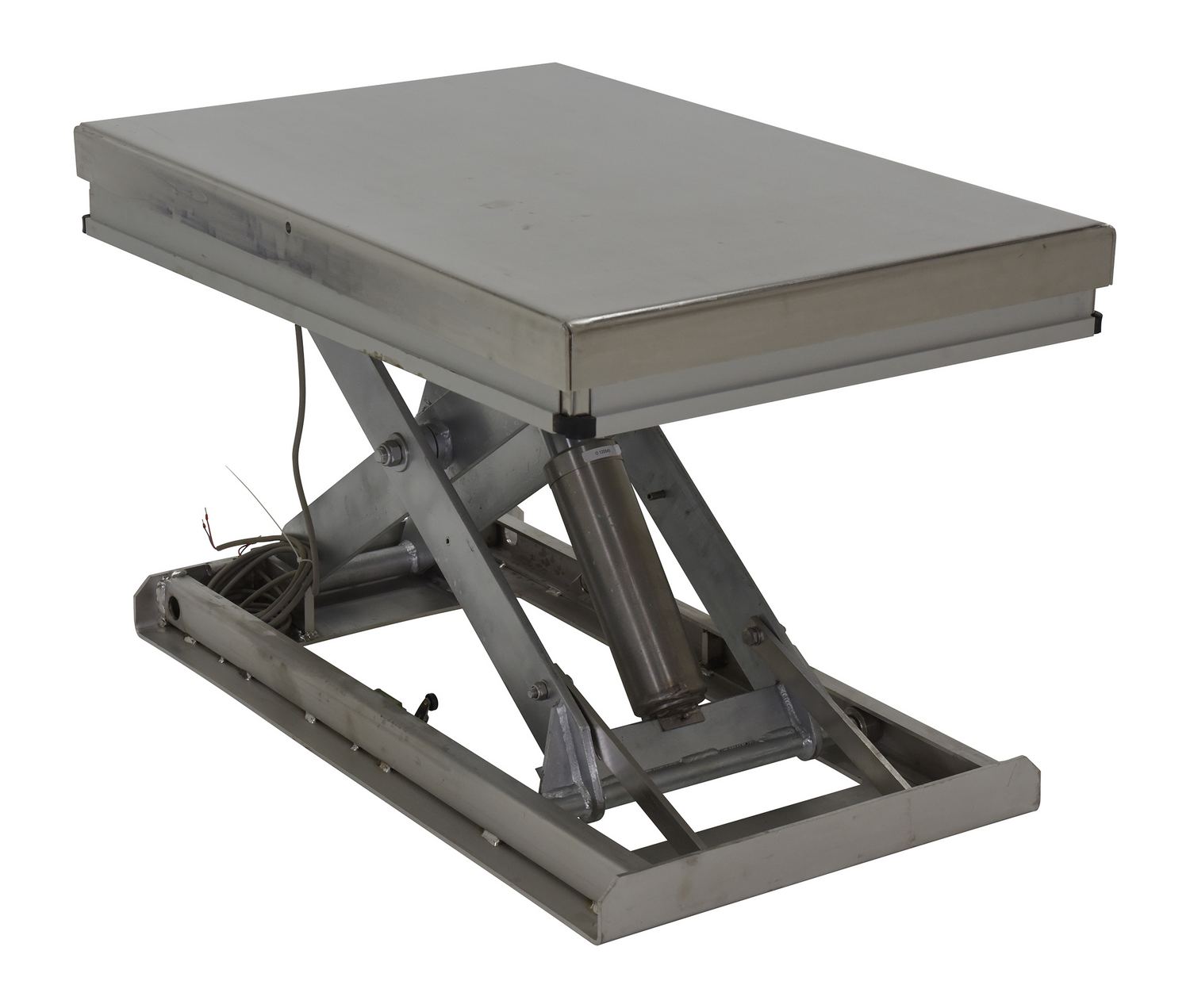

| EHLT-WS-2448-PSS | | | 1 Year Limited Warranty | Partially Stainless Steel Work Station Electric Hydraulic Scissor Table 24 In. x 48 In. 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 7 to 36 | 404 | |

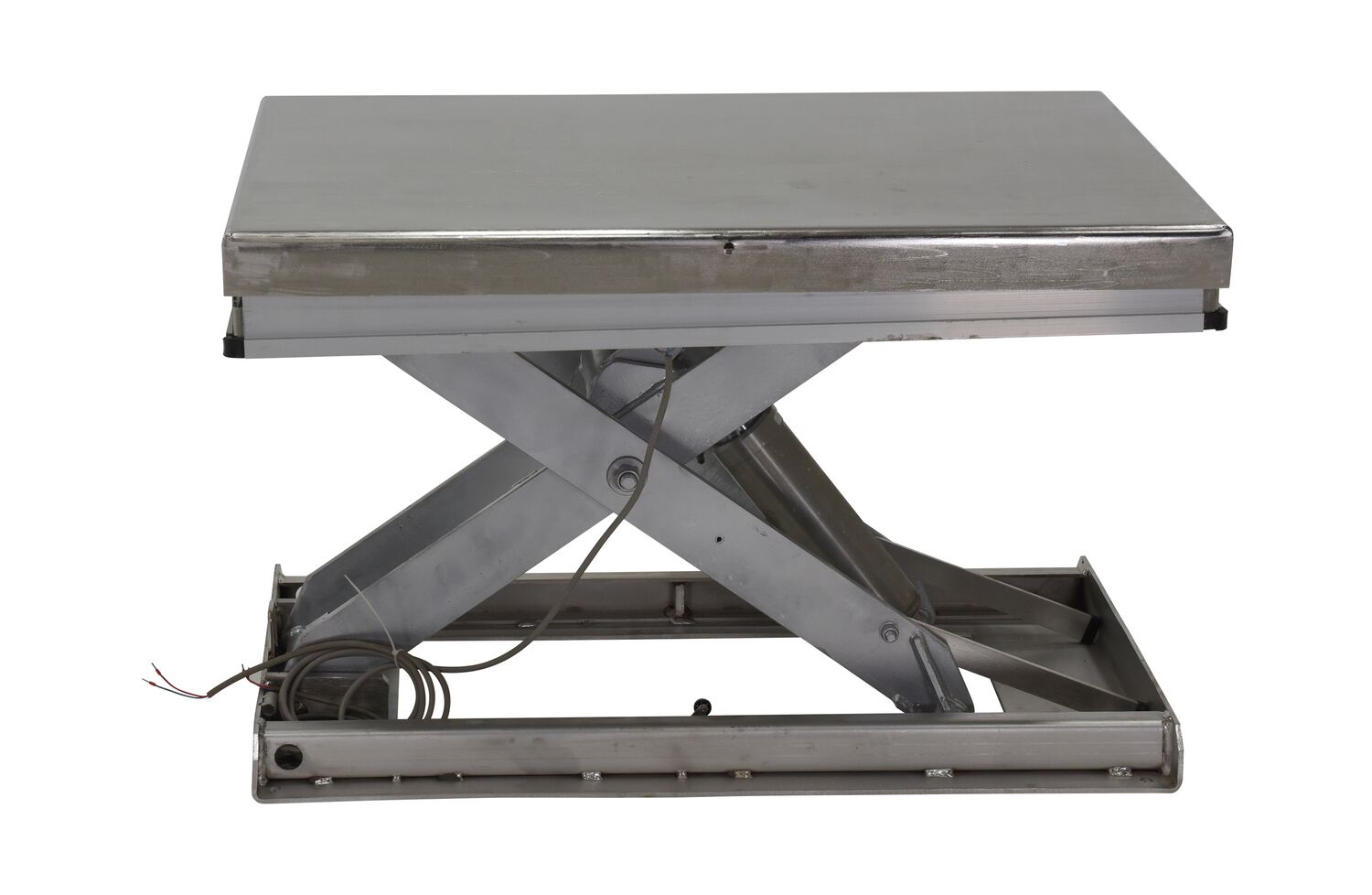

| EHLT-WS-4048-PSS | |  | 1 Year Limited Warranty | Partially Stainless Steel Work Station Electric Hydraulic Scissor Table 40 In. x 48 In. 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 7 to 36 | 457 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 8-5/8 to 31
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 8-5/8 to 31
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
For More Details of the Option Click the Red Model Button
| Model | Image | Description |
| HCP-2642 |  |
Optional Hand Control Pedestal |
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Work Station Electric Hydraulic Scissor Tables PDF's will open in a new window when clicked.
Manuals
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: EHLT-WS-2436-1.5-31
Hydraulic Oil SDS Sheet for: EHLT-WS-2436-PSS
Hydraulic Oil SDS Sheet for: EHLT-WS-2448-1.5-36
Hydraulic Oil SDS Sheet for: EHLT-WS-2448-PSS
Hydraulic Oil SDS Sheet for: EHLT-WS-3248-1.5-36
Hydraulic Oil SDS Sheet for: EHLT-WS-4048-1.5-36
Hydraulic Oil SDS Sheet for: EHLT-WS-4048-PSS
Hydraulic Oil SDS Sheet for: EHLT-WSI-2448-1.5-36
Hydraulic Oil SDS Sheet for: EHLT-WSI-3248-1.5-36
Hydraulic Oil SDS Sheet for: EHLT-WSI-4048-1.5-36
Other PDF's
Directory Links Of Available PDF's For All Products

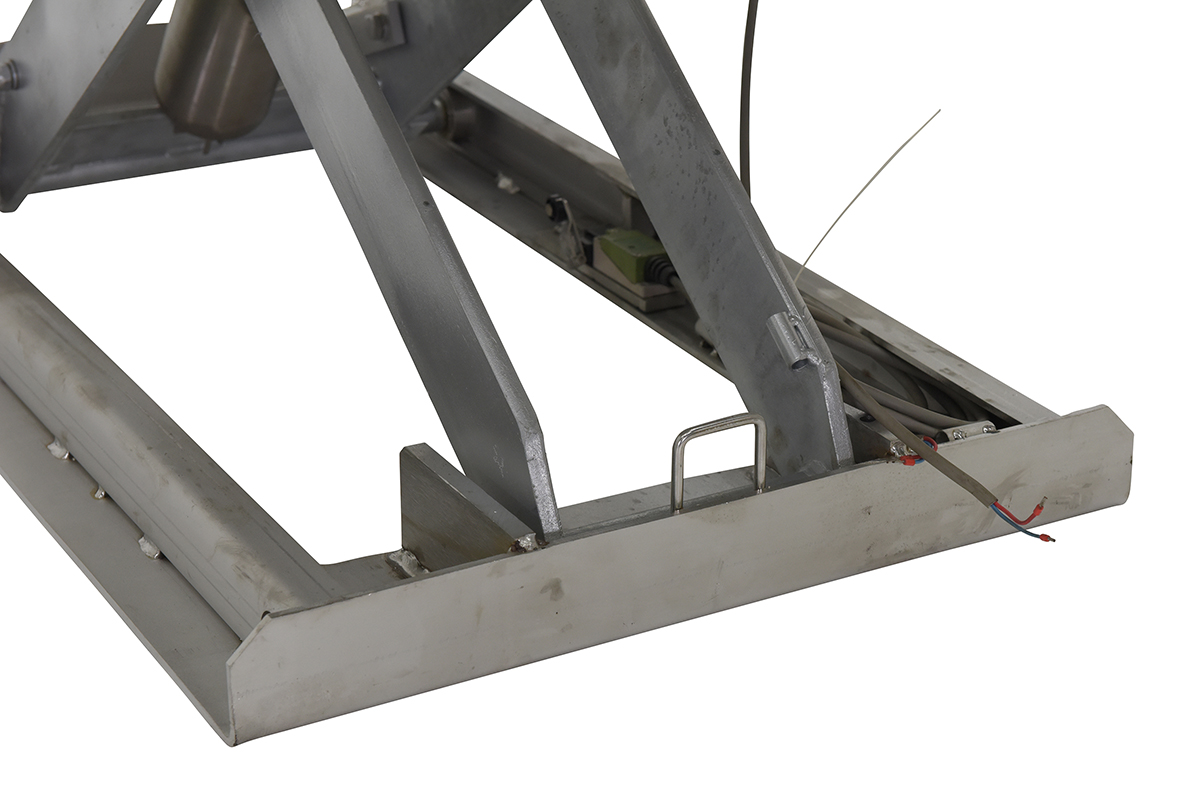

Q: On series EHLT-WS-XXXX-PSS, what parts are not stainless steel?
A: All parts are stainless steel except the scissor legs (galvanized) and toe guards (aluminum/rubber)
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
