FEATURED Aluminum Grip-Strut Walk Ramps

model: AWR-G-28-7A-HR

Aluminum Grip-Strut Walk Ramps

SERIES: AWR-G 34Products 2Options

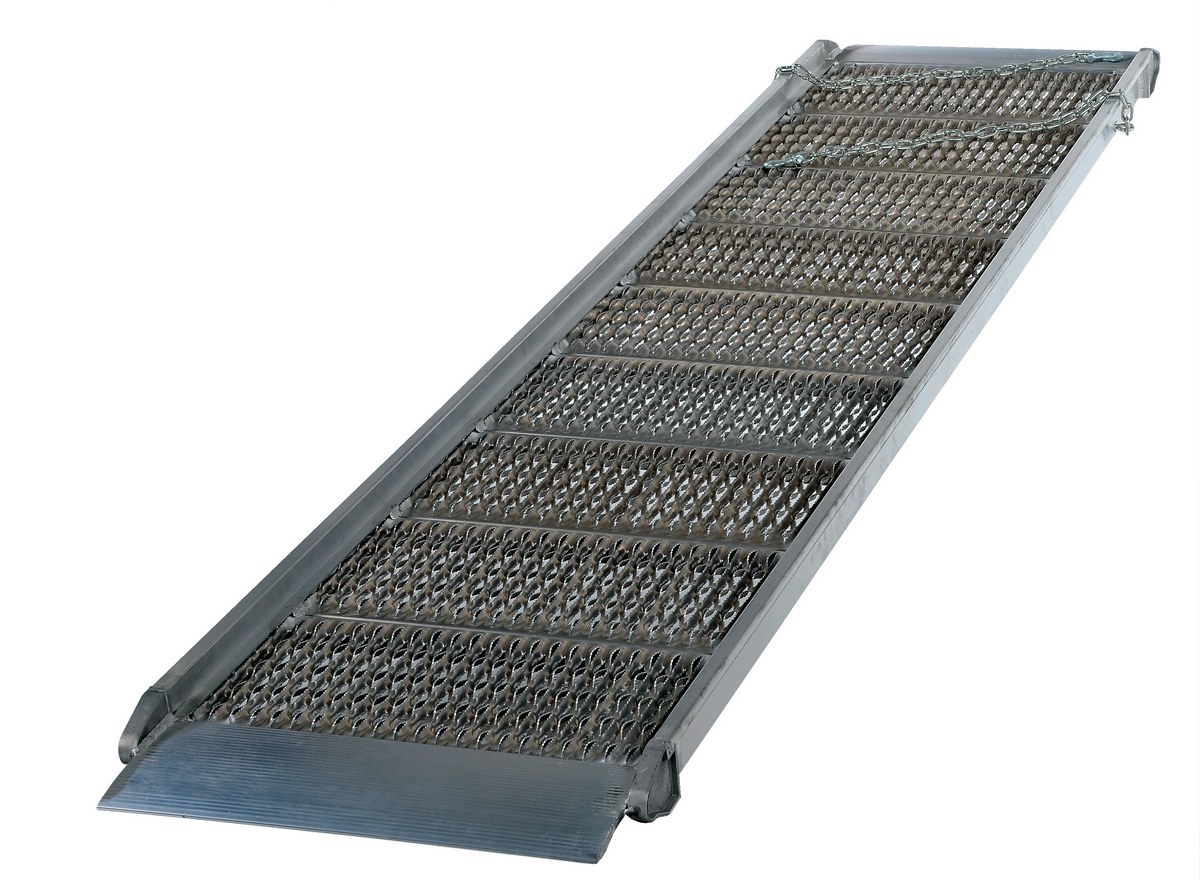

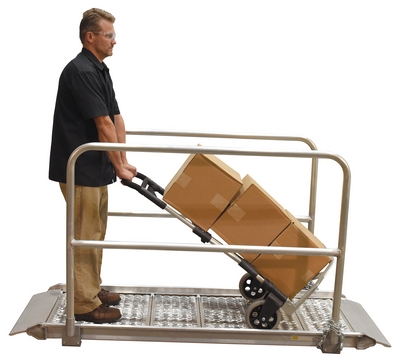

Aluminum Grip-Strut Walk Ramps for Truck Loading and Cart Access

Aluminum grip-strut walk ramps provide a lightweight, rust-resistant solution for loading and unloading trucks, trailers, and dock areas when a permanent dock is not available. The open grip-strut deck allows snow, ice, water, and debris to pass through while helping provide traction for delivery personnel, shippers, receivers, and maintenance crews.

Grip-Strut Deck and Safety Features

The welded aluminum construction delivers strength without the weight of steel, making the ramps easier to handle and resistant to rust. A 2 inch high safety curb on each side helps guide carts and improve edge awareness, while the overlap style end lip rests on the trailer bed for a smoother transition.

Ramp Sizes and Capacities

This family includes usable lengths from 73-1/4 inches to 190-3/4 inches, with 28 inch and 38 inch nominal width options. Capacities vary by ramp length and cart type, with 4-wheel cart capacities up to 2,800 lb. and 2-wheel cart capacities up to 2,000 lb.

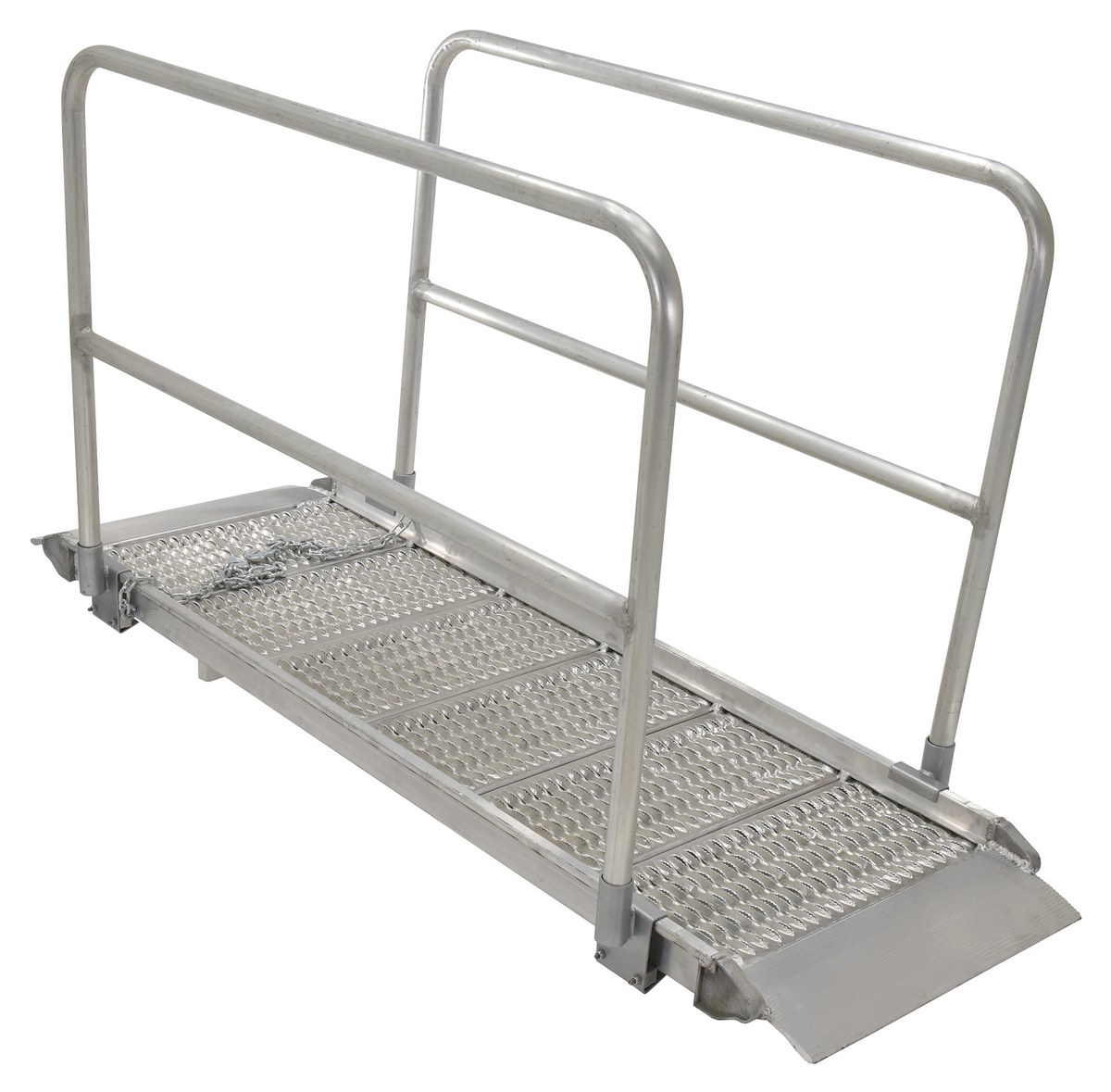

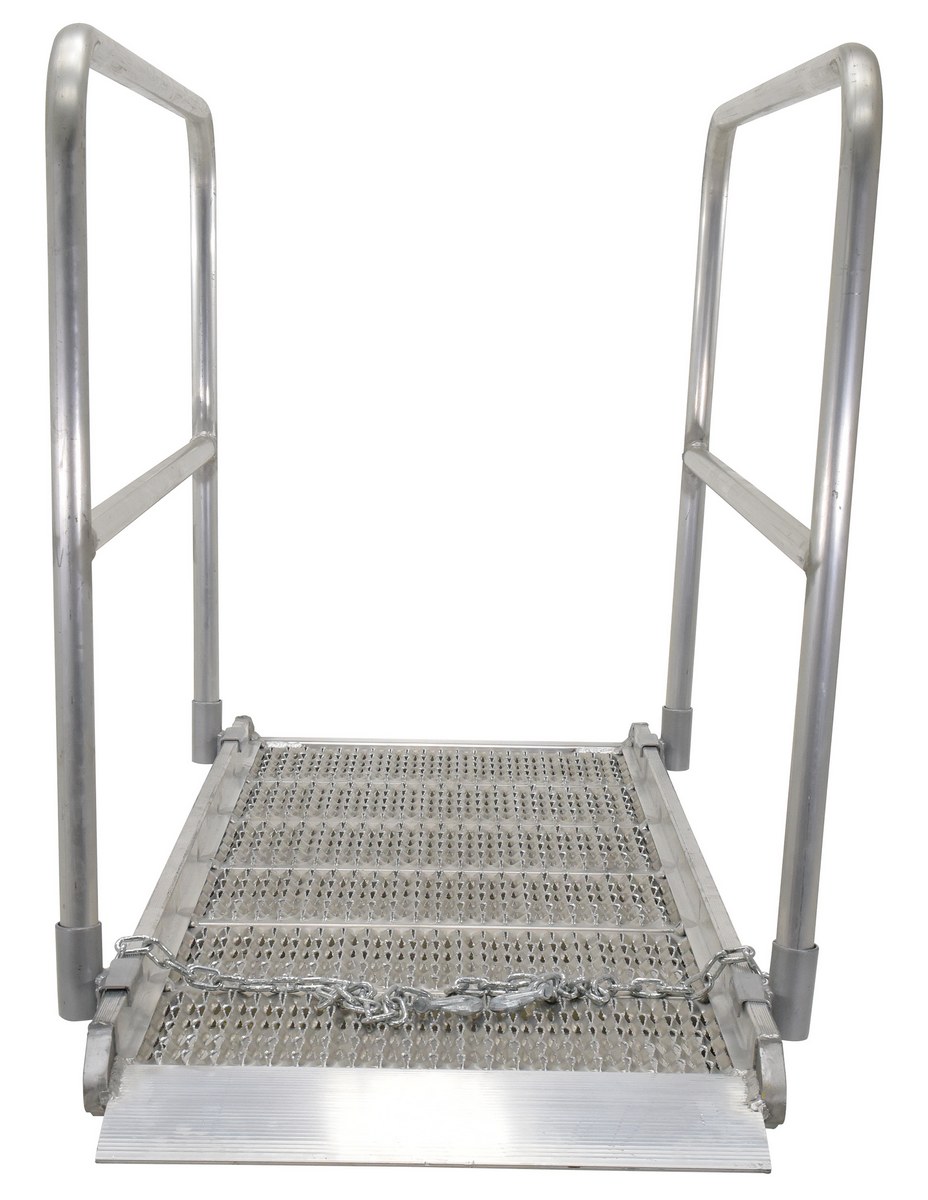

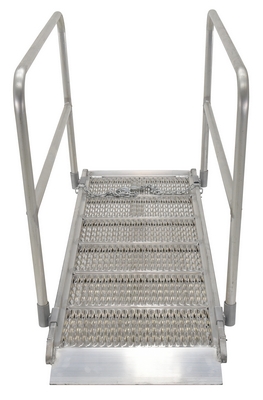

Handrail and Split Ramp Options

Models are available with bolt-on handrails for added stability and user confidence during loading tasks. Split ramp styles and ramp extensions are also available for select applications. Safety chains are included to help secure the ramp to the trailer. These ramps are not for pallet trucks or three-wheeled carts.

Aluminum Grip-Strut Walk Ramps

model: AWR-G-28-7A-HR

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

AWR-G-18-ESR-12A-EXT

AWR-G-28-10A-HR

AWR-G-28-12A-HR

AWR-G-28-14A-HR

AWR-G-28-16A-HR

AWR-G-36-ESR-12A

AWR-G-38-10A-HR

AWR-G-38-12A-HR

AWR-G-38-14A-HR

AWR-G-38-16A-HR

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

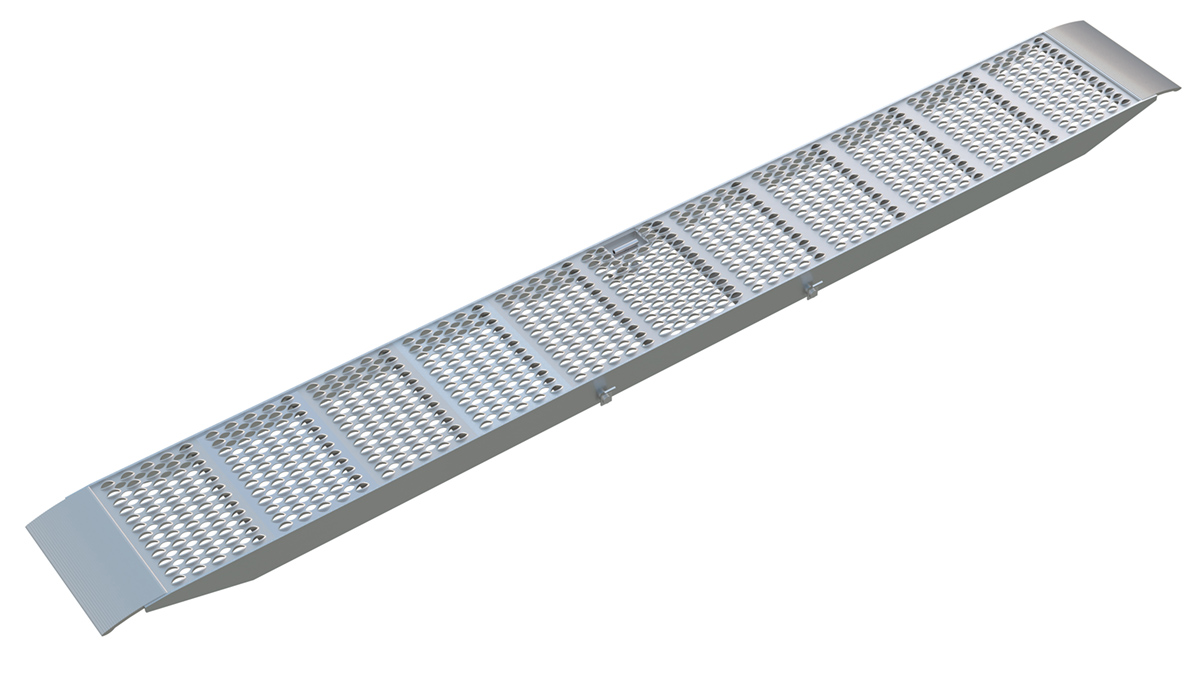

AWR-G-18-ESR-12A-EXT		Factory Installed Aluminum Grip Ramp Extension 16-11/16 In. …	90 Days Limited Warranty	64

Model	Image	Description
Walk Ramp Handrails		Aluminum Bolt On Handrail For Aluminum Walk Ramps Retro Fit Silver

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Owner's Manuals

1

Survey Sheets

0

No survey sheets for this product family.

Approval Drawings

18

AWR-G-18-ESR-12A-EXT

AWR-G-36-ESR-12A

Testing Certificates

34

AWR-G-18-ESR-12A-EXT

Open Certificate

Open Certificate

AWR-G-28-10A-HR

Open Certificate

Open Certificate

AWR-G-28-12A-HR

Open Certificate

Open Certificate

AWR-G-28-14A-HR

Open Certificate

Open Certificate

AWR-G-28-16A-HR

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

AWR-G-36-ESR-12A

Open Certificate

Open Certificate

AWR-G-38-10A-HR

Open Certificate

Open Certificate

AWR-G-38-12A-HR

Open Certificate

Open Certificate

AWR-G-38-14A-HR

Open Certificate

Open Certificate

AWR-G-38-16A-HR

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

SDS Sheets

0

No SDS sheets for this product family.

Label Page PDFs

33

AWR-G-28-10A-HR

AWR-G-28-12A-HR

AWR-G-28-14A-HR

AWR-G-28-16A-HR

AWR-G-36-ESR-12A

AWR-G-38-10A-HR

AWR-G-38-12A-HR

AWR-G-38-14A-HR

AWR-G-38-16A-HR

Other PDFs

0

No other PDFs for this product family.

Enhanced Product Content

AWR-G-38-16A-HR

AWR-G-38-16A-HR

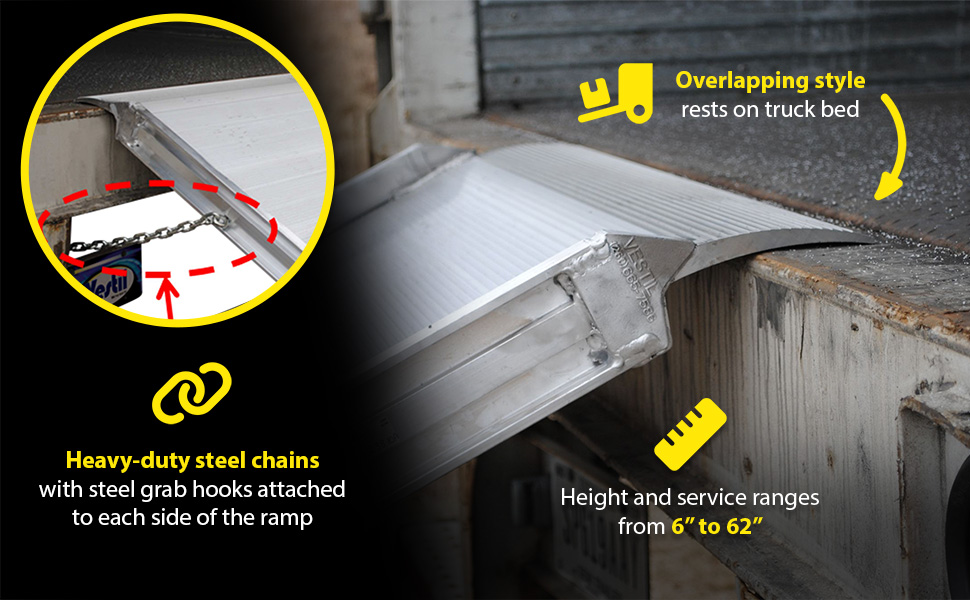

AWR-G-38-16A-HR A+ Content Slide 3

AWR-G-38-16A-HR

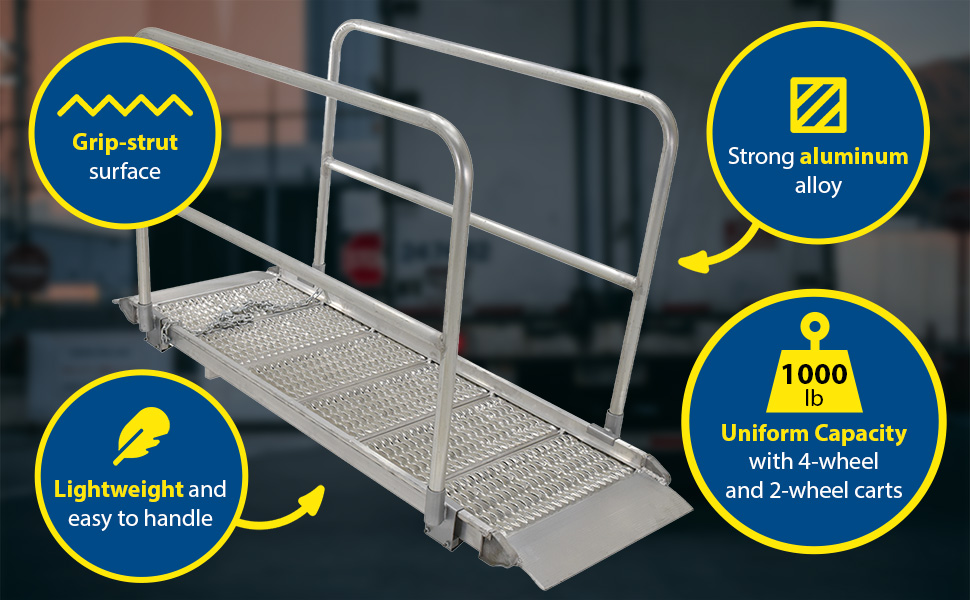

AWR-G-38-16A-HR A+ Content Slide 2

AWR-G-38-16A-HR

AWR-G-38-16A-HR A+ Content Slide 1

Print Friendly

Related or Similar Products:

More From Walk & Service Ramps

Wooden Ramp Kits

Wooden Ramp Kits

Folding Ramp

Aluminum Pick-Up/Van Ramp

Aluminum Pick-Up/Van Ramp

Steel Container Ramps with Flip-Over Bridge

Steel Container Ramps with Flip-Over Bridge

Hitch Lift

Ramp Cart Option

Ramp Cart Option

Aluminum Grip-Strut Walk Ramps

Aluminum Grip-Strut Walk Ramps for Truck Loading and Cart Access

Aluminum grip-strut walk ramps provide a lightweight, rust-resistant solution for loading and unloading trucks, trailers, and dock areas when a permanent dock is not available. The open grip-strut deck allows snow, ice, water, and debris to pass through while helping provide traction for delivery personnel, shippers, receivers, and maintenance crews.

Grip-Strut Deck and Safety Features

The welded aluminum construction delivers strength without the weight of steel, making the ramps easier to handle and resistant to rust. A 2 inch high safety curb on each side helps guide carts and improve edge awareness, while the overlap style end lip rests on the trailer bed for a smoother transition.

Ramp Sizes and Capacities

This family includes usable lengths from 73-1/4 inches to 190-3/4 inches, with 28 inch and 38 inch nominal width options. Capacities vary by ramp length and cart type, with 4-wheel cart capacities up to 2,800 lb. and 2-wheel cart capacities up to 2,000 lb.

Handrail and Split Ramp Options

Models are available with bolt-on handrails for added stability and user confidence during loading tasks. Split ramp styles and ramp extensions are also available for select applications. Safety chains are included to help secure the ramp to the trailer. These ramps are not for pallet trucks or three-wheeled carts.

Model #		Description	Attributes	Net Wt. (lbs)
AWR-G-28-10A		Aluminum Grip-Strut Walk Ramps 120-1/4 In. x 29-3/8 In. 2200 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,200 Uniform Capacity with 2-wheel cart (lb.): 1,500	118
AWR-G-28-10A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 120-1/4 In. x 29-3/8 In. 2200 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,200 Uniform Capacity with 2-wheel cart (lb.): 1,500	166
AWR-G-28-12A		Aluminum Grip-Strut Walk Ramps 143-3/4 In. x 29-3/8 In. 1900 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,900 Uniform Capacity with 2-wheel cart (lb.): 1,400	129
AWR-G-28-12A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 143-3/4 In. x 29-3/8 In. 1900 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,900 Uniform Capacity with 2-wheel cart (lb.): 1,400	153
AWR-G-28-14A		Aluminum Grip-Strut Walk Ramps 167-1/4 In. x 29-3/8 In. 1600 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,600 Uniform Capacity with 2-wheel cart (lb.): 1,200	89
AWR-G-28-14A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 167-1/4 In. x 29-3/8 In. 1600 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,600 Uniform Capacity with 2-wheel cart (lb.): 1,200	173
AWR-G-28-16A		Aluminum Grip-Strut Walk Ramps 190-3/4 In. x 29-3/8 In. 1000 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,000 Uniform Capacity with 2-wheel cart (lb.): 1,000	122
AWR-G-28-16A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 190-3/4 In. x 29-3/8 In. 1000 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,000 Uniform Capacity with 2-wheel cart (lb.): 1,000	210
AWR-G-28-6A		Aluminum Grip-Strut Walk Ramps 73-1/4 In. x 29-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,800 Uniform Capacity with 2-wheel cart (lb.): 2,000	126
AWR-G-28-6A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 73-1/4 In. x 29-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,800 Uniform Capacity with 2-wheel cart (lb.): 2,000	77
AWR-G-28-7A		Aluminum Grip-Strut Walk Ramps 85 In. x 29-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,800 Uniform Capacity with 2-wheel cart (lb.): 1,800	59

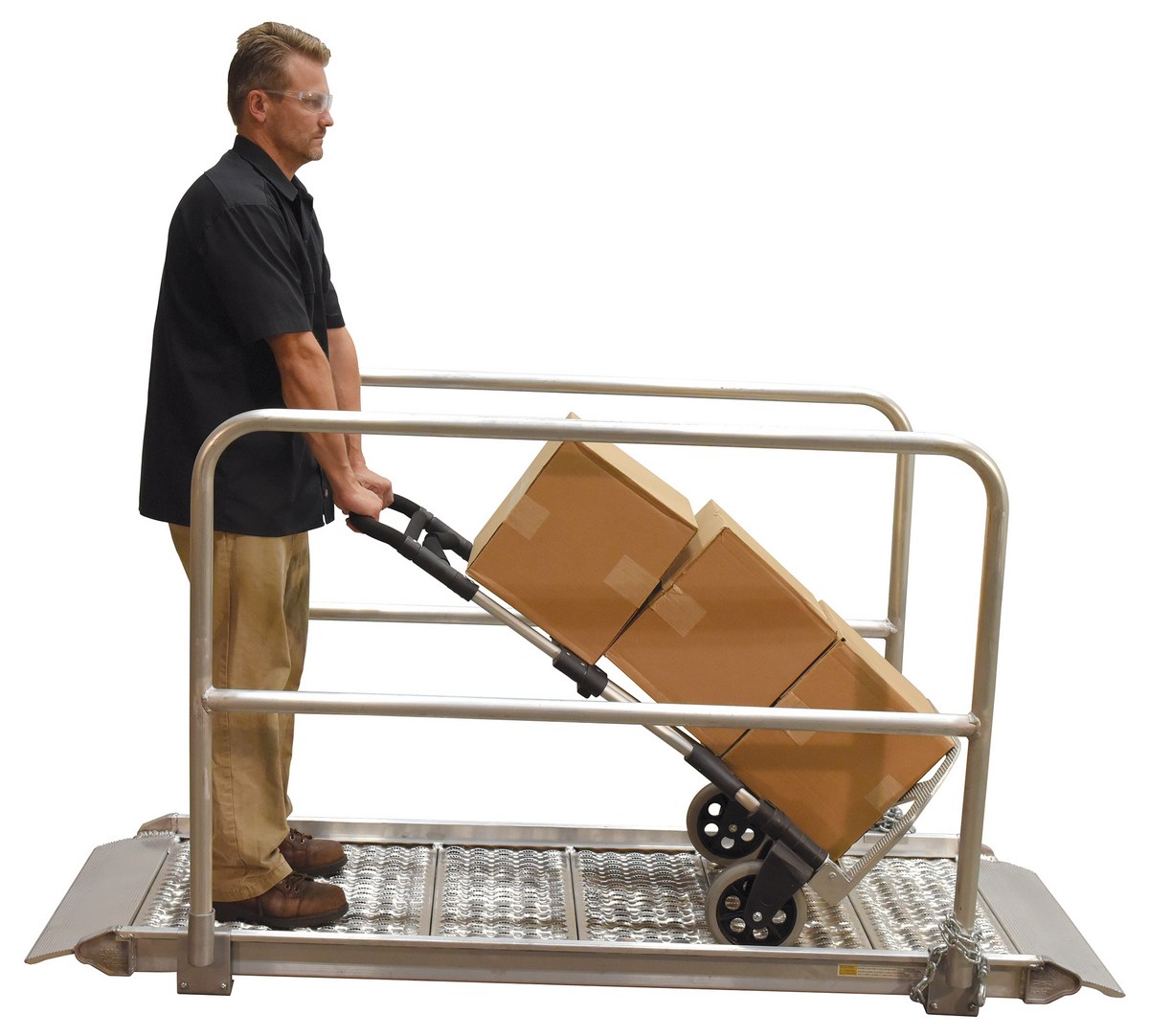

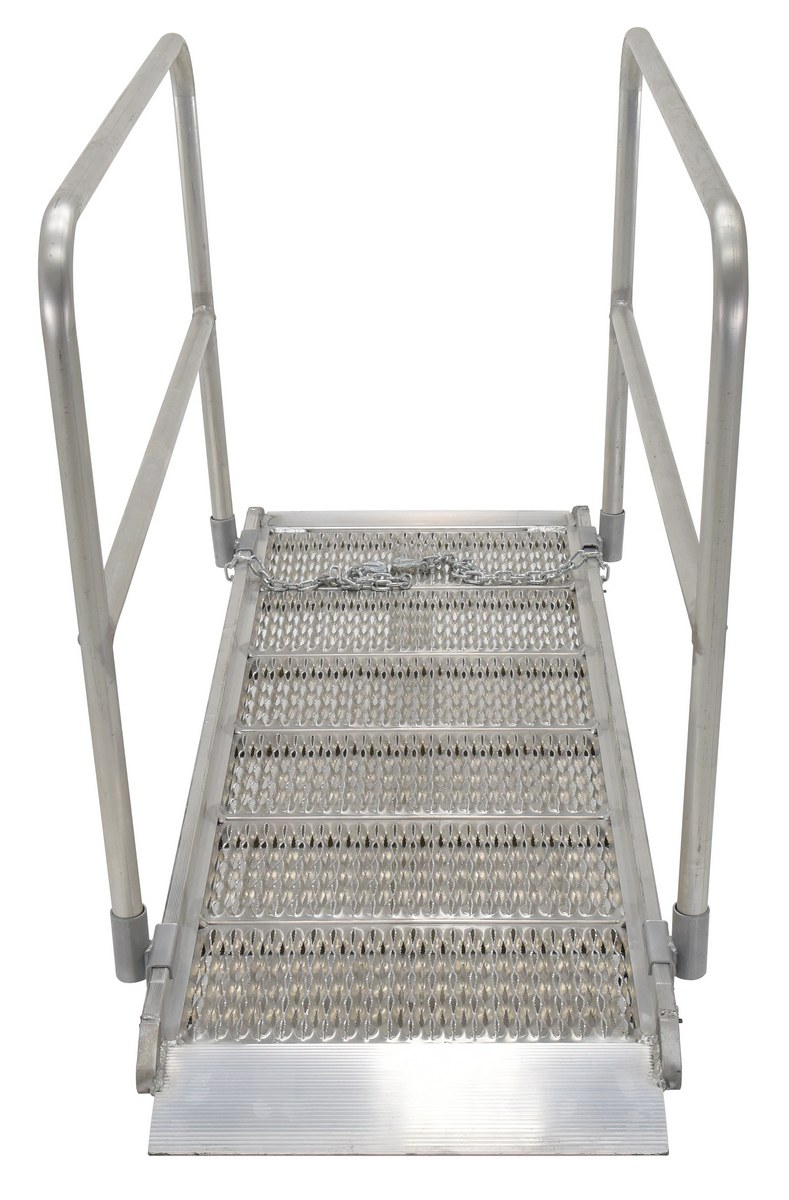

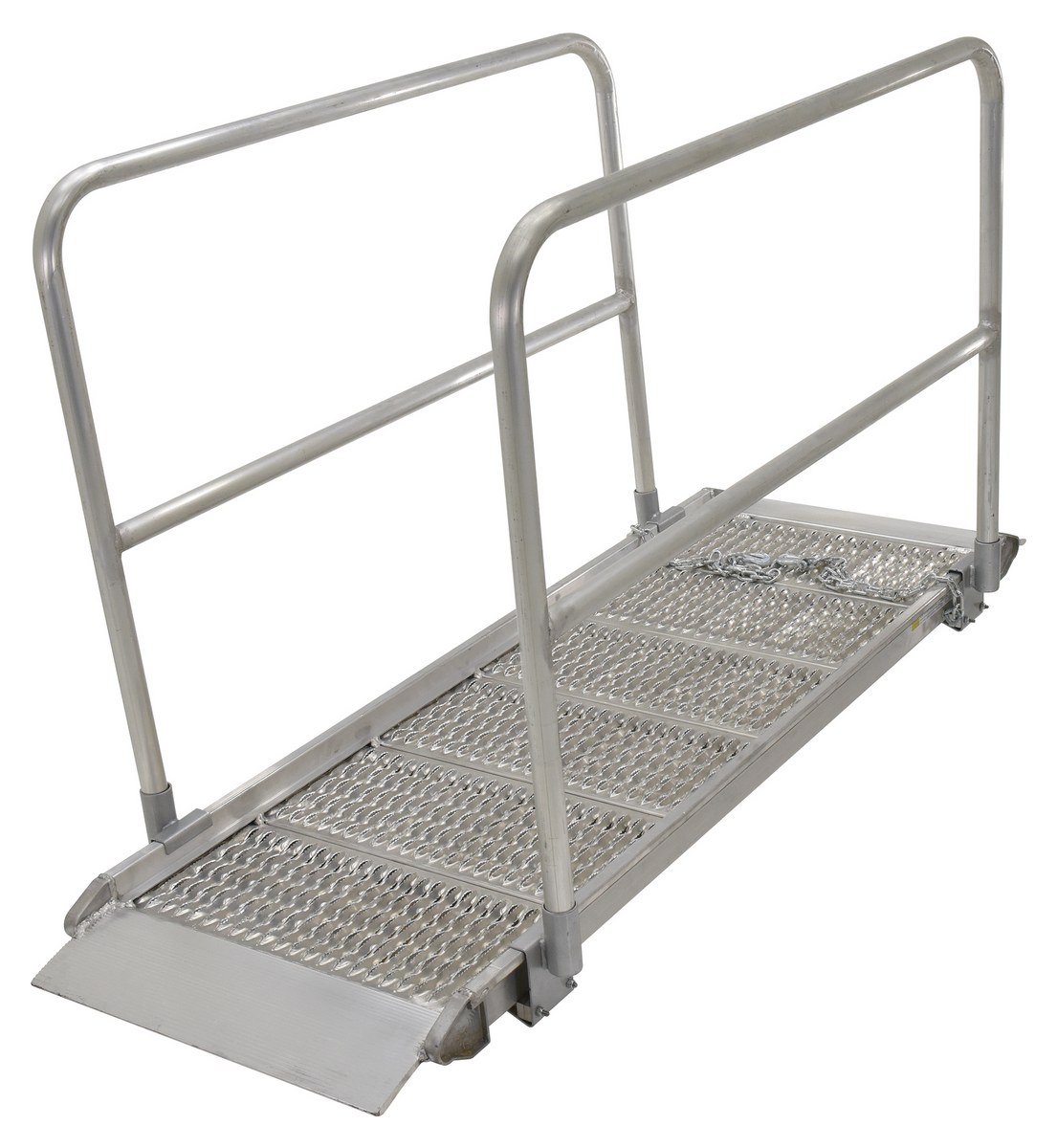

AWR-G-28-7A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 85 In. x 29-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,800 Uniform Capacity with 2-wheel cart (lb.): 1,800	97

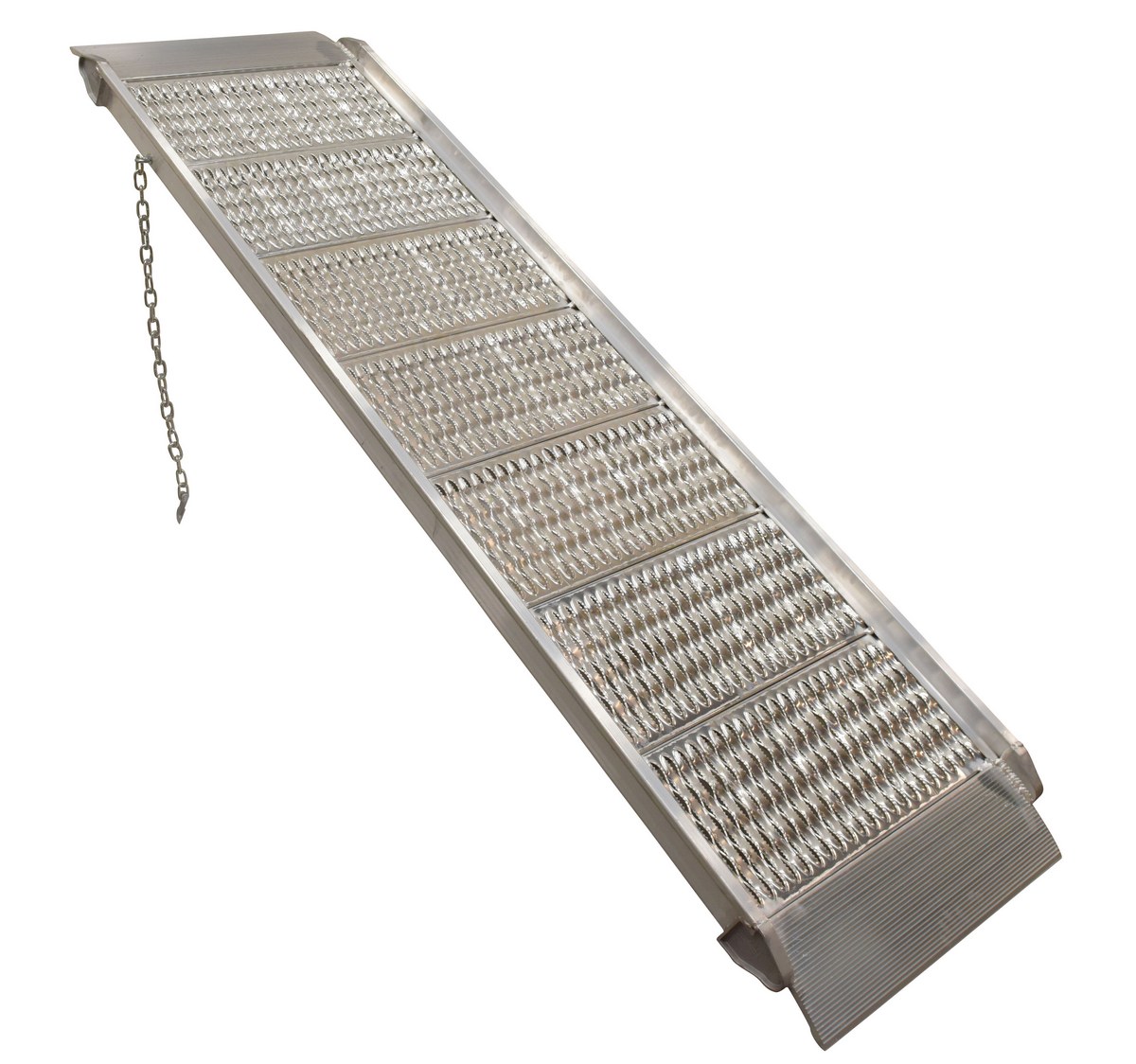

AWR-G-28-8A		Aluminum Grip-Strut Walk Ramps 96-3/4 In. x 29-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,500 Uniform Capacity with 2-wheel cart (lb.): 1,650	61
AWR-G-28-8A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 96-3/4 In. x 29-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,500 Uniform Capacity with 2-wheel cart (lb.): 1,650	103
AWR-G-28-9A		Aluminum Grip-Strut Walk Ramps 108-1/2 In. x 29-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,500 Uniform Capacity with 2-wheel cart (lb.): 1,600	150
AWR-G-28-9A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 108-1/2 In. x 29-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,500 Uniform Capacity with 2-wheel cart (lb.): 1,600	107

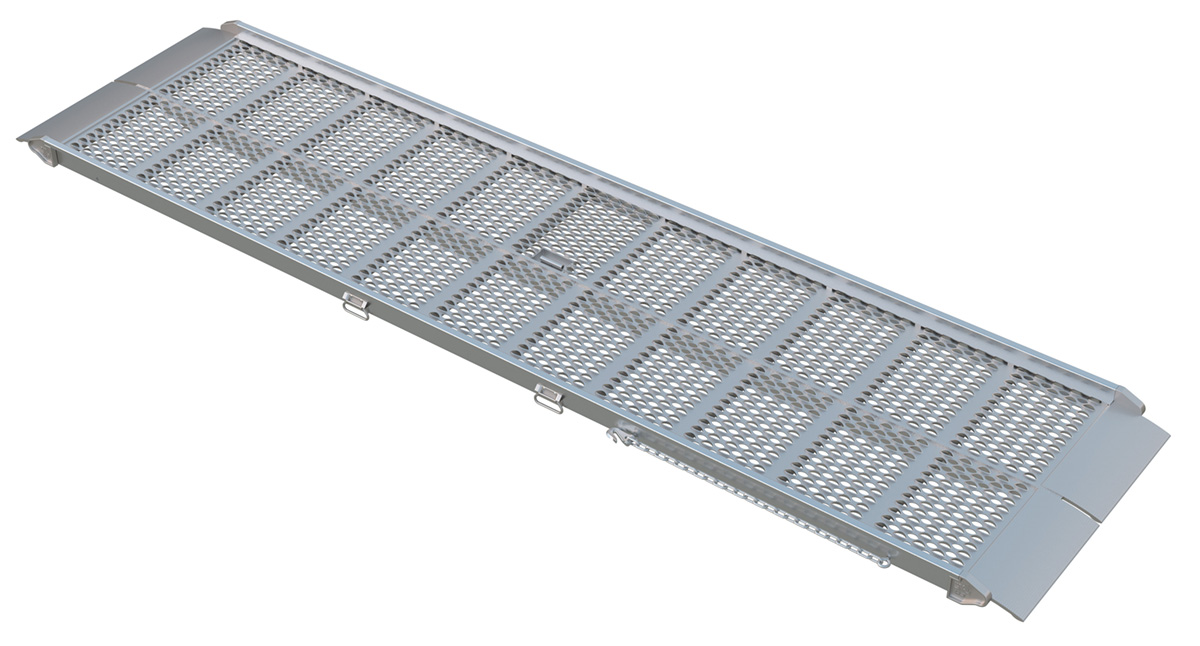

AWR-G-36-ESR-12A		Aluminum Split Grip Ramp 143-3/4 In. x 35-7/8 In. x 6-9/16 In. 1800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1800 Uniform Capacity with 2-wheel cart (lb.): 1400	265

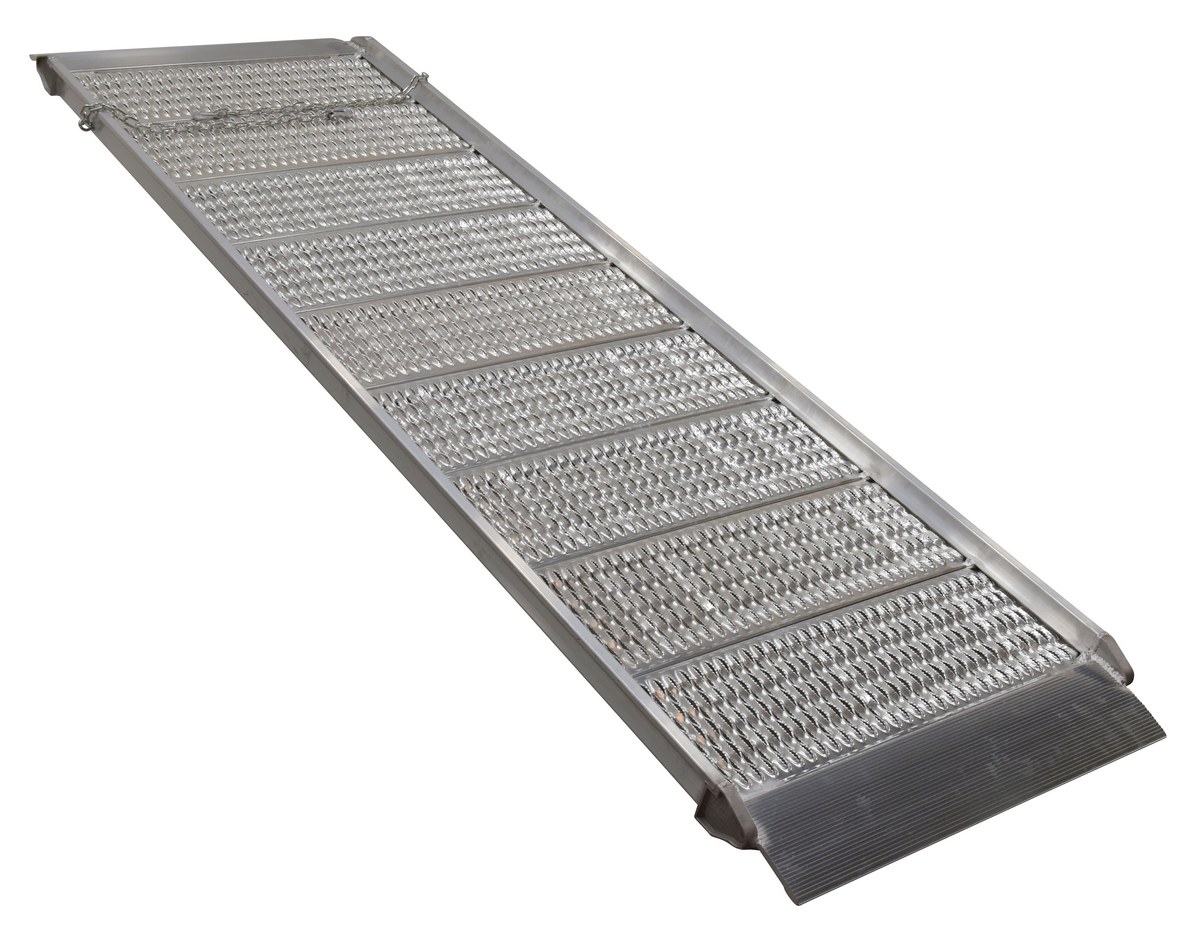

AWR-G-38-10A		Aluminum Grip-Strut Walk Ramps 120-1/4 In. x 39-3/8 In. 2200 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,200 Uniform Capacity with 2-wheel cart (lb.): 1,500	80
AWR-G-38-10A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 120-1/4 In. x 39-3/8 In. 2200 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,200 Uniform Capacity with 2-wheel cart (lb.): 1,500	128
AWR-G-38-12A		Aluminum Grip-Strut Walk Ramps 143-3/4 In. x 39-3/8 In. 1900 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,900 Uniform Capacity with 2-wheel cart (lb.): 1,400	94
AWR-G-38-12A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 143-3/4 In. x 39-3/8 In. 1900 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,900 Uniform Capacity with 2-wheel cart (lb.): 1,400	170
AWR-G-38-14A		Aluminum Grip-Strut Walk Ramps 167-1/4 In. x 39-3/8 In. 1600 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,600 Uniform Capacity with 2-wheel cart (lb.): 1,200	123
AWR-G-38-14A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 167-1/4 In. x 39-3/8 In. 1600 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,600 Uniform Capacity with 2-wheel cart (lb.): 1,200	207
AWR-G-38-16A		Aluminum Grip-Strut Walk Ramps 190-3/4 In. x 39-3/8 In. 1000 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,000 Uniform Capacity with 2-wheel cart (lb.): 1,000	232
AWR-G-38-16A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 190-3/4 In. x 39-3/8 In. 1000 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 1,000 Uniform Capacity with 2-wheel cart (lb.): 1,000	230
AWR-G-38-6A		Aluminum Grip-Strut Walk Ramps 73-1/4 In. x 39-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,800 Uniform Capacity with 2-wheel cart (lb.): 2,000	55
AWR-G-38-6A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 73-1/4 In. x 39-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,800 Uniform Capacity with 2-wheel cart (lb.): 2,000	91

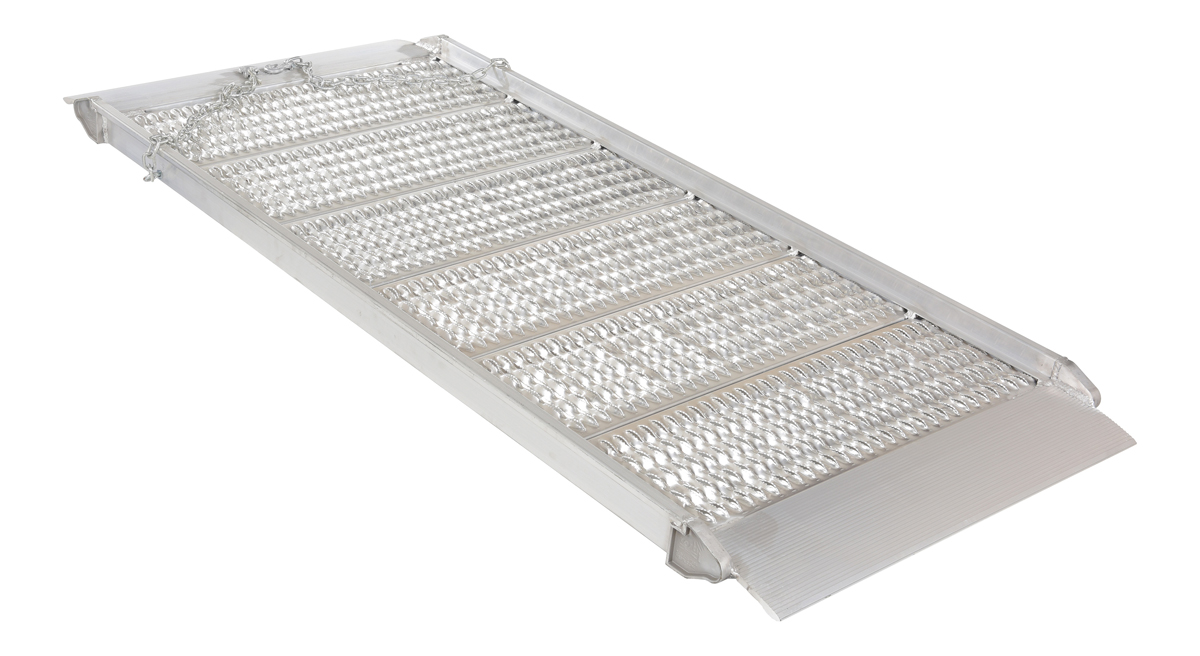

AWR-G-38-7A		Aluminum Grip-Strut Walk Ramps 85 In. x 39-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,800 Uniform Capacity with 2-wheel cart (lb.): 1,800	59
AWR-G-38-7A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 85 In. x 39-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,800 Uniform Capacity with 2-wheel cart (lb.): 1,800	97
AWR-G-38-8A		Aluminum Grip-Strut Walk Ramps 96-3/4 In. x 39-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,500 Uniform Capacity with 2-wheel cart (lb.): 1,650	66
AWR-G-38-8A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 96-3/4 In. x 39-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,500 Uniform Capacity with 2-wheel cart (lb.): 1,650	108
AWR-G-38-9A		Aluminum Grip-Strut Walk Ramps 108-1/2 In. x 39-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,500 Uniform Capacity with 2-wheel cart (lb.): 1,600	73
AWR-G-38-9A-HR		Aluminum Grip-Strut Walk Ramps with Handrails 108-1/2 In. x 39-3/8 In. 2800 Lb. Capacity Silver	Uniform Capacity with 4-wheel cart (lb.): 2,500 Uniform Capacity with 2-wheel cart (lb.): 1,600	240

Options

Model	Image	Description
Walk Ramp Handrails		Aluminum Bolt On Handrail For Aluminum Walk Ramps Retro Fit Silver
