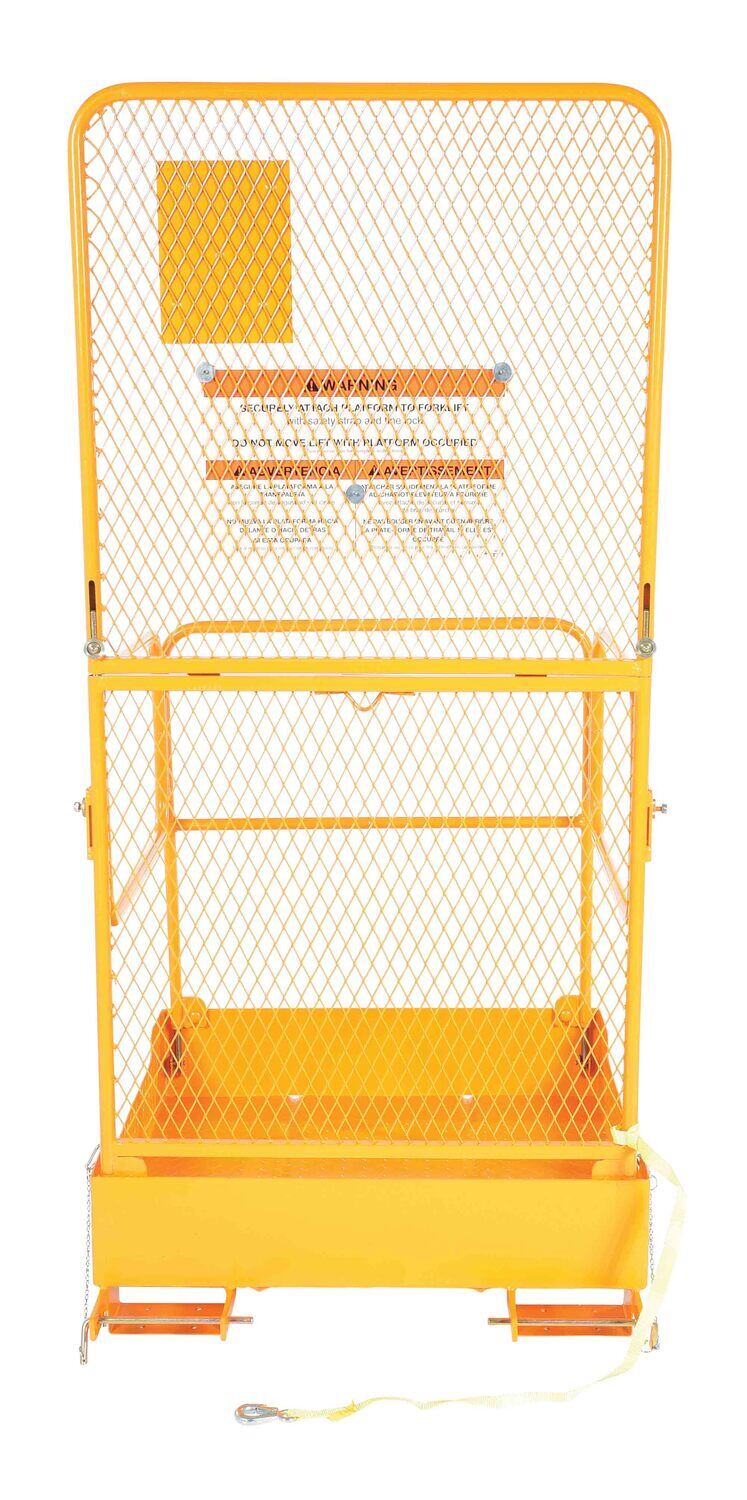

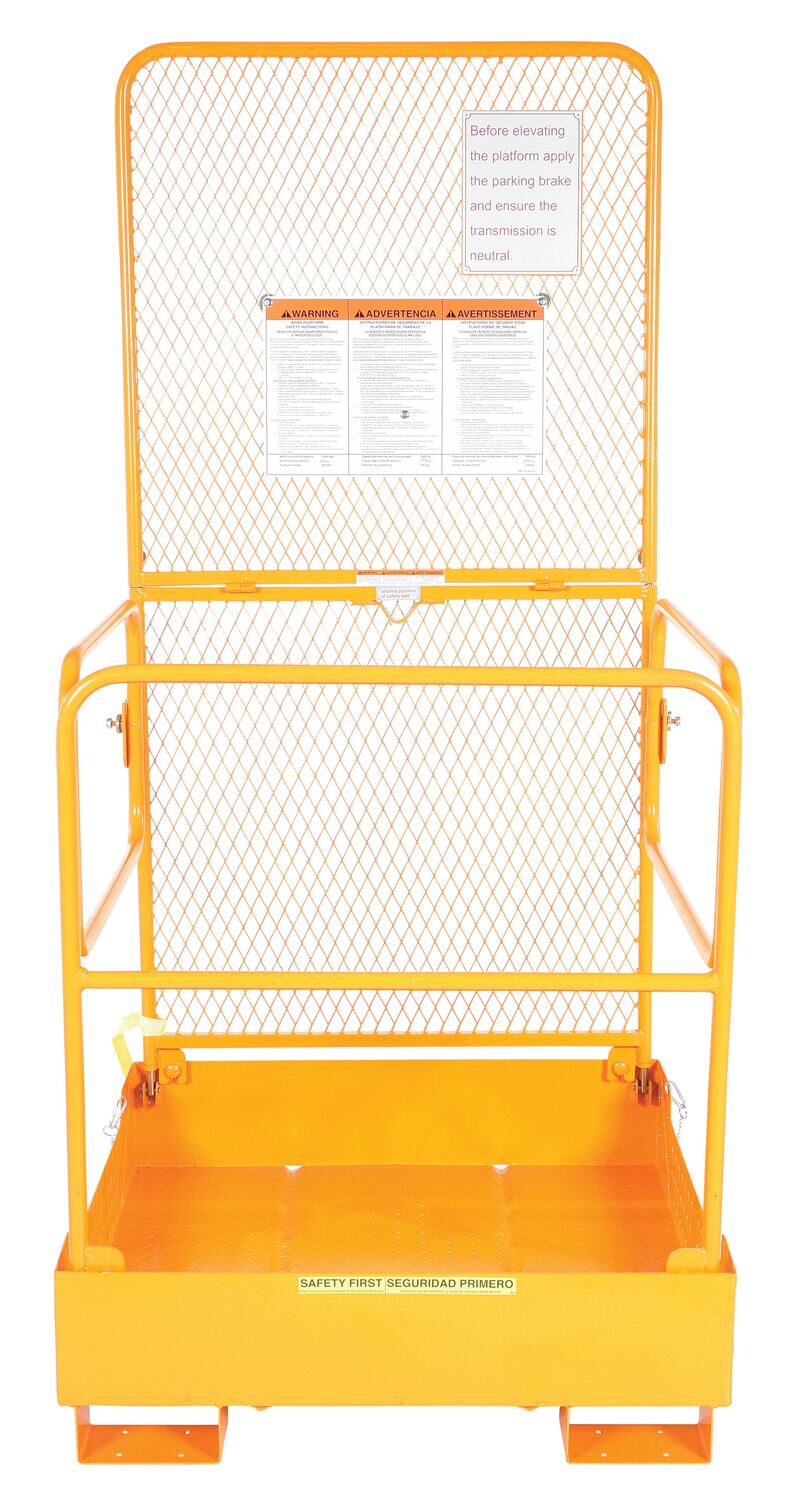

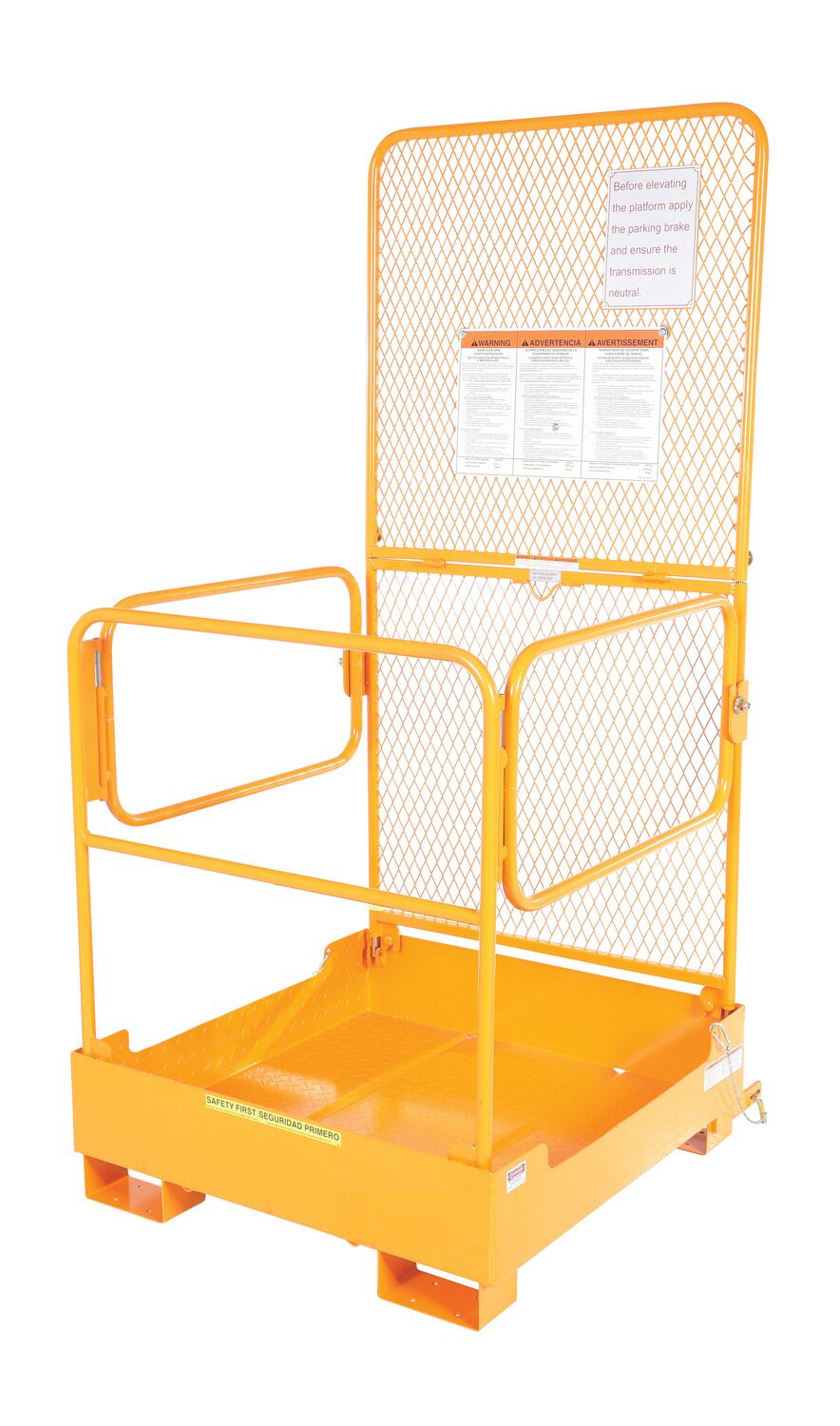

Fold Down Work Platforms

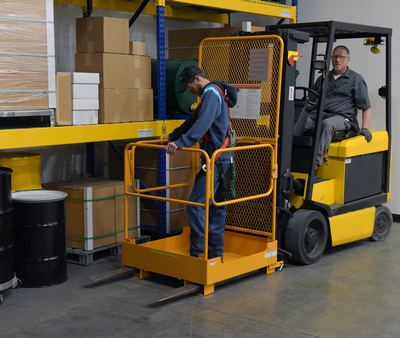

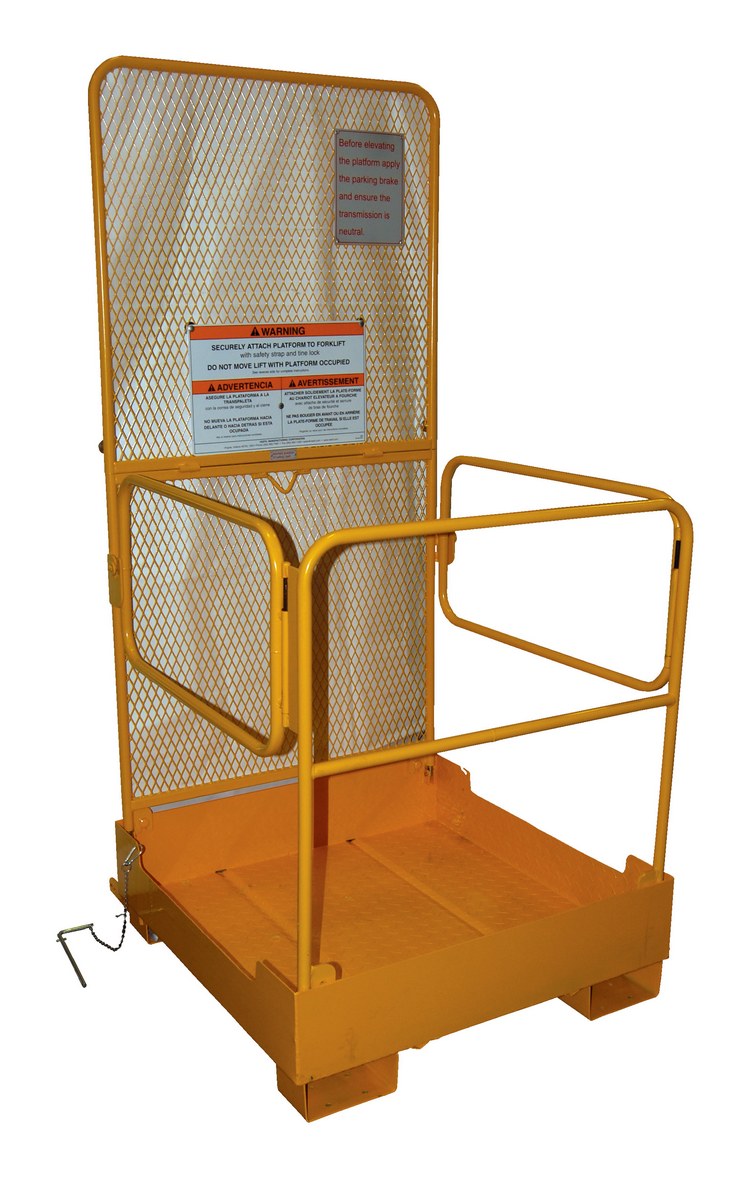

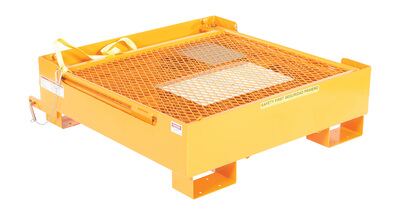

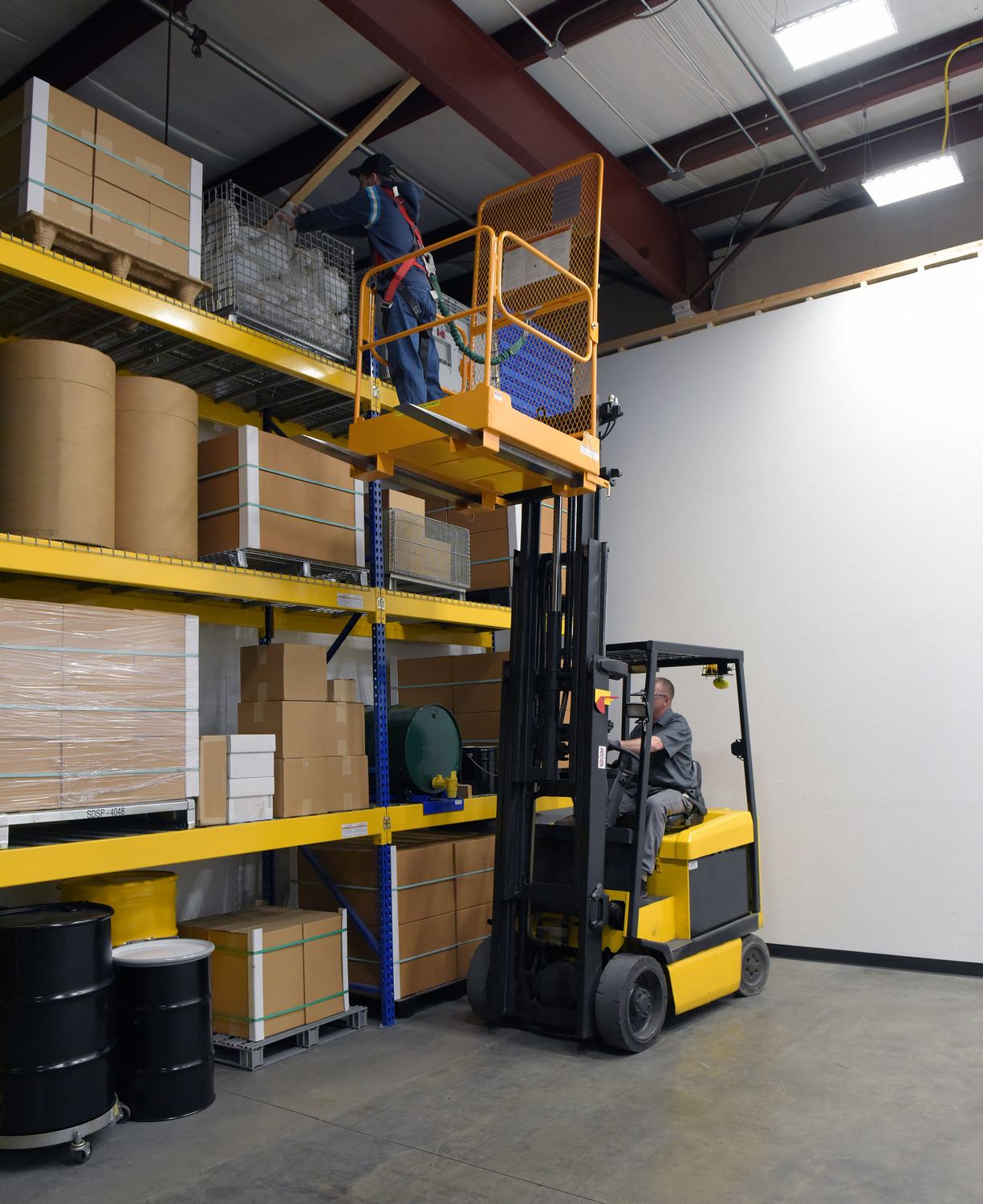

Elevate personnel to overhead racks and shelving for safe and convenient access. When not in use, unit can be folded down and moved out of the way by just one person. Unit stores conveniently in a 4" deep bottom base, with a folded height of 11-5/8". Handrail is 38" high with 23-1/2" high mid-rail on three sides. 70" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications on models with suffix -84B). Includes diamond plate platform, tine lock, and a safety restraint to attach platform to fork truck. Usable fork pockets measure 7-7/8"W x 3-3/8"H on 27-3/4" centers. The overall size of the unit is 38"W x 38"L x 81-1/2"H (89-1/2"H model WP-3737-FD-84B). Folded size is 38"W x 38"L x 11-5/8"H. Baked-in powder-coated toughness. Steel construction.
- Two gate platform allows access on each side
- Fork truck safety restraint secures work platform to fork truck
- Tread plate floor provides a safe non-slip grip
- Unique folds-down design takes up little storage space when not in use
Stockpicker Work Platforms
Work Platforms
Loading Platforms for Fork Truck
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| WP-3737-FD |  | 1 Year Limited Warranty | Steel Fold Down Steel Work Platform 37 In. x 37 In. 600 Lb. Capacity Yellow | Uniform Capacity (lb.): 600 Base Depth for Storage (in.): 4 | 227 | ||
| WP-3737-FD-84B |  | 1 Year Limited Warranty | Steel Fold Down Steel Work Platform With 84 In. Expanded Back 37 In. x 37 In. 600 Lb. Capacity Yellow | Uniform Capacity (lb.): 600 Base Depth for Storage (in.): 4 | 245 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
Uniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
Uniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
For More Details of the Option Click the Red Model Button

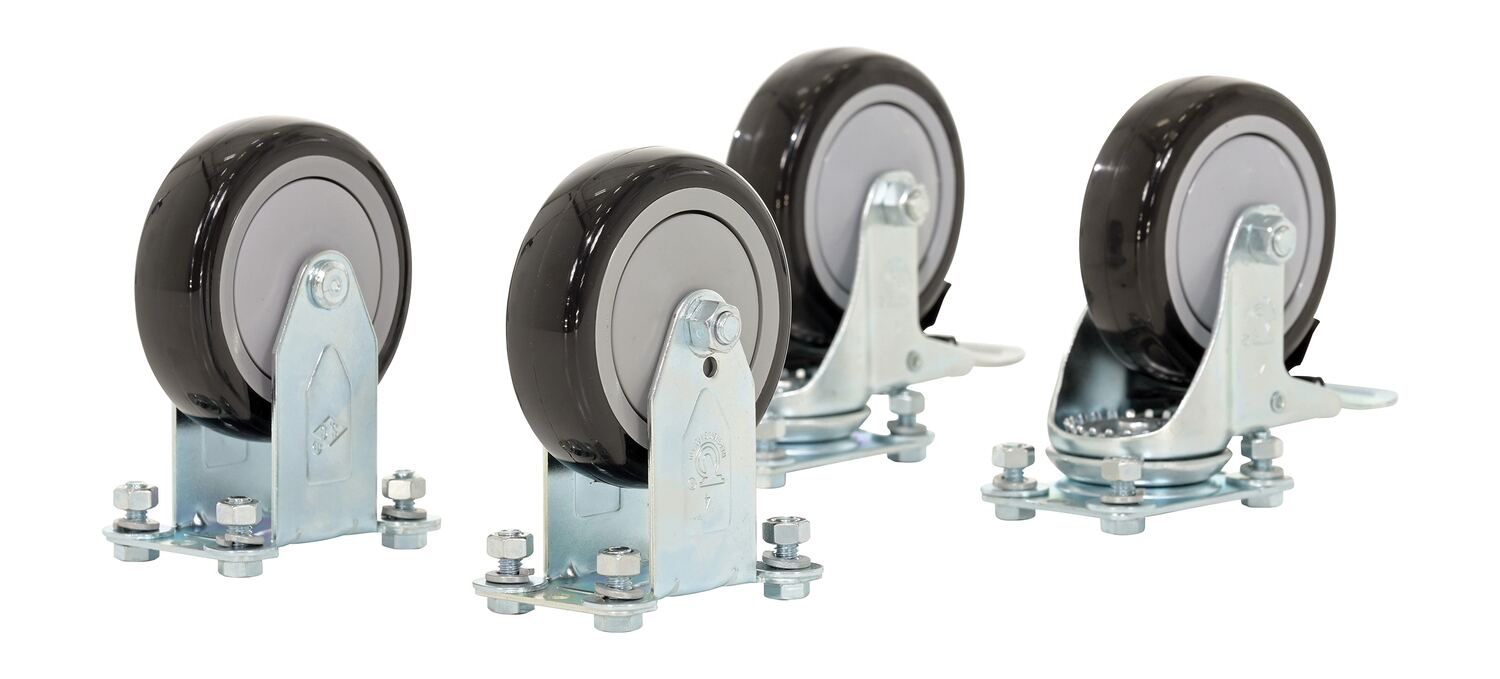

| WP-CAFD |  | 30 Days Limited Warranty | Polyurethane Fold Down Casters 4 In. x 2 In. 440 Lb. Capacity For Work Platform Models | Capacity (lbs.): 440 Swivel Caster (qty.): 2 | 21 |
| Lanyard with Safety Harness or Safety Belt | ||||||||
| Model | Image | Waist Size | Length of Lanyard | Weight (lbs) | Capacity | |||
| WP-LH-S |  |
 |
See Below | 6ft. | 5 | 350 | ||
| WP-LH-M |  |
|
See Below | 6ft. | 5 | 350 | ||
| WP-LH-L |  |
|
See Below | 6ft. | 5 | 350 | ||
| WP-LH-XL |  |
|
See Below | 6ft. | 5 | 350 | ||
| WP-LH-XXL |  |
|
See Below | 6ft. | 5 | 350 | ||
| WP-LH-XXXL |  |
|
See Below | 6ft. | 5 | 350 | ||
| Harness Sizing Chart | ||||||||
| Height | Image | 34"-36" | 38"-40" | 42"-44" | 50"-54" | 56"-60" | ||
| Small (5'4"-5'7") | - | Small | Small | Medium | X-Large | XX-Large | ||
| Medium (5'8"-5'11") | - | Small | Medium | Large | XX-Large | XXX-Large | ||
| Tall (6'0"-6'3") | - | Medium | Medium | Large | XX-Large | XXX-Large | ||
| X-Tall (6'3"-Plus) | - | Large | Large | X-Large | XX-Large | XXX-Large | ||
