Shorty Lift Master Fork Truck Booms

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

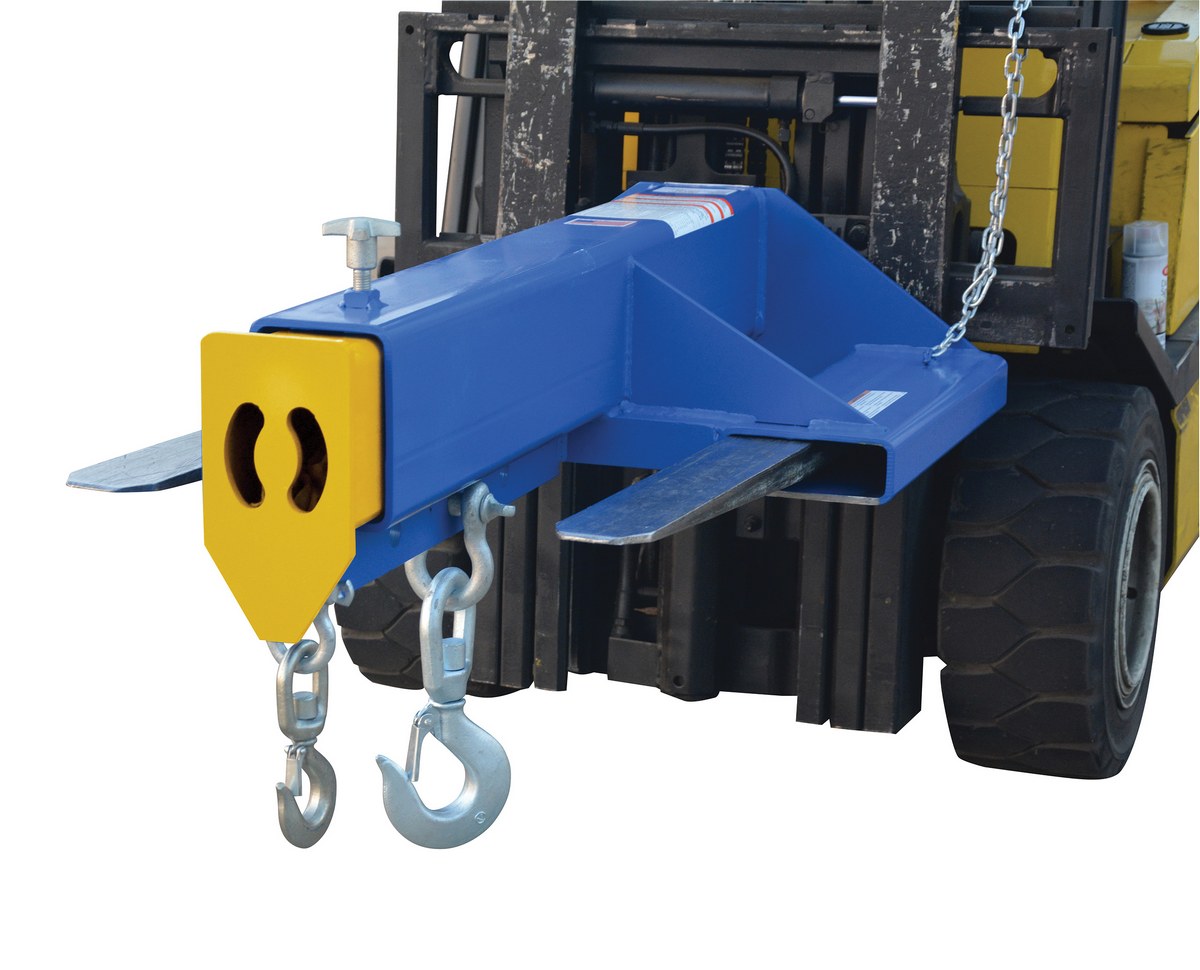

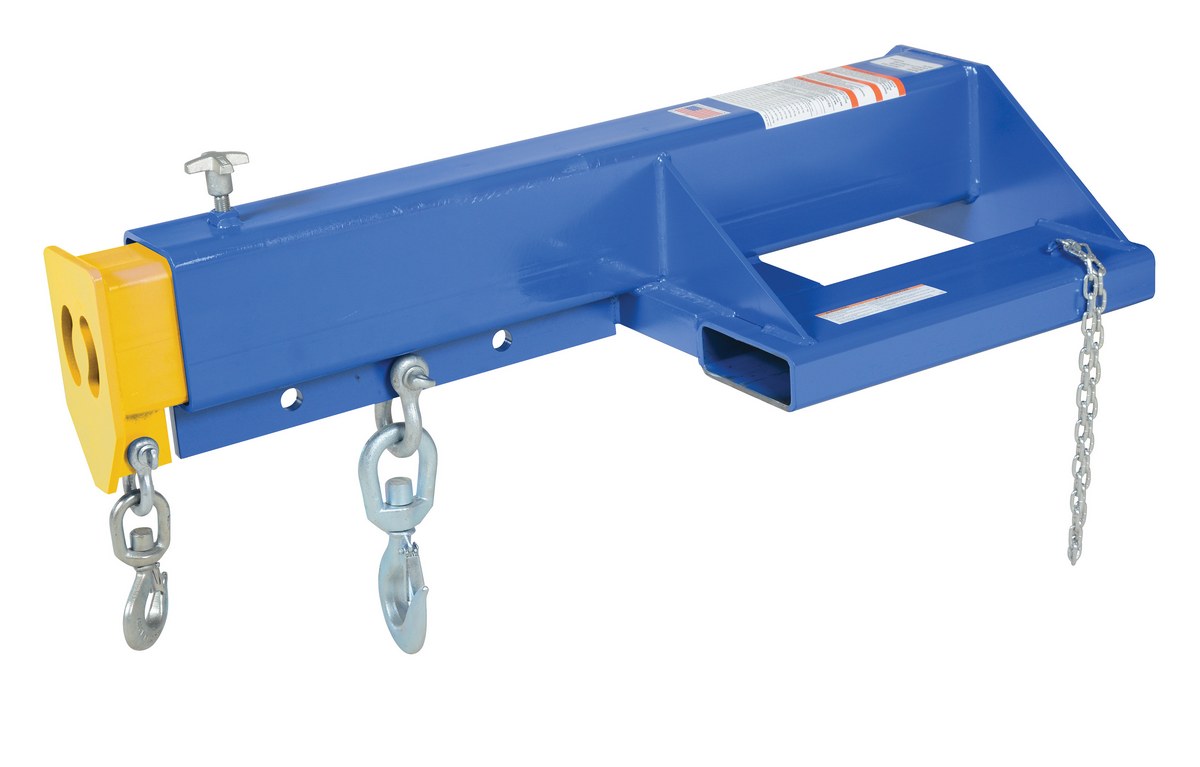

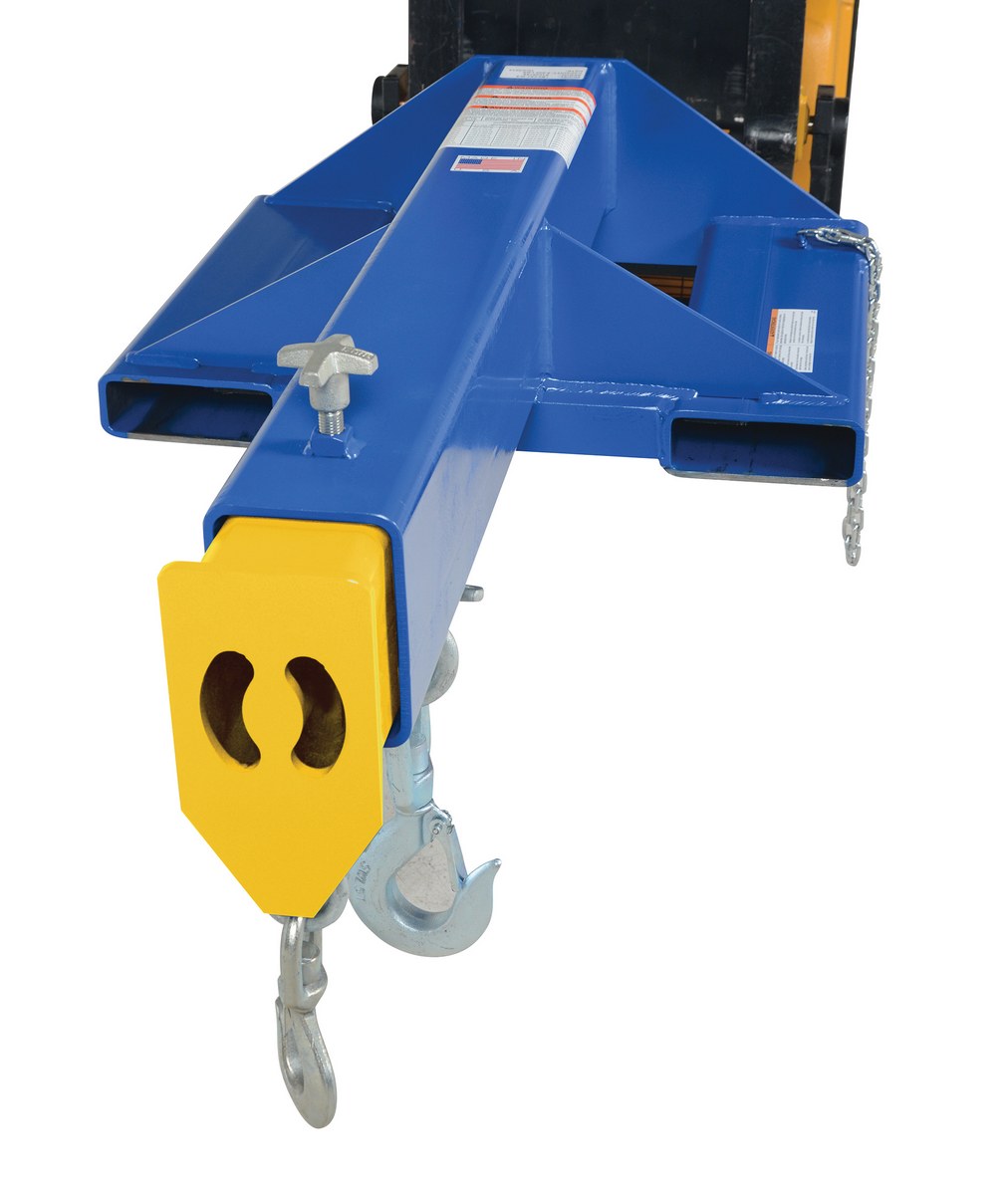

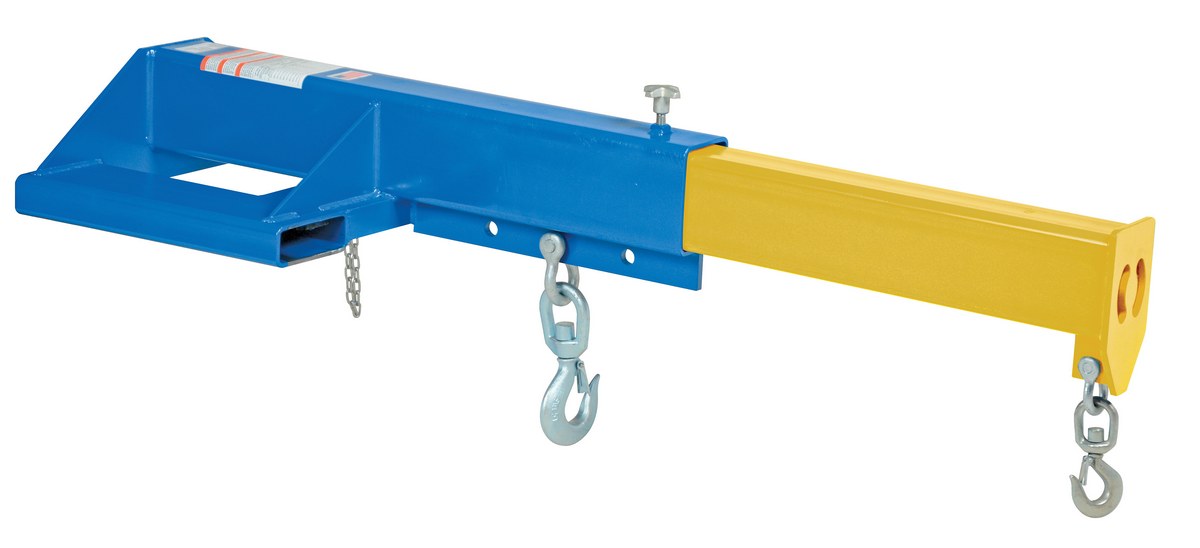

LMS-EBT-46-8_D.jpg LMS-EBT-46-8_A.jpg LMS-EBT-46-8_B.jpg LMS-EBT-46-8_C.jpg
Shorty Lift Master Fork Truck Booms

model: LMS-EBT-46-8



Featured Fork Truck Attachments


Drum Attachments
Hooks with Shackle
Lift Truck Safety Light
Salt Boxes and Scoop
Fork Extensions with Side Brackets For Load Straps
Fork Truck Reel Attachment
Work Platforms
Carriage Mounted Fork Truck Booms
Hanging Magnetic Sweepers
model chart

Product Family Overview

Print Friendly
Shorty Lift Master Fork Truck Booms
SERIES: LMS

Short boom length is ideal for tight areas. Choose either telescoping or non-telescoping design. Includes built-in fork pockets, safety restraint and two lifting hooks. Overall width is 32", 38", and 44". Steel construction.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety

Check Out Vestil's Other Fork Truck Boom Styles:


Lift Master Fork Truck Booms
Hydraulic Powered Fork Truck Booms
High Rise Fork Truck Booms

Orbiting Fork Truck Booms
Carriage Mounted Fork Truck Booms

Short boom length is ideal for tight areas. Choose either telescoping or non-telescoping design. Includes built-in fork pockets, safety restraint and two lifting hooks. Overall width is 32", 38", and 44". Steel construction.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety

Check Out Vestil's Other Fork Truck Boom Styles:


Lift Master Fork Truck Booms
Hydraulic Powered Fork Truck Booms
High Rise Fork Truck Booms

Orbiting Fork Truck Booms
Carriage Mounted Fork Truck Booms

Other Lift Master Booms

 Orbiting Fork Truck Booms Lift Master Fork Truck Booms Shorty Lift Master Fork Truck Booms Hydraulic Powered Fork Truck Booms

Additional Models In This Family
view entire Image Gallery

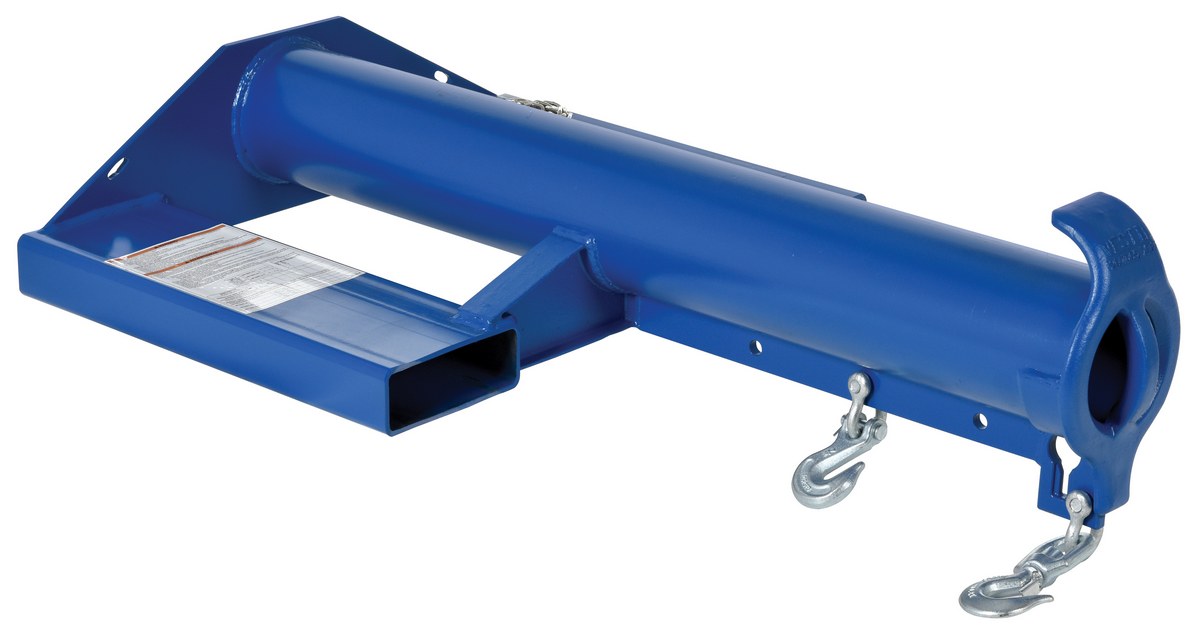

LMS-EBNT-40-4

model LMS-EBNT-40-4

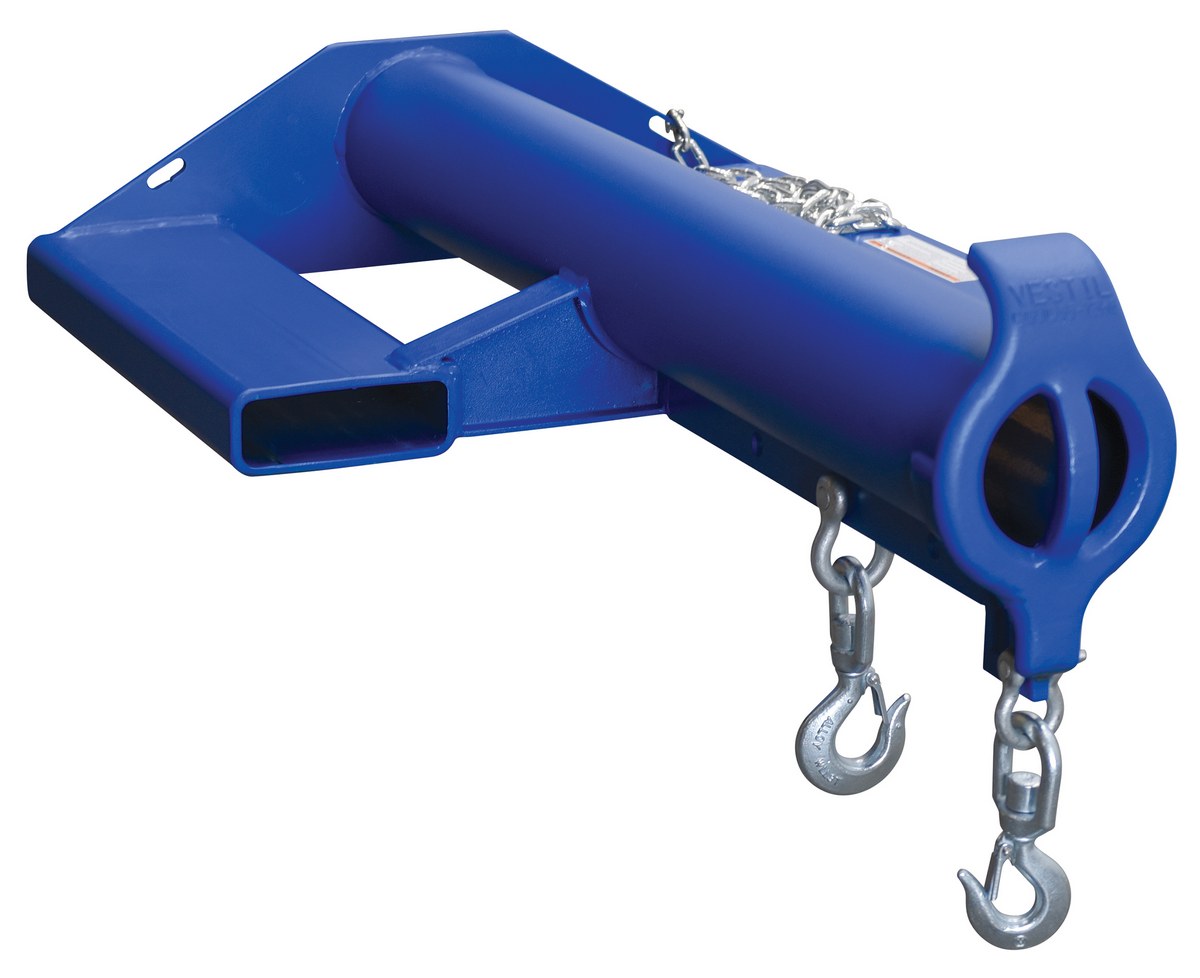

LMS-EBNT-40-6

model LMS-EBNT-40-6

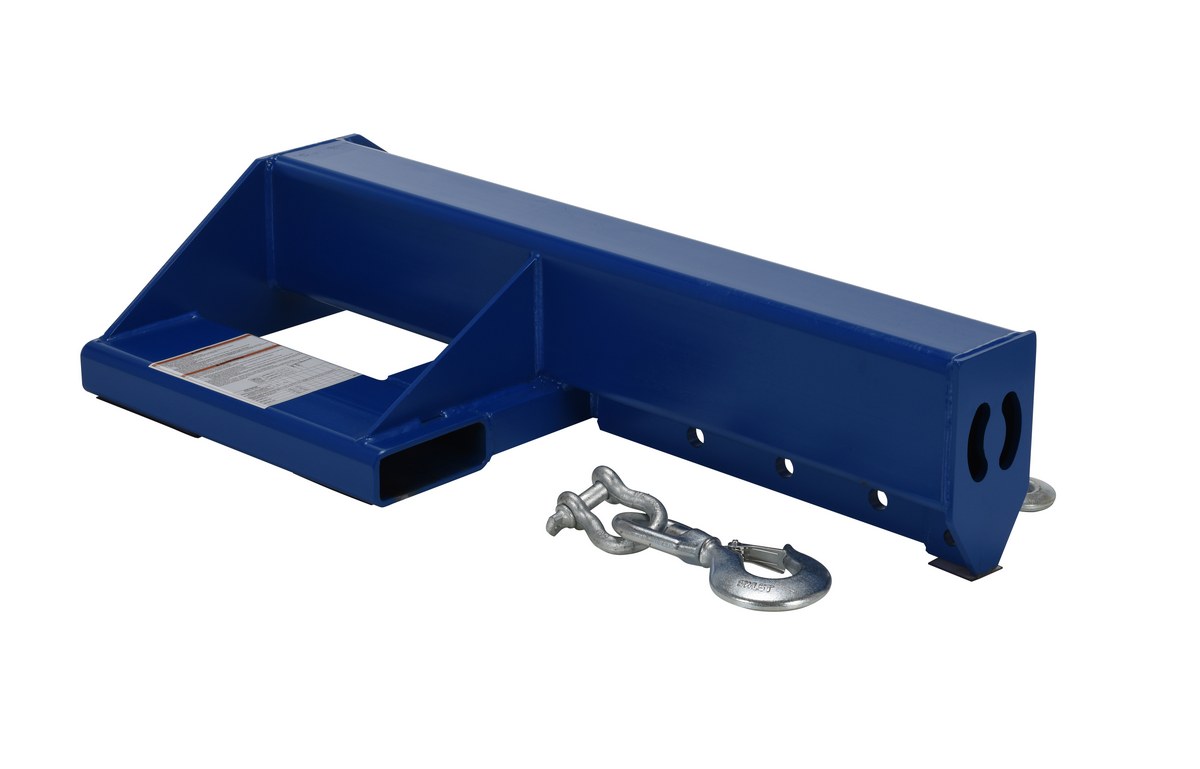

LMS-EBNT-40-8

model LMS-EBNT-40-8

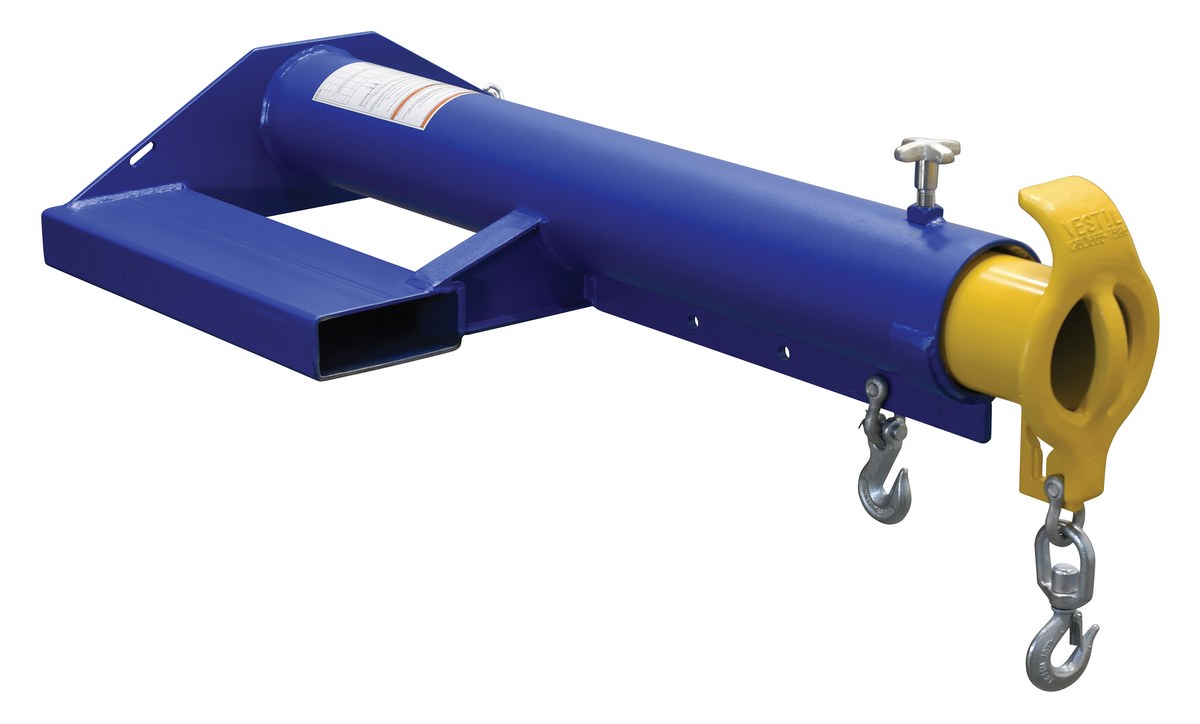

LMS-EBT-46-4

model LMS-EBT-46-4

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
LMS-EBNT-40-4 LMS-EBNT-40-41 Year Limited WarrantySteel Shorty Non Telescoping Lift Boom 24 In. Fork Pocket Center 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24		214
LMS-EBNT-40-6 LMS-EBNT-40-61 Year Limited WarrantySteel Shorty Non Telescoping Lift Boom 24 In. Fork Pocket Center 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24		244
LMS-EBNT-40-8 POPULAR LMS-EBNT-40-81 Year Limited WarrantySteel Shorty Non Telescoping Lift Boom 24 In. Fork Pocket Center 8,000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Fork Pocket Center (in.): 24		320
LMS-EBT-46-4 LMS-EBT-46-41 Year Limited WarrantySteel Shorty Telescoping Lift Boom 24 In. Fork Pocket Center 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24		266

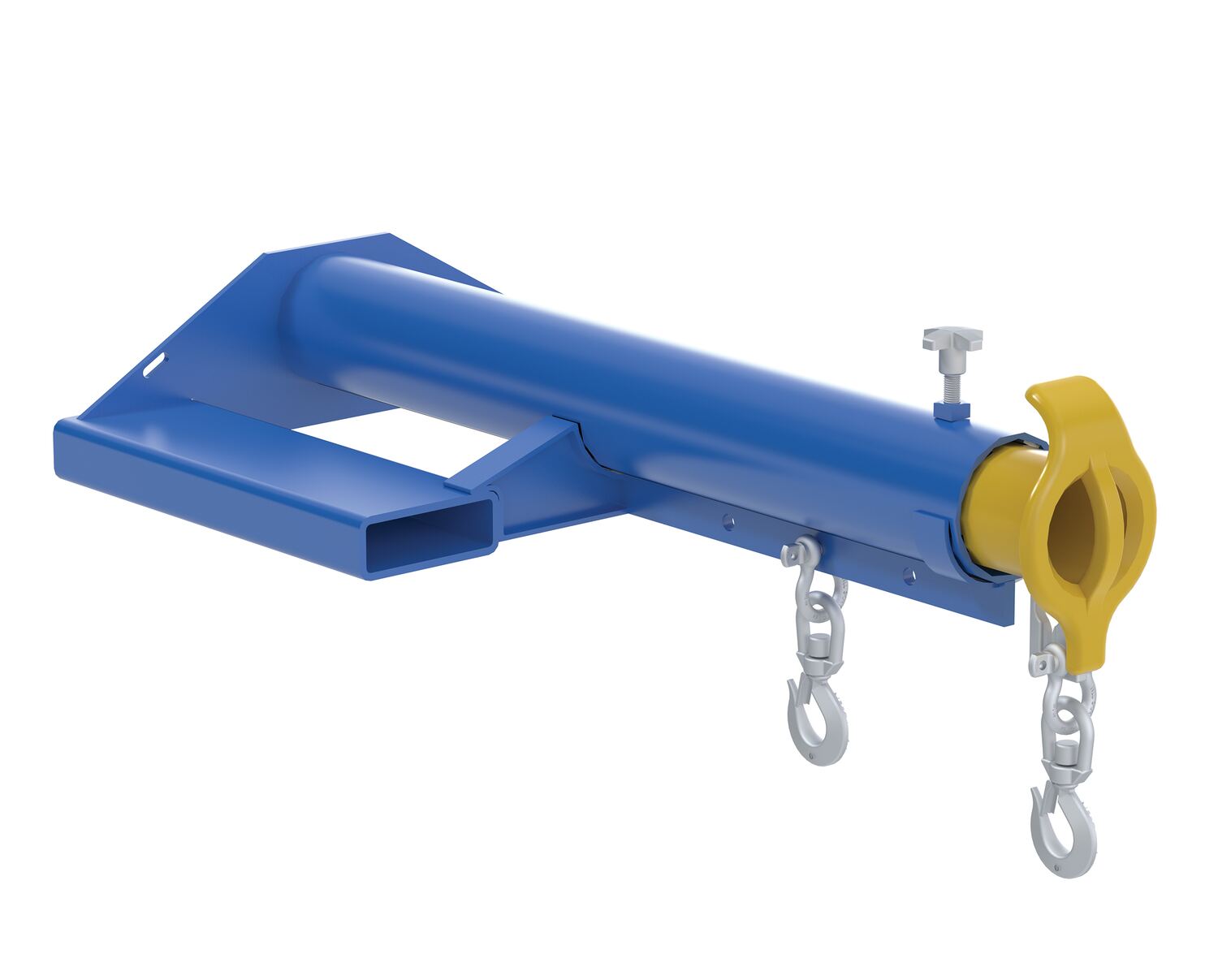

LMS-EBT-46-6 LMS-EBT-46-61 Year Limited WarrantySteel Shorty Telescoping Lift Boom 24 In. Fork Pocket Center 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24		288
LMS-EBT-46-8 LMS-EBT-46-81 Year Limited WarrantySteel Shorty Telescoping Lift Boom 24 In. Fork Pocket Center 8,000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Fork Pocket Center (in.): 24		432

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

LMS-EBNT-40-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24

LMS-EBNT-40-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24

LMS-EBNT-40-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Fork Pocket Center (in.): 24
Uniform Capacity (lb.): 8,000
Fork Pocket Center (in.): 24

LMS-EBT-46-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24
Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24

LMS-EBT-46-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24
Uniform Capacity (lb.): 6,000
Fork Pocket Center (in.): 24

LMS-EBT-46-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Fork Pocket Center (in.): 24
Uniform Capacity (lb.): 8,000
Fork Pocket Center (in.): 24
For More Details of the Option Click the Red Model Button
Model Image Description Usable Fork Pocket Width/Height (in.)
LM-FP Factory Installed Steel Fork Pockets 8.25 In. x 4.25 For Lift Boom Models 8-1/4 x 4-1/4
LM-FP-37 Factory Installed Steel Fork Pockets 7 In. x 3 For Lift Boom Models 7 x 3
LM-FP-39 Factory Installed Steel Fork Pockets 9 In. x 3 In. For Lift Boom Models 9 x 3
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Shorty Lift Master Fork Truck Booms PDF's will open in a new window when clicked.

Manuals


LMS
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


LMS-EBNT-40-4

LMS-EBNT-40-6

LMS-EBNT-40-8

LMS-EBT-46-4

LMS-EBT-46-6

LMS-EBT-46-8

Testing Certificates


LMS-EBNT-40-4

LMS-EBNT-40-6

LMS-EBNT-40-8

LMS-EBT-46-4

LMS-EBT-46-6

LMS-EBT-46-8

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
