Product Family Overview


Rug Rams/Carpet Poles
SERIES: CRP,CRF,CR

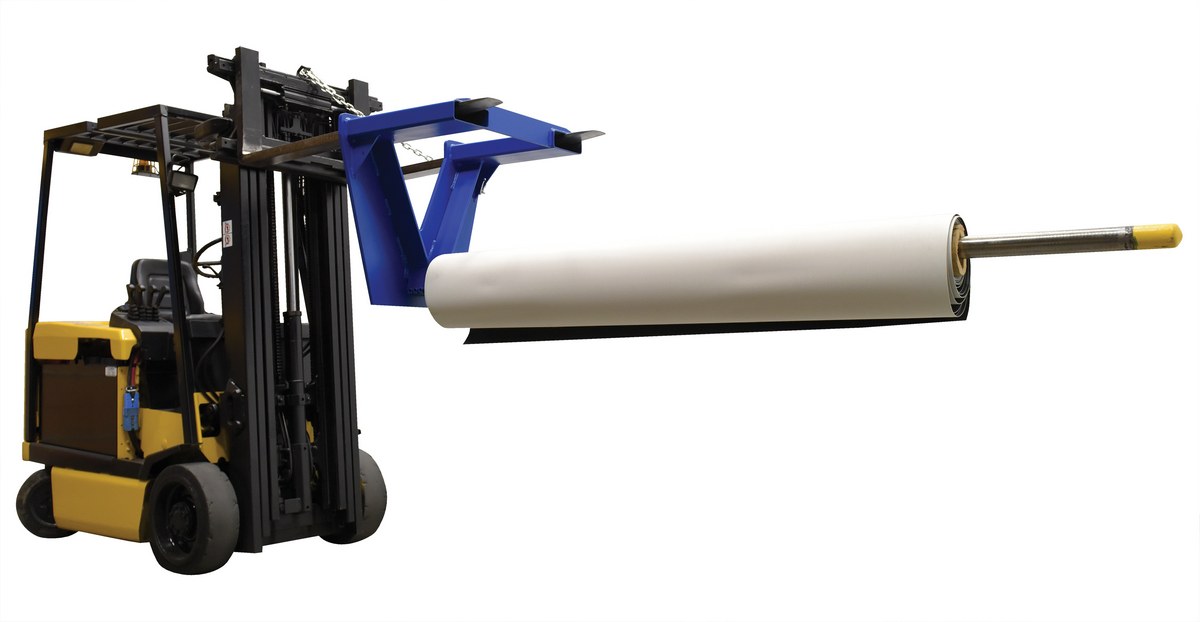

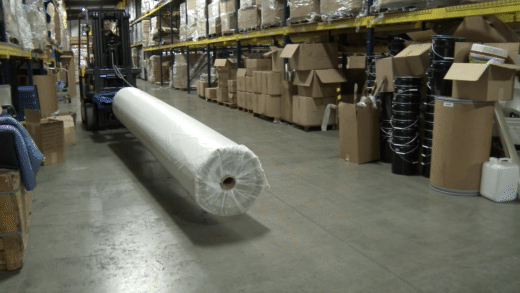

Transport rolls of carpet with our sturdy Rug Rams/Carpet Poles. Available in either carriage or fork mounted style. 2-3/4" diameter high strength, rotatable, replaceable pole has tapered tip. All units are made of steel construction and painted blue.

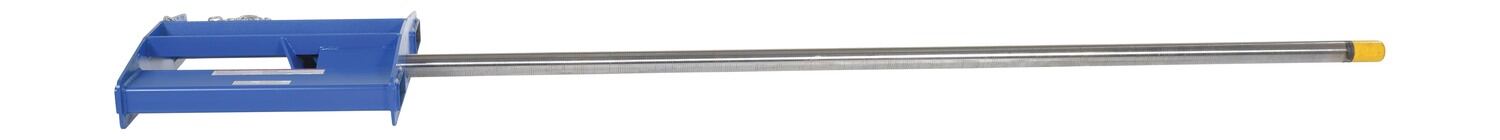

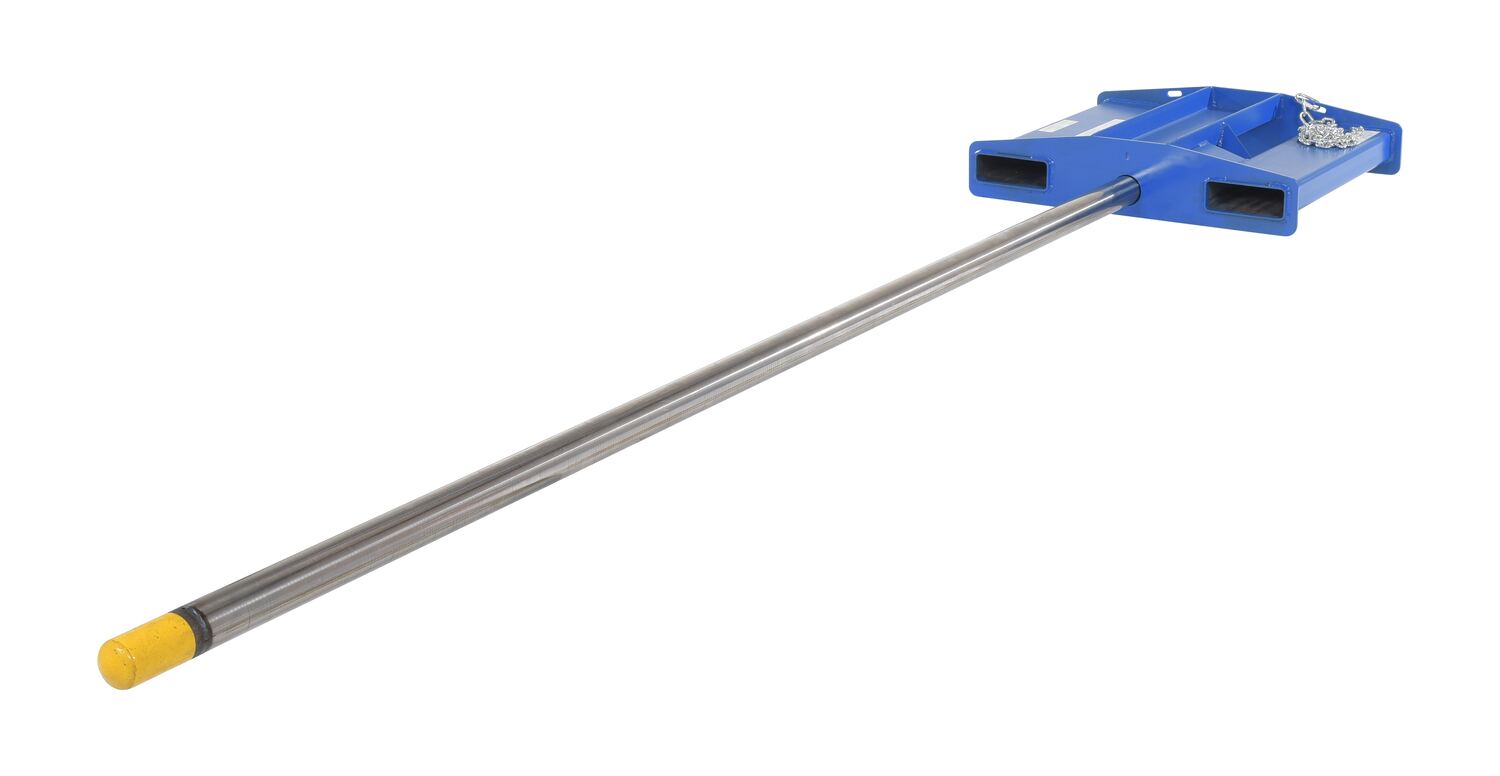

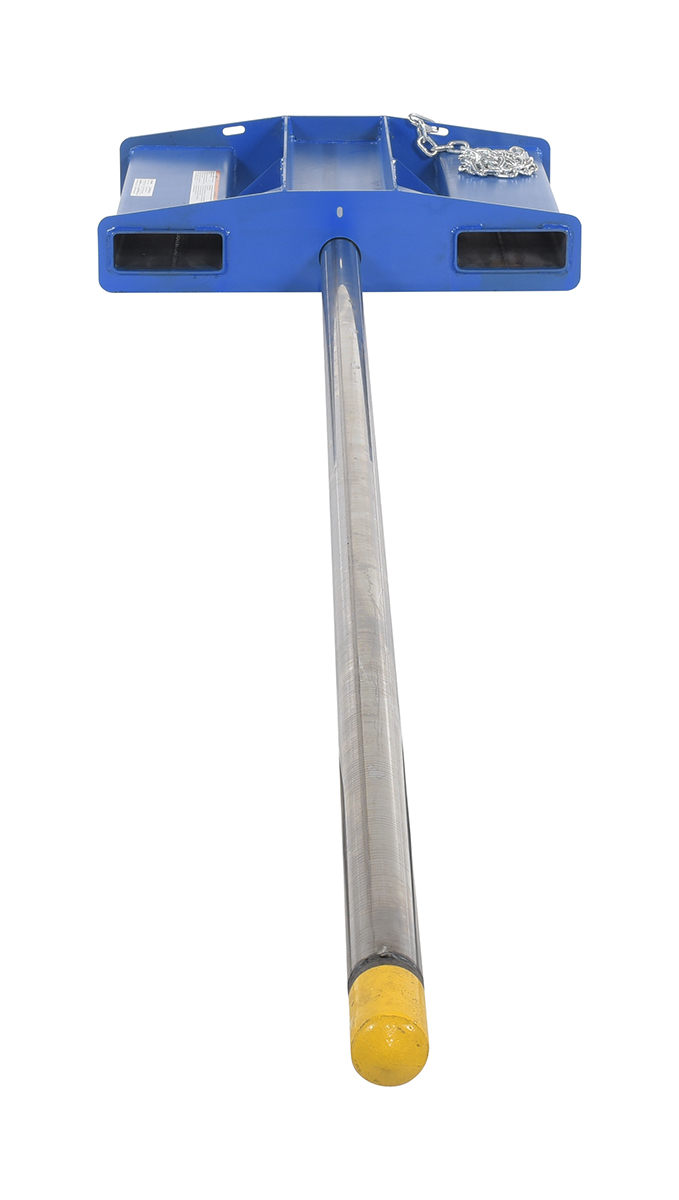

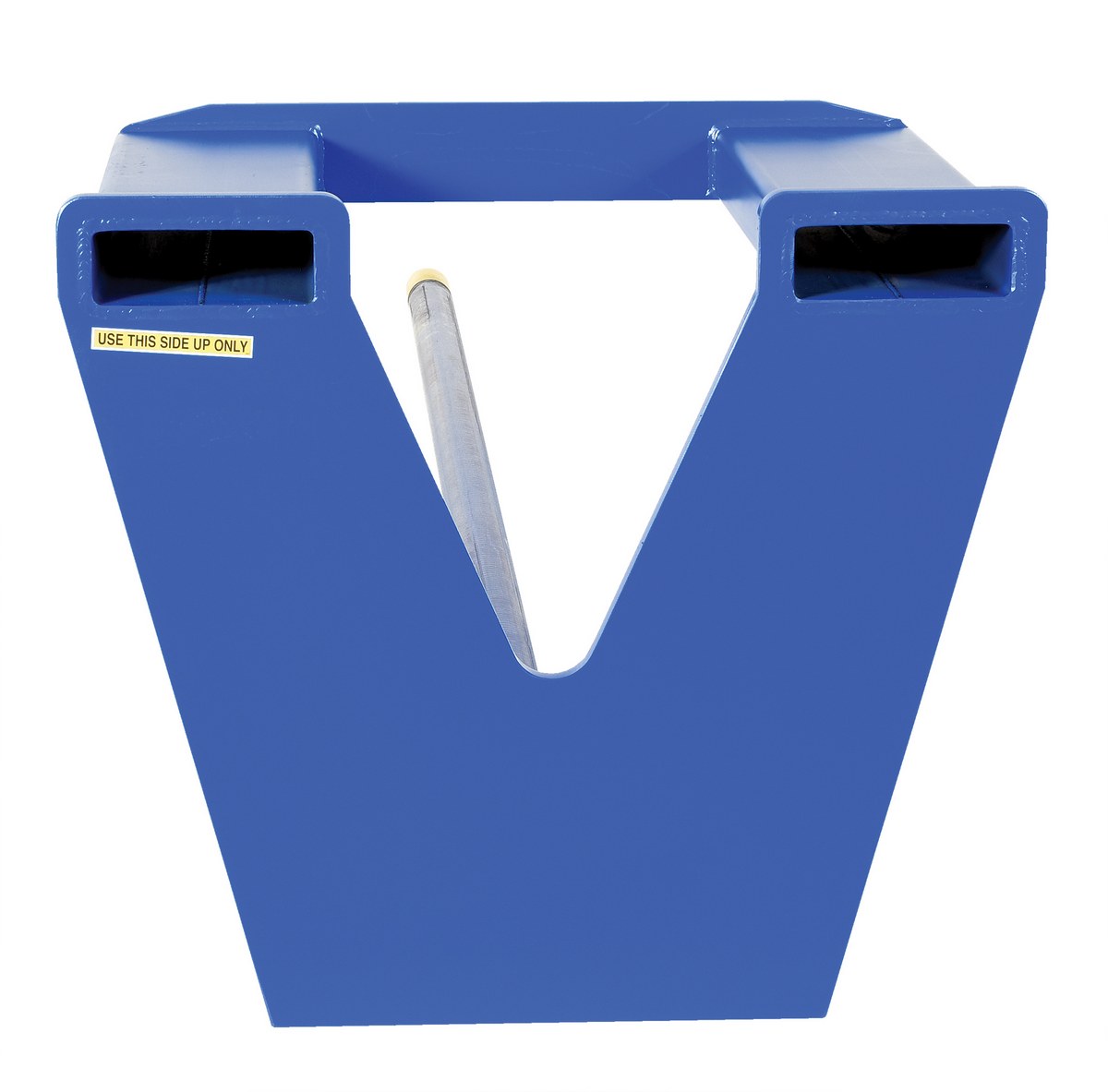

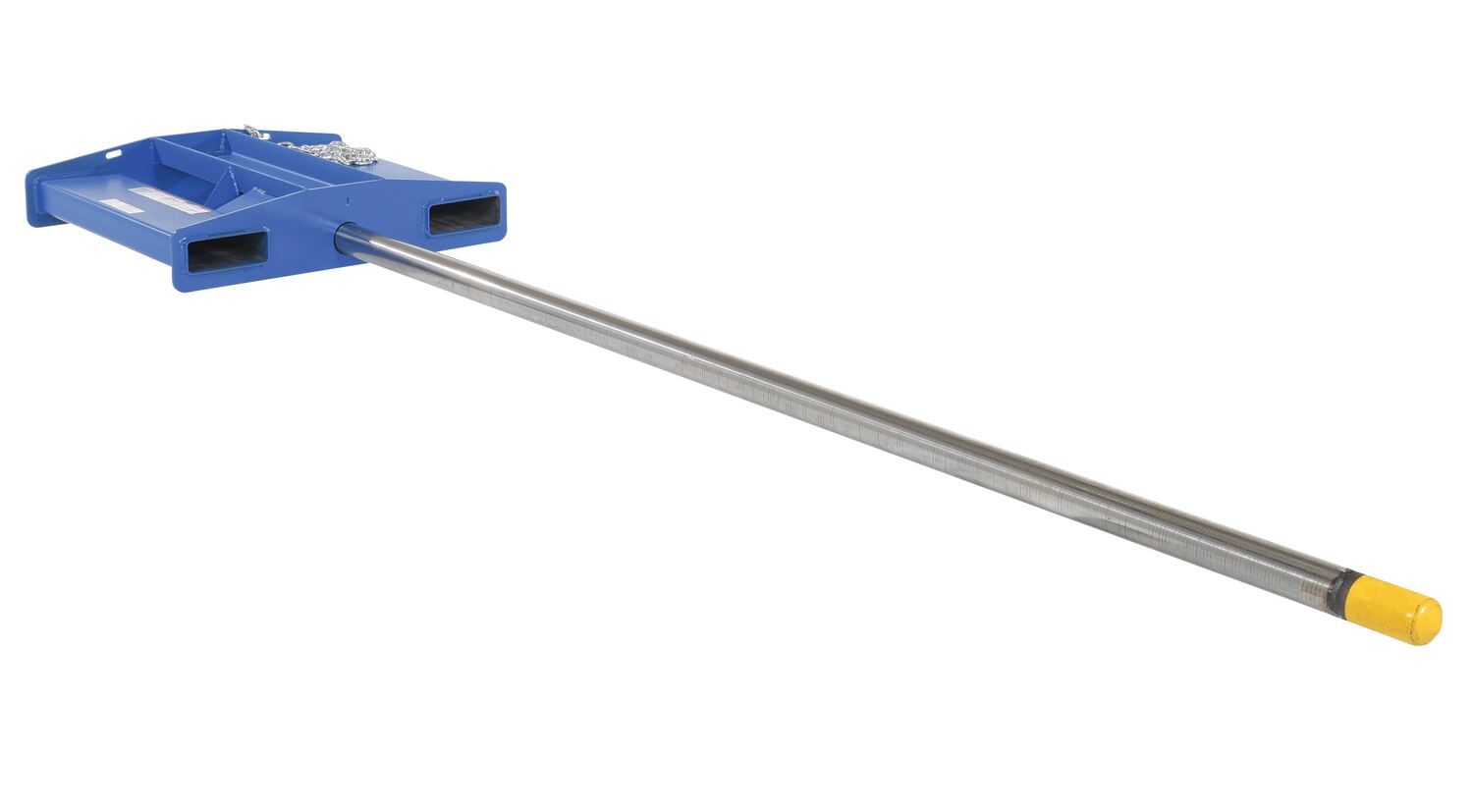

Fork Mounted Rug Rams feature 7-1/2"W x 2-1/2"H fork pockets on models CRP, 7-5/8"Wx2-5/8"H on CRF models, with 24" centers. Safety chain is included to secure unit to fork truck.

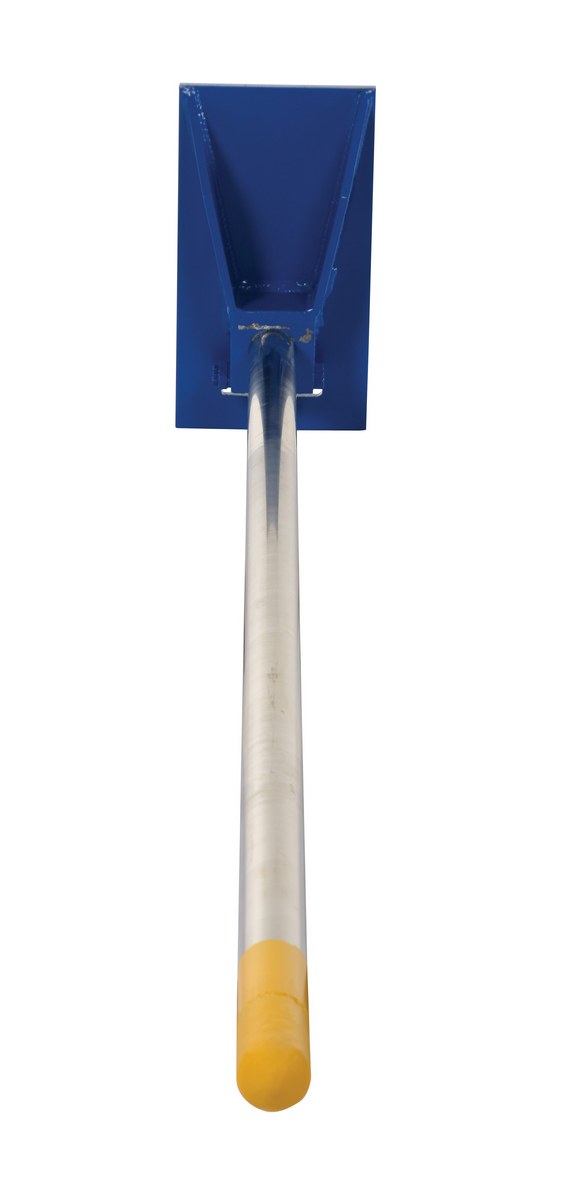

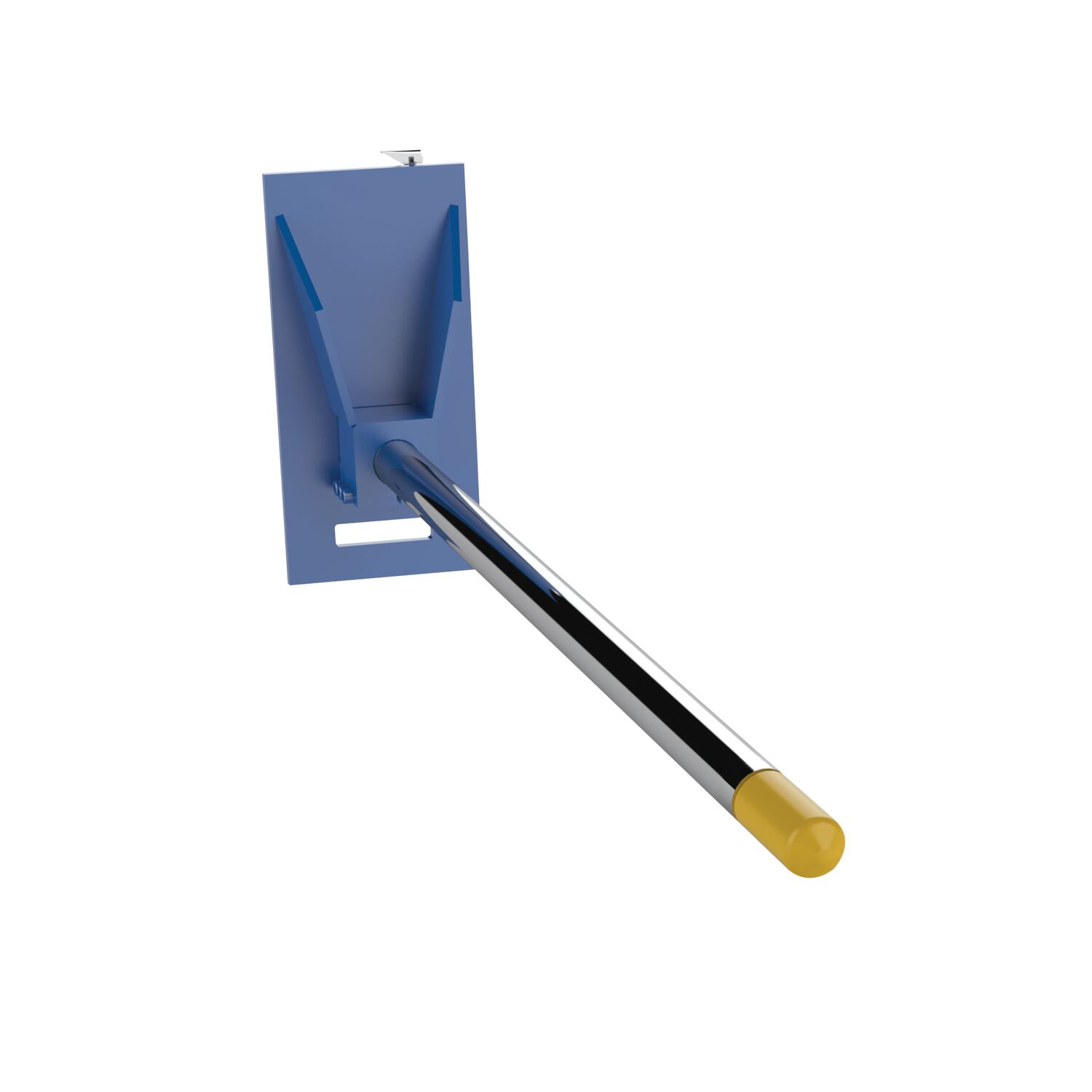

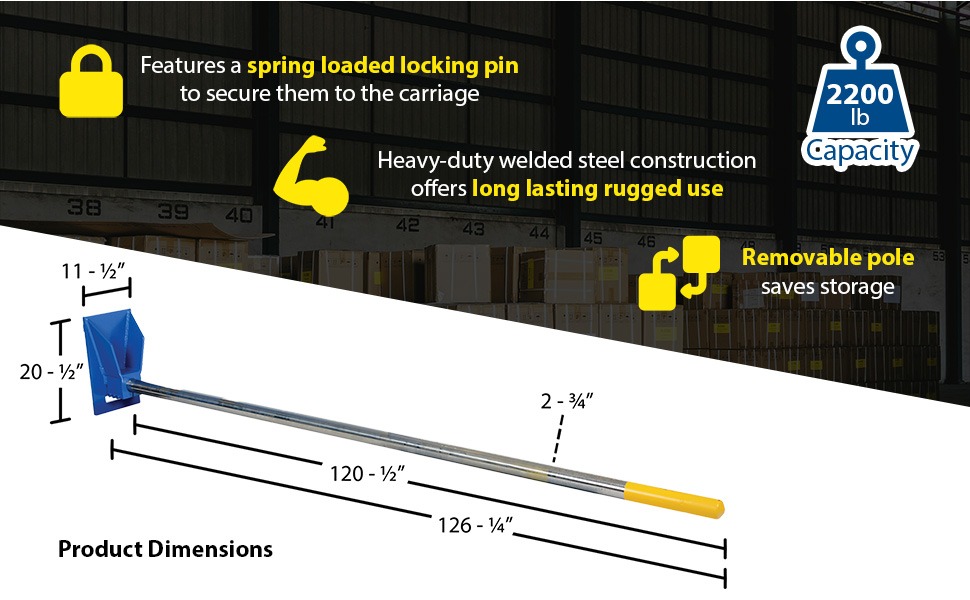

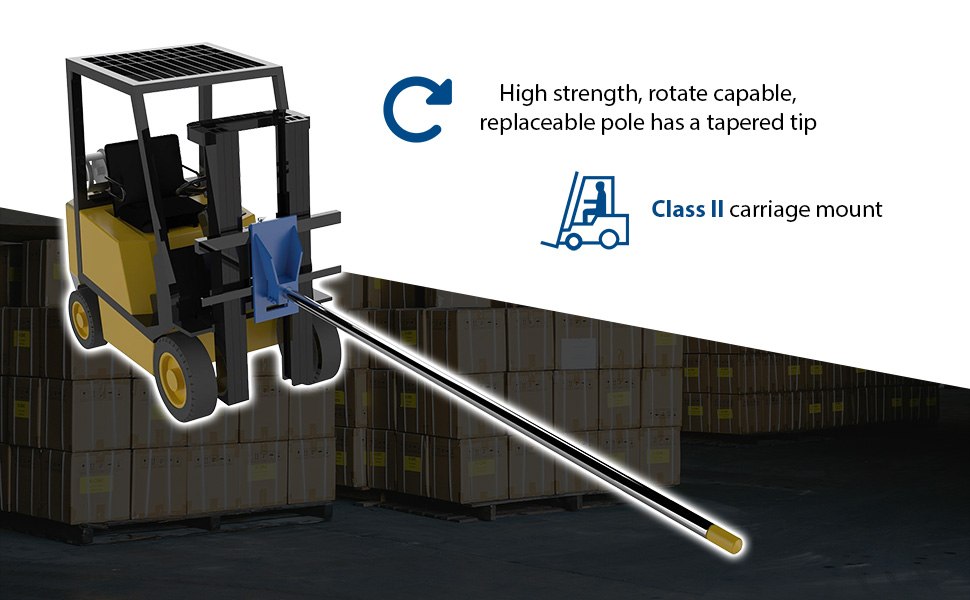

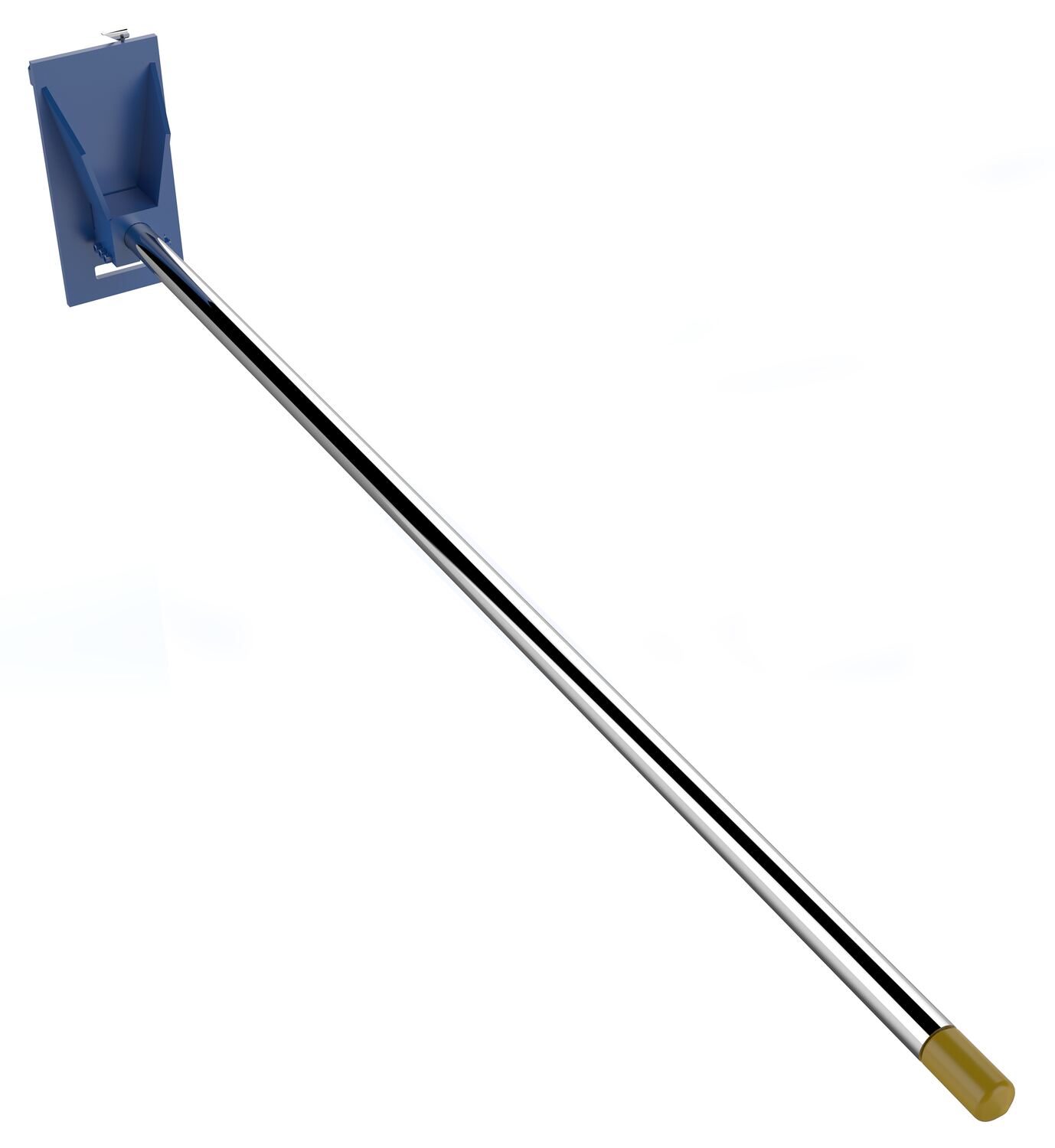

Carriage Mounted Rug Rams are available in class II or III mount and feature a spring loaded locking pin to secure them to the carriage.

Rug Ram Pole Length Recommended Carpet Roll Length
48" Models Recommended to be used for 4 foot (or shorter) carpet rolls
60" Models Recommended to be used for 5 foot (or shorter) carpet rolls
96" Models Recommended to be used for 8 foot (or shorter) carpet rolls
108" Models Recommended to be used for 9 foot (or shorter) carpet rolls
120" Models Recommended to be used for 10 foot (or shorter) carpet rolls
144" Models Recommended to be used for 12 foot (or shorter) carpet rolls

The carpet roll must not hang over the end of the pole. Carpet rolls must be loaded onto the pole having full contact with the mounting frame

Transport rolls of carpet with our sturdy Rug Rams/Carpet Poles. Available in either carriage or fork mounted style. 2-3/4" diameter high strength, rotatable, replaceable pole has tapered tip. All units are made of steel construction and painted blue.

Fork Mounted Rug Rams feature 7-1/2"W x 2-1/2"H fork pockets on models CRP, 7-5/8"Wx2-5/8"H on CRF models, with 24" centers. Safety chain is included to secure unit to fork truck.

Carriage Mounted Rug Rams are available in class II or III mount and feature a spring loaded locking pin to secure them to the carriage.

Rug Ram Pole Length Recommended Carpet Roll Length
48" Models Recommended to be used for 4 foot (or shorter) carpet rolls
60" Models Recommended to be used for 5 foot (or shorter) carpet rolls
96" Models Recommended to be used for 8 foot (or shorter) carpet rolls
108" Models Recommended to be used for 9 foot (or shorter) carpet rolls
120" Models Recommended to be used for 10 foot (or shorter) carpet rolls
144" Models Recommended to be used for 12 foot (or shorter) carpet rolls

The carpet roll must not hang over the end of the pole. Carpet rolls must be loaded onto the pole having full contact with the mounting frame

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

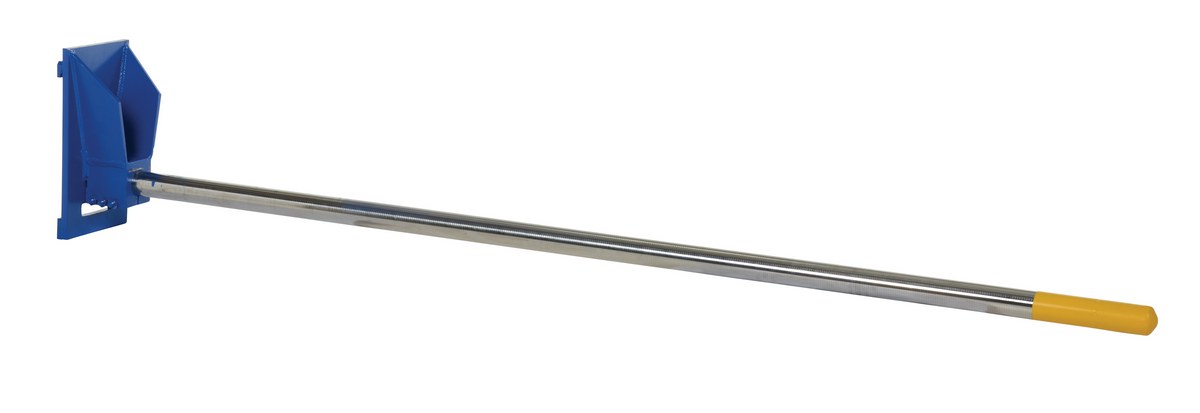

CR-108-2 CR-108-290 Days Limited WarrantySteel Carriage Mount Class II Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
287

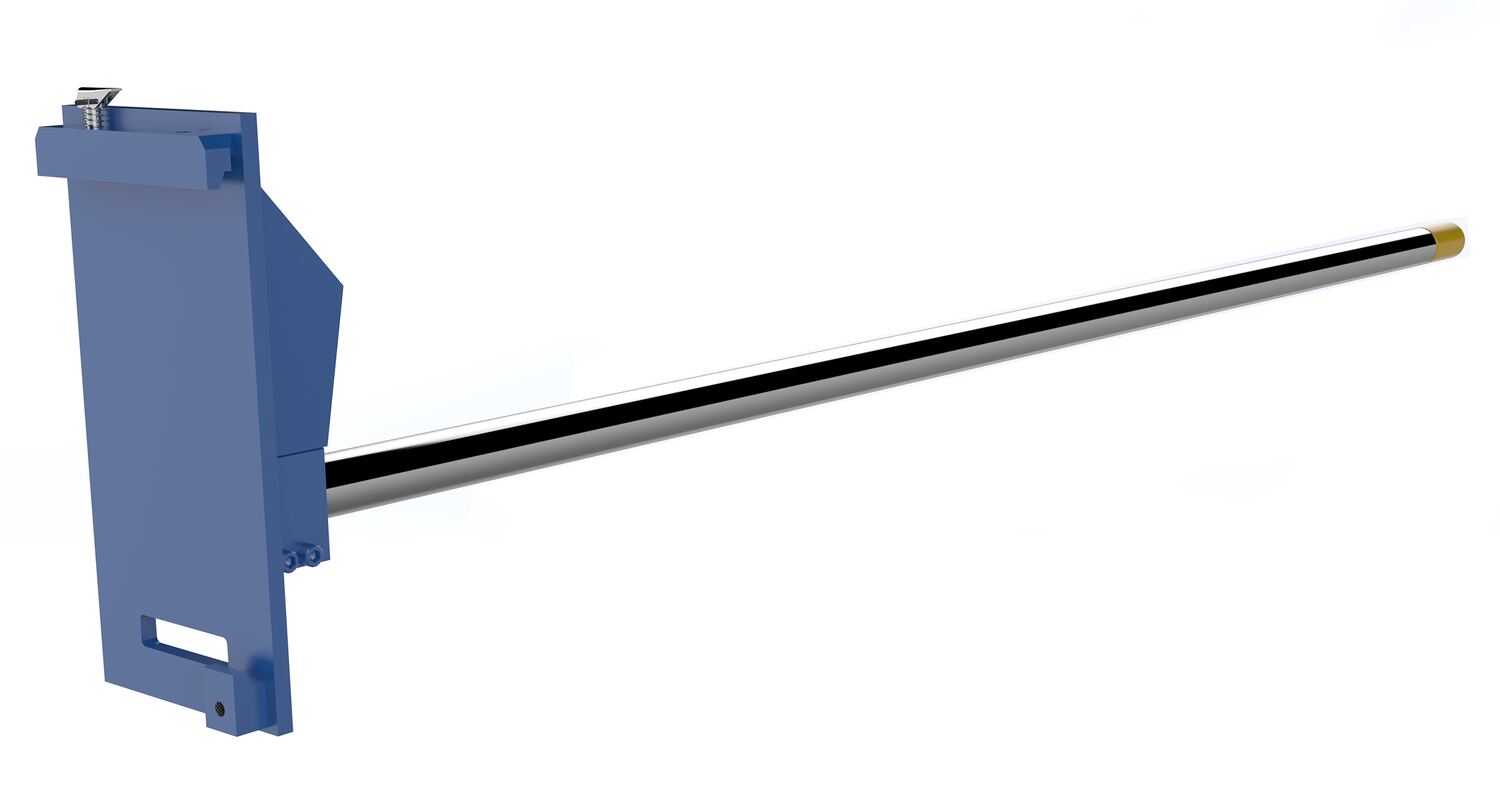

CR-108-3 CR-108-390 Days Limited WarrantySteel Carriage Mount Class III Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
296

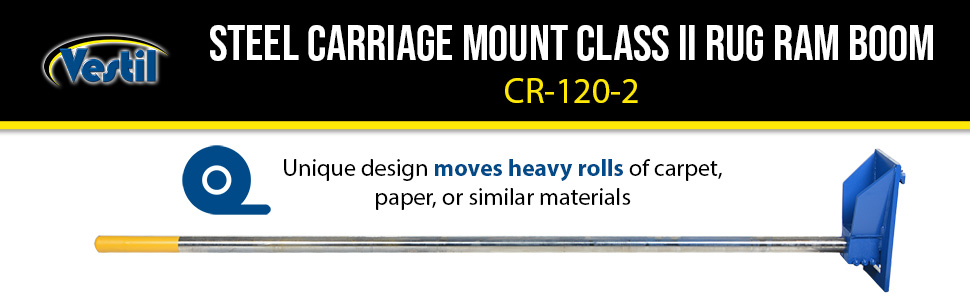

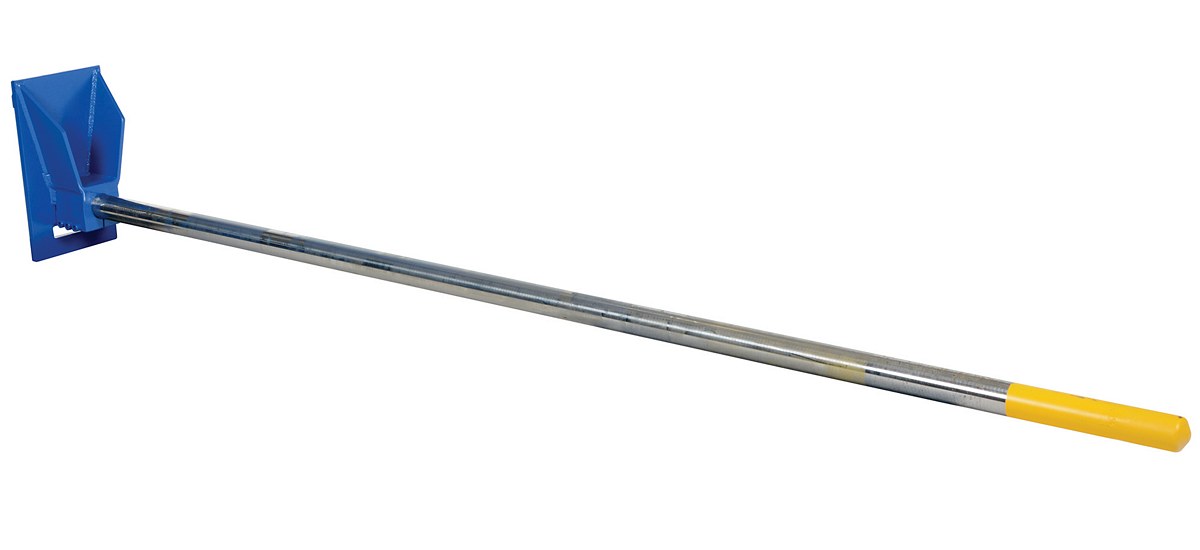

CR-120-2 CR-120-290 Days Limited WarrantySteel Carriage Mount Class II Rug Ram Boom 120 In. 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
310
CR-120-3 CR-120-390 Days Limited WarrantySteel Carriage Mount Class III Rug Ram Boom 120 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
316

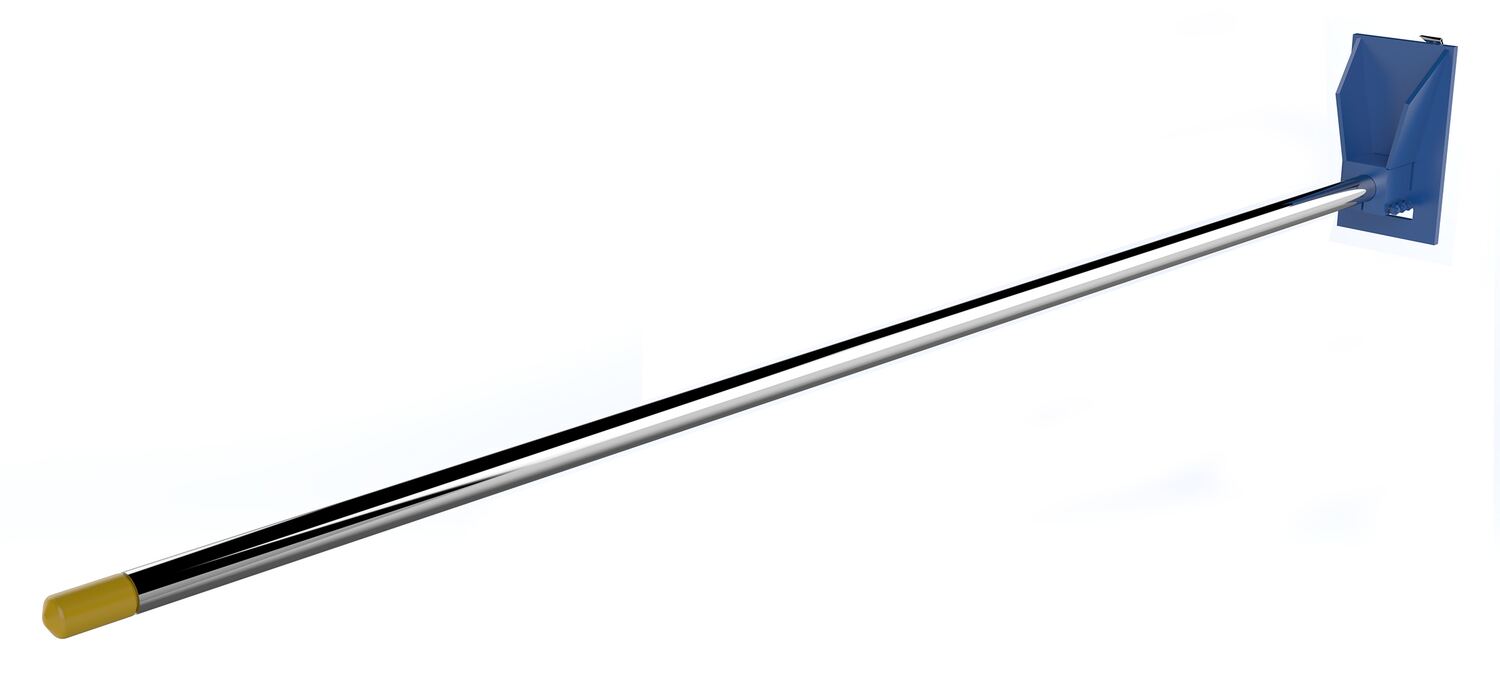

CR-144-2 CR-144-290 Days Limited WarrantySteel Carriage Mount Class II Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
342

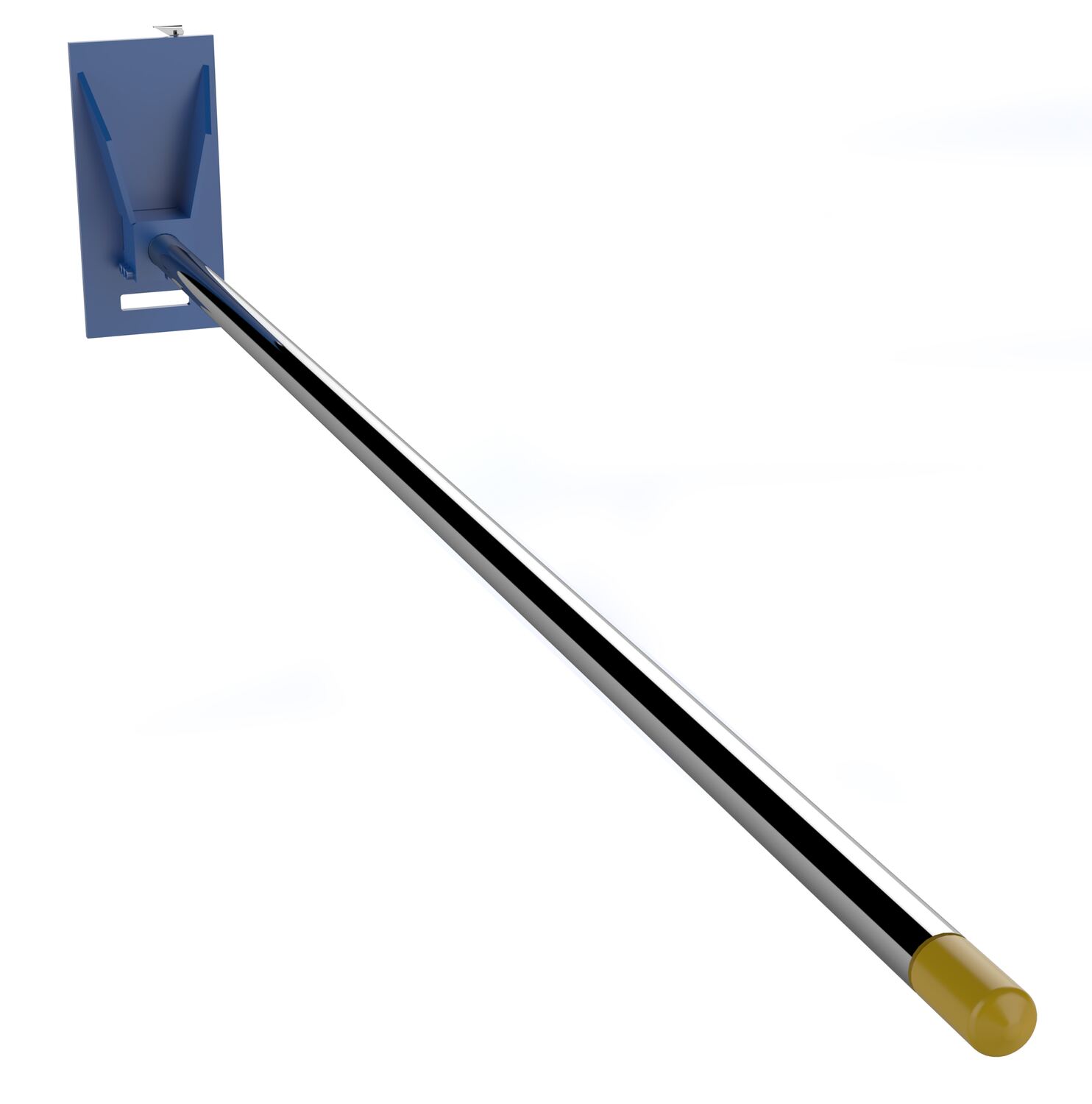

CR-144-3 CR-144-390 Days Limited WarrantySteel Carriage Mount Class III Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
478

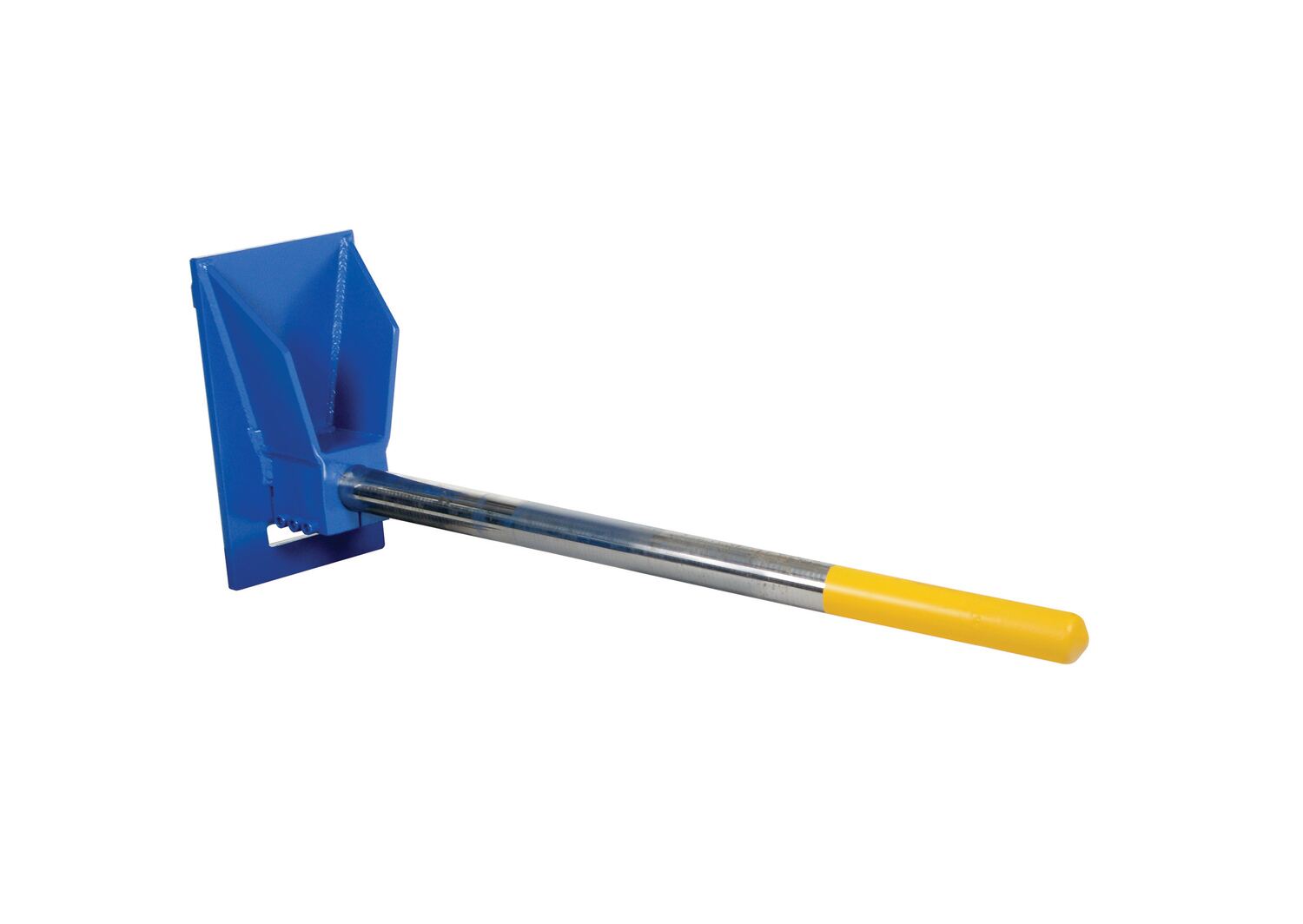

CR-48-2 CR-48-290 Day Limited WarrantySteel Rug Ram Boom Carriage Mount Class 2 48"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
180
CR-48-3 CR-48-390 Day Limited WarrantySteel Rug Ram Boom Carriage Mount Class 3 48"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
197

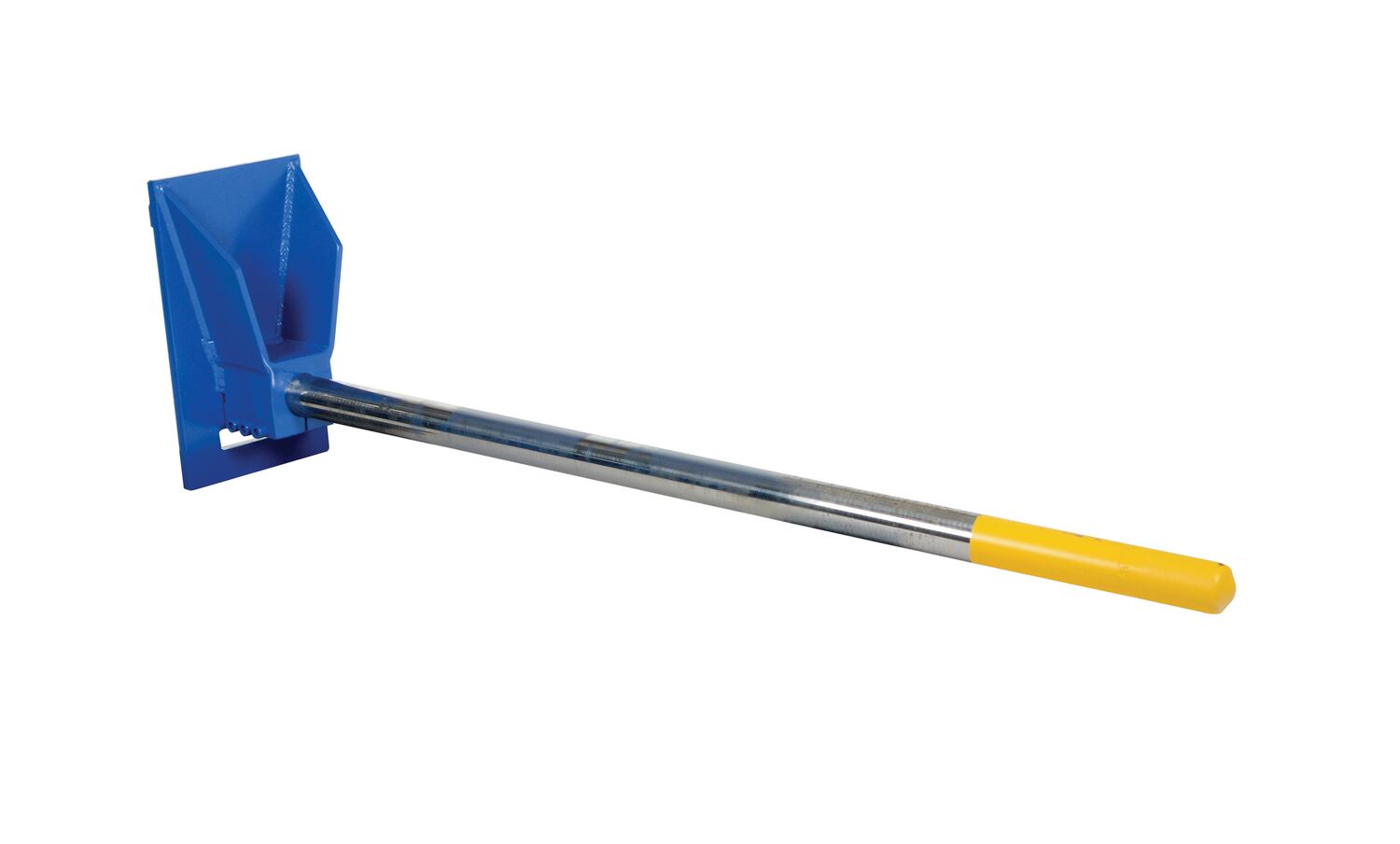

CR-60-2 CR-60-290 Day Limited WarrantySteel Rug Ram Boom Carriage Mount Class 2 60"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
201
CR-60-3 CR-60-390 Day Limited WarrantySteel Rug Ram Boom Carriage Mount Class 3 60"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
217

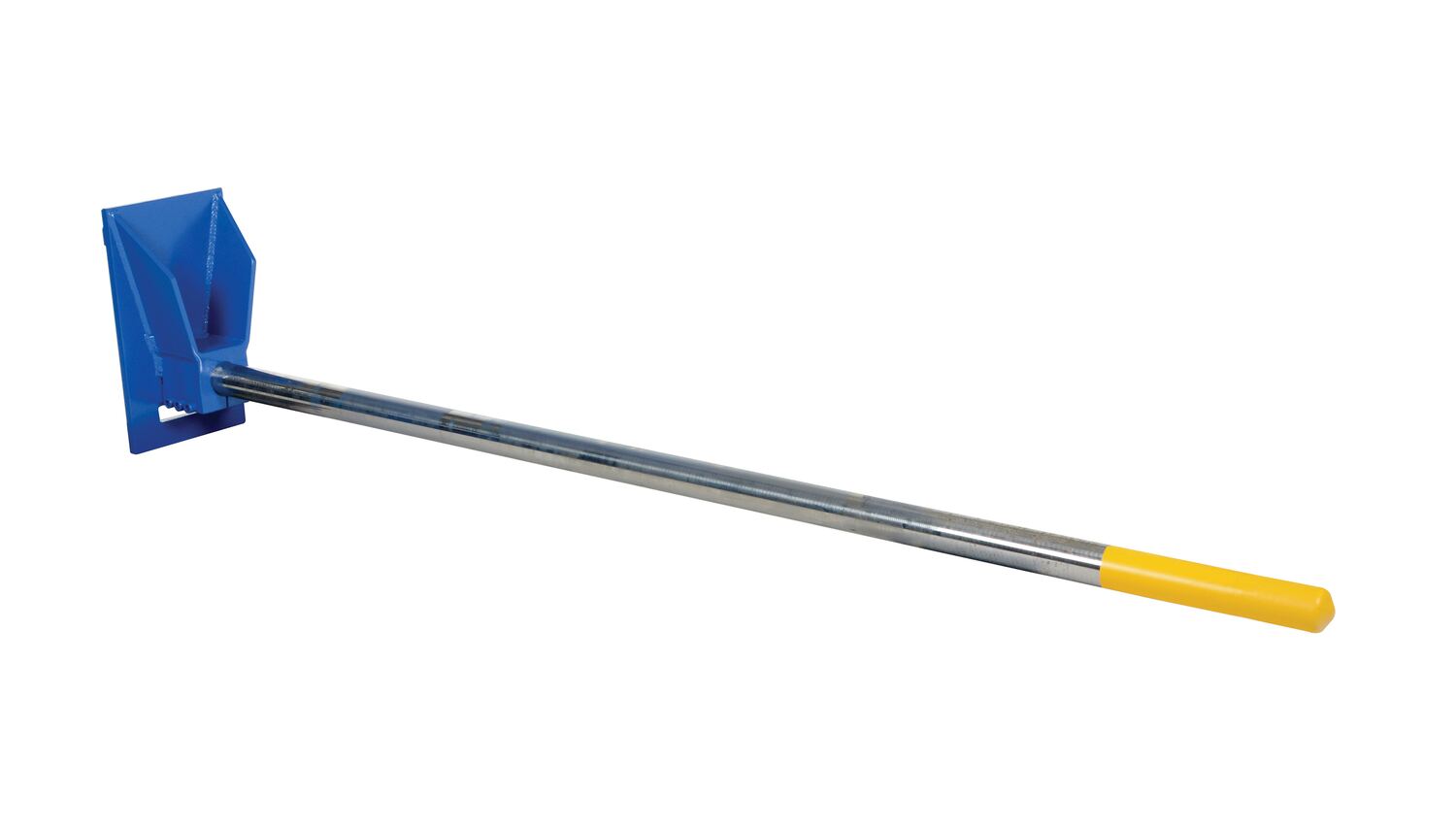

CR-96-2 CR-96-290 Day Limited WarrantySteel Rug Ram Boom Carriage Mount Class 2 96"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
261
CR-96-3 CR-96-390 Day Limited WarrantySteel Rug Ram Boom Carriage Mount Class 3 96"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
278
CRF-108 CRF-10890 Days Limited WarrantySteel Fork Mounted Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
389

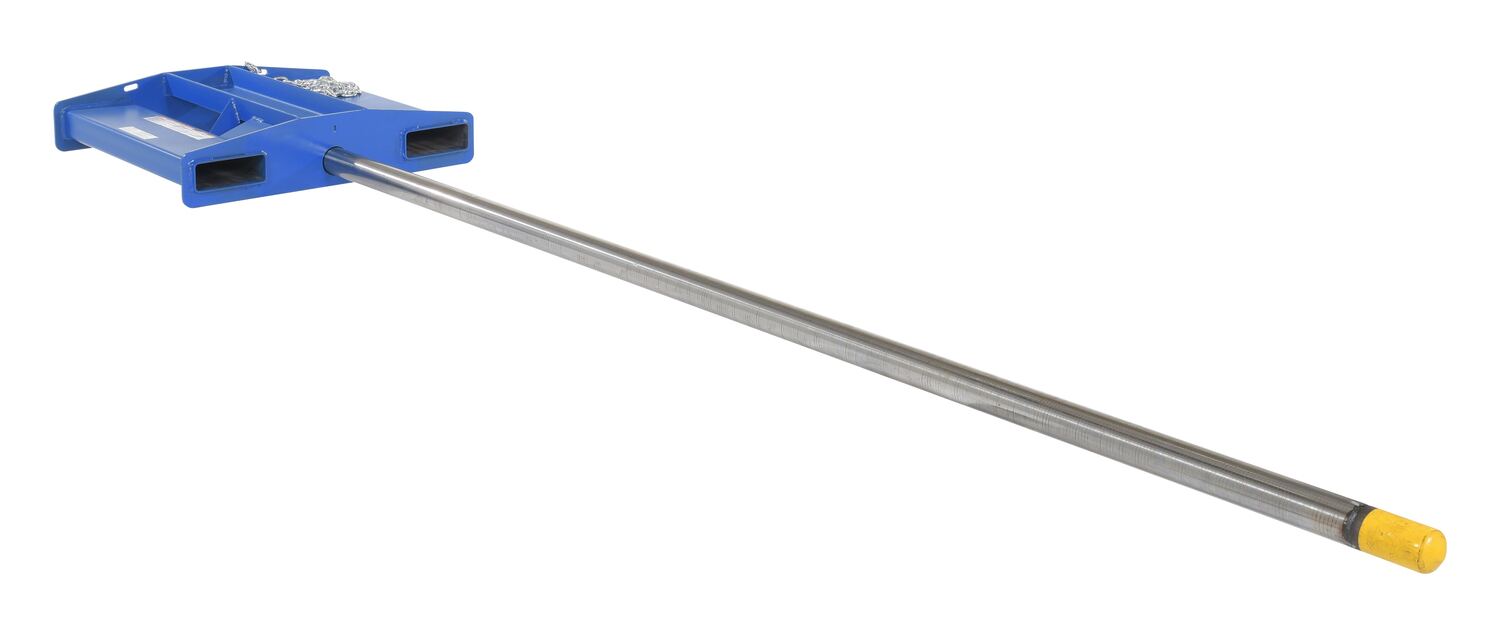

CRF-120 CRF-12090 Days Limited WarrantySteel Fork Mounted Rug Ram Boom 120 In. 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
424
CRF-144 CRF-14490 Days Limited WarrantySteel Fork Mounted Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
450

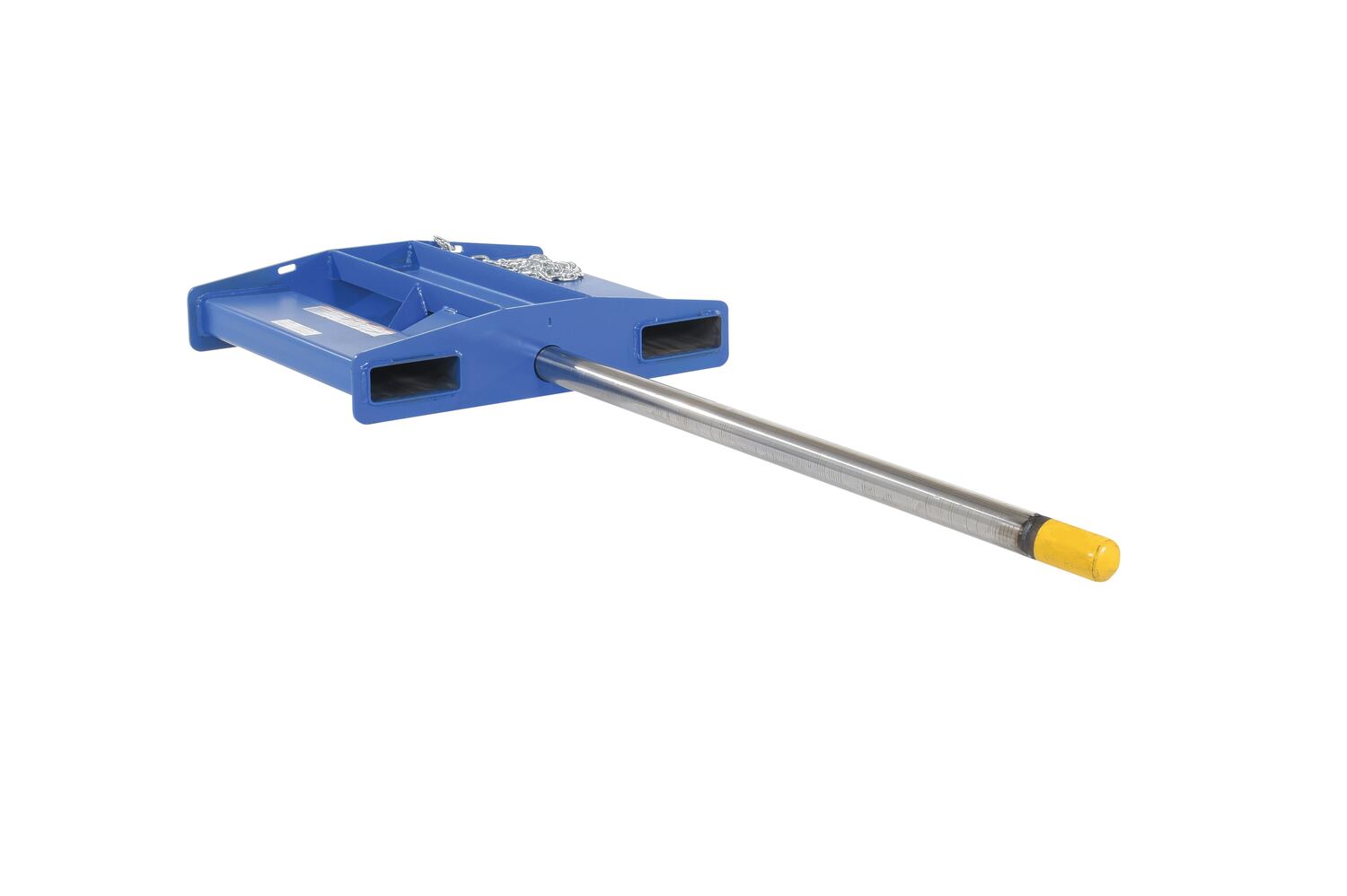

CRF-48 CRF-4890 Day Limited WarrantySteel Rug Ram Boom Fork Mounted 48"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
276

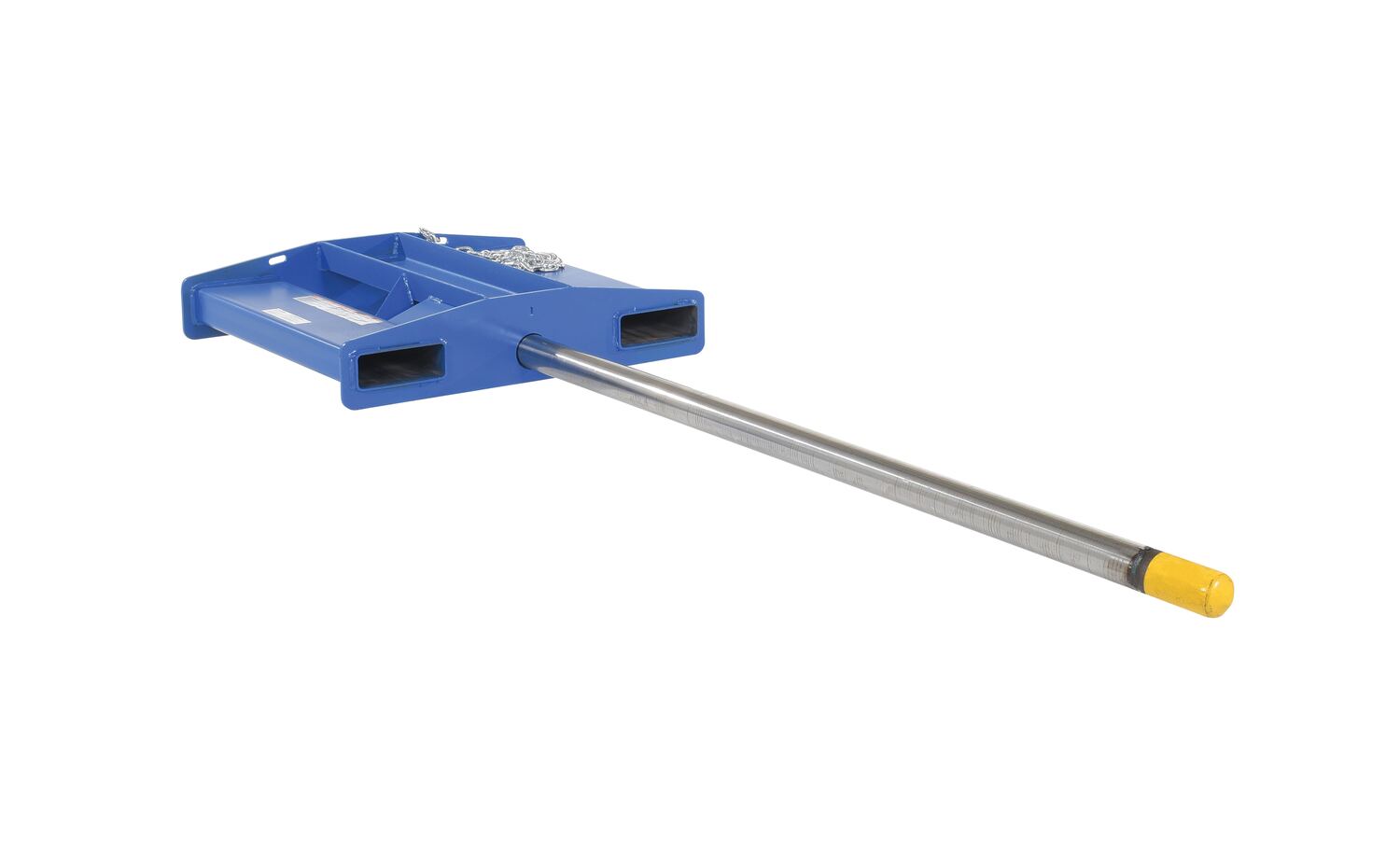

CRF-60 CRF-6090 Day Limited WarrantySteel Rug Ram Boom Fork Mounted 60"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
296
CRF-96 CRF-9690 Day Limited WarrantySteel Rug Ram Boom Fork Mounted 96"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
356

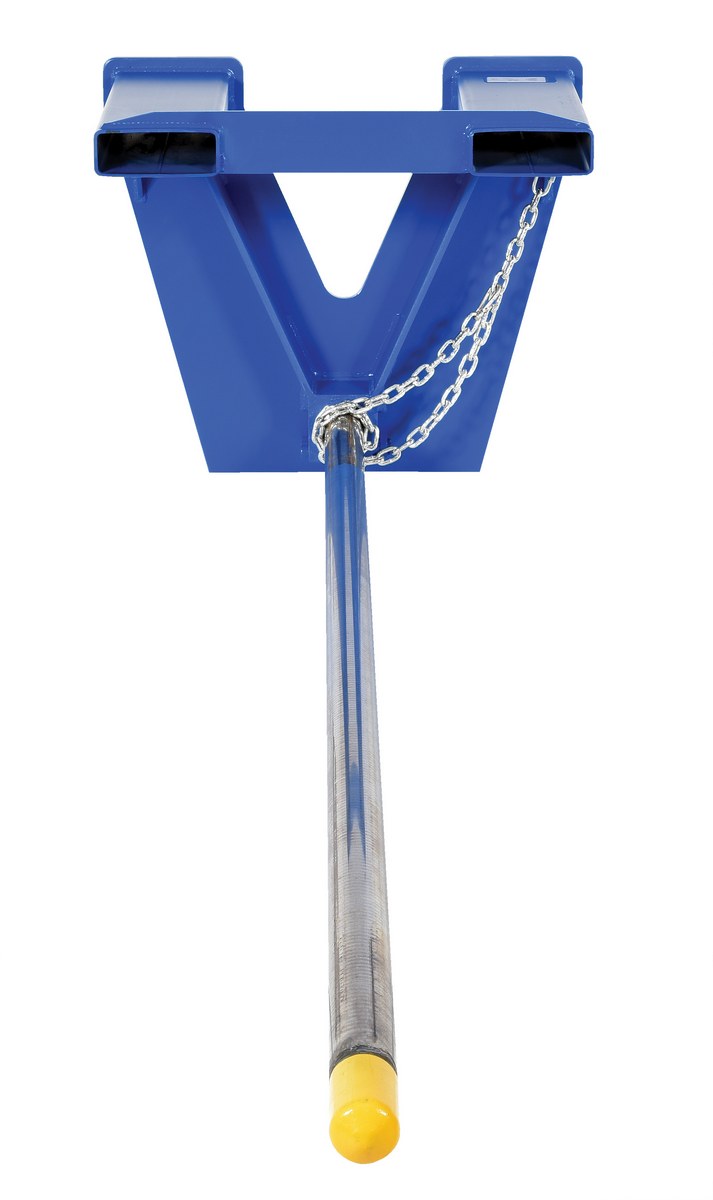

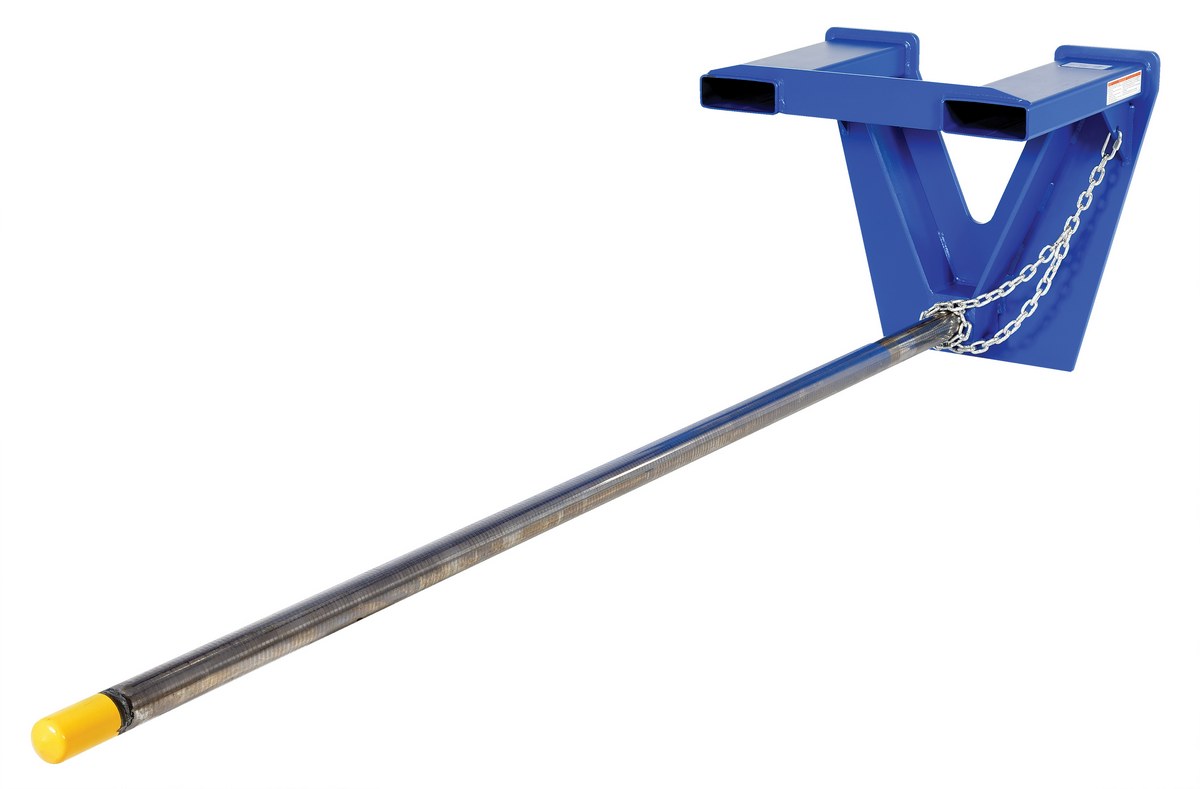

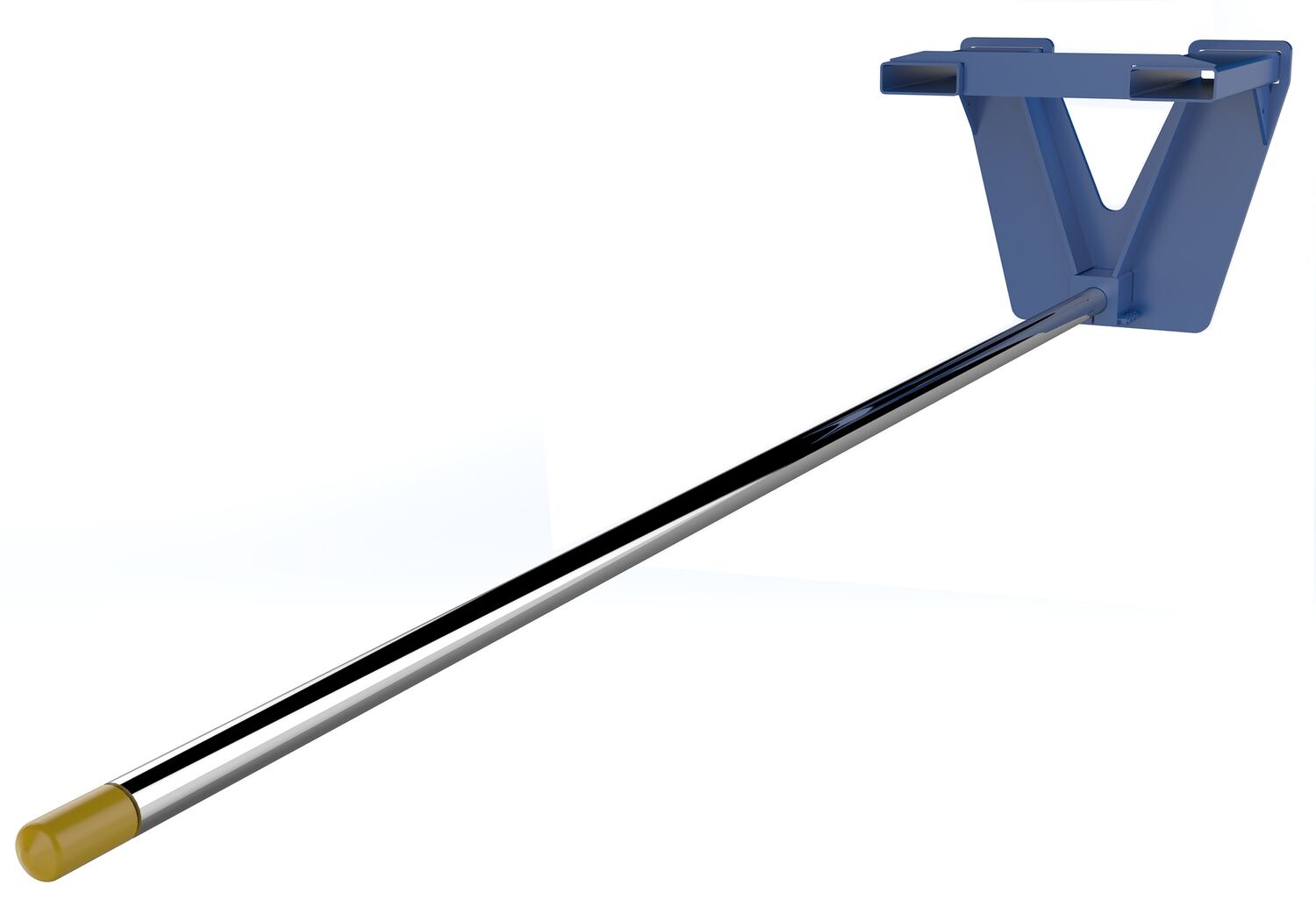

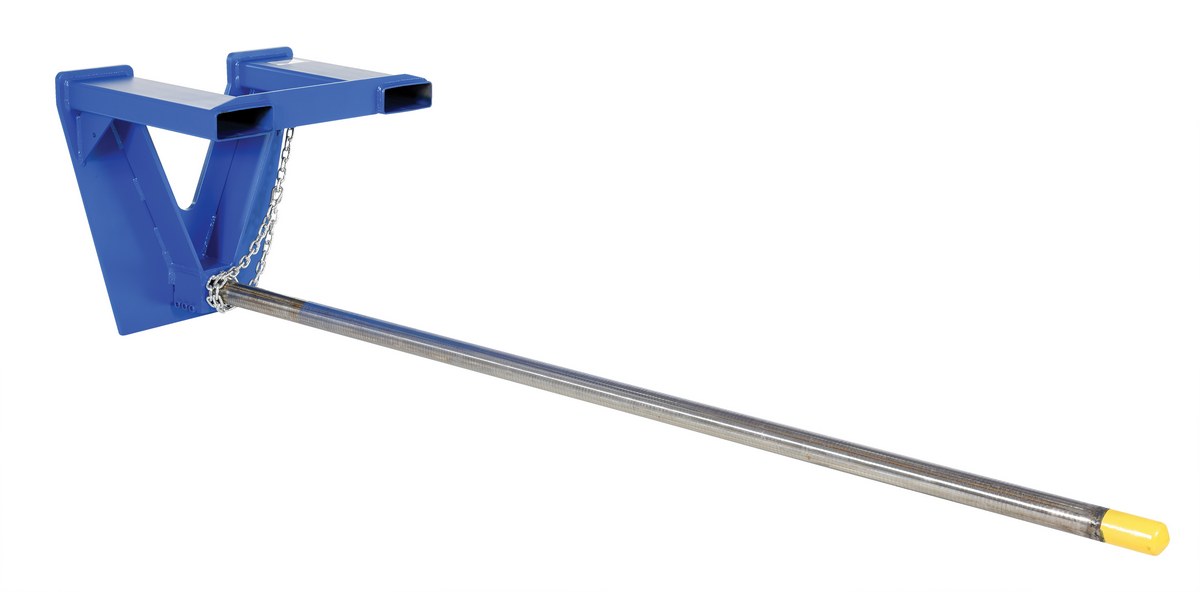

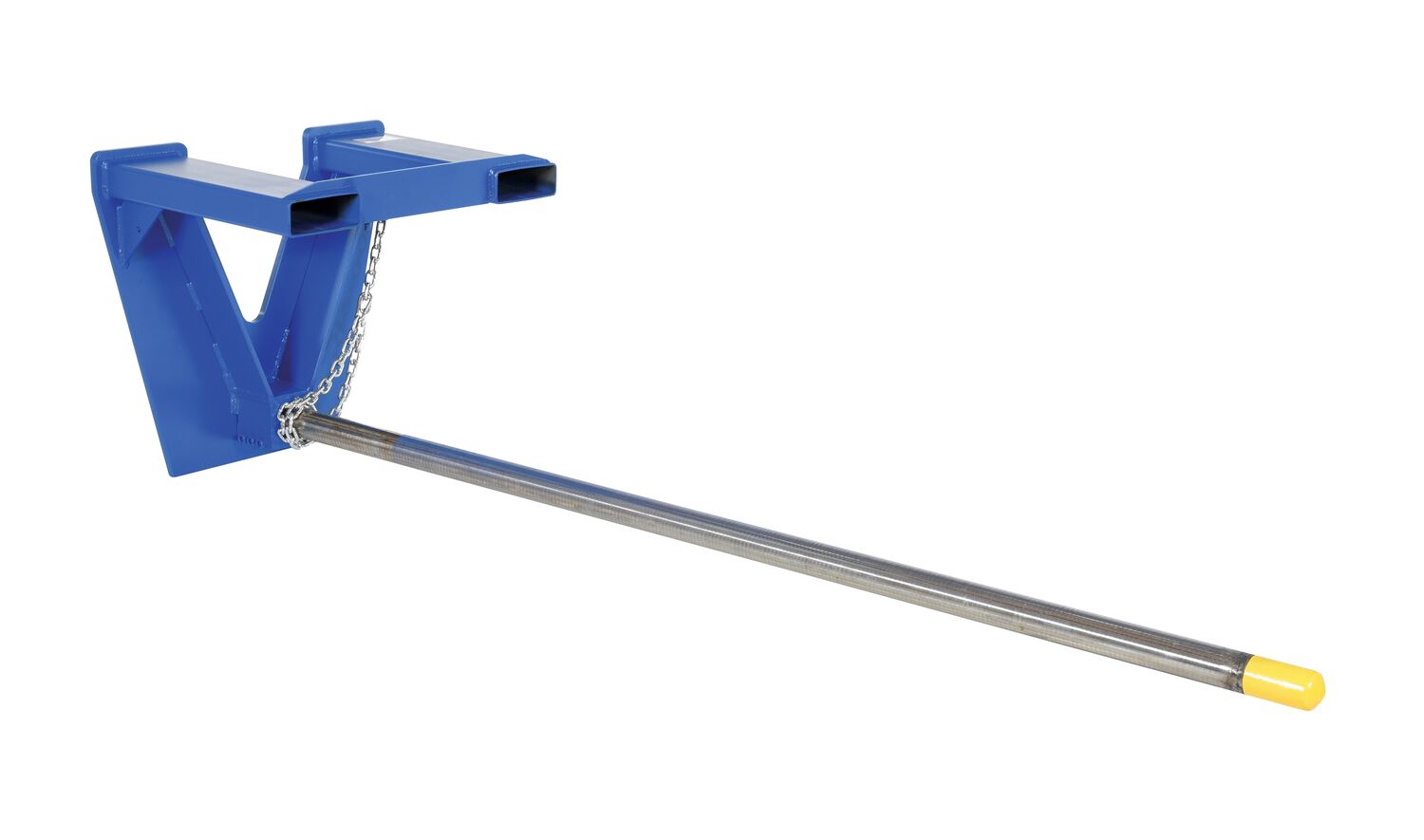

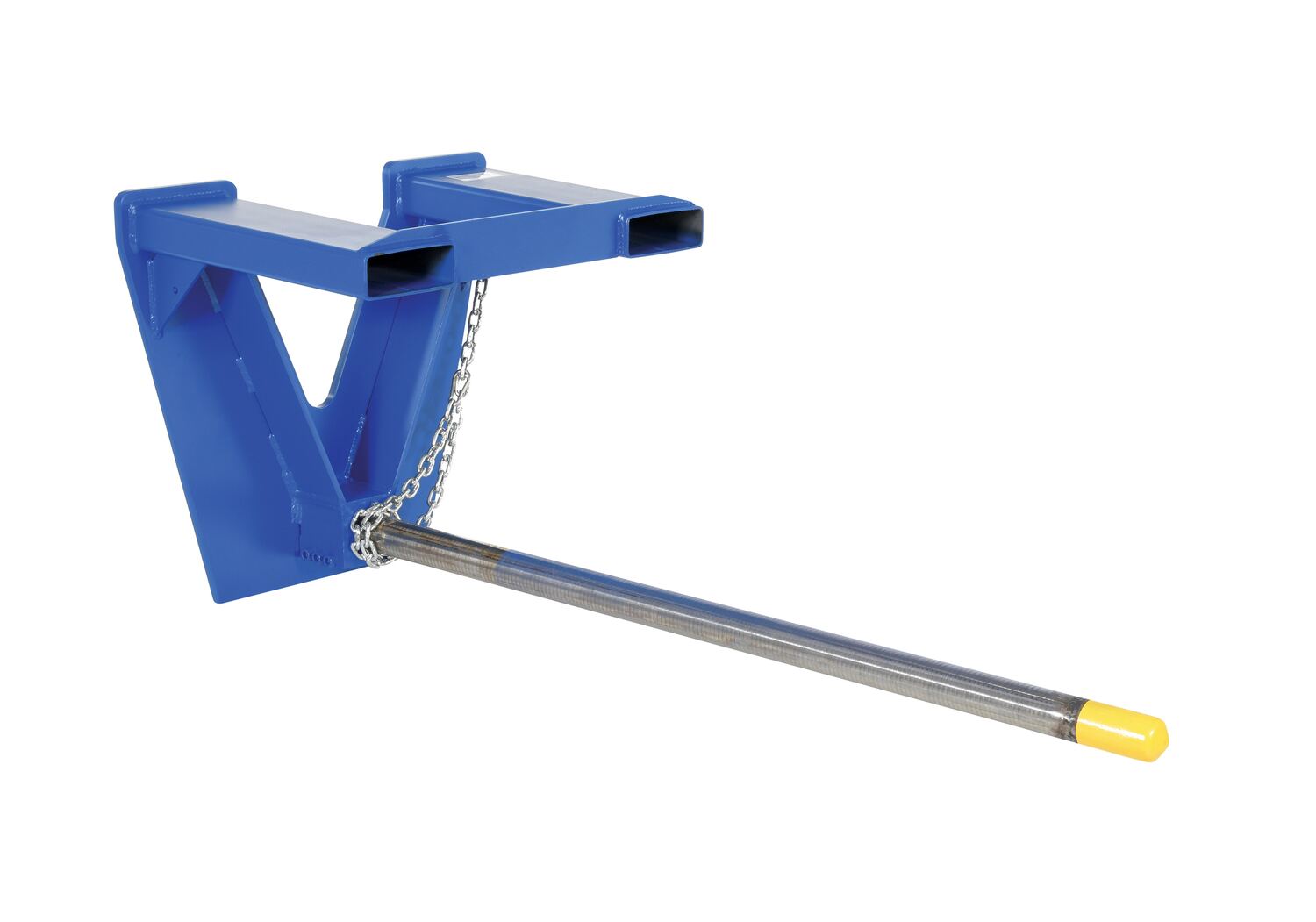

CRP-108 CRP-10890 Days Limited WarrantySteel Fork Mounted Inverted Rug Ram Boom 108 In 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
466

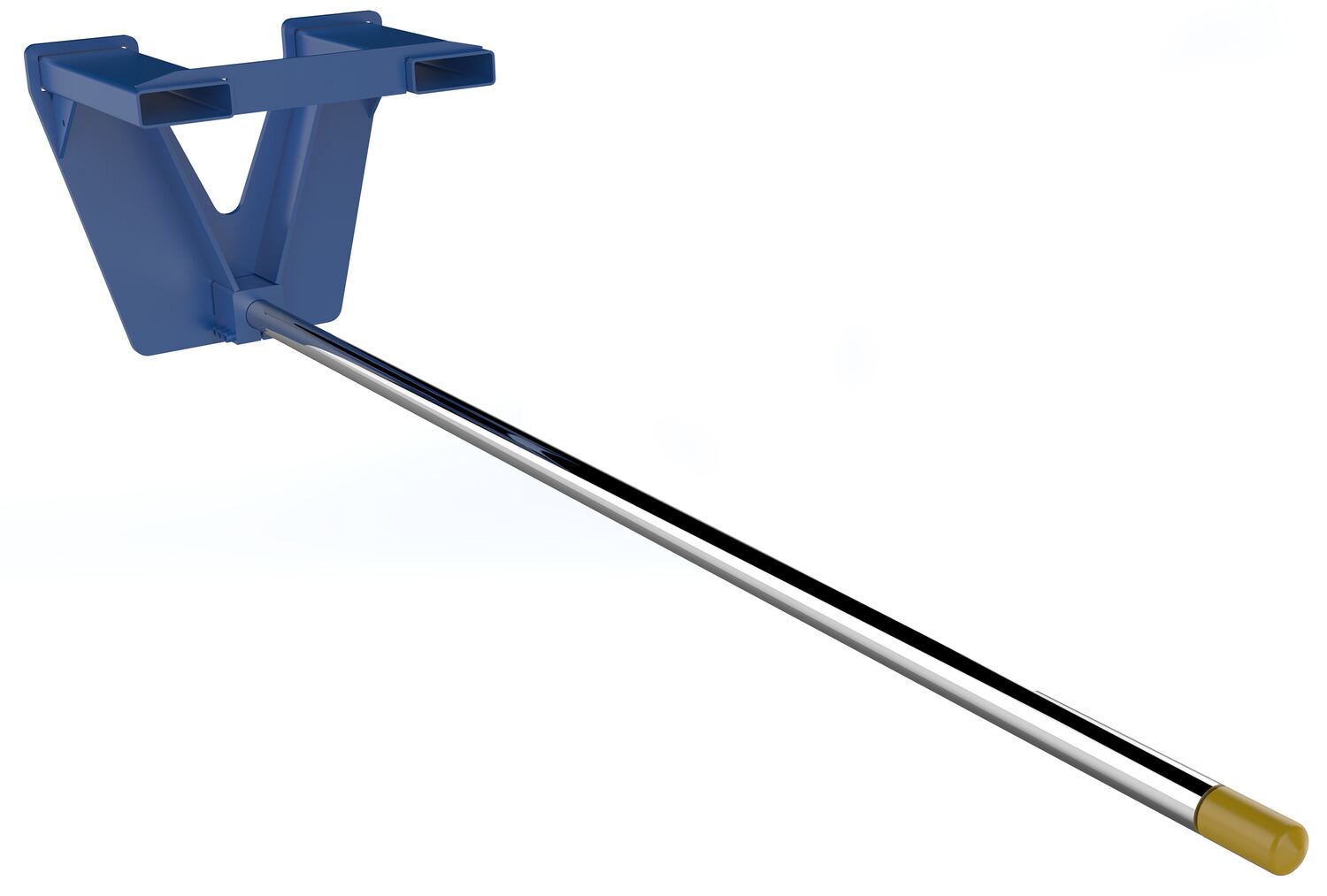

CRP-120 CRP-12090 Days Limited WarrantySteel Fork Mounted Inverted Rug Ram Boom 120 In 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
488
CRP-144 CRP-14490 Days Limited WarrantySteel Fork Mounted Inverted Rug Ram Boom 144 In 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
528

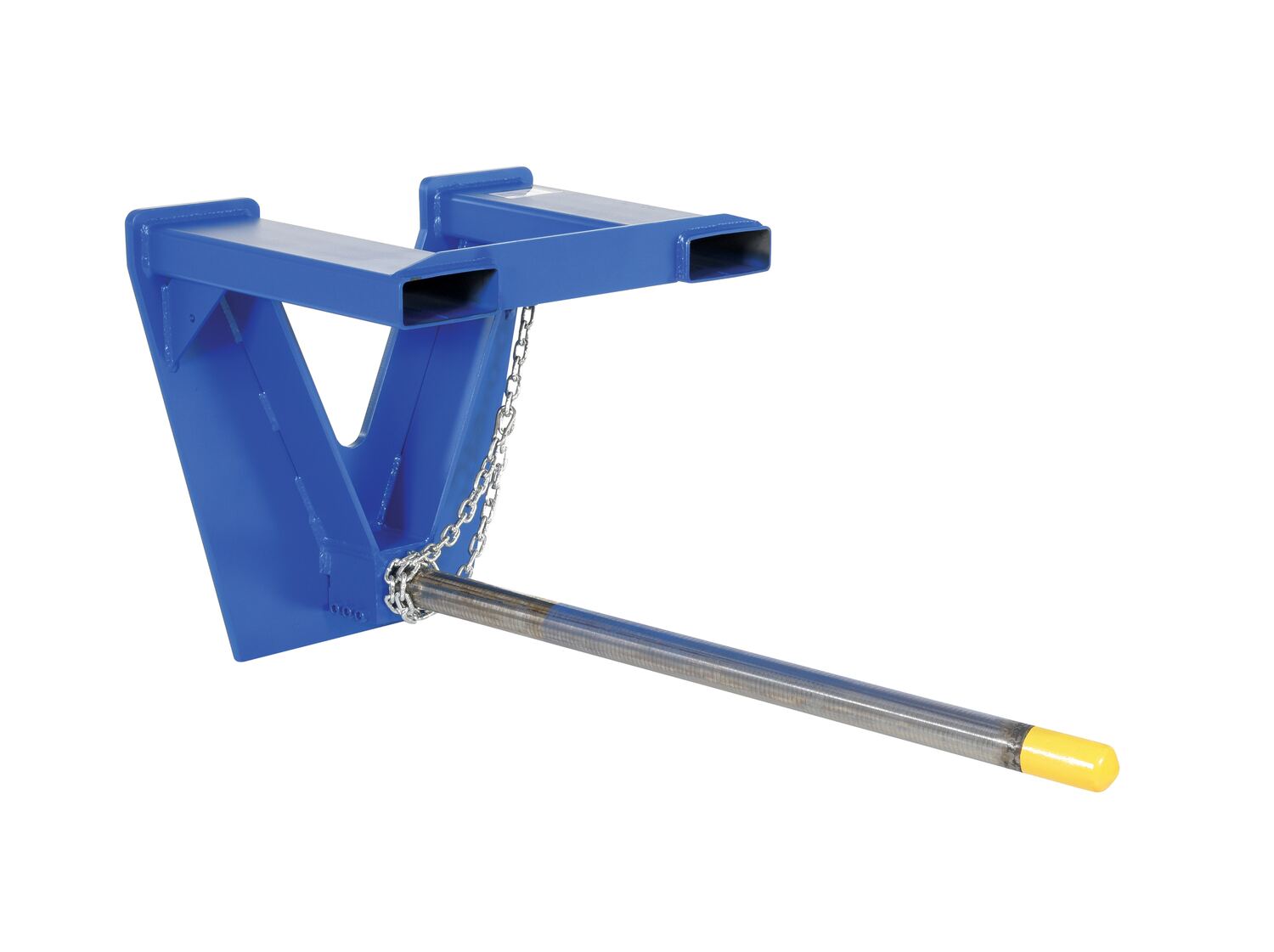

CRP-48 CRP-4890 Day Limited WarrantySteel Rug Ram Boom Fork Mounted Inverted 48"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
358
CRP-60 CRP-6090 Day Limited WarrantySteel Rug Ram Boom Fork Mounted Inverted 60"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
378
CRP-96 CRP-9690 Day Limited WarrantySteel Rug Ram Boom Fork Mounted Inverted 96"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
439

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CR-108-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CR-108-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CR-120-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4

CR-120-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4

CR-144-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4

CR-144-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4

CRF-108
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CRF-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4

CRF-144
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4

CRP-108
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CRP-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4

CRP-144
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4

CR-48-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CR-48-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CR-60-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CR-60-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CR-96-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CR-96-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CRF-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CRF-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CRF-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CRP-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CRP-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CRP-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

Rug Rams/Carpet Poles PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


CR-108-2

CR-108-3

CR-120-2

CR-120-3

CR-144-2

CR-144-3

CRF-108

CRF-120

CRF-144

CRP-108

CRP-120

CRP-144

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: I'm not able to find the size of carpet pole I need. Are there additional length poles?

A: The carpet poles are available in lengths of 40" to 144". Please contact a sales associate for details.


Q: Do you have a carpet pole diameter larger than 2 3/4"?

A: We do not have alternate carpet pole sizes.


Q: I see the pole diameter is 2 3/4". Is that a solid pole or hollow?

A: The carpet pole/rug rams poles are solid.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Rug Rams/Carpet Poles




Transport rolls of carpet with our sturdy Rug Rams/Carpet Poles. Available in either carriage or fork mounted style. 2-3/4" diameter high strength, rotatable, replaceable pole has tapered tip. All units are made of steel construction and painted blue.

Fork Mounted Rug Rams feature 7-1/2"W x 2-1/2"H fork pockets on models CRP, 7-5/8"Wx2-5/8"H on CRF models, with 24" centers. Safety chain is included to secure unit to fork truck.

Carriage Mounted Rug Rams are available in class II or III mount and feature a spring loaded locking pin to secure them to the carriage.

Rug Ram Pole Length Recommended Carpet Roll Length
48" Models Recommended to be used for 4 foot (or shorter) carpet rolls
60" Models Recommended to be used for 5 foot (or shorter) carpet rolls
96" Models Recommended to be used for 8 foot (or shorter) carpet rolls
108" Models Recommended to be used for 9 foot (or shorter) carpet rolls
120" Models Recommended to be used for 10 foot (or shorter) carpet rolls
144" Models Recommended to be used for 12 foot (or shorter) carpet rolls

The carpet roll must not hang over the end of the pole. Carpet rolls must be loaded onto the pole having full contact with the mounting frame



Model # Description Attributes Net Wt.
(lbs)
CR-108-2 CR-108-2Steel Carriage Mount Class II Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
287
CR-108-3 CR-108-3Steel Carriage Mount Class III Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
296
CR-120-2 CR-120-2Steel Carriage Mount Class II Rug Ram Boom 120 In. 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
310
CR-120-3 CR-120-3Steel Carriage Mount Class III Rug Ram Boom 120 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
316
CR-144-2 CR-144-2Steel Carriage Mount Class II Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
342
CR-144-3 CR-144-3Steel Carriage Mount Class III Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
478
CR-48-2 CR-48-2Steel Rug Ram Boom Carriage Mount Class 2 48"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
180
CR-48-3 CR-48-3Steel Rug Ram Boom Carriage Mount Class 3 48"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
197
CR-60-2 CR-60-2Steel Rug Ram Boom Carriage Mount Class 2 60"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
201
CR-60-3 CR-60-3Steel Rug Ram Boom Carriage Mount Class 3 60"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
217
CR-96-2 CR-96-2Steel Rug Ram Boom Carriage Mount Class 2 96"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
261
CR-96-3 CR-96-3Steel Rug Ram Boom Carriage Mount Class 3 96"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
278
CRF-108 CRF-108Steel Fork Mounted Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
389

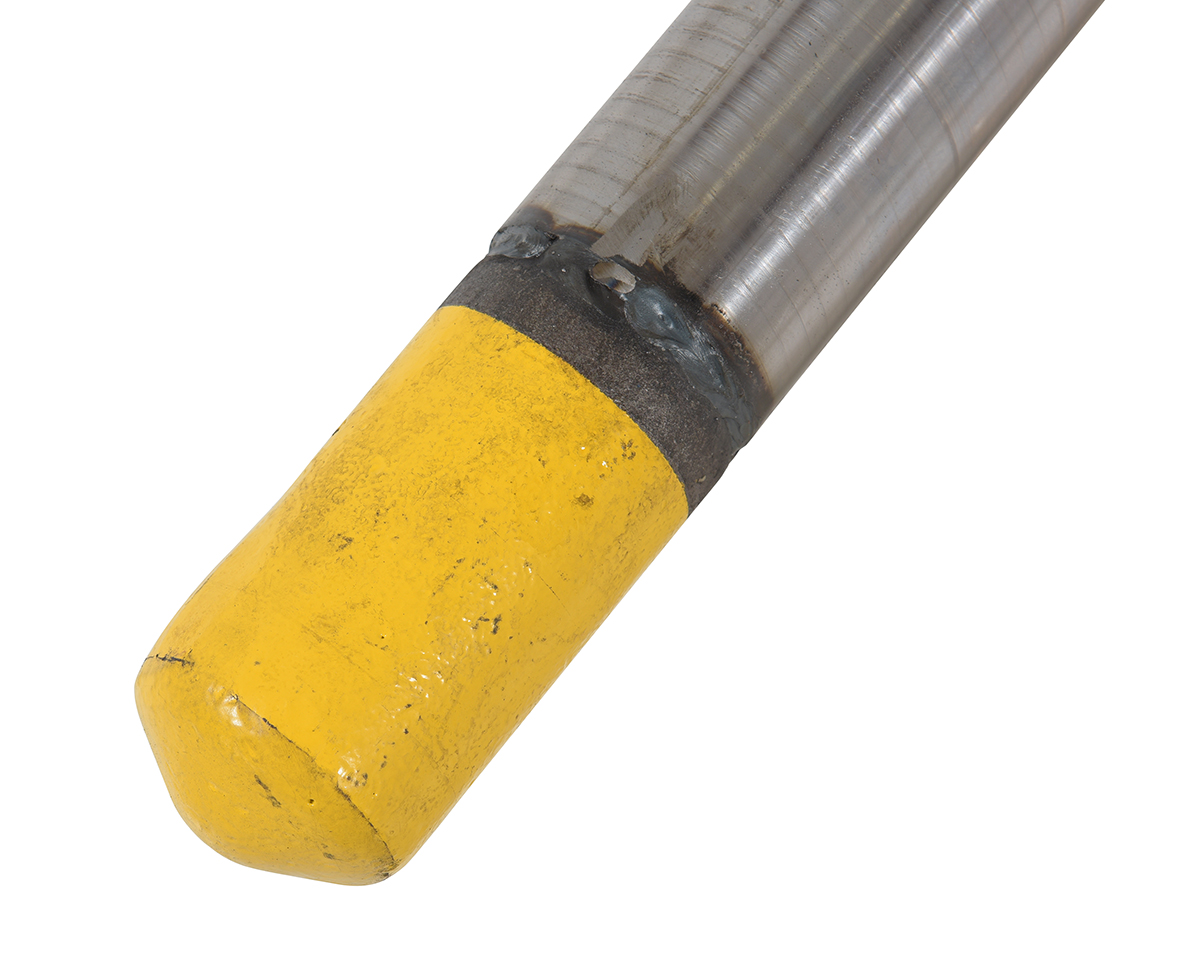

CRF-120 CRF-120Steel Fork Mounted Rug Ram Boom 120 In. 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
424
CRF-144 CRF-144Steel Fork Mounted Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
450
CRF-48 CRF-48Steel Rug Ram Boom Fork Mounted 48"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
276
CRF-60 CRF-60Steel Rug Ram Boom Fork Mounted 60"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
296
CRF-96 CRF-96Steel Rug Ram Boom Fork Mounted 96"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
356
CRP-108 CRP-108Steel Fork Mounted Inverted Rug Ram Boom 108 In 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
466
CRP-120 CRP-120Steel Fork Mounted Inverted Rug Ram Boom 120 In 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
488
CRP-144 CRP-144Steel Fork Mounted Inverted Rug Ram Boom 144 In 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
528
CRP-48 CRP-48Steel Rug Ram Boom Fork Mounted Inverted 48"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
358
CRP-60 CRP-60Steel Rug Ram Boom Fork Mounted Inverted 60"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
378
CRP-96 CRP-96Steel Rug Ram Boom Fork Mounted Inverted 96"LUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
439


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
