Counter Balanced Floor Cranes

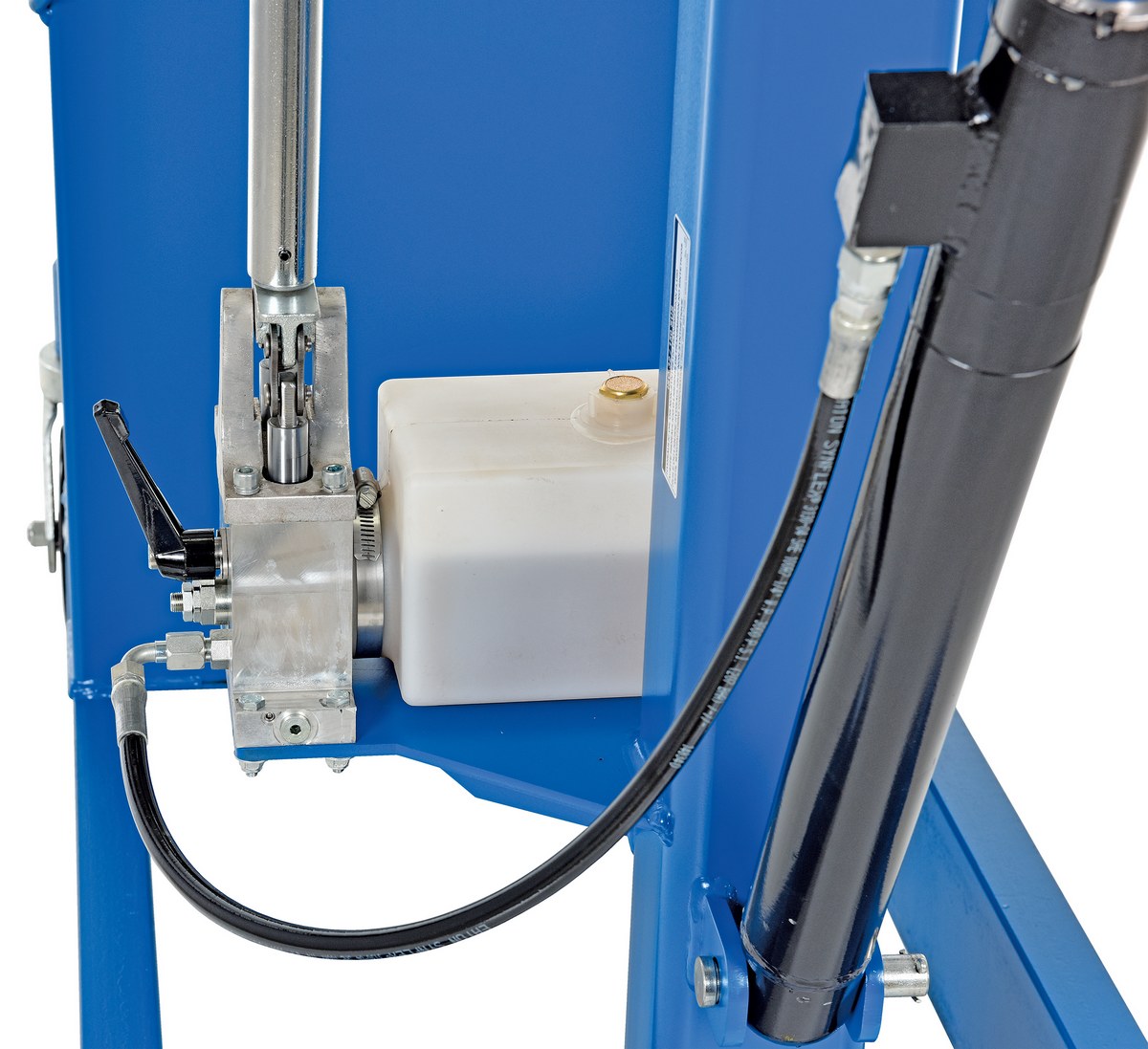

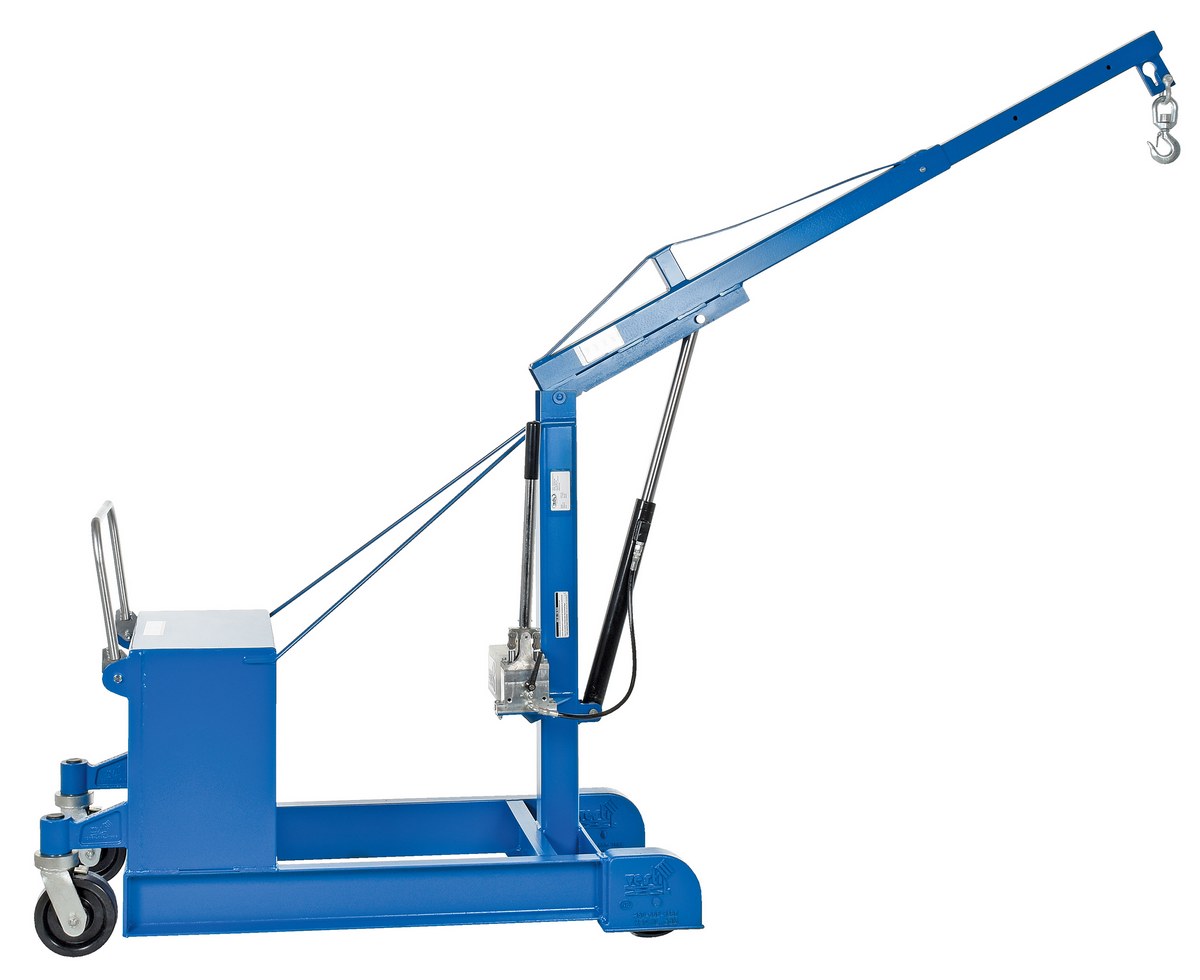

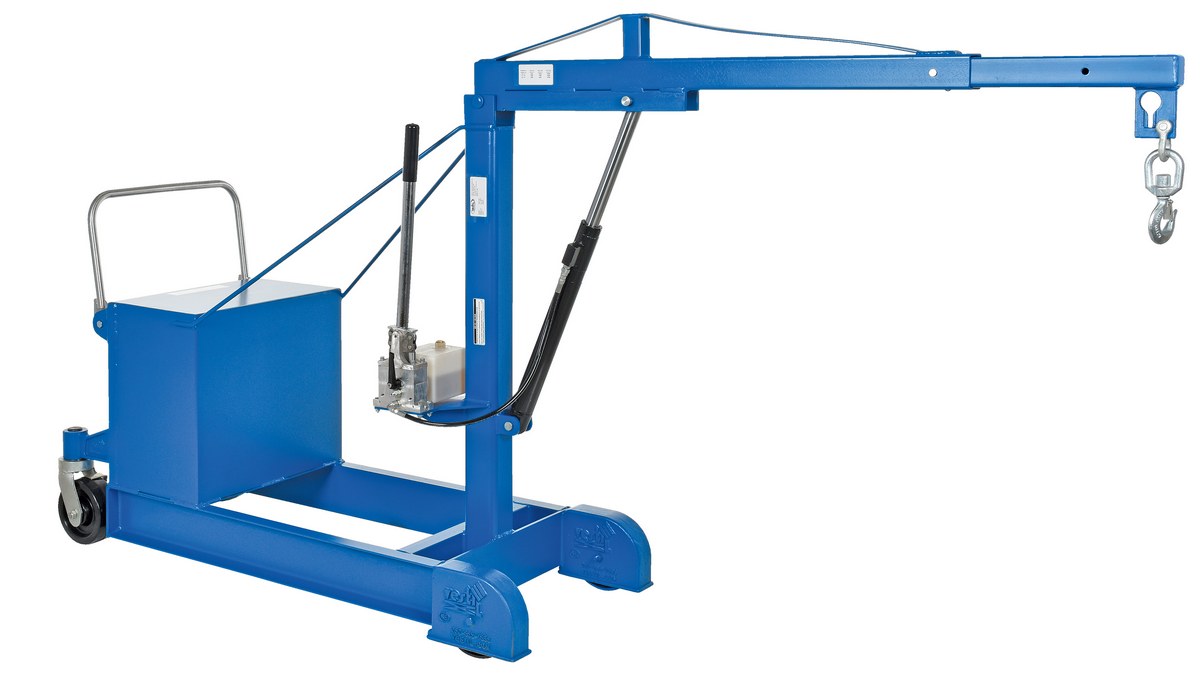

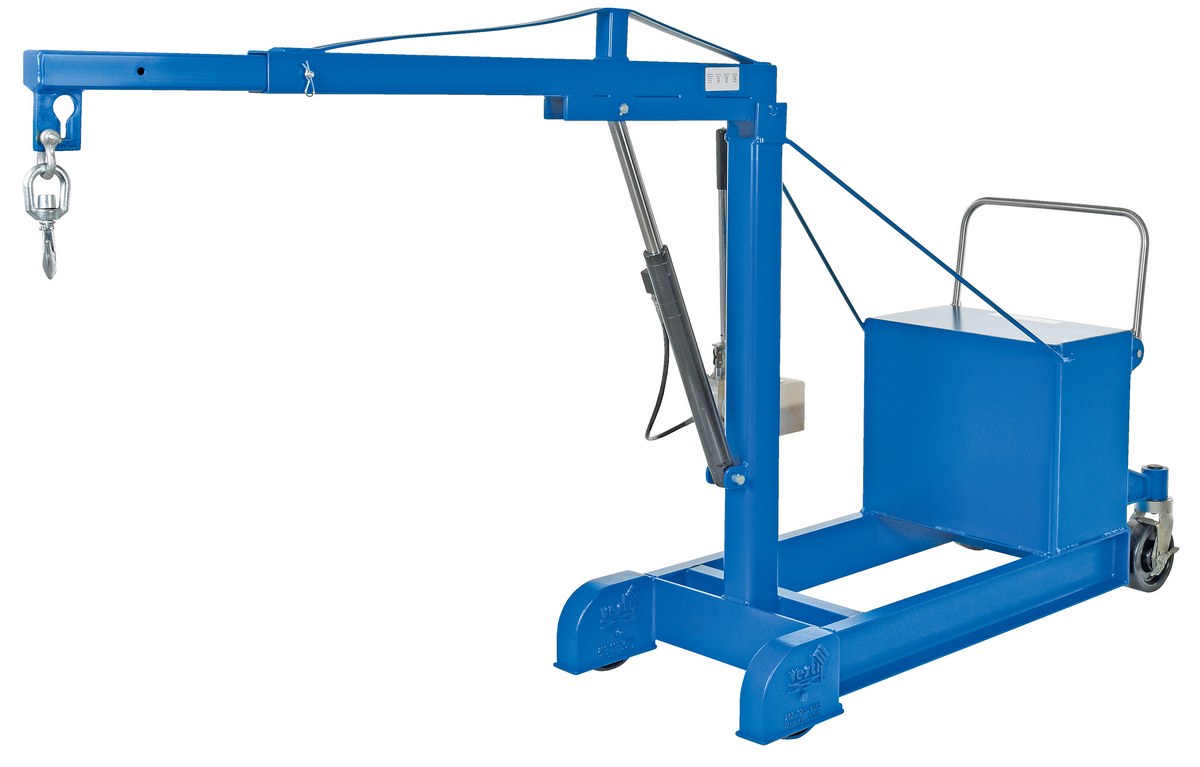

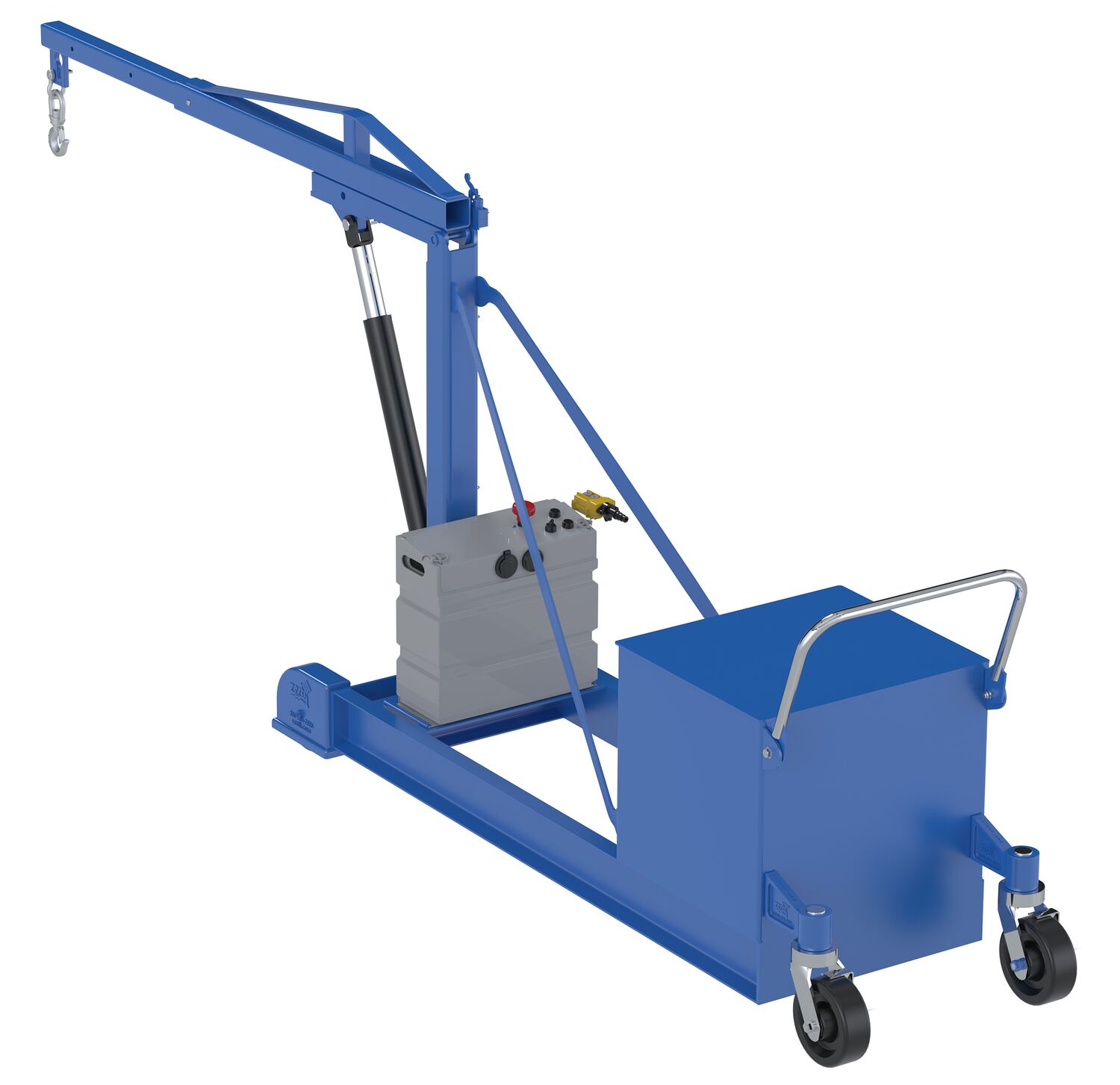

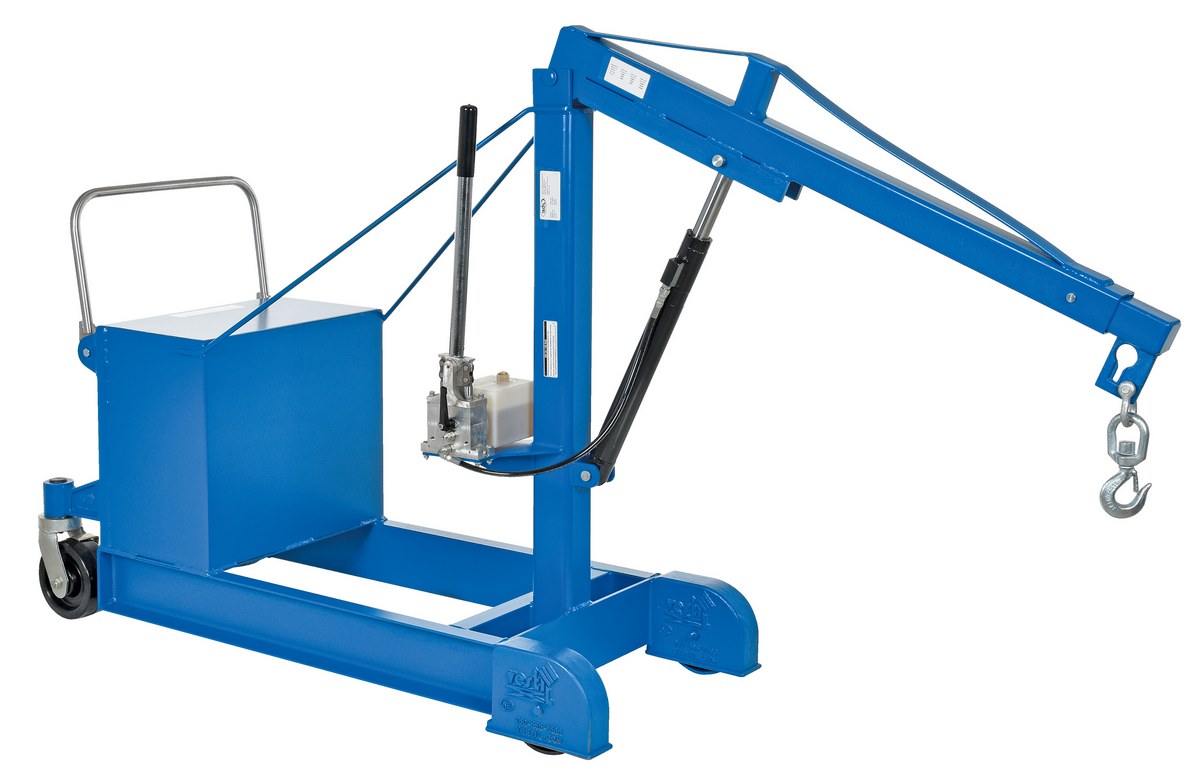

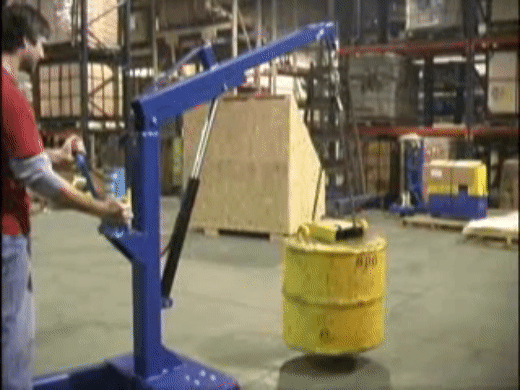

This Crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump or push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic casters with side brake. Counterbalance included. Welded steel construction. Painted finish. Air operation available, contact factory.

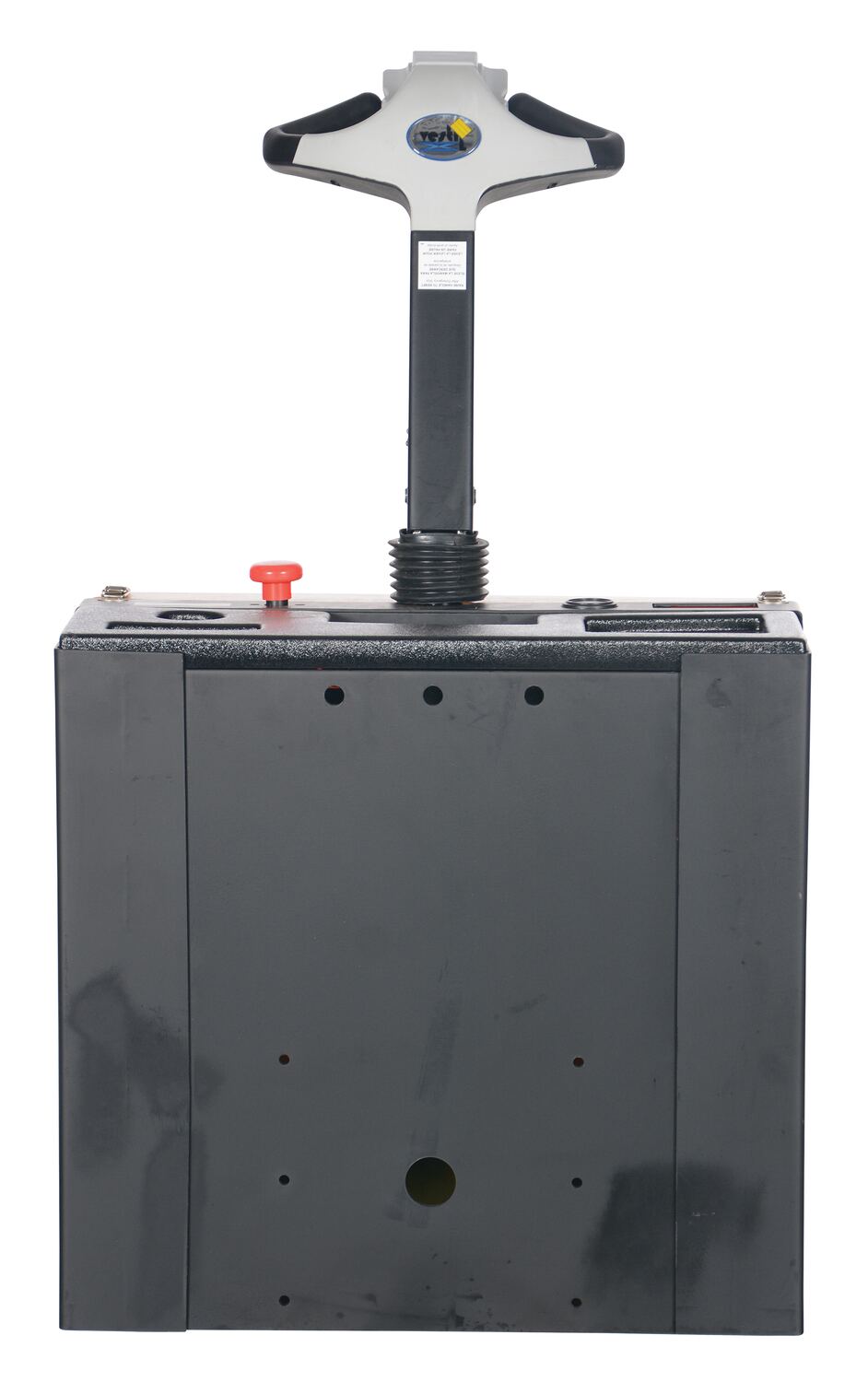

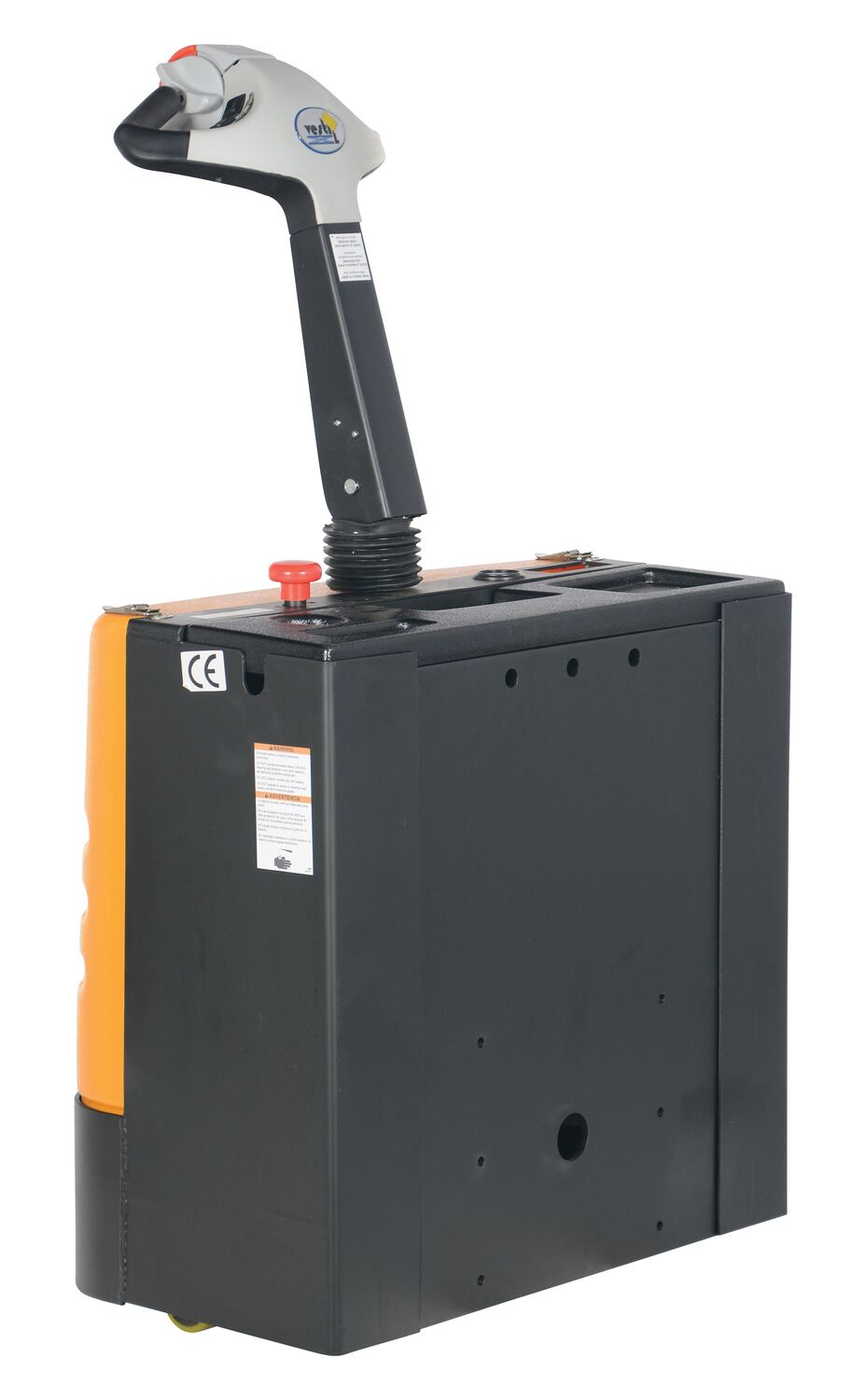

Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. CBFC-PTDS-E includes: Combination throttle / direction controller, An auto reverse emergency "belly switch", (2) 12V batteries.
Pallet Truck Hoist
Power Lift Jib Cranes
Hitch-Mounted Truck Jib Crane
Lifter JibsAdditional Models In This Family
CBFC-500-AIR

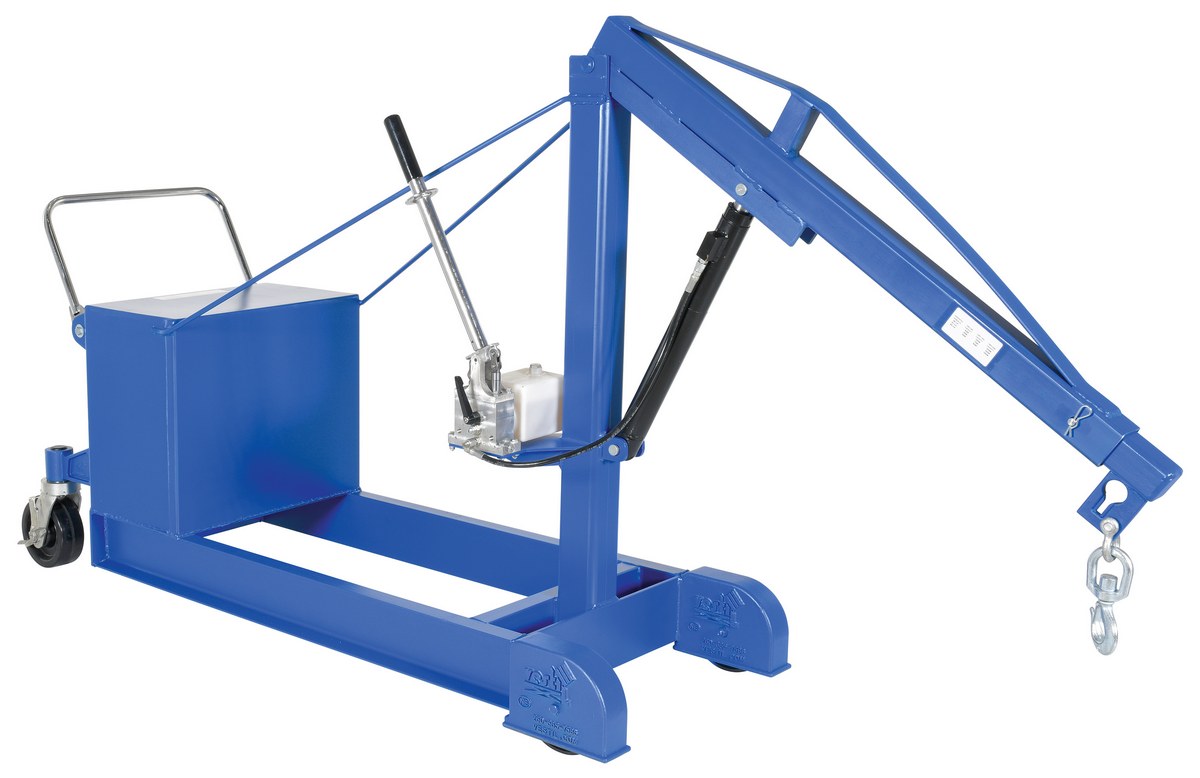

CBFC-1000
CBFC-PTDS-E

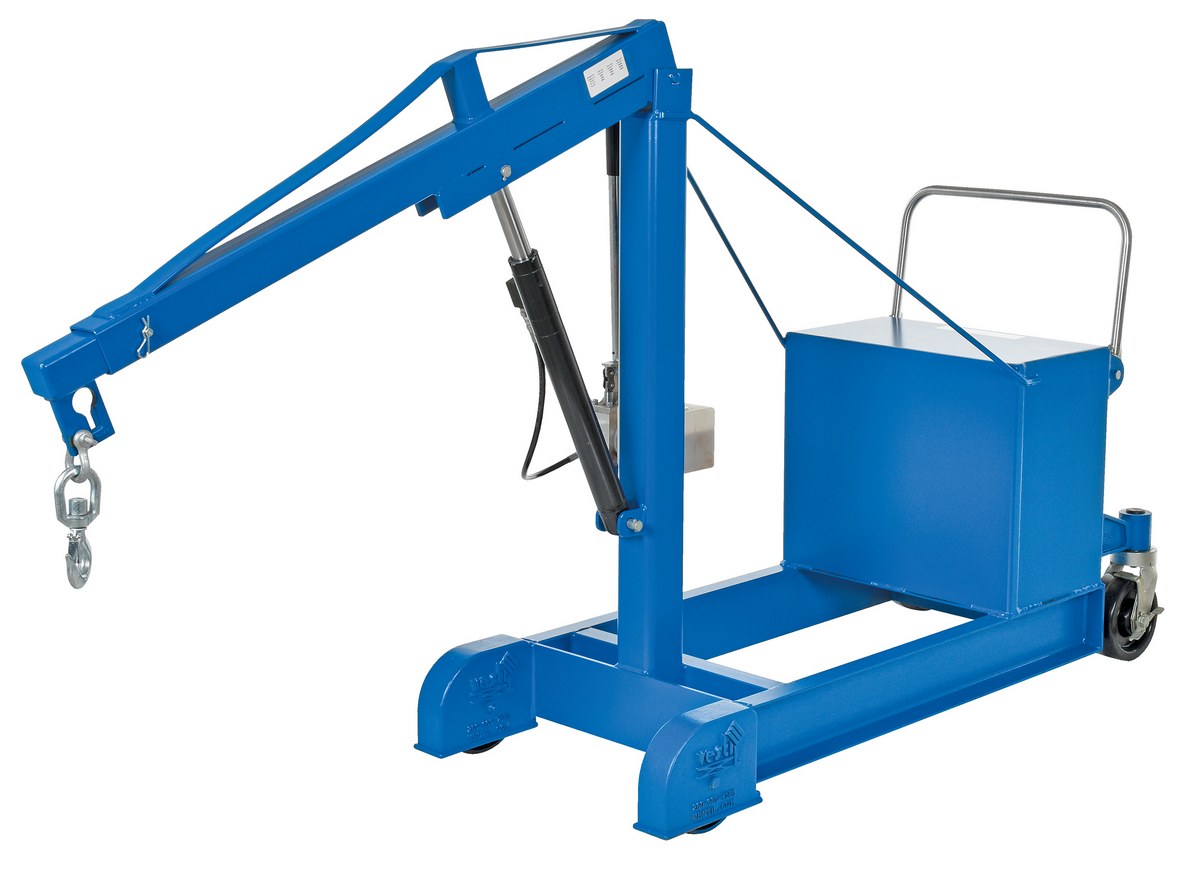

CBFC-500
CBFC-2000
CBFC-1000-AIR
CBFC-500
CBFC-500
CBFC-500
CBFC-PTDS-E
CBFC-PTDS-E
CBFC-2000
CBFC-500
CBFC-1000
CBFC-500-DC
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

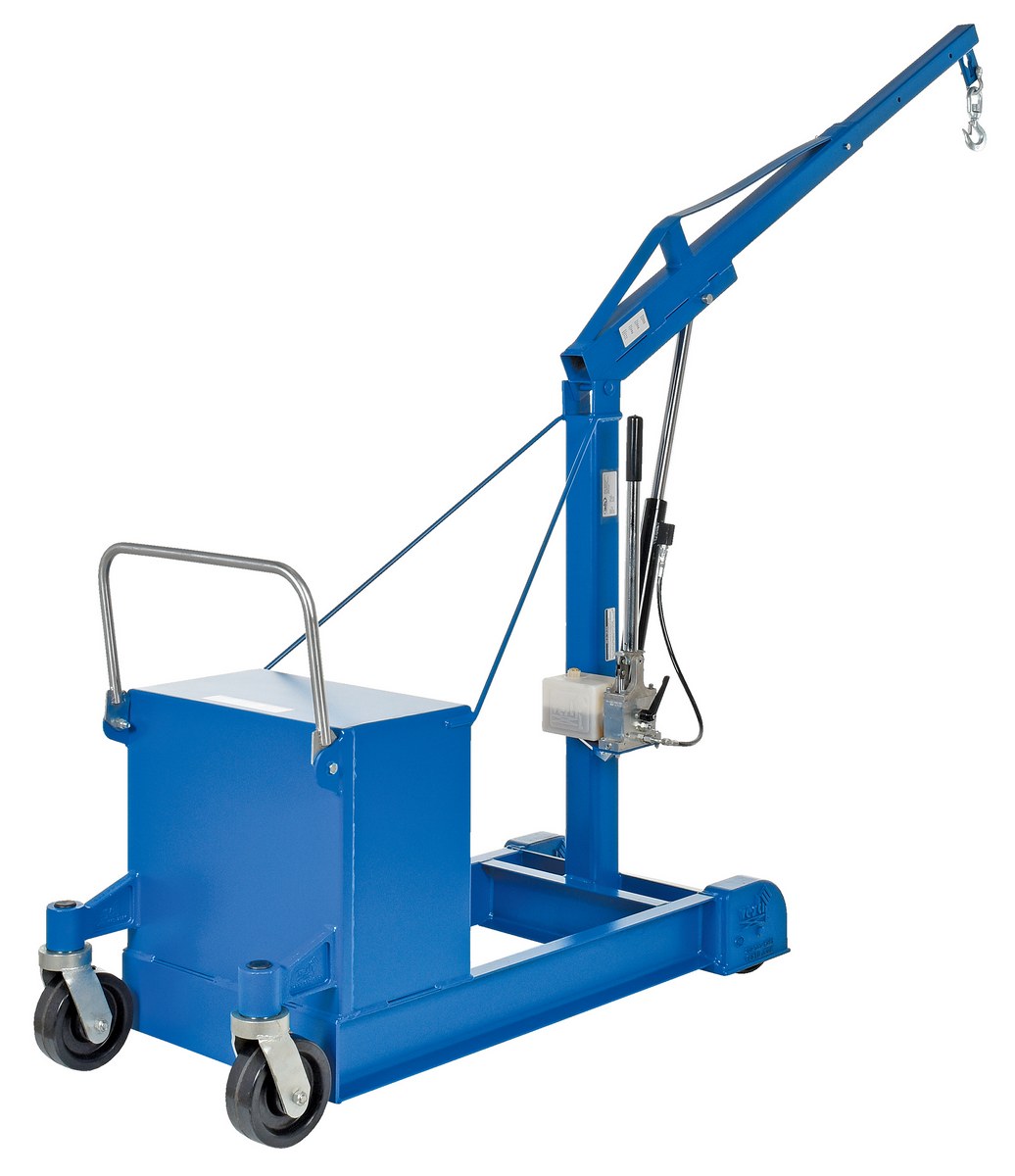

| CBFC-500 | | 1 Year Limited Warranty | Steel Counter Balance Floor Crane 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Uniform Capacity extended 39-1/4"(lb.): 500 | 1259 | ||

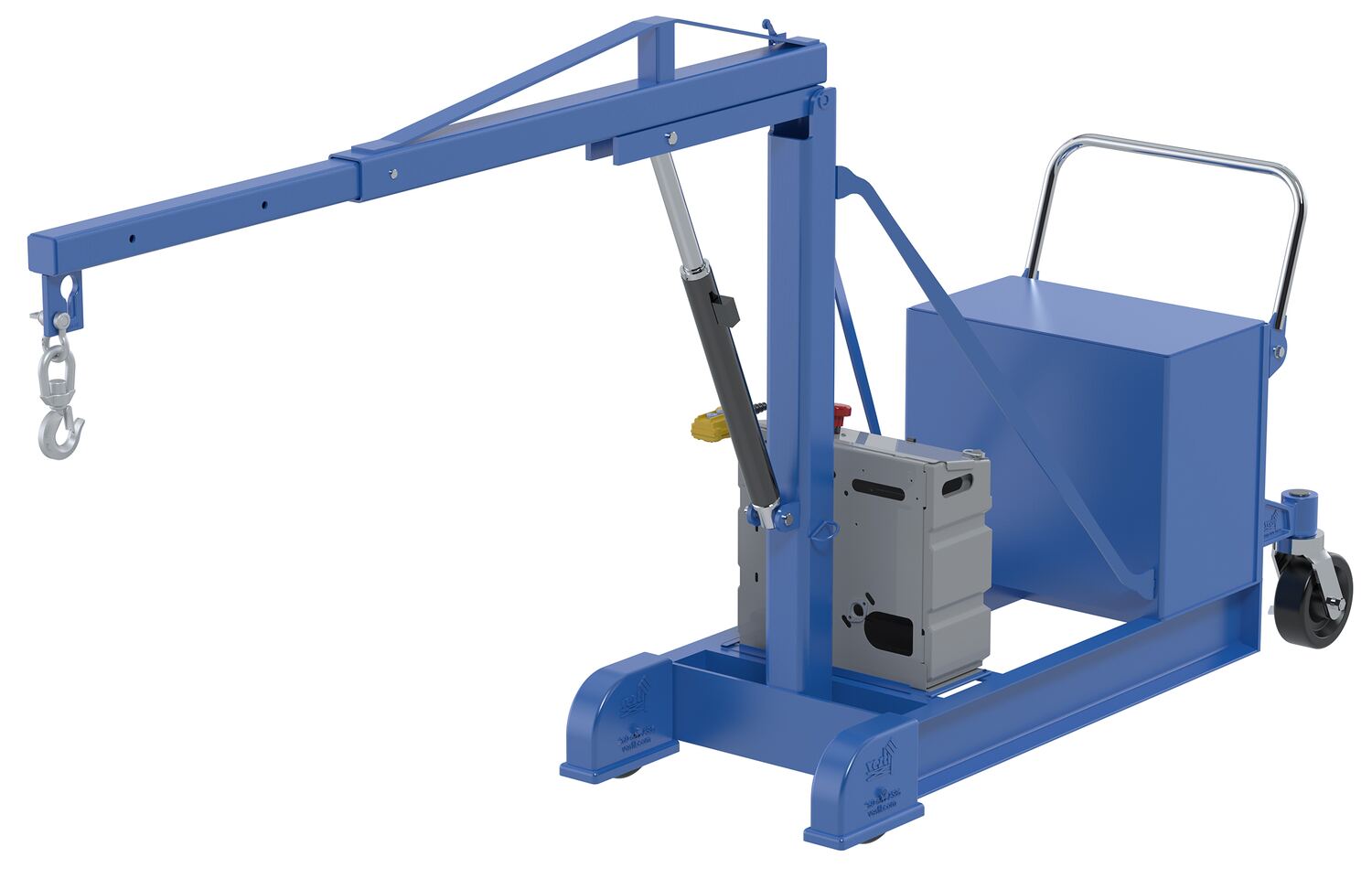

| CBFC-500-DC | | 1 Year Limited Warranty | Steel DC Counter Balance Floor Crane 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Uniform Capacity extended 39-1/4"(lb.): 500 | 1277 | ||
| CBFC-1000 |  | 1 Year Limited Warranty | Steel Counter Balance Floor Crane 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Uniform Capacity extended 39-1/4"(lb.): 1000 | 1910 | ||

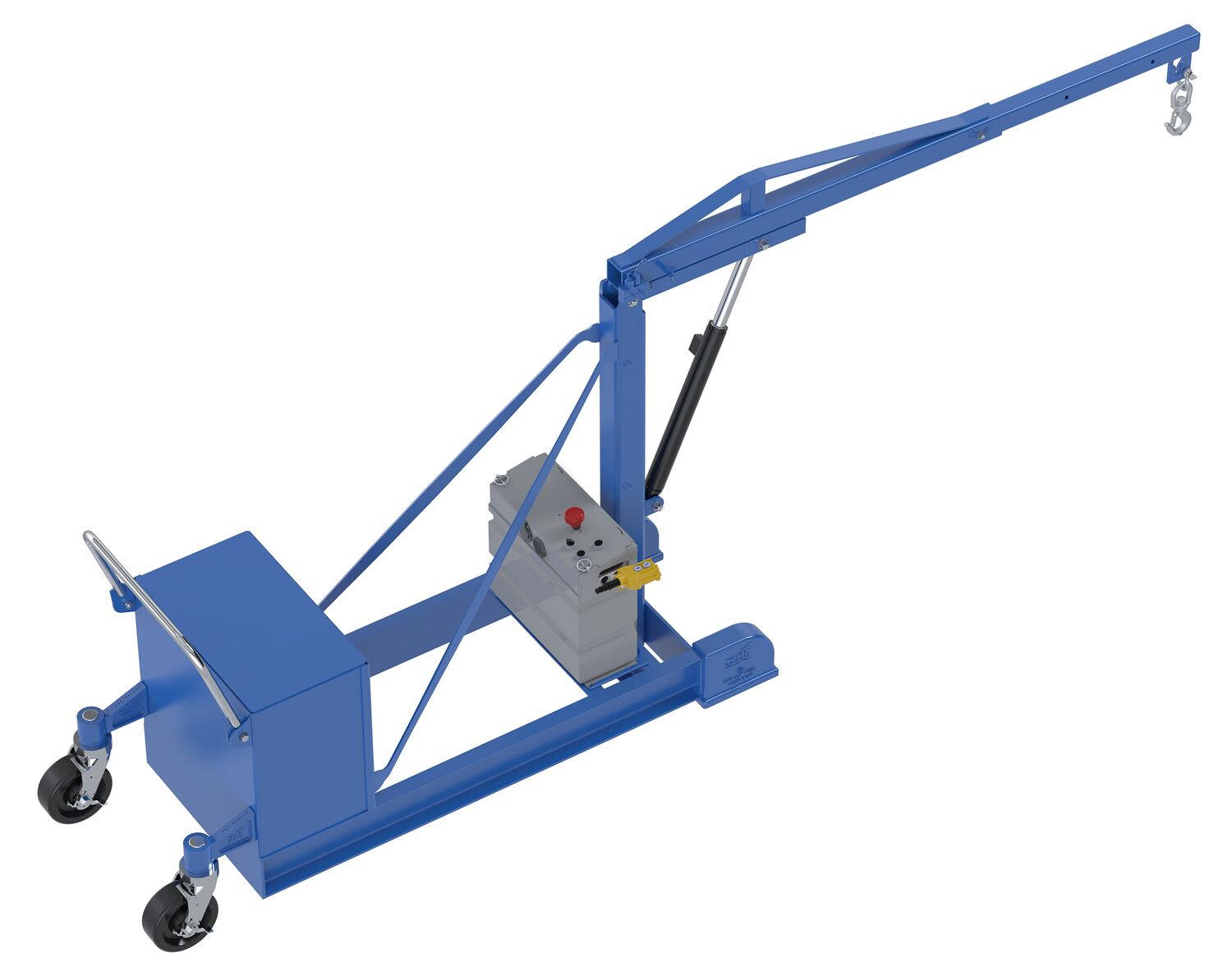

| CBFC-1000-DC |  | 1 Year Limited Warranty | Steel DC Counter Balance Floor Crane 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Uniform Capacity extended 39-1/4"(lb.): 1000 | 1906 | ||

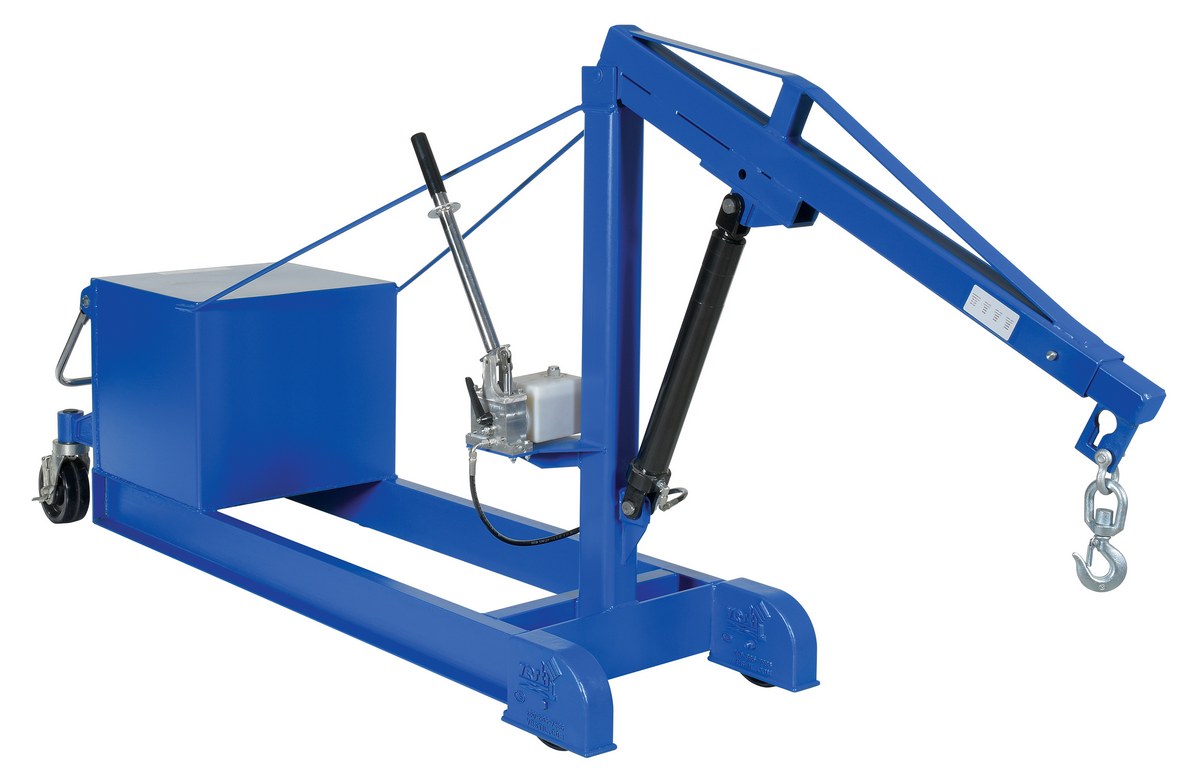

| CBFC-2000 | POPULAR | | 1 Year Limited Warranty | Steel Counter Balance Floor Crane 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Uniform Capacity extended 39-1/4"(lb.): 2000 | 2918 | |
| CBFC-2000-DC |  | 1 Year Limited Warranty | Steel DC Counter Balance Floor Crane 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Uniform Capacity extended 39-1/4"(lb.): 2000 | 2631 | ||

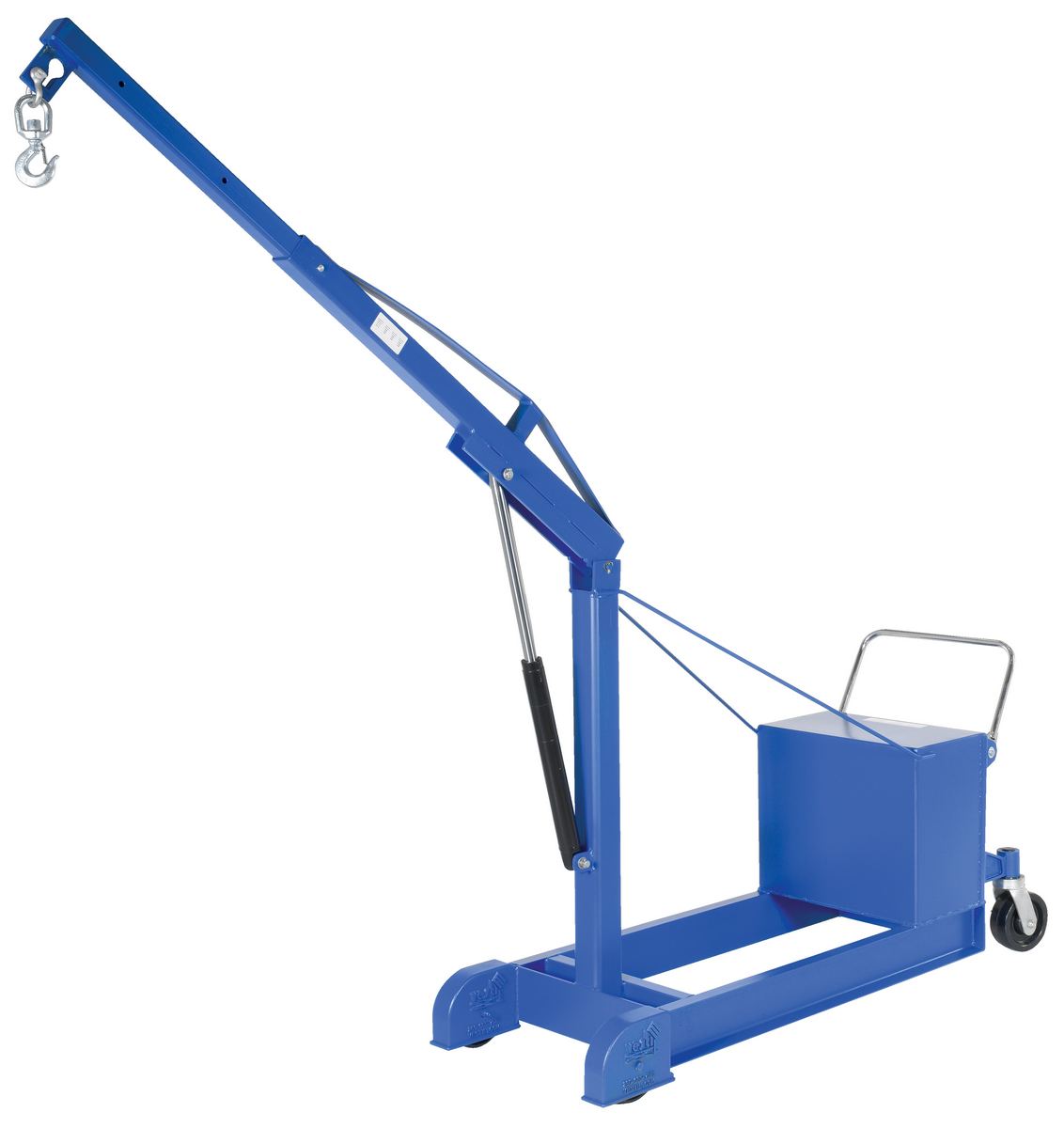

| CBFC-1000-AIR | | | 1 Year Limited Warranty | Steel Air Counter Balance Floor Crane 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Uniform Capacity extended 39-1/4"(lb.): 1000 | 1906 | |

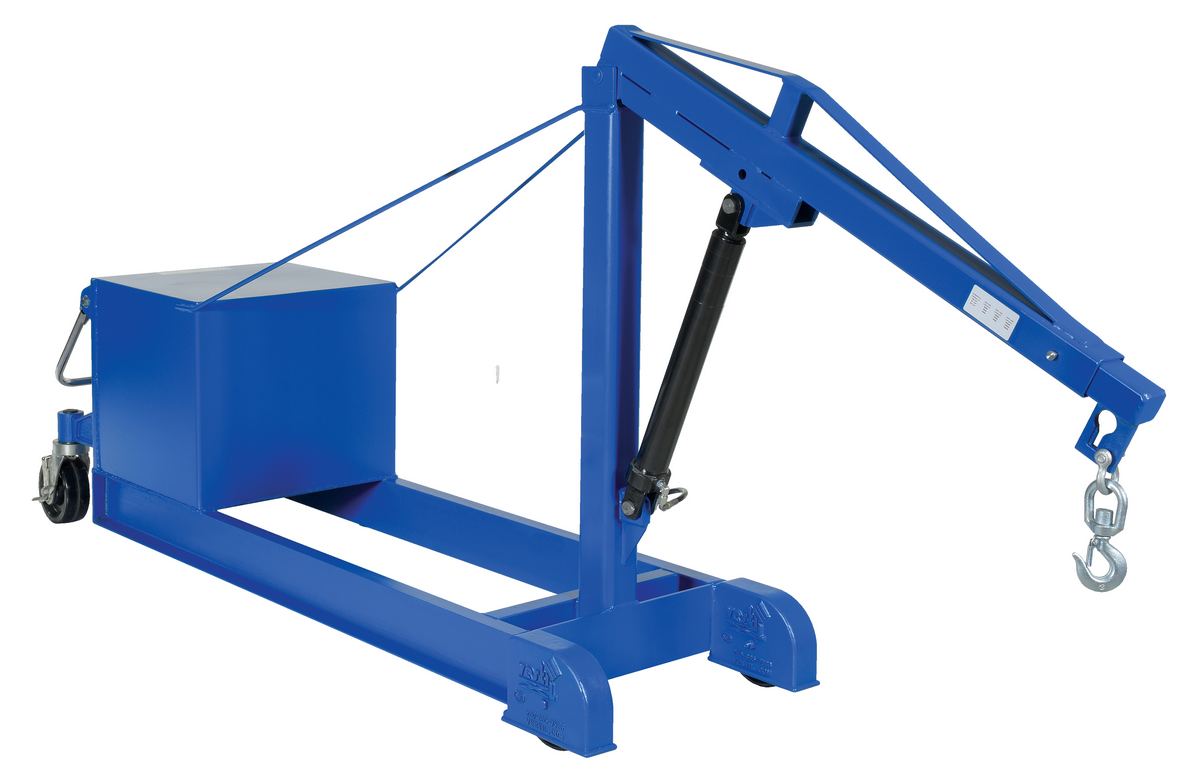

| CBFC-2000-AIR | |  | 1 Year Limited Warranty | Steel Air Counter Balance Floor Crane 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Uniform Capacity extended 39-1/4"(lb.): 2000 | 2356 | |
| CBFC-500-AIR | | | 1 Year Limited Warranty | Steel Air Counter Balance Floor Crane 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Uniform Capacity extended 39-1/4"(lb.): 500 | 1259 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500
For More Details of the Option Click the Red Model Button
| CBFC-PTDS-E | | 1 Year Limited Warranty | Factory Installed Power Traction Drive System For Counter Balanced Floor Crane Models | - | 255 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: CBFC-1000
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CBFC-1000-DC
Hydraulic Oil SDS Sheet for: CBFC-1000-DC
Hydraulic Oil SDS Sheet for: CBFC-2000
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CBFC-2000-DC
Hydraulic Oil SDS Sheet for: CBFC-2000-DC
Hydraulic Oil SDS Sheet for: CBFC-500
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CBFC-500-DC
Hydraulic Oil SDS Sheet for: CBFC-500-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CBFC-PTDS-E
Hydraulic Oil SDS Sheet for: CBFC-PTDS-E
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the clearance from the floor to the covering over the front casters?
A: The dimension is 1".
Q: How many pumps does it take to extend the boom?
A: It is approximately 30 pumps to extend the boom.
Q: How does the onboard charging system work on the CBFC-1000-DC?
A: Customer uses their own extension cord to charge. One end plugs into the power unit and the other end plugs into the wall.
Q: What is the safety factor for this crane?
A: The safety factor for the CBFC-2000 is 3:1
Q: Is the CBFC-1000-DC CSA compliant?
A: Yes, the CBFC-1000-DC is CSA compliant.
Q: How long does it take for the battery to recharge for CBFC-500-DC, CBFC-1000-DC and CBFC-2000-DC?
A: We recommend charging the battery when it displays approximately 50% on the battery gauge. At this level, it will take approximately 10 hours to fully charge the battery.
Q: How long can the battery be run before the next charge on CBFC-500-DC and CBFC-1000-DC?
A: If fully charged, the battery will run for approximately 28 minutes of total run time or approximately 160 complete raise/lower cycles. The battery gauge should display approximately 50% charge after running this many cycles.
Q: How long can the battery be run before the next charge on CBFC-2000-DC?
A: If fully charged, the battery will run for approximately 28 minutes of total run time or approximately 90 complete raise/lower cycles. The battery gauge should display approximately 50% charge after running this many cycles.
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||
