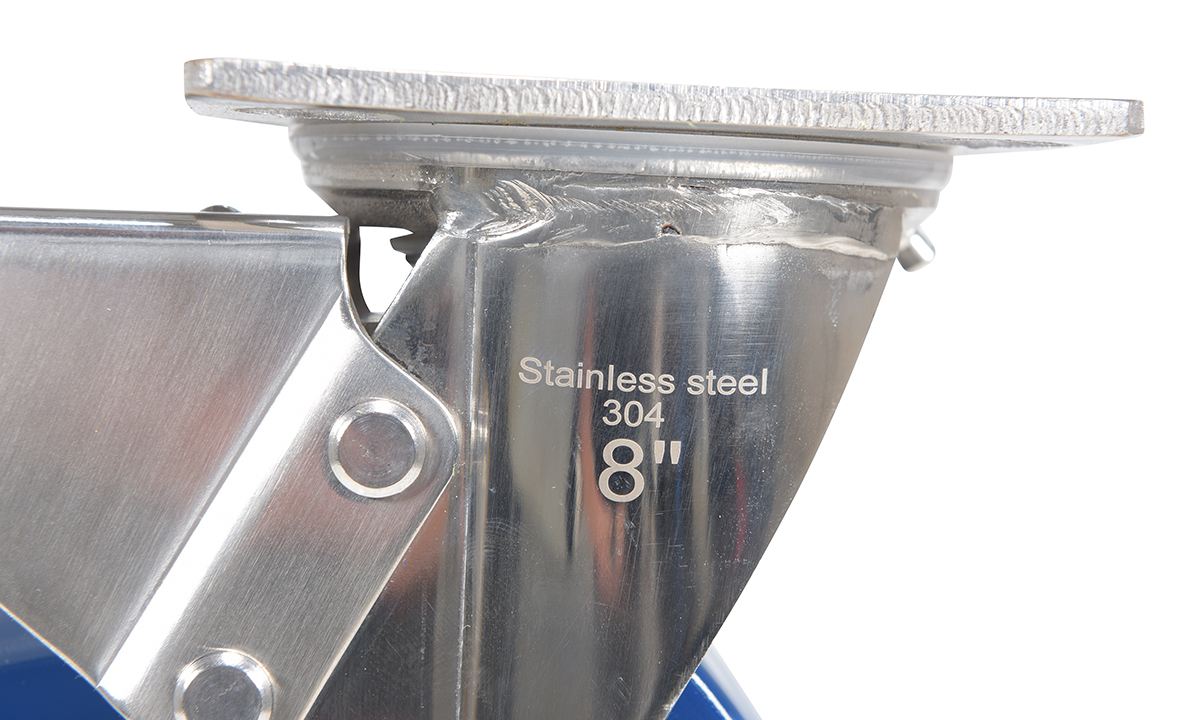

Polyurethane (Solid) CastersMade of heavy gauge cold rolled 304 stainless steel. solid polyurethane tread is 100% washable. The upgraded proprietary tread is steam cleanable, and can resist oil, grease, water and most solvents. The one piece mold eliminates bonding failure, and provides a higher impact resistance. Perfect for food processing, bakeries, laboratories, medical facilities, and other stainless steel applications.
- Premium grade 304 stainless steel rigging
- Non-marking high-quality tread
- Resists oils, grease, water, and most solvents
- Easy roll performance
- Sealed raceway
- Plain bore w/ delrin bushing
TPR (Thermoplastic Rubber) Casters
High-Temp Phenolic Casters
Elastic Rubber (Blue) Casters
Mold On Rubber (On Aluminum) CastersAdditional Models In This Family
CST-F-SS-4X2SP-S
CST-F-SS-8X2SP-S
CST-F-SS-5X2SP-SWTB
CST-F-SS-8X2SP-SWTB
CST-F-SS-5X2SP-S
CST-F-SS-6X2SP-S
CST-F-SS-5X2SP-SWTB
CST-F-SS-6X2SP-S
CST-F-SS-6X2SP-SWB
CST-F-SS-6X2SP-SWB
CST-F-SS-6X2SP-R
CST-F-SS-5X2SP-SWB
CST-F-SS-8X2SP-SWTB
CST-F-SS-5X2SP-SWTB
CST-F-SS-6X2SP-SWTB
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

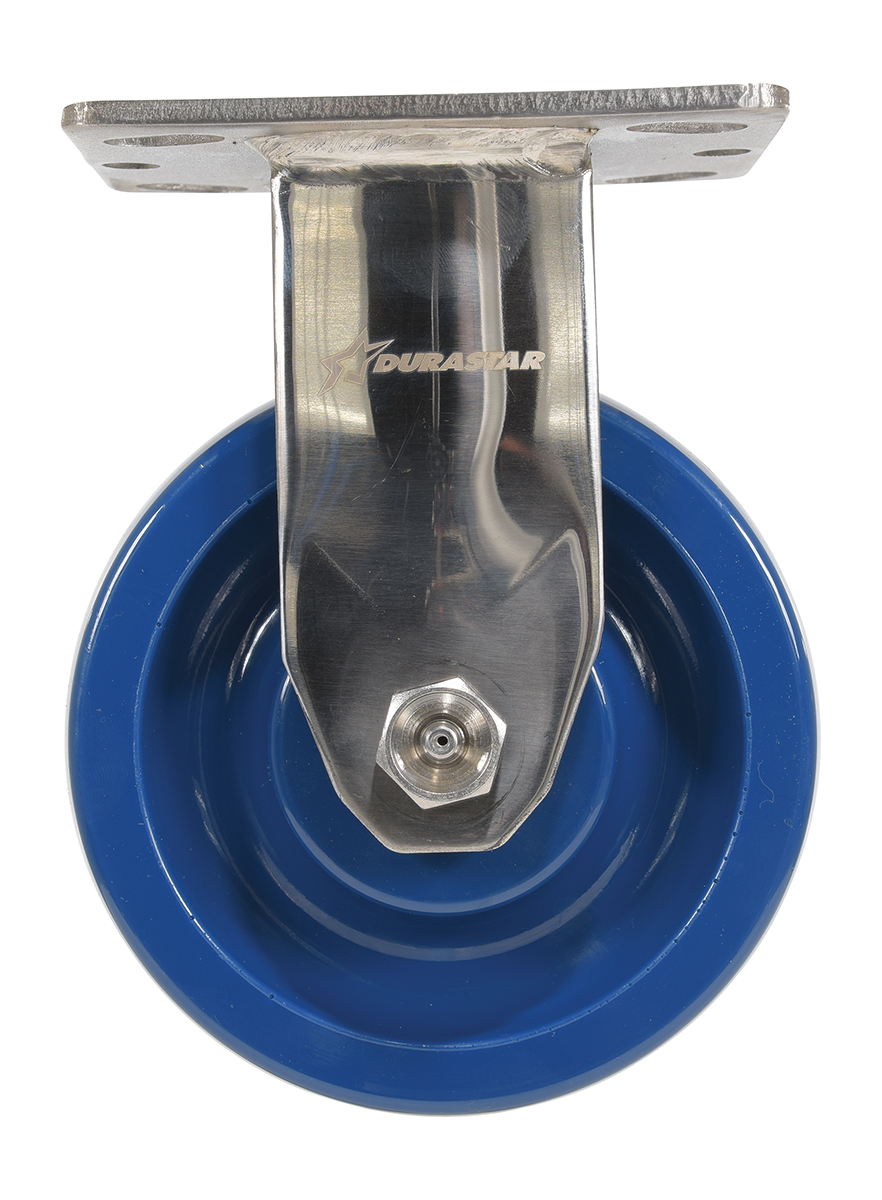

| CST-F-SS-5X2SP-R |  | 3 YEARS Limited Warranty | 5 x 2 | RIGID | 1000 | 6-9/16 | 4 x 4-1/2 | 6 |

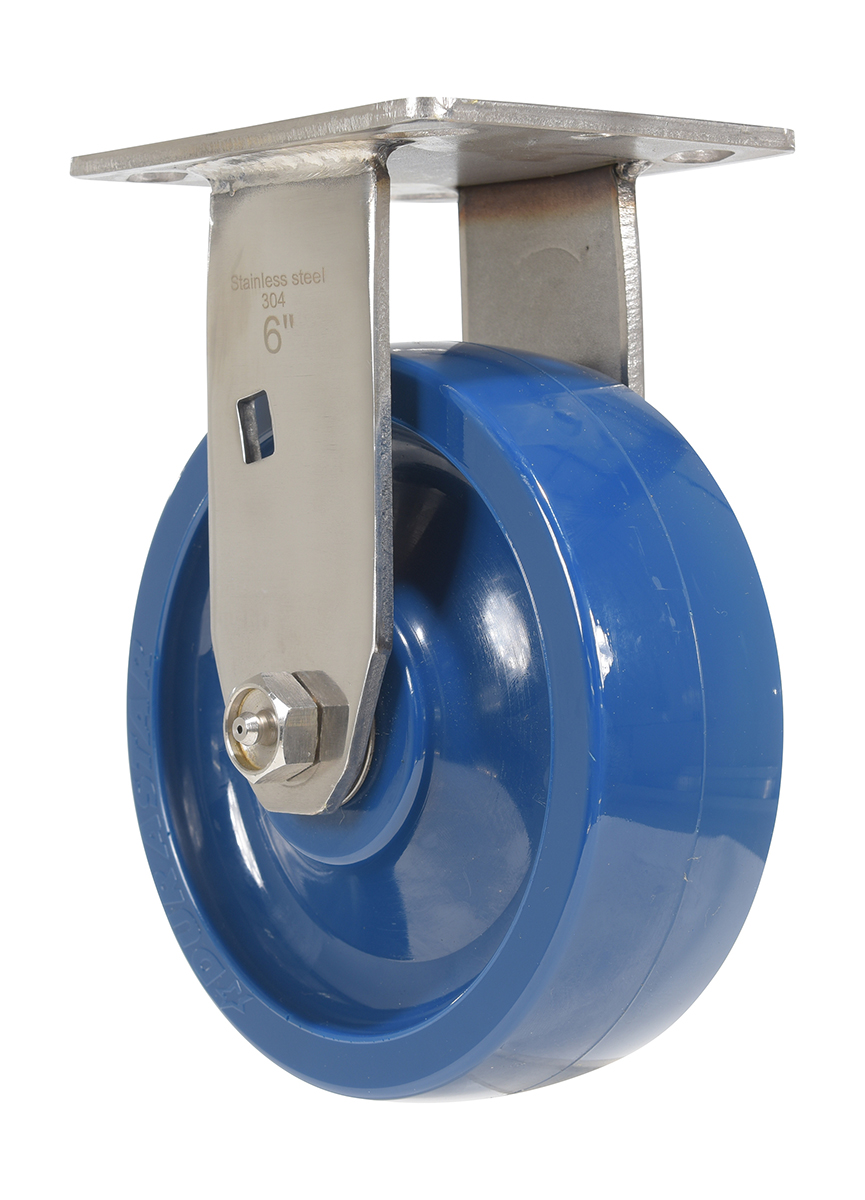

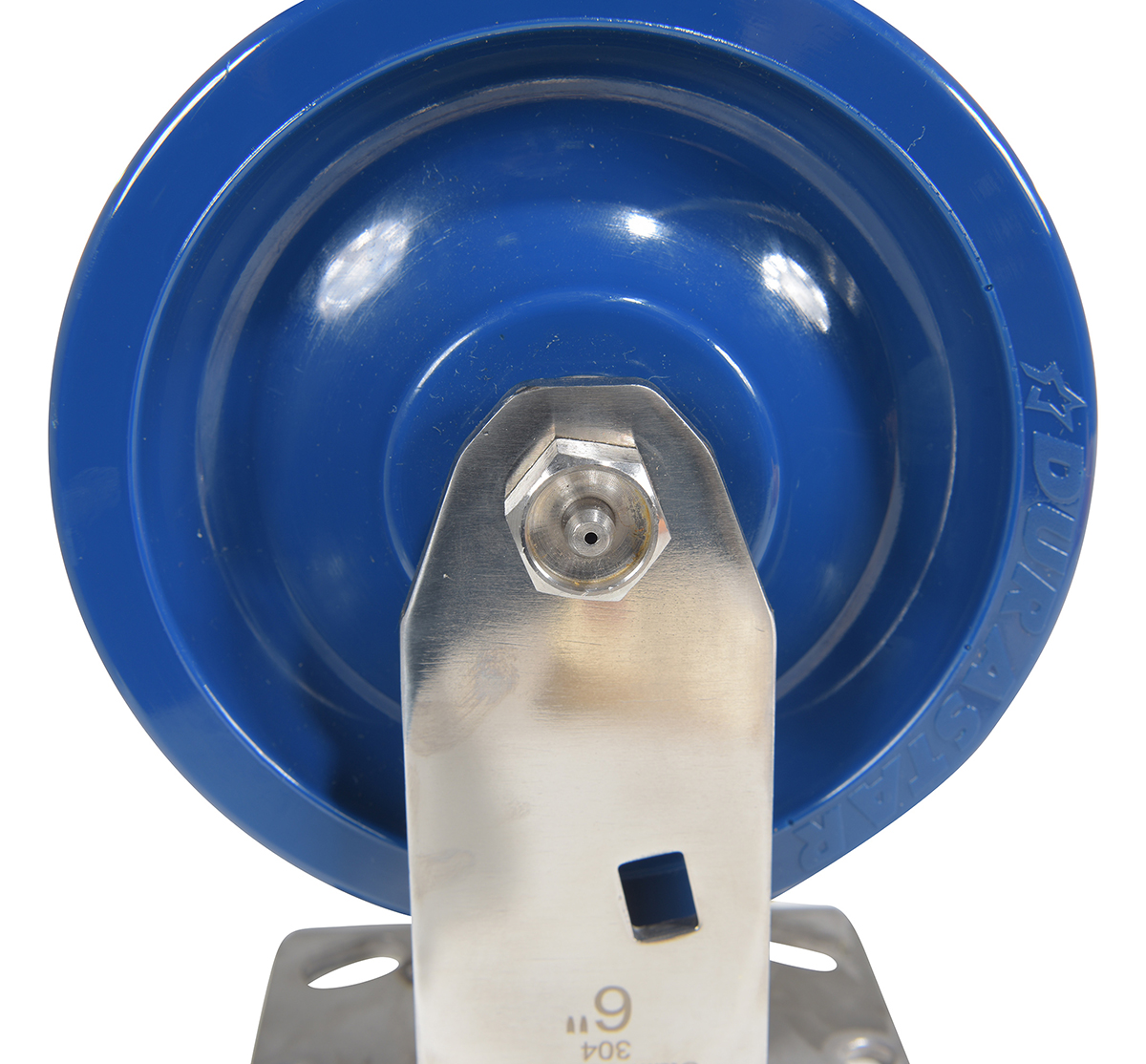

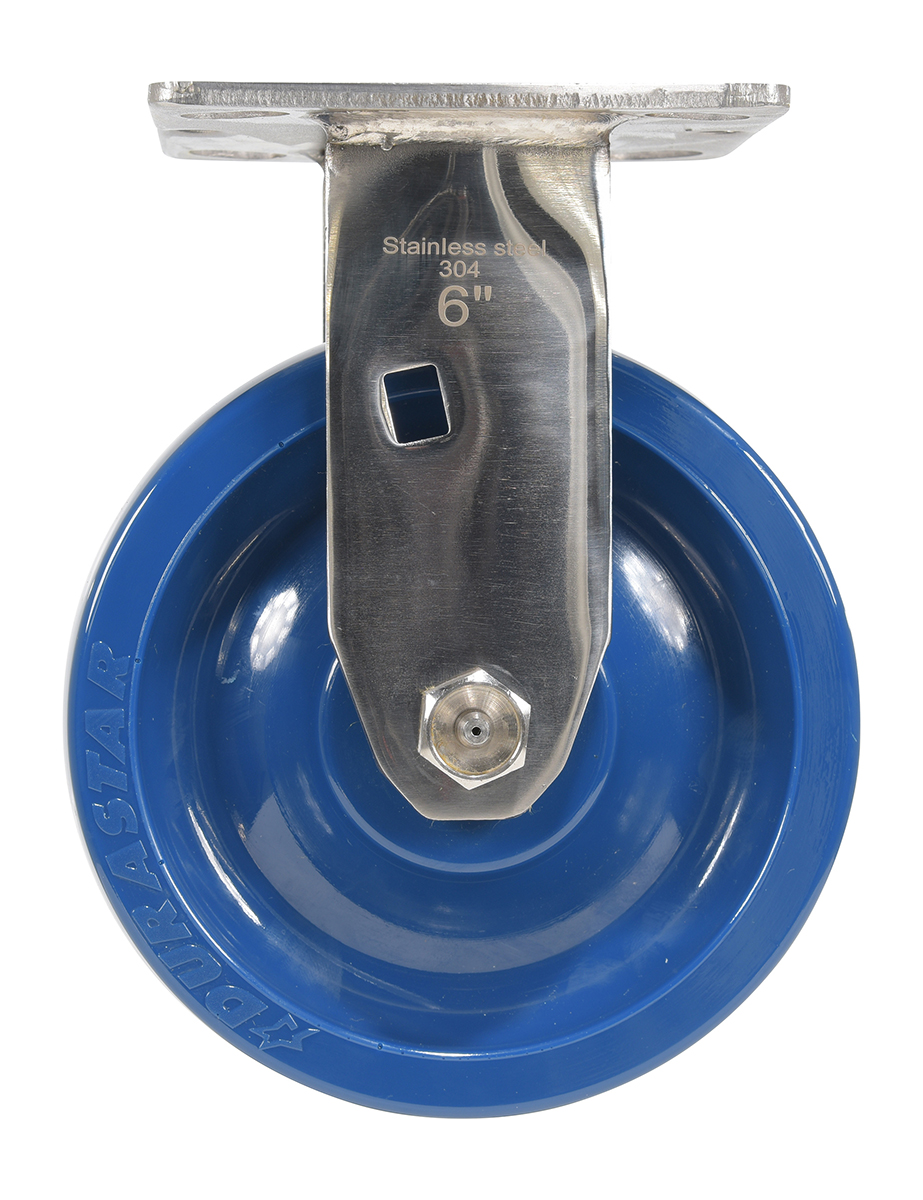

| CST-F-SS-6X2SP-R |  | 3 YEARS Limited Warranty | 6 x 2 | RIGID | 1200 | 7-9/16 | 4 x 4-1/2 | 10 |

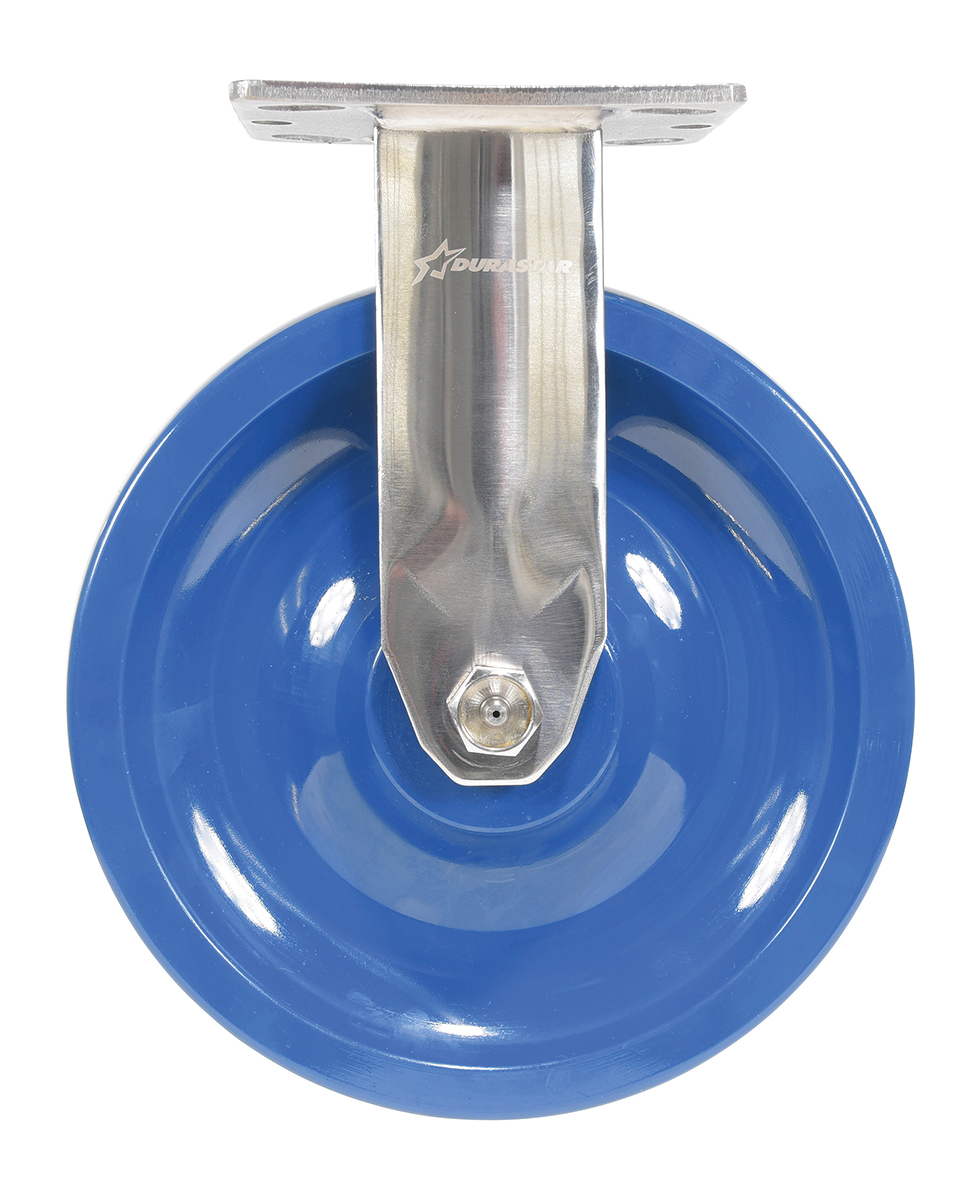

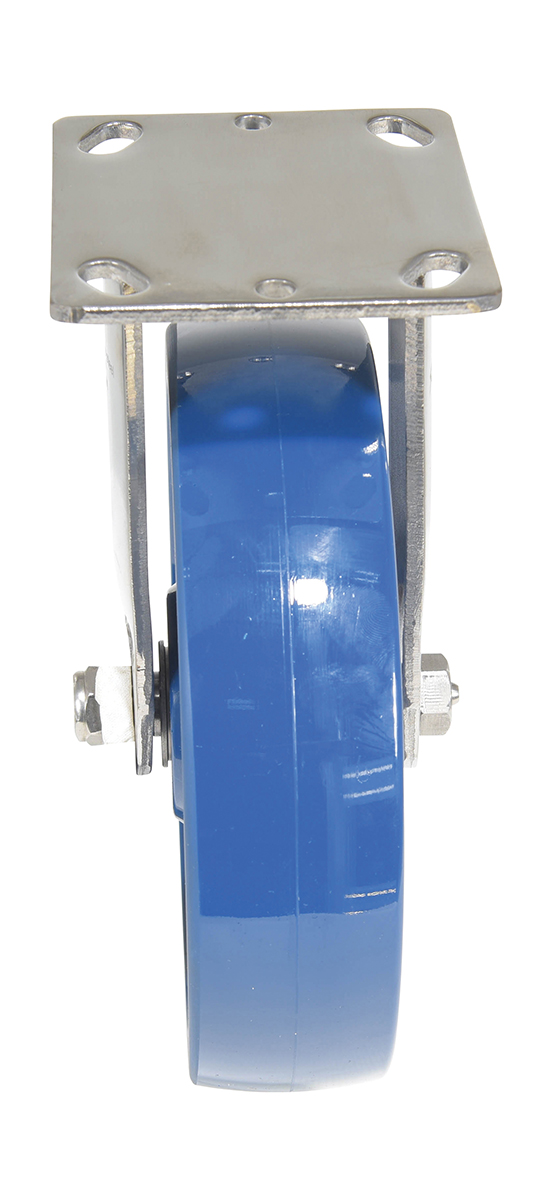

| CST-F-SS-8X2SP-R |  | 3 YEARS Limited Warranty | 8 x 2 | RIGID | 1250 | 9-1/2 | 4 x 4-1/2 | 7 |

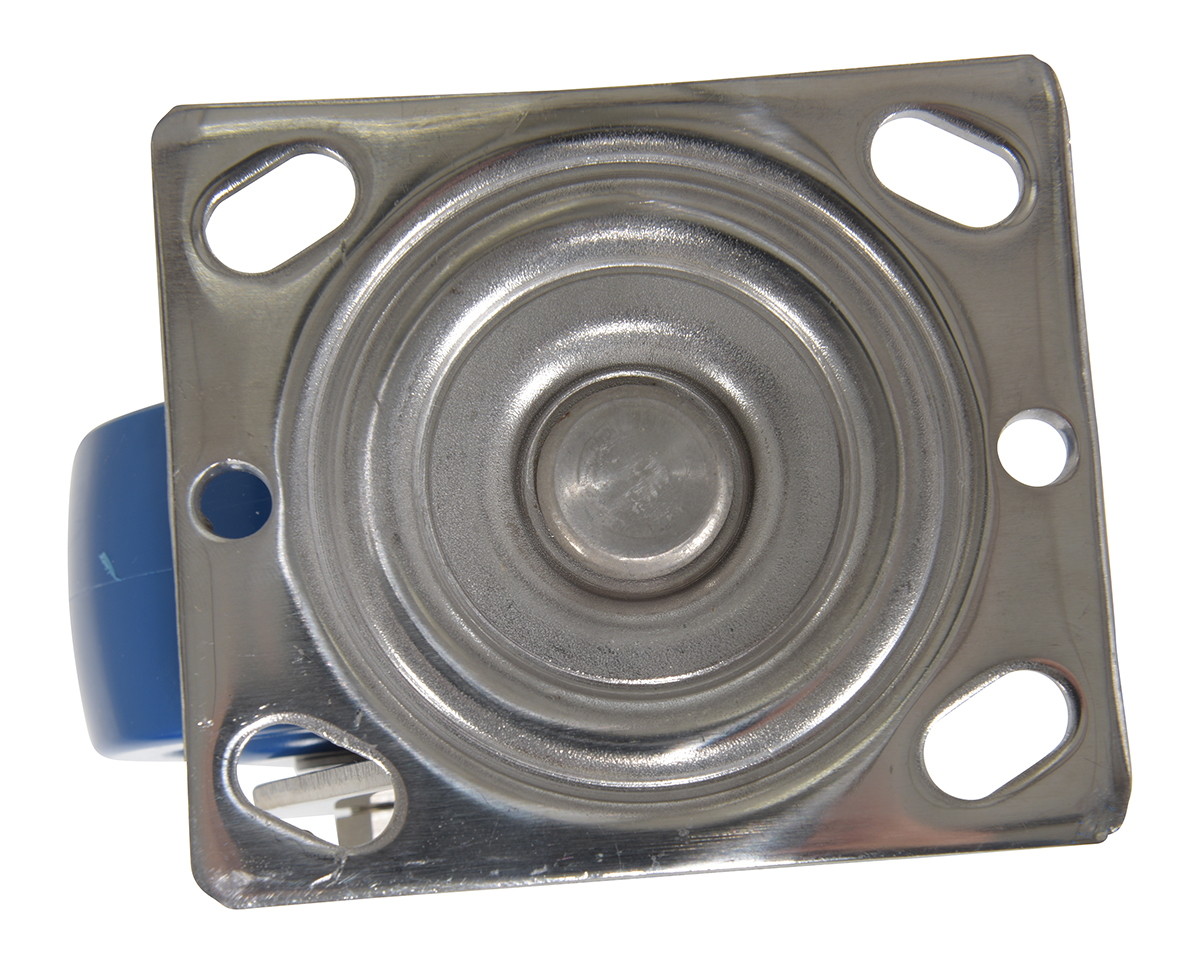

| CST-F-SS-4X2SP-S |  | 3 YEARS Limited Warranty | 4 x 2 | SWIVEL | 800 | 5-3/4 | 4 x 4-1/2 | 5 |

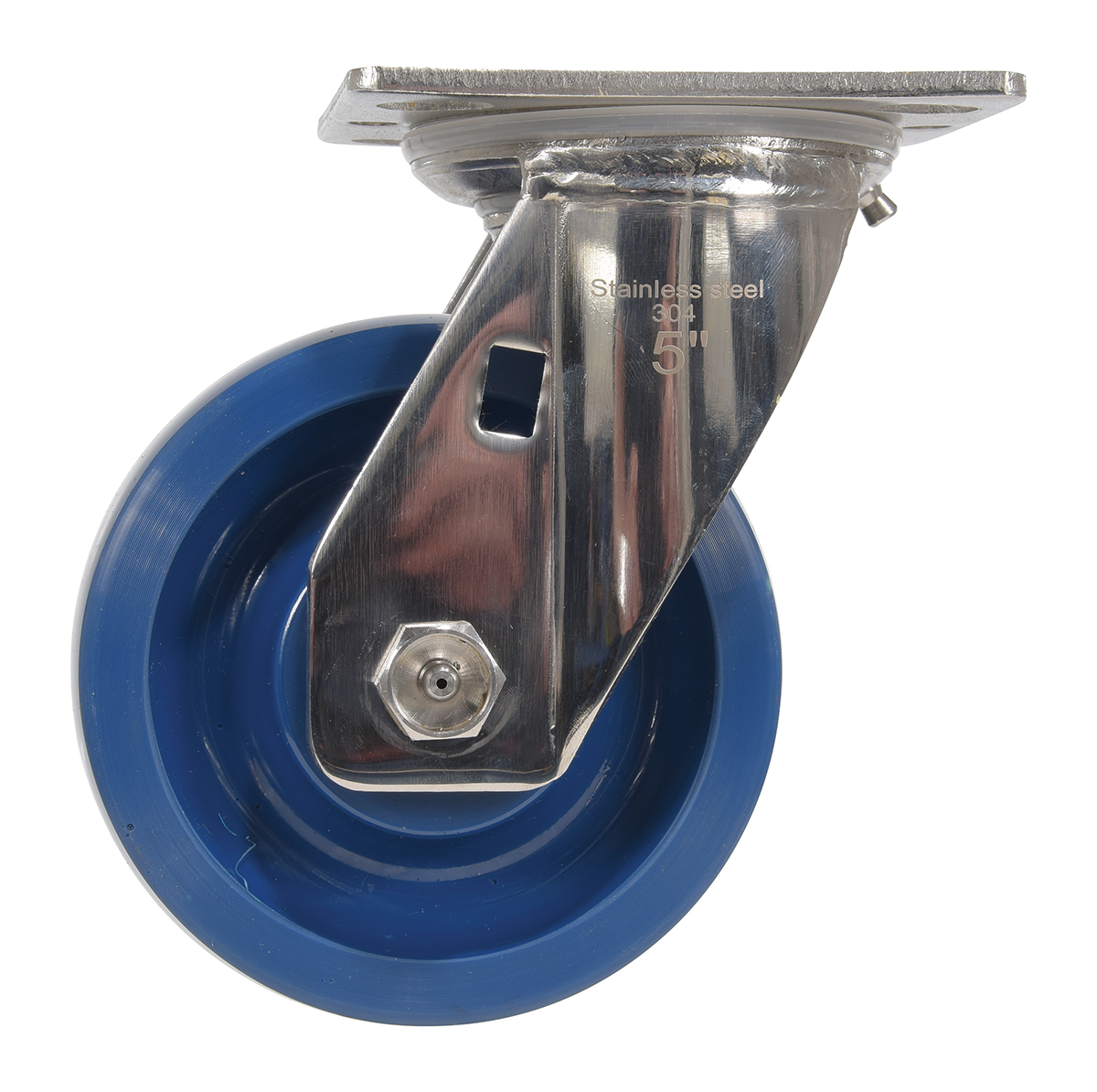

| CST-F-SS-5X2SP-S |  | 3 YEARS Limited Warranty | 5 x 2 | SWIVEL | 1000 | 6-9/16 | 4 x 4-1/2 | 6 |

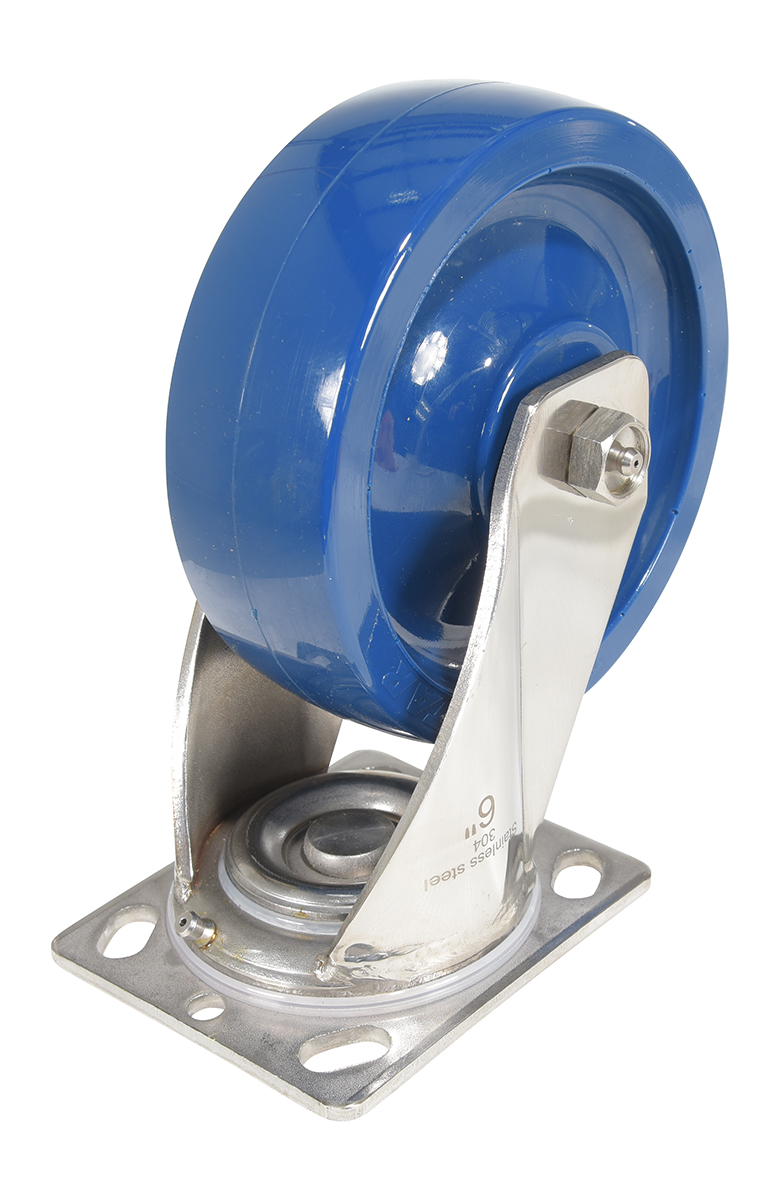

| CST-F-SS-6X2SP-S |  | 3 YEARS Limited Warranty | 6 x 2 | SWIVEL | 1200 | 7-9/16 | 4 x 4-1/2 | 10 |

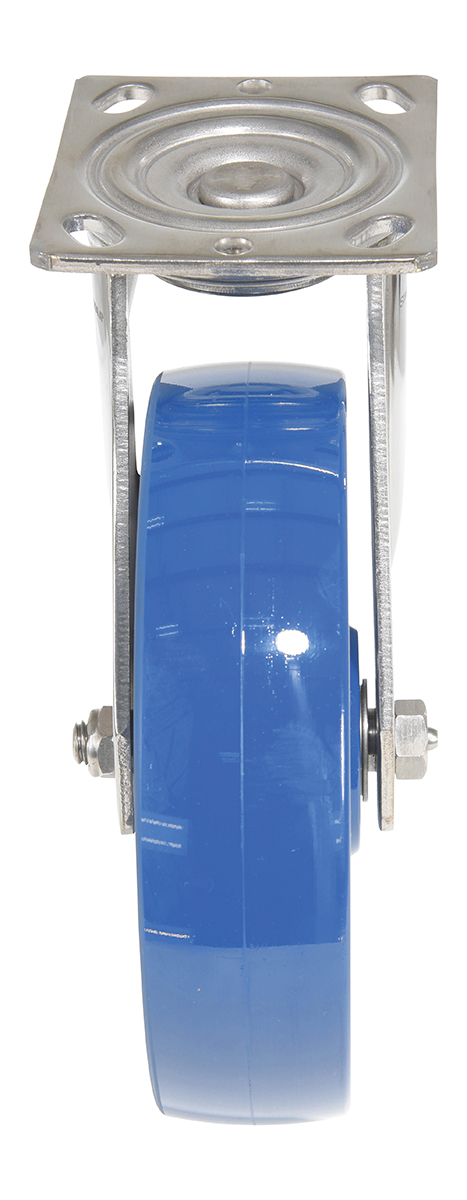

| CST-F-SS-8X2SP-S |  | 3 YEARS Limited Warranty | 8 x 2 | SWIVEL | 1250 | 9-1/2 | 4 x 4-1/2 | 7 |

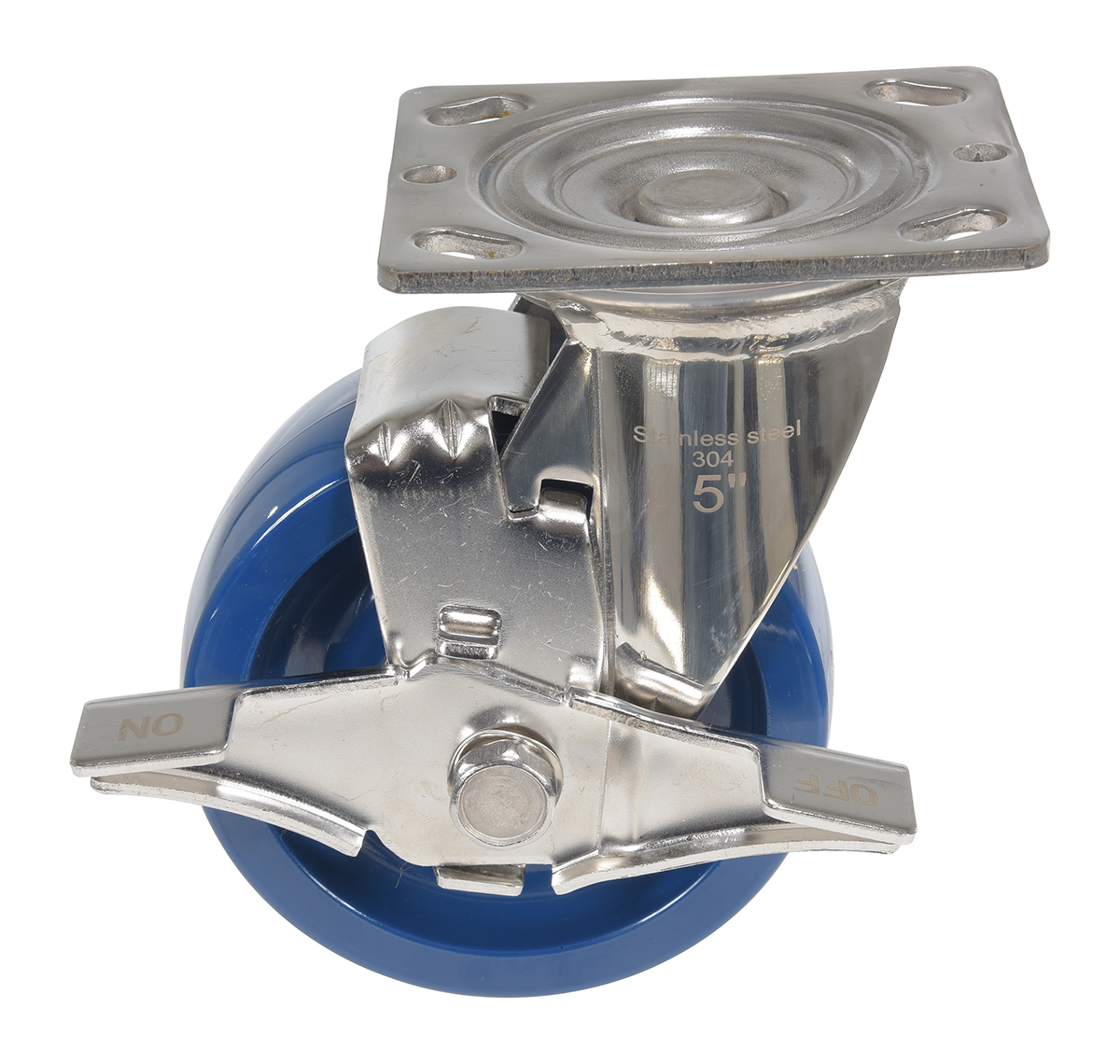

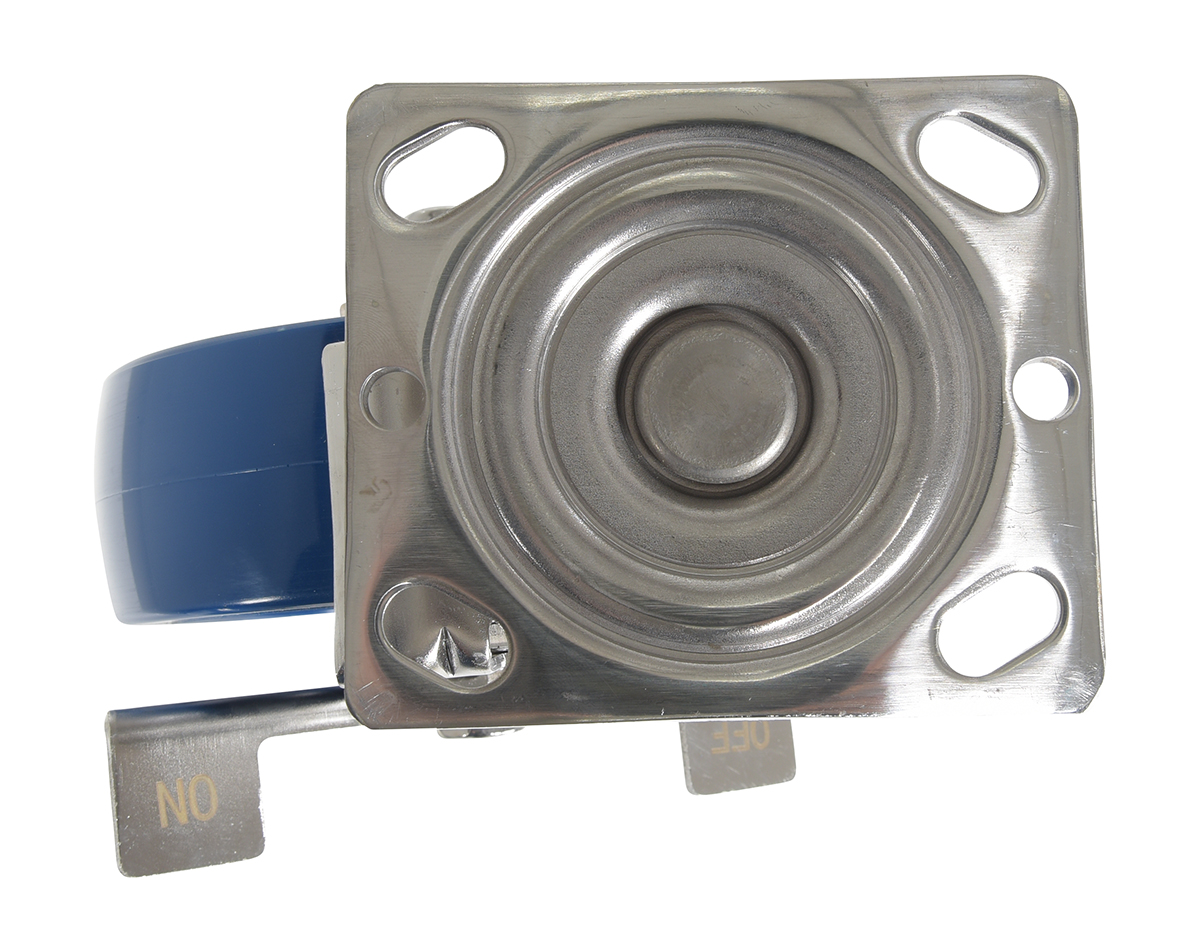

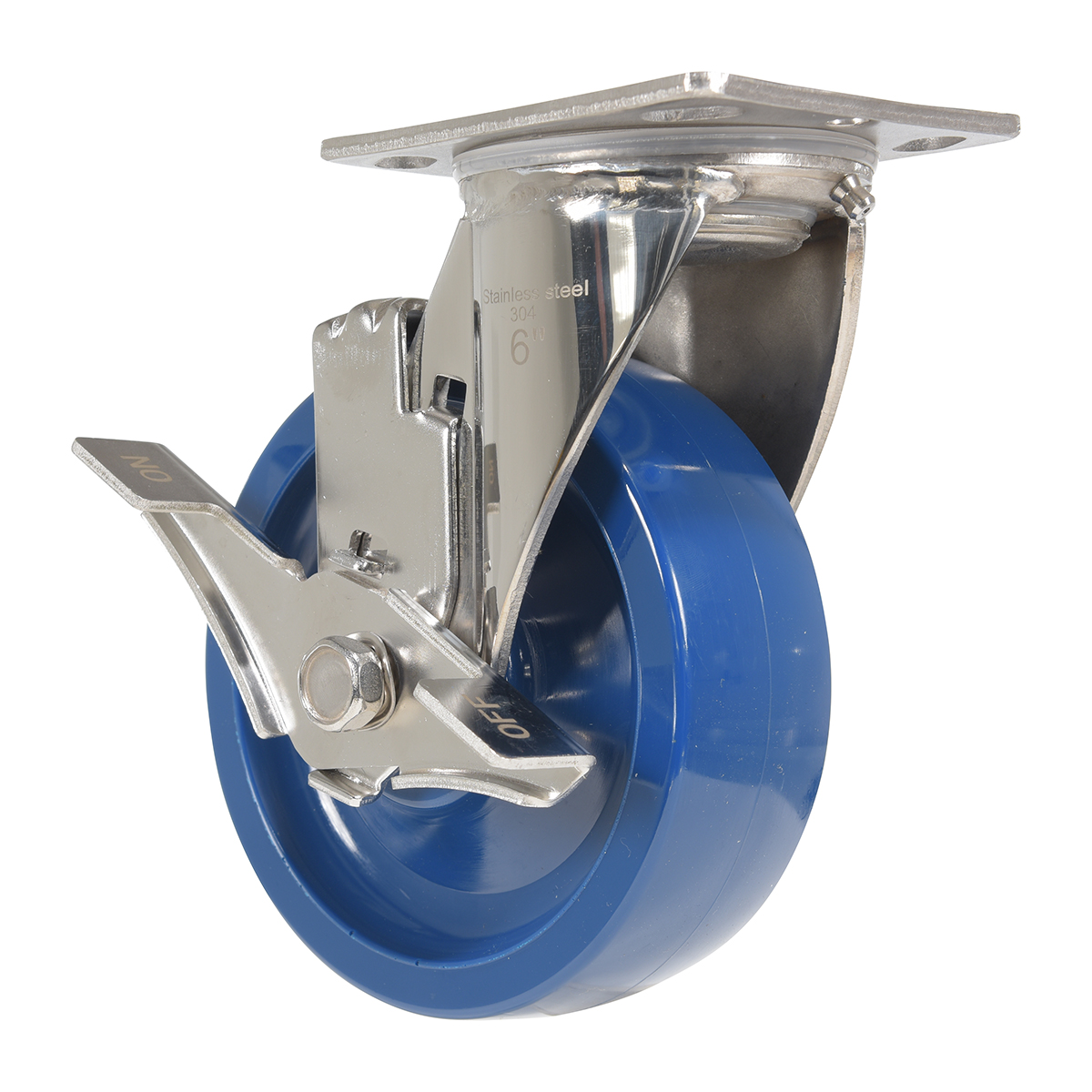

| CST-F-SS-6X2SP-SWB |  | 3 YEARS Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 1200 | 7-9/16 | 4 x 4-1/2 | 11 |

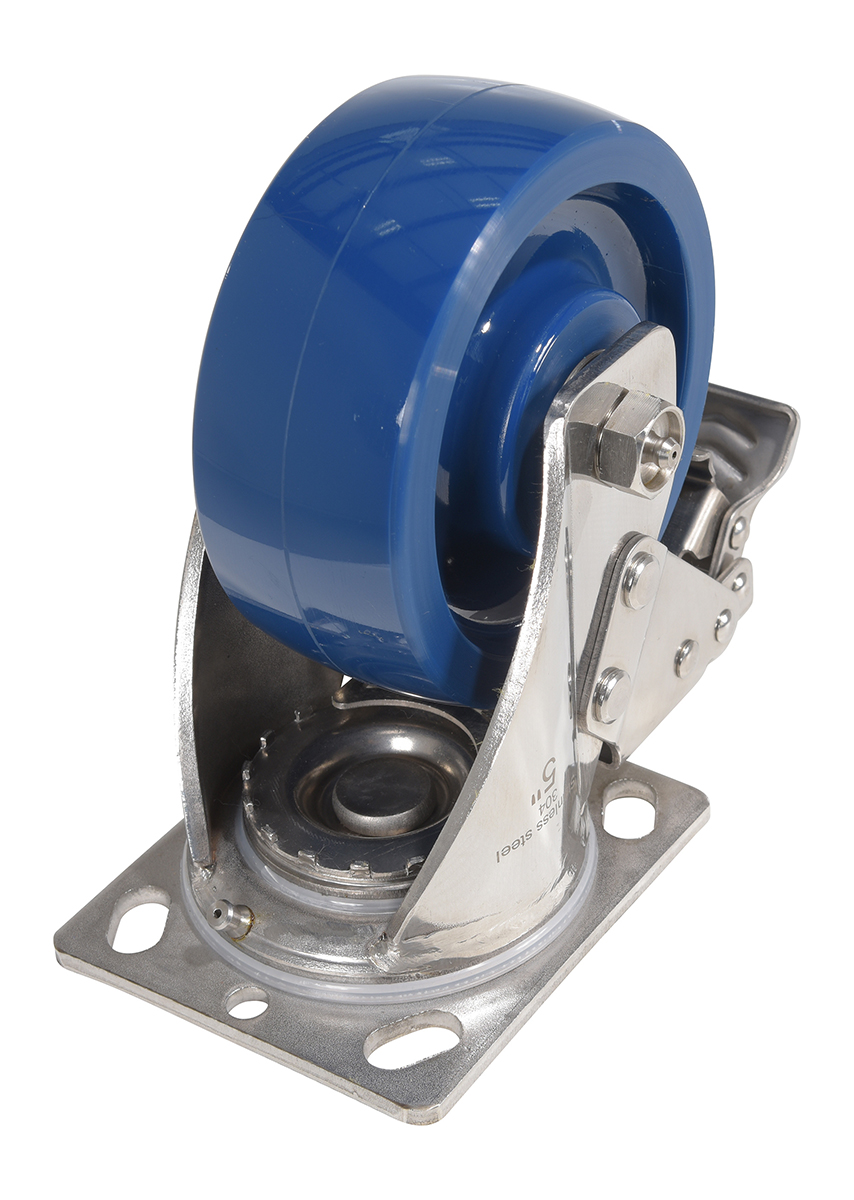

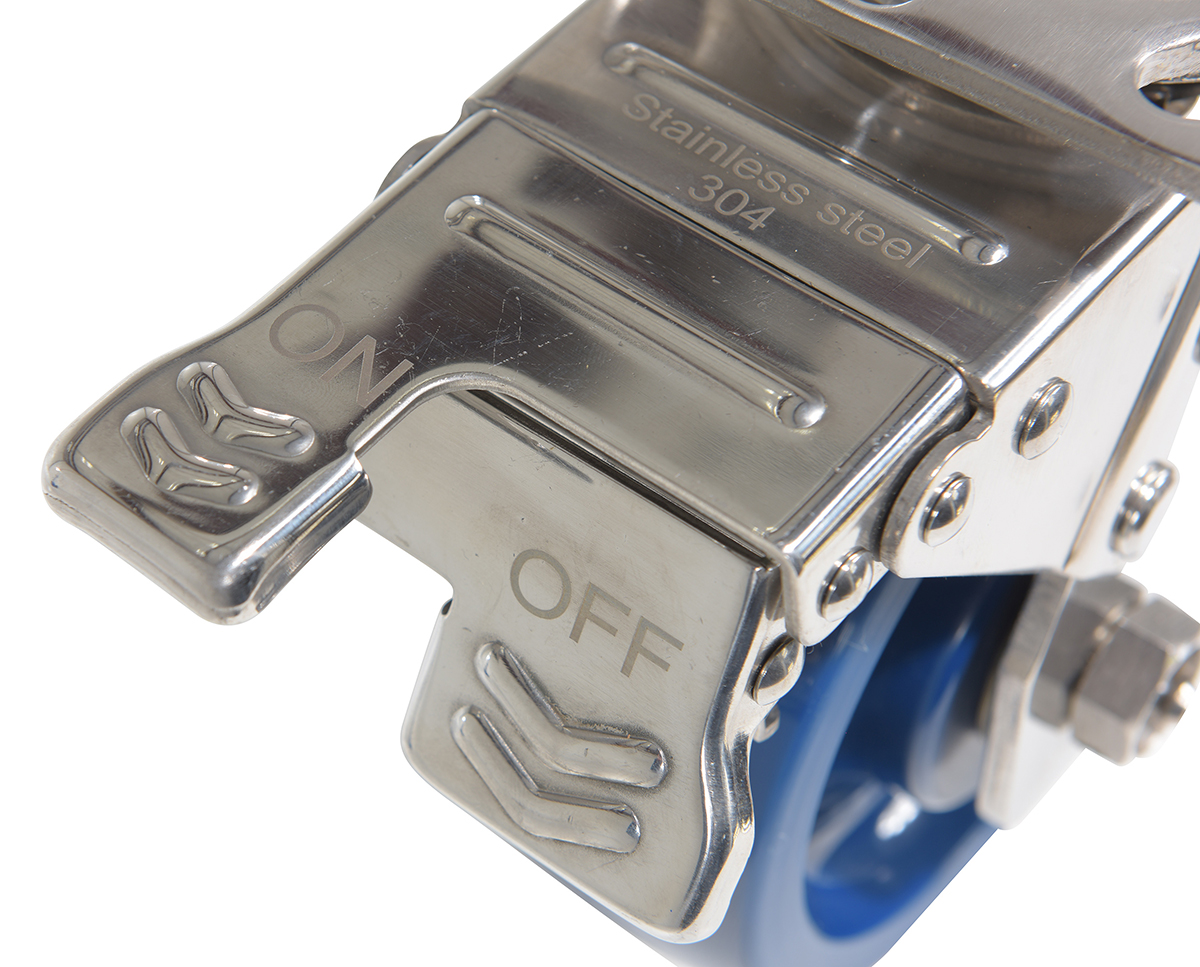

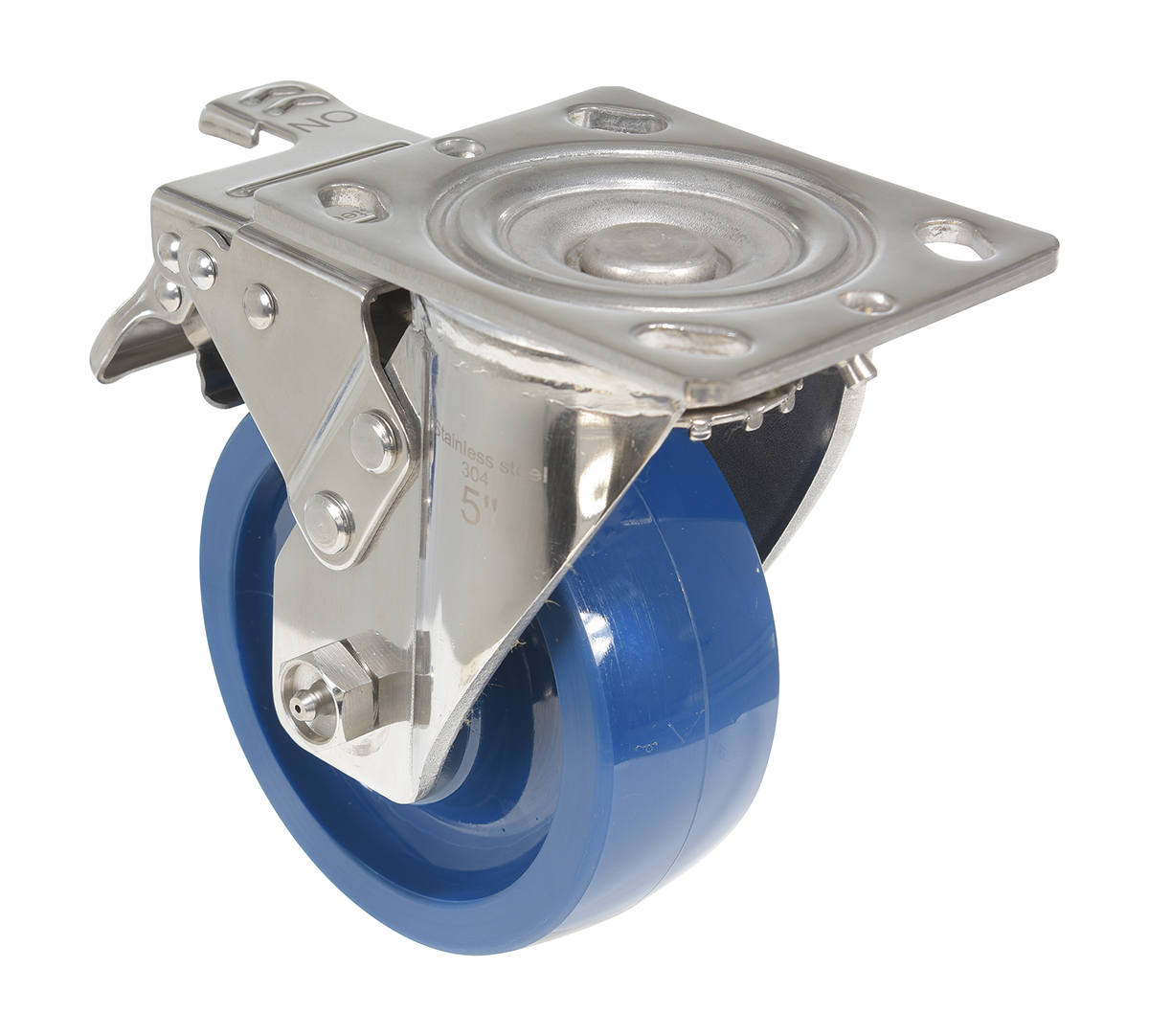

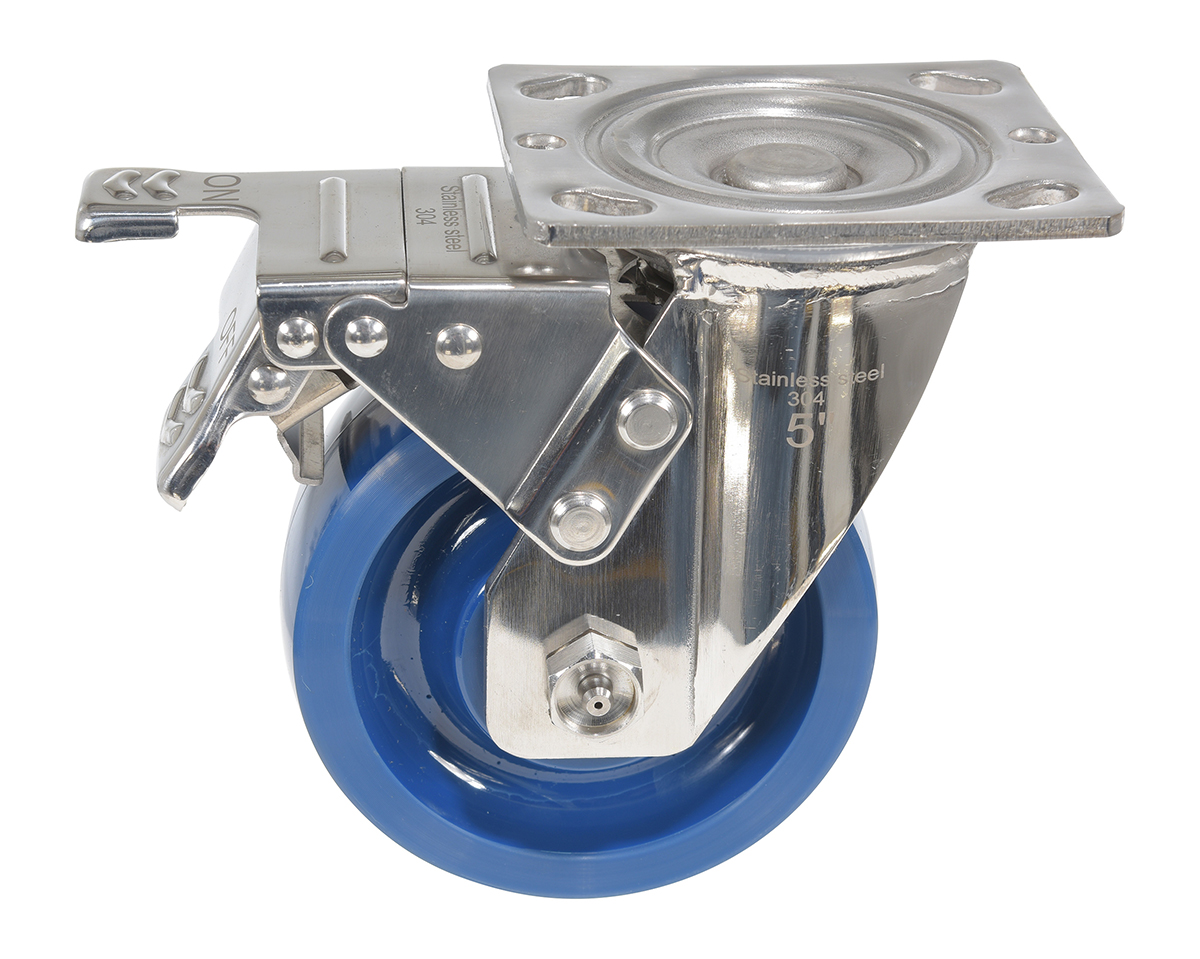

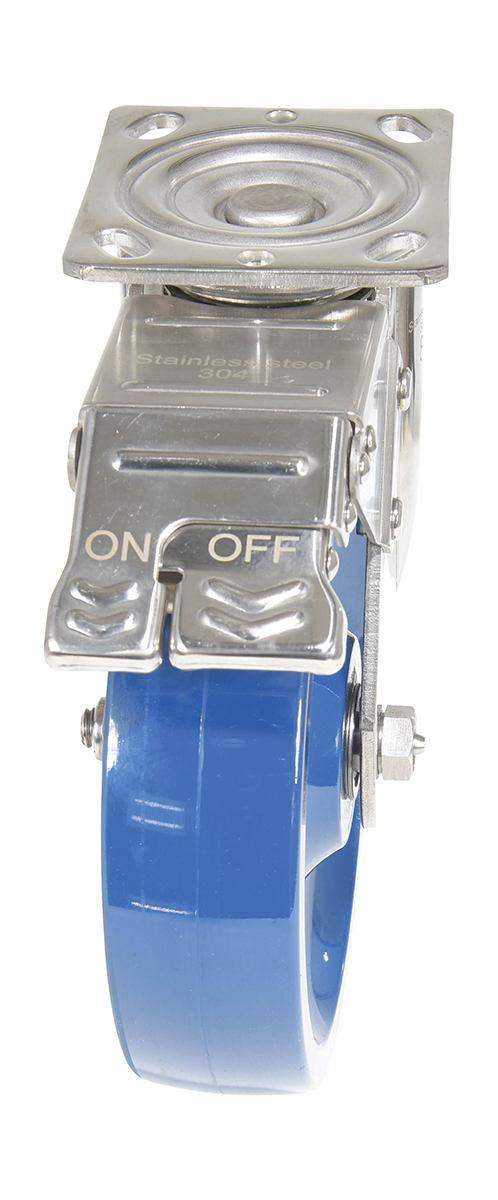

| CST-F-SS-5X2SP-SWTB |  | 3 YEARS Limited Warranty | 5 x 2 | SWIVEL W/TOTAL BRAKE | 1000 | 6-9/16 | 4 x 4-1/2 | 8 |

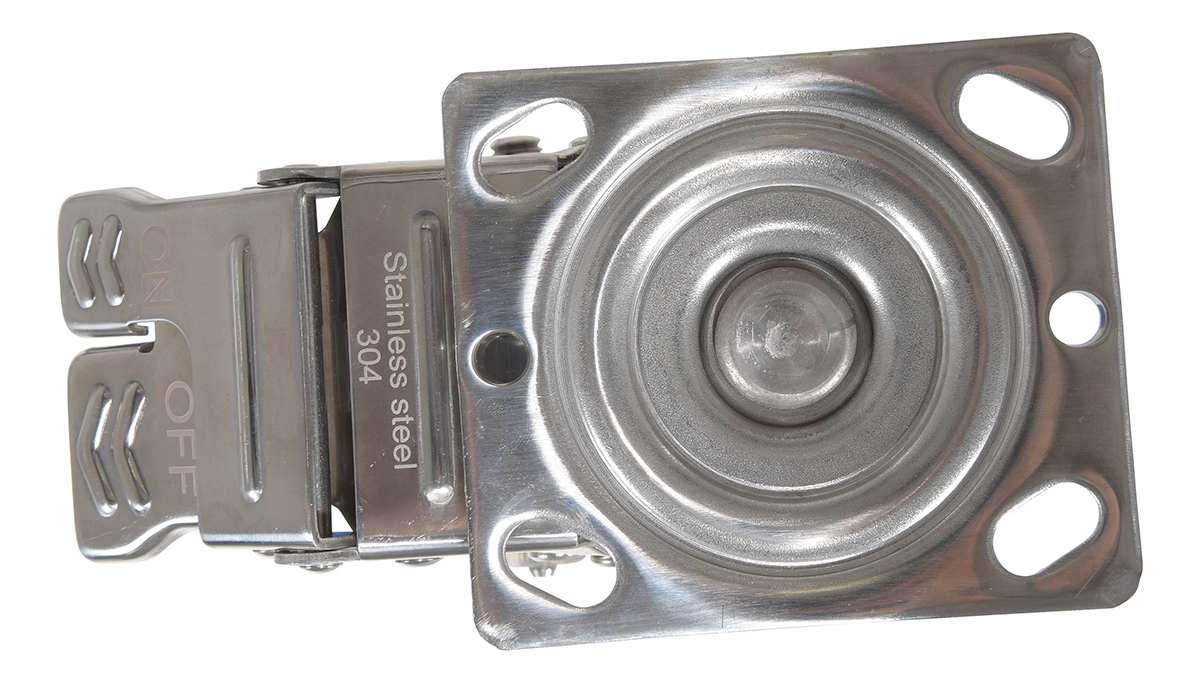

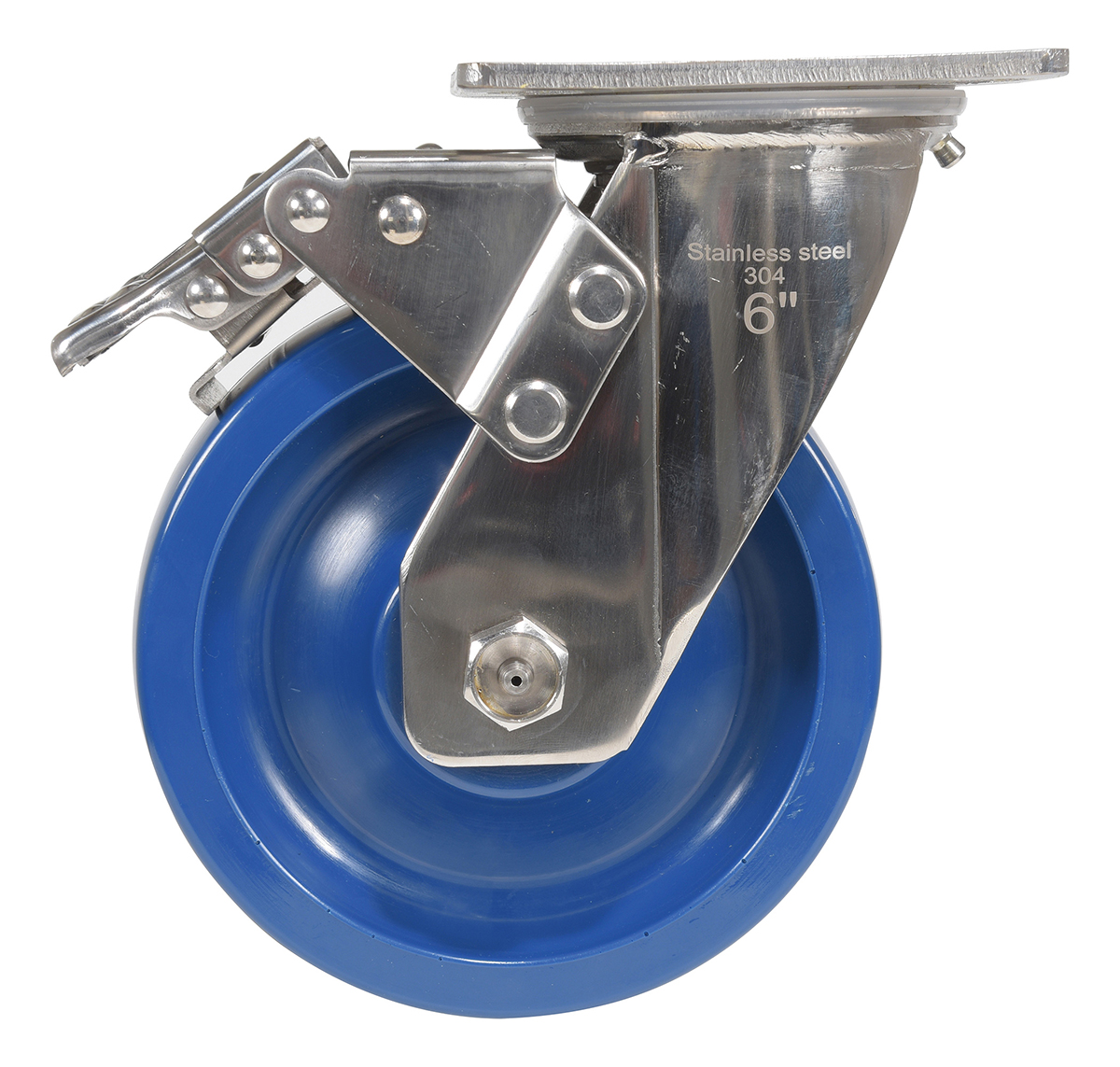

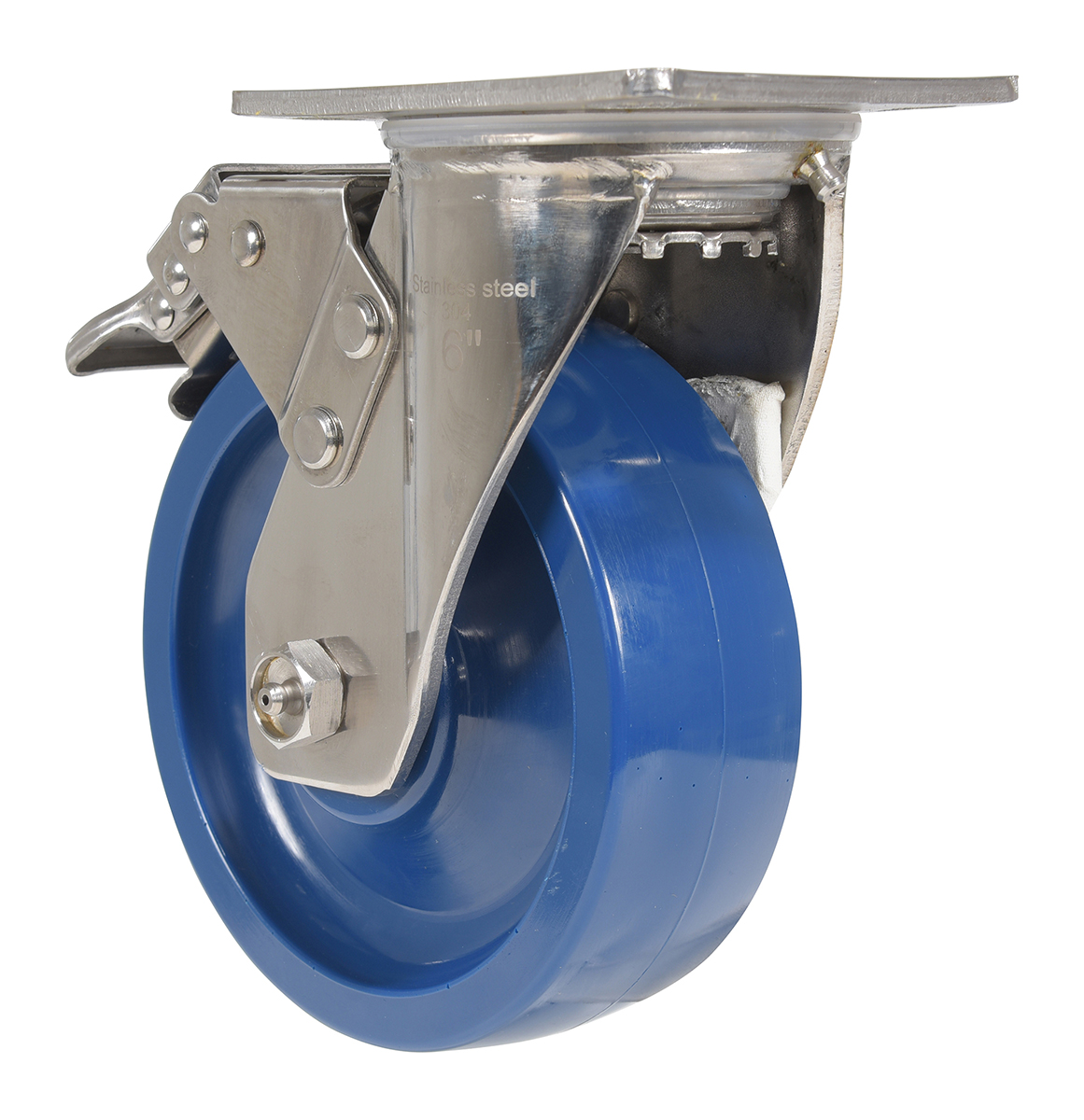

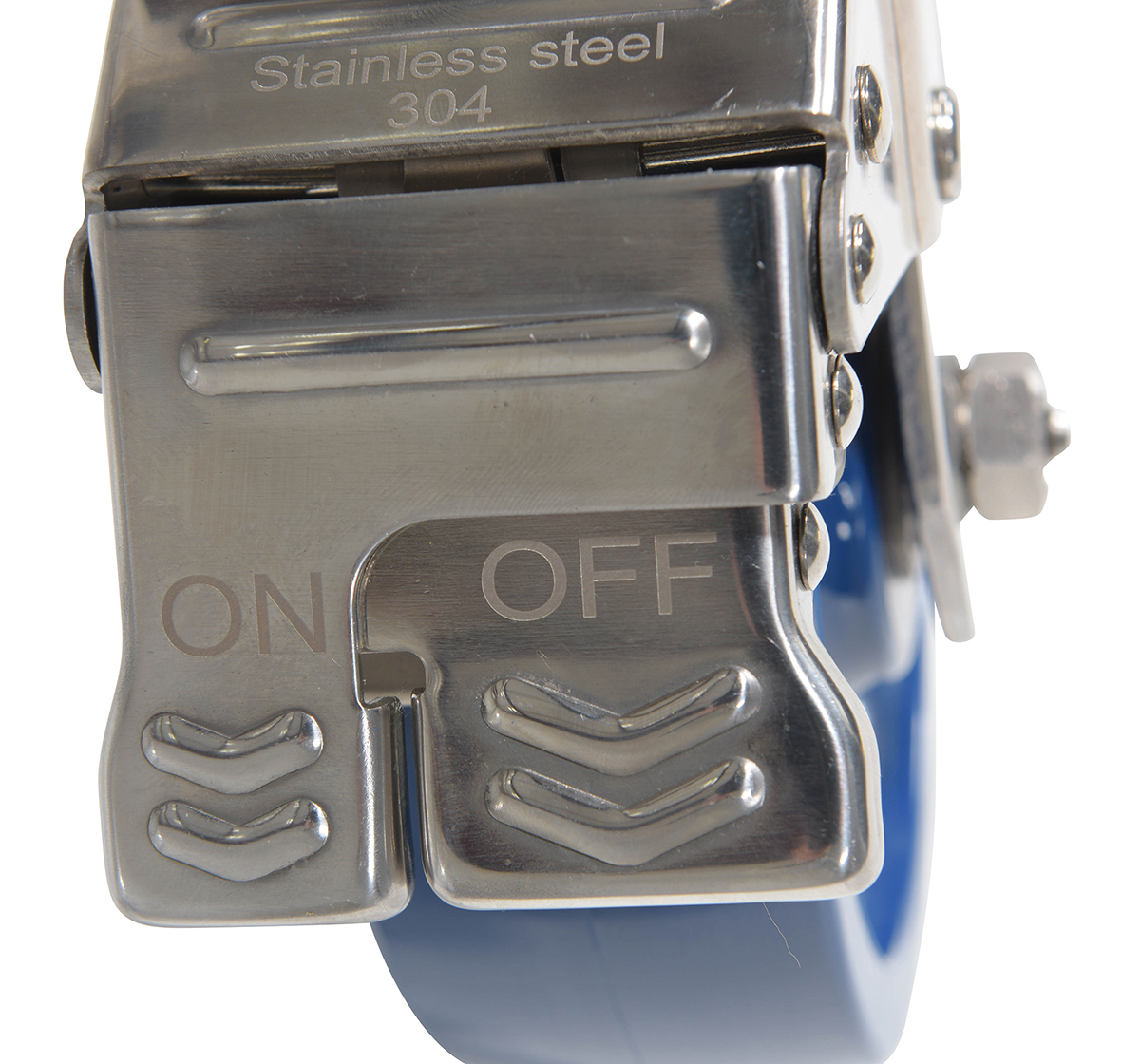

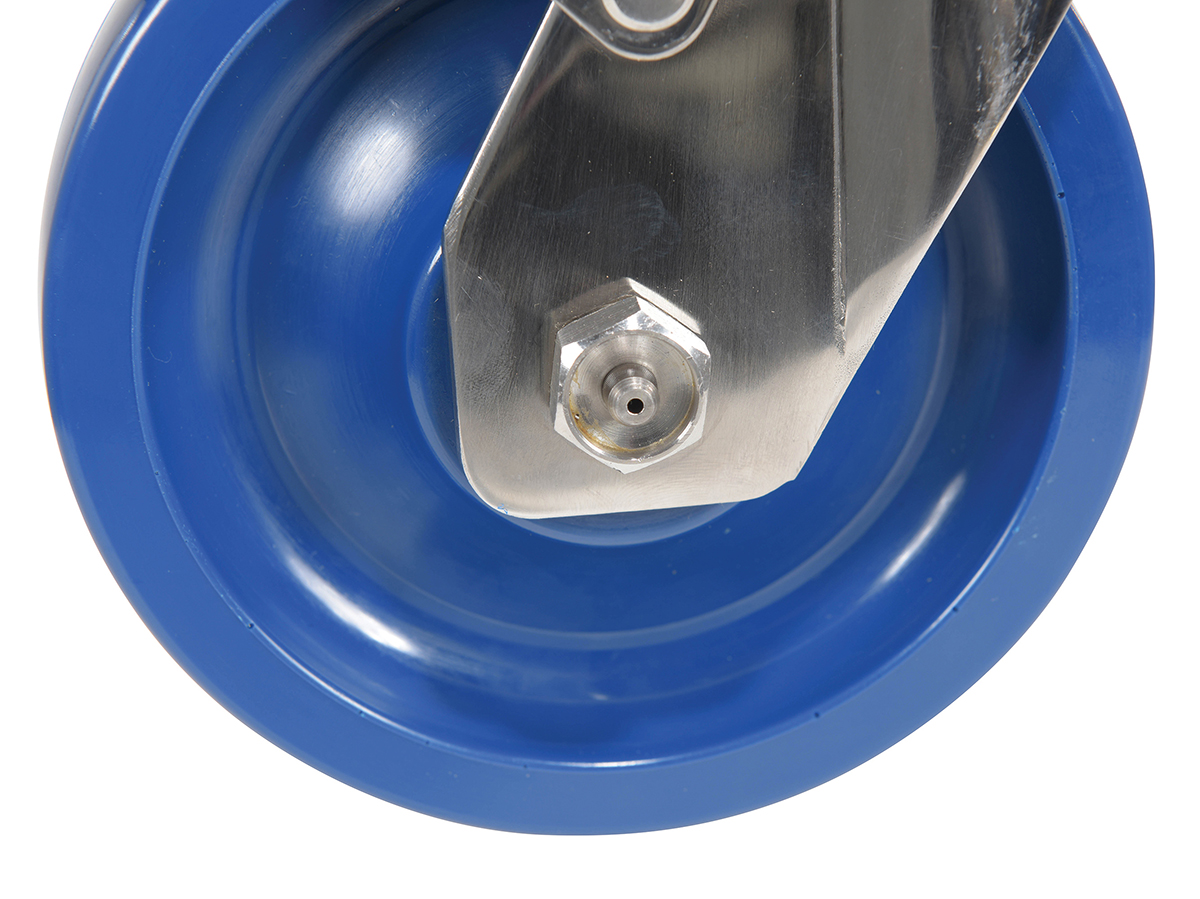

| CST-F-SS-6X2SP-SWTB |  | 3 YEARS Limited Warranty | 6 x 2 | SWIVEL W/TOTAL BRAKE | 1200 | 7-1/2 | 4 x 4-1/2 | 7 |

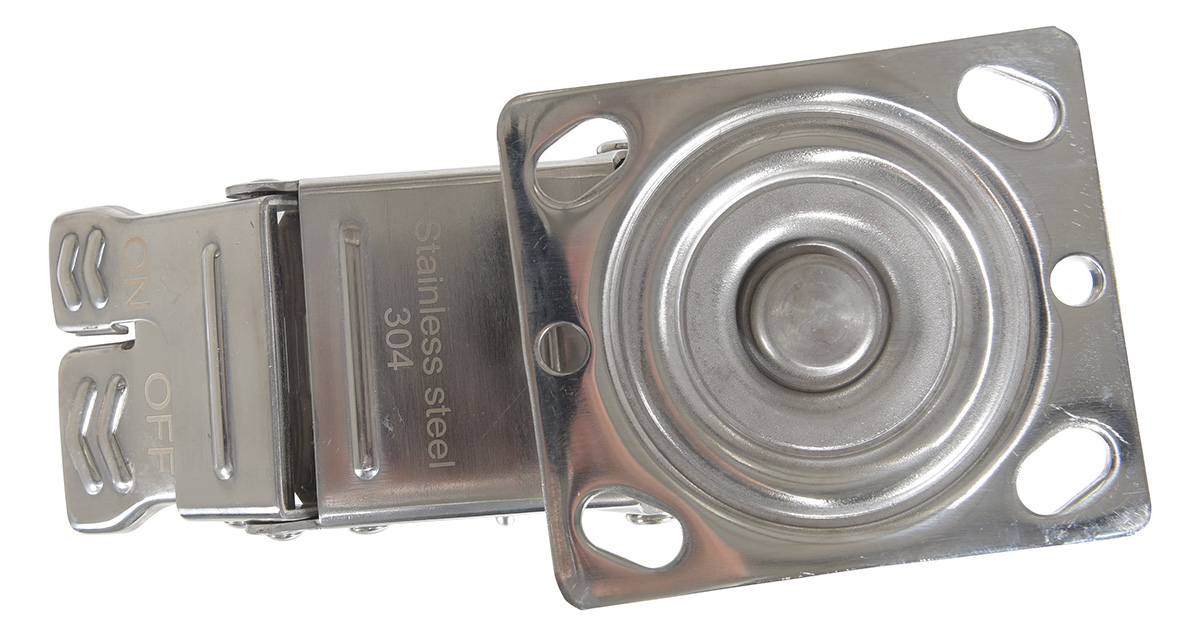

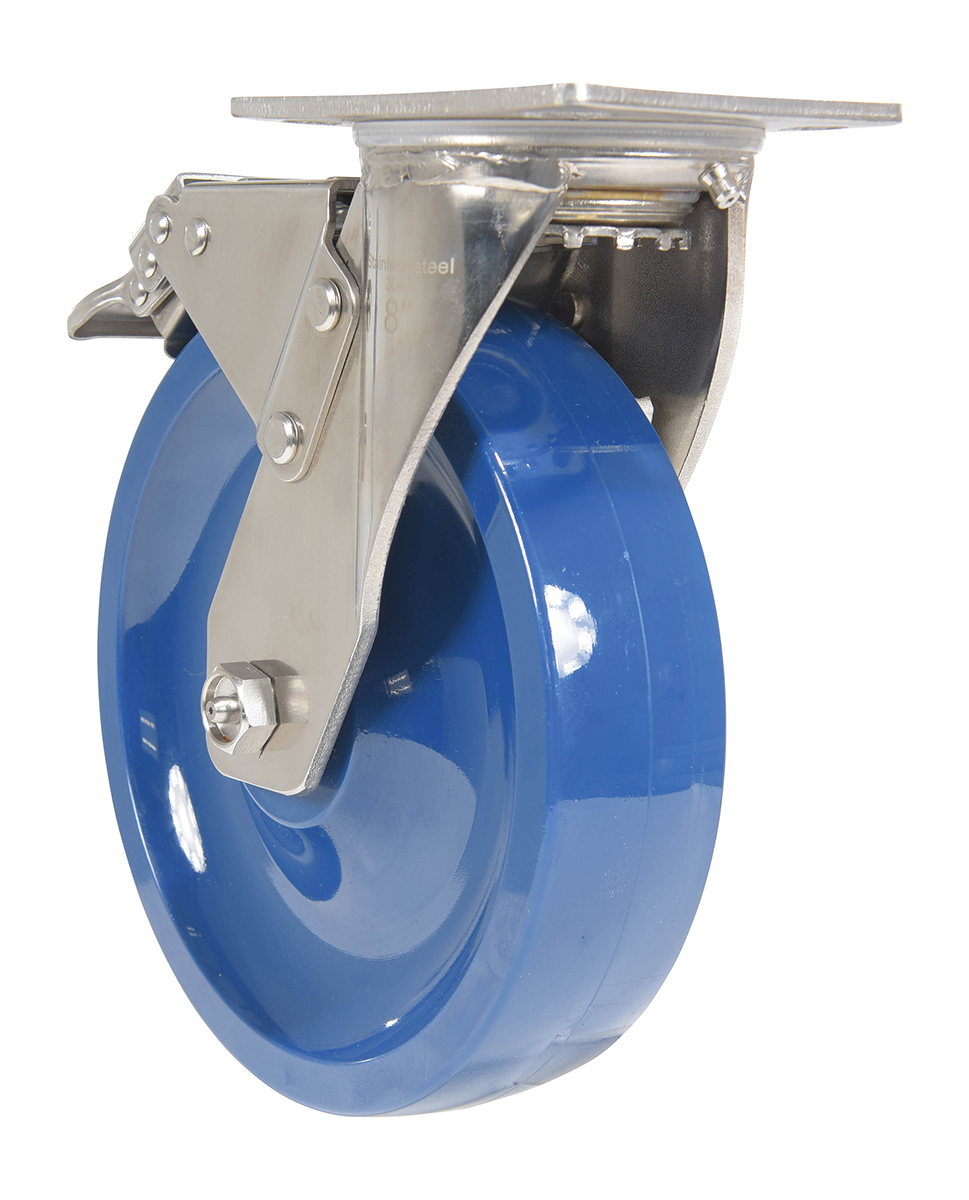

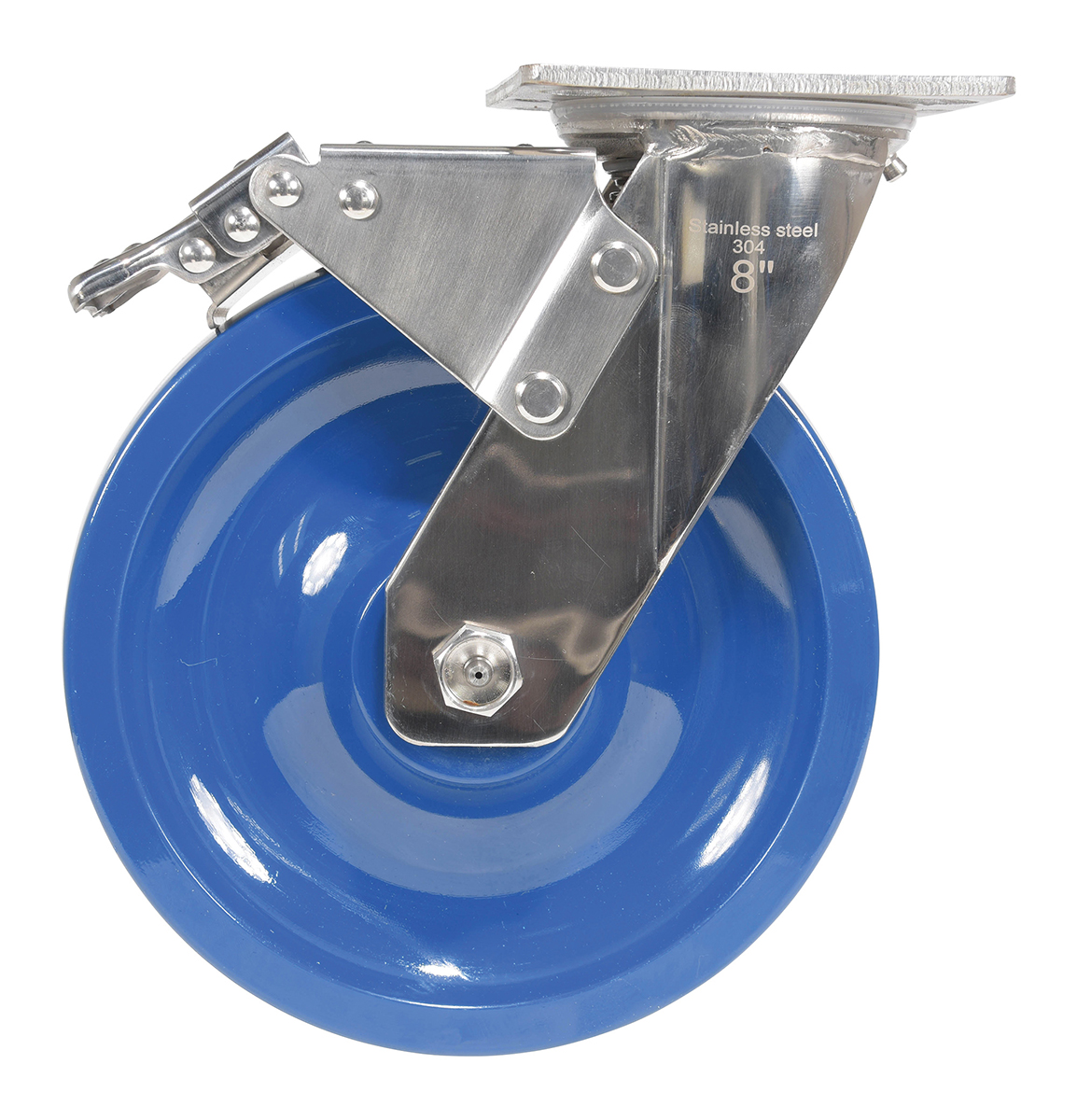

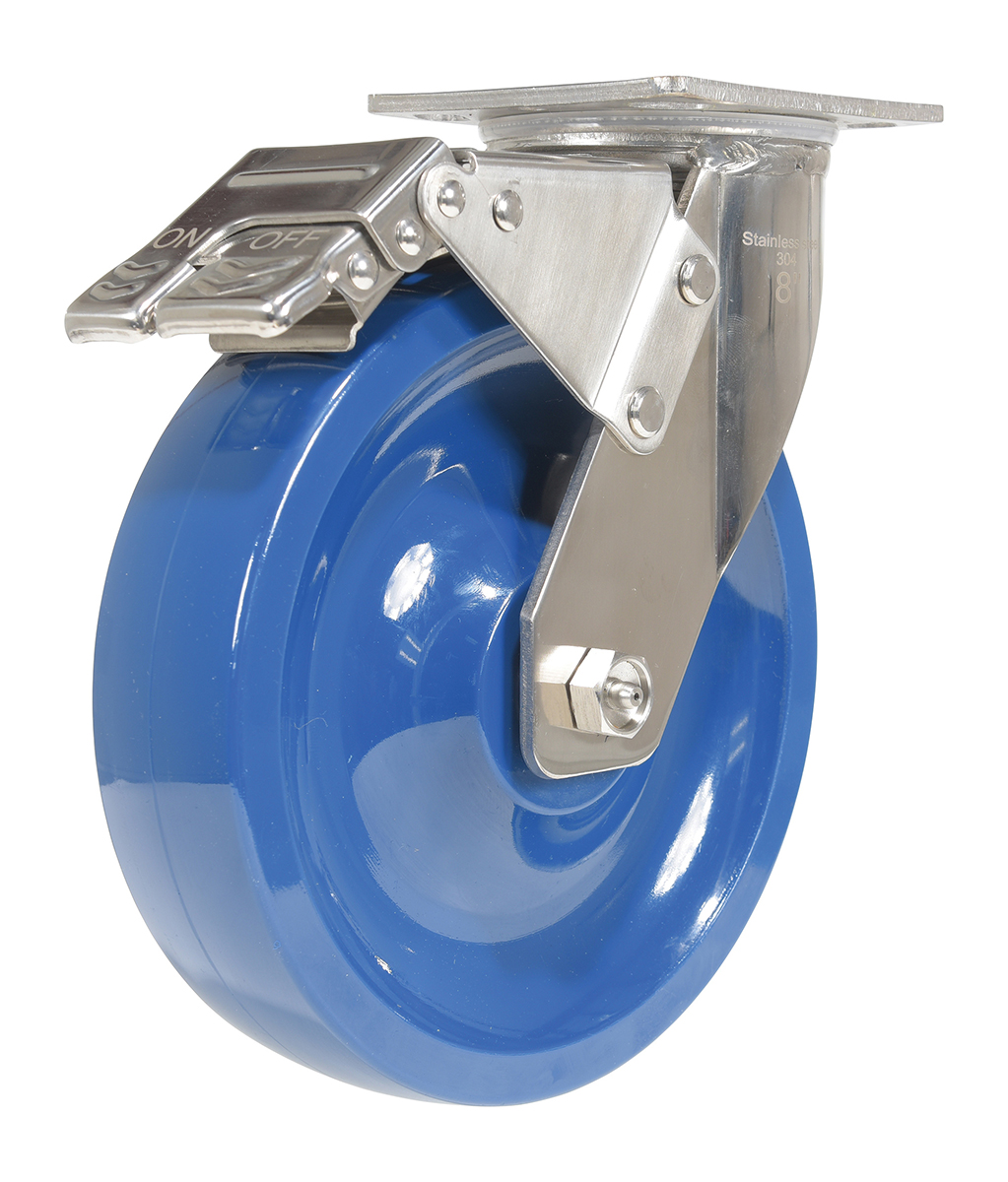

| CST-F-SS-8X2SP-SWTB |  | 3 YEARS Limited Warranty | 8 x 2 | SWIVEL W/TOTAL BRAKE | 1250 | 9-1/2 | 4 x 4-1/2 | 9 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
