Mold On Rubber (On Aluminum) CastersSoft rubber provides a smooth cushioned ride for delicate products. combined with a lightweight, rust resistant aluminum core, this caster is great for wet, outdoor environments.
- High capacity
- Lightweight water resistant aluminum core
- Smooth ride performance
- Quiet operation
- Anti-corrosive & rust resistant zinc plated finish
- Precision ball bearings
Polyurethane Casters (Blue)
TPR(Thermoplastic Rubber) On Stainless Steel Casters
High-Temp Phenolic CastersAdditional Models In This Family
CST-VE-8X2MRA-SWB
CST-VE-6X2MRA-SWTB
CST-VE-6X2MRA-R
CST-VE-8X2MRA-R
CST-VE-5X2MRA-R
CST-VE-8X2MRA-R
CST-VE-8X2MRA-R
CST-VE-5X2MRA-SWB
CST-VE-8X2MRA-R
CST-VE-4X2MRA-S
CST-VE-8X2MRA-S
CST-VE-5X2MRA-SWB
CST-VE-8X2MRA-R
CST-VE-5X2MRA-R
CST-VE-6X2MRA-SWB
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

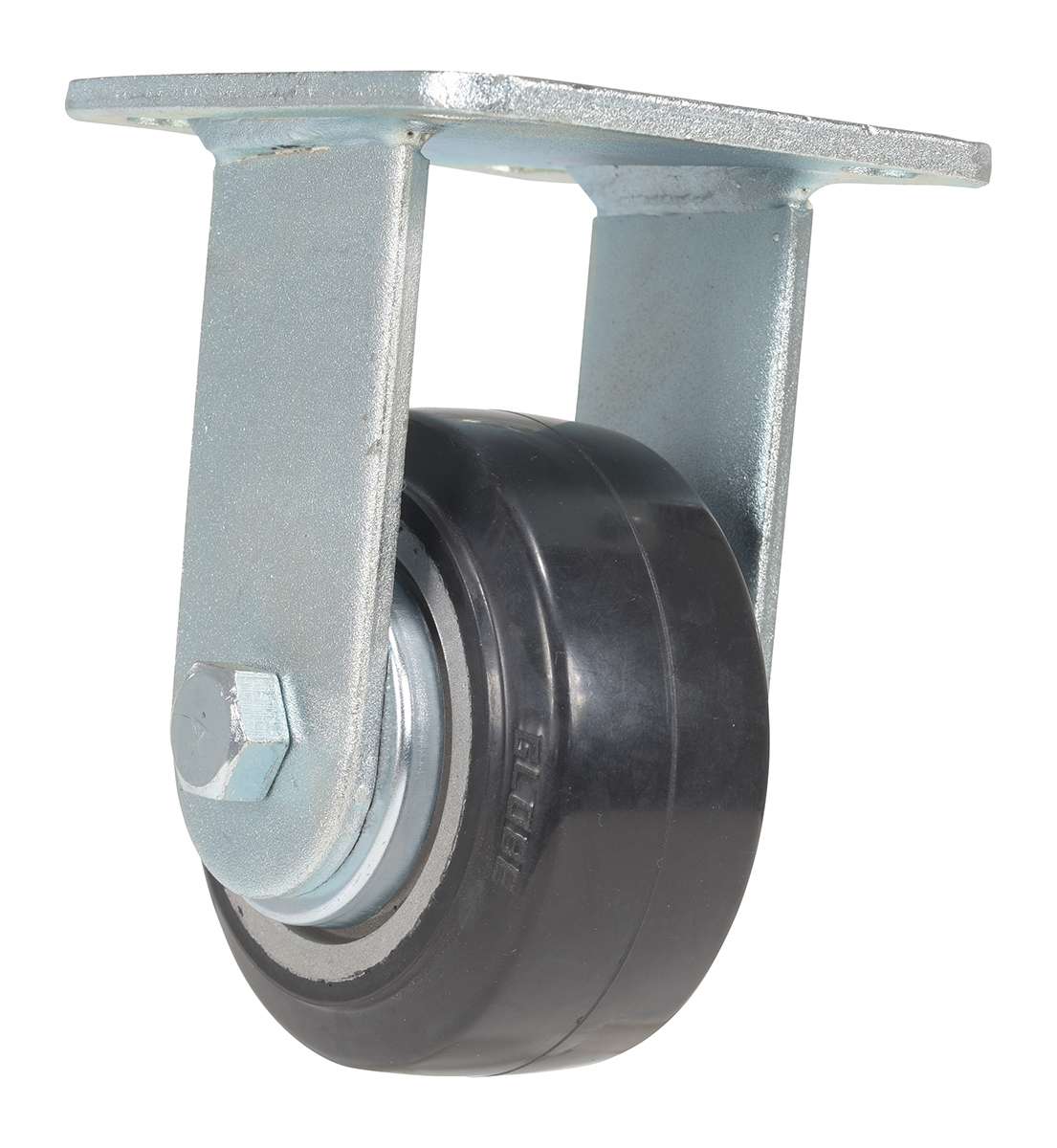

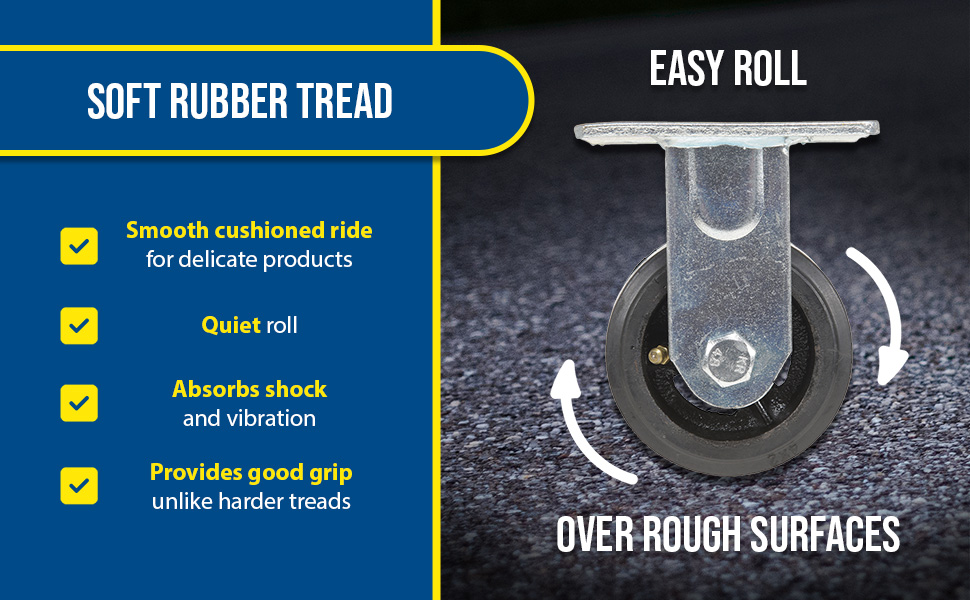

| CST-VE-4X2MRA-R |  | 1 YEAR Limited Warranty | 4 x 2 | RIGID | 551 | 5-5/8 | 4 x 4-1/2 | 5 |

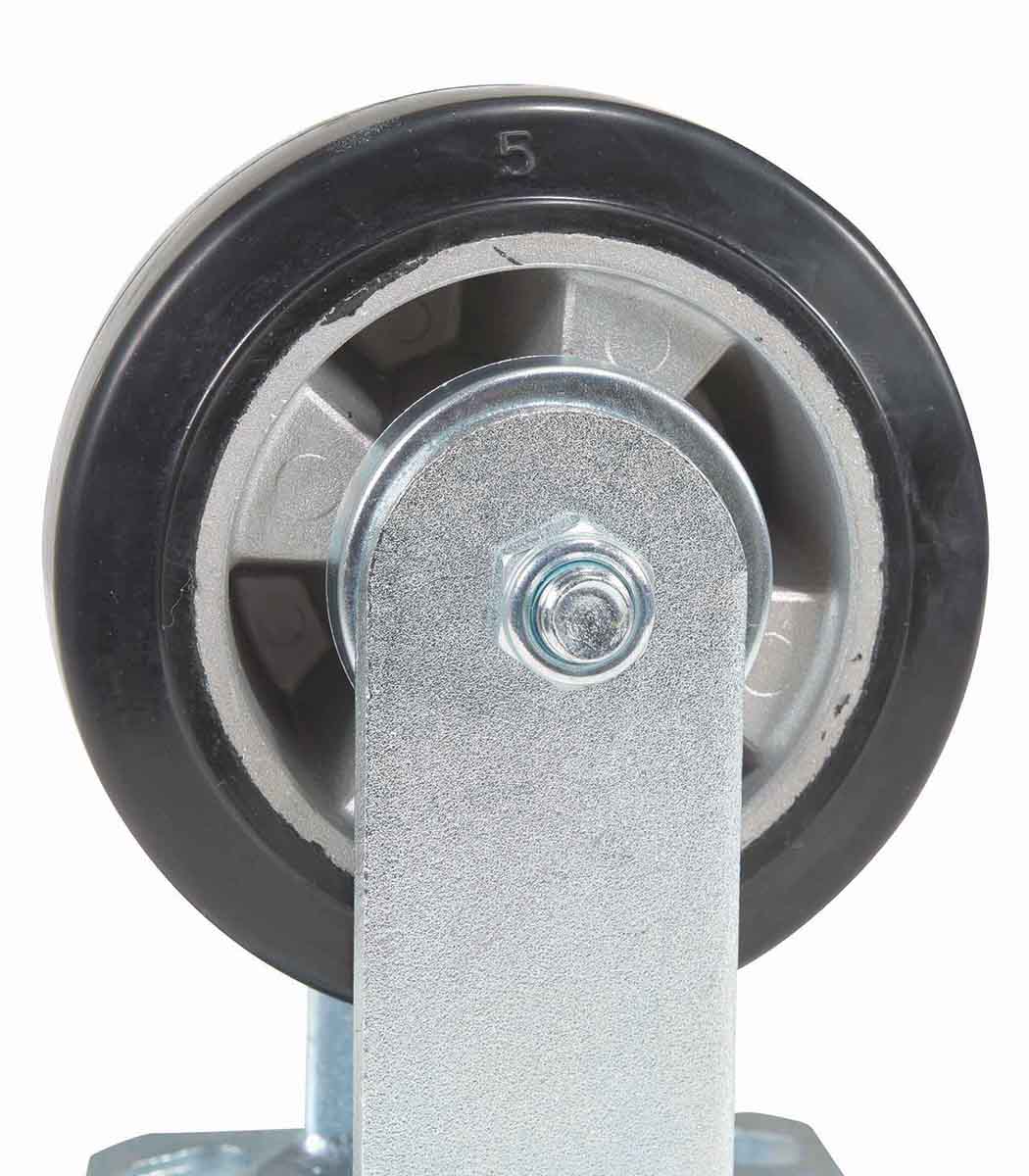

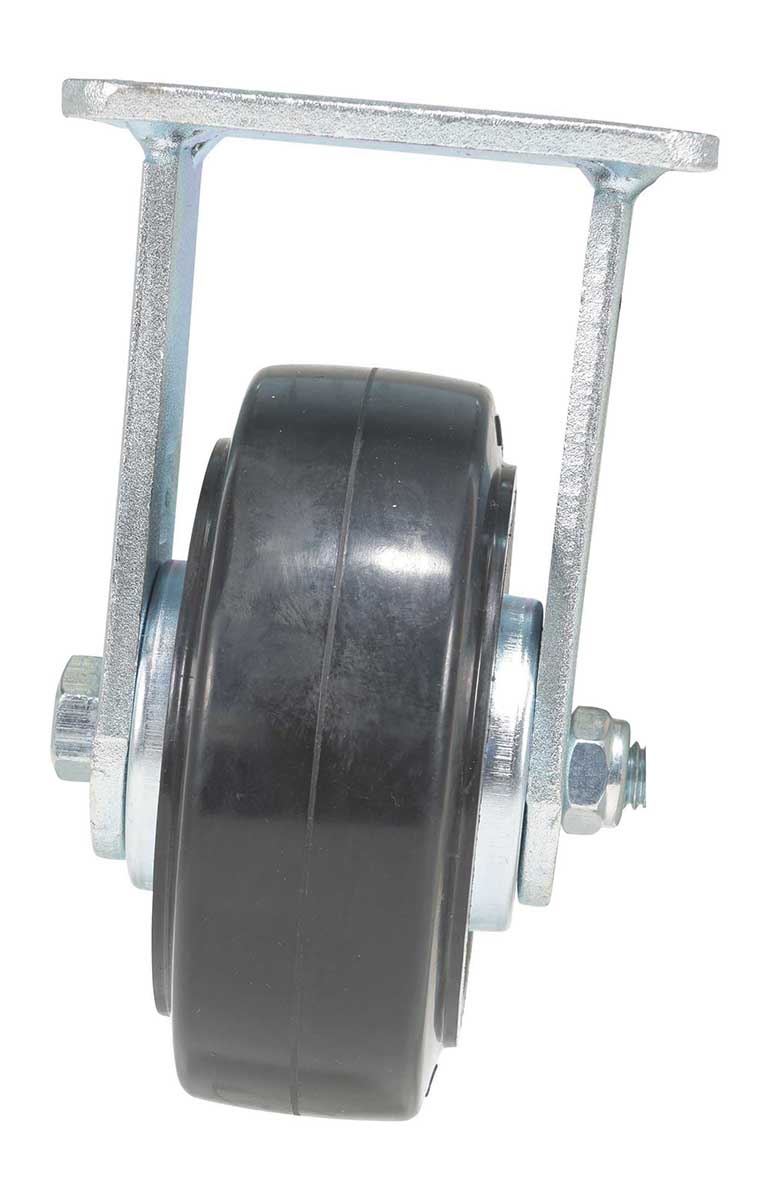

| CST-VE-5X2MRA-R | | 1 YEAR Limited Warranty | 5 x 2 | RIGID | 661 | 6-1/2 | 4 x 4-1/2 | 6 |

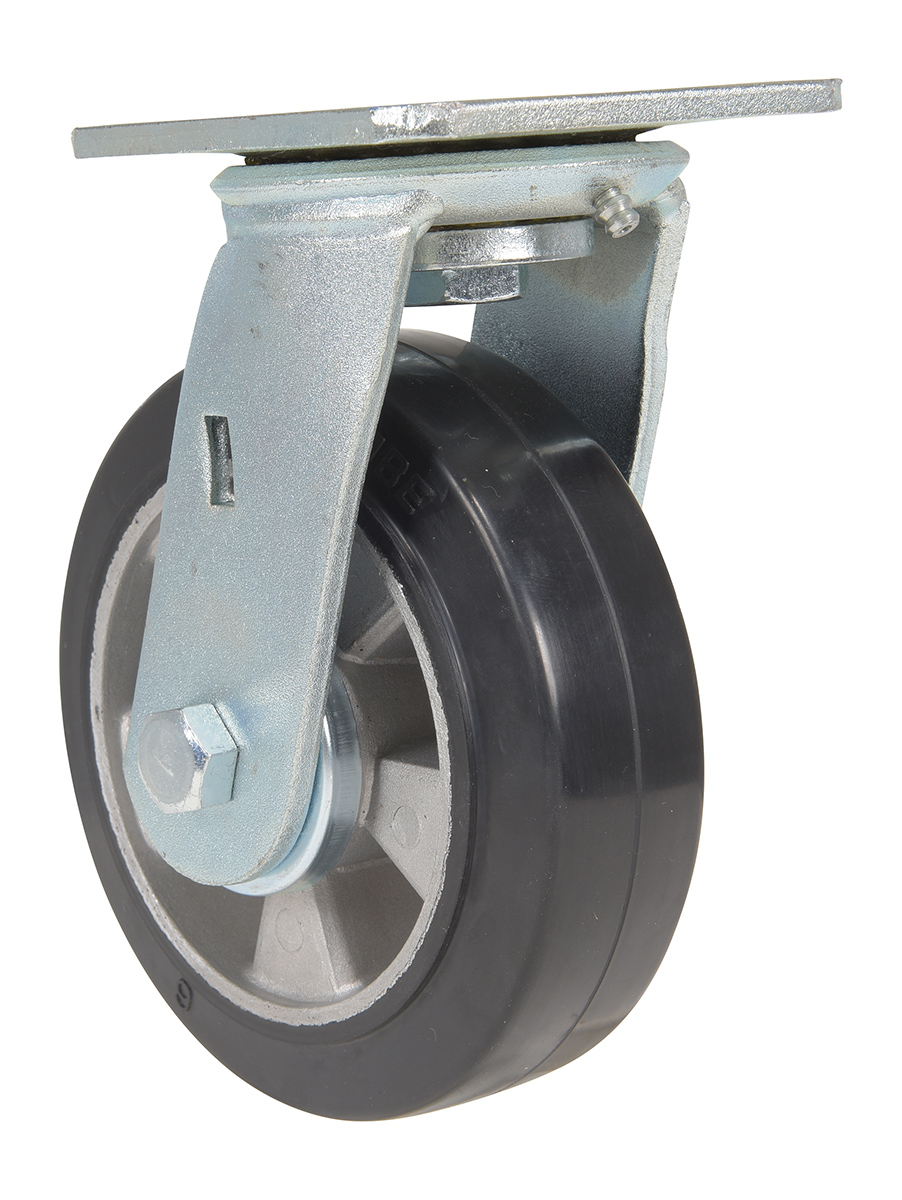

| CST-VE-6X2MRA-R |  | 1 YEAR Limited Warranty | 6 x 2 | RIGID | 771 | 7-1/2 | 4 x 4-1/2 | 6 |

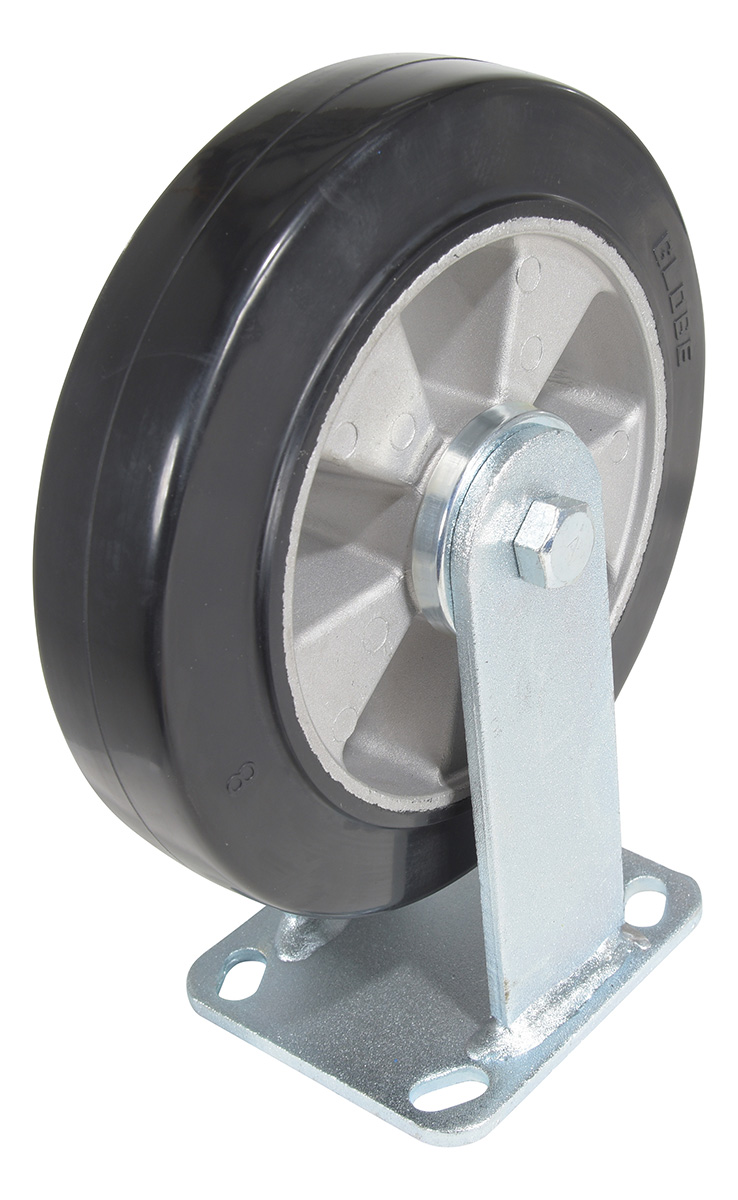

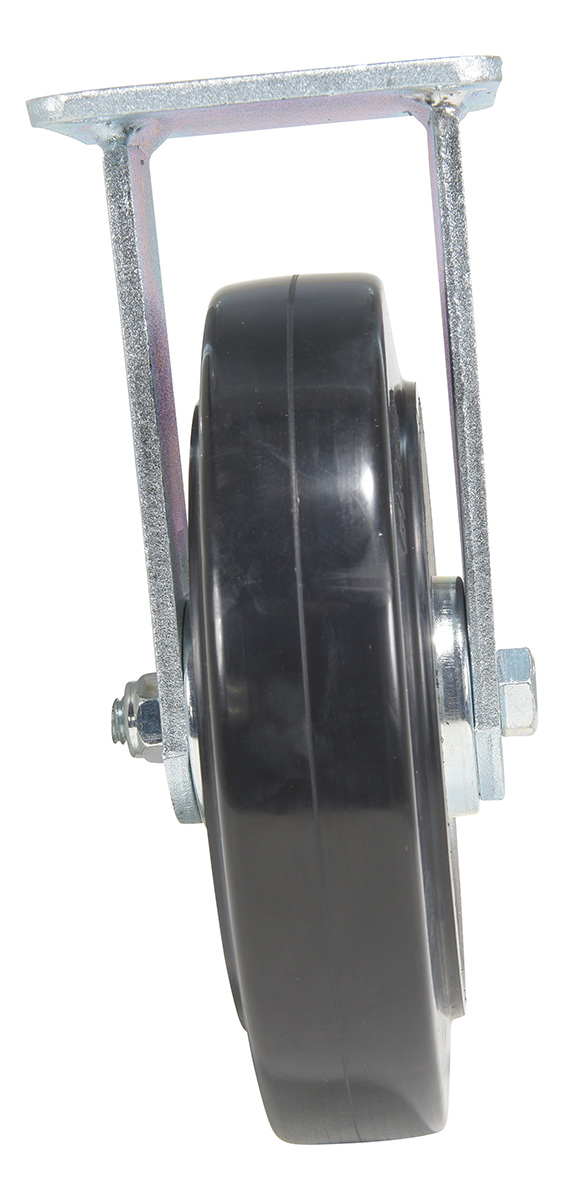

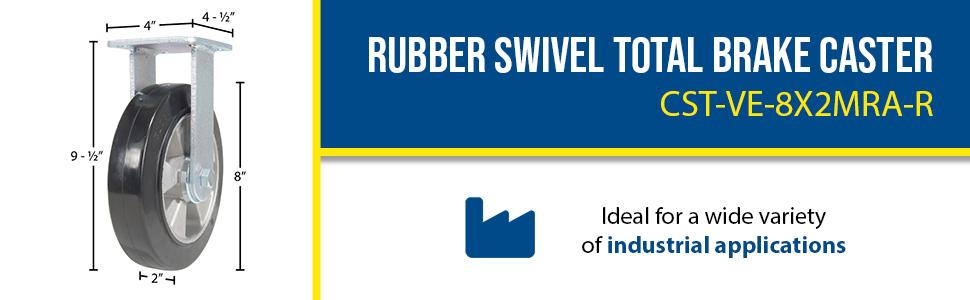

| CST-VE-8X2MRA-R |  | 1 YEAR Limited Warranty | 8 x 2 | RIGID | 881 | 9-1/2 | 4 x 4-1/2 | 8 |

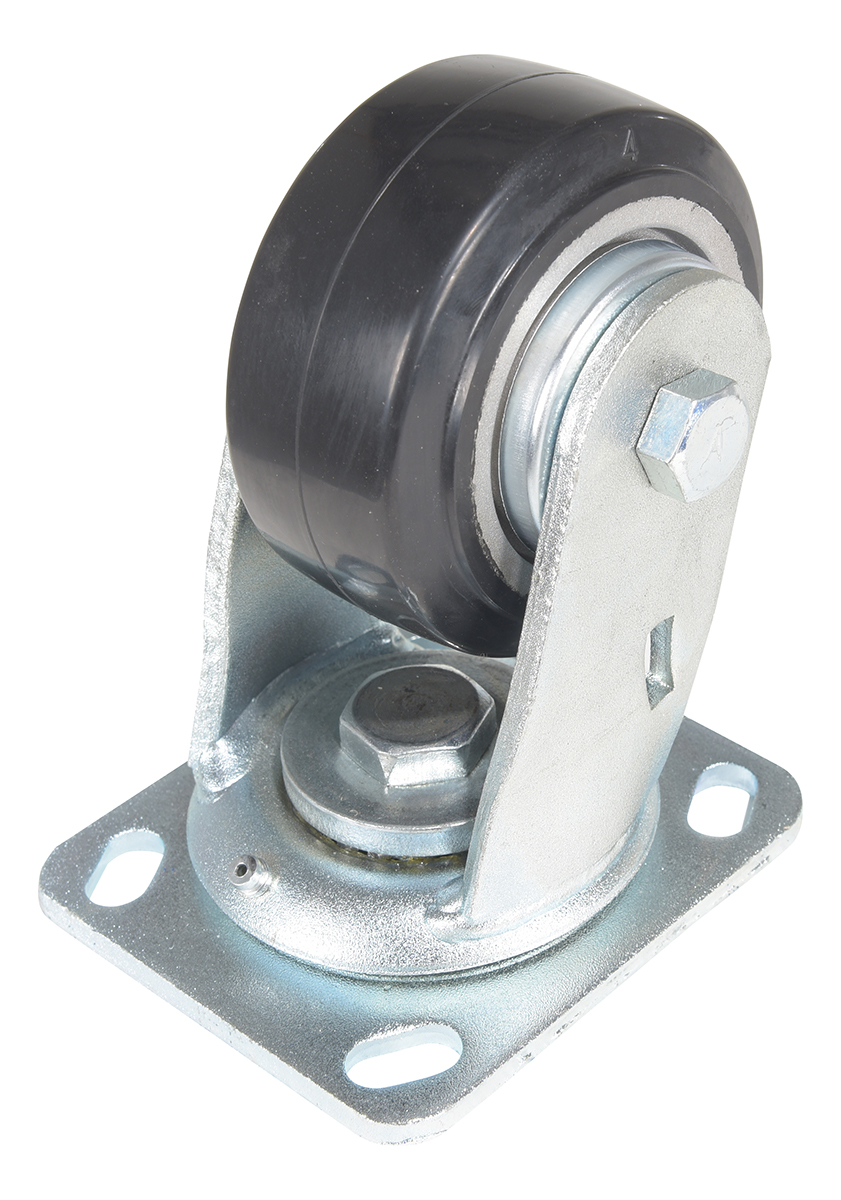

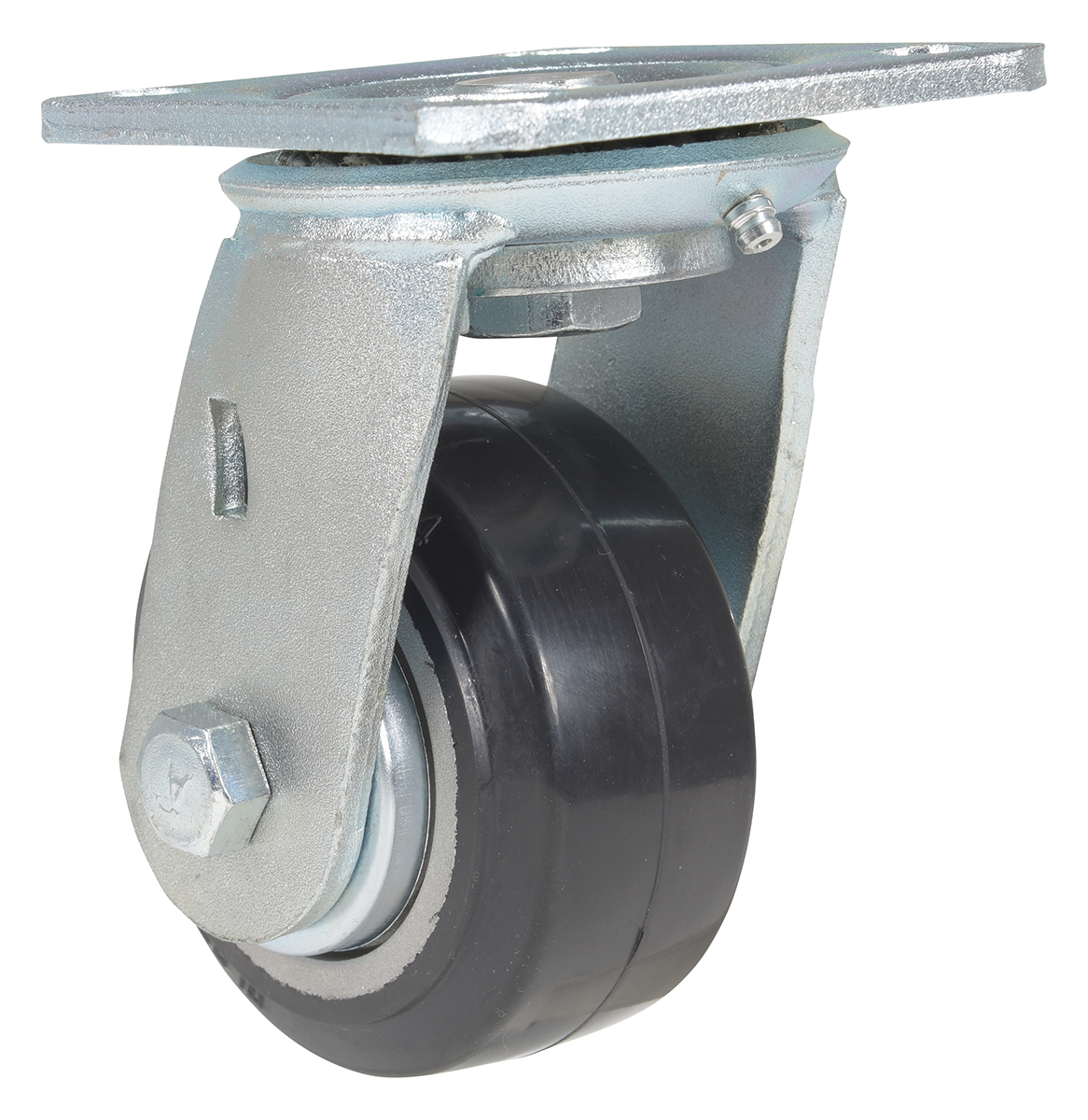

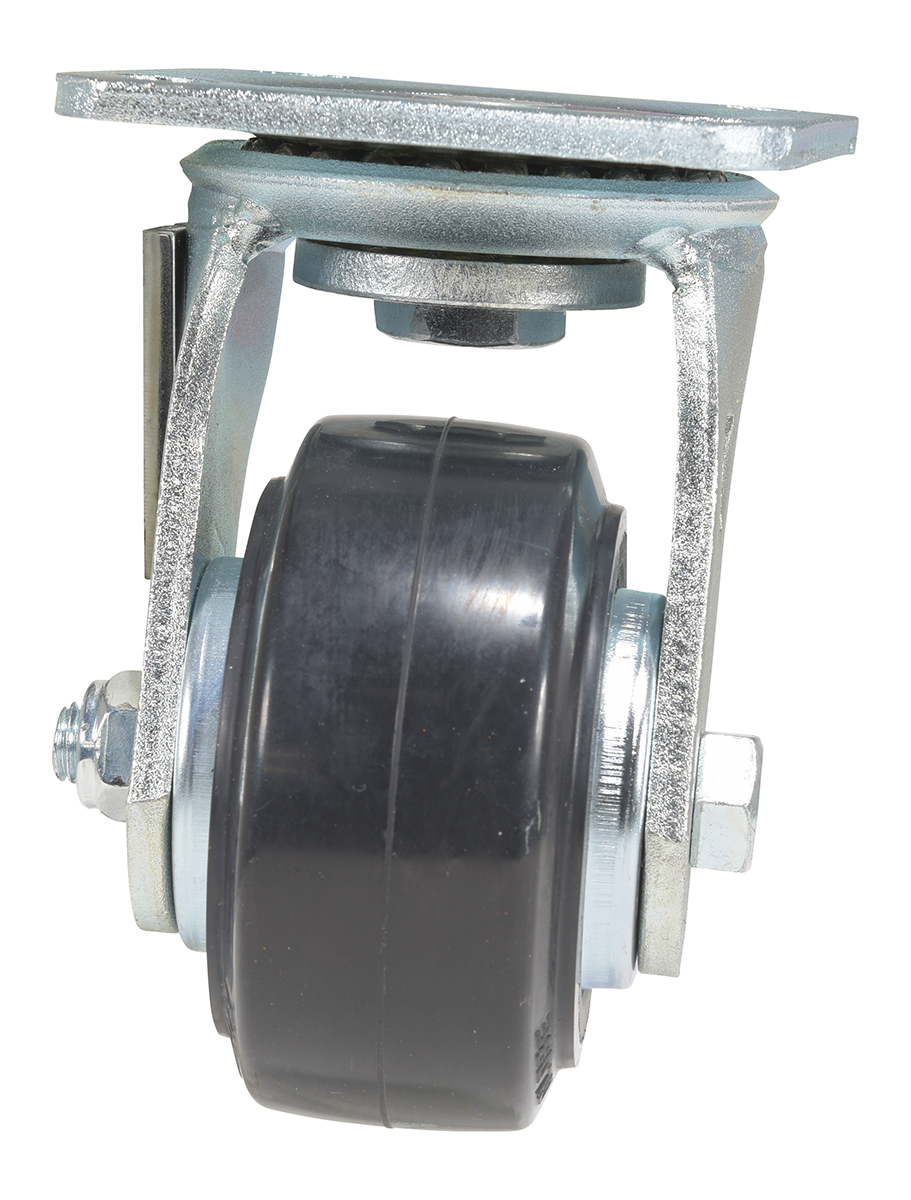

| CST-VE-4X2MRA-S |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL | 551 | 5-5/8 | 4 x 4-1/2 | 6 |

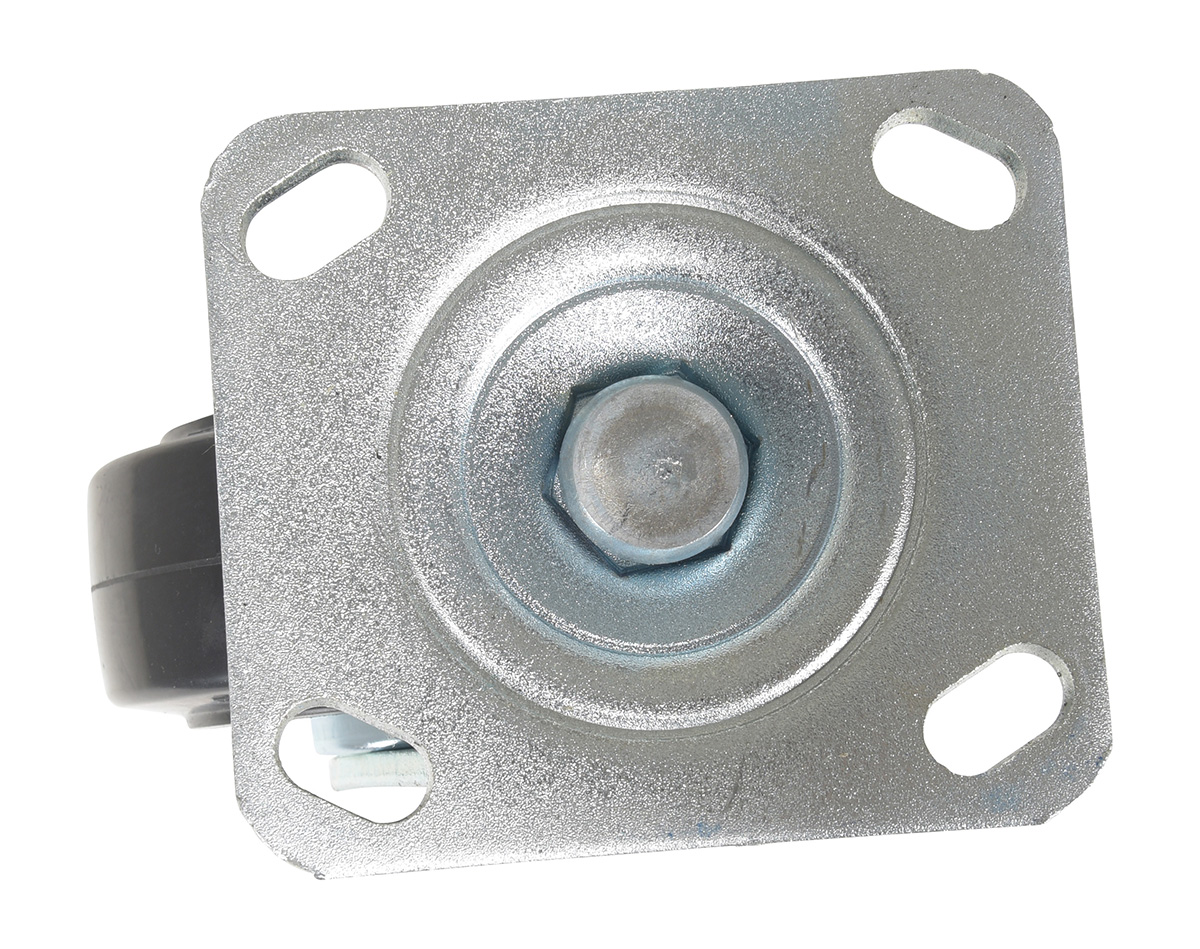

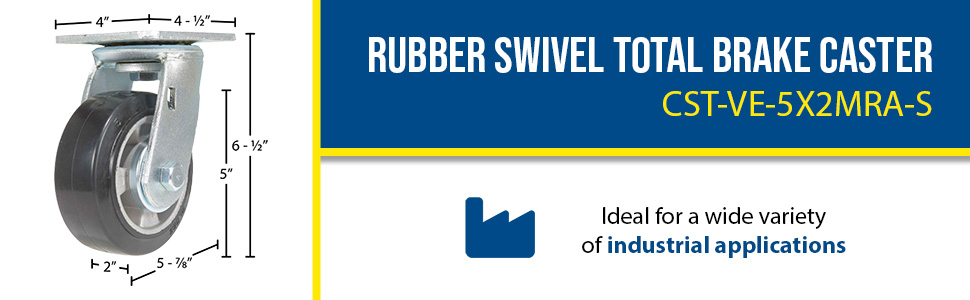

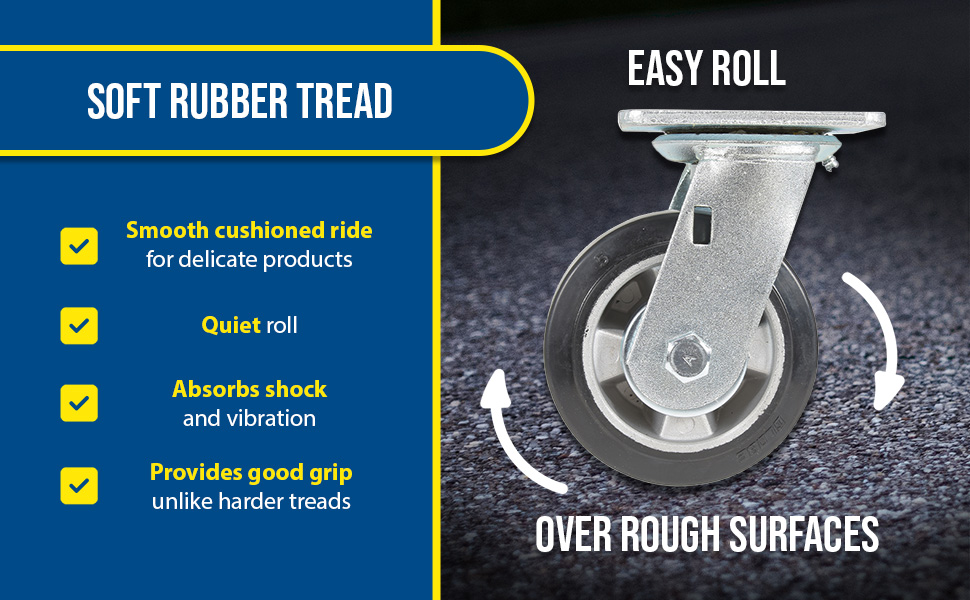

| CST-VE-5X2MRA-S |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL | 661 | 6-1/2 | 4 x 4-1/2 | 8 |

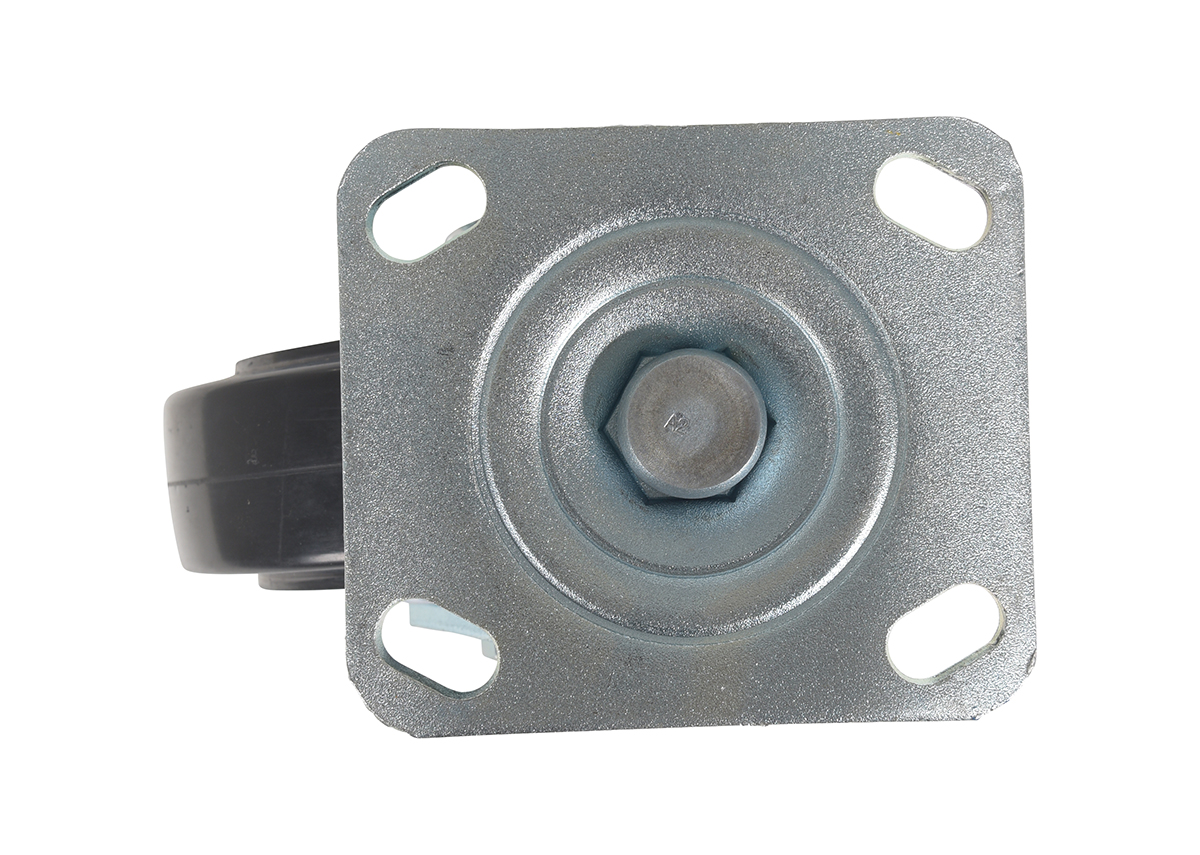

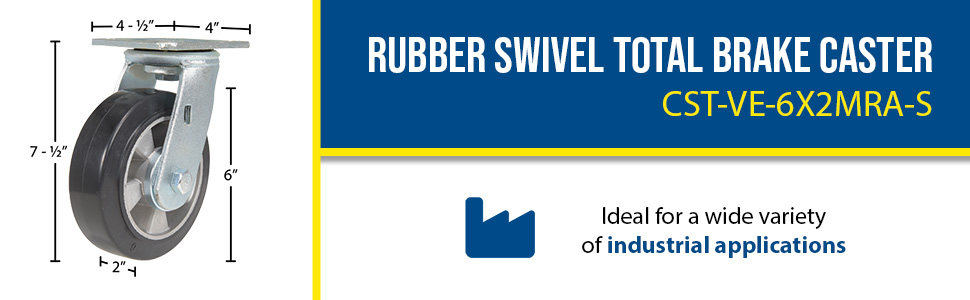

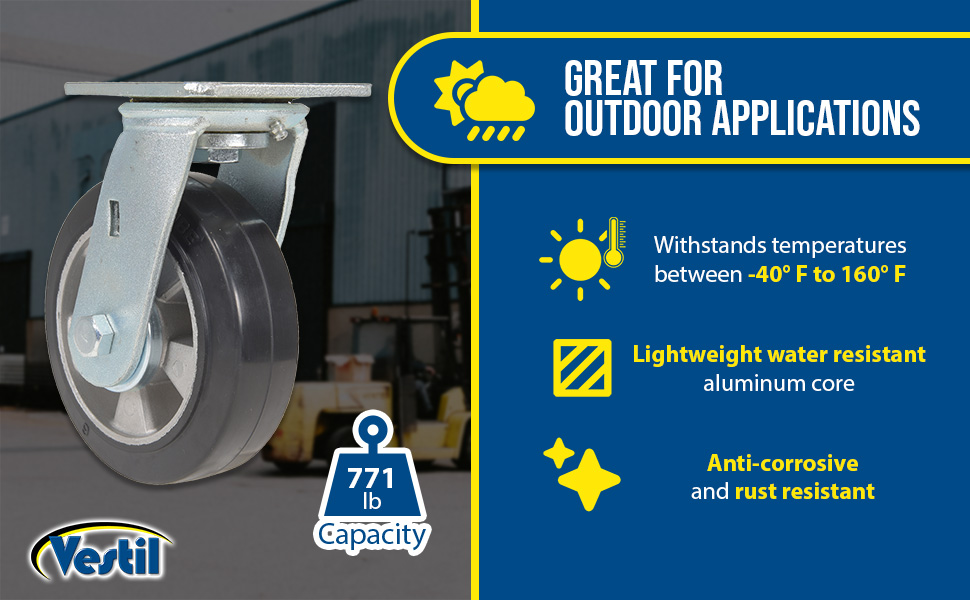

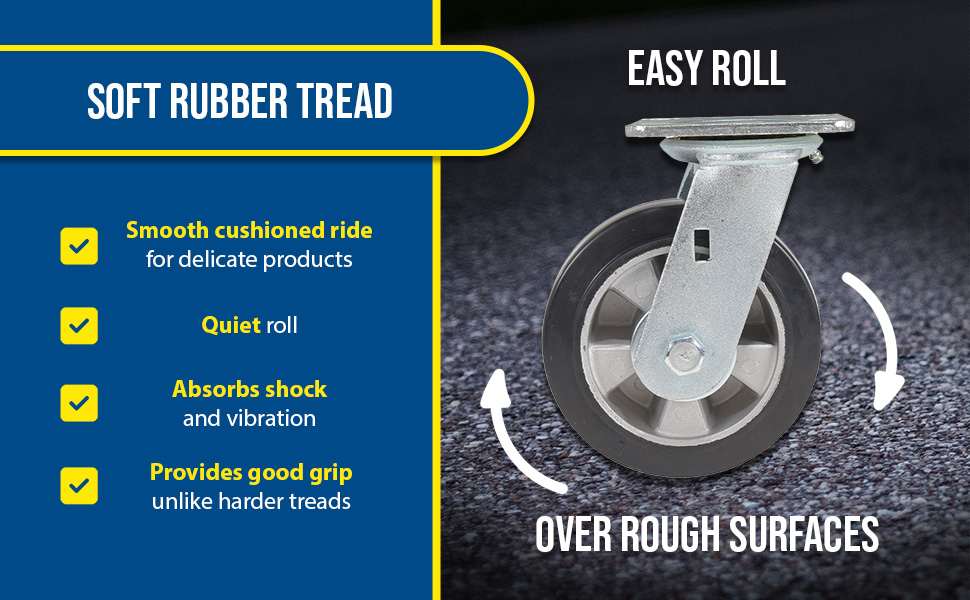

| CST-VE-6X2MRA-S |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL | 771 | 7-1/2 | 4 x 4-1/2 | 7 |

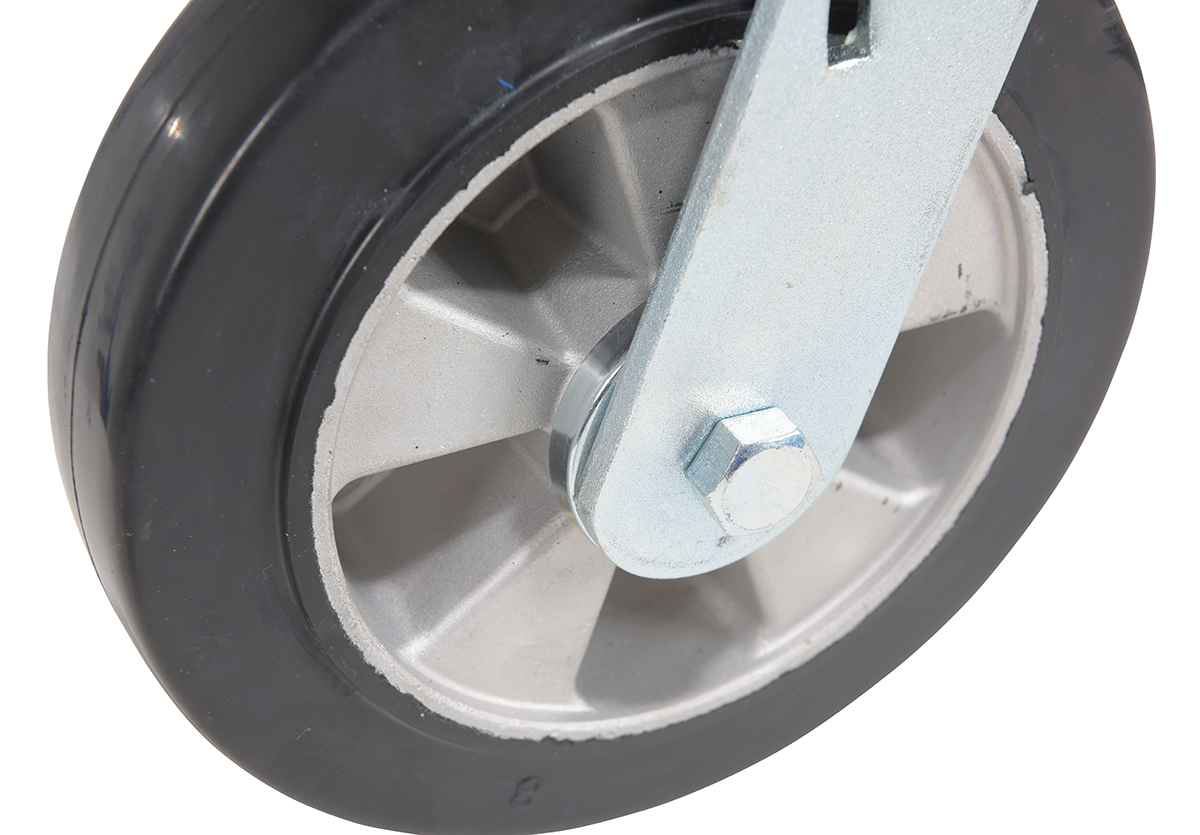

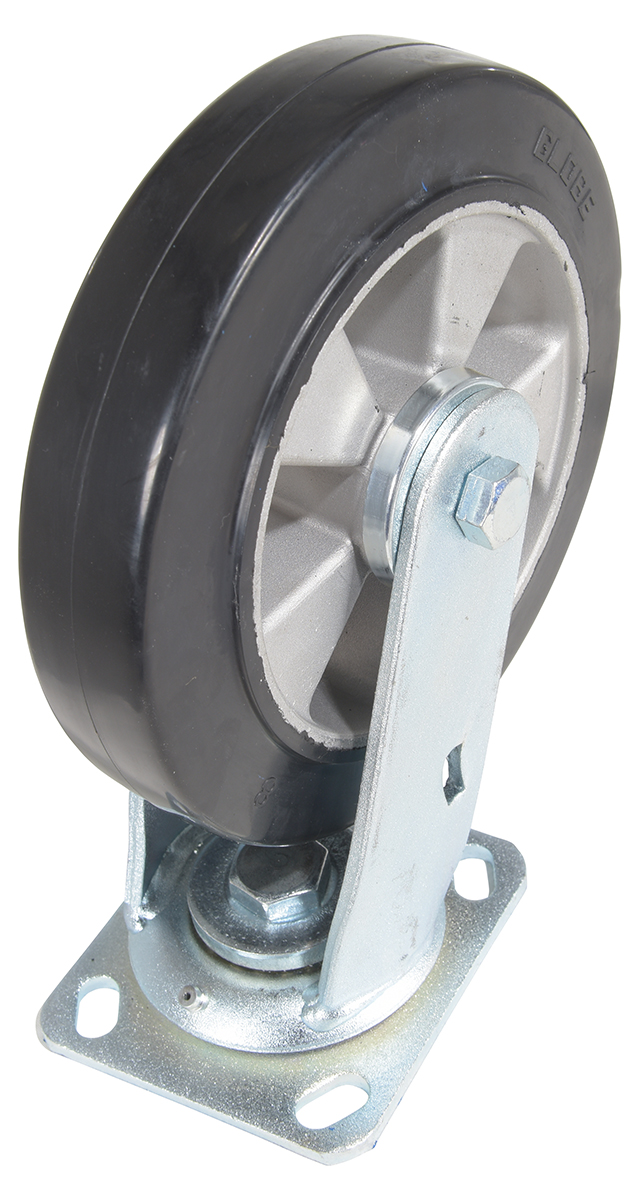

| CST-VE-8X2MRA-S |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL | 881 | 9-1/2 | 4 x 4-1/2 | 9 |

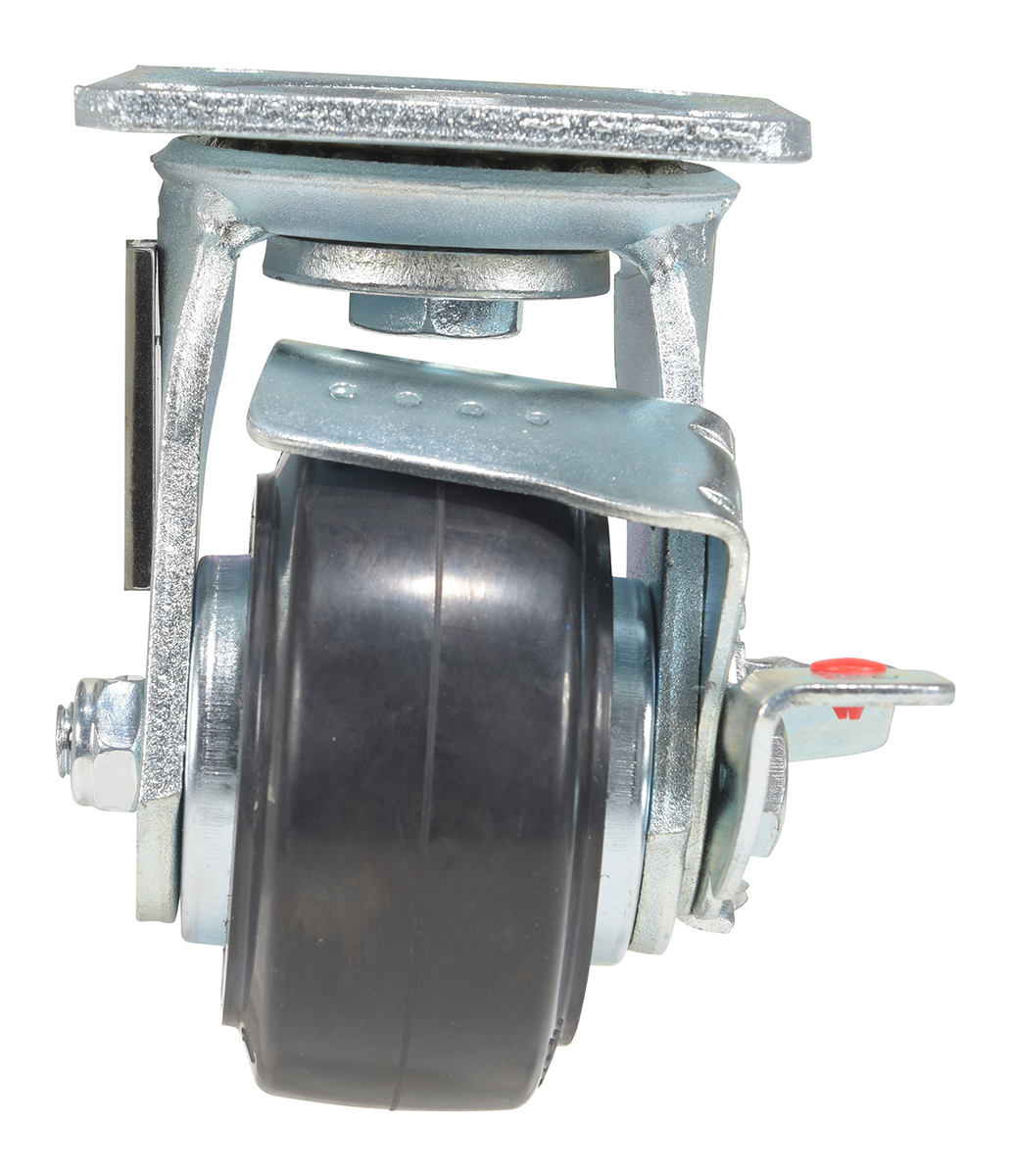

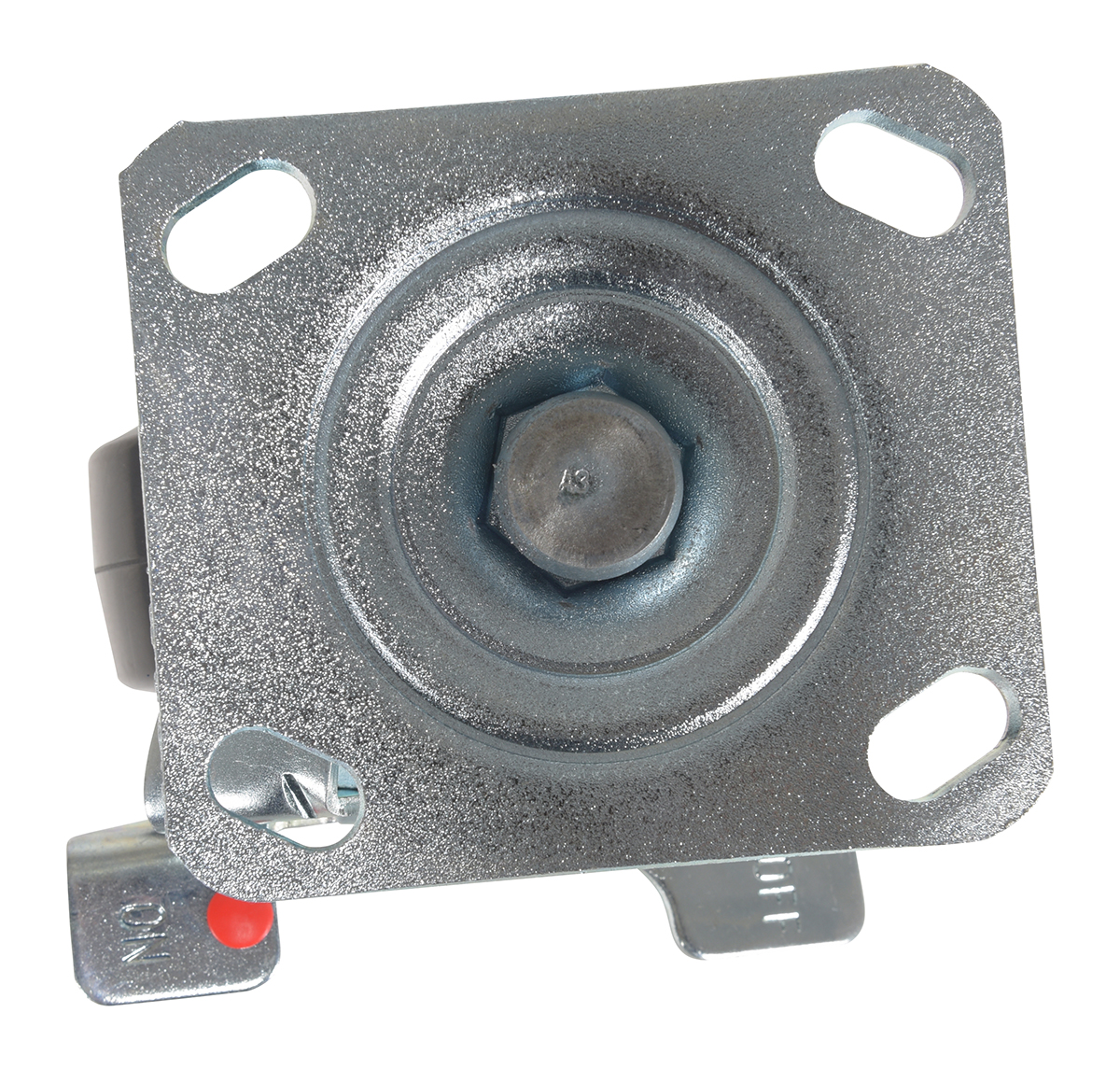

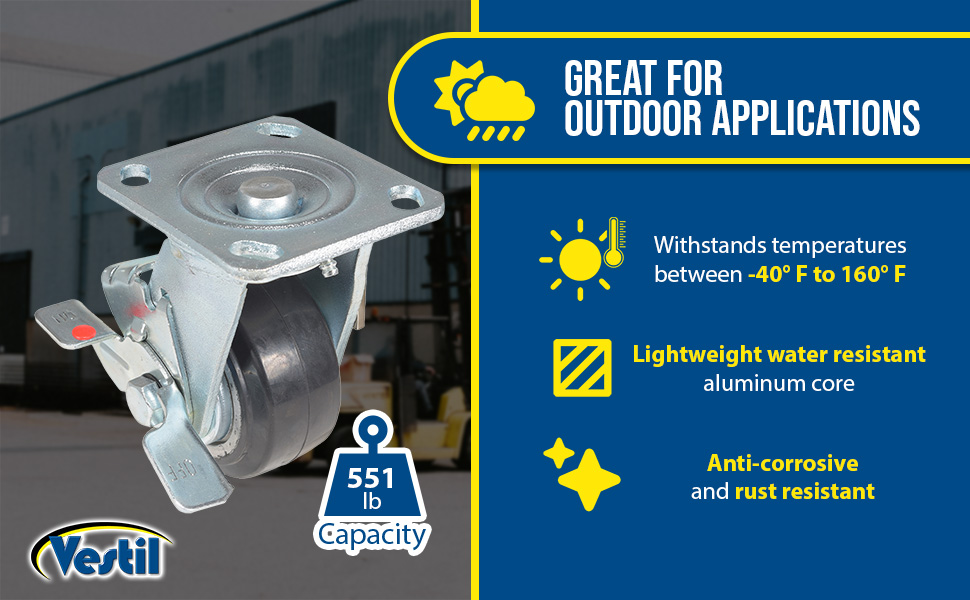

| CST-VE-4X2MRA-SWB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/BRAKE | 551 | 5-5/8 | 4 x 4-1/2 | 6 |

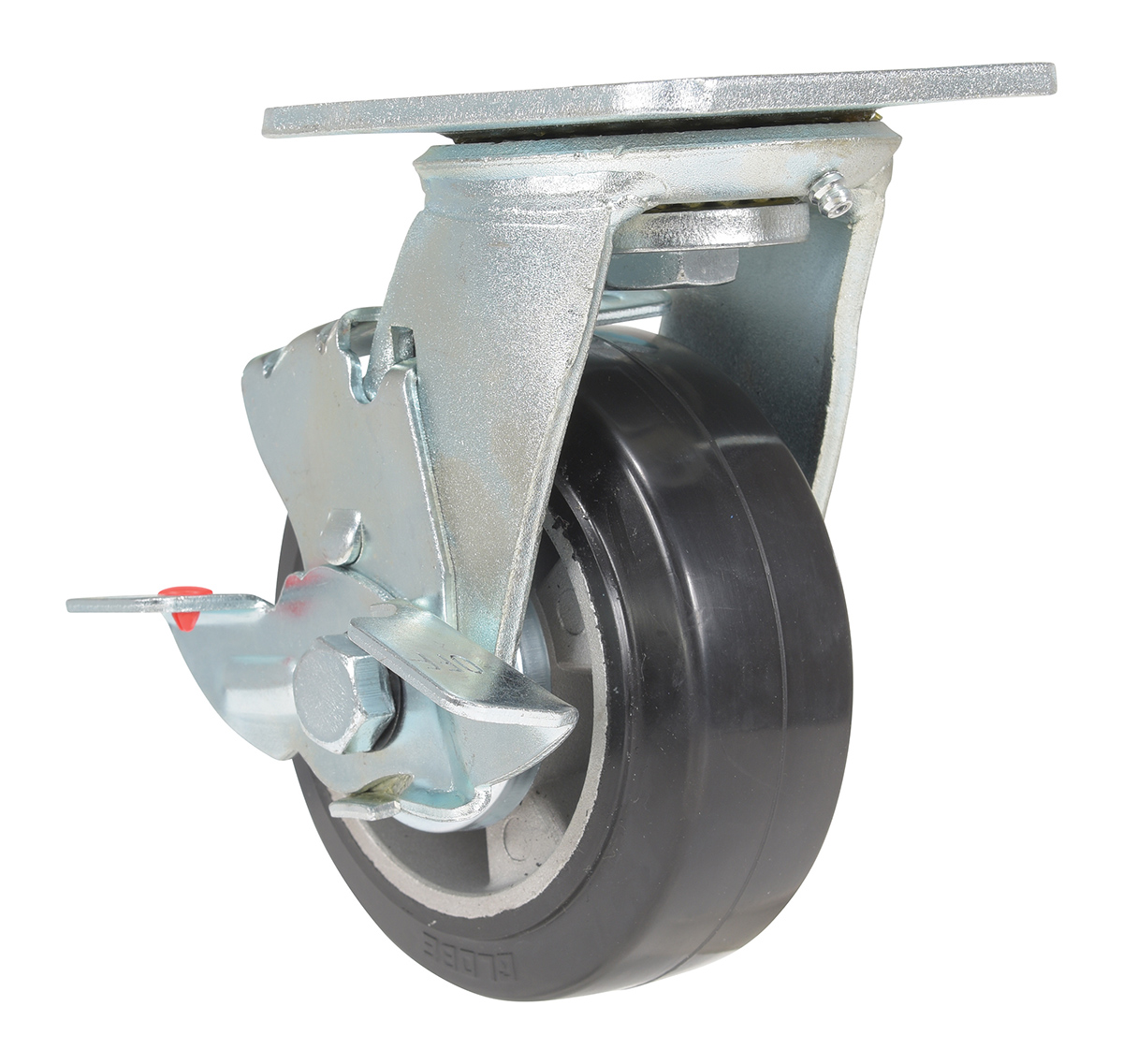

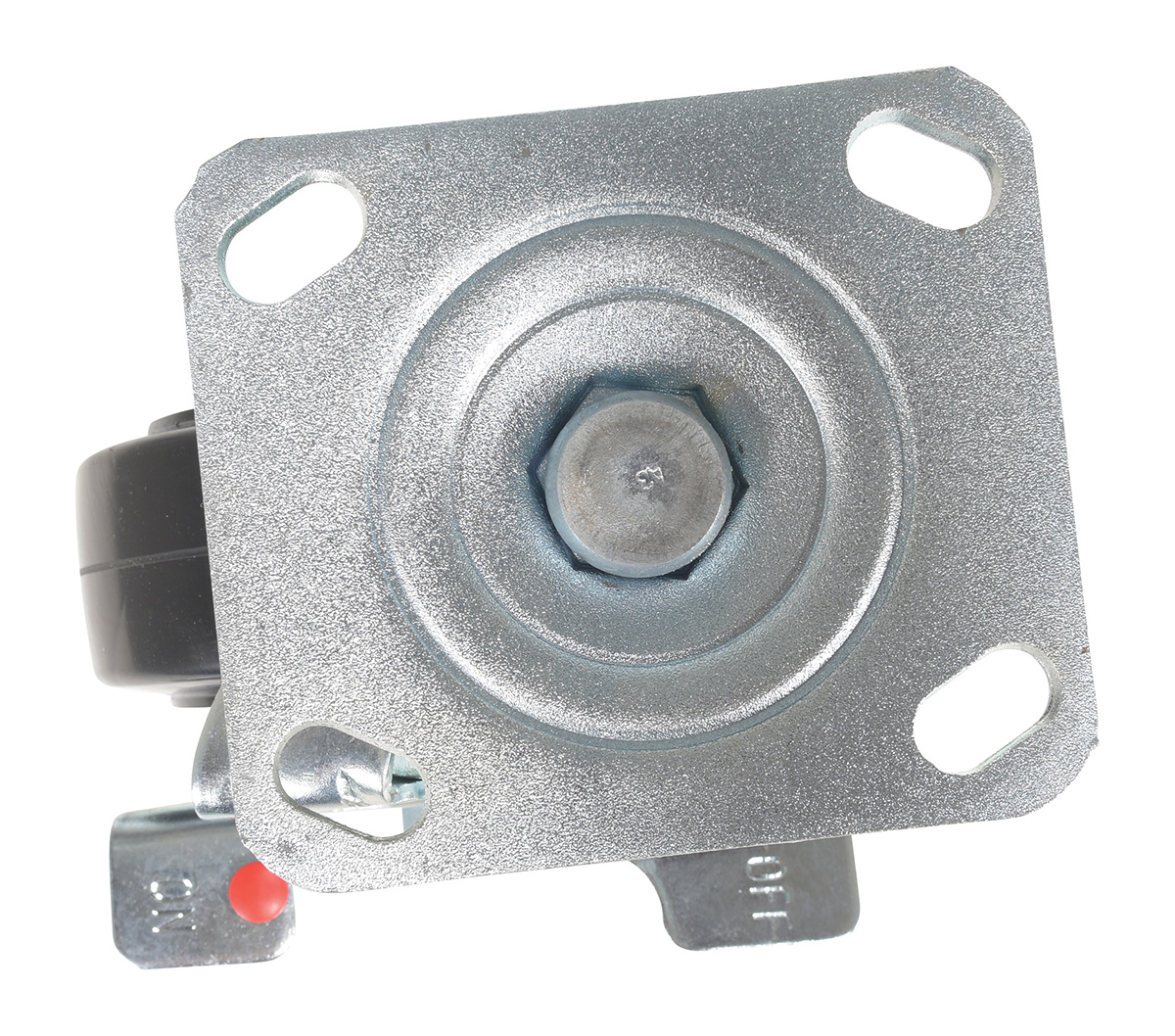

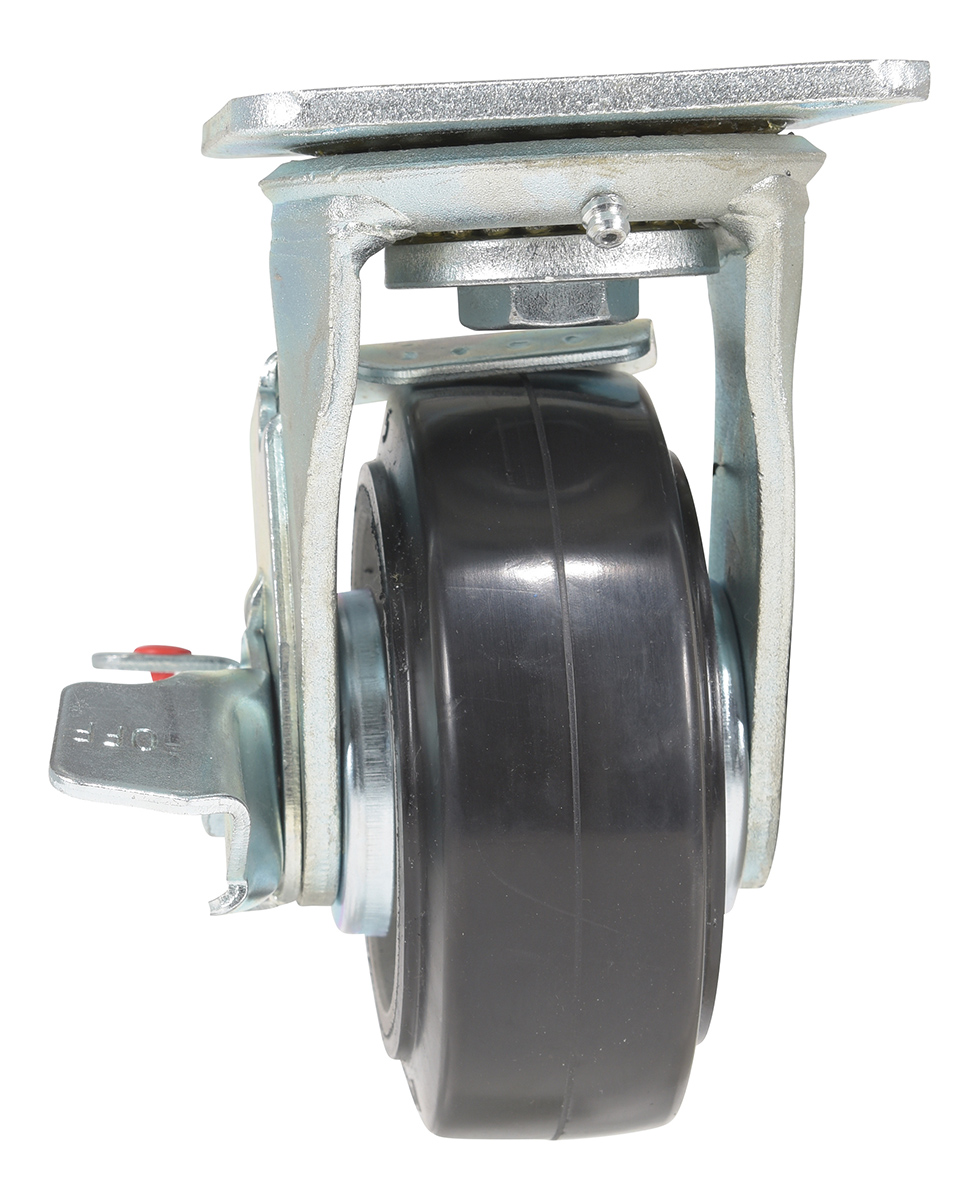

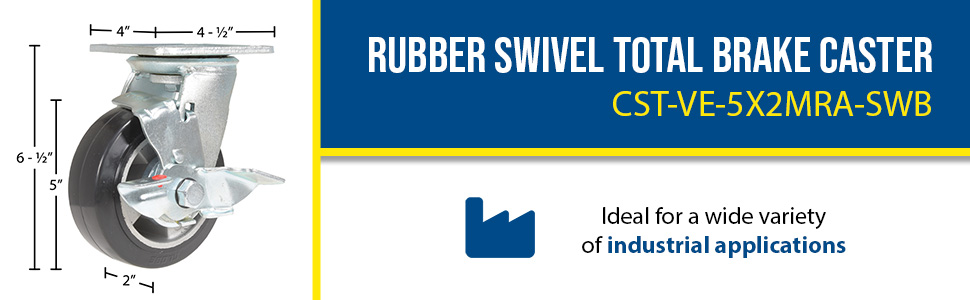

| CST-VE-5X2MRA-SWB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/BRAKE | 661 | 6-1/2 | 4 x 4-1/2 | 7 |

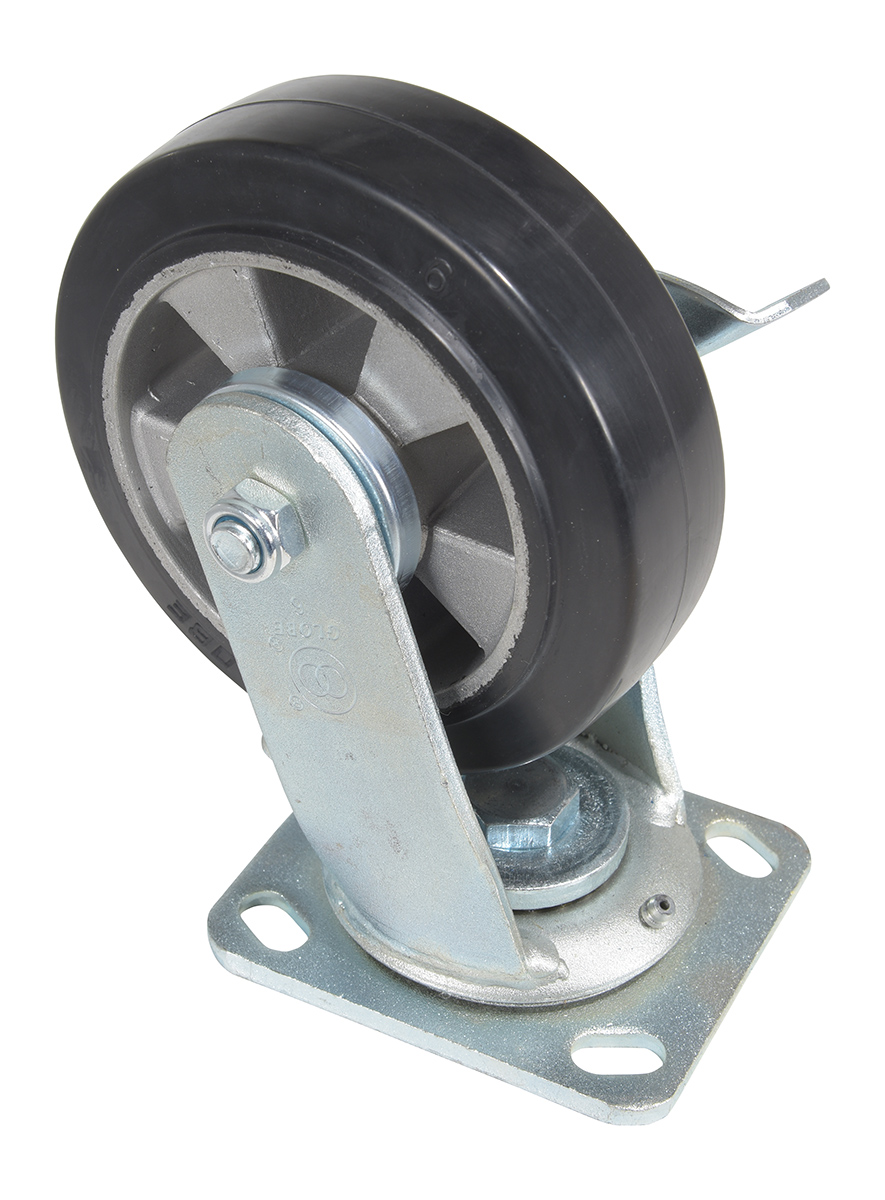

| CST-VE-6X2MRA-SWB | | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 771 | 7-1/2 | 4 x 4-1/2 | 8 |
| CST-VE-8X2MRA-SWB | | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/BRAKE | 881 | 9-1/2 | 4 x 4-1/2 | 10 |

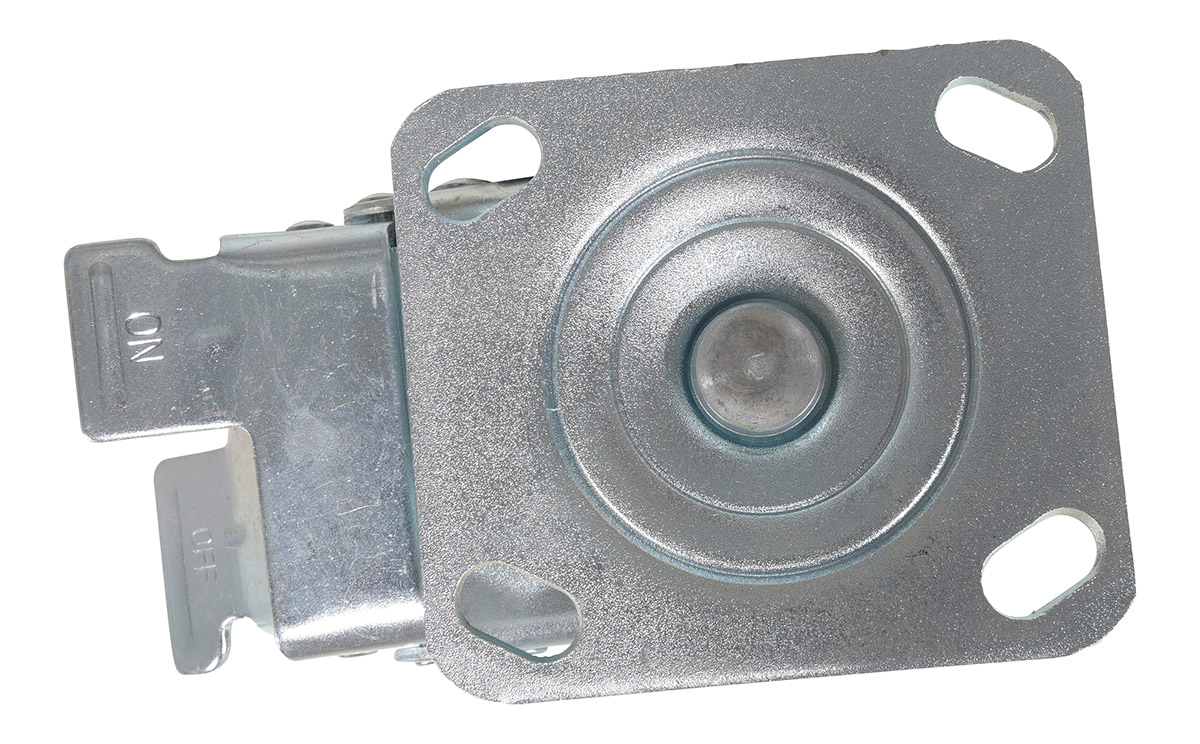

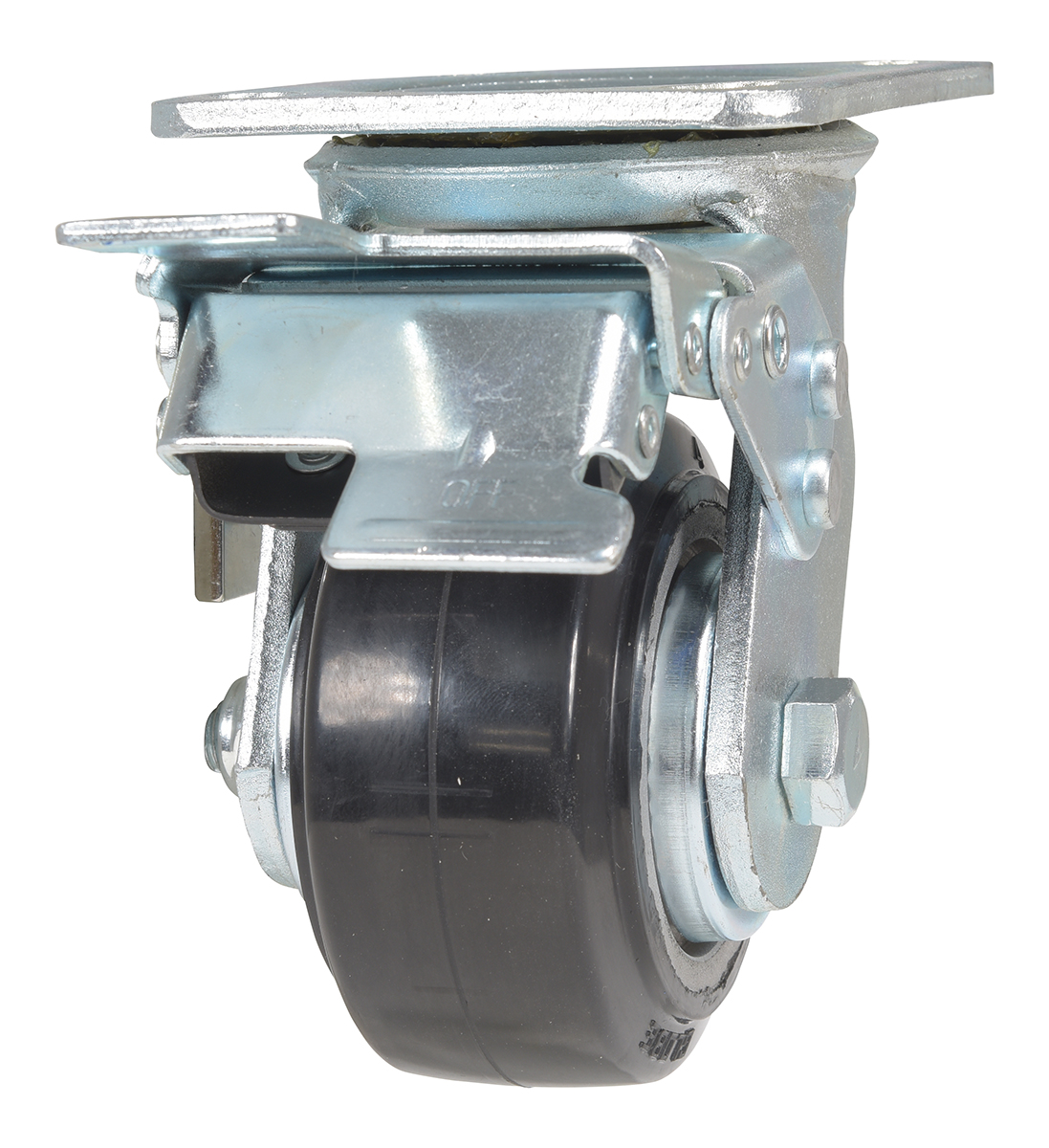

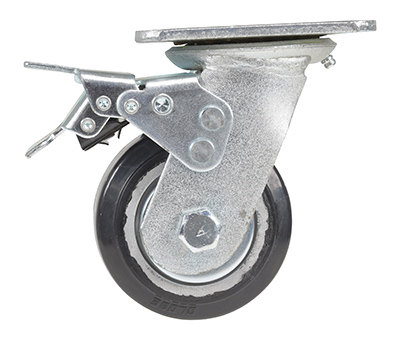

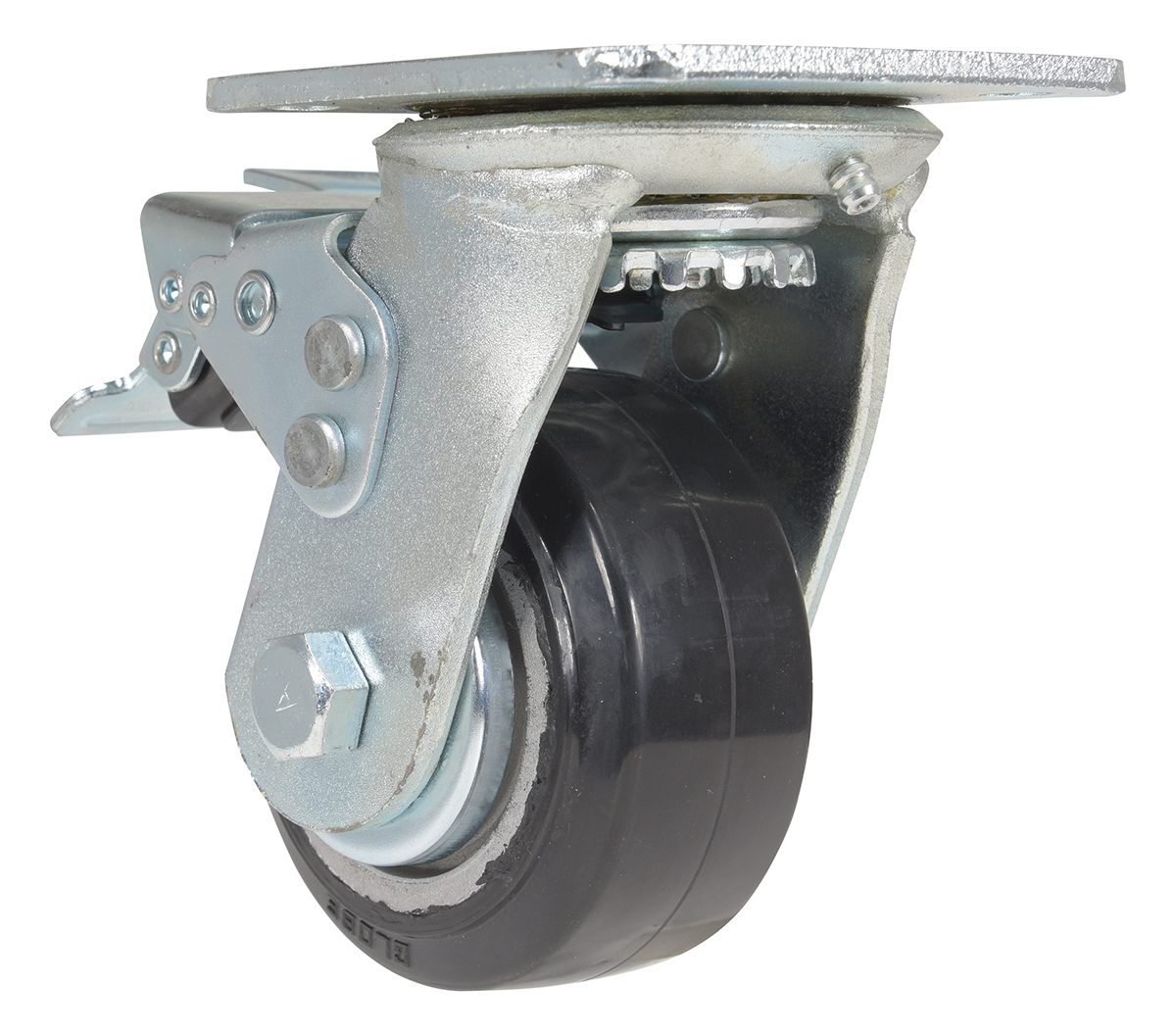

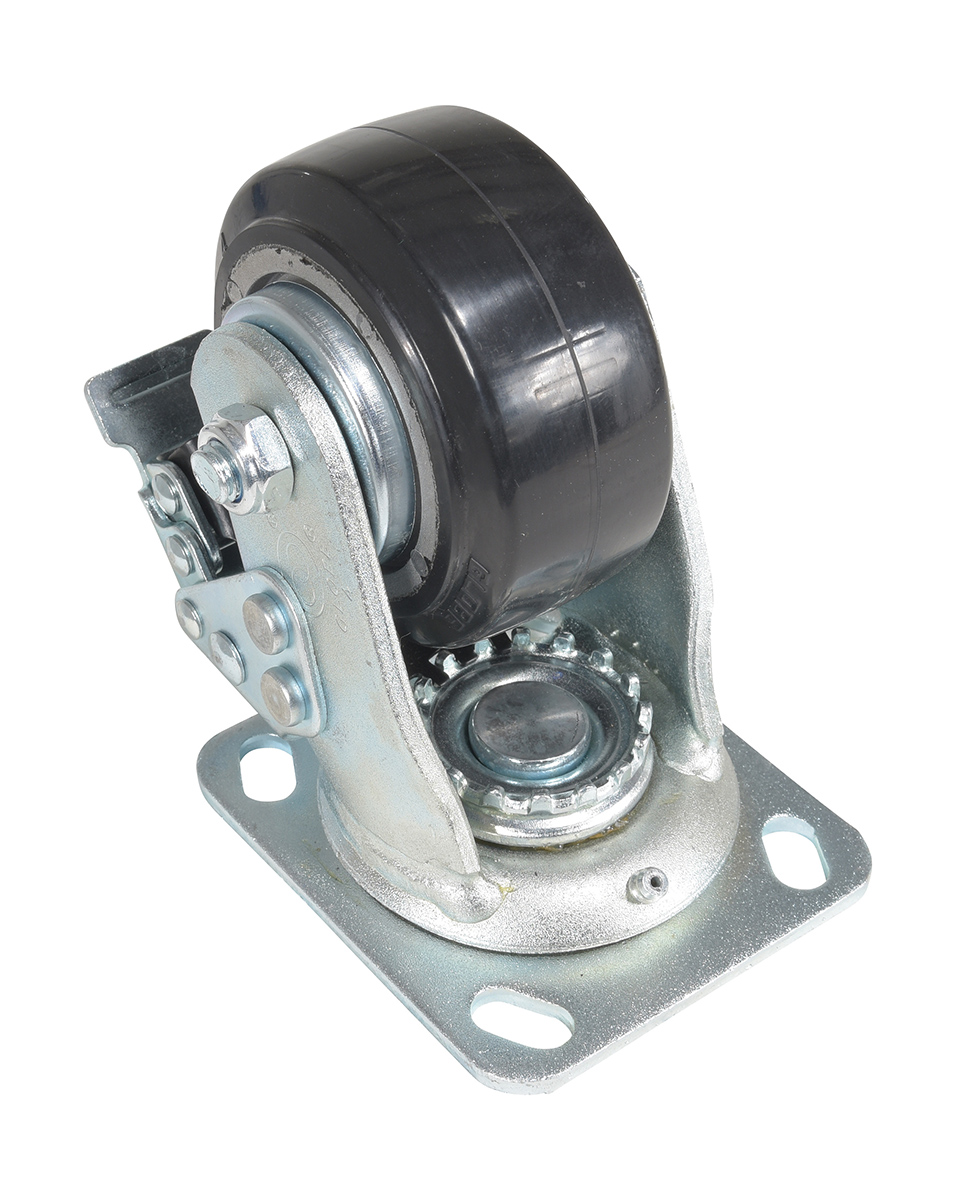

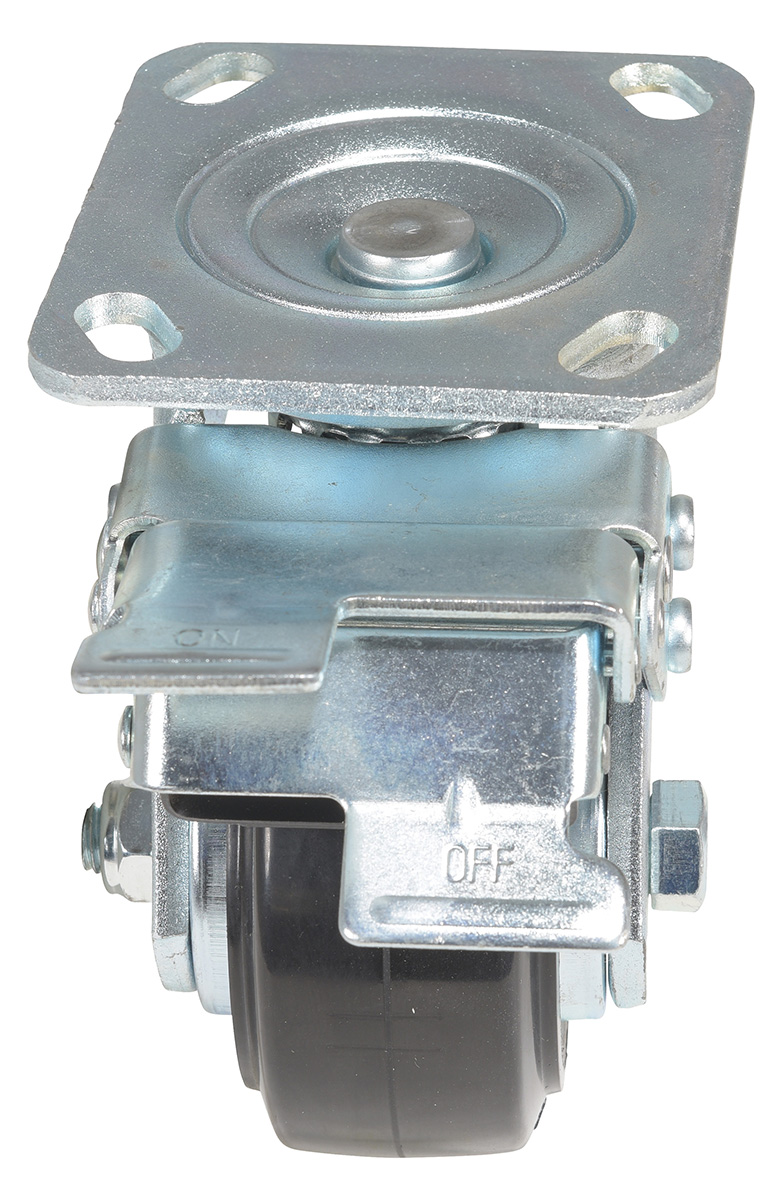

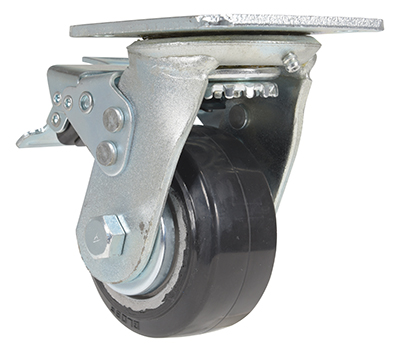

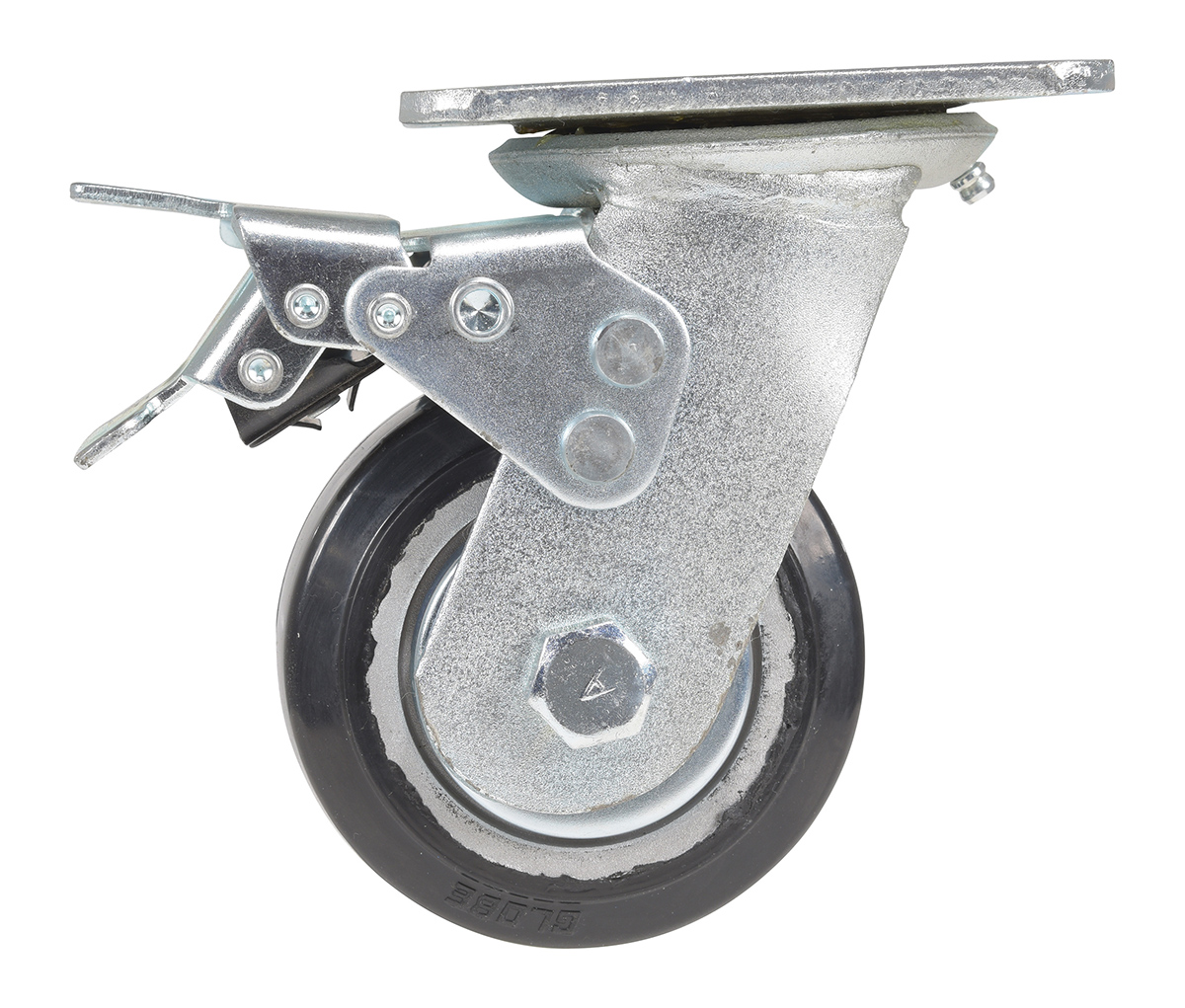

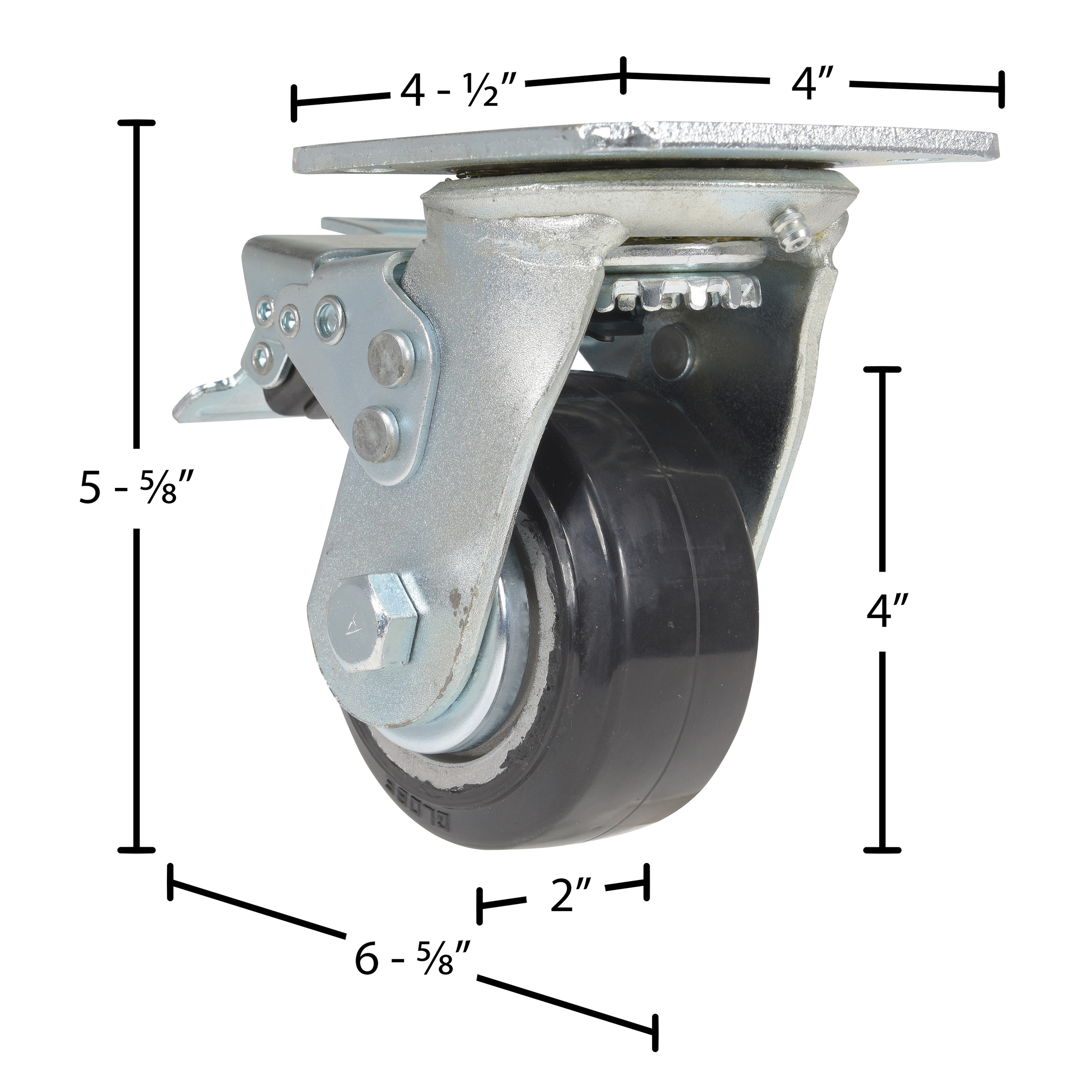

| CST-VE-4X2MRA-SWTB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/TOTAL BRAKE | 551 | 5-5/8 | 4 x 4-1/2 | 7 |

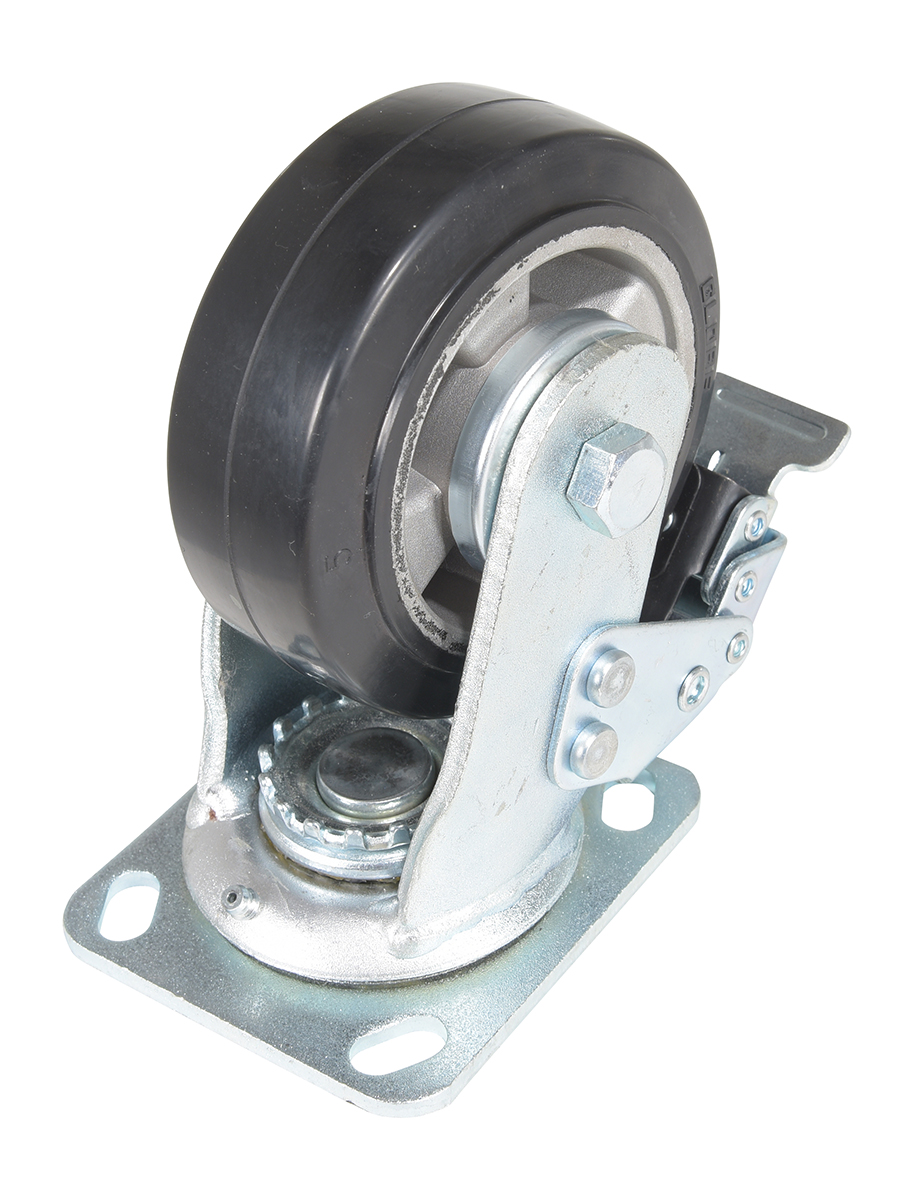

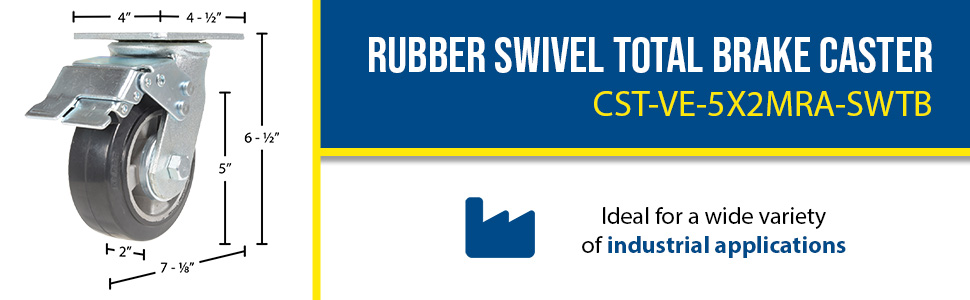

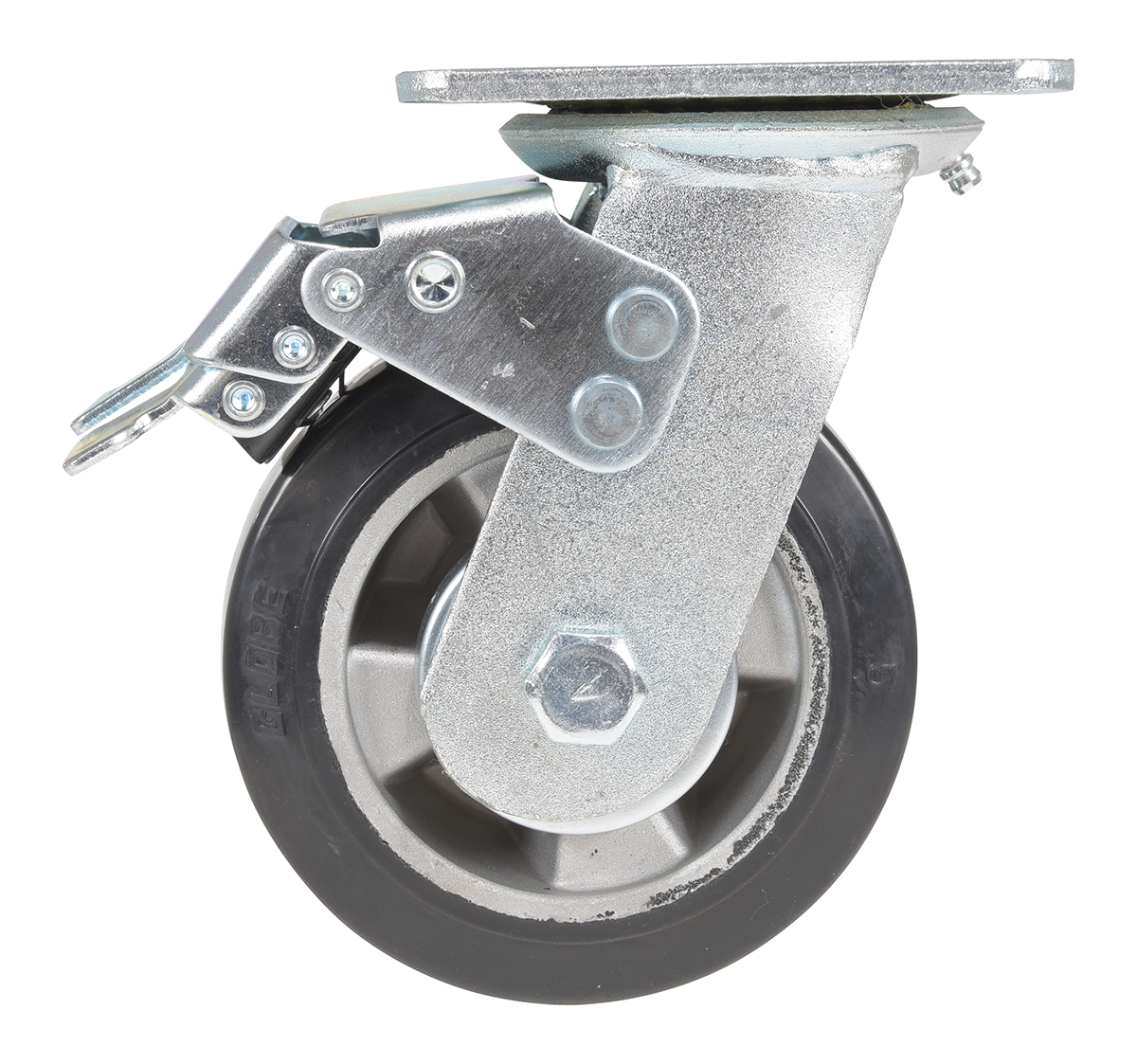

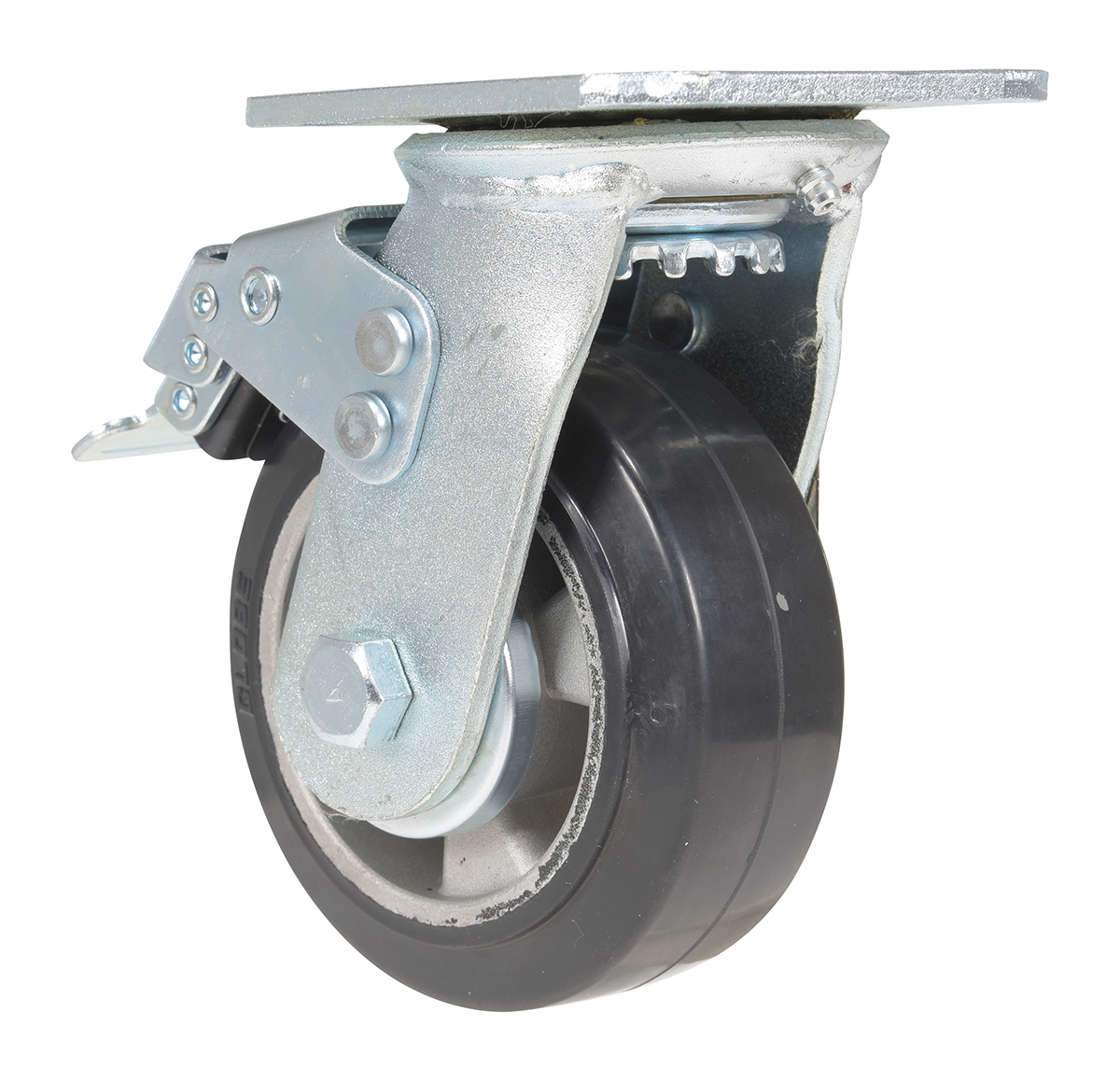

| CST-VE-5X2MRA-SWTB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/TOTAL BRAKE | 661 | 6-1/2 | 4 x 4 1/2 | 8 |

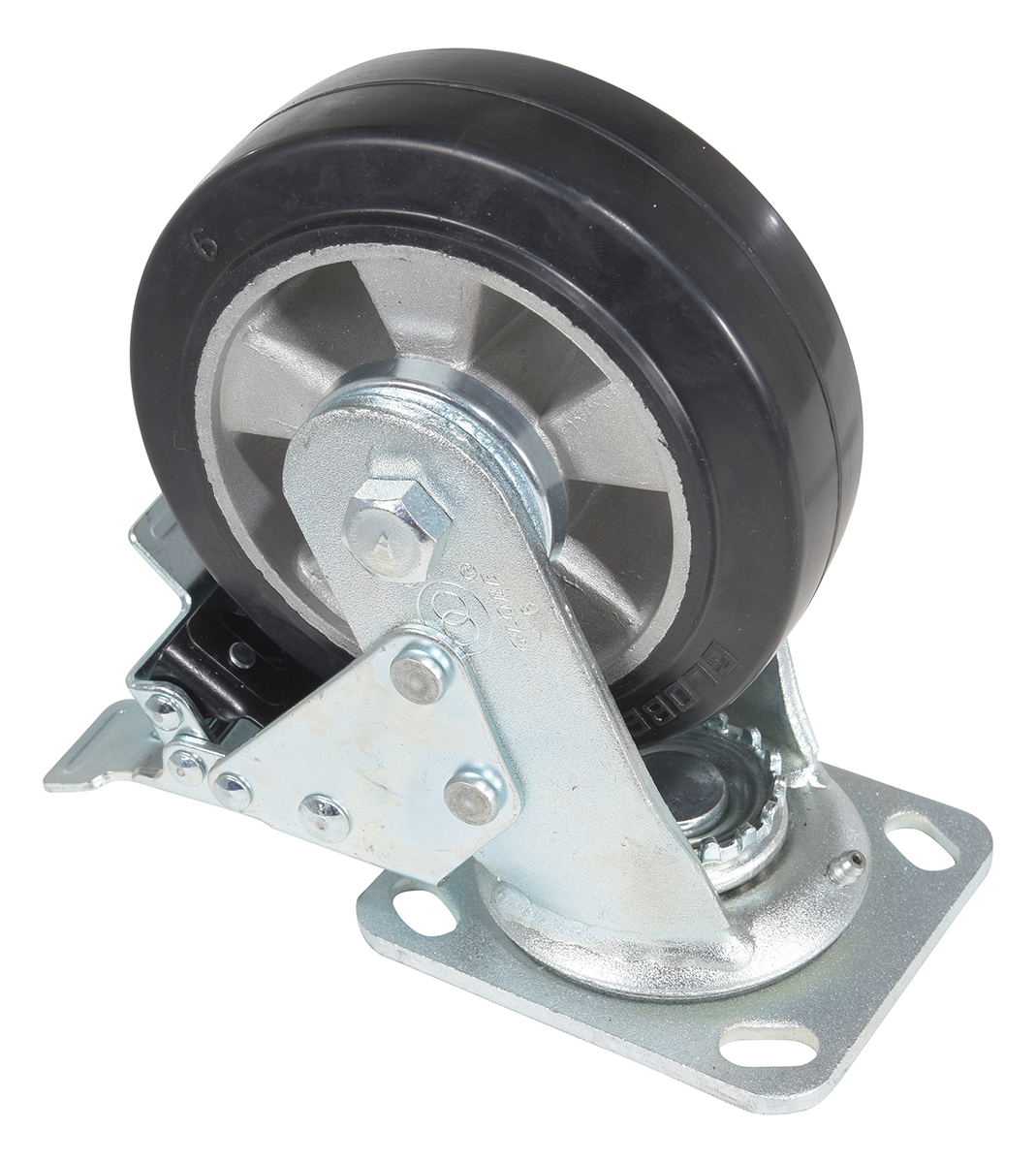

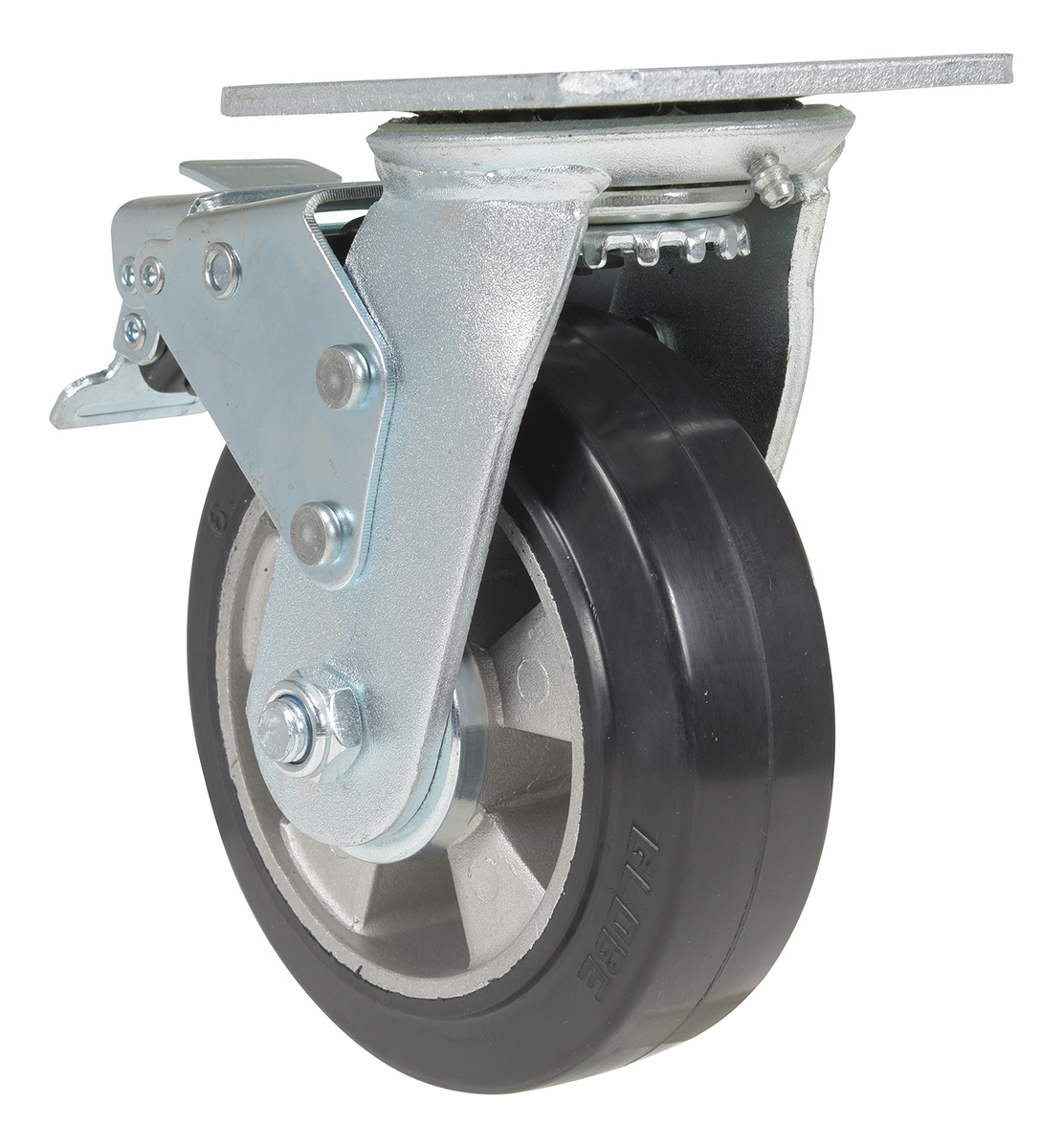

| CST-VE-6X2MRA-SWTB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/TOTAL BRAKE | 771 | 7-1/2 | 4 x 4-1/2 | 8 |

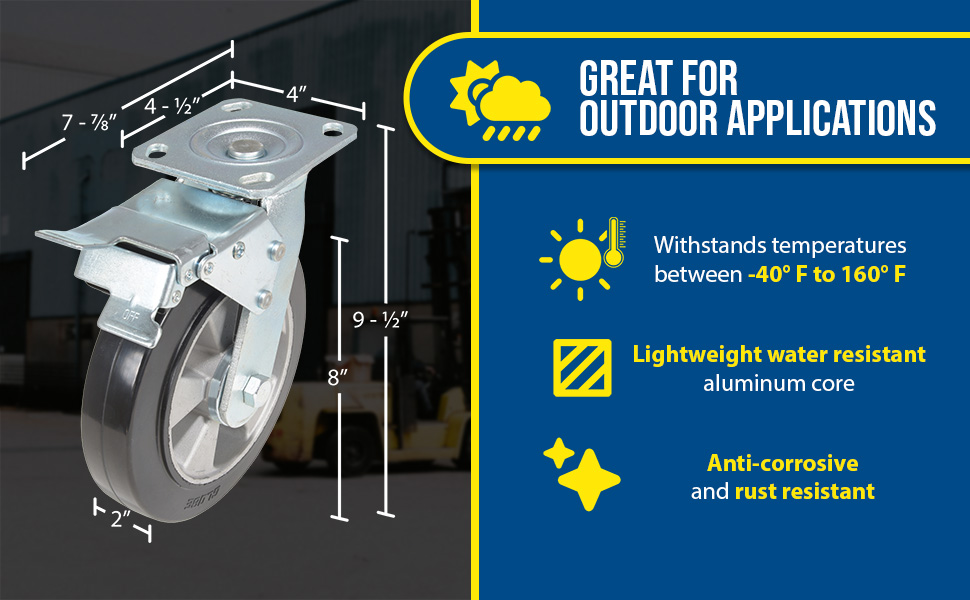

| CST-VE-8X2MRA-SWTB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/TOTAL BRAKE | 881 | 9-1/2 | 4 x 4-1/2 | 10 |
