Portable Jib Cranes

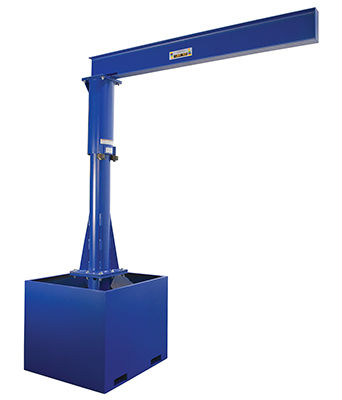

model: JIB-CB-100-8-10

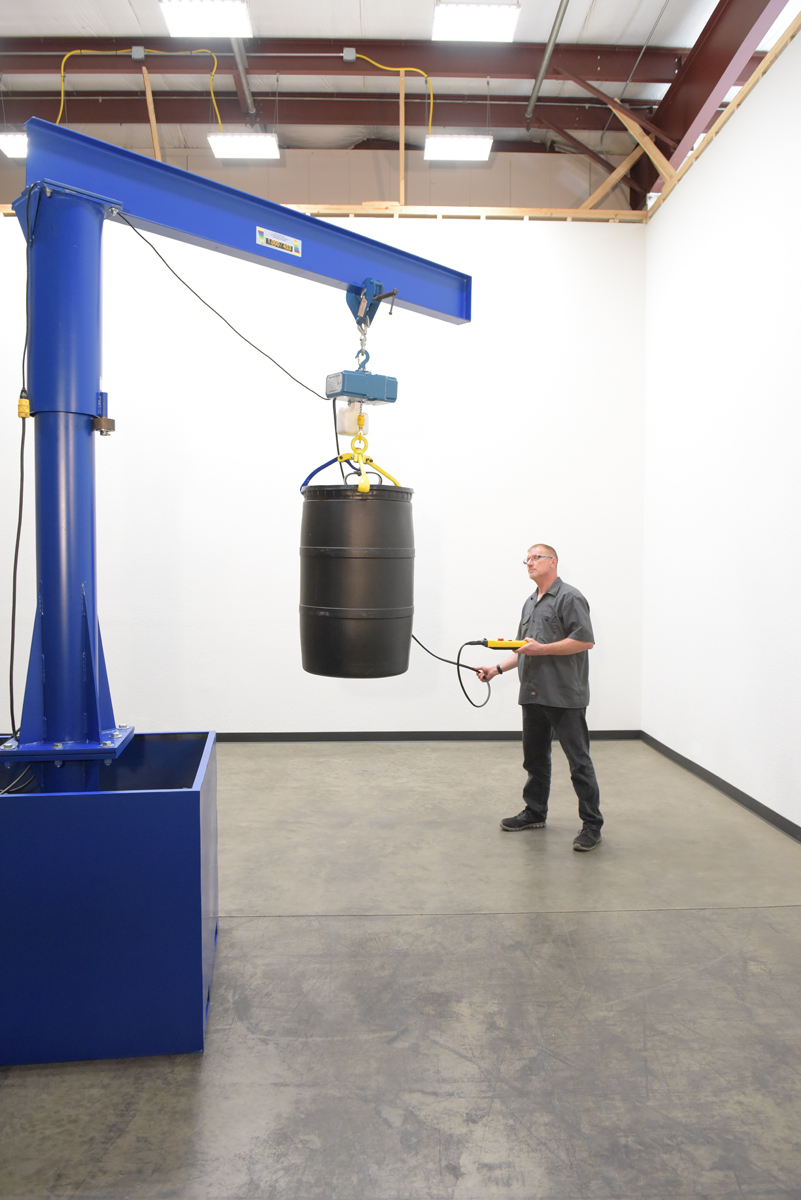

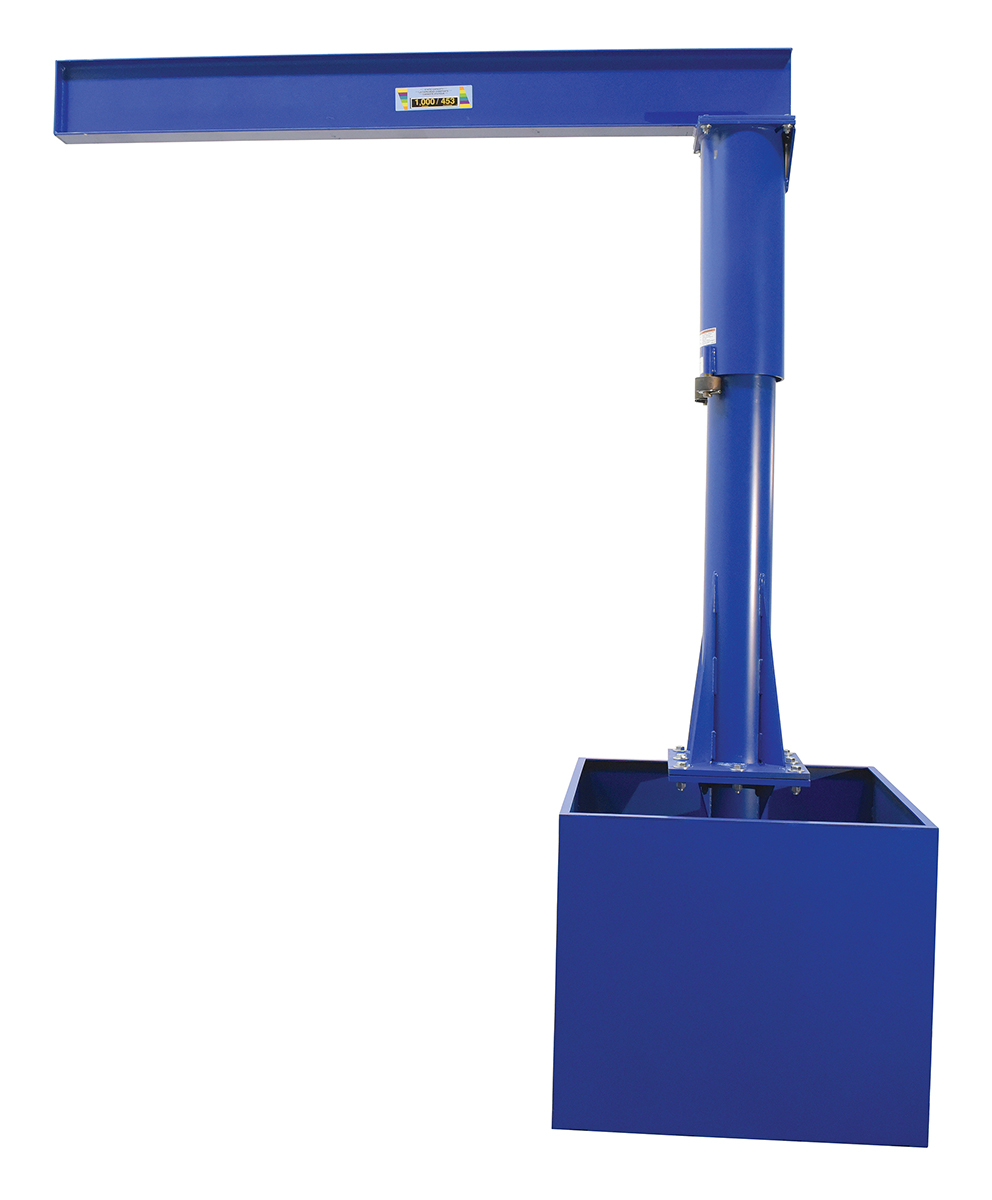

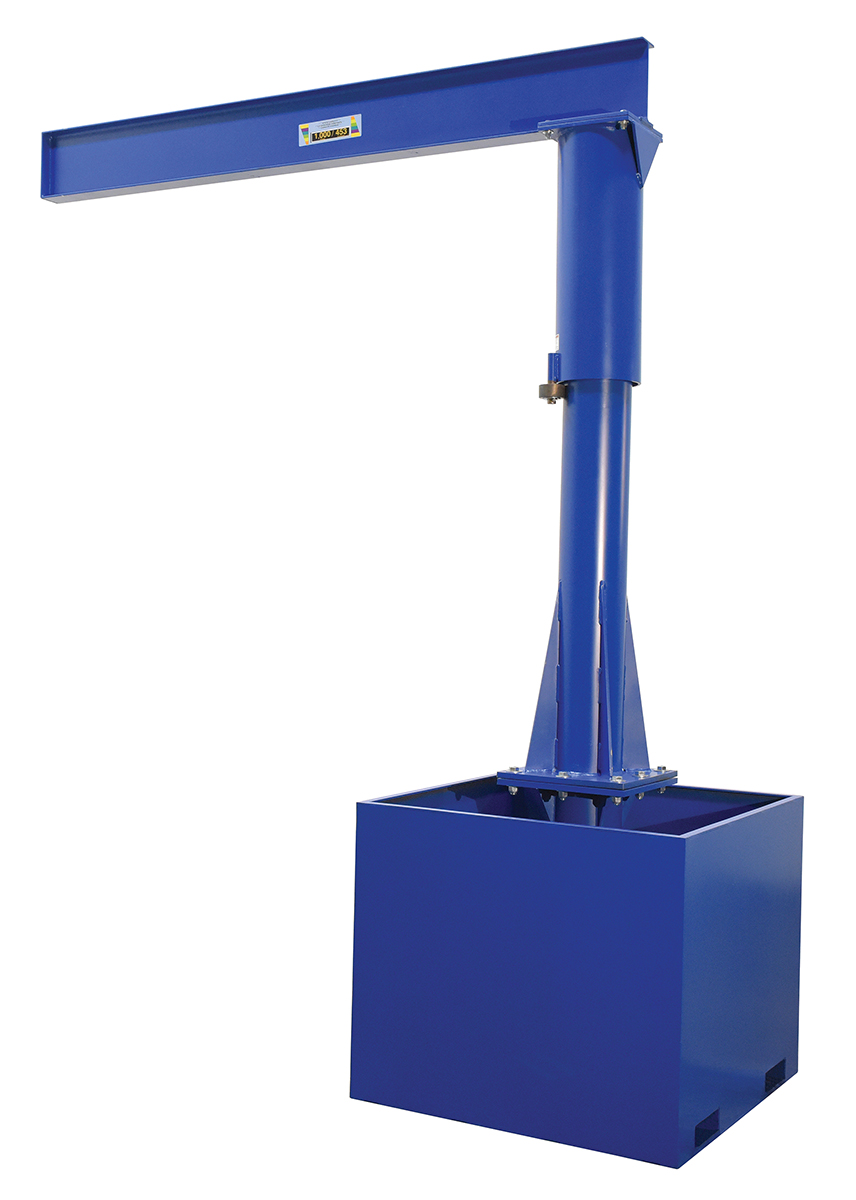

JIB-CB-100-8-10_A.jpg JIB-CB-100-8-10_B.jpg JIB-CB-100-8-10_C.jpg JIB-CB-100-8-10_D.jpg More Images +
Portable Jib Cranes
SERIES: JIB-CB

Unique design allows for easy transportation of jib crane with a fork truck. Empty base models include instructions for proper filling with concrete. Fillable base measurements are 42-3/16" x 42-3/16" x 18"H or 36"H and includes built-in fork tubes. Fork tubes are 7-5/8"W x 2-5/8"H usable on 24" fork centers, for transportation with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Under I-beam clearance is 10'. Upright vertical column bolts to base. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. Hoists & Trollies can be ordered seperately.

  • Design allows for easy transportation with a fork truck
  • Fill standard base with concrete for proper use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Portable Jib Cranes

model: JIB-CB-100-8-10

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
JIB-CB-100-8-10
JIB-CB-100-8-10-BC
JIB-CB-18-B
JIB-CB-18-BC
JIB-CB-25-10-10
JIB-CB-25-10-10-BC
JIB-CB-25-8-10
JIB-CB-25-8-10-BC
JIB-CB-36-B
JIB-CB-36-BC
JIB-CB-50-10-10
JIB-CB-50-10-10-BC
JIB-CB-50-8-10
JIB-CB-50-8-10-BC
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

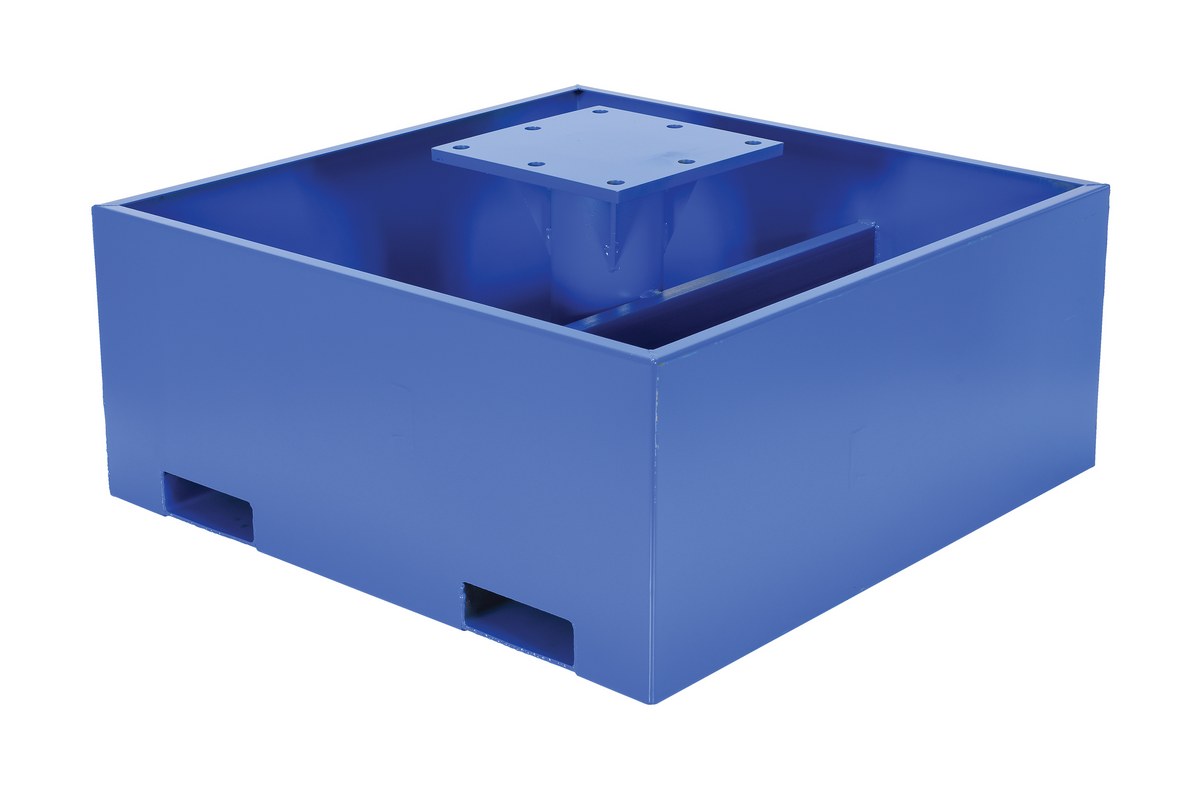

JIB-CB-18-B JIB-CB-18-B Steel Empty Concrete Base 18 In. Height For JIB Crane Models… 1 Year Limited Warranty 479

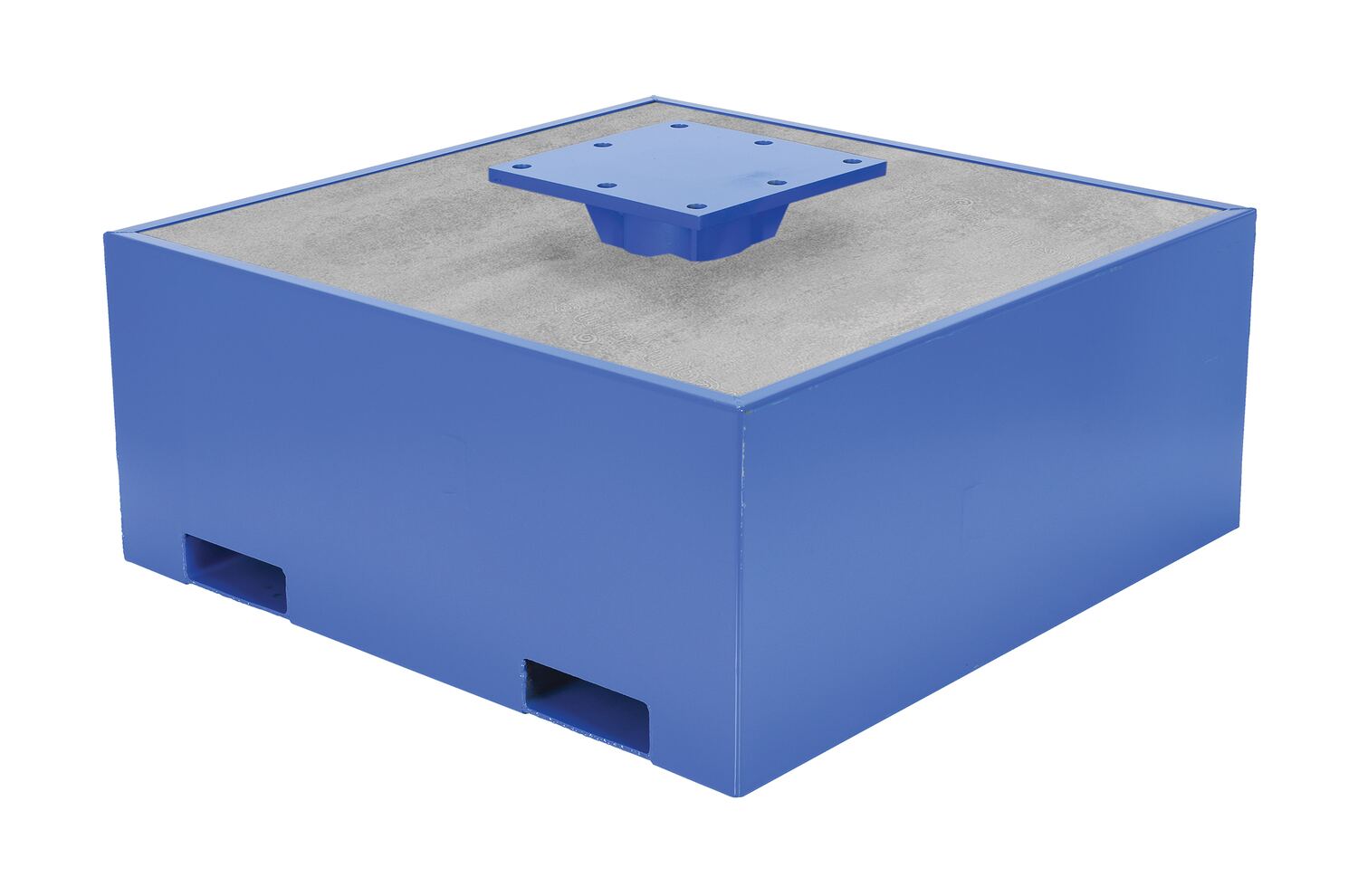

JIB-CB-18-BC JIB-CB-18-BC Steel Concrete Filled Base 18 In. Height For JIB Crane Model… 1 Year Limited Warranty 2780

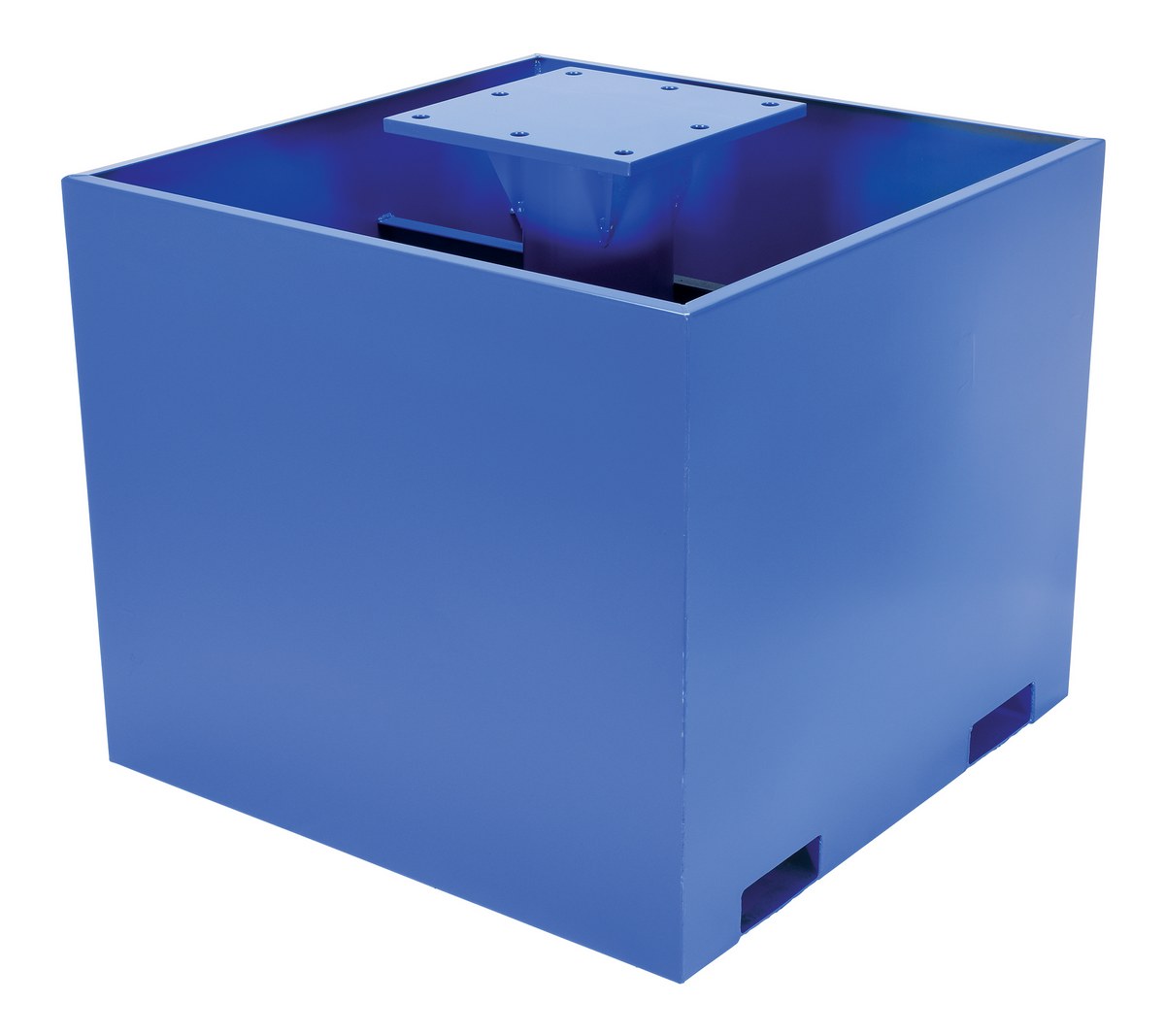

JIB-CB-36-B JIB-CB-36-B Steel Empty Concrete Base 36 In. Height For JIB Crane Models… 1 Year Limited Warranty 674

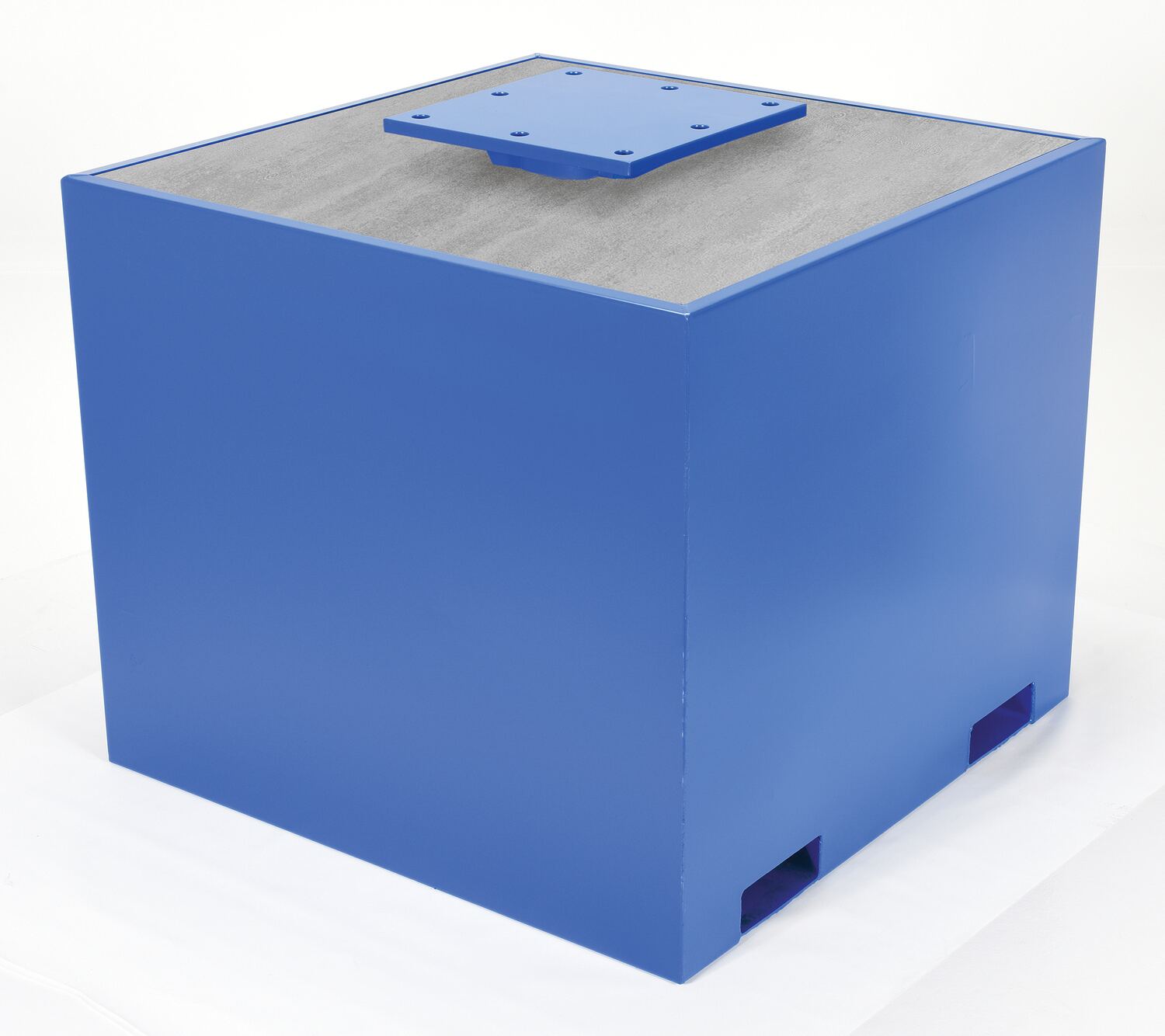

JIB-CB-36-BC JIB-CB-36-BC Steel Concrete Filled Base 36 In. Height For JIB Crane Model… 1 Year Limited Warranty 5078

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

JIB-CB

JIB-CB,%20Manual%20

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

JIB-CB-100-8-10

JIB-CB-100-8-10-BC

JIB-CB-18-B

JIB-CB-18-BC

JIB-CB-25-10-10

JIB-CB-25-10-10-BC

JIB-CB-25-8-10

JIB-CB-25-8-10-BC

JIB-CB-36-B

JIB-CB-36-BC

JIB-CB-50-10-10

JIB-CB-50-10-10-BC

JIB-CB-50-8-10

JIB-CB-50-8-10-BC

Testing Certificates

JIB-CB-100-8-10

JIB-CB-100-8-10-BC

JIB-CB-18-B

JIB-CB-18-BC

JIB-CB-25-10-10

JIB-CB-25-10-10-BC

JIB-CB-25-8-10

JIB-CB-25-8-10-BC

JIB-CB-36-B

JIB-CB-36-BC

JIB-CB-50-10-10

JIB-CB-50-10-10-BC

JIB-CB-50-8-10

JIB-CB-50-8-10-BC

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

More From Jib Cranes





Portable Jib Cranes




Unique design allows for easy transportation of jib crane with a fork truck. Empty base models include instructions for proper filling with concrete. Fillable base measurements are 42-3/16" x 42-3/16" x 18"H or 36"H and includes built-in fork tubes. Fork tubes are 7-5/8"W x 2-5/8"H usable on 24" fork centers, for transportation with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Under I-beam clearance is 10'. Upright vertical column bolts to base. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. Hoists & Trollies can be ordered seperately.

  • Design allows for easy transportation with a fork truck
  • Fill standard base with concrete for proper use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability

Model # Description Attributes Net Wt.
(lbs)

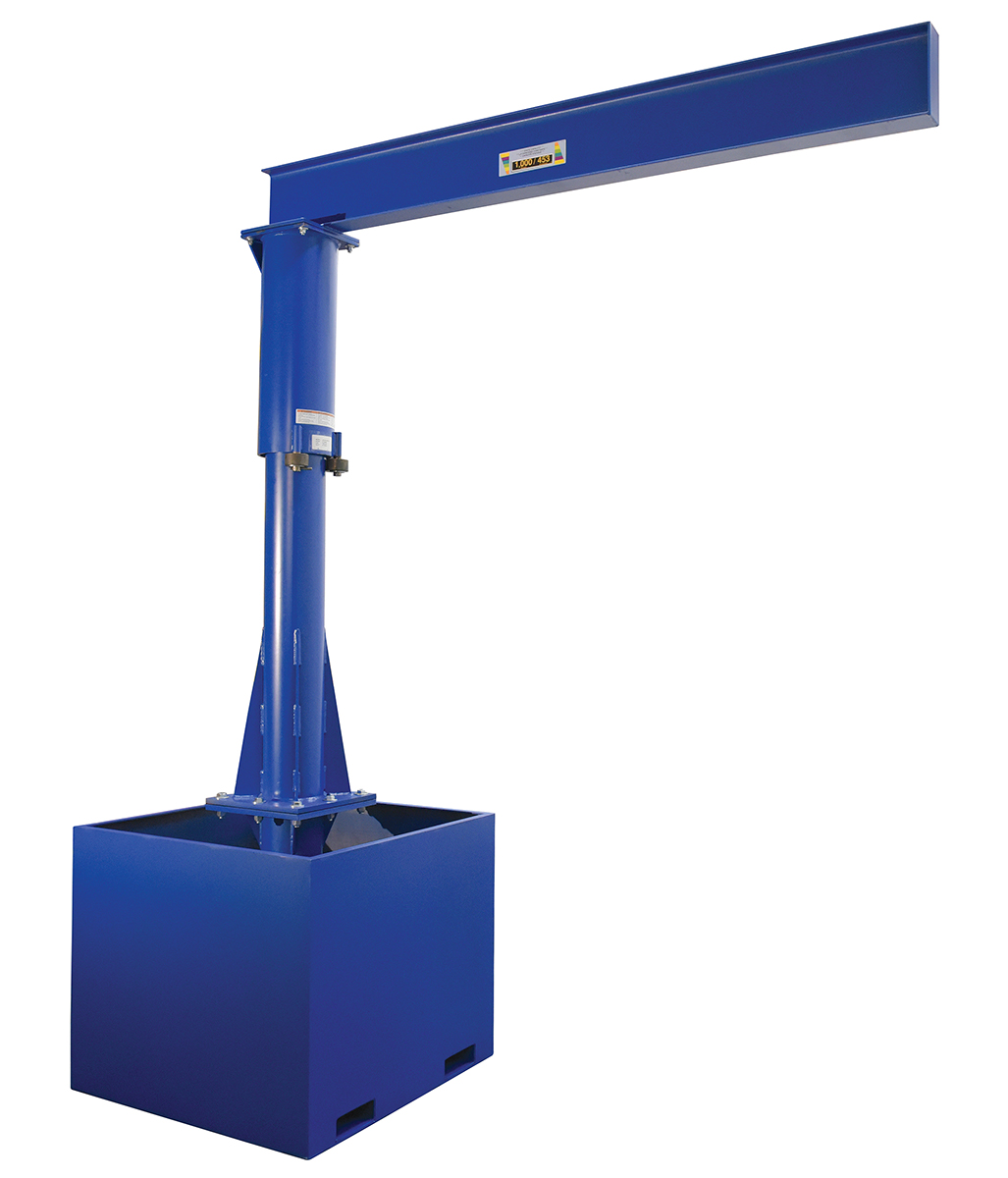

JIB-CB-100-8-10 JIB-CB-100-8-10Steel Portable Jib Crane with Empty Base 8 Ft. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96		651

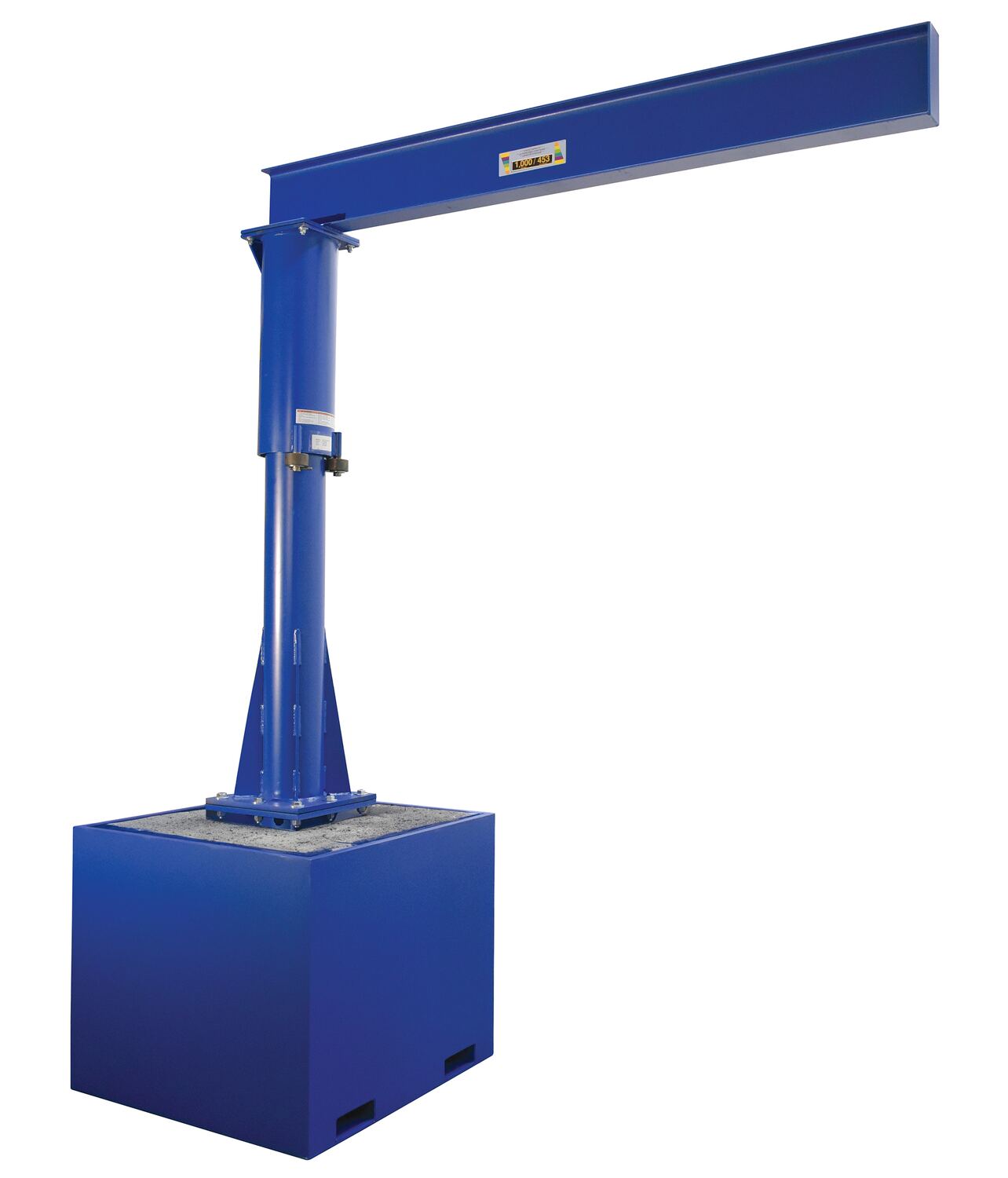

JIB-CB-100-8-10-BC JIB-CB-100-8-10-BCSteel Portable Jib Crane with Filled Base 8 Ft. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96		635

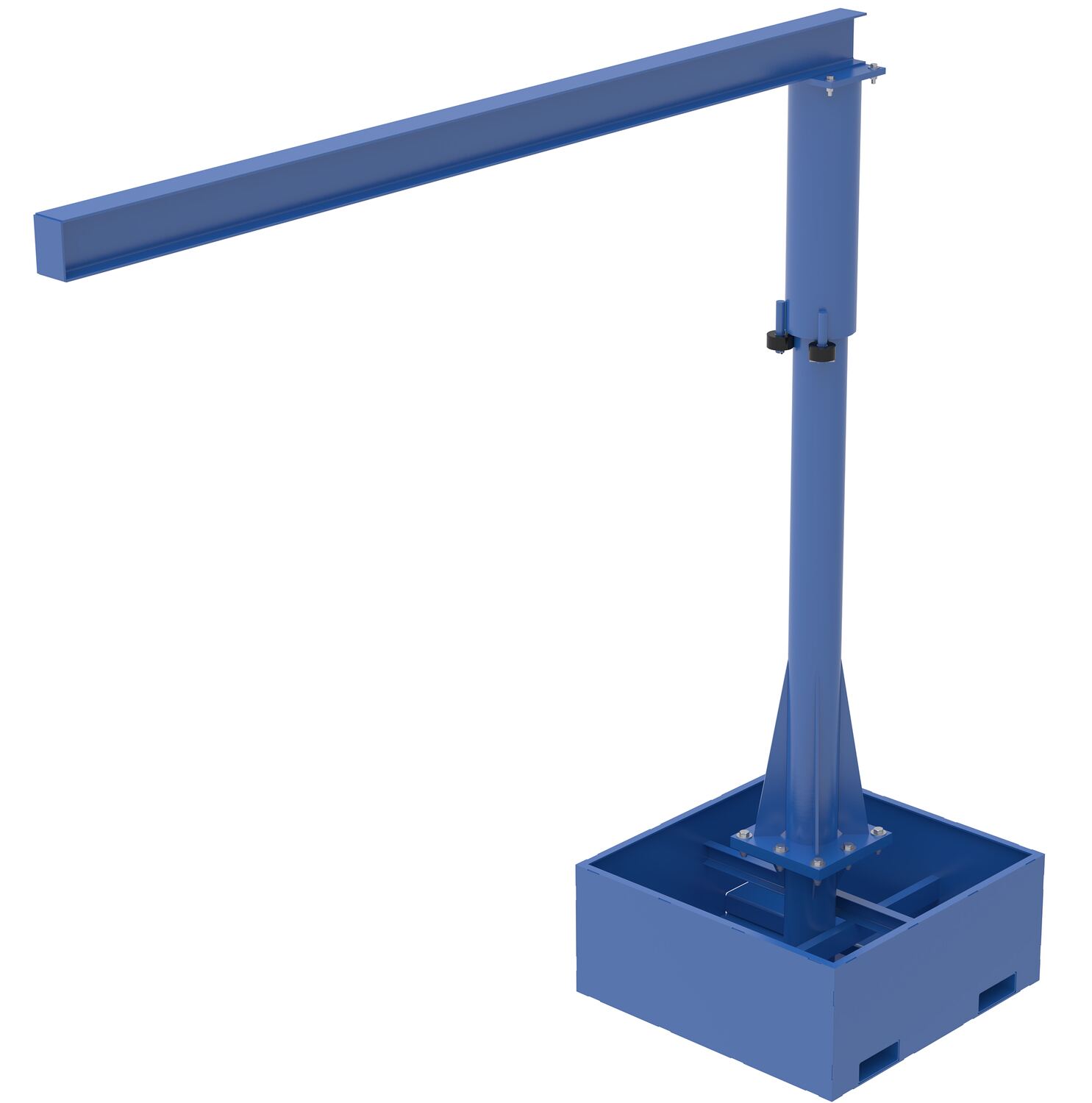

JIB-CB-25-10-10 JIB-CB-25-10-10Steel Portable Jib Crane with Empty Base 10 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 120		515

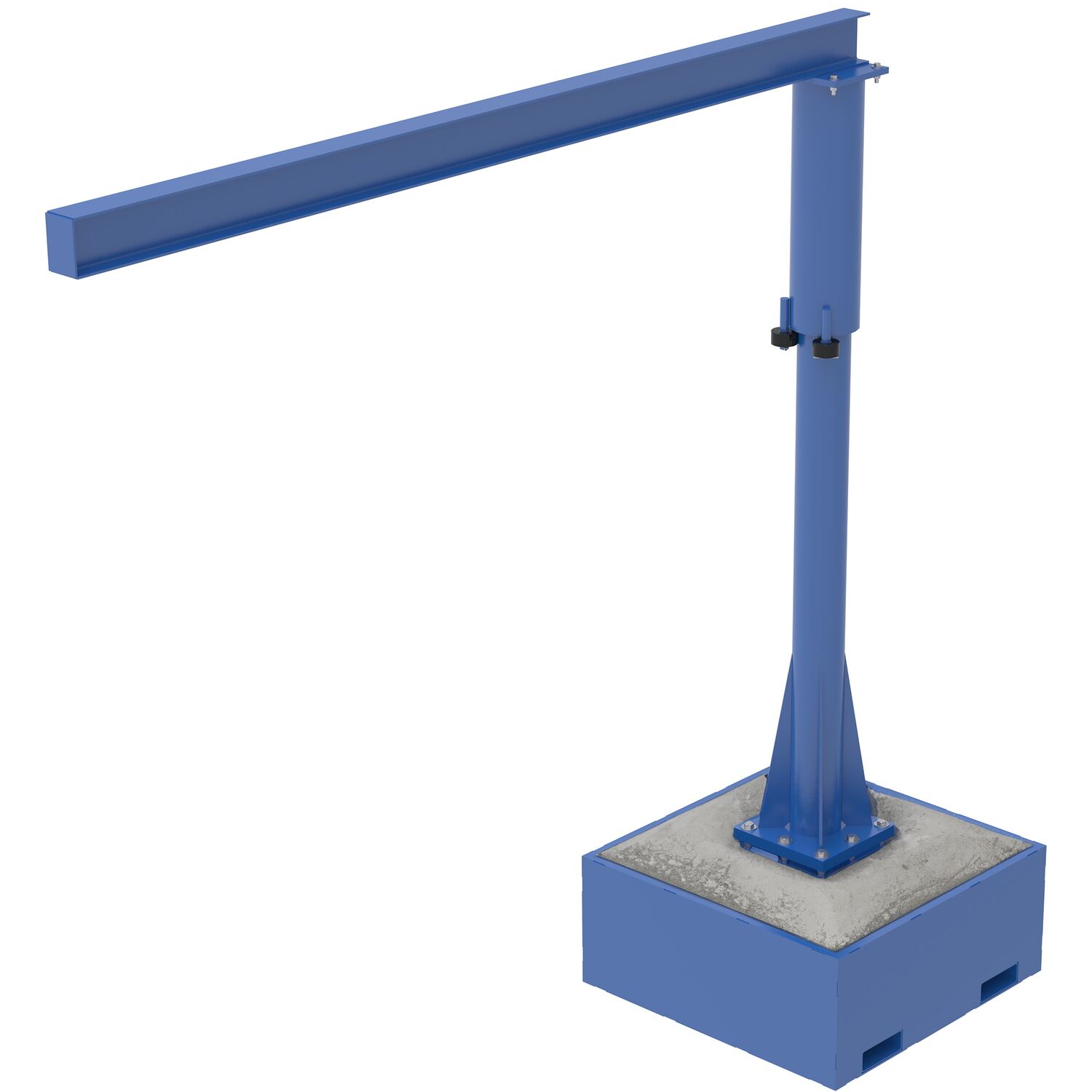

JIB-CB-25-10-10-BC JIB-CB-25-10-10-BCSteel Portable Jib Crane with Filled Base 10 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 120		550
JIB-CB-25-8-10 JIB-CB-25-8-10Steel Portable Jib Crane with Empty Base 8 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 96		526
JIB-CB-25-8-10-BC JIB-CB-25-8-10-BCSteel Portable Jib Crane with Filled Base 8 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 96		500

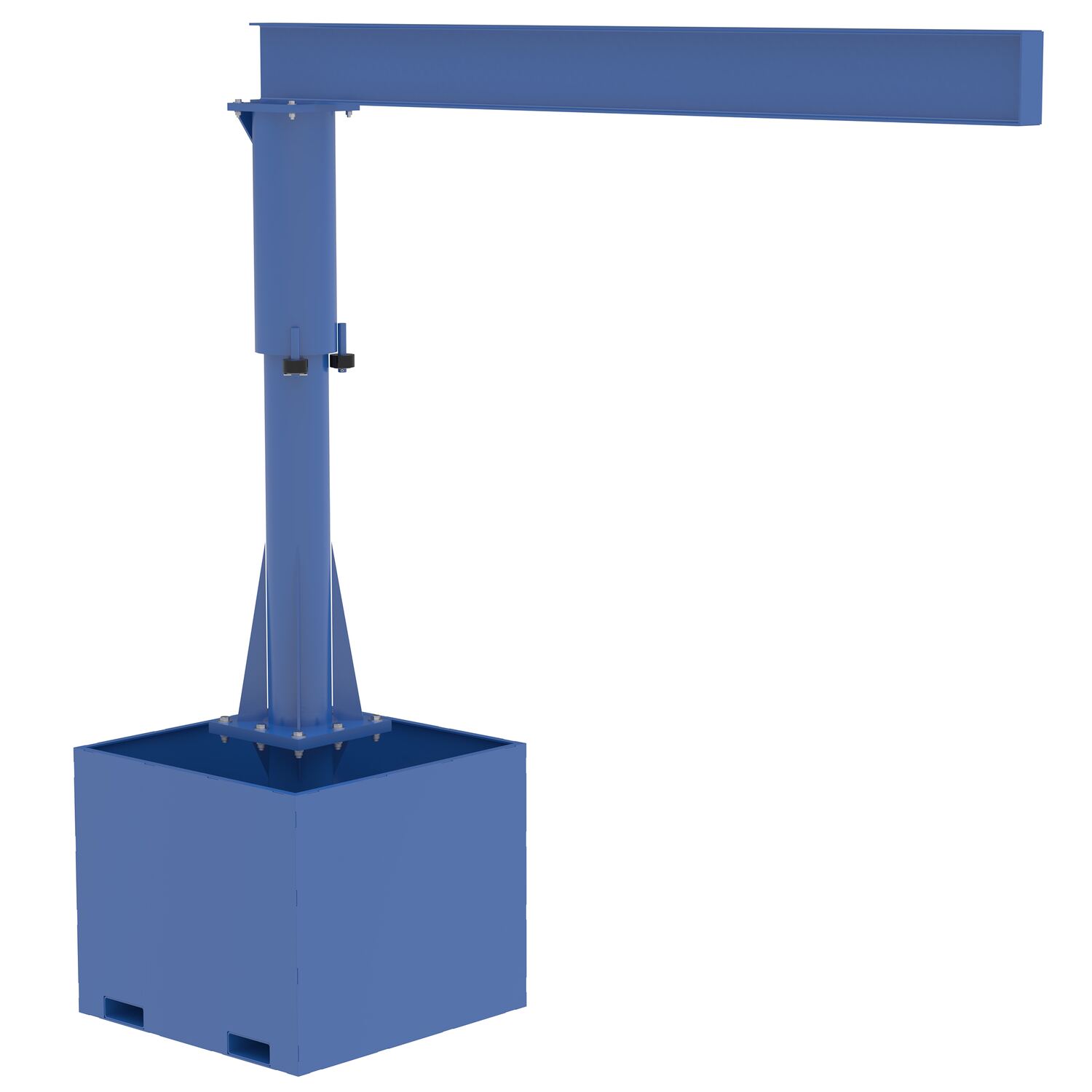

JIB-CB-50-10-10 JIB-CB-50-10-10Steel Portable Jib Crane with Empty Base 10 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 120		664

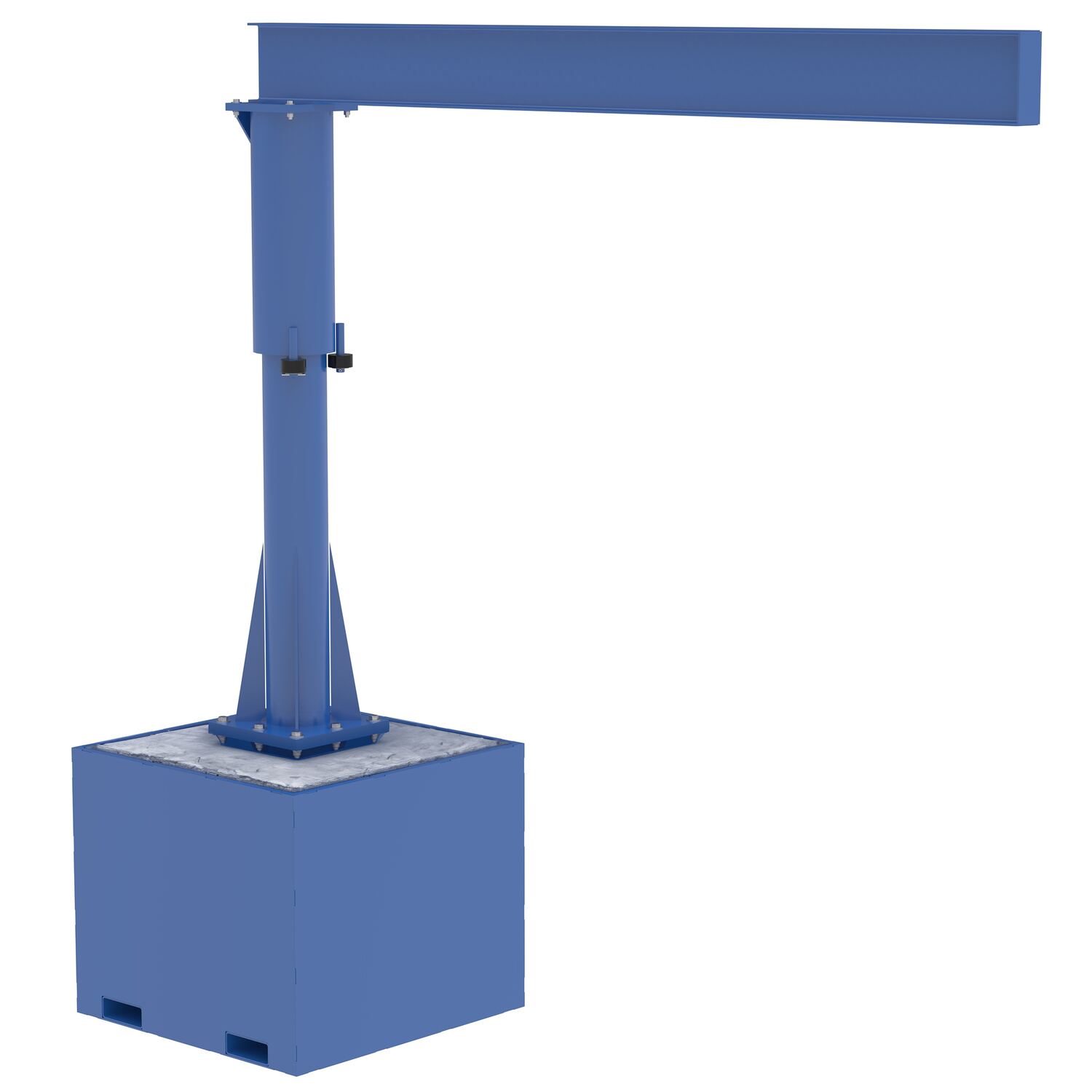

JIB-CB-50-10-10-BC JIB-CB-50-10-10-BCSteel Portable Jib Crane with Filled Base 10 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 120		562

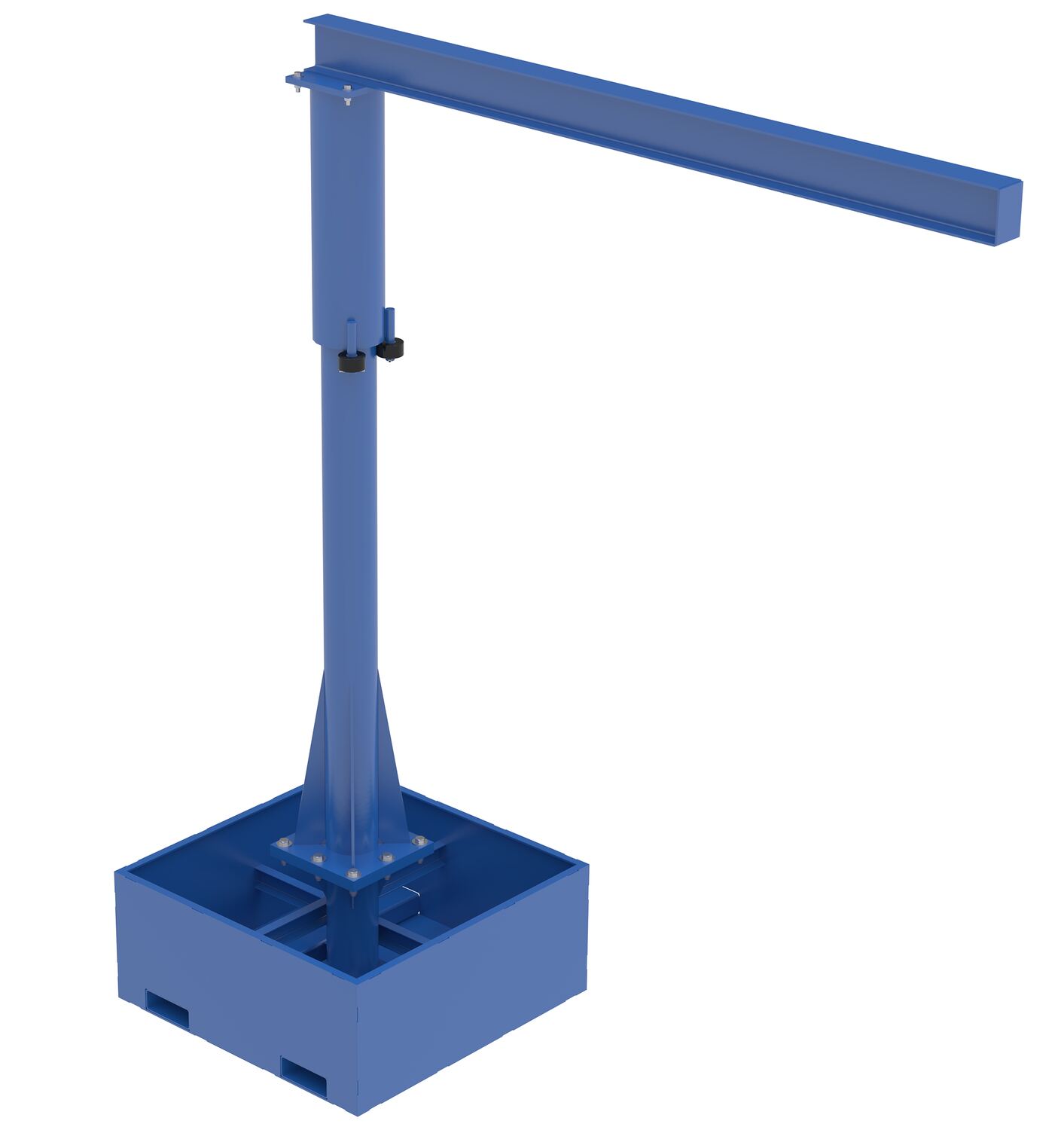

JIB-CB-50-8-10 JIB-CB-50-8-10Steel Portable Jib Crane with Empty Base 8 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 96		502

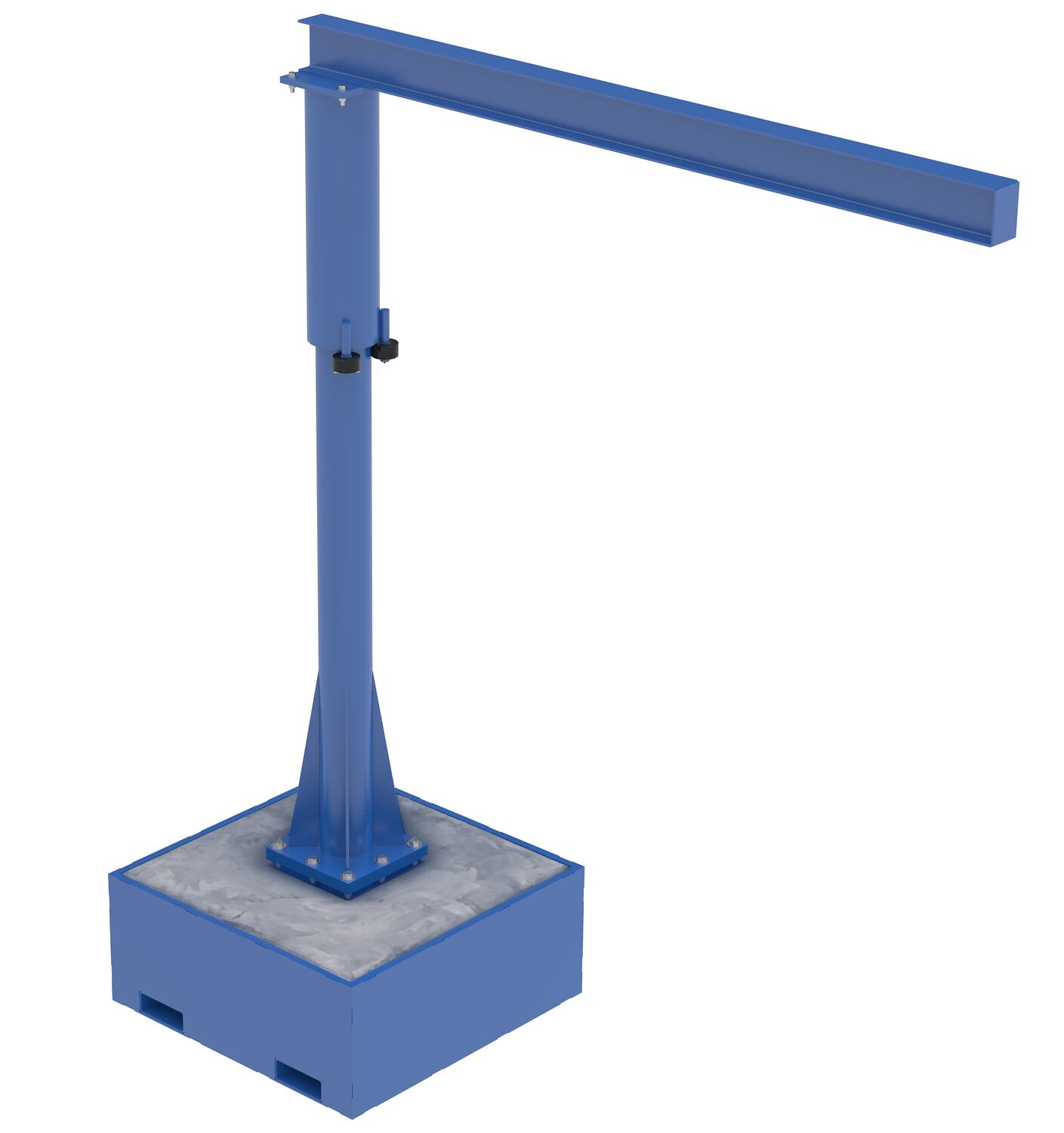

JIB-CB-50-8-10-BC JIB-CB-50-8-10-BCSteel Portable Jib Crane with Filled Base 8 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 96		546
