Portable Offset Jib Cranes

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

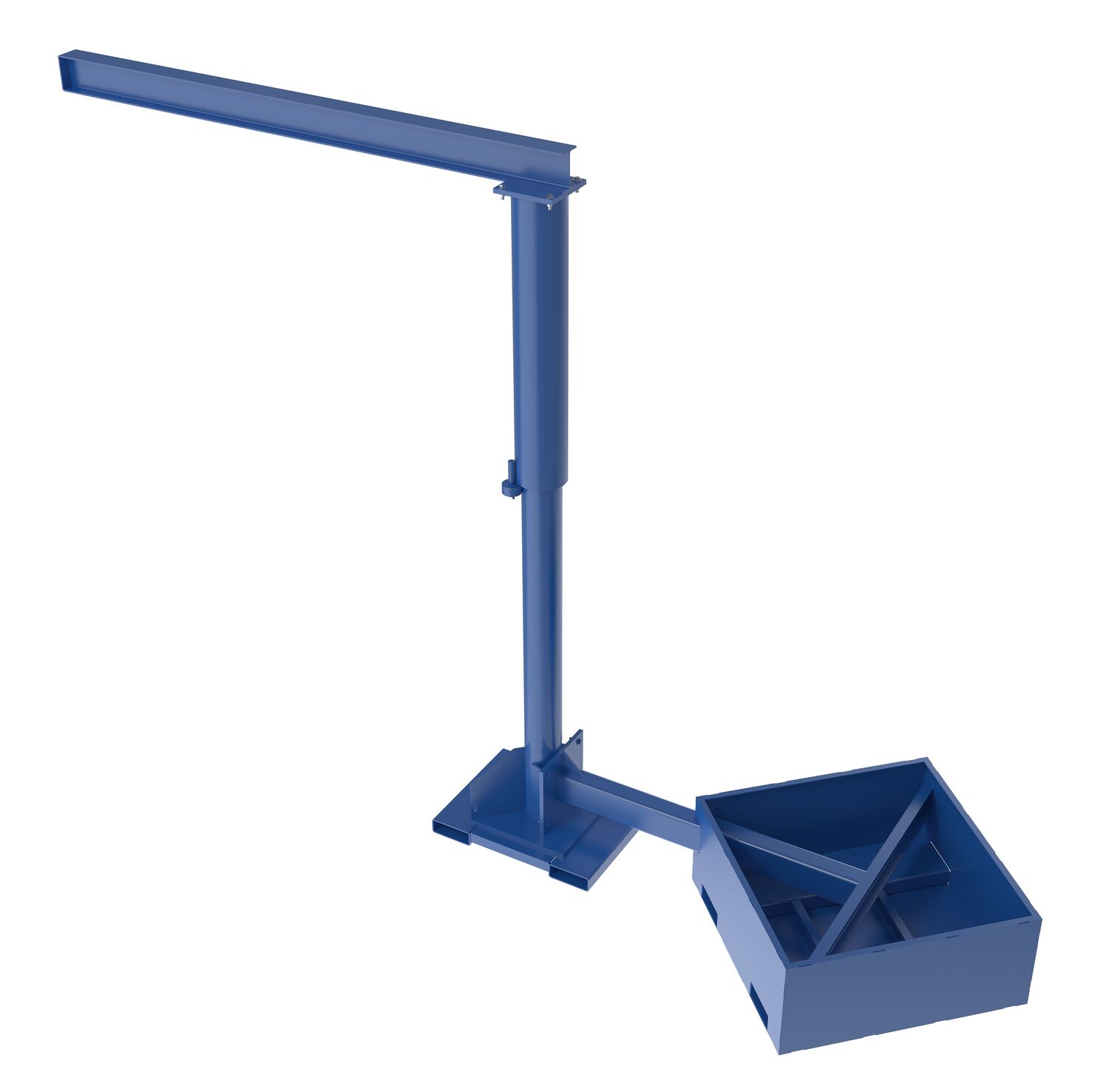

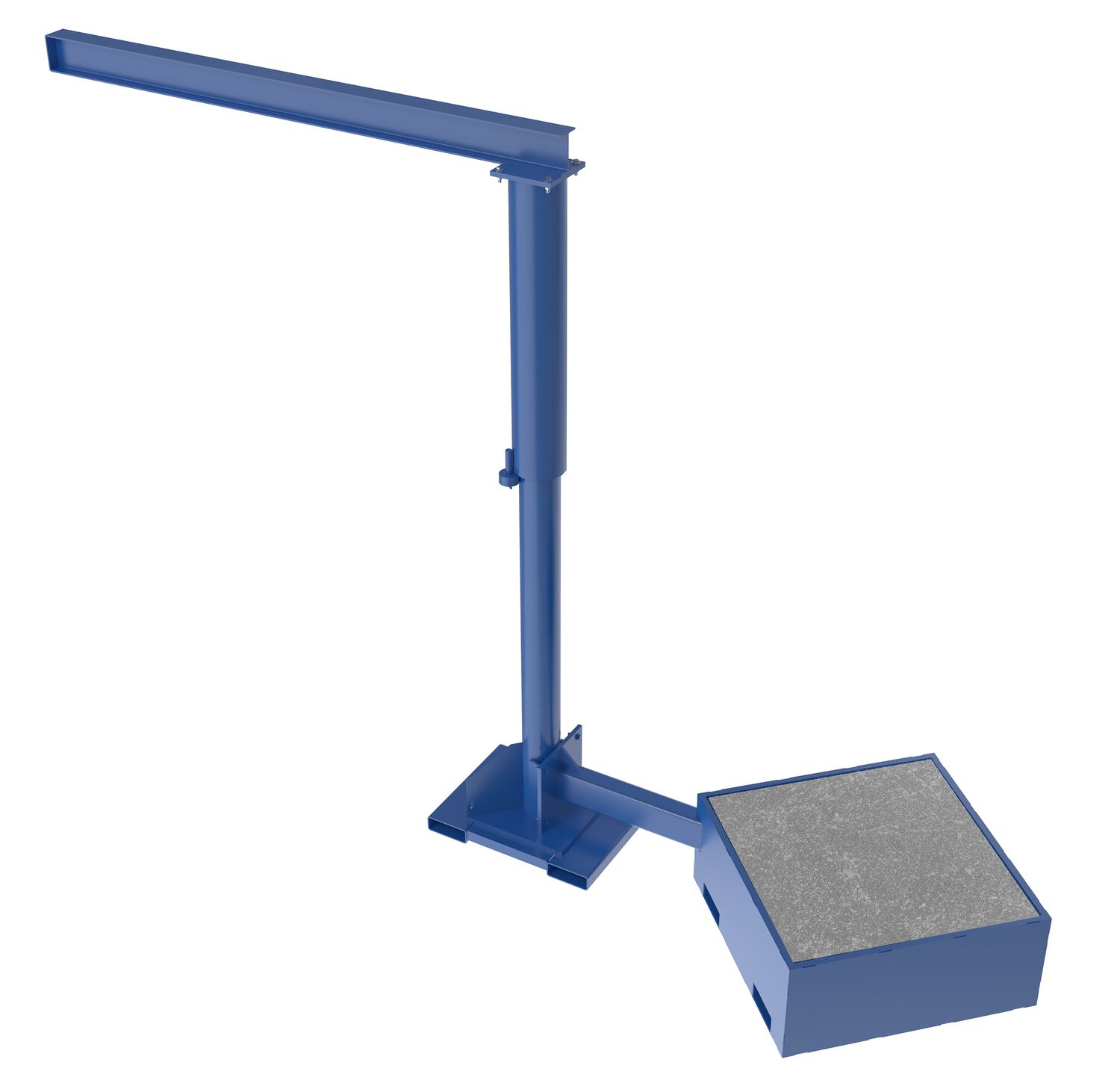

JIB-CBX-25-8-10_A.jpg JIB-CBX-25-8-10-BC_A.jpg
Portable Offset Jib Cranes

model: JIB-CBX-25-8-10



Portable Offset Jib Cranes

model: JIB-CBX-25-8-10

Featured Overhead Lifting


Non-Sparking Chain Hoists
Magnetic Easy Lift
Tripod Hoist Stands
Adjustable Steel Gantry Cranes with Total Locking Casters - Knockdown
Low Profile Manual Trollies
High Speed Electric Chain Hoist
Overhead Load Lifters
Jib Cranes
Electric Powered Floor Cranes
model chart

Product Family Overview

Print Friendly
Portable Offset Jib Cranes
SERIES: JIB-CBX

Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Empty base models include instructions for proper filling with concrete. Base size is 42-3/16" W x 42-3/16" L x 18"H or 36"H. Built-in fork tubes, measuring 7-1/2"W x 2-1/2"H usable on 24" centers, for transportation with fork truck. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. 10' under I-beam. Hoists & Trollies can be ordered seperately.

  • Design allows for larger usable work area beneath I-beam
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability

Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Empty base models include instructions for proper filling with concrete. Base size is 42-3/16" W x 42-3/16" L x 18"H or 36"H. Built-in fork tubes, measuring 7-1/2"W x 2-1/2"H usable on 24" centers, for transportation with fork truck. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. 10' under I-beam. Hoists & Trollies can be ordered seperately.

  • Design allows for larger usable work area beneath I-beam
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability

Other Jib Cranes

 Portable Offset Jib Cranes Multi-Station Transportable Jib Cranes Extra Travel Tri-Post Jibs Mini Overhead Cantilever Jibs

Additional Models In This Family
view entire Image Gallery

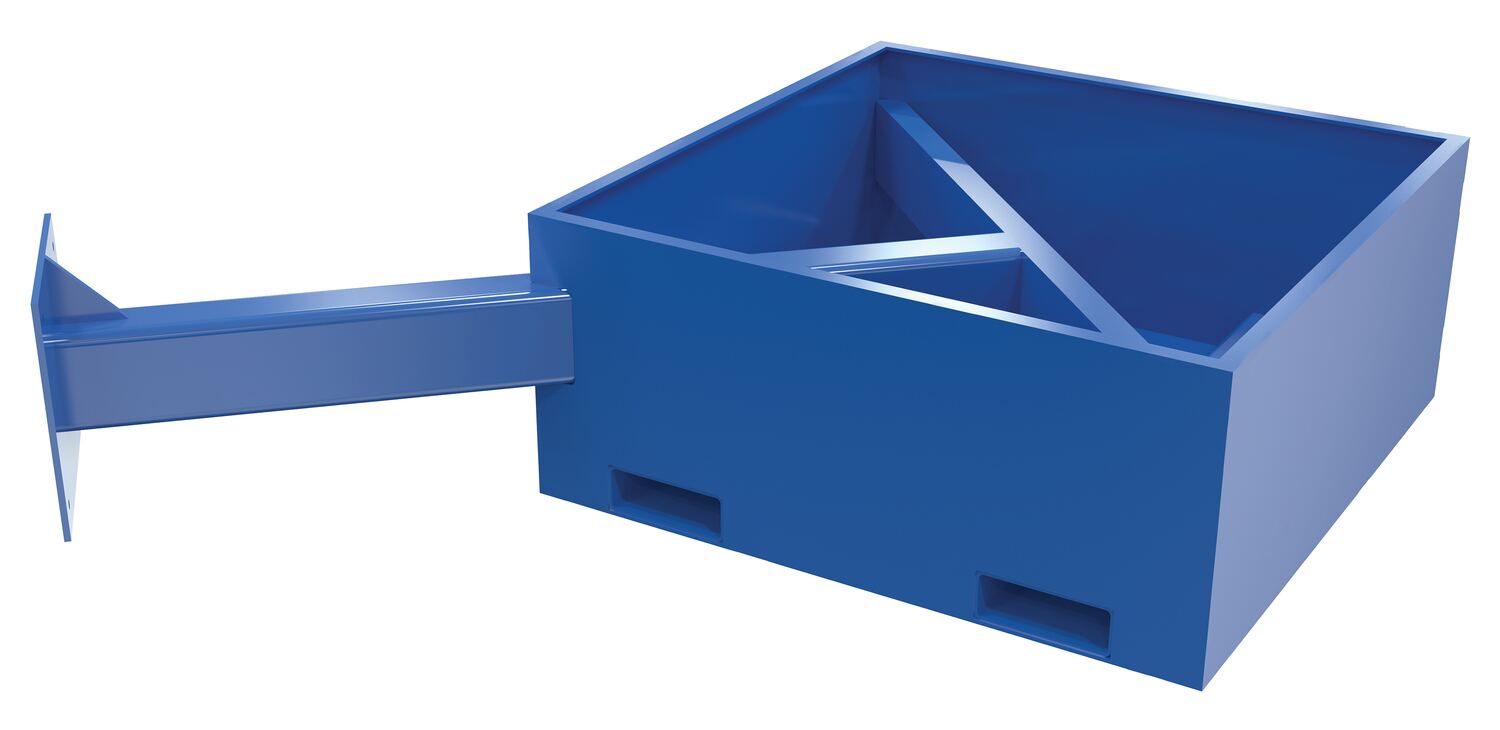

JIB-CBX-18-B

model JIB-CBX-18-B

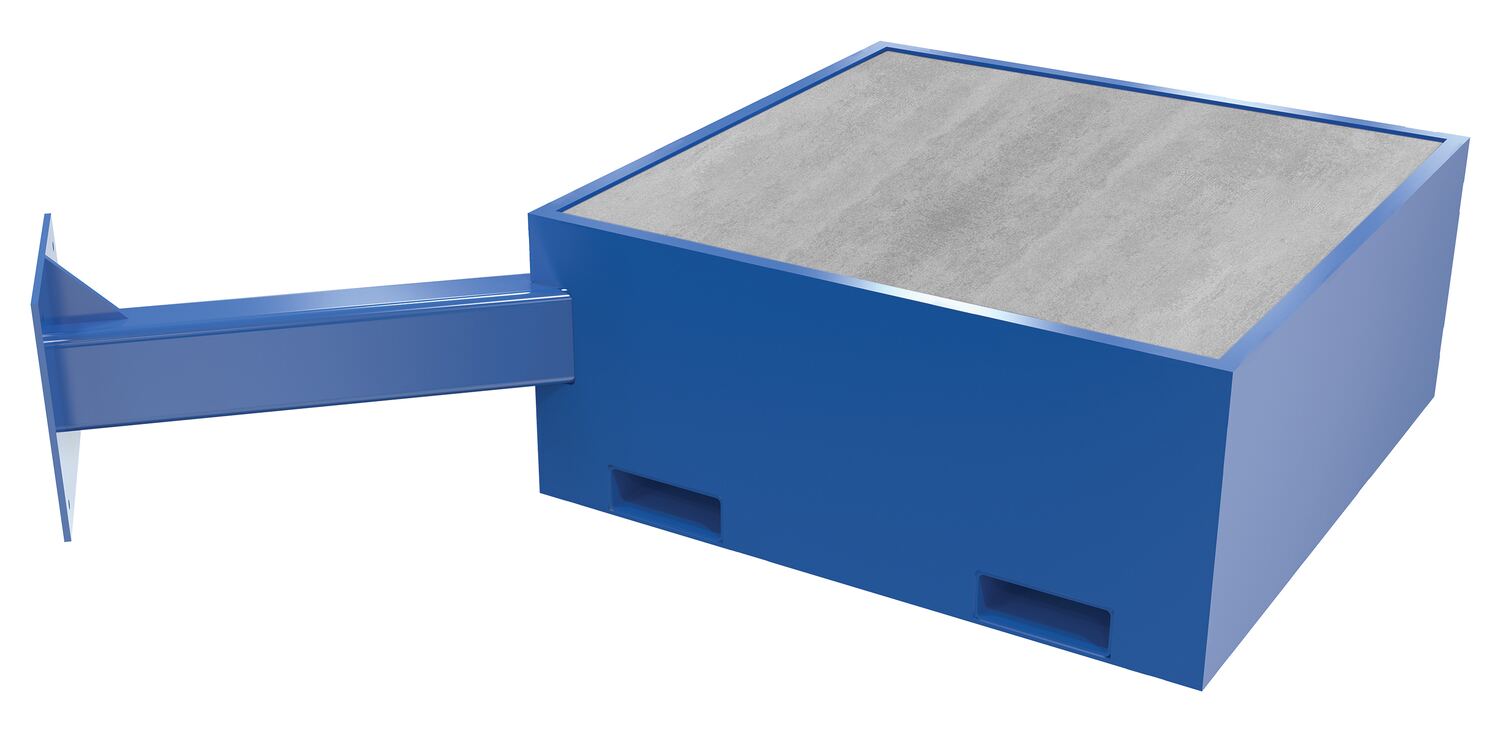

JIB-CBX-18-BC

model JIB-CBX-18-BC

JIB-CBX-36-B

model JIB-CBX-36-B

JIB-CBX-36-BC

model JIB-CBX-36-BC

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

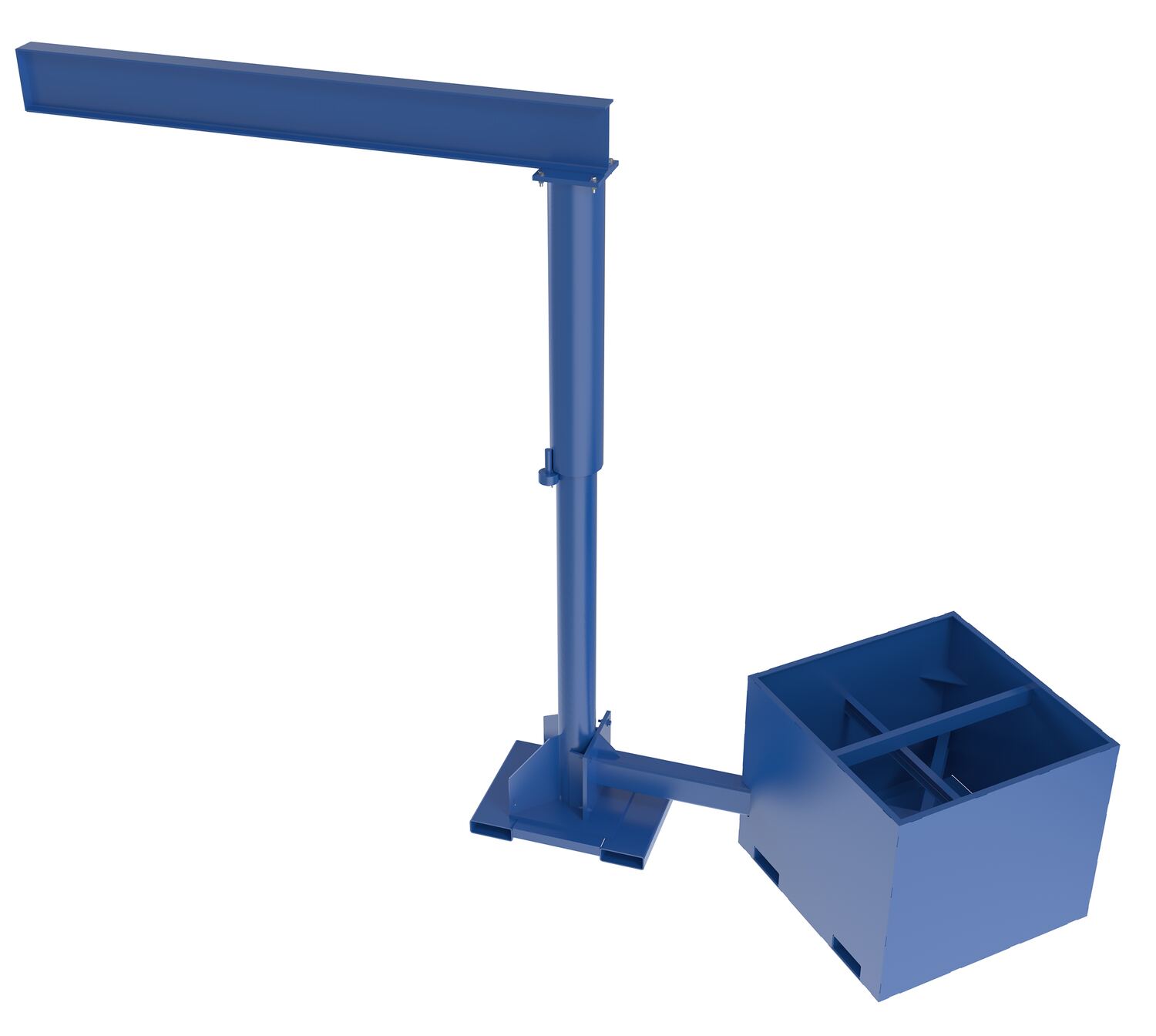

JIB-CBX-100-8-10 JIB-CBX-100-8-101 Year Limited WarrantySteel Portable Offset Jib Crane with Empty Base 8 Ft. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96		21993

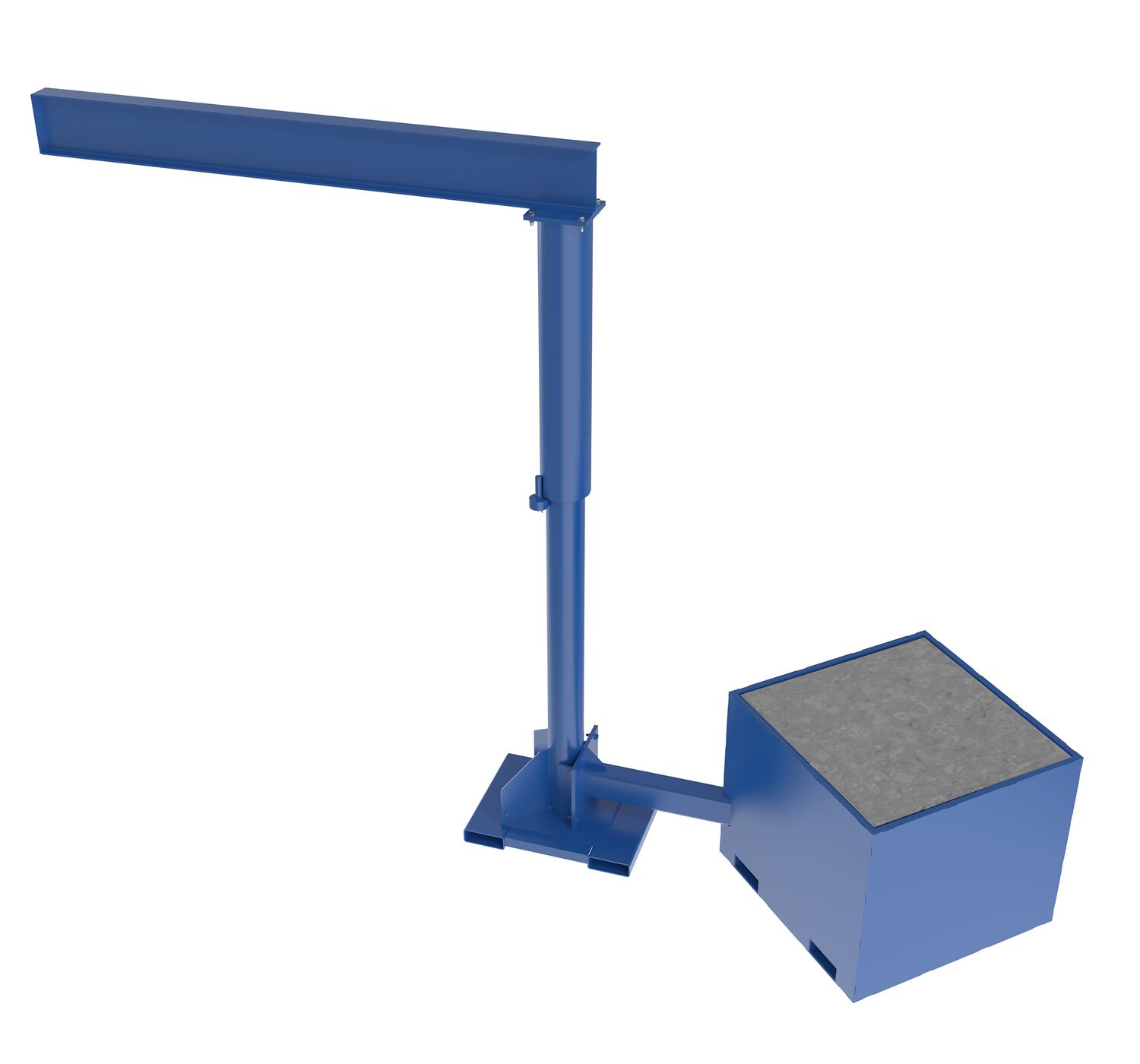

JIB-CBX-100-8-10-BC JIB-CBX-100-8-10-BC1 Year Limited WarrantySteel Portable Offset Jib Crane with Filled Base 8 Ft. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96		26366

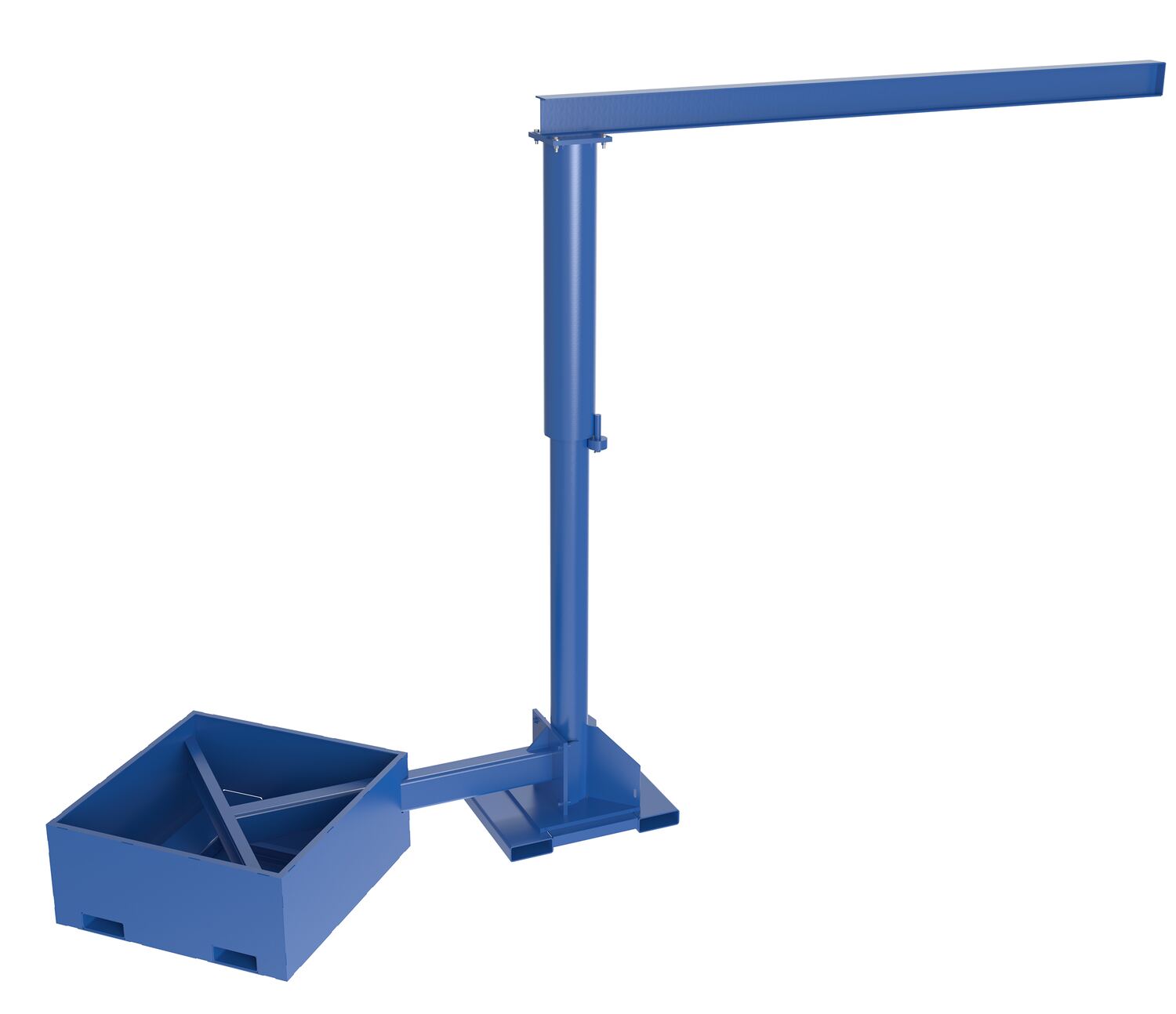

JIB-CBX-25-10-10 JIB-CBX-25-10-101 Year Limited WarrantySteel Portable Offset Jib Crane with Empty Base 10 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 120		22862
JIB-CBX-25-10-10-BC JIB-CBX-25-10-10-BC1 Year Limited WarrantySteel Portable Offset Jib Crane with Filled Base 10 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 120		23570
JIB-CBX-25-8-10 JIB-CBX-25-8-101 Year Limited WarrantySteel Portable Offset Jib Crane with Empty Base 8 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 96		21784
JIB-CBX-25-8-10-BC JIB-CBX-25-8-10-BC1 Year Limited WarrantySteel Portable Offset Jib Crane with Filled Base 8 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 96		23515

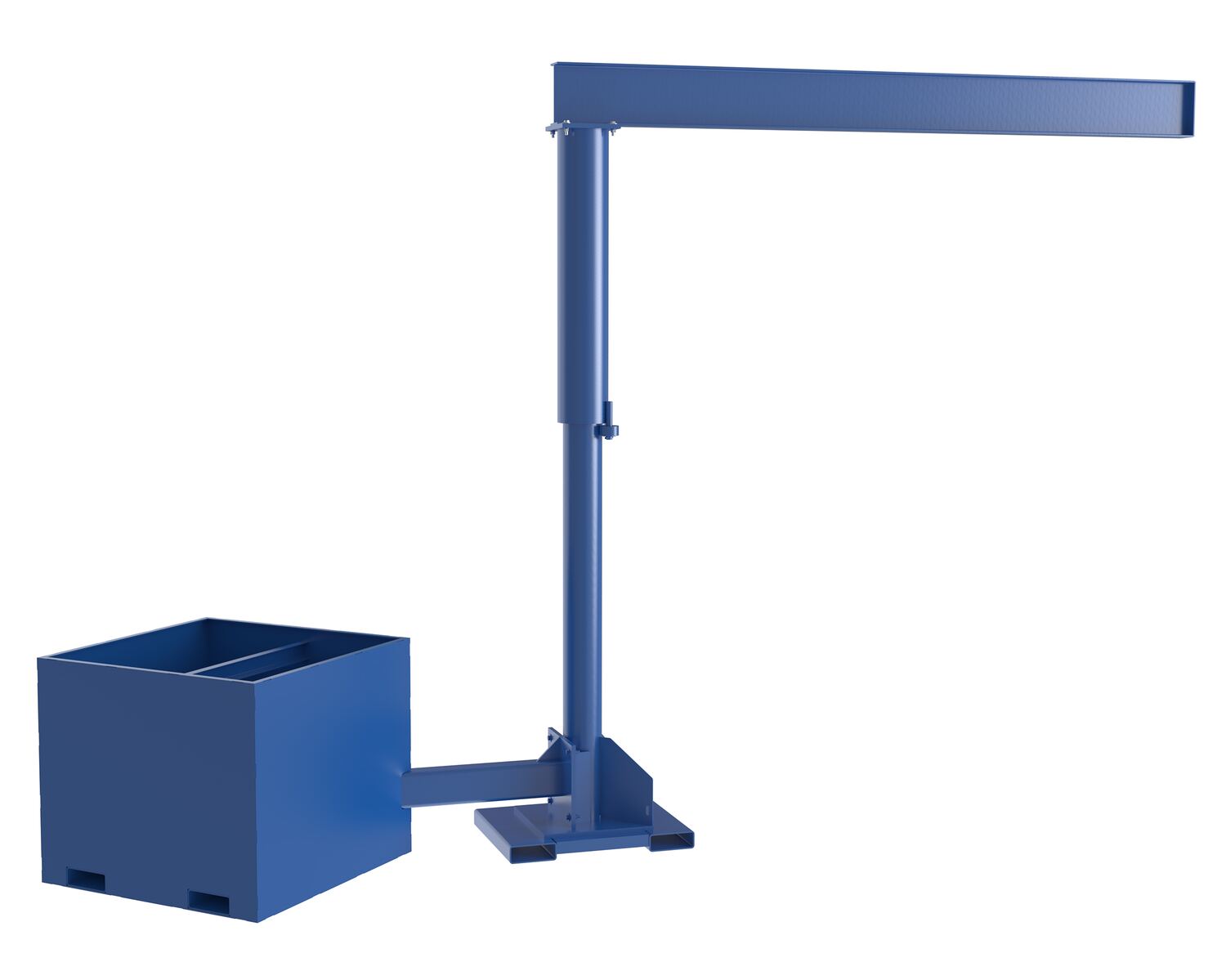

JIB-CBX-50-10-10 JIB-CBX-50-10-101 Year Limited WarrantySteel Portable Offset Jib Crane with Empty Base 10 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 120		22772

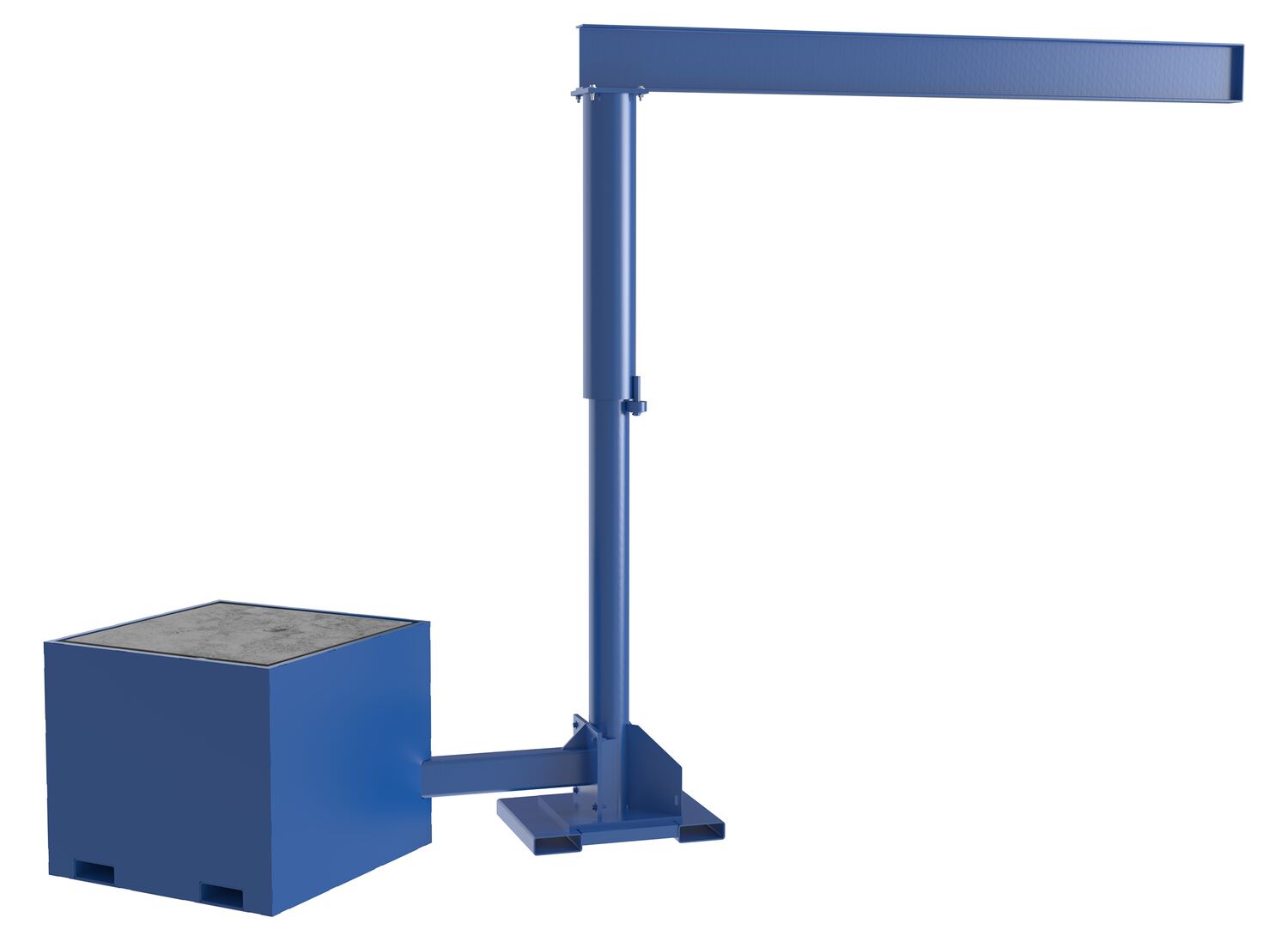

JIB-CBX-50-10-10-BC JIB-CBX-50-10-10-BC1 Year Limited WarrantySteel Portable Offset Jib Crane with Filled Base 10 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 120		26477

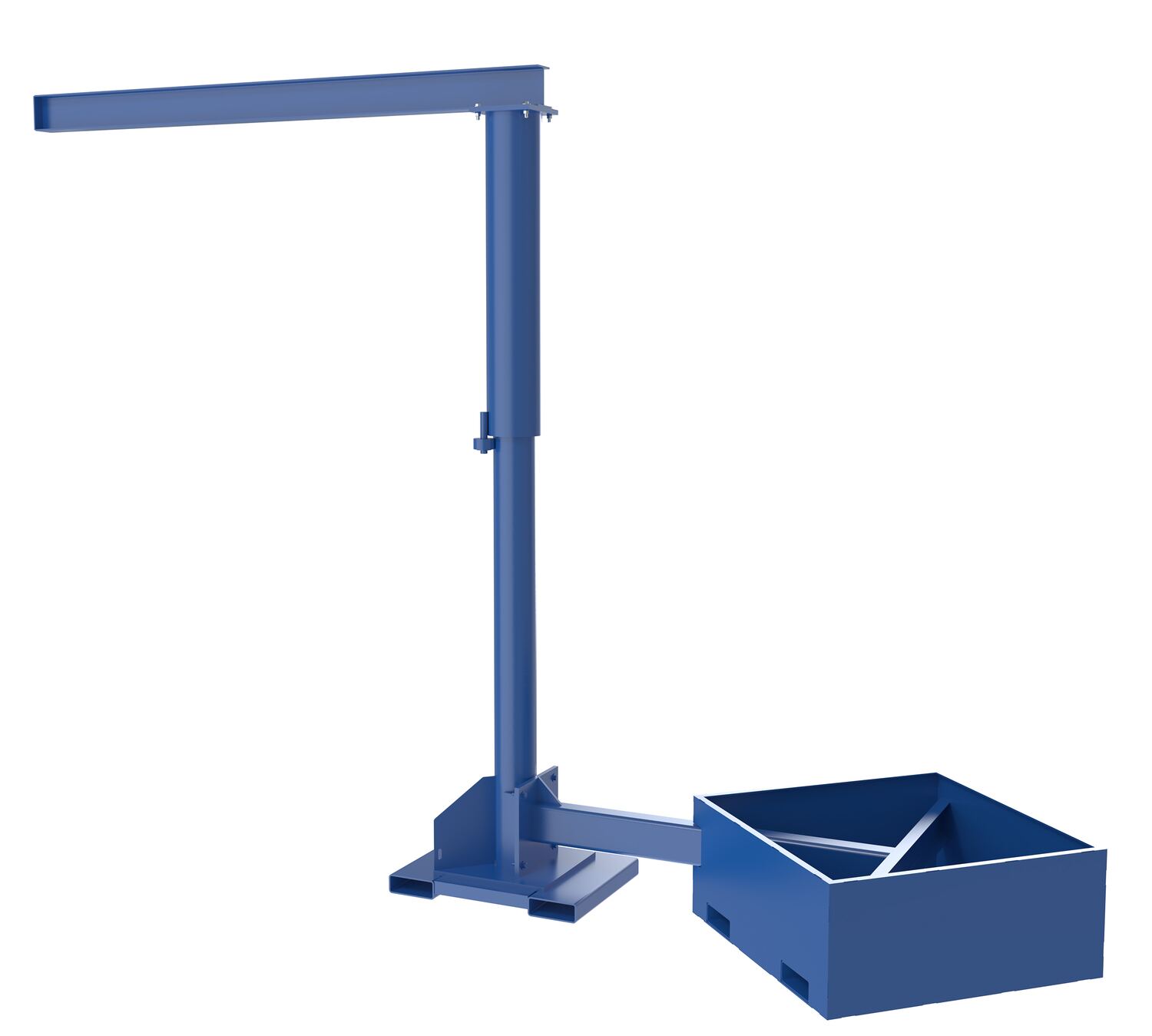

JIB-CBX-50-8-10 JIB-CBX-50-8-101 Year Limited WarrantySteel Portable Offset Jib Crane with Empty Base 8 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 96		22384

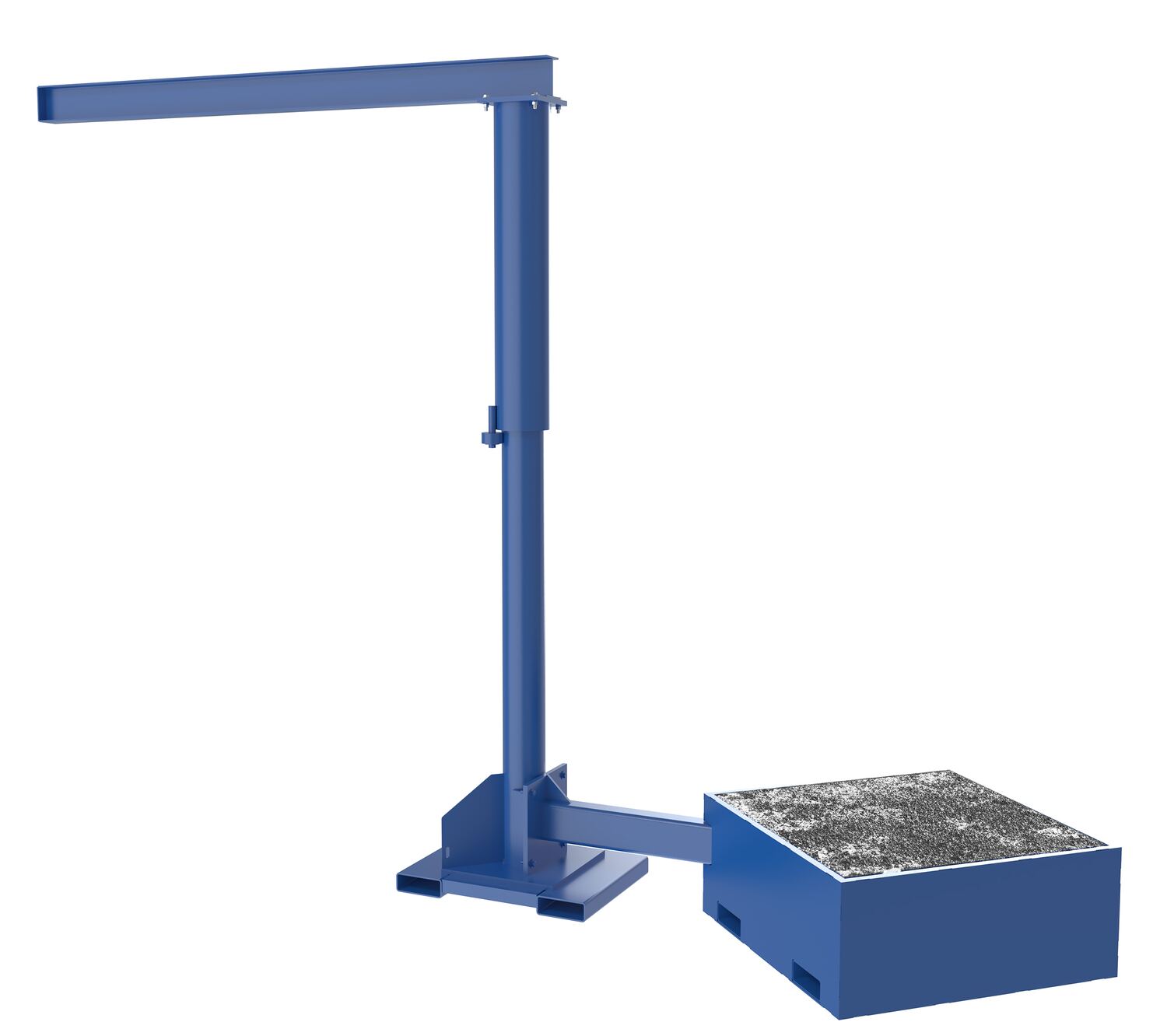

JIB-CBX-50-8-10-BC JIB-CBX-50-8-10-BC1 Year Limited WarrantySteel Portable Offset Jib Crane with Filled Base 8 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 96		23534

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

JIB-CBX-100-8-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96

JIB-CBX-100-8-10-BC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96

JIB-CBX-25-10-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 120
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 120

JIB-CBX-25-10-10-BC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 120
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 120

JIB-CBX-25-8-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 96

JIB-CBX-25-8-10-BC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 96

JIB-CBX-50-10-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 120
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 120

JIB-CBX-50-10-10-BC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 120
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 120

JIB-CBX-50-8-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 96

JIB-CBX-50-8-10-BC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 96
For More Details of the Option Click the Red Model Button
JIB-CBX-18-B JIB-CBX-18-B1 Year Limited WarrantySteel Offset Empty Concrete Base 18 In. Height For JIB Crane Models BlueFillable Base Height (in.): 18
Base Width/Length (in.): 42-3/16 x 42-3/16		532
JIB-CBX-18-BC JIB-CBX-18-BC1 Year Limited WarrantySteel Offset Concrete Filled Base 18 In. Height For JIB Crane Models BlueBase Height (in.): 18
Base Width/Length (in.): 42-3/16 x 42-3/16		2870

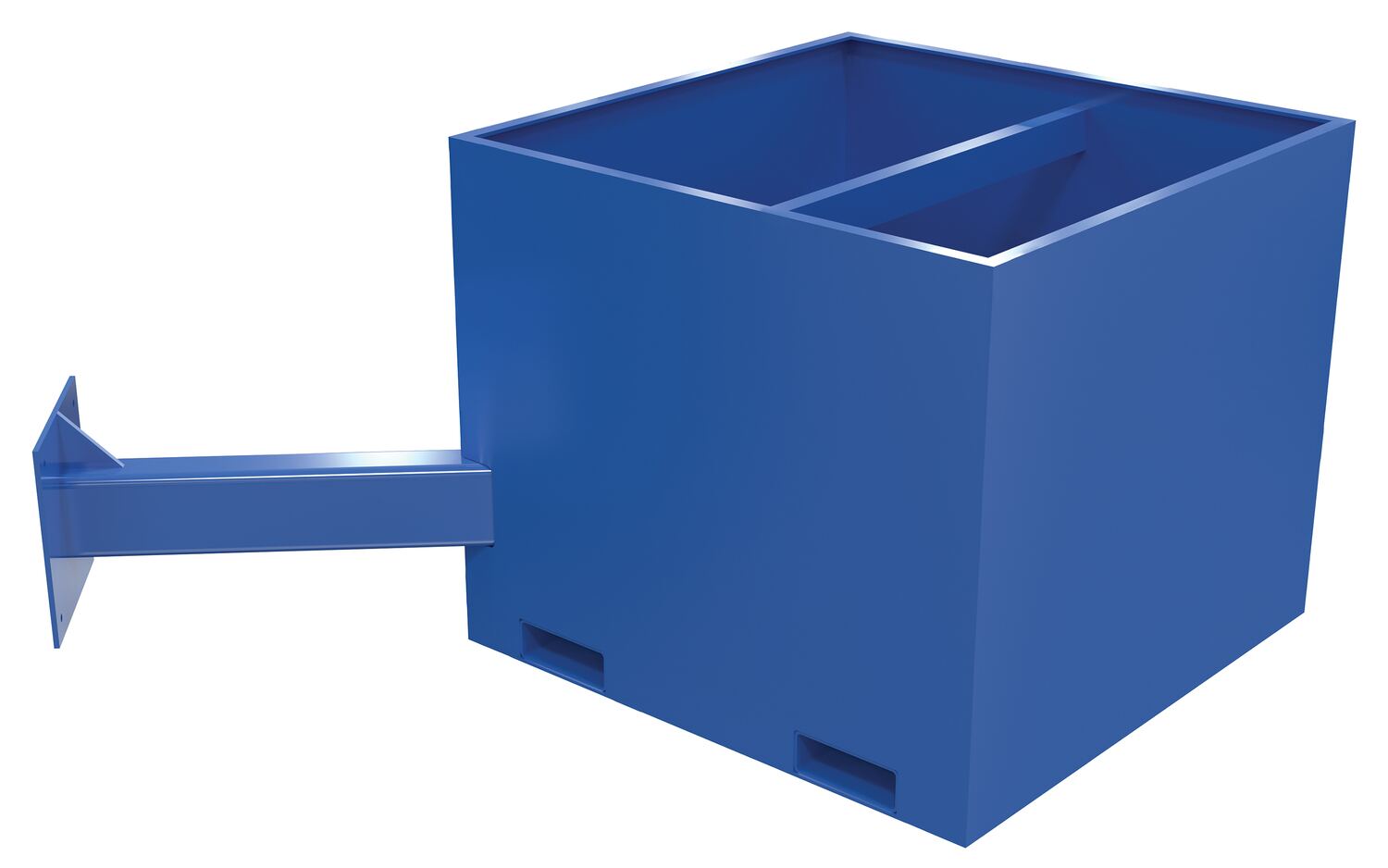

JIB-CBX-36-B JIB-CBX-36-B1 Year Limited WarrantySteel Offset Empty Concrete Base 36 In. Height For JIB Crane Models BlueBase Height (in.): 36
Base Width/Length (in.): 42-3/16 x 42-3/16		655

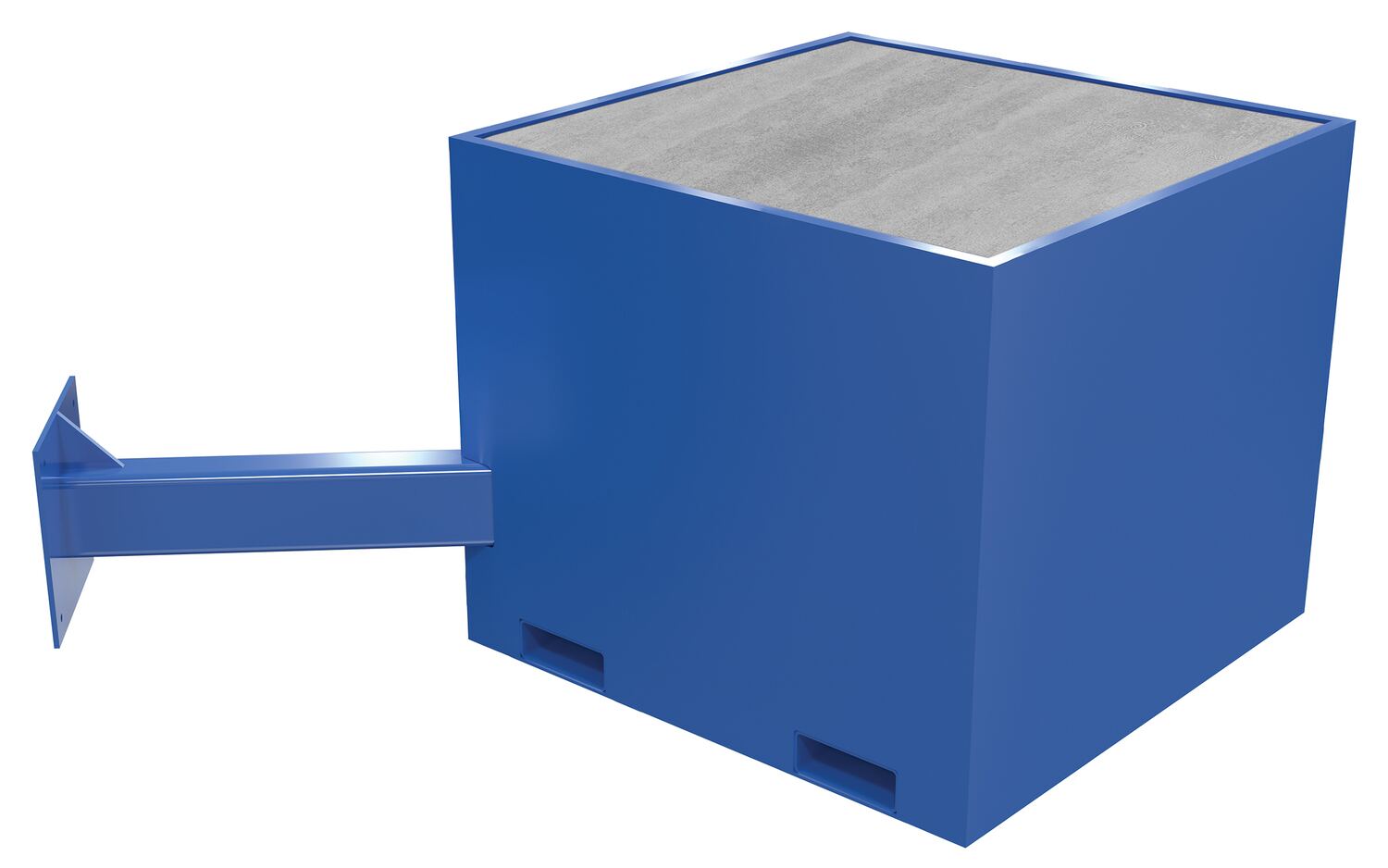

JIB-CBX-36-BC JIB-CBX-36-BC1 Year Limited WarrantySteel Offset Concrete Filled Base 36 In. Height For JIB Crane Models BlueBase Height (in.): 36
Base Width/Length (in.): 42-3/16 x 42-3/16		5449

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Portable Offset Jib Cranes PDF's will open in a new window when clicked.

Manuals


JIB-CBX
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


JIB-CBX-100-8-10

JIB-CBX-100-8-10-BC

JIB-CBX-18-B

JIB-CBX-18-BC

JIB-CBX-25-10-10

JIB-CBX-25-10-10-BC

JIB-CBX-25-8-10

JIB-CBX-25-8-10-BC

JIB-CBX-36-B

JIB-CBX-36-BC

JIB-CBX-50-10-10

JIB-CBX-50-10-10-BC

JIB-CBX-50-8-10

JIB-CBX-50-8-10-BC

Testing Certificates


JIB-CBX-100-8-10

JIB-CBX-100-8-10-BC

JIB-CBX-18-B

JIB-CBX-18-BC

JIB-CBX-25-10-10

JIB-CBX-25-10-10-BC

JIB-CBX-25-8-10

JIB-CBX-25-8-10-BC

JIB-CBX-36-B

JIB-CBX-36-BC

JIB-CBX-50-10-10

JIB-CBX-50-10-10-BC

JIB-CBX-50-8-10

JIB-CBX-50-8-10-BC

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
